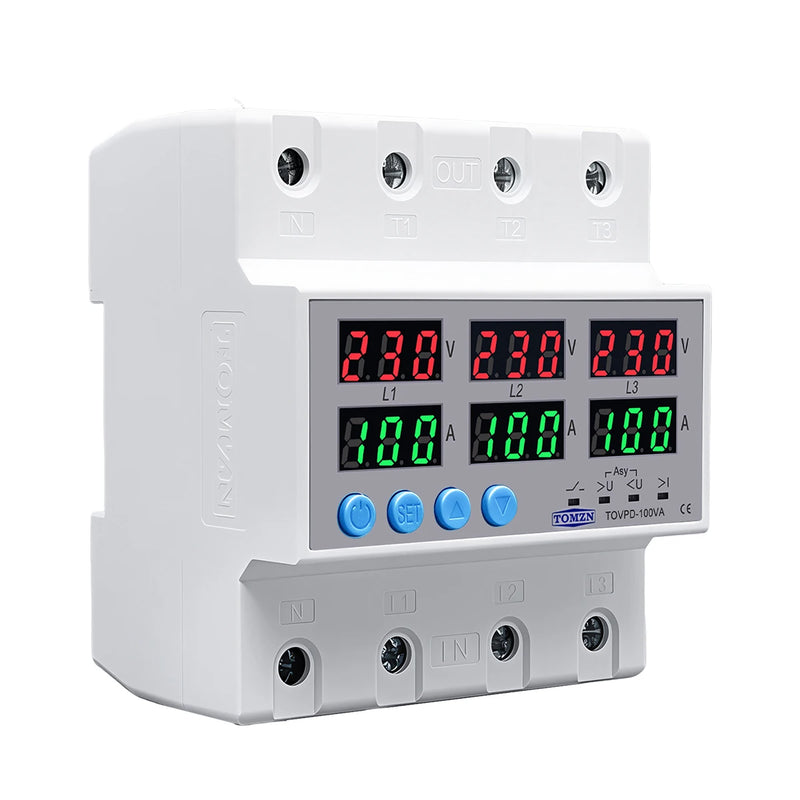

TOMZN 100A 3Phase Din Rail Voltmeter Ammeter Adjustable Over and Under Voltage Current Limit Protection Monitor Relays Protector

Name: TOMZN 100A 3Phase Din Rail Voltmeter Ammeter Adjustable Over and Under Voltage Current Limit Protection Monitor Relays Protector
Brand: TOMZN
SKU: 1005002998663715-100A without N 380V
Price: 15.21 USD
Availability: InStock

by ដោយ TOMZN

All prices exclude shipping and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន និងពន្ធទេ។

Choose language

TOMZN 100A 3Phase Din Rail Voltmeter Ammeter Adjustable Over and Under Voltage Current Limit Protection Monitor Relays Protector

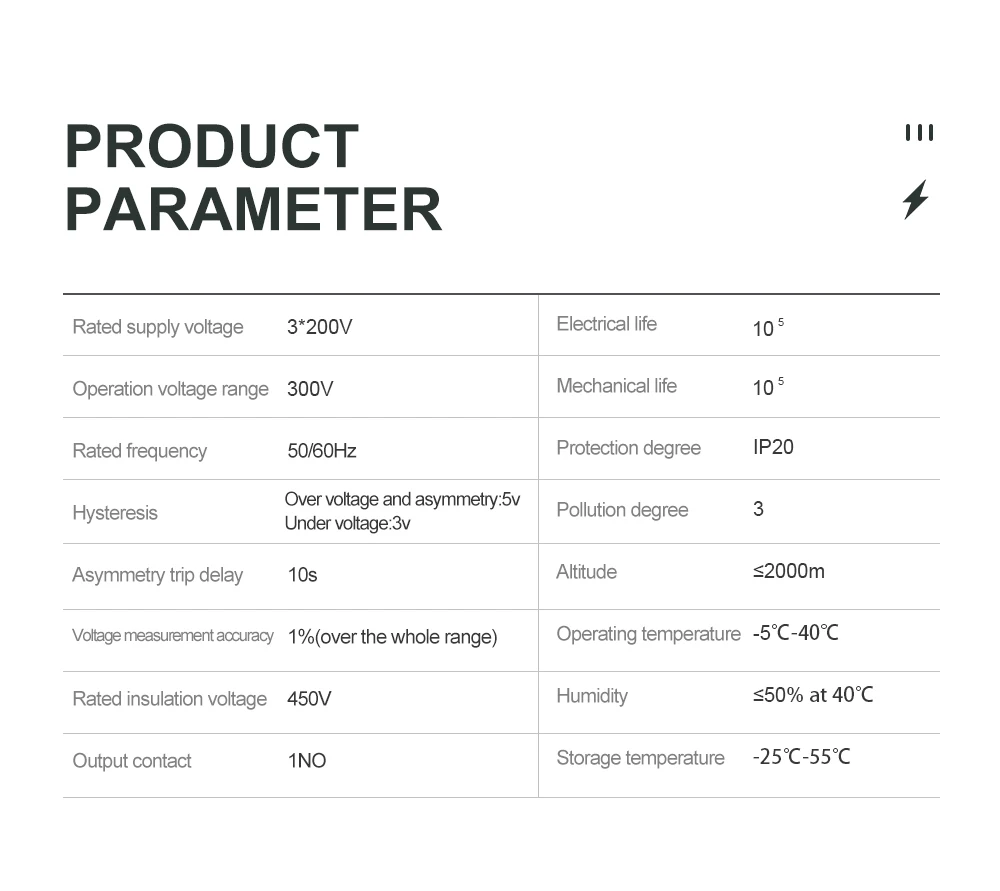

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: TOVPD3-63VA

Origin: Mainland China

Type: Voltage protector

is_customized: Yes

Please noted:

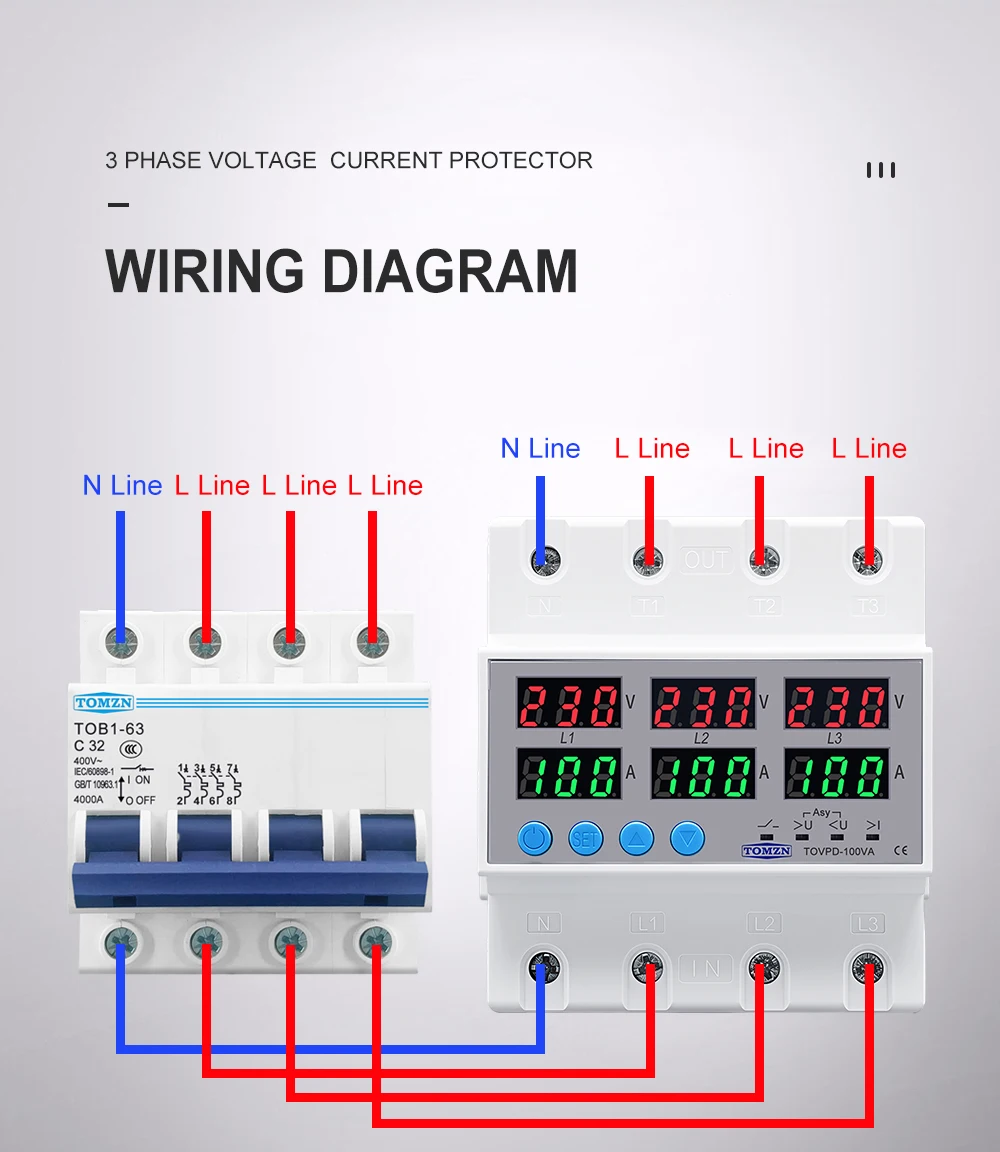

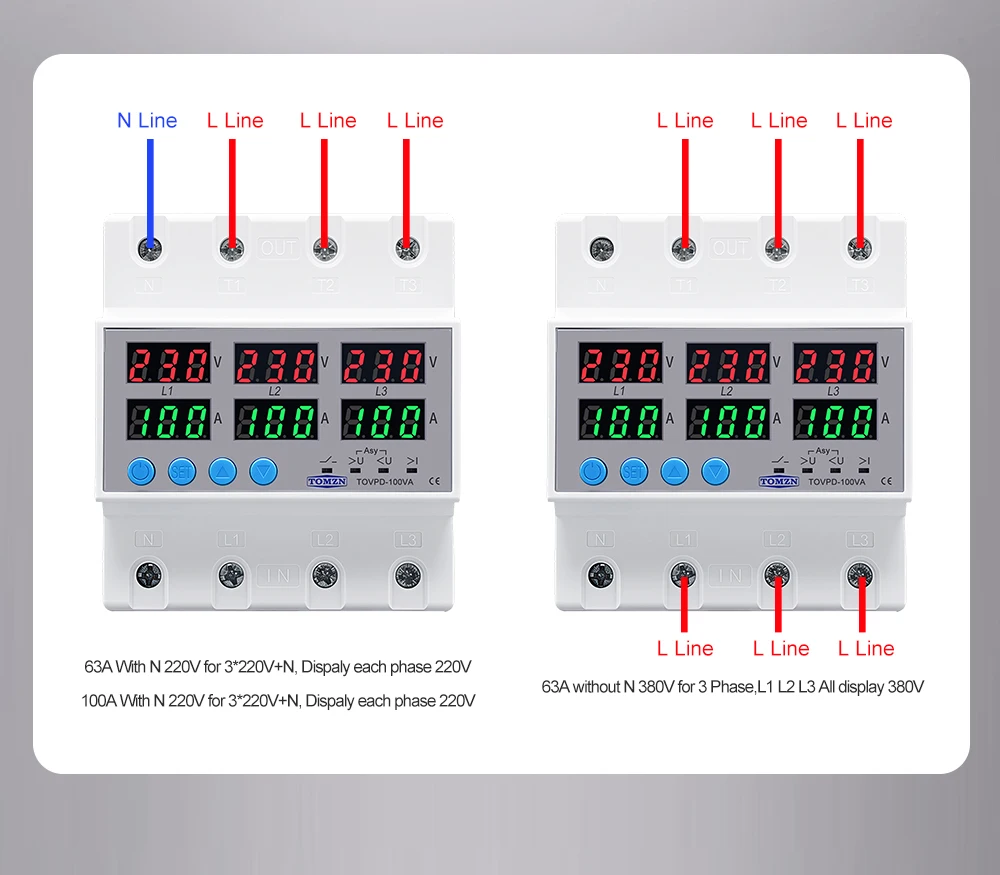

63A With N 220V for 3*220V+N, Dispaly each phase 220V

63A without N 380V for 3 Phase, L1 L2 L3 All display 380V

100A With N 220V for 3*220V+N, Dispaly each phase 220V

1.Over-voltage protection: Adjustable
2.Under-voltage protection: Adjustable

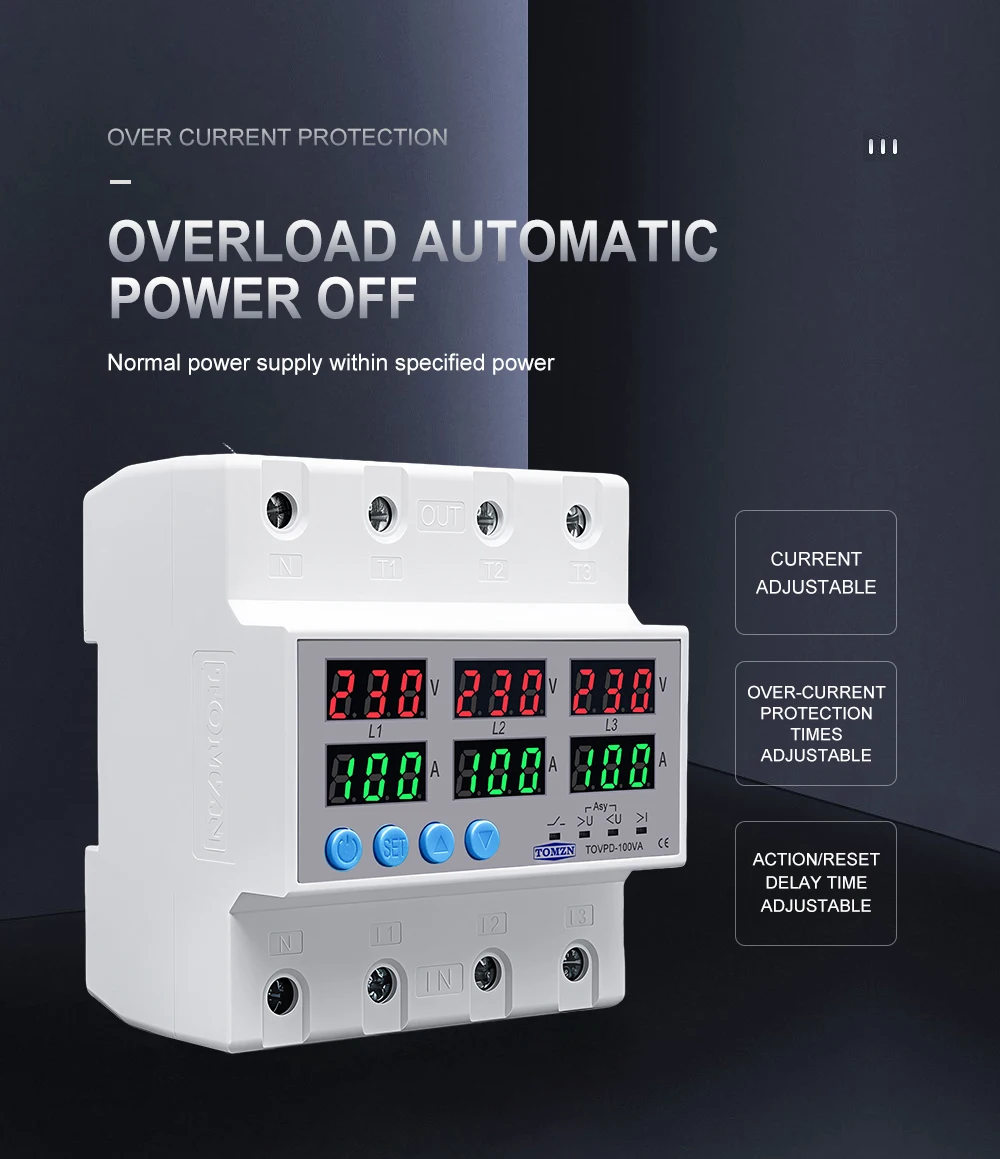

3.Over-Current protection: Adjustable
4. Asymmetry protection
5.Phase squence protection
6. Active time and reconnect time adjsutable

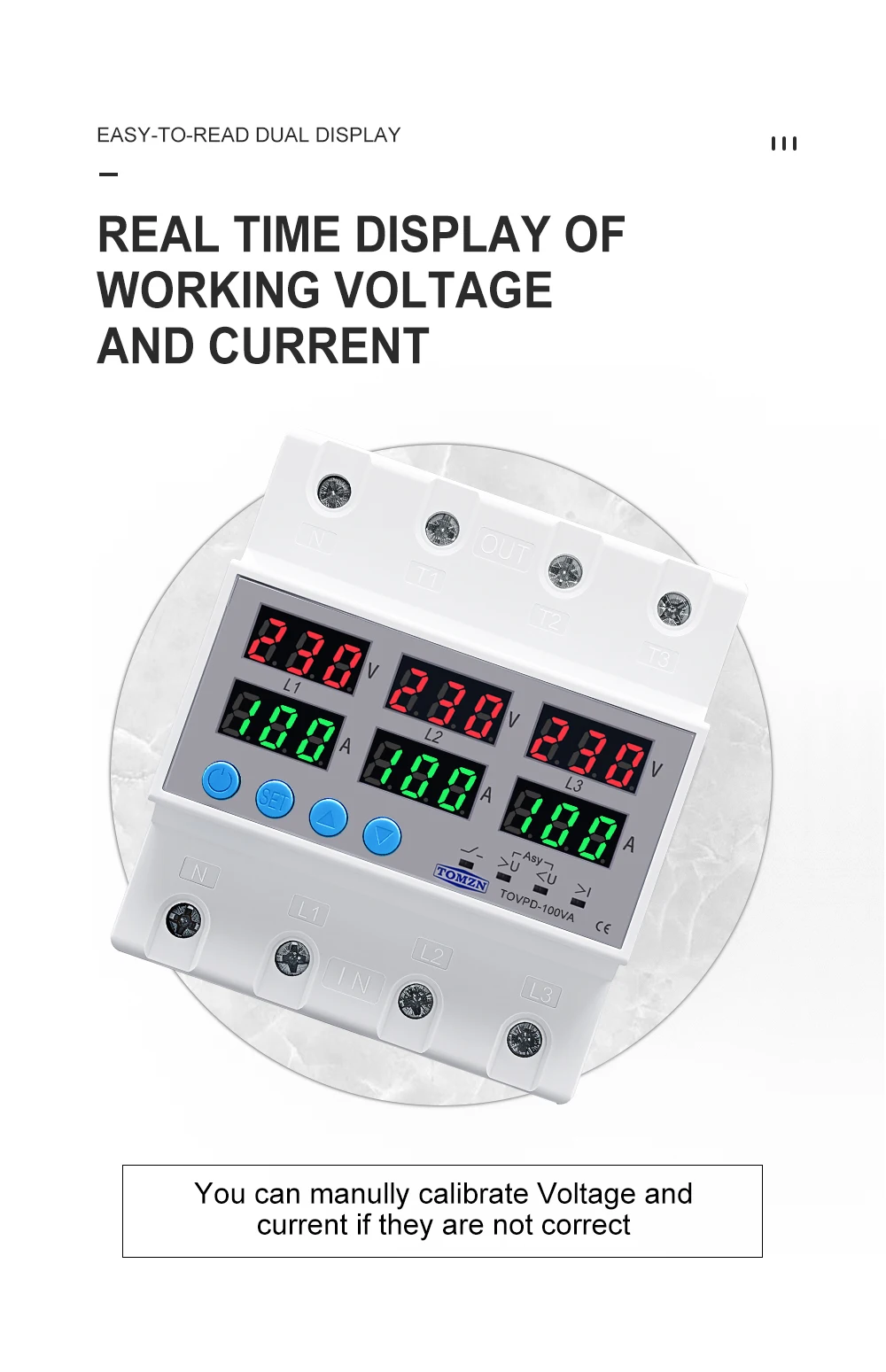

7. Voltage and current can be manually calibrated

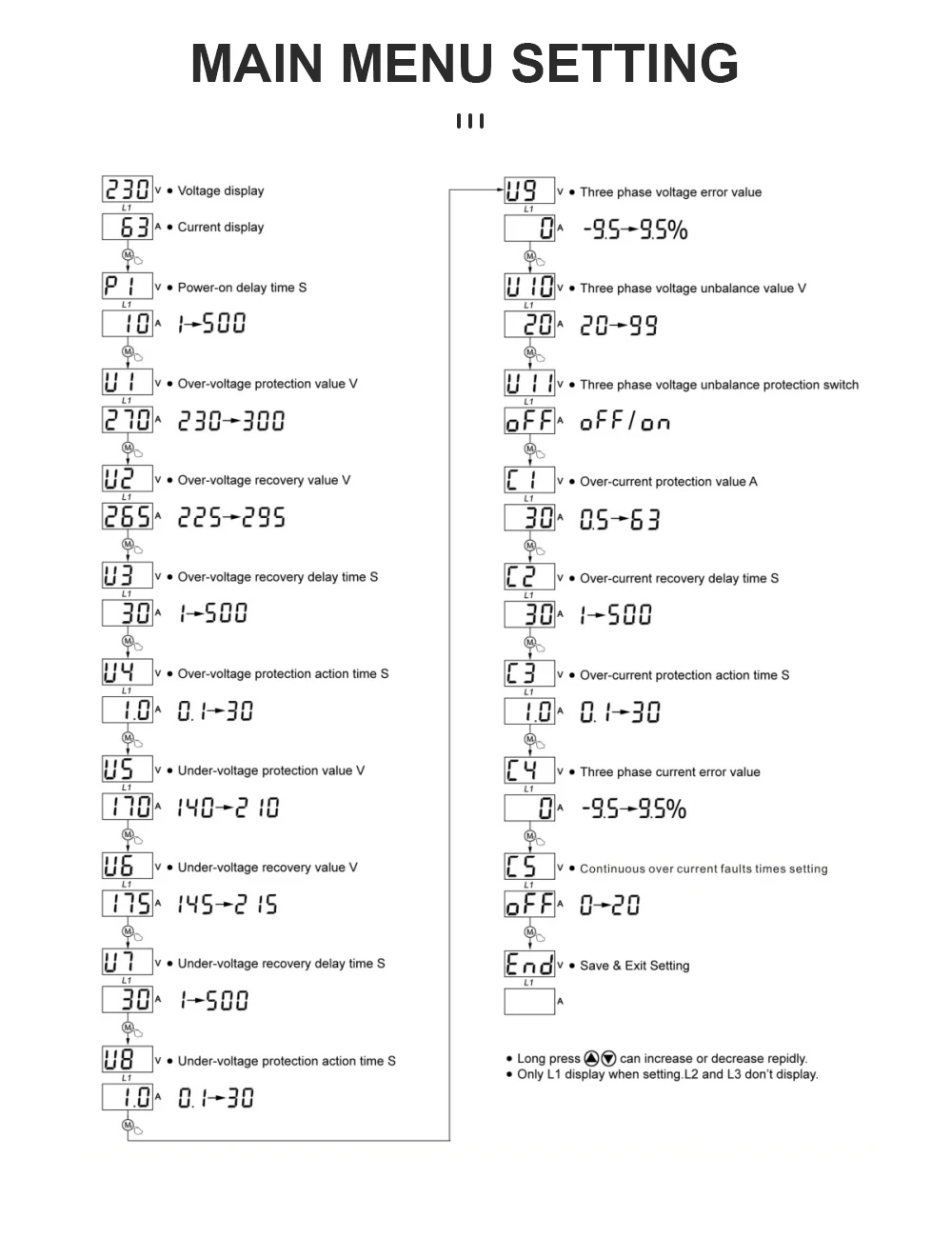

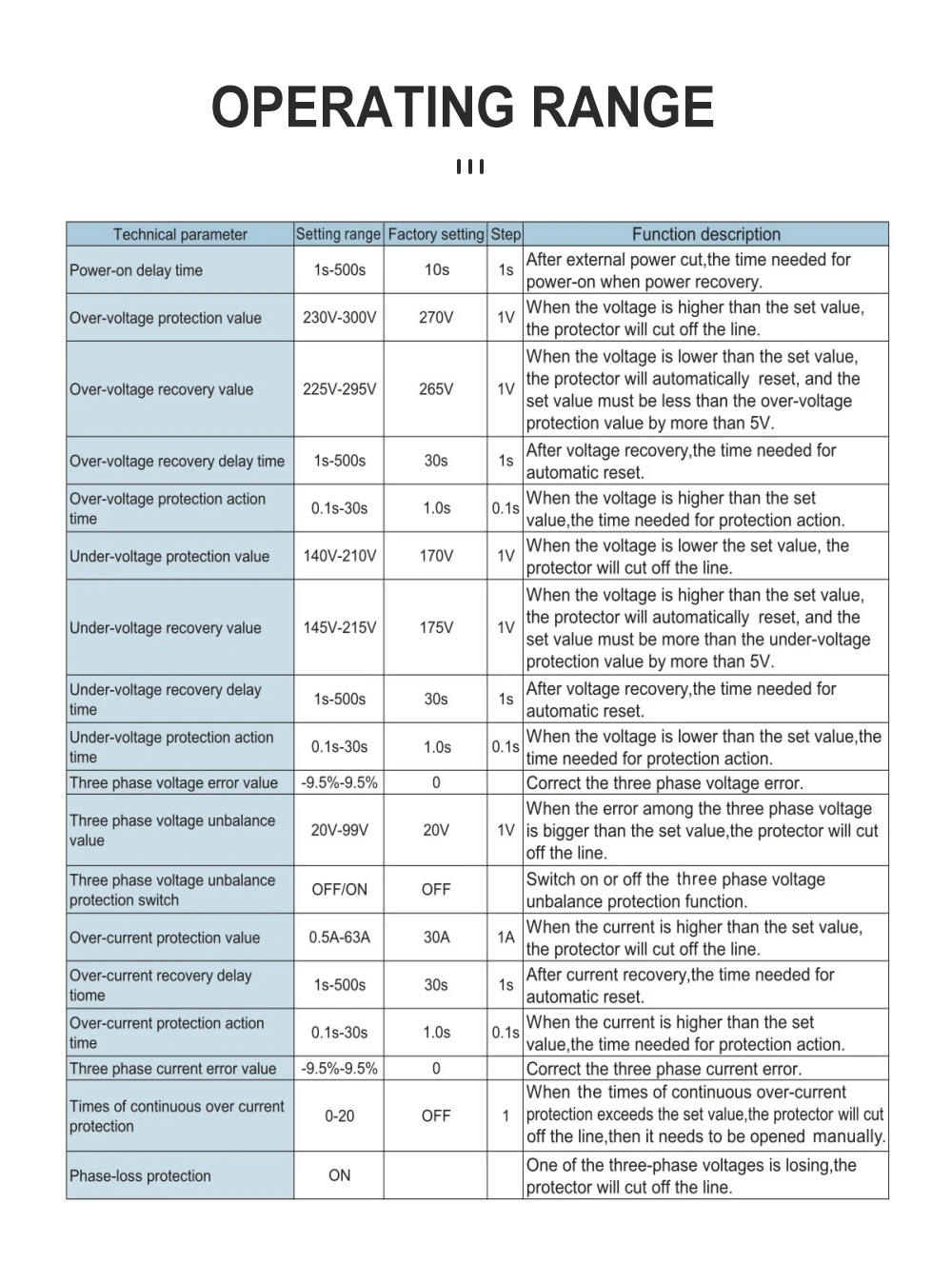

Code	Parameter	Value
P1	Power On Time	1-500S
U1	Over Voltage	230-300V
U2	Recovery Voltage	220-295V
U3	Recovery Time	1-500S
U4	Power Off delay Time	0.1-30S
U5	Under Voltage	140-210V
U6	Recovery Voltage	145-215V
U7	Recovery Time	1-500S
U8	Power Off delay Time	0.1-30S
U9	Voltage Deviation	-9.5 to 9.5%
U10	Asymmetry	20-99V
U11	Phase squence protect	on/off
C1	Over Current	3-63A
C2	Recovery Time	1-500S
C3	Power Off delay Time	0.1-30S
C4	Current Deviation	-9.5 to 9.5%
C5	Continues Over Current Times	1-20 off
