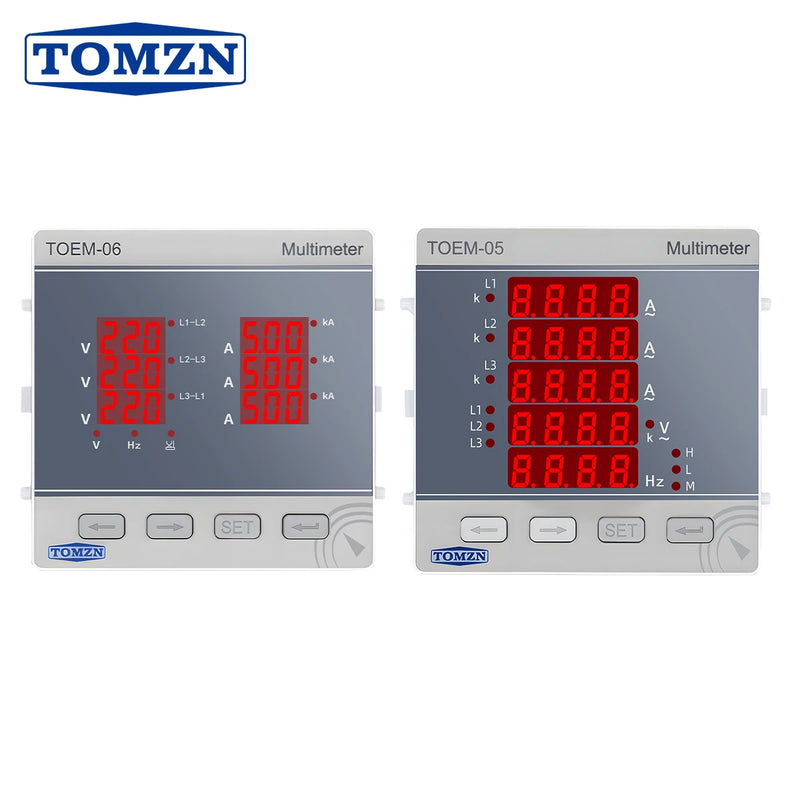

Three-Phase High Precision Volt/Current/Hz Multi-function Meter 3P4W ACDC 85–265V Line-to-Line Voltage Password Max/Min Value

by ដោយ TOMZN

All prices exclude shipping and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន និងពន្ធទេ។

Choose language

Three-Phase High Precision Volt/Current/Hz Multi-function Meter 3P4W ACDC 85–265V Line-to-Line Voltage Password Max/Min Value

SPECIFICATIONS

Accuracy Class: 0.5

Battery Included: no

Brand Name: TOMZN

Certification: CE

DIY Supplies: Electrical

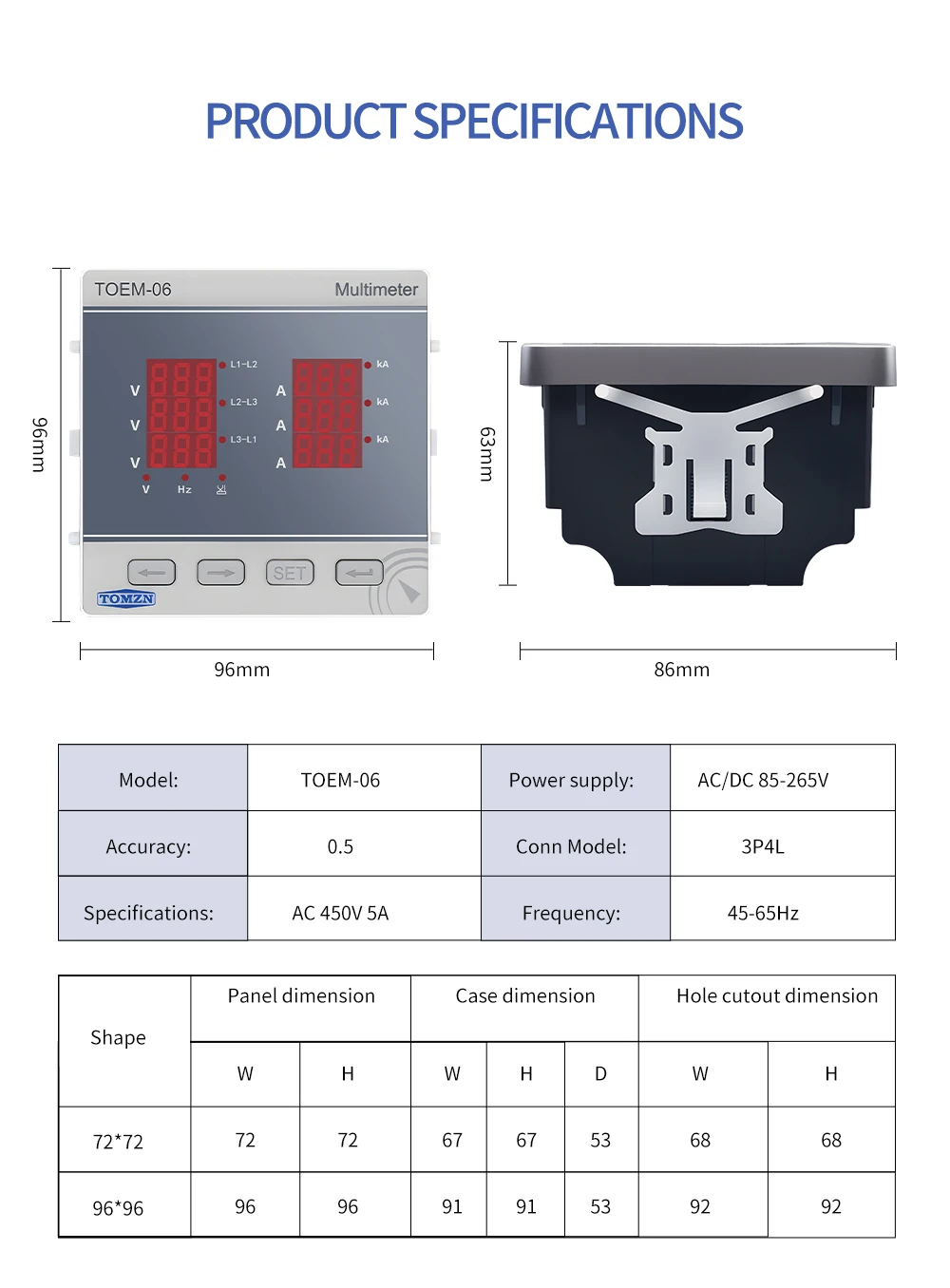

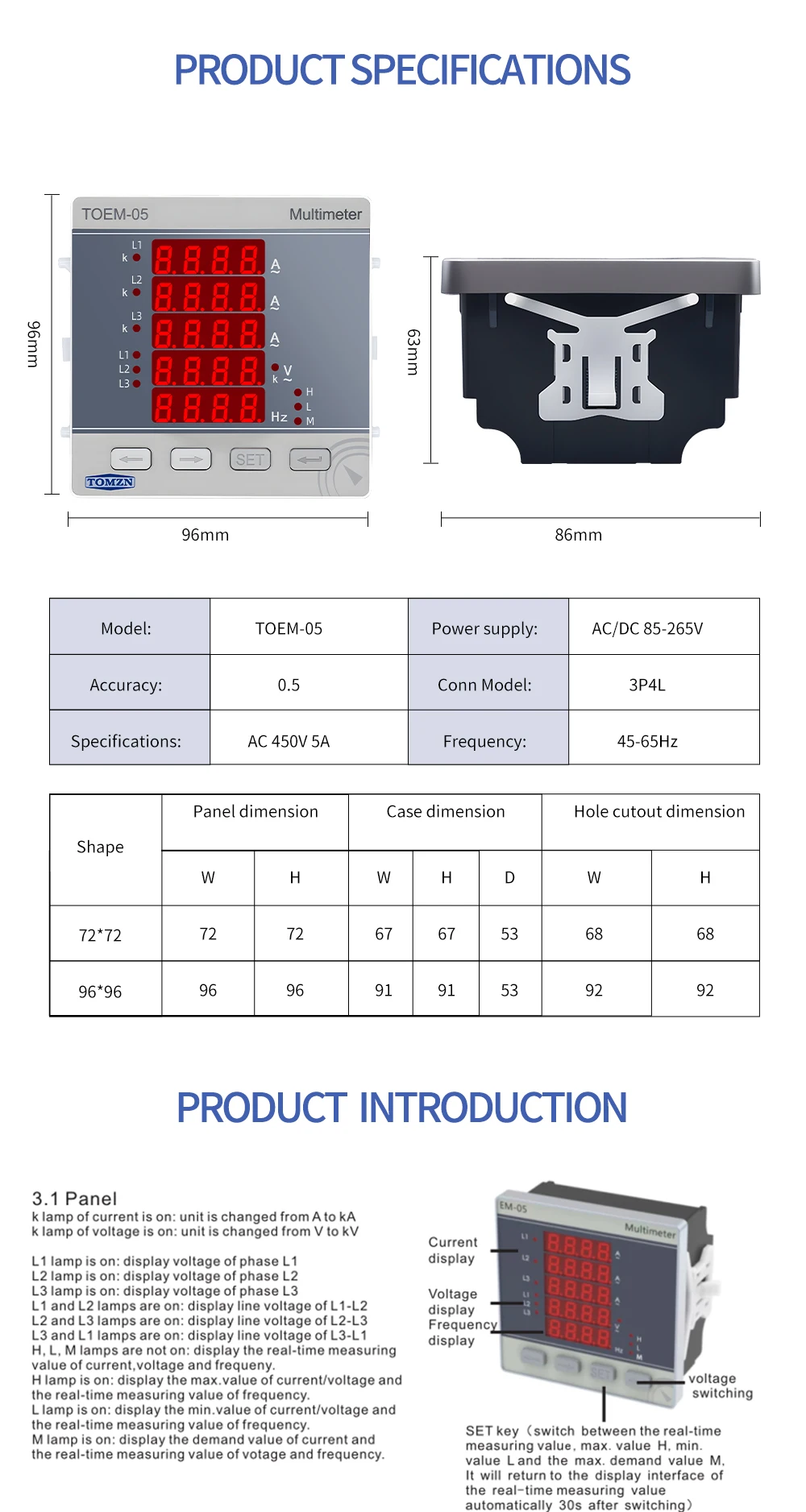

Dimensions: 96*96*91mm

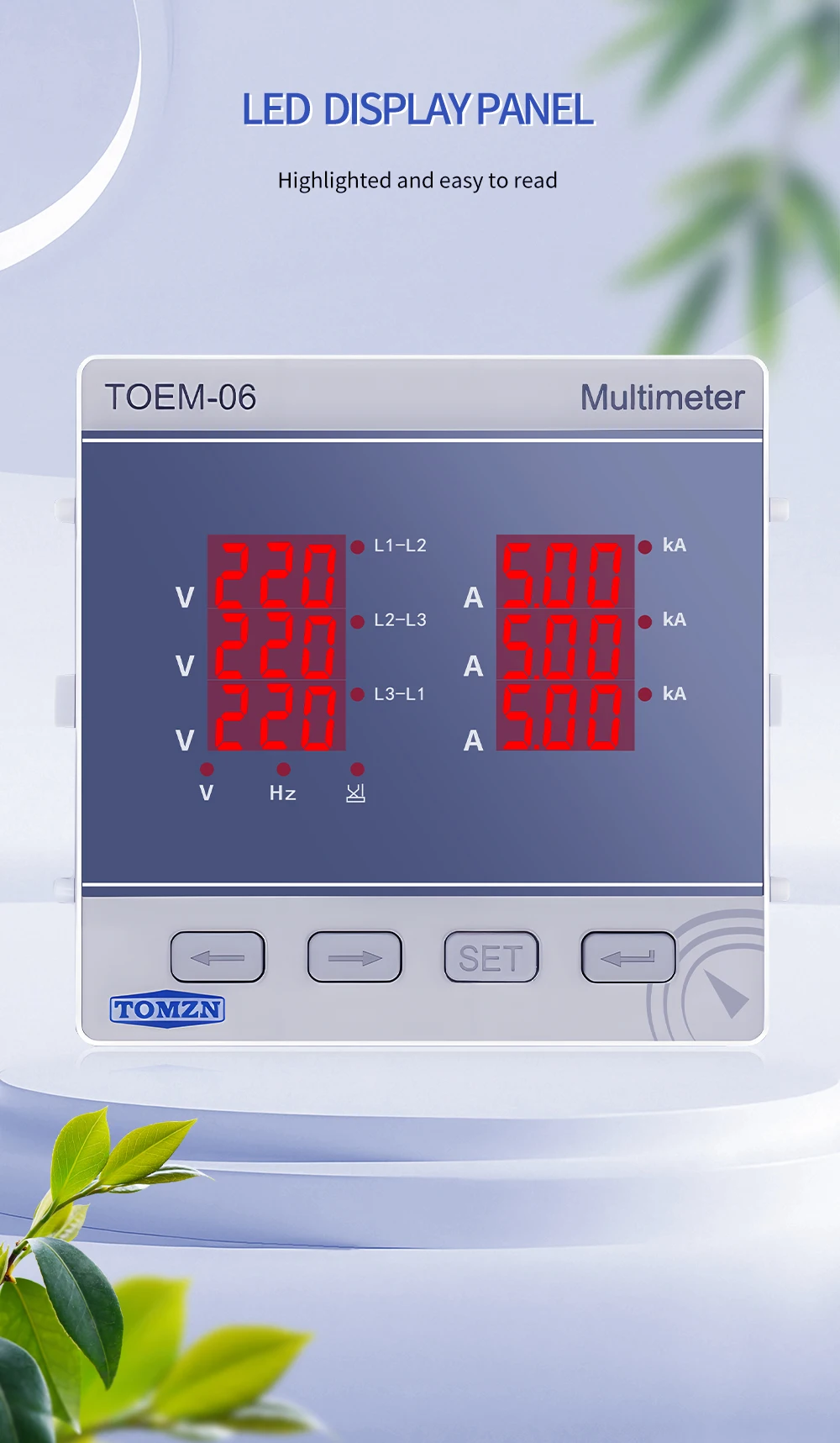

Display Type: Digital Only

High-concerned chemical: none

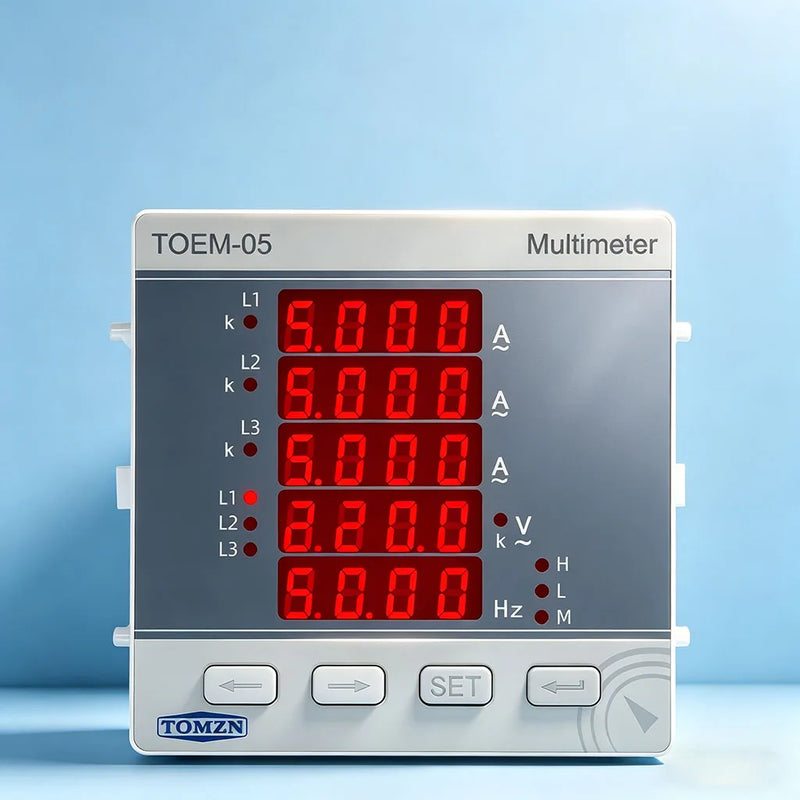

Model: TOEM-05

Model Number: TOEM-05

Operating Temperature: Normal

Origin: Mainland China

Power Supply: AC/DC 85-265V

Semi-finishedproduct: No

Specifications: AC 450V 5A

Voltage range: 100-500V AC

Product Introduction

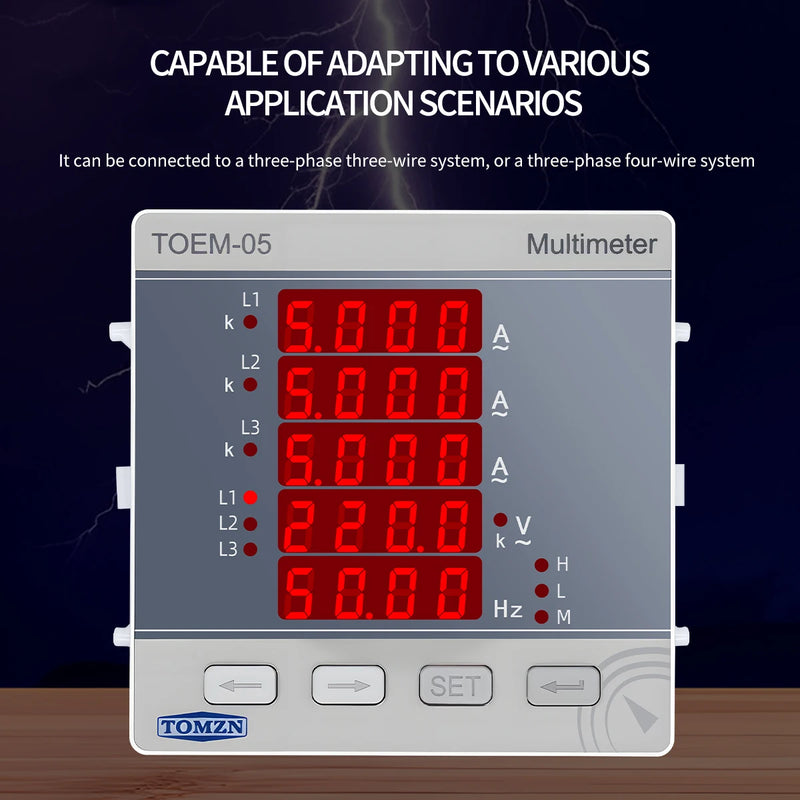

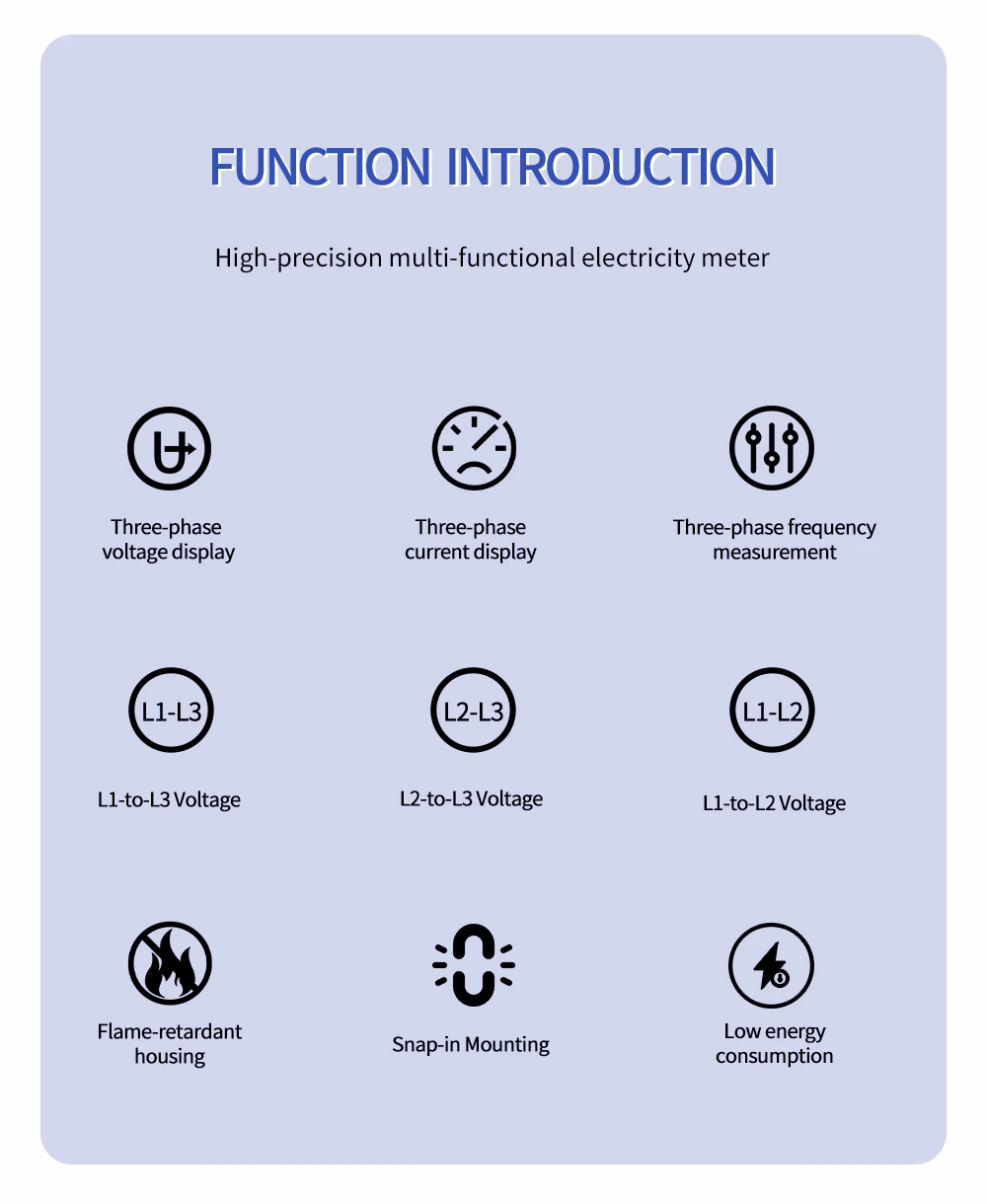

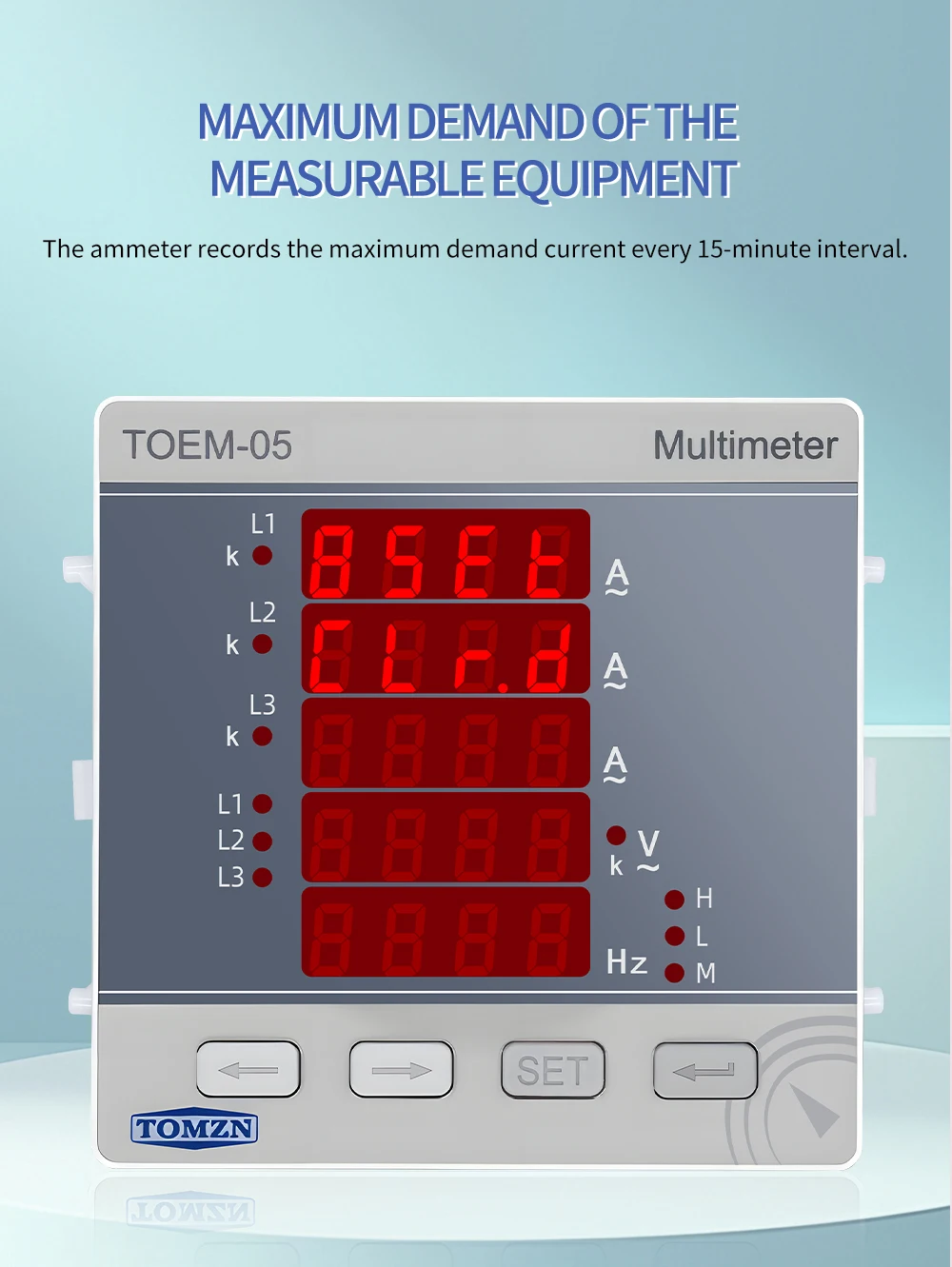

The Digital Multimeter (V-I-Hz) is designed for measuring and displaying three-phase voltage, three-phase current and frequency in power systems. It is equipped with view functions to show the maximum and minimum values of voltage and current, as well as the maximum demand value of current, providing comprehensive and intuitive data monitoring for power system operation.

Product Data Sheet

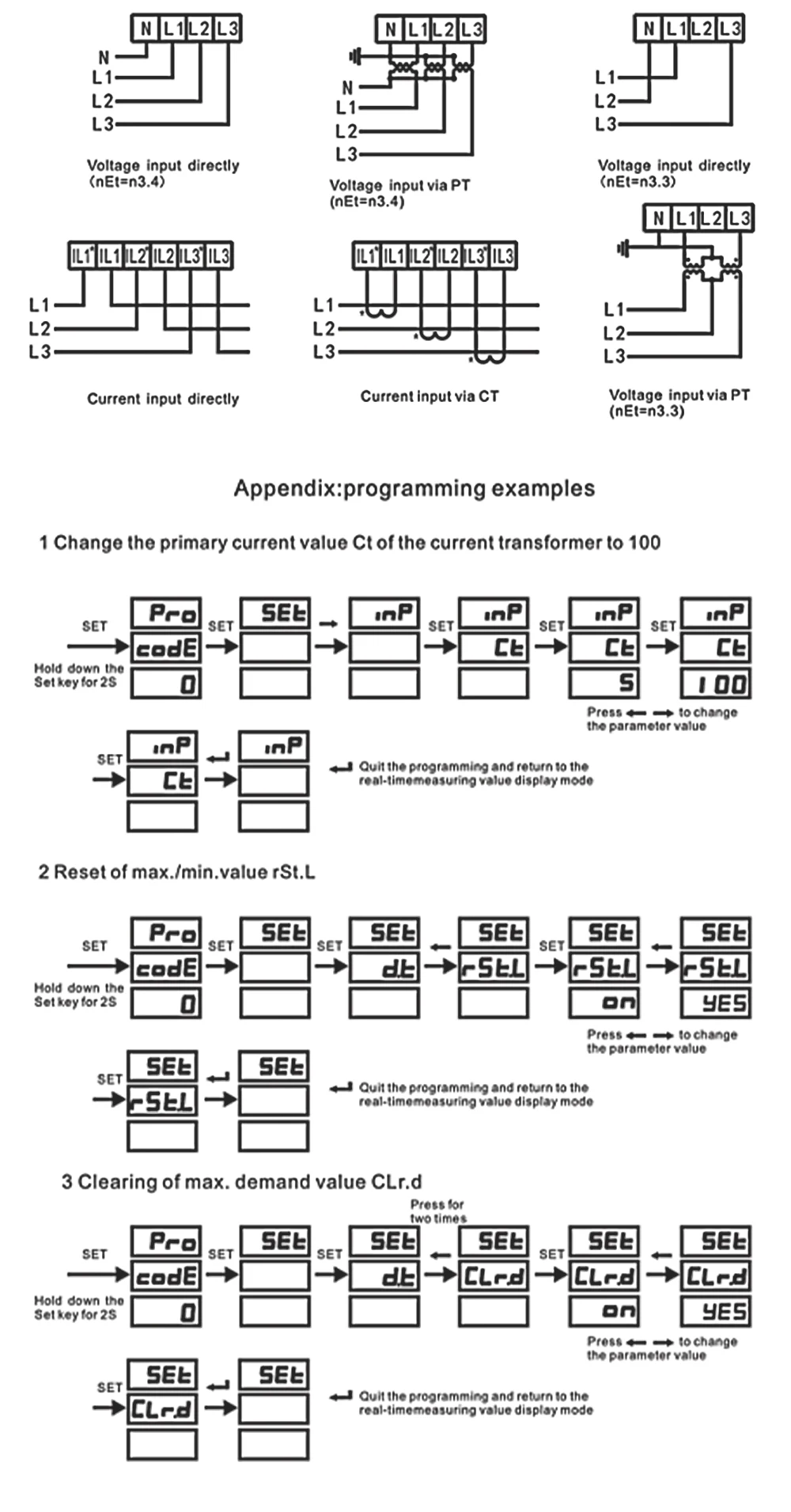

Measuring Range (can overload 1.2 times continuously): Voltage - Direct measurement: AC 100V, 220V/380V or 500V; Current - Direct measurement: AC 1A or 5A; External current transformer: AC /1A or /5; Frequency - 45~65Hz

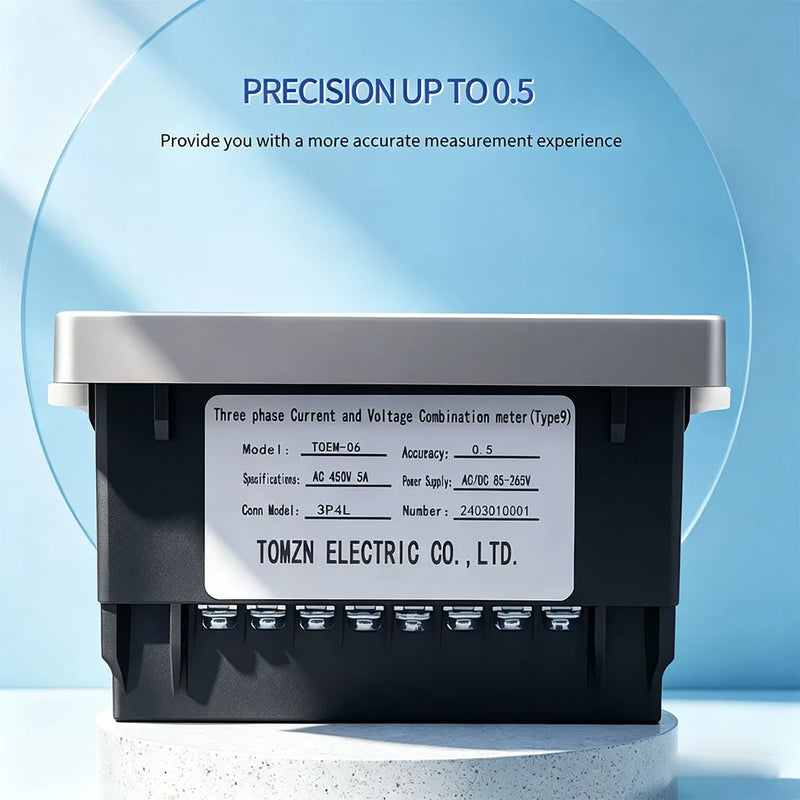

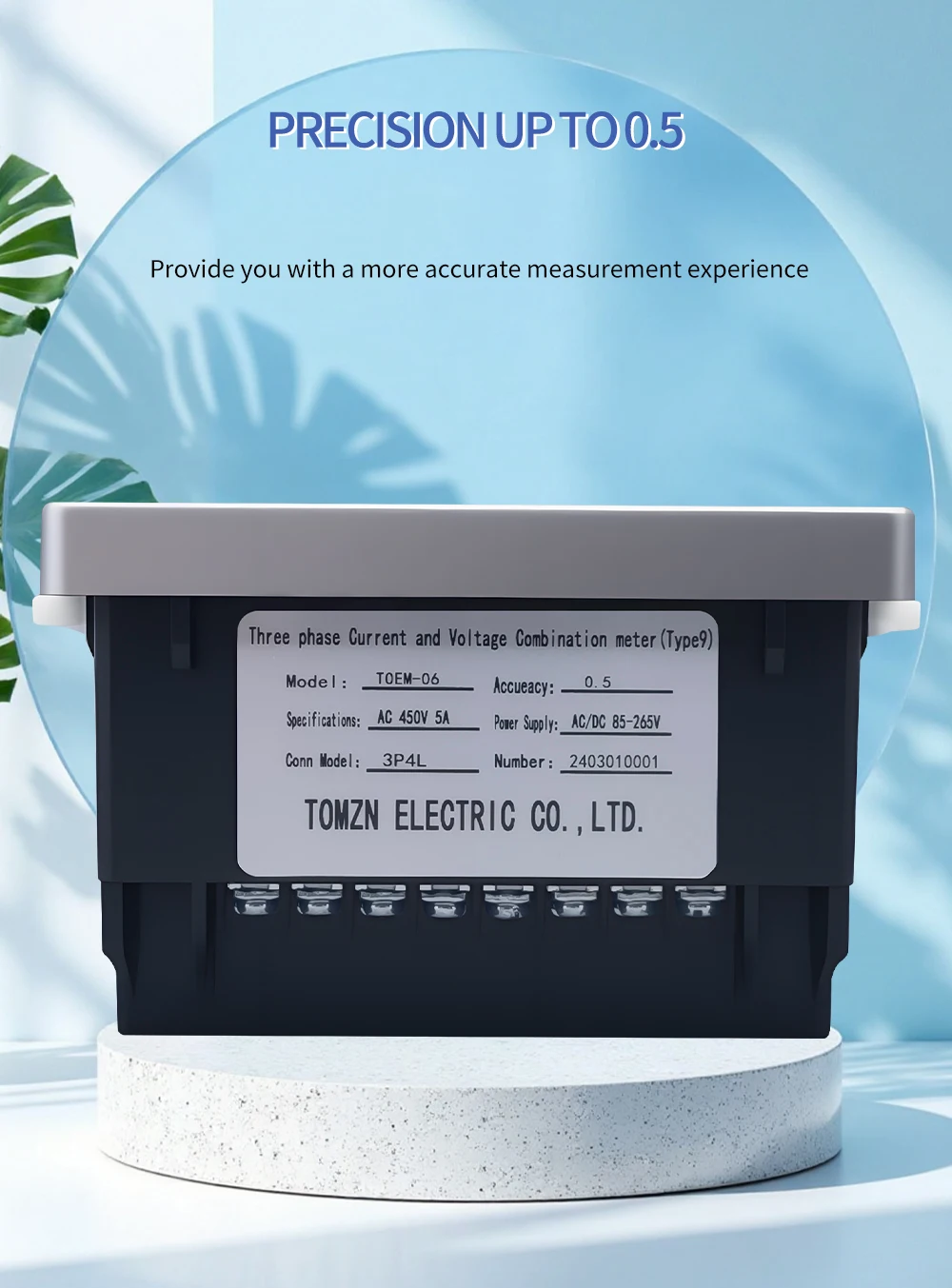

Accuracy: class 0.5

Sampling rate: 1.5 times/s

Input circuit power consumption: <0.5VA/phase

Display resolution: voltage max. 0.1V; current max. 0.001A; frequency 0.01Hz

Auxiliary power supply: AC220V ±15%, 50/60Hz, <3VA

Working environment: places free of corrosive gas; temperature: -10~50℃; humidity: <85%RH
