Sonoff Zigbee Gateway USB Dongle Plus Hub for Home Assistant Zigbee2MQTT Open Thread Border Router for Smart Home Dongle-PP10

SPECIFICATIONS

Brand Name: SONOFF

Certification: FCC,CE,RoHS

Communication method: Zigbee

Compatibility: All Compatible

Dimensions: 18 mm x10.5 mmx214 mm

High-concerned chemical: none

Input: 5V 500mA

Model Number: Dongle-PP10

Origin: Mainland China

Output Current: 0.5A

RF Frequency: 2.4 GHz

RF Standard: IEEE 802.15.4 / Zigbee 3.0

Signal Strength: Max 20 dBm + antenna gain 3 dBi

Signal range: 200m in free line of sight

Stand-by power consumption: 40 mW

State of Assembly: Ready-to-Go

Supported OS: Windows, Ubuntu, Raspberry Pi OS / Raspbian, Docker

USB-Serial Chip: CP2102(N)

Use: others

Wireless Function: Yes

Working Temperature: -10- 60celsius degree

Zigbee SoC: CC2674P10

Desciprion:

SONOFF Dongle Plus CC2674P10 is a versatile Zigbee USB coordinator featuring the high-performance CC2674P10 chip. It can serve as a gateway adapter for Home Assistant, Zigbee2MQTT, OTBR (OpenThread Border Router), or other open-source platforms, enabling local control of all your Zigbee and Matter over Thread devices.

Additionally, with the SONOFF Dongle Flashing Tool, you can easily flash Zigbee Router and OpenThread RCP firmware, allowing it to play different roles in your smart home setup.

Hightlight:

• 【More Powerful TI Chip】 Equipped with TI's flagship CC2674P10 chip for Zigbee and Thread, supporting more devices and handling more complex gateway tasks.

• 【Stronger and More Stable Signal Coverage】 With an antenna gain of 3 dBi (up to 4.5 dBi maximum) and RF transmit power up to 20 dBm, it delivers stronger signal strength and more stable connections.

• 【Multi-Platform Compatibility】 Supports a wide range of open-source platforms, including Home Assistant, Zigbee2MQTT, and OTBR, enabling local control of smart home devices using Zigbee and Thread protocols to meet the diverse needs of open-source platform users.

• 【Easy Firmware Flashing】 Supports effortless firmware flashing via the SONOFF Dongle Flasher to switch between different operational roles.

• 【Reliable Quality and Assurance】 Crafted from high-quality materials that are corrosion-resistant and moisture-proof, and backed by a 2-year warranty.

Sonoff Dongle Plus

CC2674P10

Zigbee/Thread USB Dongle

TI's Flagship Zigbee&Thread Chip Core Adapter for Open-Source Plateforms

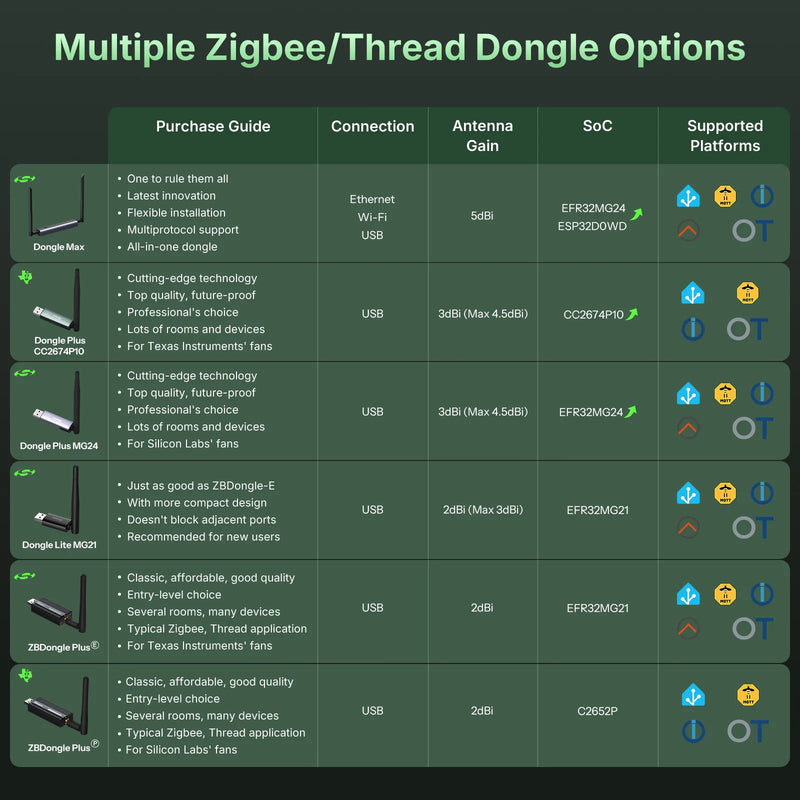

Plug and play with Open-source plateformsTiCC2674P10 Flagship ChipThoroughly Validated to Meet High StandardsComprehensive upgradeGet Your Dongle Zigbee&Matter Ready in eWelink CUBEMultiple Firmware Flashing for Fexible UseMultiple Zigbee/Thread Dongle Options Available for You
