Sonoff Zigbee CC2531 USB Dongle Module Bare Board Packet Protocol Analyzer USB Interface Dongle Supports BASICZBR3 S31 Lite zb

SPECIFICATIONS

Brand Name: SONOFF

Camera Equipped: No

Certification: CE

Communication method: Zigbee

Compatibility: All Compatible

High-concerned chemical: none

Inbox adaptor: No

Interface: Debug interface

Name: Zigbee CC2531 USB Dongle

Origin: Mainland China

Power Source: Other,Other

Size: 5.6*1.6*0.7cm

State of Assembly: Ready-to-Go

Sonoff Zigbee CC2531 USB Dongle Module Bare Board Packet Protocol Analyzer USB Interface Dongle Supports BASICZBR3 S31 Lite zb

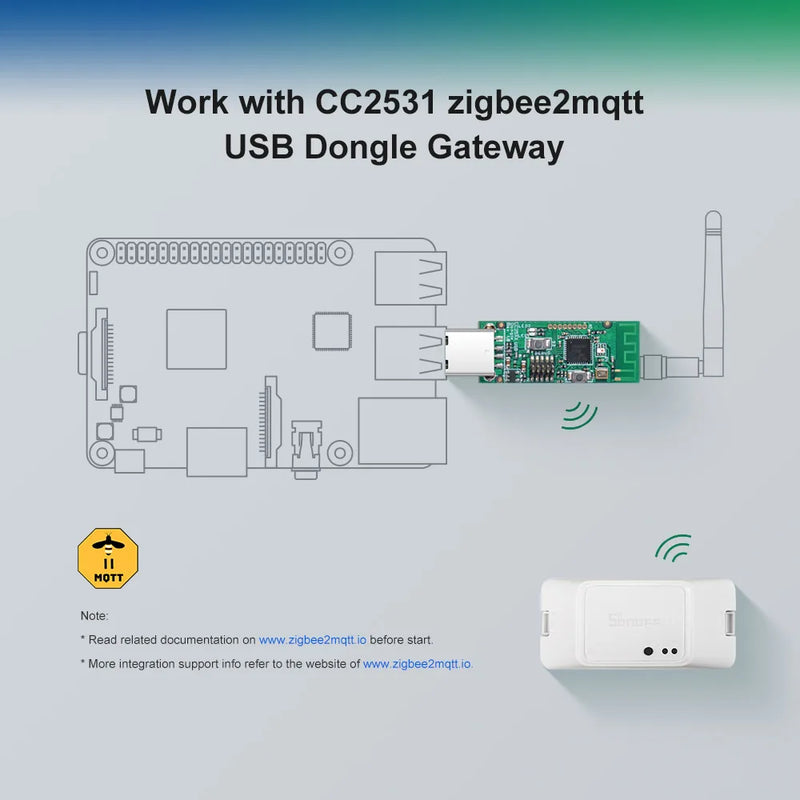

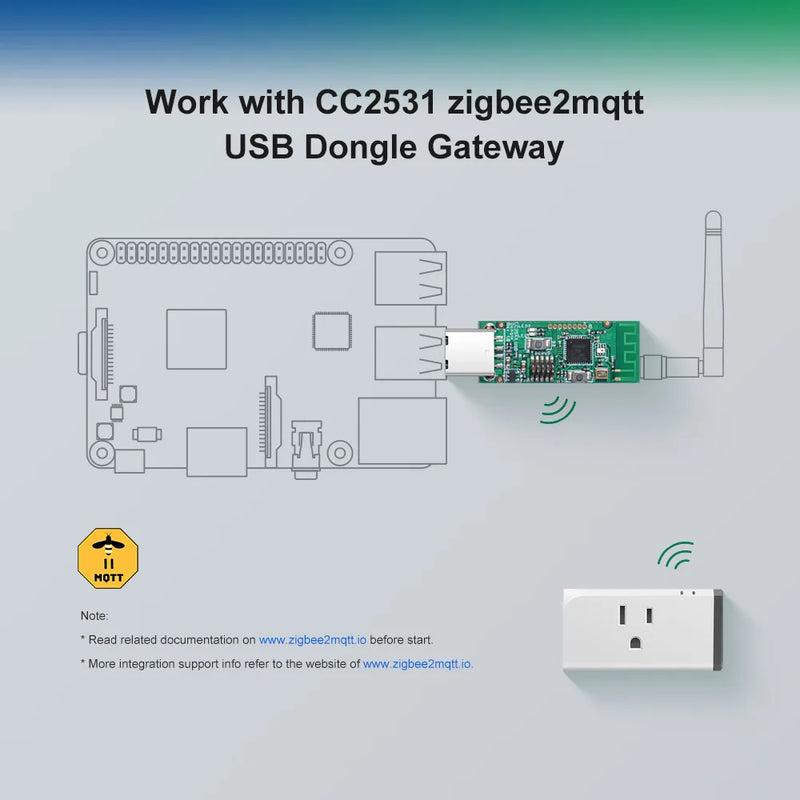

To run zigbee2mqtt for the control of SONOFF Zigbee products in your home automation system, a CC2531 USB dongle integration is recommended. The CC2531 USB dongle is a fully operational USB device which provides a PC interface to IEEE802.15.4 / ZigBee applications, comes with a CC2531ZNP-Prod firmware, the dongle can be plugged directly into your PC/Raspberry etc used as a Zigbee packet sniffer.

Yep, it is a ready-to-go CC2531 USB dongle for zigbee2mqtt application.

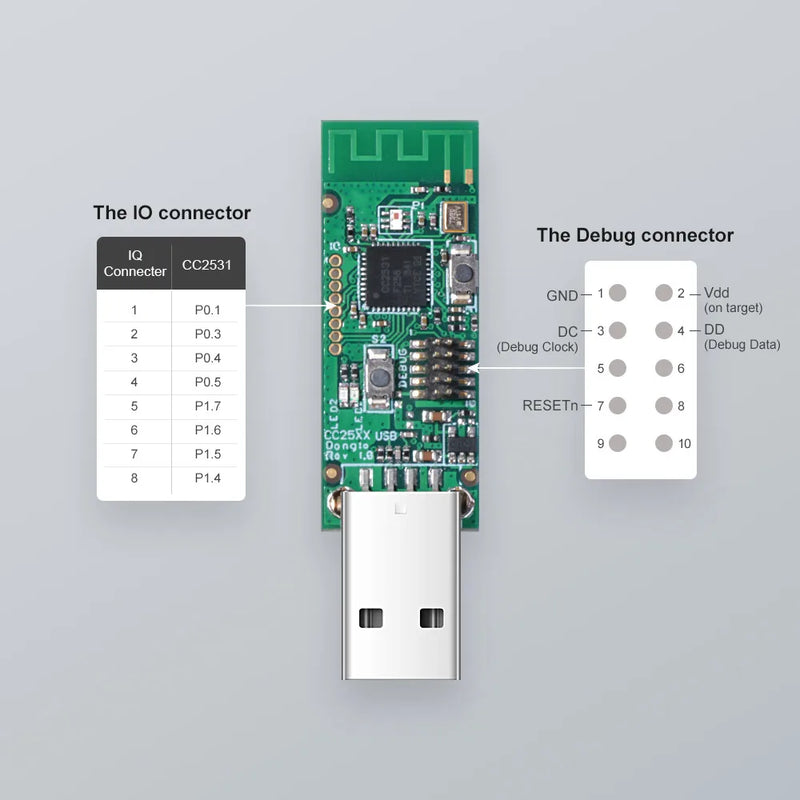

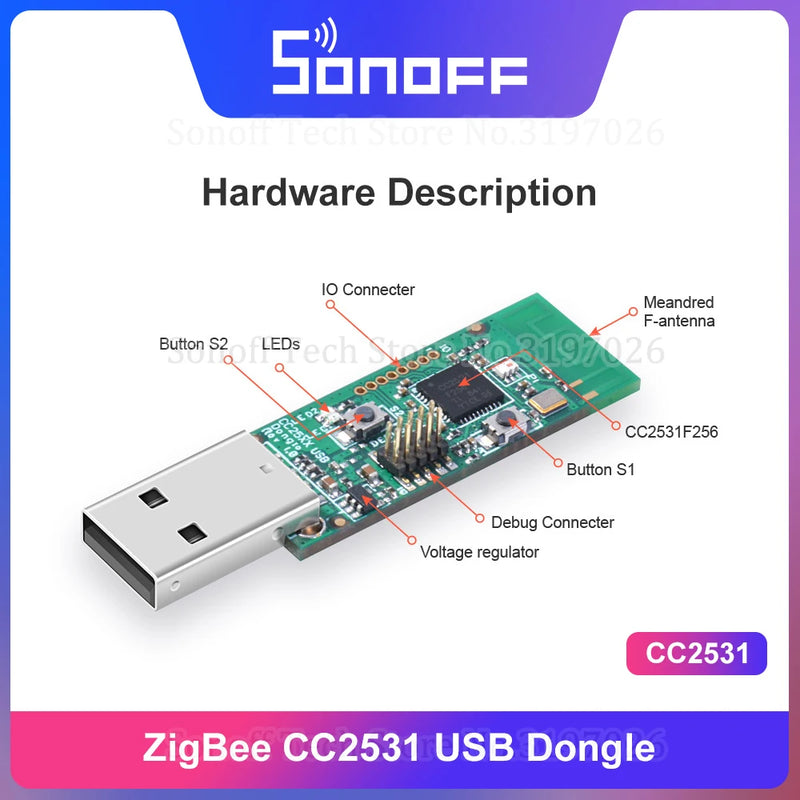

CC2531 USB dongle hardware description:

The Debug connector:

The IO connector:

Work with Sonoff Zigbee Devices

Features:

Flashed with CC2531ZNP-Prod firmware for zigbee2mqtt application
Lead out 8 IO connectors
Debug interface
Size: 5.6*1.6*0.7cm
Two buttons and two LEDs for user interaction

How to integrate the SONOFF Zigbee products into your home automation system? Please refer to the website of zigbee2mqtt.io for more information. As ITEAD has already done the firmware flash of CC2531ZNP-Prod for CC2531 USB dongle, you can directly start with the section of “Running Zigbee2mqtt”

Note:

* Read related documentation on www.zigbee2mqtt.io before start.
* More integration support info refer to the website of www.zigbee2mqtt.io.
