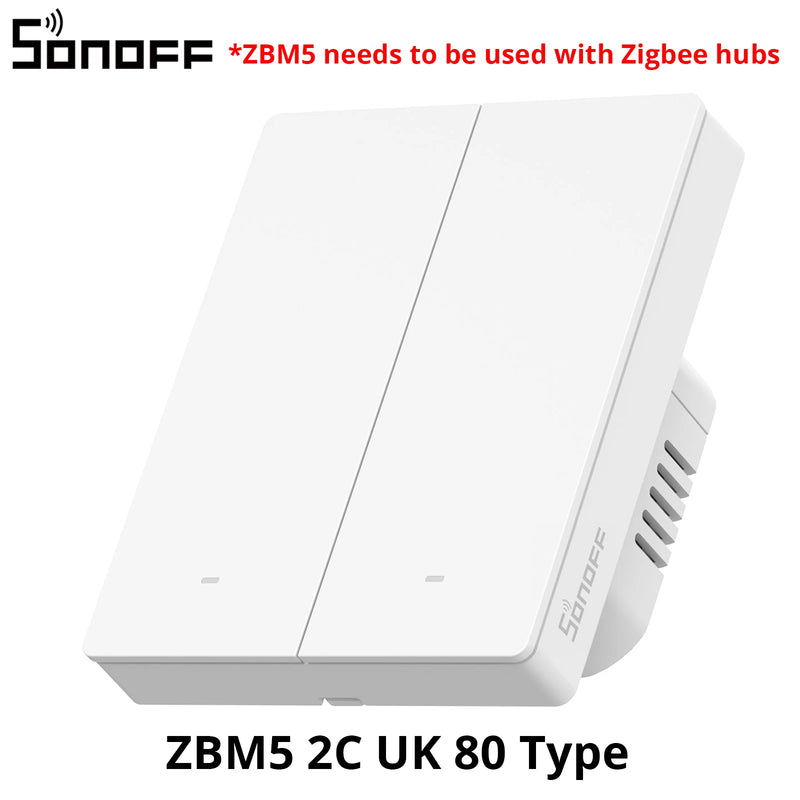

DARAHUB SONOFF ZBM5 Zigbee Smart Wall Switch UK/EU Type Detach Relay Mode Applicable to Both No Neutral & With Neutral Wire 1 /2/3 Gang

SONOFF ZBM5 Zigbee Smart Wall Switch UK/EU Type Detach Relay Mode Applicable to Both No Neutral & With Neutral Wire 1 /2/3 Gang

Name: SONOFF ZBM5 Zigbee Smart Wall Switch UK/EU Type Detach Relay Mode Applicable to Both No Neutral & With Neutral Wire 1 /2/3 Gang
Brand: SONOFF Official Store
SKU: 1005009392776277-ZBM5 1C EU 86 Type-China Mainland
Price: 23.5 USD
Availability: InStock

by ដោយ SONOFF Official Store

$0.00 - $0.00

$0.00

$23.50

$13.90 - $28.48

$23.50

Quantity

All prices exclude shipping and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន និងពន្ធទេ។

Availability:

136 in stock, ready to be shipped

Availability:

107 in stock, ready to be shipped

Availability:

126 in stock, ready to be shipped

Availability:

69 in stock, ready to be shipped

Availability:

66 in stock, ready to be shipped

Availability:

76 in stock, ready to be shipped

Choose language

SONOFF ZBM5 Zigbee Smart Wall Switch UK/EU Type Detach Relay Mode Applicable to Both No Neutral & With Neutral Wire 1 /2/3 Gang

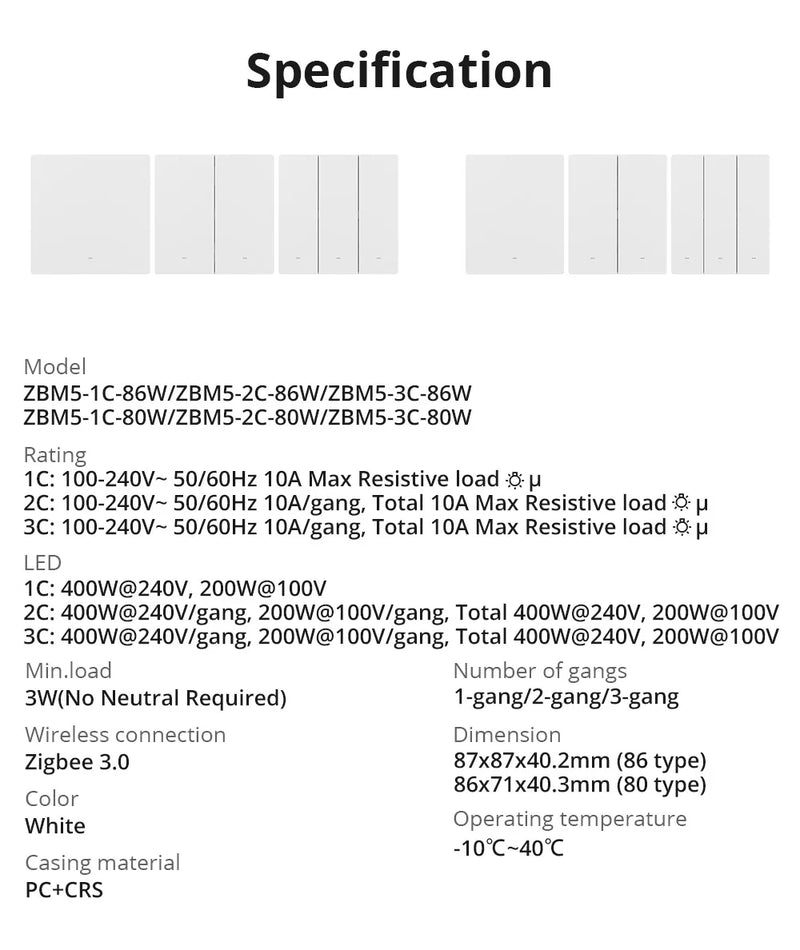

SPECIFICATIONS

Brand Name: SONOFF

Casing material: PC+CRS

Certification: CE

Communication method: Zigbee

Dimension: 87x87x40.2mm(86 Type) 86x71x40.3mm(80 Type)

High-concerned chemical: none

LED: 1C: 400W@240V, 200W@100V,2C: 400W@240V/gang, 200W@100V/gang, Total400W@240V, 200W@100V,3C: 400W@240V/gang, 200W@100V/gang, Total400W@240V, 200W@100V

Min.load: 3W(No Neutral Required)

Model: ZBM5-1C-86W/ZBM5-2C-86W/ZBM5-3C-86W,ZBM5-1C-80W/ZBM5-2C-80W/ZBM5-3C-80W

Number of gangs: 1-gang/2-gang/3-gang

Operating temperature: -10℃-40℃

Origin: Mainland China

Rating: 1C: 100-240V~50/60Hz 10A Max Resistive load,2C: 100-240V~50/60Hz 10A/gang,Total 10A Max Resistive load,3C: 100-240V~50/60Hz 10A/gang,Total 10A Max Resistive load

Wireless connection: Zigbee 3.0

SONOFF ZBM5 80/86 Type SwitchMan Zigbee Smart Wall Switch

ZBM5 80/86 Type is a Zigbee smart wall switch (1/2/3 gang) with flexible wiring for both neutral-required wire mode and no neutral-required wire mode setups. In "neutral-required" mode, it works as a Zigbee router, supports smart lights, and enables detach relay mode. In "no-neutral" mode, it acts as an end device (min. 3W load, no smart lights supported). Features include remote control, timers, smart scenes, and other smart control methods. Compatible with Home Assistant via ZBDongle using ZHA or Zigbee2MQTT.

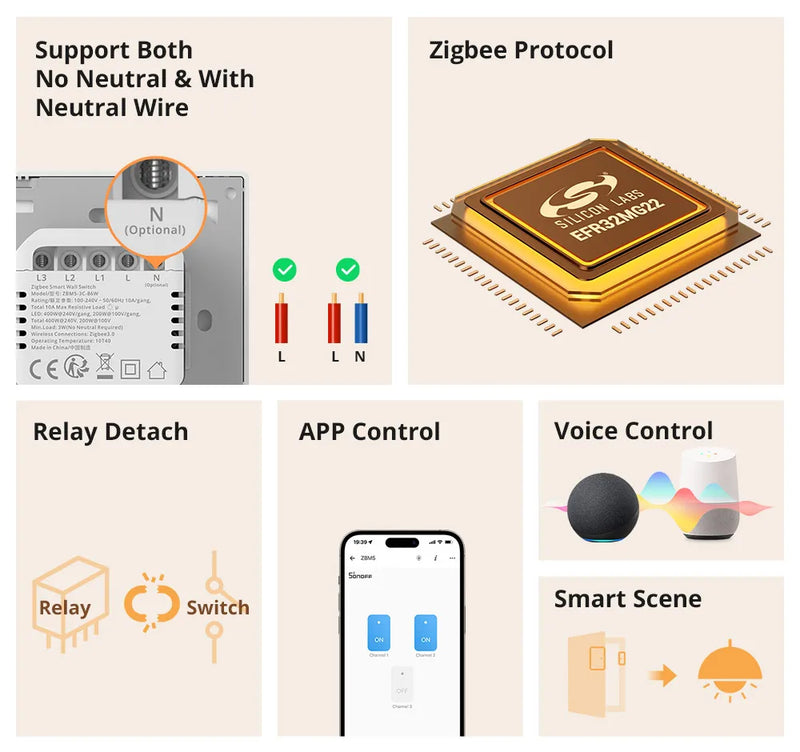

【Supports Both No Neutral & With Neutral Wire】Designed to fit your home’s wiring setup, the ZBM5 connects and uses effortlessly whether a neutral wire is available or not.
【Compatible with Multiple Zigbee Hubs】Easily integrates with SONOFF Zigbee hubs like SONOFF NSPanel Pro, iHost, ZB Bridge-P/U, and ZBDongle-E/P for seamless smart home control.
【Works with Home Assistant】Perfect for DIY automation lovers—integrates smoothly with third-party open-source platforms, such as Home Assistant via compatible Zigbee dongles (e.g., SONOFF ZBDongle-P/E).
【Detach Relay Mode】With this function enabled, you can still remotely control your smart devices through "Smart Scenes" even when the physical switch is turned off. *Supports connecting smart lights only in the neutral required mode.
【Full Smart Features】Enjoy remote app control, voice commands, scheduling, smart scenes, and more for a truly convenient smart home experience.

Note：ZBM5 Requires the compatible SONOFF Zigbee hub.

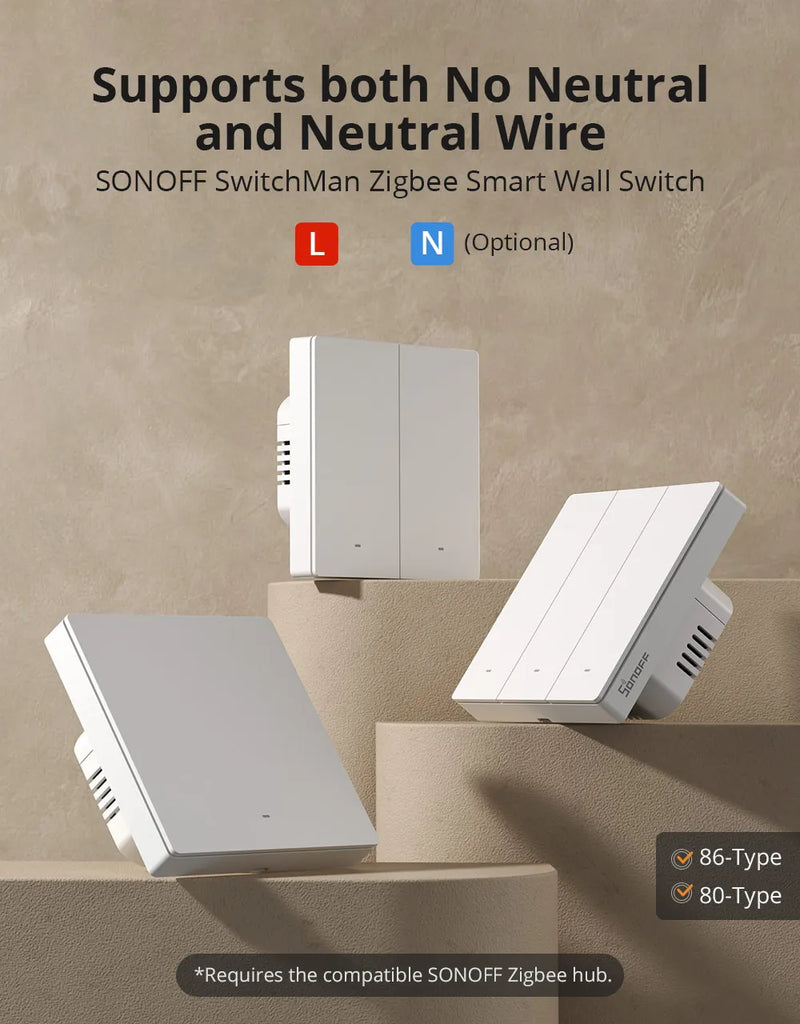

Directly Compatible with the Majority Wiring

The ZBM5 is designed to adapt to your home's wiring confguration. Whether or not a neutral wire is available, it can be easily connected and used.

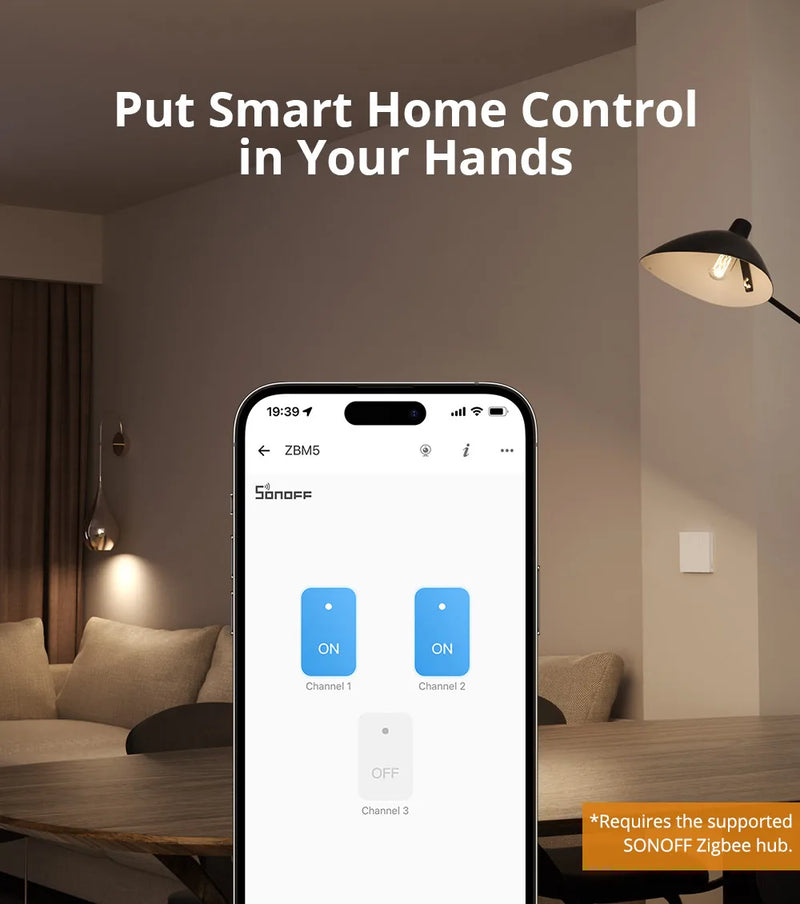

Put Smart Home Control in Your Hands

You can view the switch status anytime in the eWelink app or remotely control the switches, managing your home's switches from your phone.

Schedule Lights Off for a Healthier Routine

Set a timer in the app to turn off the lights automatically in the living room and bedroom late at night ensuring a peaceful sleep.

Zigbee Two-Way Control

Set up smart scenes with the Zigbee wireless button to control the bedroom light together.

Detach Relay For Wiring Smart Bulb

With the detach relay enabled, smart lights won't lose power when the wallswitch is turned off, allowing them to remain smart at alltimes.

Effortless Control with Your Voice

You can control the switch when you're busy with a simple voice command.

A Piece of Open-Source PlatformSolution

Easily integrate your device into open-source platforms via Zigbee2MQTT or ZHA, creating a smarthome solution that works seamlessly with devices from various manufacturers.
