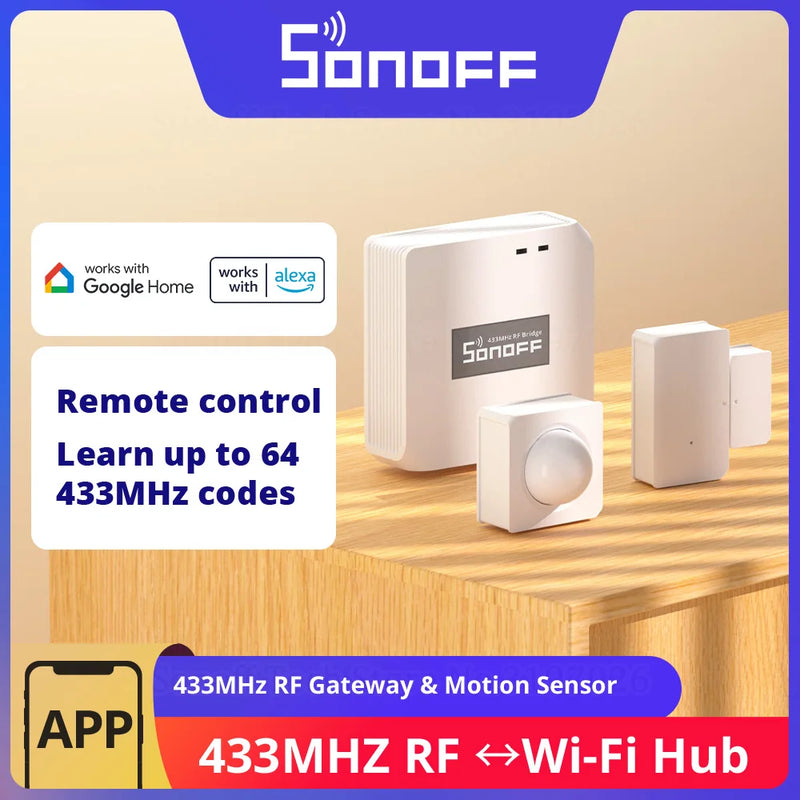

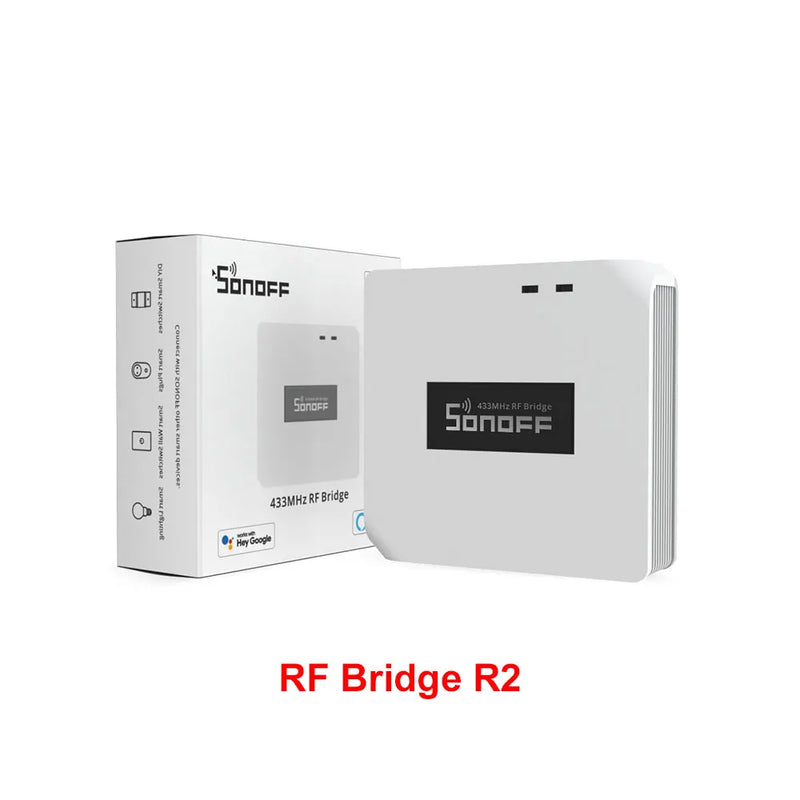

SONOFF RF Bridge R2 433MHz Gateway DW2 PIR3 Door Window Motion Sensor Voice Control Smart Scene via EWeLink Google Home Alexa
SPECIFICATIONS
Battery Included: no
Brand Name: SONOFF
Certification: CE
Communication method: RF,Wi-fi
Control Channels: 4 channels
Does It Includes Wireless Communication: Yes
High-concerned chemical: none
Inbox adaptor: No
Material: PC V0
Max Speed: 433MHz Frequency
Model Number: RF Bridge R2
Name: Sonoff RF BirdgeR2
Origin: Mainland China
Power Source: Other,Other
Power Supply: USB 5V
Product Dimensions: 62*62*20 (mm)
Scale: Controller
Security Mechanism: WPA-PSK/WPA2-PSK
State of Assembly: Ready-to-Go
Support Frequency: Fixed Code 433 Frequency: PT2260, PT2262, PT2264, EV1527
Wireless Communication: RF
Wireless Standard: WiFi 802.11b/g/n, 433.92MHz
Working temperature: -10Β°C~40Β°C
SONOFF RF Bridge R2 433MHz Gateway DW2 PIR3 Door Window Motion Sensor Voice Control Smart Scene via eWeLink Google Home Alexa
This RF BridgeR2 433 can convert most of the 433.92MHz RF Remotes into WiFi wireless. By adding the RF wireless Bridge to iOS/Android App eWeLink WiFi wirelessly, You can add up to 16 RM433 RF or alarms, also add them together (max. 16 items). One 4 button remote controller can learn 4 devices, which means 64 devices supporting 433 MHz frequency can be added on the app through WiFi/2/3/4G network.
It can be used for most of the 433.92MHz RF Remote controlled products, like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc. You can set totally 8 schedule/countdown/loop timers to turn on/off the RF controlled products.
Even more exciting is that it will work with the 433.92MHz door magnetic sensor, 433.92MHz human body IR sensor, and more other 433.92MHz sensors to realize security alarm, and allowing you to DIY smart scenes. Note that the alarm push only comes in the owner's account, those users being shared can't view the alarm push.
The RF BridgeR2 can work with SONOFF DW2-RF wireless door/window sensor that allows users to set the smart scene for the sensor and the device to be controlled, then when you open/close the door, the device will be triggered on or off.
NOTE 1:
The receiving supports fixed code 433.92 frequency, like PT2260, PT2262, PT2264, EV1527, etc.
The product doesn't support to learn rolling code and dynamic code
You can't see device status changes in the App.
NOTE 2:
What's new on Android & iOS 2.5.0 and higher versions?
Scheduled/countdown timers are supported.
iOS App supports to add this product.
433MHz RF curtain switch and RF alarm are supported.
NOTE: This link contians RF gateway and sensors, please confirm before purchase, make sure you get the right item.

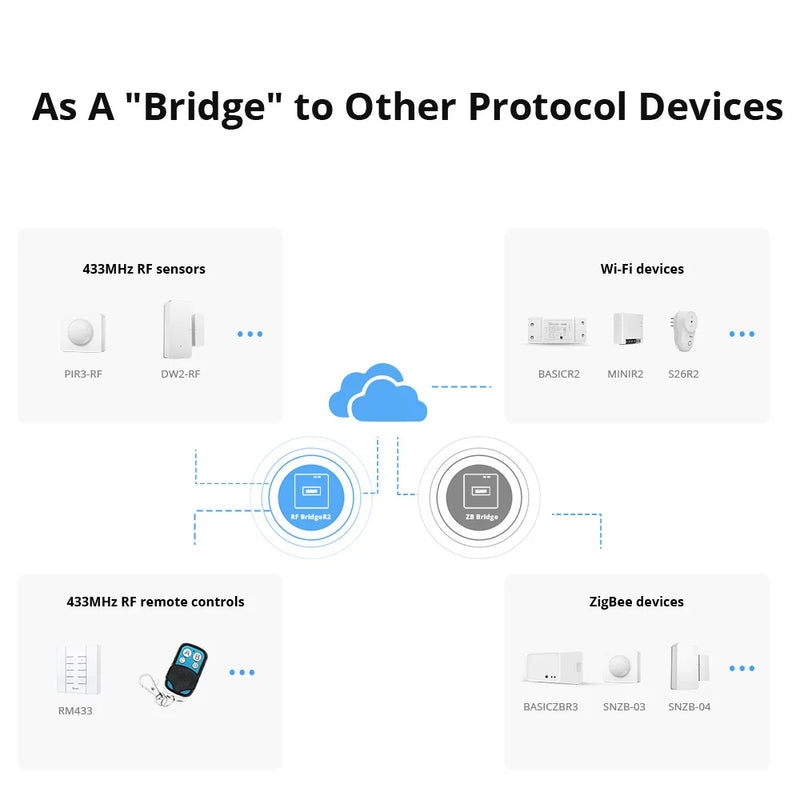

As A "Bridge" to Other Protocol Devices
Traditional 433MHz Remote Control Devices, Instantly Become Smart
NOTE: The receiving supports fixed codes 433 frequency, like EV1527, PT2260, PT2264, etc. Not support to learn rolling codes.
A Button for A Scenario
Create a scene you like. Simply press the remote control button to triiger WiFi or ZigBee devices in eWeLink to enter a scene.
Control All Devices Simultaneously
Once the RF BridgeR2 has successfully learned common remotes, you can use the remotes to control lots of devices in a time.
Create Smart Scenes with 433MHz Sensors
Using motion sensor PIR3-RF, opening floor-to-ceiling windows automatically when sensor detects motion;
Using door/window sensor DW2-RF, when the window is opened, the fan is sutomatically turned off.
