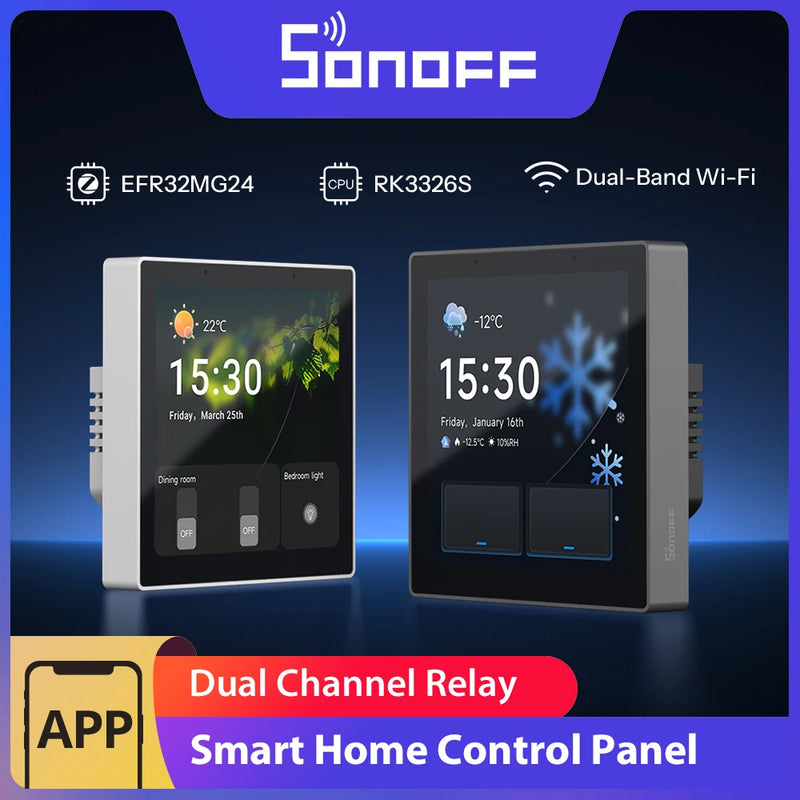

SONOFF NSPanel Pro Gen2 Dual Channel Relay Smart Home Control Panel 86 Type Integrate Devices Works with Apple Home via Matter

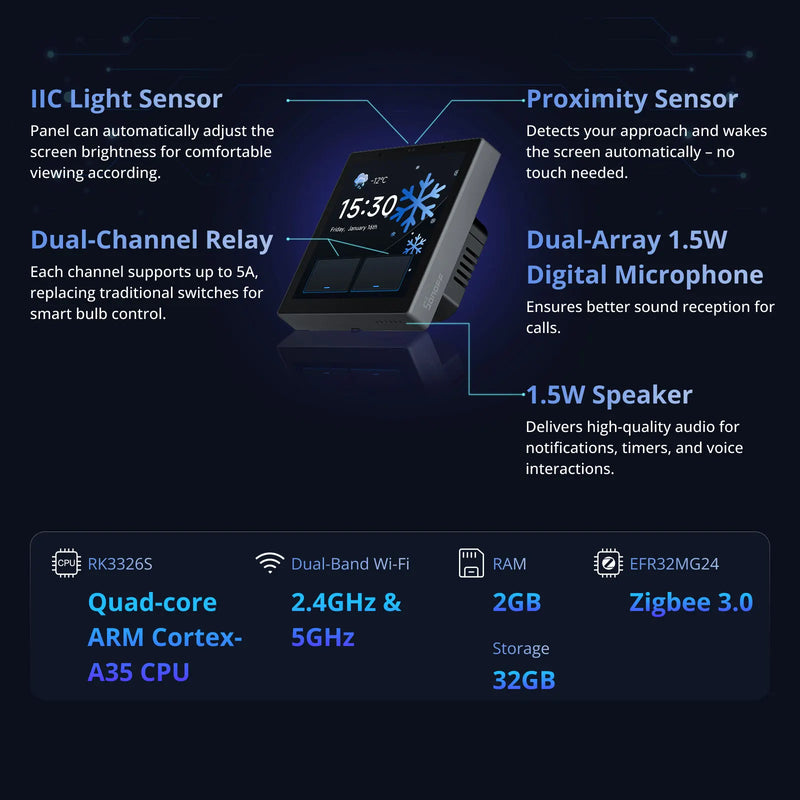

SPECIFICATIONS
Audio output: 8Ξ©, 1.5W speaker
Brand Name: SONOFF
CPU: Quad-core ARM Cortex-A35 CPU
Camera Equipped: No
Casing materials: PC+CRS
Certification: CE,RoHS
Color: NSPanel86PW-Relay: White NSPanel86PB-Relay: Dim Gray
Communication method: Wi-fi,Zigbee
Compatibility: All Compatible
GPU: Mali G31-2EE GPU
High-concerned chemical: none
Light sensor: Adjust brightness according to ambient light automatically (IIC light sensor)
Microphone: Two channels digital silicon microphones

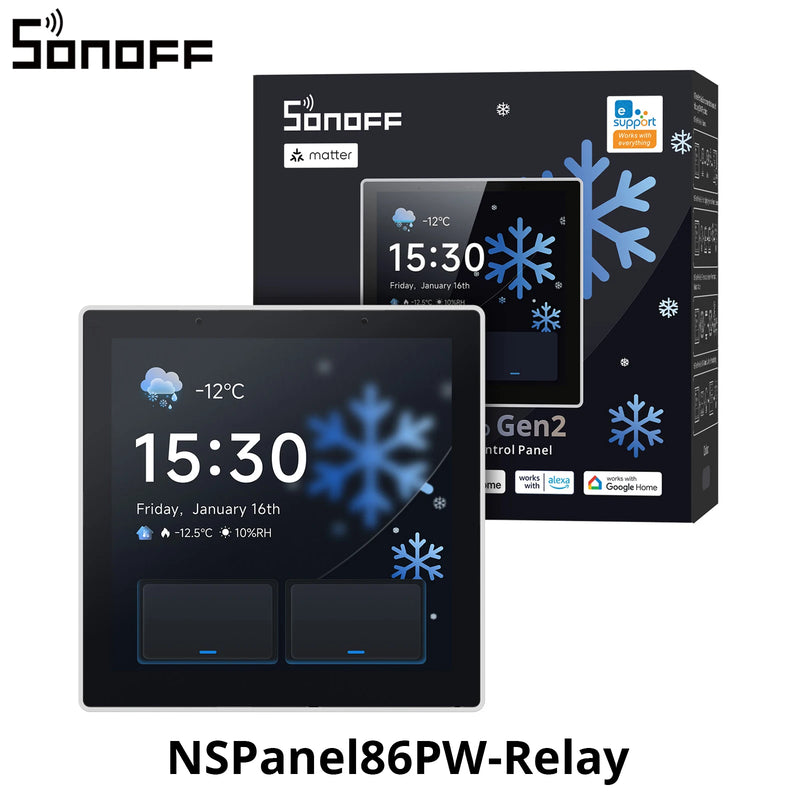

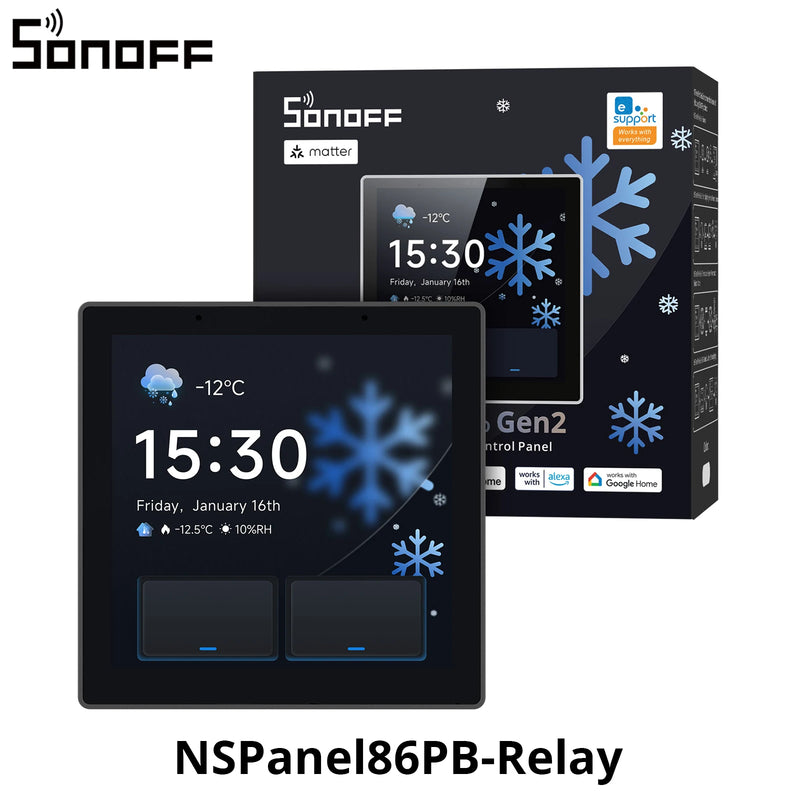

Model: NSPanel86PB-Relay/NSPanel86PW-Relay
Model Number: NSPanel86PB-Relay/NSPanel86PW-Relay
Net weight: 190g
Origin: Mainland China
Product dimension: 86x86x39.5mm
Product series: NSPanel Pro series
RAM: 2GB
ROM: 32 GB
Rating: 100-240V-50/60 Hz MAX 5A/Gang 10A/Total Resistive load
Screen resolution: 480x480
Screen size: 3.95" (Capacitive touch panel)
Soc: RK3326-S
Specification: EU Plug
State of Assembly: Ready-to-Go
Use: others
Wireless connectivity: Wi-Fi IEEE 802.11 b/g/n/ac/ax 2.4GHz&5GHz, Zigbee 3.0
Working humidity: 10%~80% RH, non-condensing
Working temperature: -10β-40β
SONOFF NSPanel Pro Gen2 Dual Channel Relay Smart Home Control Panel 86 Type Integrate Devices Works with Apple Home via Matter
NSPanel Pro Gen2 is a next-generation powerful smart control panel for modern smart living. Powered by 2GB RAM and 32GB storage, it smoothly runs Home Assistant and other appsβjust download via F-Droid, no root needed. With a built-in Matter Bridge, Matter Hub, and Zigbee Hub, it effortlessly unifies devices across different ecosystems into one seamless experience. Its 2-channel relay makes upgrading existing switches simple, with no rewiring required. Paired with dual-band Wi-Fi, smart temperature control, and energy monitoring, it helps create a more connected, convenient, and comfortable home.
NSPanel Pro Gen2 as Your Home Assistant Dashboard
Download the official Home Assistant app via F-Droid, connect it to your Home Assistant Server, and enjoy centralized smart home management
with intuitive, at-a-touch control.

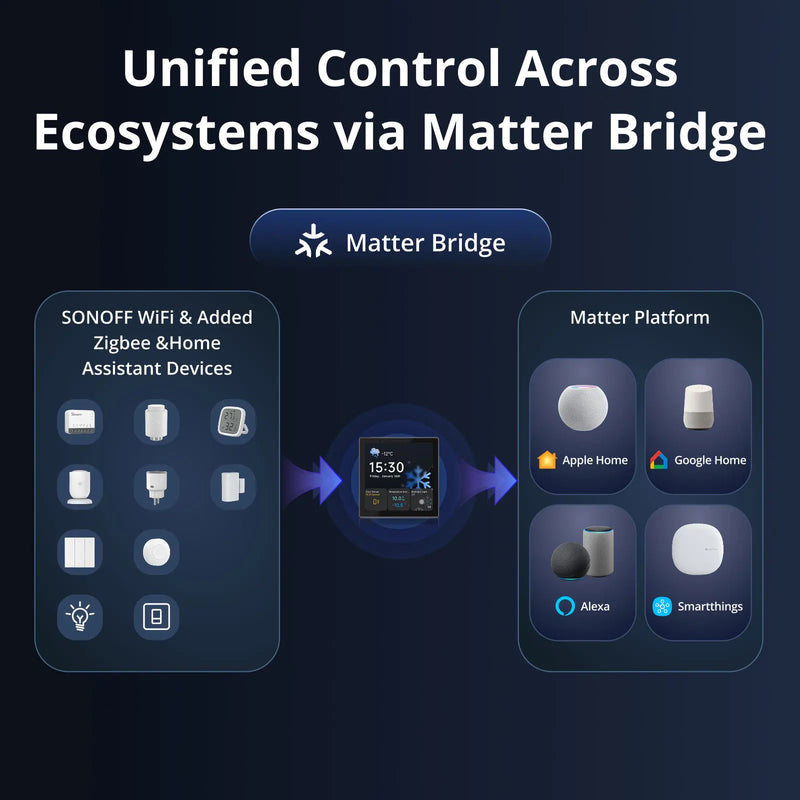

Unified Control Across Ecosystems via Matter Bridge
By scanning the Matter pairing code, you can synchronize and centrally control both the WiFi and Zigbee devices from your eWeLink account as well as devices from Home Assistant on the Matter platform, enabling effortless cross-ecosystem, seamless connectivity.

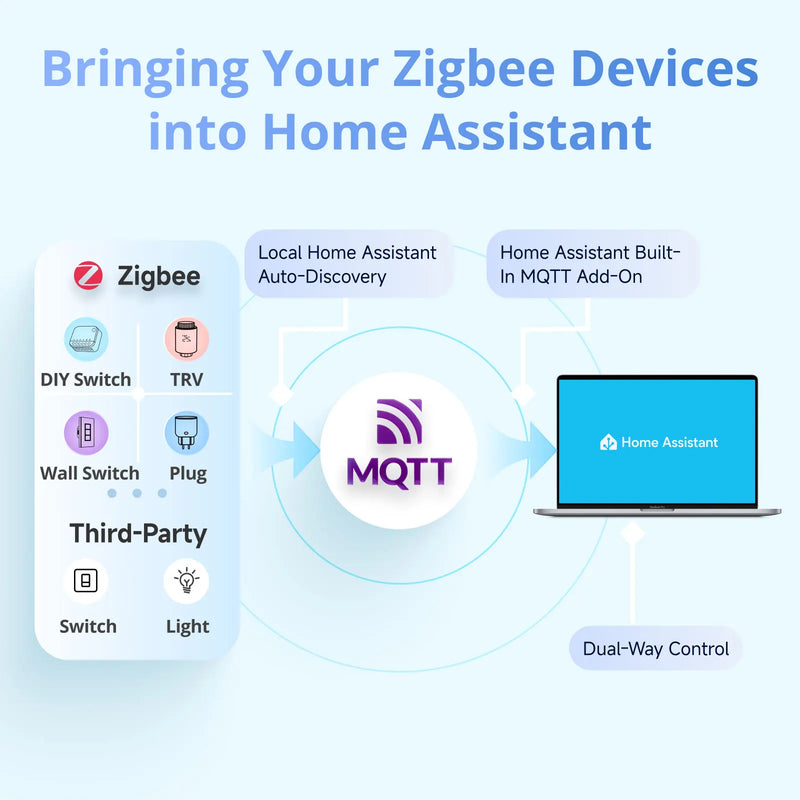

Bringing Your Zigbee Devices into Home Assistant
By scanning the Matter pairing code, you can synchronize and centrally control both the WiFi and Zigbee devices from your eWeLink account as well as devices from Home Assistant on the Matter platform, enabling effortless cross-ecosystem, seamless connectivity.
Navigate Smart Living with Ease
FβDroid is a free and openβsource app store that offers adβfree, privacyβrespecting applications verified by the openβsource community. Covering personalized and creative apps, it lets you effortlessly enrich your life with NSPanel Pro Gen2.
The "Apps" feature allows you to set any third-party app as the Home App while keeping NSPanel Pro Gen2 running in the background.
Smart Central Temperature Control, Make Life Easier
A single panel provides panoramic monitoring of temperature and heating status across all rooms, managing the whole-house heating system to deliver constant comfort to every spaceβachieving the ideal living climate through a truly integrated whole-home temperature control system.

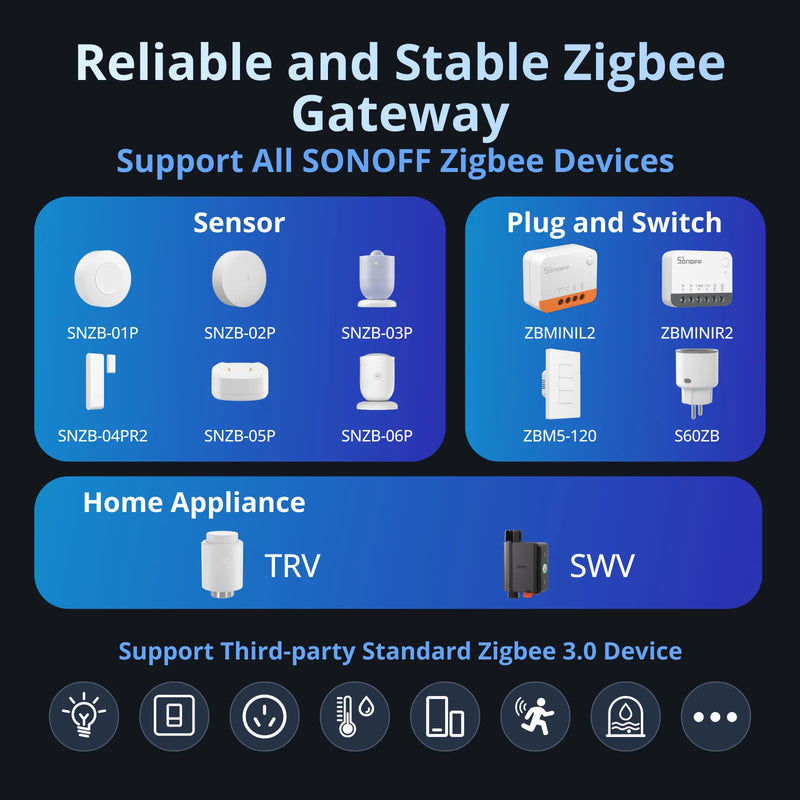

Reliable and Stable Zigbee Gateway
Quickly add Zigbee devices on the screen in batches. Standard Zigbee 3.0 protocol makes the connection more stable and the coverage wider. Added sub-devices can be voice controlled by working with Alexa, Google Home, and more.
Zigbee Router Mode
Support Zigbee router mode to forward the gateway's signal to Zigbee sub-devices, extending the coverage of the gateway signal.
Explore Richer Functions in Webpages
Listening to music, watching videos, or checking out the latest advice? Save the address in NSPanel Pro Gen2's Webpages, start it quickly with one click, and relax at any time.
Customization Makes it Convenient
You can freely customize the home screen style or wallpaper of the NSPanel Pro Gen2, creating an attractive interface that makes your daily use more convenient.
Customize Your Home Security Mode
Customize 3 modes by setting different arming devices. After arming, once the sensor is triggered, the panel will alarm, and you will receive a notification alert on the phone.
View and Talk by Camera
Used with a smart camera, when someone comes tovisit, check the situation through the camera first toconfirm safety. It also supports two-way talk to make communication easier.
Power Consumption
Work with energy-monitoring smart devices to trackdaily usage.
