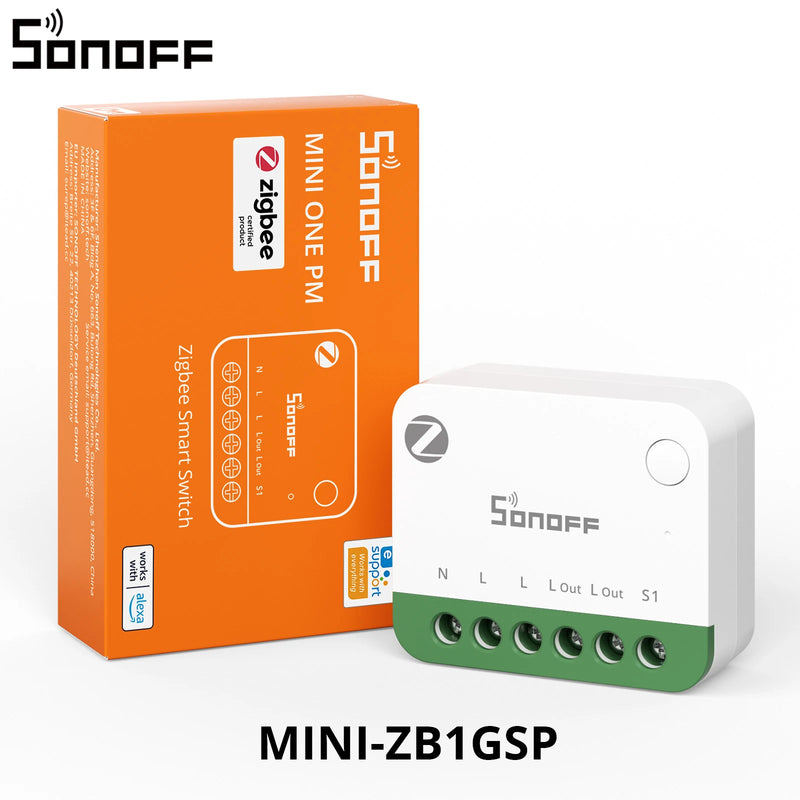

SONOFF MINI-ZB1GSP MINI ONE PM Zigbee Smart Switch 16A Max Energy & Electricity Bill Tracking Load Apple Home Via Matter Bridge
SPECIFICATIONS
Brand Name: SONOFF
Camera Equipped: No
Certification: CE,FCC,RoHS
Certifications: CE / RoHS / FCC
Color: White+Green
Communication method: Zigbee
Compatibility: All Compatible
Dimensions: 39.5 x 33 x 16.8mm
High-concerned chemical: none
Housing Material: PC
Installation Location: Indoor concealed installation
MCU: EFR32MG21
Model Number: MINI-ZB1GSP
Net Weight: 27.3g
Operating Humidity: 10%~90% RH, non-condensing
Operating Temperature: -10β ~ 40β
Origin: Mainland China
Product Model: MINI-ZB1GSP
Product Name: Zigbee Smart Switch
Product Series: MINI Extreme Series Gen5
Rating: 16A 110-240V~ 50/60Hz Max Resistive load ΞΌ
Recommended Wire Gauge: 18 AWG to 14 AWG (0.75mmΒ² to 2.5mmΒ²) SOL/STR copper conductor only
State of Assembly: Ready-to-Go
Use: others
Wireless Function: Yes
Zigbee: IEEE 802.15.4
SONOFF MINI-ZB1GSP MINI ONE PM Zigbee Smart Switch 16A Max Energy & Electricity Bill Tracking Load Apple Home Via Matter Bridge

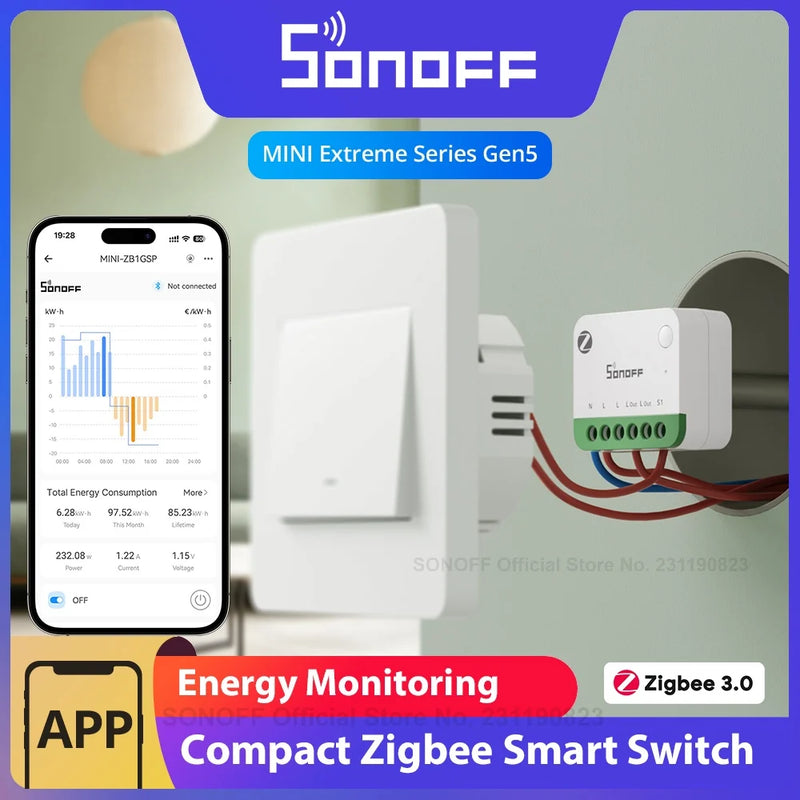

MINI-ZB1GSP (MINI ONE PM) is a Zigbee smart switch with intelligent on/off control, designed for real-time energy monitoring and management. It tracks both electricity consumption and renewable energy generation from solar systems, with clear visual insights via the app. Built-in protection includes overload, overvoltage, undervoltage, and overcharge to enhance safety and extend battery life. It also supports customizable electricity rates and time-of-use tariffs, automatically generating detailed energy cost reports. based on actual consumption. Powered by Zigbee 3.0, it seamlessly integrates into smart home ecosystems and acts as a signal repeater to extend network coverage and improve network reliability.
Safe and Reliable
Automatically cuts off power in case of an emergency to ensure the safety of your home's electrical system.

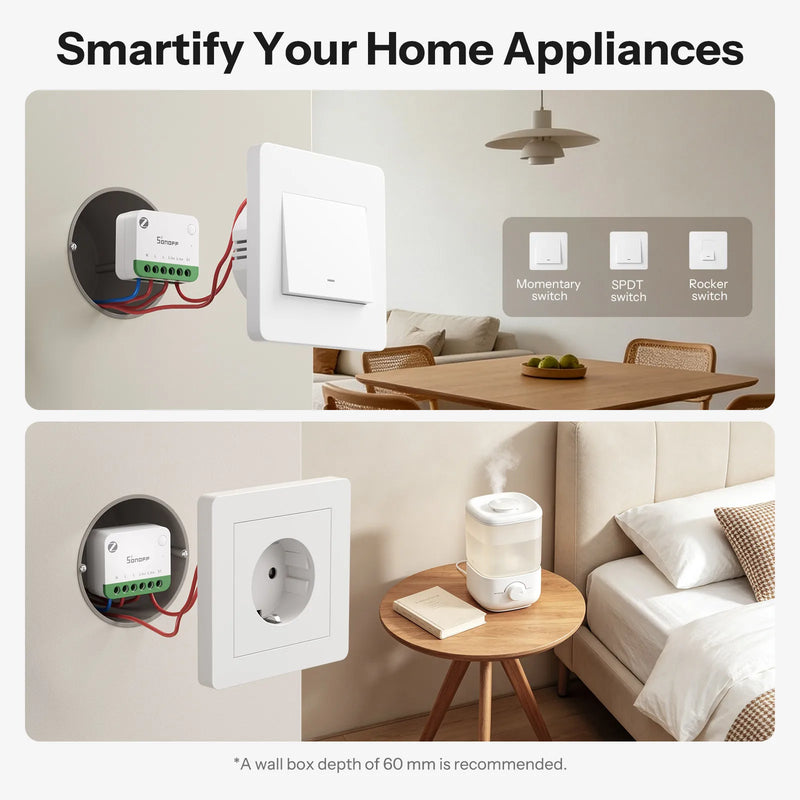

Smartify Your Home Appliances
Equipped with various switching modes, the device ensures compatibility with the user's original physical switches, thereby enabling a more cost-effective retrofit.
Strengthen Your Zigbee Mesh Network
MINI-ZB1GSP can work as a zigbee signal
repeater, transmit the zigbee signal among
your zigbee devices.
*MINI-ZB1GSP effective communication distance to the gateway is 180 meters
by default; with Turbo mode enabled, it reaches 250 meters.
Know Your Energy Consumption
See exactly how much power your home draws from the grid and calculate your electricity bill with Time-of-Use pricing. Track usage by hour, day, or month β identify energy-hungry devices and cut waste.

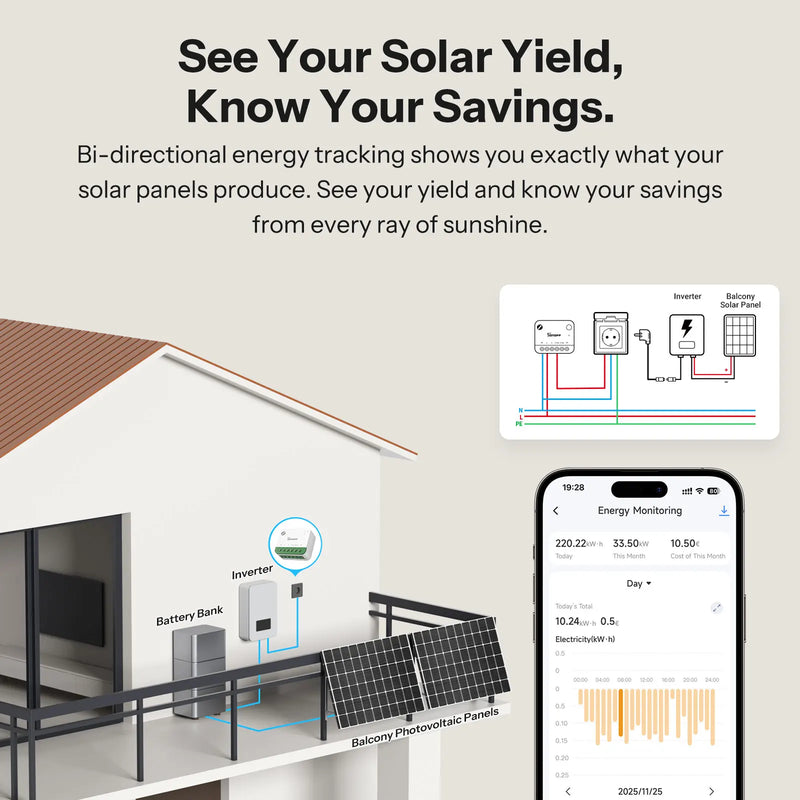

See Your Solar Yield, Know Your Savings.
Bi-directional energy tracking shows you exactly what your solar panels produce. See your yield and know your savings from every ray of sunshine.

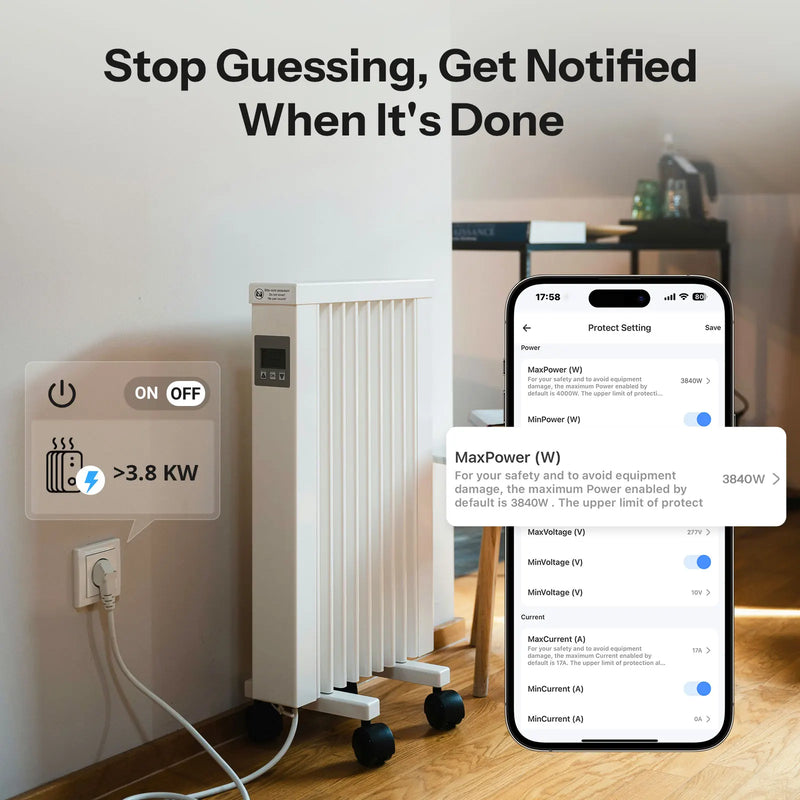

Stop Guessing, Get Notified When It's Done
Set it once β you'll receive a notification when power consumption stays below a threshold for a defined period. The delay feature prevents temporary power drops during washer fill and drain cycles from being falsely recognized as cycle completion.
Time for maintenance? Let the System Track it for You.
Set your own power threshold and maintenance interval. The system automatically accumulates runtime above the set threshold and alerts you when it's time for maintenance.
Never Worry About Smart Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times.
Gateway-Free Setup β Proximity Mode
No Zigbee gateway? No stable signal? Just use Proximity Mode to connect your phone directly for irrigation control and basic settings.
Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF Zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
Easily Integrates with Open-Source Platforms
Zigbee Binding Enables Direct, Reliable Control
After a one-time setup in Home Assistant, your SNZB-01M button communicates directly with the MINI-ZB1GSPβno gateway required.
