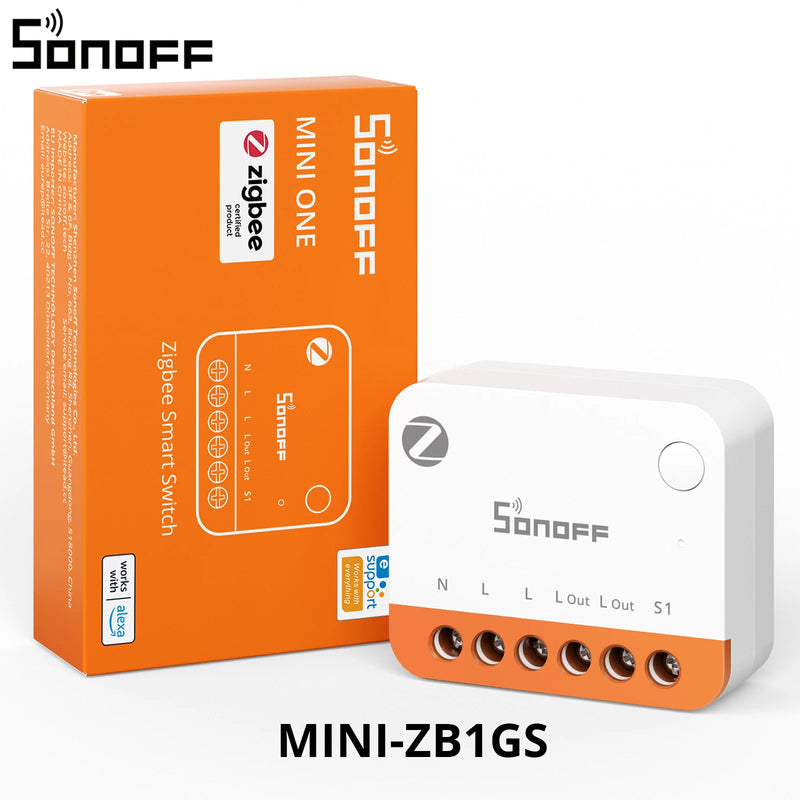

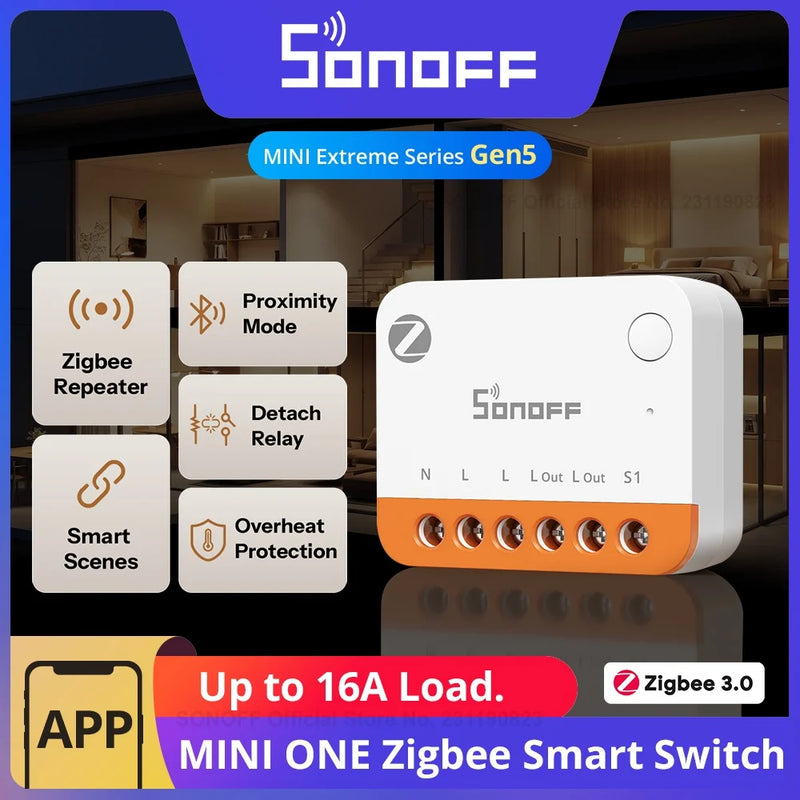

SONOFF MINI-ZB1GS MINI ONE Zigbee Smart Switch 16A Max Detach Relay Mode Overheating Protection Works with Apple Home Via Matter
SPECIFICATIONS
Applicable place: Indoor
Brand Name: SONOFF
Camera Equipped: No
Casing material: PC
Certification: CE,RoHS,FCC
Communication method: Zigbee
Compatibility: All Compatible
Diameter of wiring (recommend): 18 AWG to 14AWG (0.75mm² to 2.5mm²) SOL copper conductor only
High-concerned chemical: none
Max. load: 16A/3840W
Model Number: MINI-ZB1GS
Net weight: 27.3g
Origin: Mainland China
Product Model: MINI-ZB1GS
Product Name: MINI ONE (Zigbee)
Product Series: MINI Extreme Series Gen5
Product dimension: 39.5*33*16.8mm
Product type: Zigbee Smart Switch
Rating: 16A 100-240V~ 50/60Hz Max Resistive Load μ
State of Assembly: Ready-to-Go
Use: others
Wireless Function: Yes
Wireless connectivity: Zigbee 3.0
Working humidity: 10%~90% RH, non-condensing
Working temperature: 10T40 (-10℃~40℃)
Zigbee: IEEE 802.15.4
SONOFF MINI-ZB1GS MINI ONE Zigbee Smart Switch 16A Max Detach Relay Mode Overheating Protection Works with Apple Home Via Matter
MINI-ZB1GS is a Zigbee smart switch designed for safer, more flexible, and reliable control. Supporting up to 16A loads, it offers wider device compatibility than the ZBMINIR2. Built-in temperature sensing provides smart overheating protection, while its compact design fits standard EU, 86-type, and 120-type wall boxes without modifications. With Zigbee Binding, it enables direct local control with Zigbee devices. Connect it to Home Assistant and other platforms through a Zigbee dongle or gateway for local automation, and use it as a Zigbee router to extend your network.

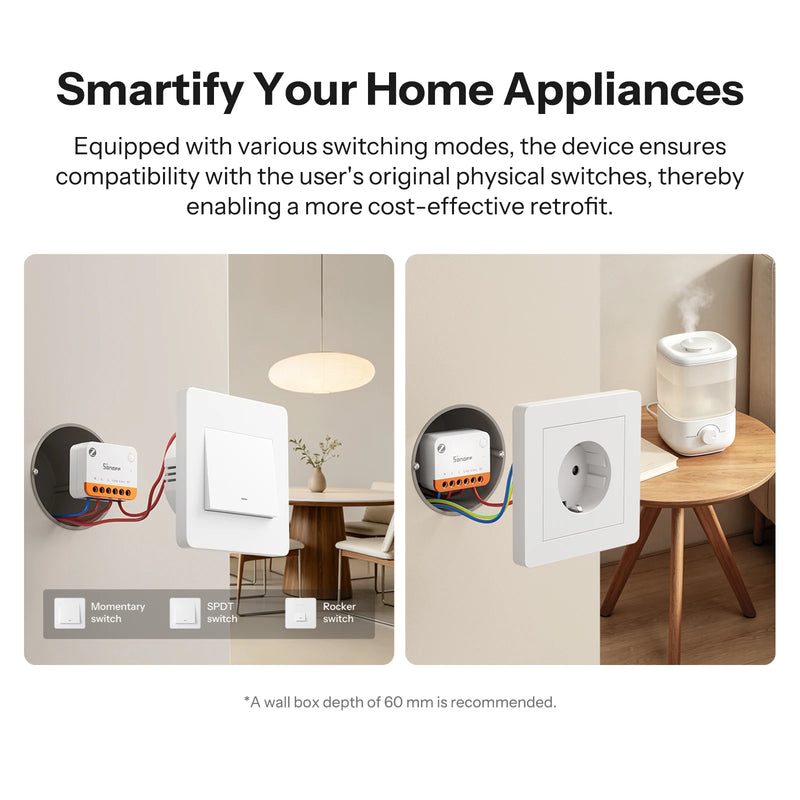

Smartify Your Home Appliances
Equipped with various switching modes, the device ensures compatibility with the user's original physical switches, thereby enabling a more cost-effective retrofit.
16A Capacity for More Applications
Handle higher loads with confidence, from lighting circuits to electric heating and ventilation.
Safe and Reliable
Automatically cuts off power in case of an emergency to ensure the safety of your home's electrical system.
Strengthen Your Zigbee Mesh Network
MINI ONE (Zigbee) can work as a zigbee signal repeater, transmit the zigbee signal among your zigbee devices.
*MINI ONE (Zigbee) effective communication distance to the gateway
Gateway-Free Setup — Proximity Mode
No Zigbee gateway? No stable signal? Just use Proximity Mode to connect your phone directly for irrigation control and basic settings.
Never Worry About Smart Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times.
One Switch, Multiple Actions
Detach Relay unlocks more possibilities for your smart home.
Delay Power-on for Load Protection
Worried about damage from sudden power restoration after an outage? Delay power-on is your solution, preventing harm from high currents when multiple loads turn on simultaneously.
Enjoy Smart and Convenient Life
Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF Zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
Easily Integrates with Open-Source Platforms
Integrate MINI ONE (Zigbee) into Home Assistant open-source platform with SONOFF Dongle Series.
Zigbee Binding Enables Direct, Reliable Control
After a one-time setup in Home Assistant, your SNZB-01M button communicates directly with the MINI-ZB1GS—no gateway required.
