SONOFF MINI-ZB1GP MINI PM Zigbee Power Energy Meter (Non-Switch) 16A Max Energy Tracking Cost Calculation Overload Overcurrent
SPECIFICATIONS
Brand Name: SONOFF
Camera Equipped: No
Certification: CE,FCC,RoHS
Certifications: CE / RoHS / FCC
Color: White
Communication method: Zigbee
Compatibility: All Compatible
Current Measurement Range: 0-16A
Dimensions: 32x29x15.9mm
Heading: 18 AWG to 14 AWG (0.75mm² to 2.5mm²) SOL/STR copper conductor only
High-concerned chemical: none
Housing Material: PC
Installation Location: Indoor concealed installation
MCU: EFR32MG21
Maintenance: Temperature: MINI-ZB1GP operating temperature is -10°C~40°C. Exceeding this temperature range will cause damage to the meter. Please note that it can influence the meter's life negatively if the meter operates in extremely high or extremely low temperatures. MINI-ZB1GP storage temperature range is -30~70°C.

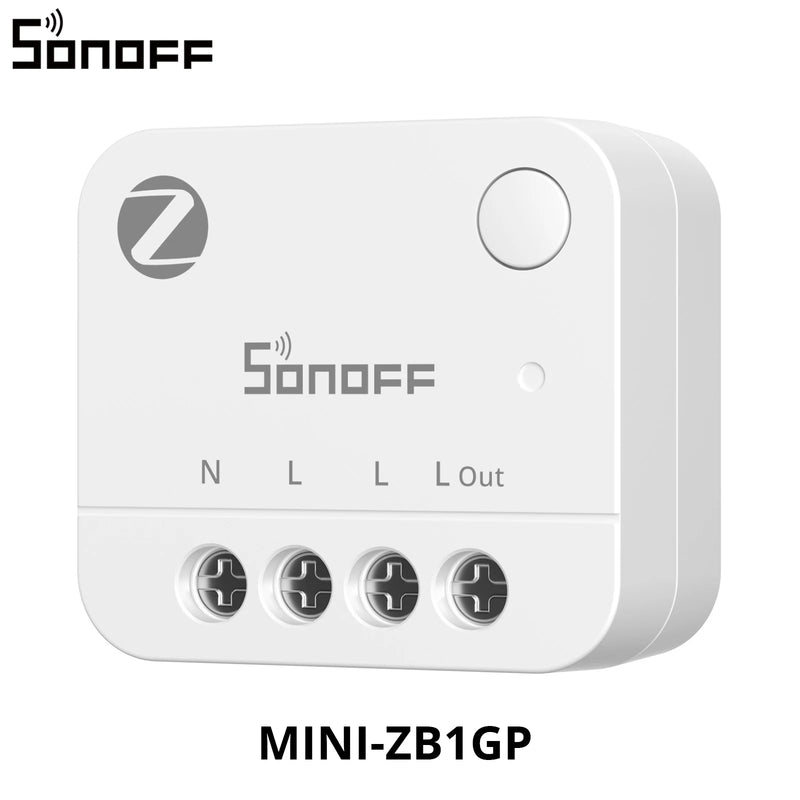

Model Number: MINI-ZB1GP
Net Weight: 14g
Operating Humidity: 10%~90% RH, non-condensing
Operating Temperature: -10℃~ 40℃
Origin: Mainland China
Power Measurement Range: 0-3840W
Product Model: MINI-ZB1GP
Product Name: Zigbee Power Meter
Product Series: MINI Extreme Series Gen5
Rating: 100-240V~ 50/60Hz 16A
Recommended Wire Gauge: Value
State of Assembly: Ready-to-Go
Use: others
Voltage Measurement Range: 100-240V
Wireless Function: Yes
Zigbee: IEEE 802.15.4
SONOFF MINI-ZB1GP MINI PM Zigbee Power Energy Meter (Non-Switch) 16A Max Energy Tracking Cost Calculation Overload Overcurrent

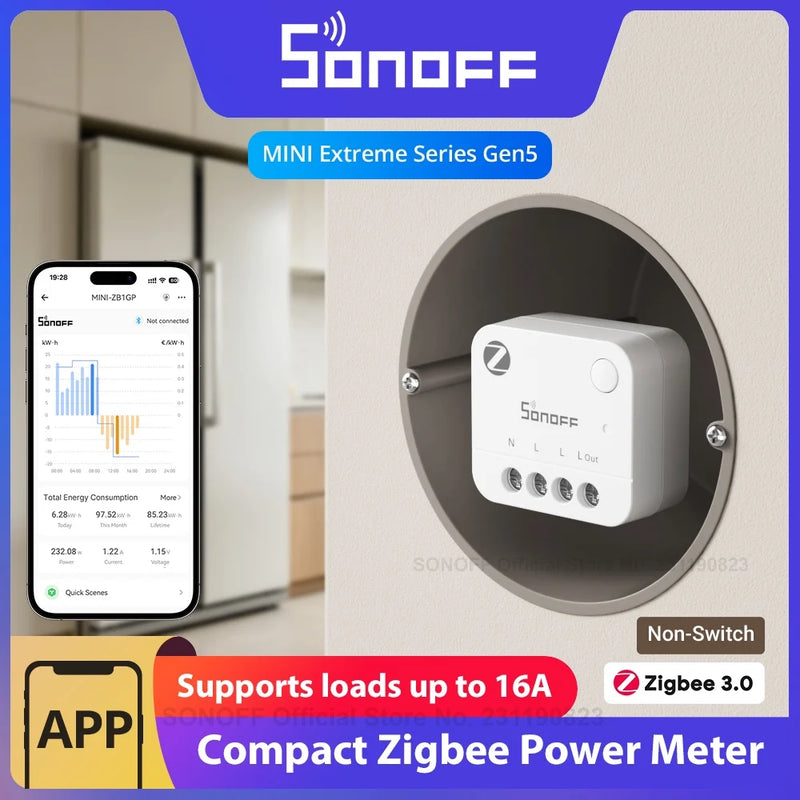

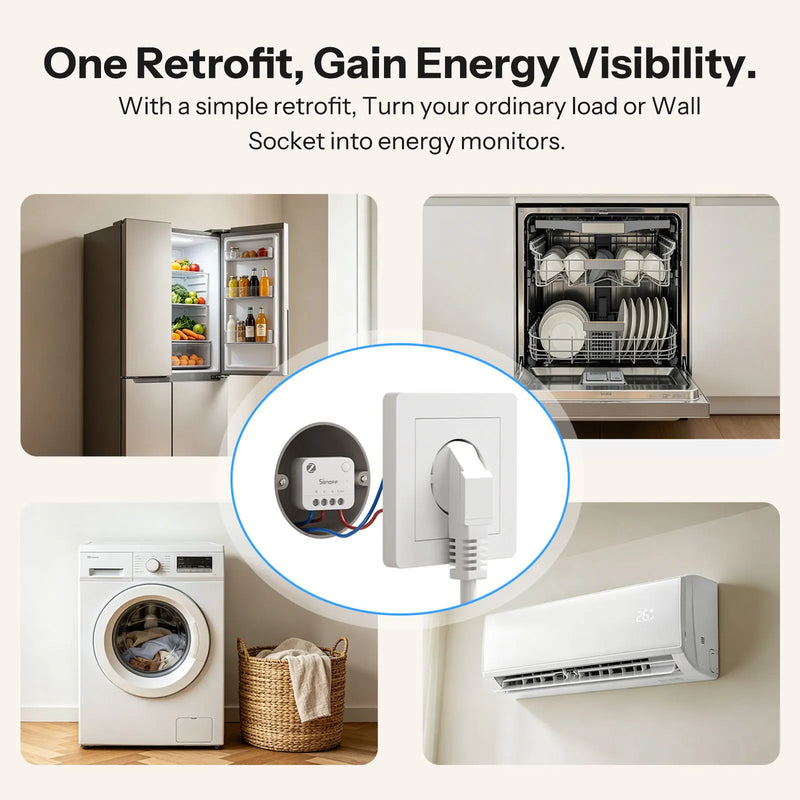

MINI-ZB1GP (MINI PM) is a Zigbee retrofit module designed for advanced energy monitoring of electrical devices. It tracks real-time power consumption and renewable energy generation from solar systems, providing visual charts and up to 180 days of historical data through the app. It also features comprehensive electrical protection and supports electricity rate and time-of-use tariff settings for accurate energy cost reporting. Powered by Zigbee 3.0, it ensures stable connectivity and extends network coverage as a signal repeater.

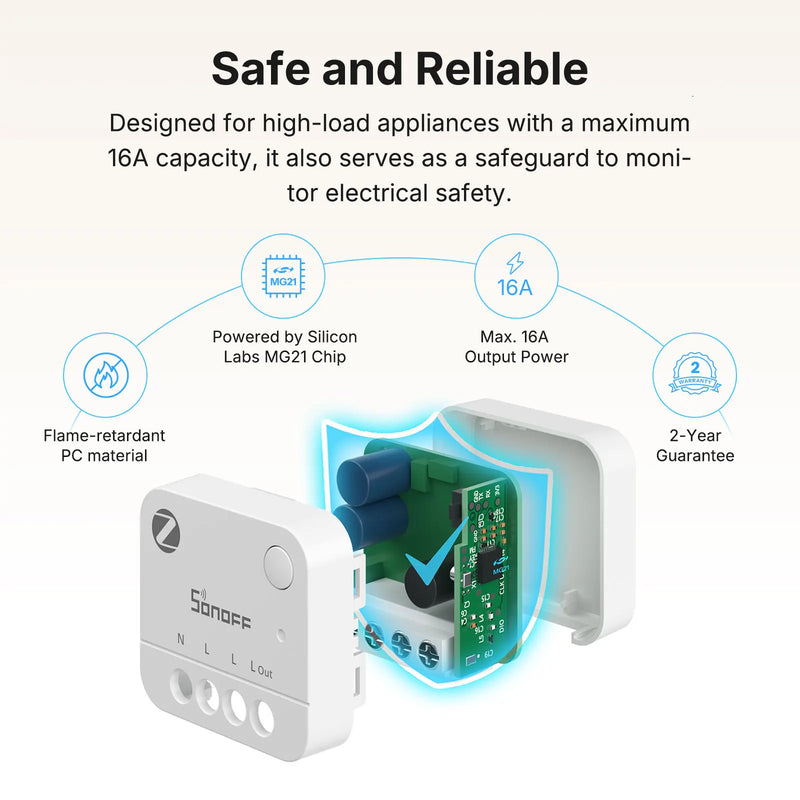

Safe and Reliable
Designed for high-load appliances with a maximum 16A capacity, it also serves as a safeguard to monitor electrical safety.
Strengthen Your Zigbee Mesh Network
MINI-ZB1GP can work as a zigbee signal repeater, transmit the zigbee
signal among your zigbee devices.
Know Your Energy Consumption
See exactly how much power your home draws from the grid and calculate your electricity bill with Time-of-Use pricing. Track usage by hour, day, or month — identify energy-hungry devices and cut waste.

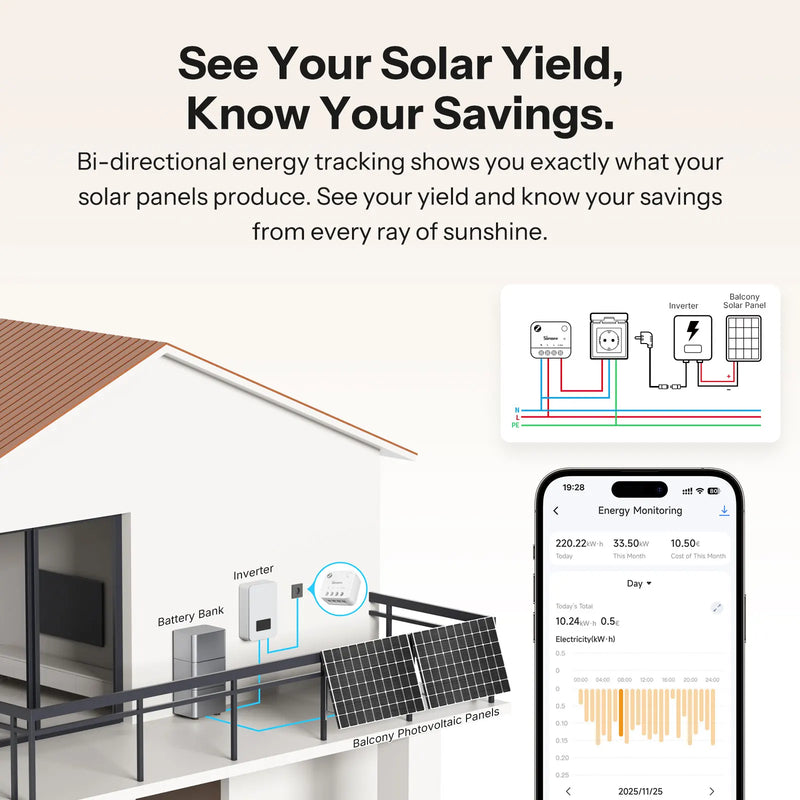

See Your Solar Yield, Know Your Savings.
Bi-directional energy tracking shows you exactly what your solar panels produce. See your yield and know your savings from every ray of sunshine.
Stop Guessing, Get Notified When It's Done
Set it once — you'll receive a notification when power consumption stays below a threshold for a defined period. The delay feature prevents temporary power drops during washer fill and drain cycles from being falsely recognized as cycle completion.
Time for maintenance? Let the System Track it for You.
Set your own power threshold and maintenance interval. The system automatically accumulates runtime above the set threshold and alerts you when it's time for maintenance.
Secure Your Power, Protect Your Appliance.
When the current, voltage, or power exceeds the set threshold, the system can either push an "abnormal power usage" alert to the user, or trigger other smart
devices to cut off the load, ensuring electrical safety.
