SPECIFICATIONS
Brand Name: SONOFF
Camera Equipped: No
Casing material: PC
Certification: CE,FCC,RoHS,CE/FCC/RoHS
Communication method: Zigbee
Compatibility: All Compatible
FCC ID: 2APN5-MINIZB2GSL
High-concerned chemical: none
LED: 300W@240V/gang, 150W@100V/gang, total 600W@240V, 300W@100V
MCU: EFR32MG22
Min load: 3W (No Neutral Required)
Model: MINI-ZB2GS-L
Model Number: MINI-ZB2GS-L
Net weight: 33g
Origin: Mainland China
Product dimension: 45x39.4x16.8mm
Product name: MINI DUO-L
Product series: MINI Extreme series
Rated specifications: 100-240V~ 50/60Hz 8A/gang, Total 12A MAX Resistive load
State of Assembly: Ready-to-Go
Use: others
Working humidity: 5%~95% RH, non-condensing
Working temperature: -10℃~40℃
Zigbee: IEEE 802.15.4
SONOFF MINI DUO-L 2-Gang Zigbee Smart Switch MINI-ZB2GS-L No Neutral Wire Required Dual-Channel External Switch Control Smaller
*Zigbee hub is needed.
MINI DUO-L (MINI-ZB2GS-L) is a 2-Gang Zigbee Smart Switch with a compact design that fits European 60 and other small junction boxes. Its neutral-free installation makes retrofitting in older buildings simple. The switch provides two independent control channels with a total 12A load capacity. Using Zigbee 3.0 protocol, it works with various open-source platforms for cross-device automation. You can control it via app, voice command, or set timers for automated operation.

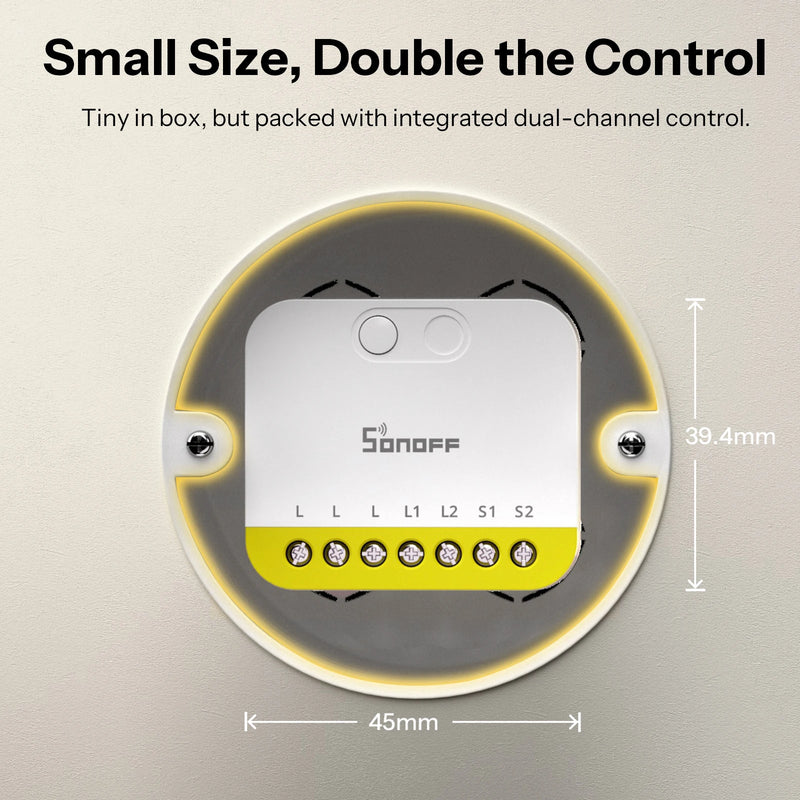

Small Size, Double the Control
Tiny in box, but packed with integrated dual-channel control.

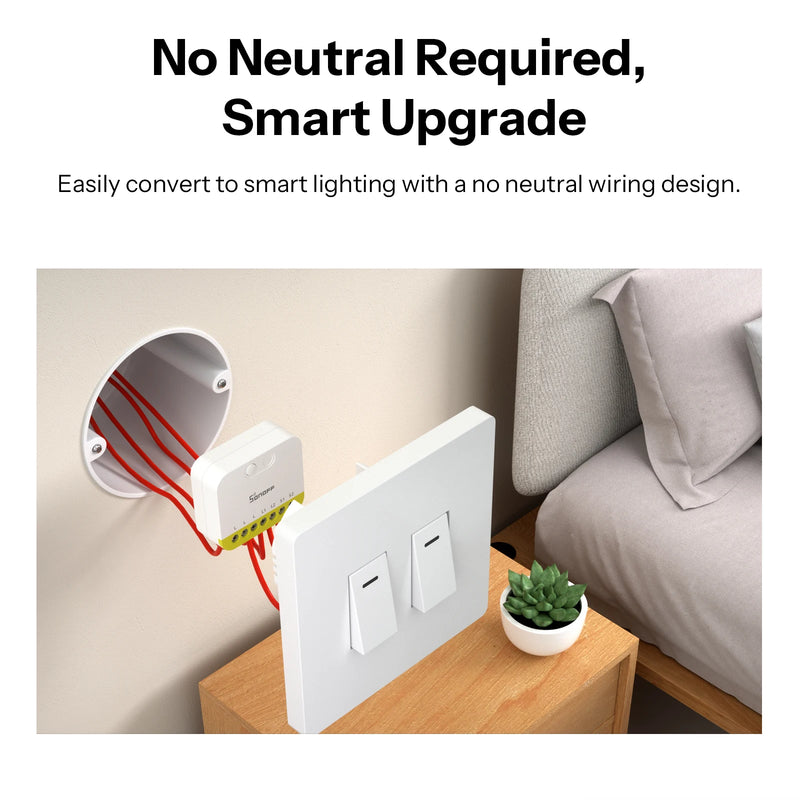

No Neutral Required, Smart Upgrade
Easily convert to smart lighting with a no neutral wiring design.
A Time-Saving and Labor-Saving Choice
3W load smart control, easy to nail – no extra anti-flicker module needed.
Different Switch Types at Your Disposal
Highly flexible and compatible with various external switch types, ensuring broad applicability and adaptability to meet all your needs.
Detach Relay, Turn Switches Into Smart Triggers
Enable detach relay to effortlessly separate external switch operation from smart device control. Turn your physical switch button into smart triggers for lighting scenes—an ideal solution for smart bulbs.

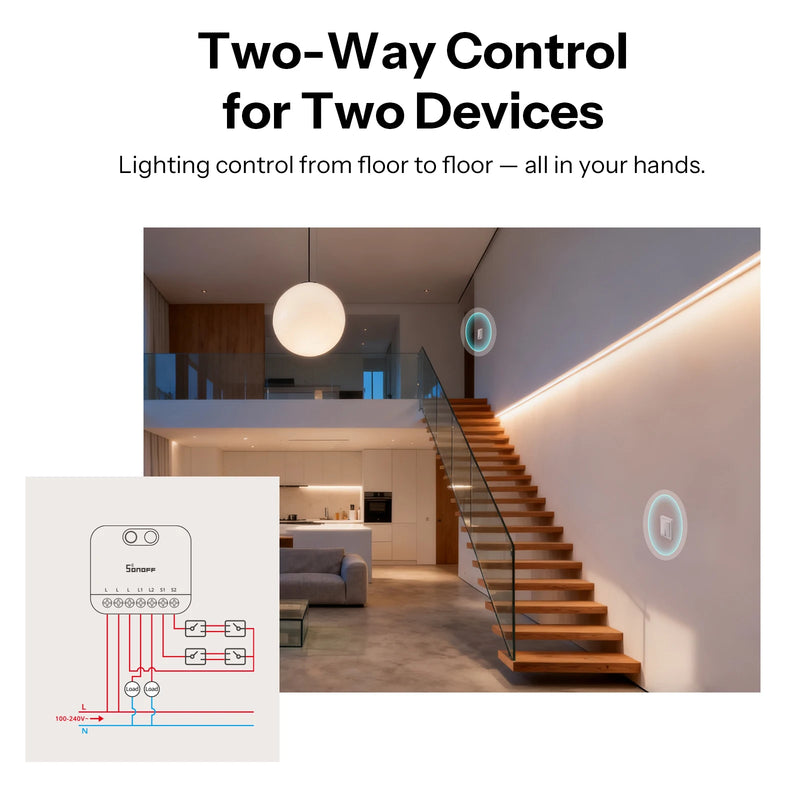

Two-Way Control for Two Devices
Lighting control from floor to floor — all in your hands.
Customizable Smart Scenes
Design your own scenes, craft a cozier home.
One Bridge, One Home. Unified by Matter.
Connect to any Matter-enabled platform via the SONOFF Zigbee Bridge Ultra. Say goodbye to isolated ecosystems and embrace a freely interconnected smart home.
Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF Zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
