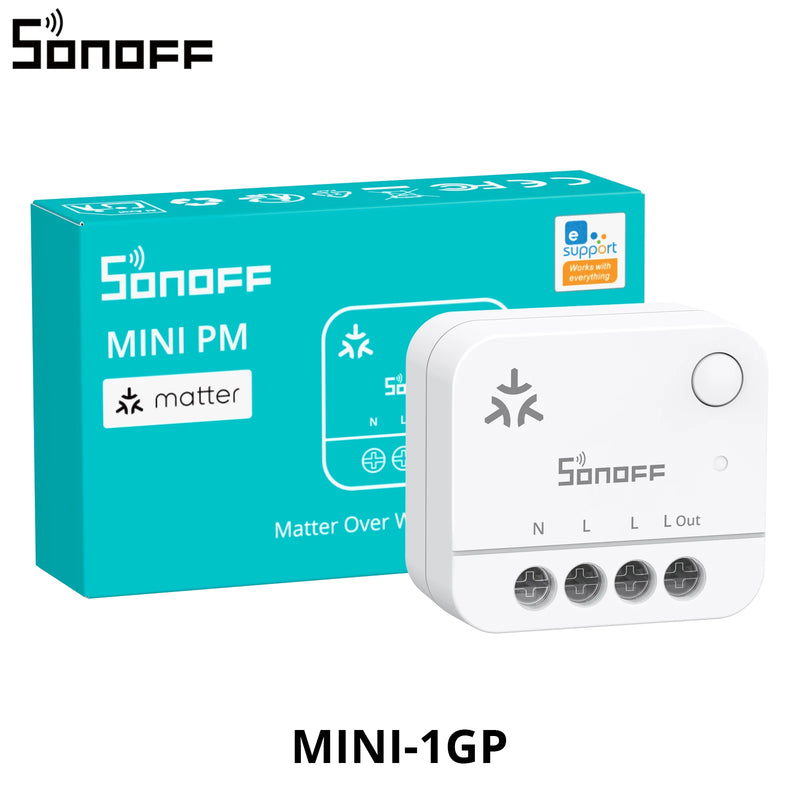

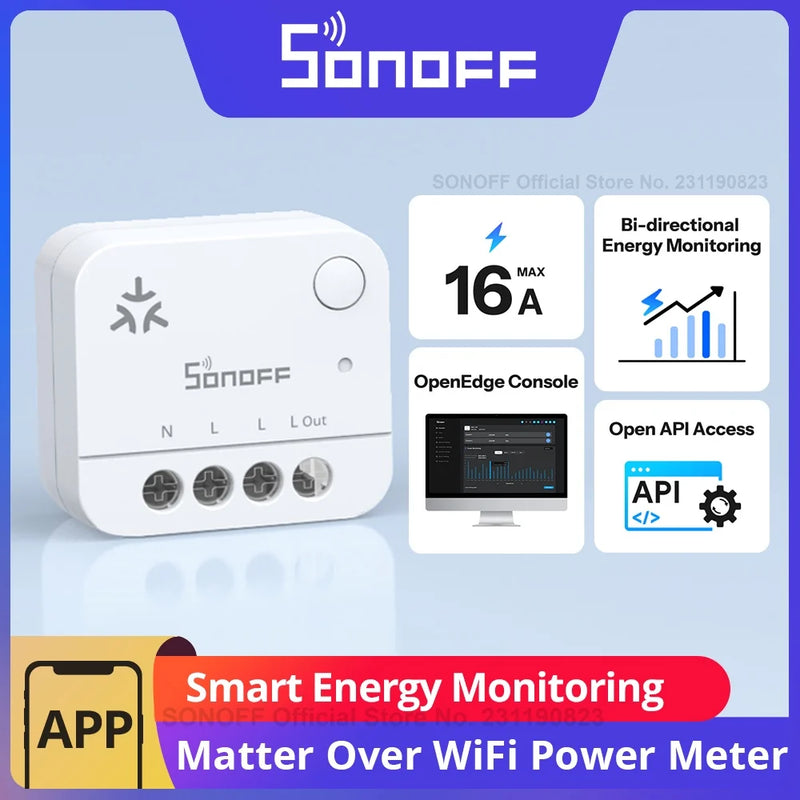

SONOFF MINI‑1GP MINI PM Matter Over WiFi Non‑Switch Smart Power Meter 16A Max Monitor Energy Consumption Generation Track Costs
SPECIFICATIONS
Applicable Place: Indoor flush mounting
Brand Name: SONOFF
Camera Equipped: No
Casing Material: PC
Certification: CE,FCC,RoHS
Communication method: Wi-fi
Compatibility: All Compatible
Diameter of Wiring (Recommended): 18 AWG to 14 AWG (0.75mm² to 2.5mm²) SOL/STR copper conductors only
Dimensions: 32x29x15.9mm
FCC ID: 2APN5-MINI1GP
High-concerned chemical: none
MCU: ESP32C6
Model Number: MINI-1GP
Net Weight: 14g
Origin: Mainland China
Product Model: MINI-1GP
Product Name: Matter Over WiFi Power Meter
Product Series: MINI Extreme Series Gen5
Rating: 100-240V~ 50/60Hz 16A
State of Assembly: Ready-to-Go
Use: others
Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
Wireless Function: Yes
Working Humidity: 10%~90% RH, non-condensing
Working Temperature: 10T40 (-10℃~40℃)
SONOFF MINI‑1GP MINI PM Matter Over WiFi Non‑Switch Smart Power Meter 16A Max Monitor Energy Consumption Generation Track Costs
MINI-1GP is a Matter-over-Wi-Fi smart energy monitoring module designed for smarter energy management and flexible integration. It provides a local web console for real-time monitoring and device configuration without requiring an app or cloud connection. With bidirectional energy monitoring, it tracks both energy consumption and solar power generation. It supports loads of up to 16A and enables integration with open-source platforms such as Home Assistant, openHAB, and ioBroker through open APIs.
One Retrofit, Gain Energy Visibility
With a simple retrofit, turn your ordinary load or wall socket into an energy monitor.
Know Your Energy Consumption
Keep track of energy usage in real time and review historical trends through the app, local web interface, or Home Assistant for a better understanding and management of your energy consumption.

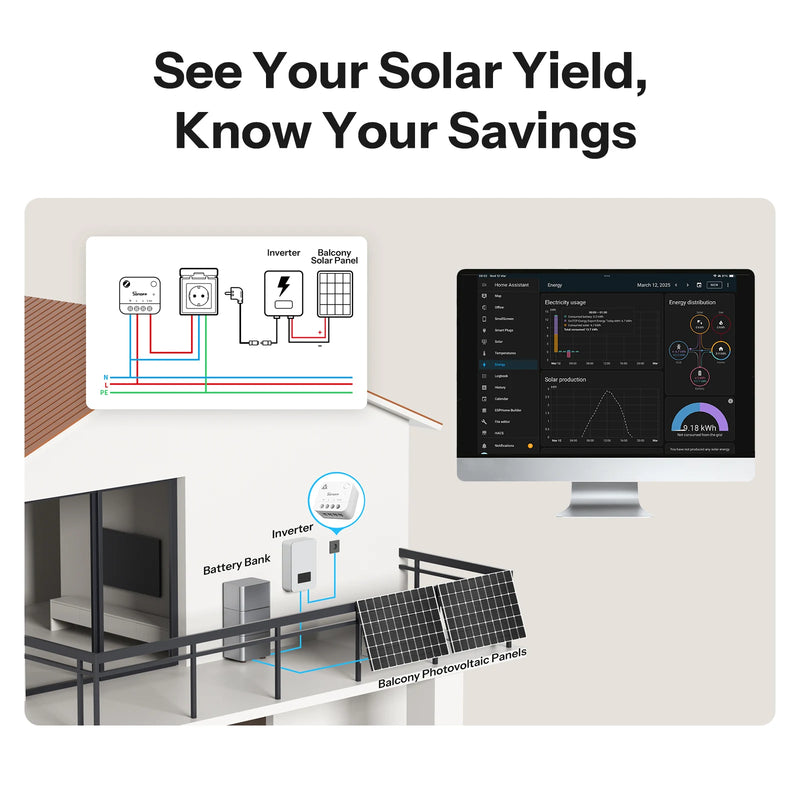

See Your Solar Yield, Know Your Savings
Bi-directional energy tracking shows you exactly what your solar panels produce. See your yield and know your savings from every ray of sunshine.

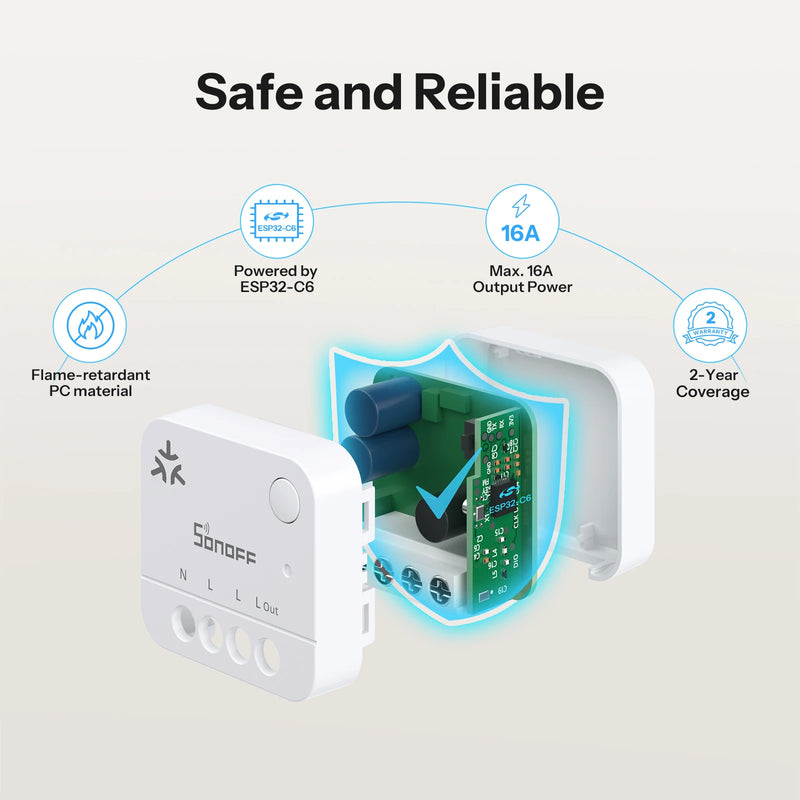

Safe and Reliable
Designed for high-load appliances with a maximum 16A capacity, it also serves as a safeguard to monitor electrical safety.
SONOFF "OpenEdge" Console
Configure and monitor your device directly from a web browser on your local network. Reduce cloud dependency while enjoying faster local access and enhanced privacy.

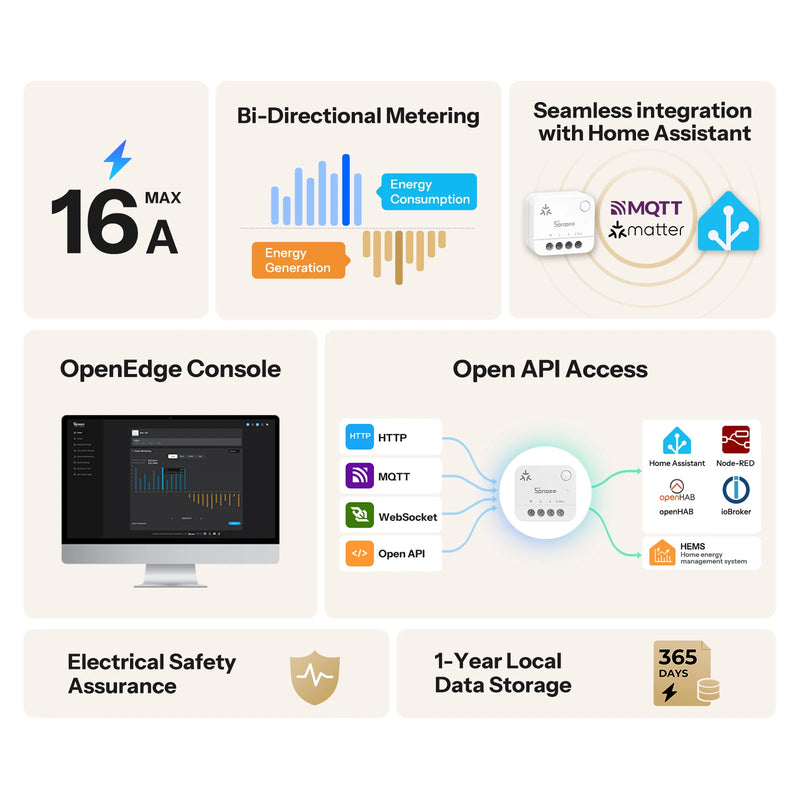

Open API for Unlimited Possibilities
Supports JSON-RPC 2.0 via HTTP, WebSocket, and MQTT for accessing device data.
Time for Maintenance? Let the System Track it for You.
Set your own power threshold and maintenance interval. The system automatically accumulates runtime above the set threshold and alerts you when it's time for maintenance.
Stop Guessing, Get Notified When It's Done
Set it once — you'll receive a notification when power consumption stays below a threshold for a defined period. The delay feature prevents temporary power drops during washer fill and drain cycles from being falsely recognized as cycle completion.
Easily Integrates with Home Assistant
You can add devices to Home Assistant via MQTT or Matter, enabling real-time monitoring, automation, and seamless smart home integration.
*Note: Due to platform-side limitations on the Energy Meter function within the Matter ecosystem, certain Matter platforms (e.g., Alexa, Google Home, Apple Home, SmartThings) do not currently support the addition of the MINI-1GP.
Matter Bridge: Bridge-M, ZBBridge-U, iHost, Cube OS with SONOFF Zigbee Dongle
This function requires adding the device to the eWeLink app via the SONOFF zigbee gateway and syncing it to third-party platforms through cloud-to-cloud integration.
Direct access to Alexa/SmartThings ecosystems via dedicated ecosystem gateways.
