SONOFF Din Rail Wire Connector Universal Compact Wiring Terminal Block Push-in Multi-Purpose for Electrical Cable Connection
SPECIFICATIONS
Brand Name: SONOFF
Camera Equipped: No
Certification: CE
Communication method: Other
Contact material: Red copper
Flexible wire: 0.2mm²-2.5mm²(24-14AWG)
High-concerned chemical: none
Insulation material: PC(D1-1/D1-2),PA(211)
Model: 211/D1-1/D1-2
Model Number: 211/D1-1/D1-2
Origin: Mainland China
Rated current: 32A
Rated voltage: 250V
Solid conductor: 0.2mm²-4.0mm²(24-12AWG)
SONOFF Din Rail Wire Connector Universal Compact Wiring Terminal Block Push-in Multi-Purpose for Electrical Cable Connection
NOTE: We have 3 kinds of wire connector sets(211/D1-1/D1-2), please read below detail page to choose the one you need and confirm before purchase!

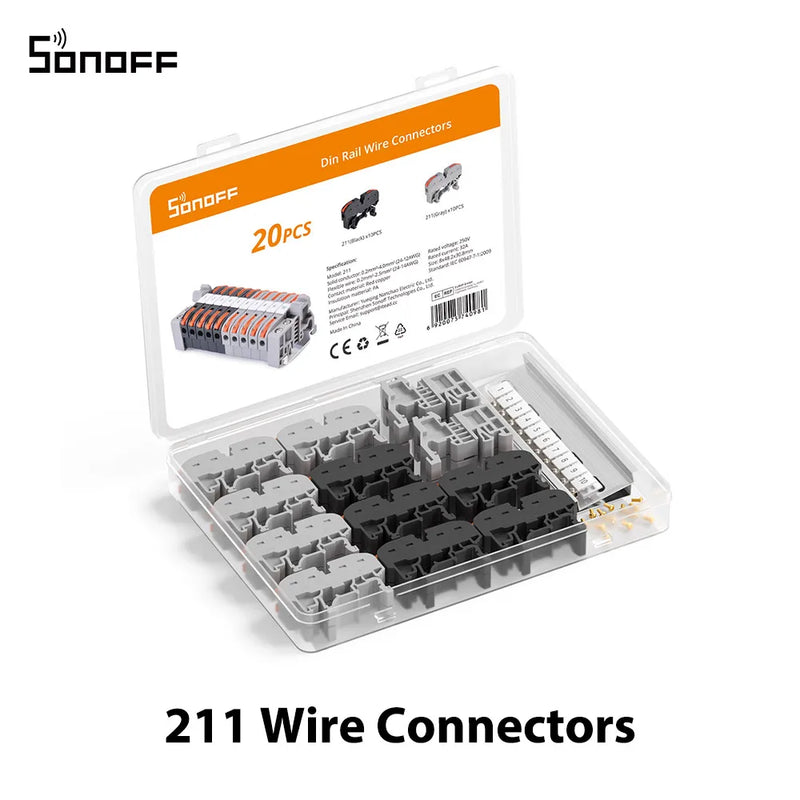

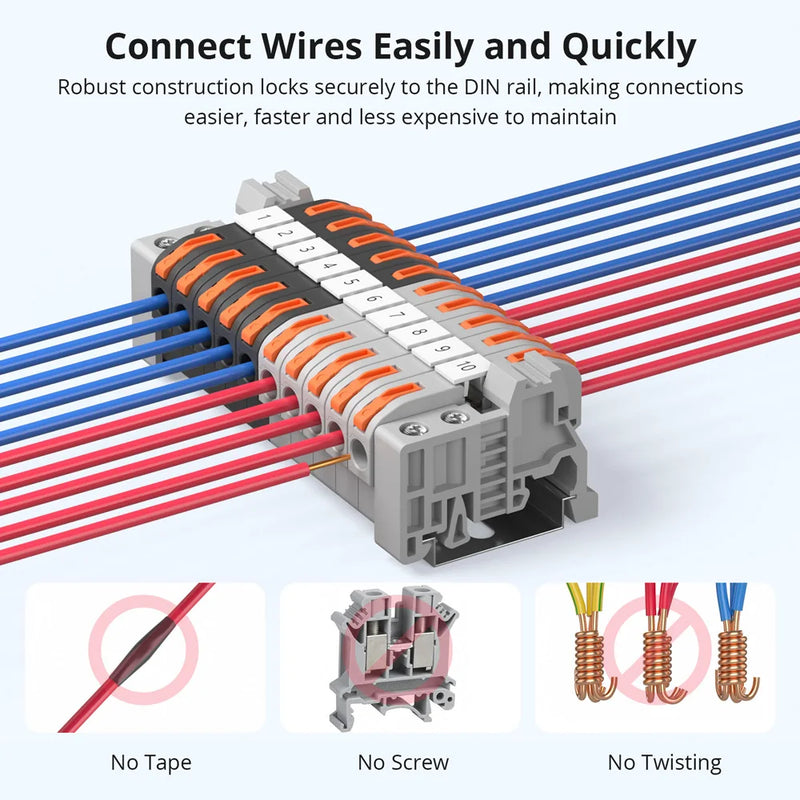

SONOFF Din Rail Wire Connectors 211
【Perfect DIN Rail Terminal Blocks Kit】Terminal blocks kit comes with 20pcs 12AWG terminal blocks, 2pcs connection bar, 2pcs digital identification, 20pcs screws, 2pcs end stopper bracket and a transparent storage box.
【Easy to Use】The patented design, different from the ordinary rail connector, does not require the tedious tightening of screws, just insert the rail terminal into the 35mm iron and aluminum DIN rail, lift the orange clip, insert the wire into the hole until you feel the resistance, then lower the orange lever and complete the operation, saving 70% of the operation time.
【Universal Compatibility】 This Wire Connector is suitable for solid and flexible wire. Connect any combination of solid, stranded, and flexible copper wires. Suit for solid wire 0.08-4.0mm² /28-12 AWG, flexible wire 0.5-2.5mm² /20-14 AWG. It is widely used in distribution boxes, control cabinets, switchgear, complete sets of equipment, machinery, etc.

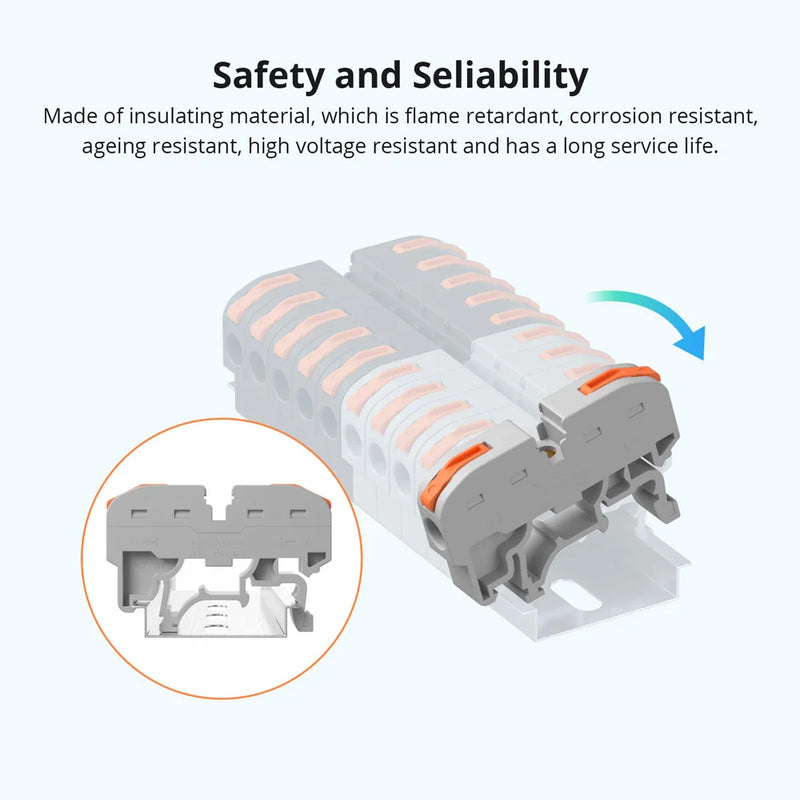

【Premium Quality】Terminal blocks, high-quality brass metal body, and the best flame retardant insulating material modified nylon PA66 shell, it has a long life, no corrosion, anti-aging, 4KV and shock resistance, strong structure firmly locked to DIN rail.

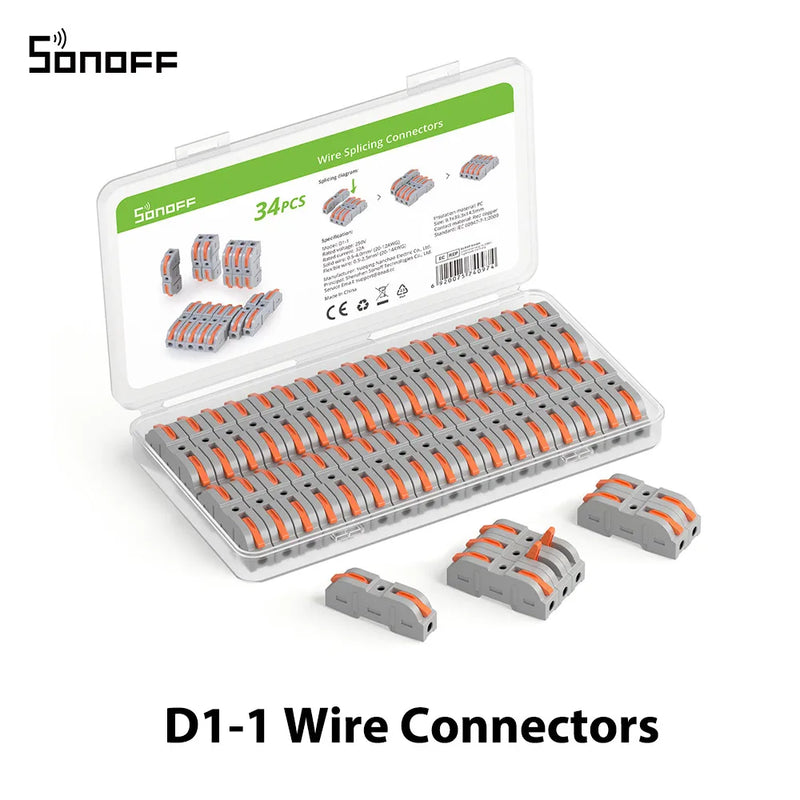

SONOFF Wire Splicing Connectors D1-1
【Safe and reliable】 The wire splicing connectors shell is made of high-quality PC insulating material. Wire connectors have the advantages of long service life, corrosion resistance, high-temperature resistance, aging resistance, and can effectively prevent leakage. Each connection point has independent shrapnel and different wires are managed separately, which improves the safety performance and product quality. Therefore, the wire splicing connectors are safer than the traditional wire nut.
【Reusable and Use in Combination】 The wire splicing connector is a reusable innovative connector. If you need to replace other wires, just pull up the small lever, pull out what you need, and replace them. The conductor electrical wire connector is reusable and operated easily. Multiple lever connectors can be spliced into a wiring group to meet your different needs.
【Compatibility】 Suitable for soft and hard single-strand and multi-strand wire, universal connectors for 0.2 to 4 mm²/AWG 28-12 solid wire, and flexible copper wire.

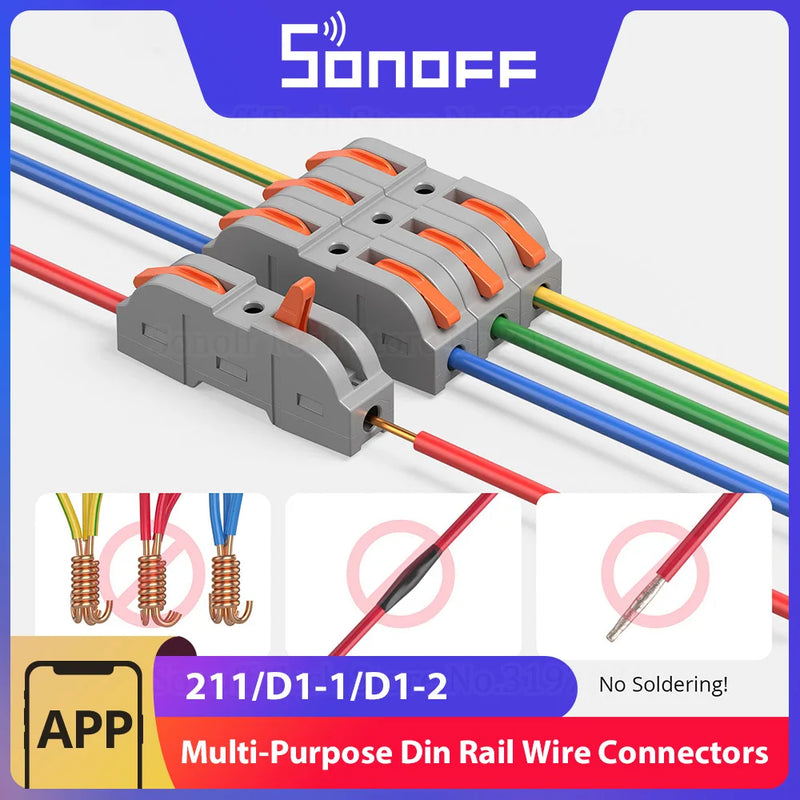

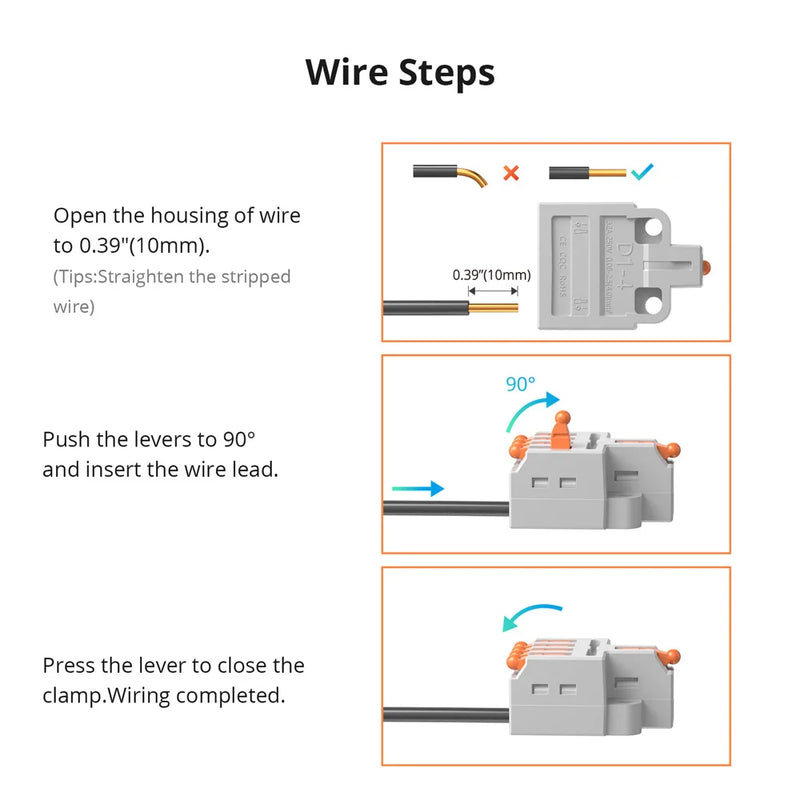

【Easy to operate 】Instead of traditional electrical tape and twist-type electrical butt connectors. Don’t need more tools to connect wires, just push the orange handle to 90°, insert the cable and close the switch. No tape winding, saves a lot of time and effort.
【Wide Application】Wire Splicing Connectors are widely used in ceiling fans, building wiring, ships, lighting, automatic doors, sockets, chandeliers, switches, cars, loudspeakers, electrical boxes, and fan controls, and so on, are safer than the traditional wire nut.

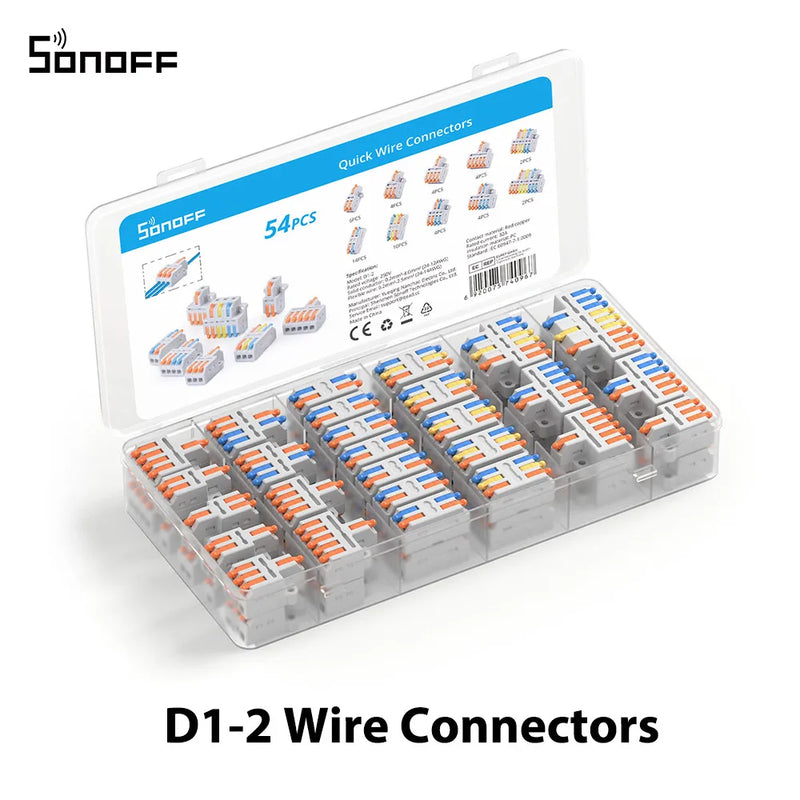

SONOFF Quick Wire Connectors D1-2
【Safe and durable】 The quick wire connectors shell is made of flame retardant material, high-temperature resistance, reducing potential safety hazards. the conductor is tinned with pure copper, strong conductivity, rust resistance, and corrosion resistance. which is very good at preventing the thermal cycling release of wires connected together.

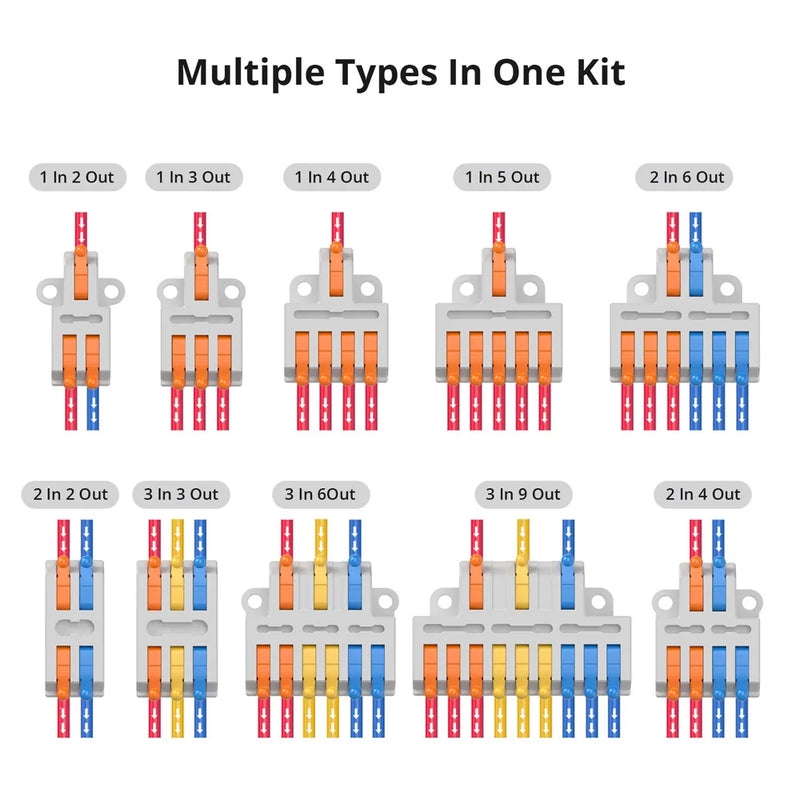

【High efficiency】 The connectors with different conductors are designed to be compact and practical and can connect multiple sets of wires in a very short time instead of taking much effort soldering and wrapping wires in electrical tape.
【Easy to use】There are screw holes on both sides of the quick connector, which is convenient for fixing the wiring, and simple but efficient. just open the wrench of the quick wire connectors, insert the wire, and press the wrench, the wiring is completed, and the wiring can be completed more efficiently and quickly.
【Compatibility】Widely applied for motor, electrical control, power supply, home appliance, machinery, and other electrical connections. Suitable for hardwire 0.08-4.0mm²/ AWG28-12, soft wire 0.08-2.5mm²/AWG28-14.
【Practical connectors kit】It is used for building and everyday household wiring: lights, sockets, switches, cars, loudspeakers, electrical boxes, fan controls, etc.
