SONOFF BASIC-ZB1GSP Basic DIN Rail Zigbee Smart Switch 32A High-Power Double-Pole Switching Energy Tracking Overload Protection
SPECIFICATIONS
Applicable place: Indoor
Brand Name: SONOFF
Camera Equipped: No
Casing material: PC
Certification: CE,FCC,RoHS
Communication method: Zigbee
Compatibility: All Compatible
High-concerned chemical: none
Max. current: 32A
Max. load: 7680W
Model: BASIC-ZB1GSP
Model Number: BASIC-ZB1GSP
Net weight: 93.5g
Operating humidity: 10% ~ 90% RH, non-condensing
Operating temperature: 15T50 (-15β~50β)
Origin: Mainland China
Product dimension: 84 x 66.5 x 18 mm
Product name: Basic DIN Rail (Zigbee Version)
Product series: Basic Series
Product type: Zigbee Smart Switch
Rating: 100-240V~ 50/60Hz 32A Max
Recommended wire gauge range: For 11 AWG to 6 AWG (4mmΒ² to 10 mmΒ²) SOL/STR copper conductors only
State of Assembly: Ready-to-Go
Use: others
Wireless Function: Yes
Wireless connectivity: Zigbee 3.0
SONOFF BASIC-ZB1GSP Basic DIN Rail Zigbee Smart Switch 32A High-Power Double-Pole Switching Energy Tracking Overload Protection
Basic DIN Rail (Zigbee Version) is a DIN rail-mounted Zigbee smart switch designed for residential and industrial energy management. It installs on standard DIN rails without drilling or modifications. It provides real-time monitoring of voltage, current, power, and energy consumption, with data storage and export capabilities. Supporting loads up to 32A, it is ideal for EV chargers, water heaters, and heating systems. Built-in overload protection and double-pole switching enhance electrical safety. Based on the Zigbee 3.0 standard, it delivers stable connectivity and seamless smart home automation.

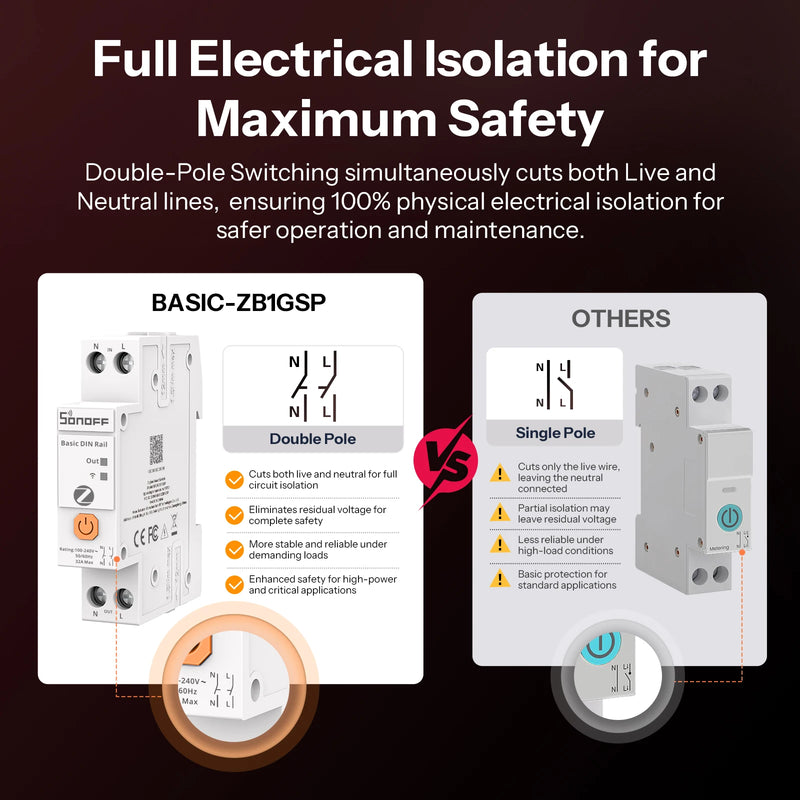

Full Electrical Isolation for Maximum Safety
Double-Pole Switching simultaneously cuts both Live and Neutral lines, ensuring 100% physical electrical isolation for safer operation and maintenance.
Safer and Stronger Performance
Strictly tested according to UL94 V-0 standard,
burning stops within 10 seconds after two
applications of ten seconds each of a flame to
a test bar no flaming drips.
Powered by SONOFF New "UniBusbar" Relay
Lower Heat. Higher Current. Longer Lifespan.
Monitor Your Energy Usage
Track daily, monthly, and semi-annual electricity usage with your BASIC DIN Rail (Zigbee Version).
Intuitive charts make it easy to manage consumption and save on your electricity bills.

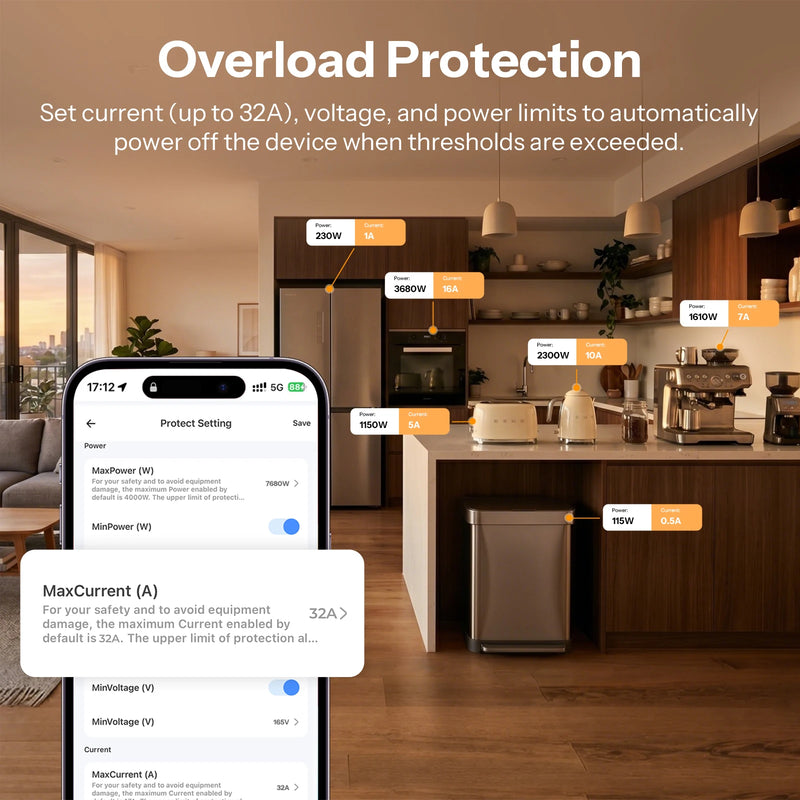

Overload Protection
Set current (up to 32A), voltage, and power limits to automatically power off the device when thresholds are exceeded.
Integration with Third-party Platforms
Based on the Zigbee 3.0 standard protocol, it seamlessly integrates with third-party open-source platforms, making it perfect for your home automation needs.
Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF Zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
Voice Control Set Timers Inching Setting
You can βspeak toβ your appliances.
Set a timer to turn appliances on or off.
Automatically turn off devices every time.
4 Steps to Use
Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!
