SPECIFICATIONS

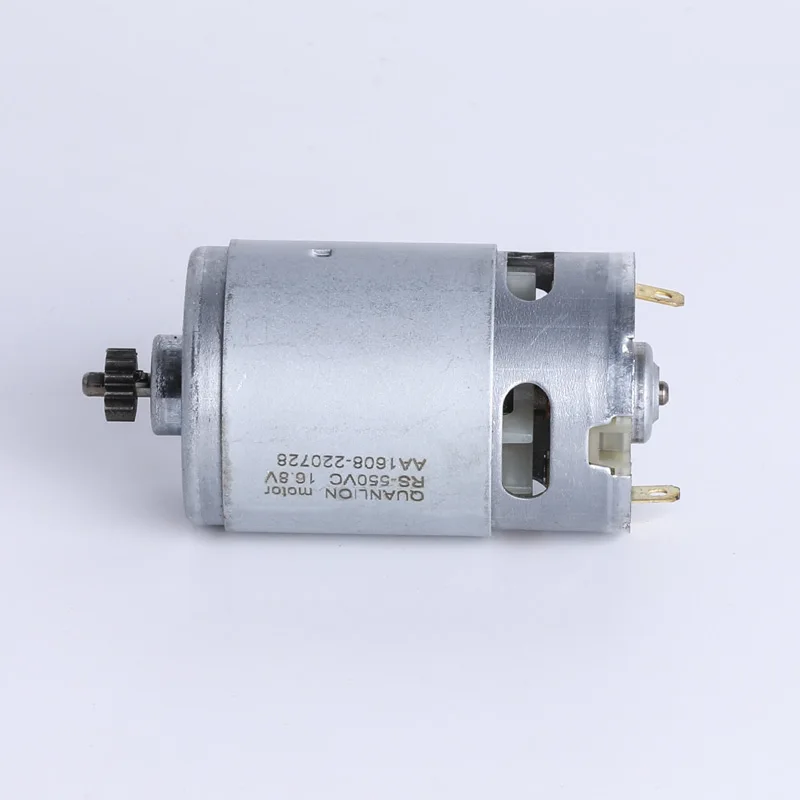

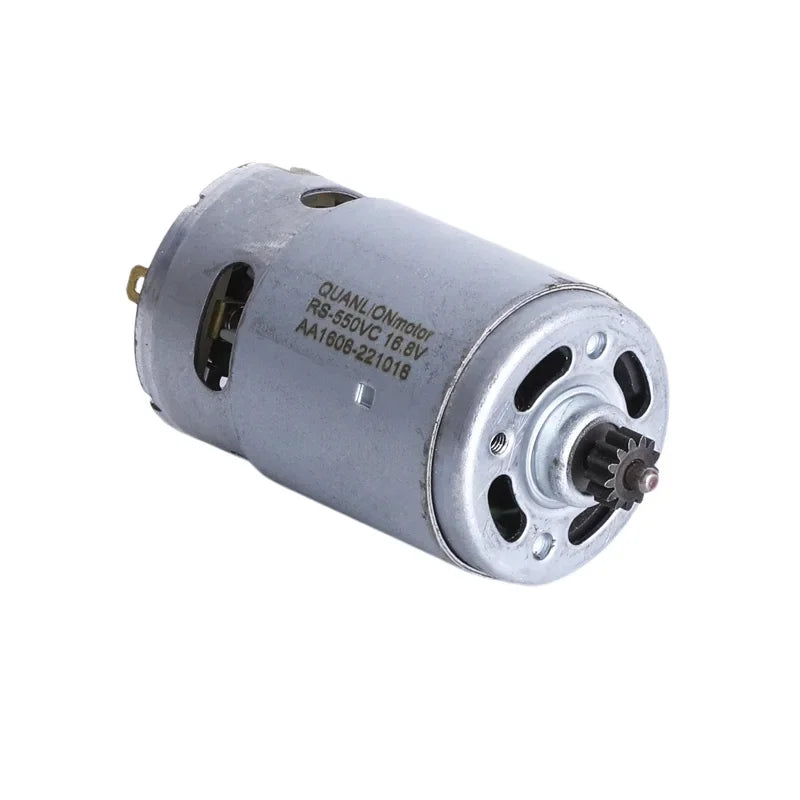

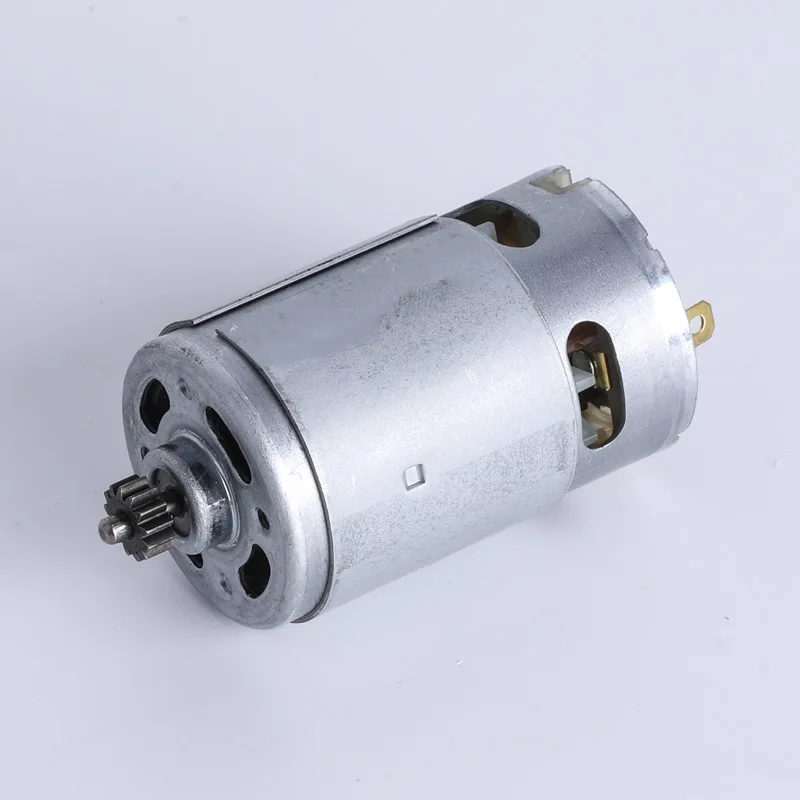

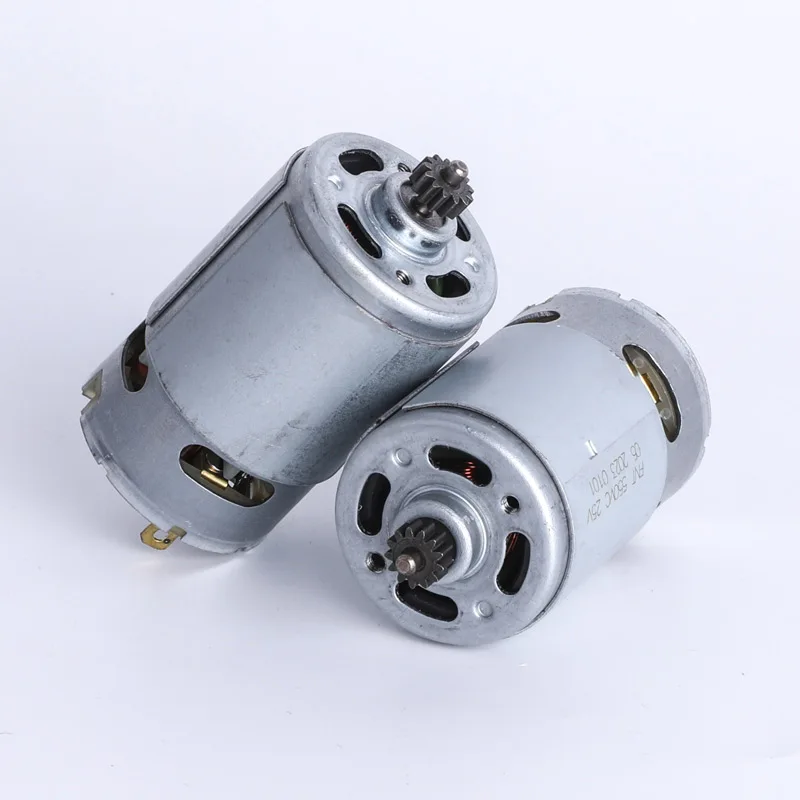

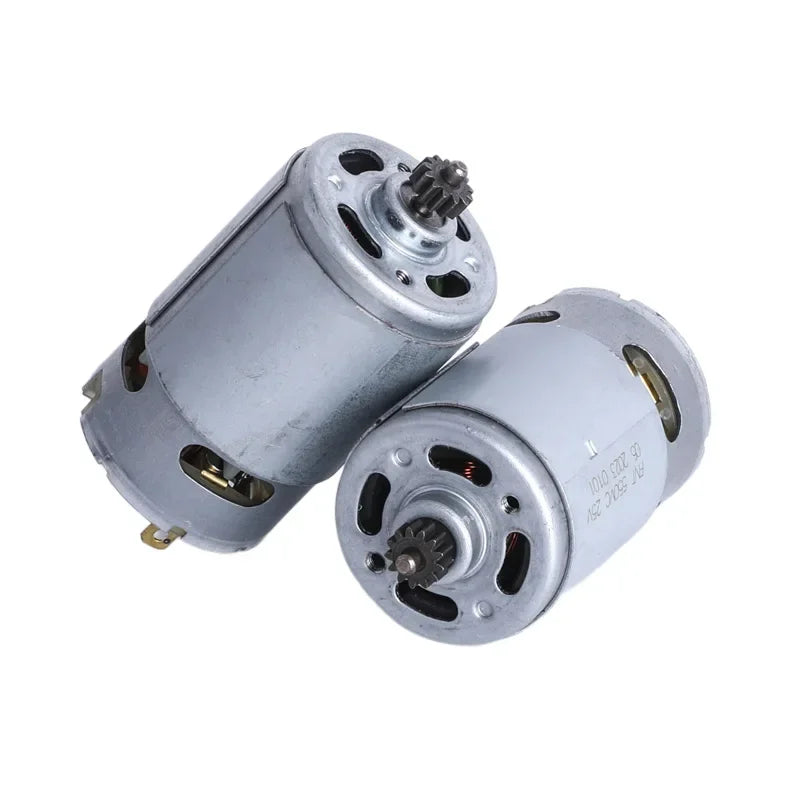

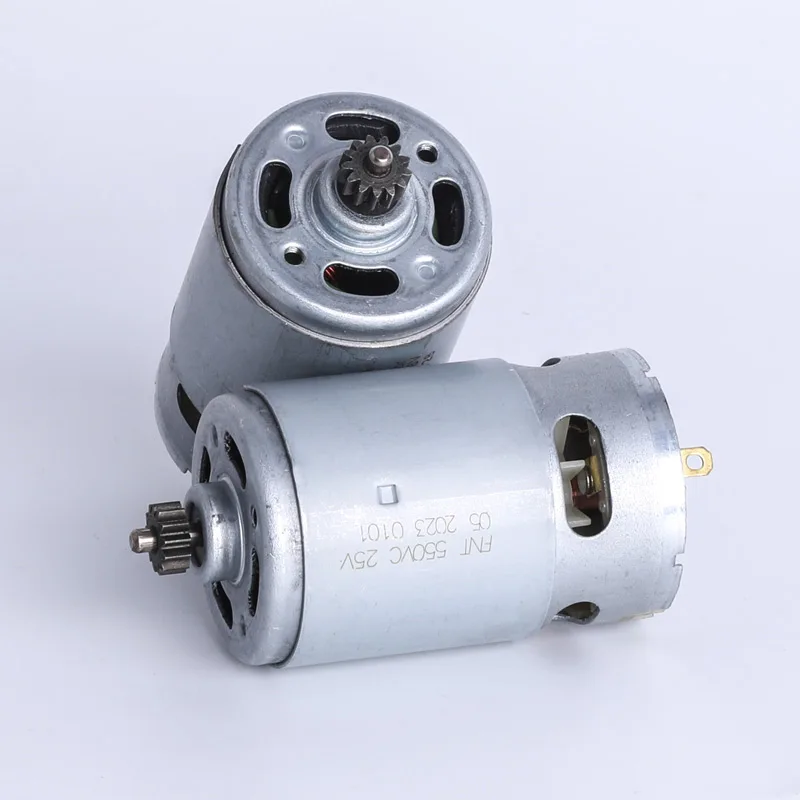

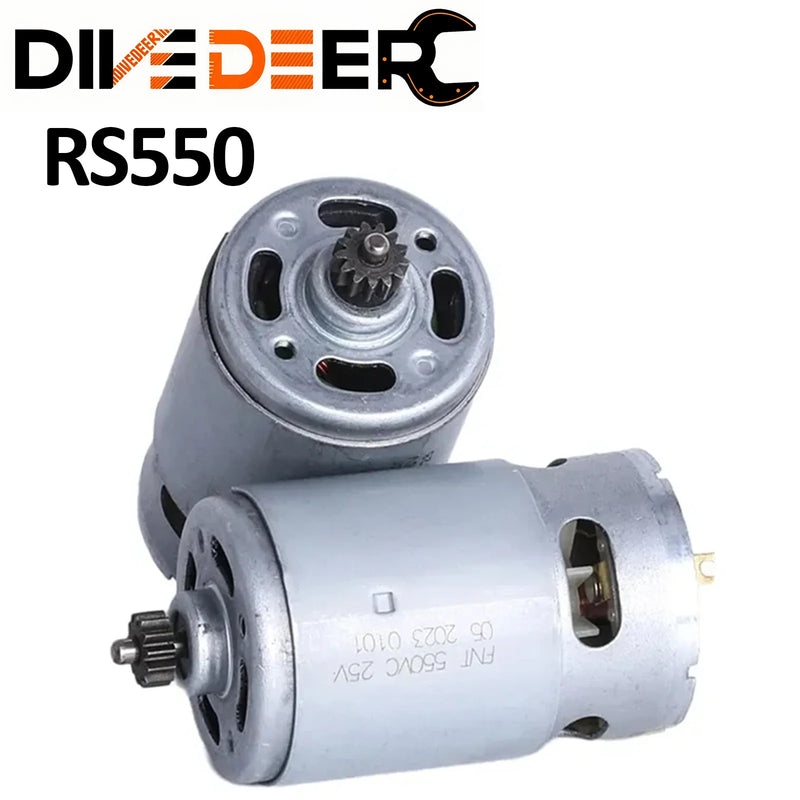

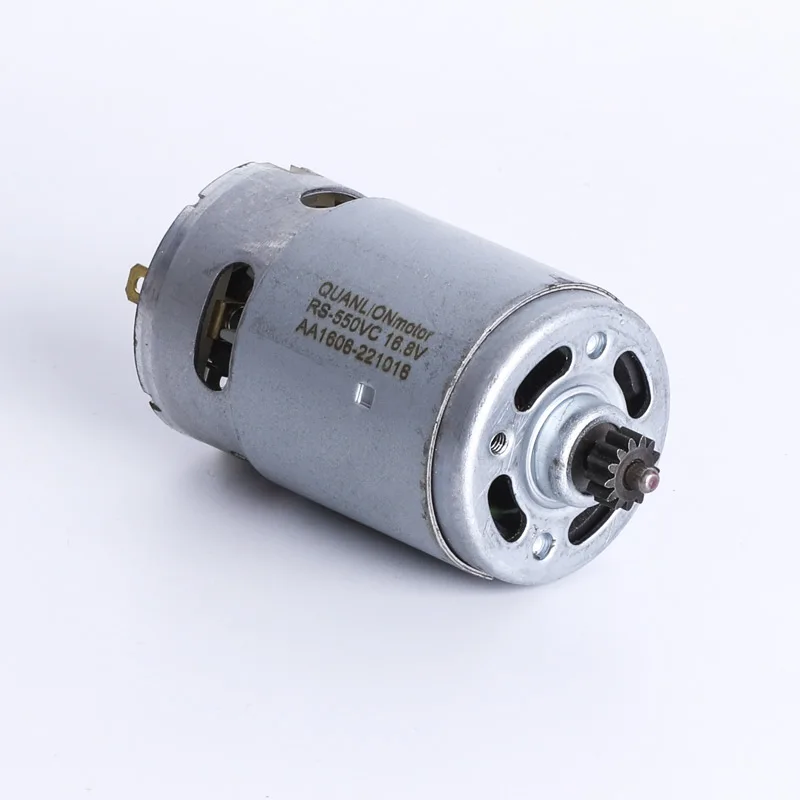

Name: RS550 DC Motor 8.2mm /9.5mm 14 Teeth Gear Micro Motor 21V 25000RPM Electric Saw Motor for Rechargeable Hand Saw / Electric Drill
Brand: DARAHUB
SKU: 1005007897592890-25V-13
Price: 20.65 USD
Availability: InStock

Brand Name: DIVEDEER

Certification: NONE

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Origin: Mainland China

Output Power: 18.65-37.5（include18.65and37.5）

Parameters:

- Motor type: DC brushed motor

- Support voltages: 9.6V / 10.8V / 12V / 14.4V / 16.8V / 18V / 21V / 25V

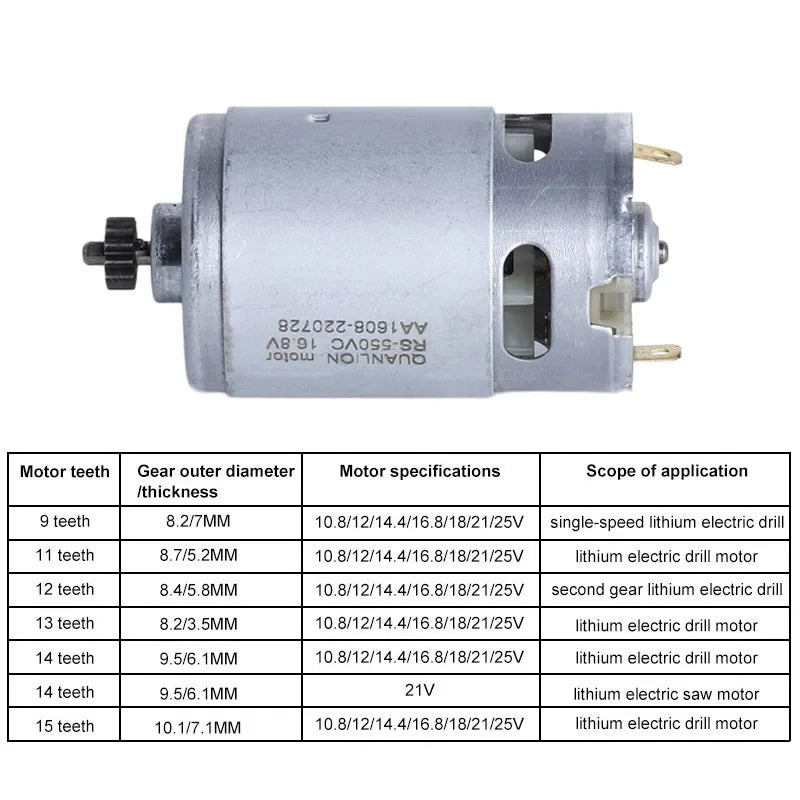

- Support gear teeth number: 9 / 11 / 12 / 13 / 14 / 15 (See other links in this store)

- No load Speed: 20000-30000RPM

- Rated Power: 80W (approx.)

- Gear Material: Metal

- Shaft Size: 3.175mm(diameter) * 12.5mm(length)

- Motor Total Size: 37.2mm(diameter) * 75.1mm(length)

- Motor Installation Size: 2 M3 screws, Spacing 25mm

- Motor Total Weight: 220g (approx.)

- Motor Use Temperature: 0℃-50℃

- Motor Storage:

- Temperature: 0℃-40℃

- Humidity: 15%-90% RH

Notes:

The RS550 motor has multi-voltage and multi-gear teeth combinations, which can be adapted to many electric power drills on the market, but there are too many brands and models of power tools, which makes it impossible for us to identify them all, so please compare them carefully before an order.

Special Notes:

This RS550 14 Teeth (Φ9.5mm) is ONLY for Rechargeable Drill / Screwdriver, and if you want RS550 14 teeth (Φ8.2mm) for Rechargeable Saw, please see other link in this store.

Package include:

- 1 x RS550 motor (with gear) Report Item
