Pure Copper PV Solar Extension Cable 1M 2M 3M 5M 10M 2.5 4 6mm2 - Double Ends Red Black Wire for Outdoor Solar Panel

Name: ខ្សែបន្ថែមថាមពលព្រះអាទិត្យ PV ស្ពាន់សុទ្ធ 1M 2M 3M 5M 10M 2.5 4 6mm2 - ខ្សែចុងពីរពណ៌ក្រហមខ្មៅសម្រាប់បន្ទះសូឡាខាងក្រៅ
Brand: DARAHUB Store
SKU: 1005012590393748-Red and Black-3M 4mm2
Price: 24.55 USD
Availability: InStock

SPECIFICATIONS

Application: Solar panel photovoltaic outdoor wiring

Brand Name: NONE

Cable Length: 1M 2M 3M 5M 10M selectable lengths

Cable Size: 2.5mm2 4mm2 6mm2 options

Certification: CE

Choice: yes

Connector Ends: Double ends with red and black cable pair

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: DC-DC

Origin: Mainland China

Package Choice: Choose cable section and length by SKU option

Product Type: Solar extension cable with MC4 connector

Voltage: 1000 V

Voltage Rating: Suitable for 1000V 1500V PV DC systems

Wire Color: Red and black polarity identification

semi_Choice: yes

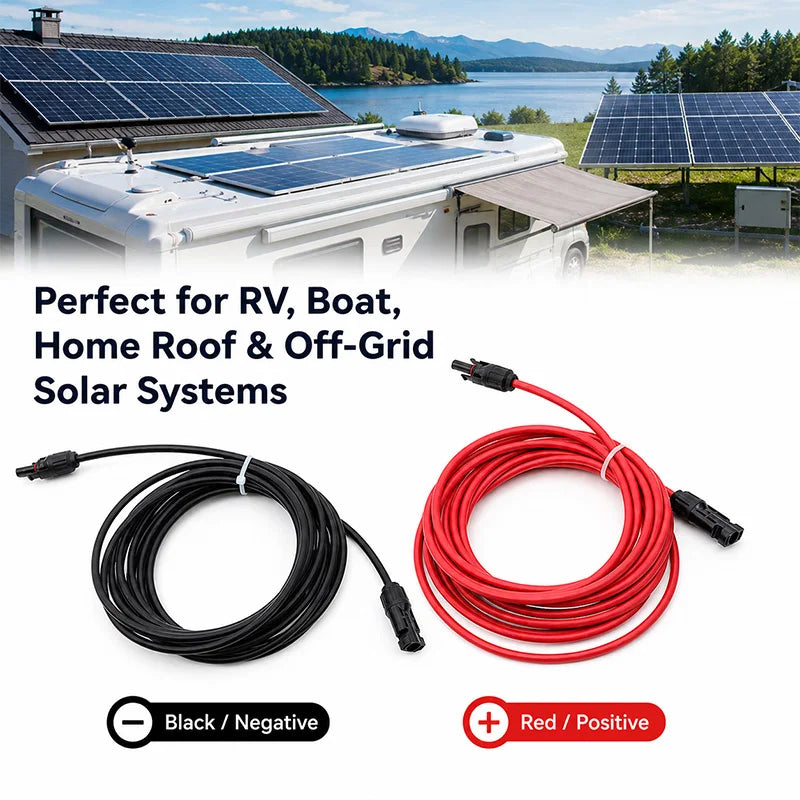

Solar Extension Cable With MC4 Connector

This listing is for a double-ended solar extension cable set with red and black PV wire. Choose the cable section and length that match your installation: 2.5mm2, 4mm2 or 6mm2, with 1M, 2M, 3M, 5M and 10M options.

Key Features

Double-ended MC4 style connector cable for photovoltaic wiring.
Red and black cable pair makes positive and negative polarity easy to identify.
Available in 2.5mm2, 4mm2 and 6mm2 cable sizes for different current needs.
Length options include 1M, 2M, 3M, 5M and 10M for flexible panel layout.
Suitable for outdoor solar panel connection, RV solar, cabin solar and PV projects.
Designed for 1000V/1500V DC solar system use depending on installation requirements.
Ready-to-use extension cable helps reduce wiring time during panel connection.
Practical replacement or extension part for solar power system maintenance.

How To Select

Choose 2.5mm2 for lighter wiring or shorter low-load extension needs.
Choose 4mm2 for common solar panel extension wiring.
Choose 6mm2 when a thicker cable is preferred for longer runs or higher current margin.
Select the length according to the distance between panels, controller, combiner box or other PV equipment.

Notes

Please check the connector type, cable size and length before ordering. Manual measurement may have slight tolerance. Installation should follow local electrical safety rules and be performed by a qualified person when required.
