Product Introduction

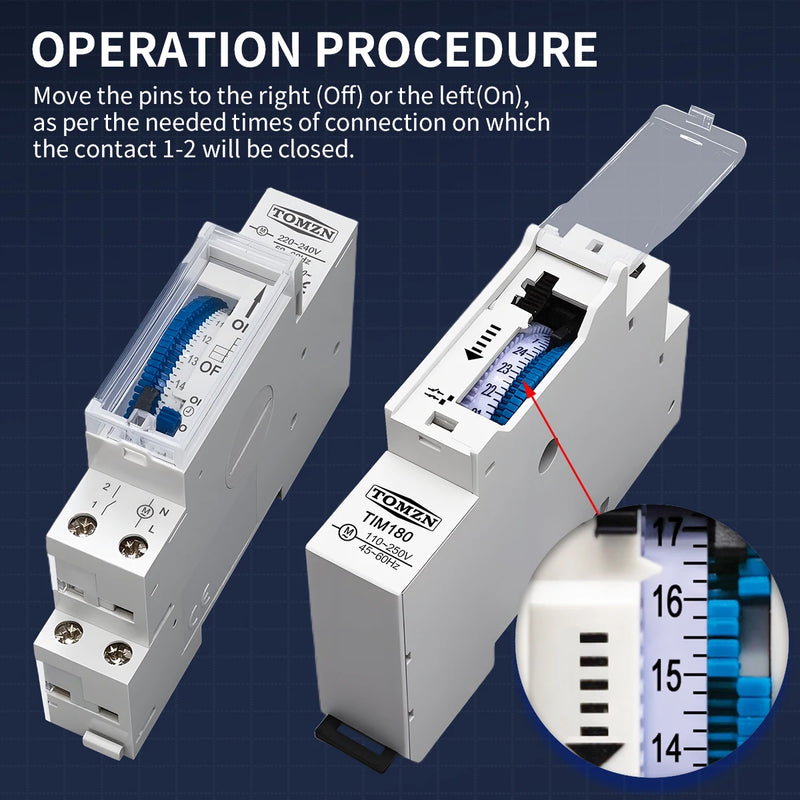

The 24-Hour Mechanical Time Switch is a reliable and precise solution for automated electrical control in industrial and commercial applications. Designed for professional installation, it mounts on standard 35mm DIN rails and features robust internal protection against interference. To ensure optimal performance, it is recommended to install the device away from inductive loads and to use appropriate suppression components. The intuitive pin-based operation allows users to easily set switching times by adjusting the pins to the desired On or Off positions. With models available in various voltage ratings and operating modes—including Timer, Constant-On, and Constant-Off—this time switch offers dependable accuracy and flexible control for a wide range of timing applications.

Product Data Sheet

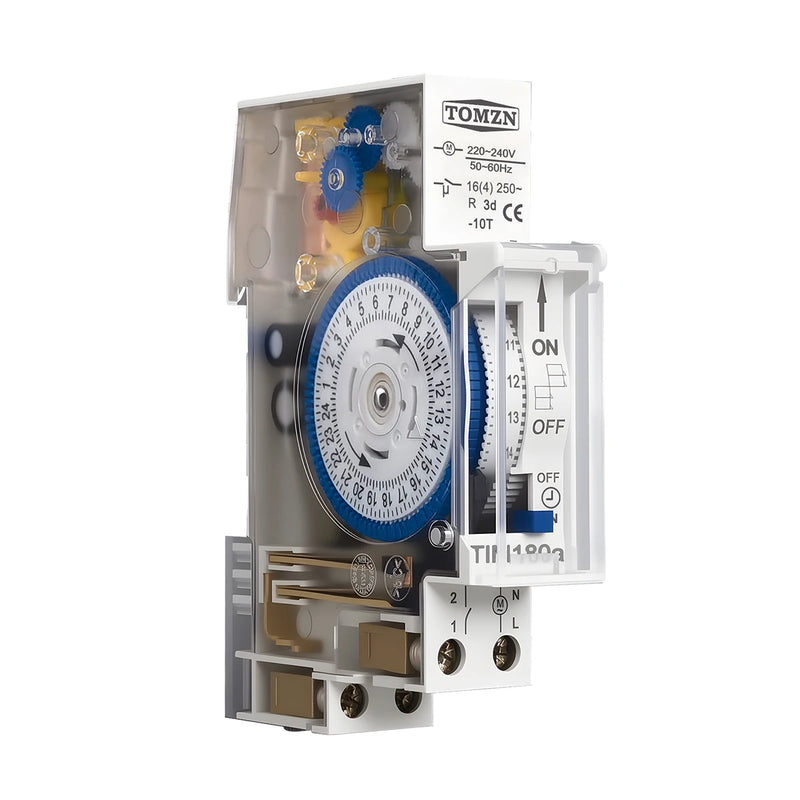

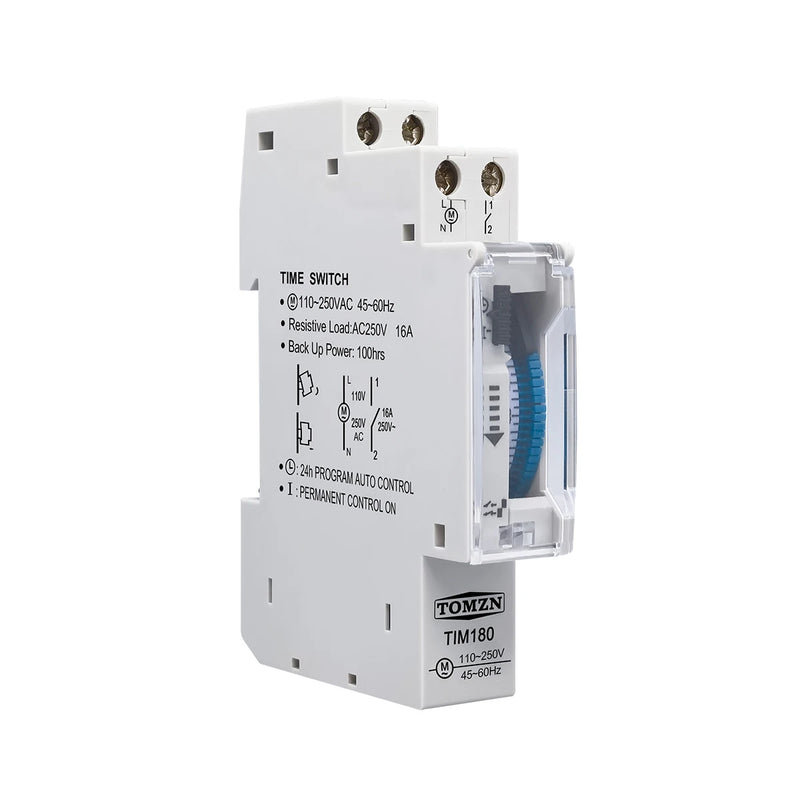

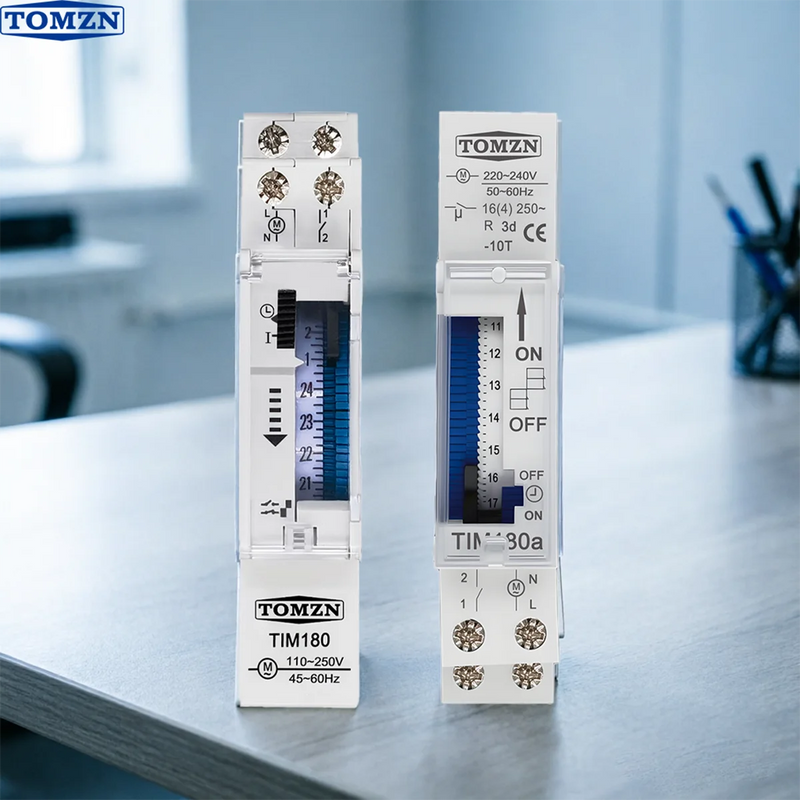

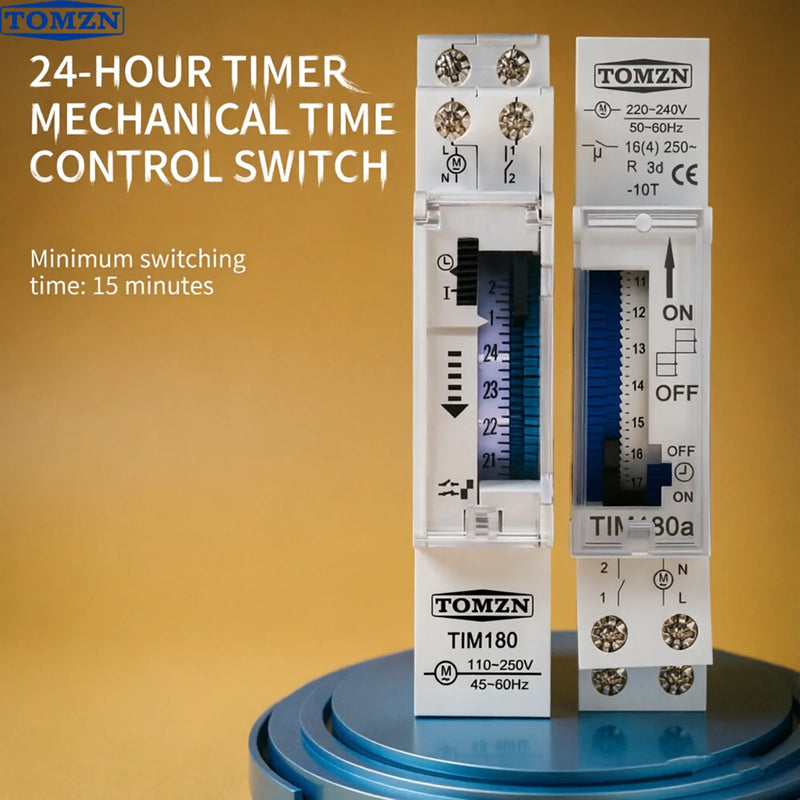

Model: TIM180 / TIM180a

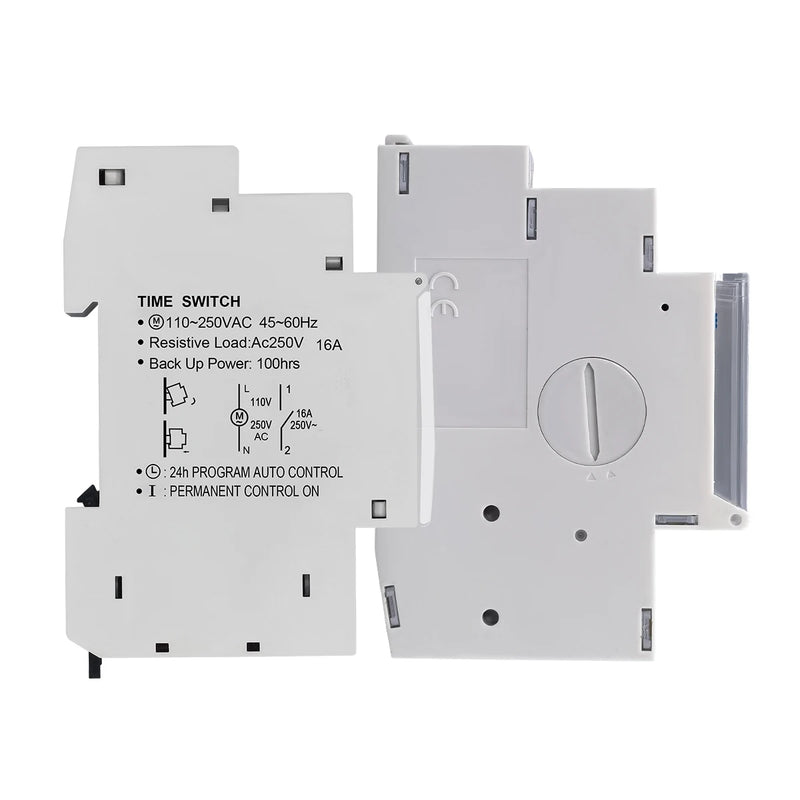

Side View Status: Non-transparent / Transparent

Temperature Range: -10°C to 55°C / -10°C to 50°C

Installation: DIN Rail (35mm symmetric sections per EN 50022)

Rated Voltage: 220–240V AC / 90–121V AC, 200–264V AC

Rated Current: 16A / 15A

Precision: ±3 seconds per day at 22°C

Mode: Timer / Constant-On / Timer / Constant-On / Constant-Off

Terminal Wire Capacity: 2 × 2.5 mm² (both models)
