GL-S20 IoT Gateway | Thread Border Router
SPECIFICATIONS
Antenna Type: Internal
Brand Name: GL.iNet
CPU: ESP32-S3 Dual-core, @240MHz
Ethernet Port: 1 x WAN Ethernet port
Frequency: 2.4 GHz
Frequency Band Class: Single-Band
Function: Firewall
High-concerned chemical: none
Memory / Storage: SRAM 512KB + PSRAM 8MB / NOR Flash 16MB
Number of USB Interfaces: None
Origin: Mainland China
Package: Yes
Power Consumption: Normal operating consumption
Power Input: Type-C, 5V/1A
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11g
Support Mesh: Not Supported
Telecomcableconnected: No
Type: Wired
Wi-Fi Speed: 150Mbps (2.4GHz)
Wireless Communication Standard: 802.11.a
Wireless transmission rate: 150m
With Modem Function: No

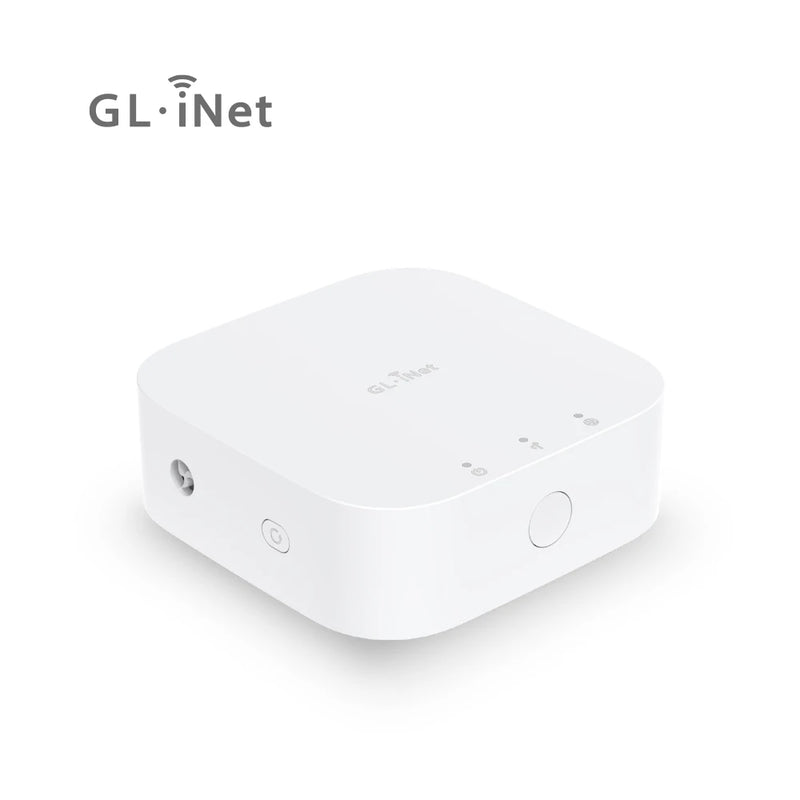

Compact Thread Border Router for IoT
GL-S20 is a compact and cost efficient Thread Border Router designed for fast and simple IoT deployment. It supports Thread 1.3 as well as 2.4 GHz Wi-Fi (150Mbps) and ethernet for building a Thread Network and connecting to the Internet. The GL-S20 is equipped with the high-performance ESP32 chipset and is fully compatible with FreeRTOS. It supports Wi-Fi to Ethernet Failover, ensuring optimal performance and reliability. Additionally, the GL-S20 features PoE functionality, making it a versatile solution for various IoT.
Built on FreeRTOS:
GL-S20 uses FreeRTOS, a marketing-leading kernel well-supported by a broad community, offering exceptional customization capabilities with ever-growing add-on libraries.
Built on Thread 1.3
GL-S20’s support for Thread 1.3 creates a seamless communication network among IoT devices. This protocol ensures consistent performance by utilizing a mesh IoT network with self-healing capabilities, creating a reliable, low-power, and minimal-maintenance IoT network.
Versatile Thread Networking
GL-S20 can seamlessly operate as a Thread Border router or a Thread router. This functionality offers added flexibility to your IoT setup and adapts to your ever-evolving IoT needs, whether it's to extend the network reach or connect to external networks.

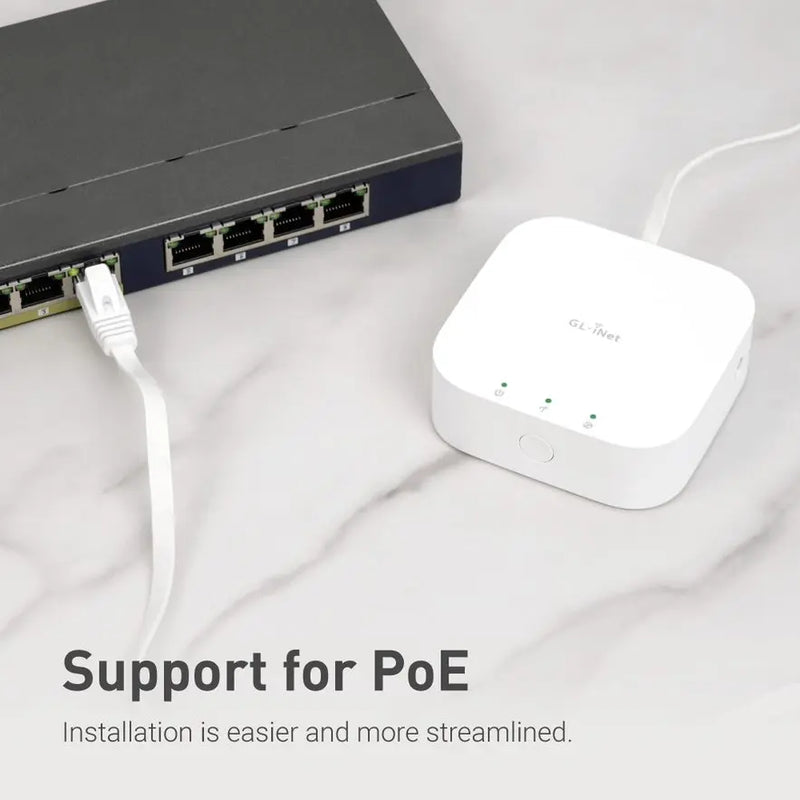

Power over Ethernet (PoE):
By integrating PoE, GL-S20 transmits power and data over a single ethernet cable. You’ll have power to more areas without having to install additional electrical infrastructure—saving on extra costs in the long run.

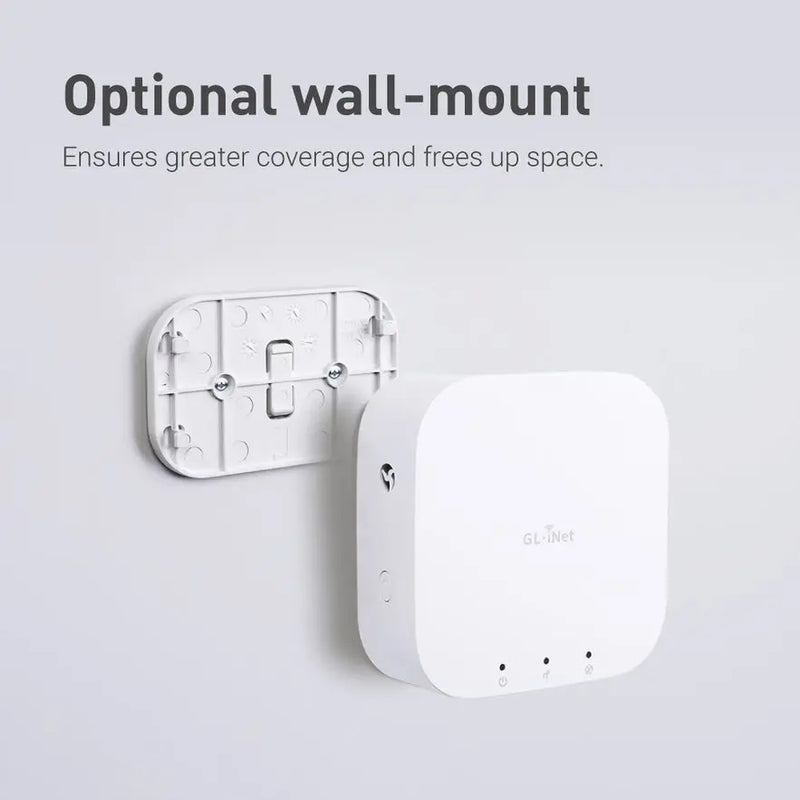

Customizable Installation:
GL-S20 is mountable on the wall, freeing up surface area while ensuring exceptional coverage and uninterrupted connectivity for your IoT devices.

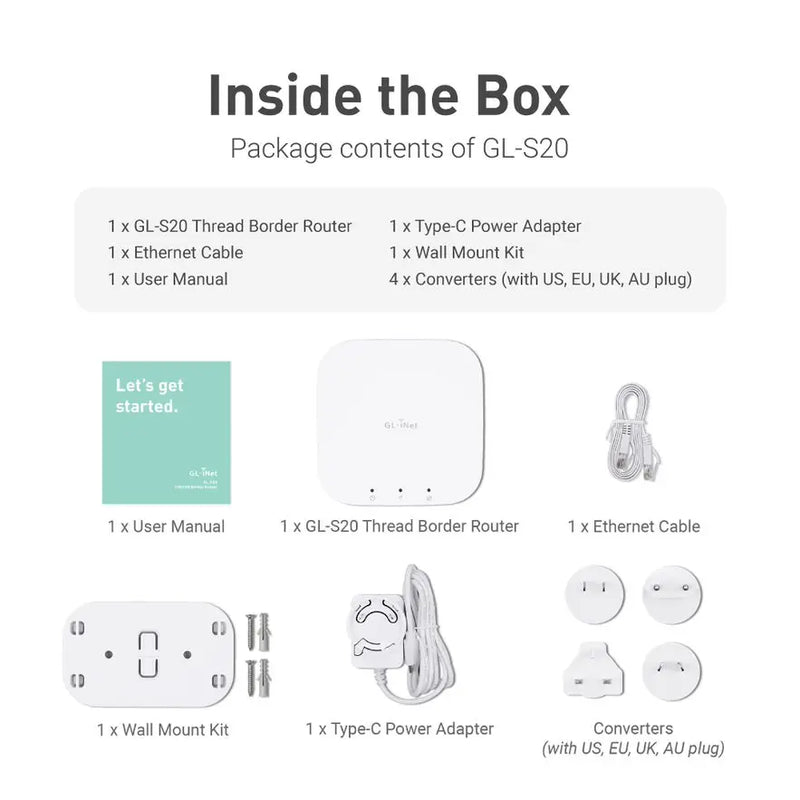

Package Contents:
GL-S20 Thread Border Router
User manual
Warranty card
Wall mount kit
Ethernet cable
Power adapters (US, EU, UK & AU plugs)
Specifications:
CPU: ESP32-S3 Dual-core, @240MHz
Memory / Storage: SRAM 512KB + PSRAM 8MB / NOR Flash 16MB
Protocol: Supports Thread 1.3, Supports BLE 5.0, Supports Wi-Fi 802.11b/g/n (2.4GHz)
Wi-Fi Speed: 150Mbps (2.4GHz)
Antennas: 2 x Internal Antenna
Cellular: N/A
Battery: N/A
TF Card Slot: N/A
USB Port: N/A
Ethernet Port: 1 x WAN Ethernet port
Ethernet Speed: 10/100 Mbps
Power Input: Type-C, 5V/1A
Power Consumption: Normal operating consumption: <3W; PoE power supply: <7W
Dimension / Weight: 76 x 76 x 25mm / 63 g
