SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 300 Mbps
3G/4G Mini PCIe Module: Support CAT4/CAT6 Mini PCIe
4G LTE Antennas: 2 x detachable external antennas (700M~2700MHz)
5G Wi-Fi Transmission Rate: 433Mbps
Antenna Type: Fixed
Application: Network Security
Bluetooth: Optional
Brand Name: GL.iNet
CPU: QCA9531@650MHz
Certification: CE,FCC,RoHS,weee
Dimension / Weight: 115 x 74 x 22mm / 86g
Ethernet Port: 2 x 10/100M
Frequency: 2.4 GHz
Frequency Band Class: Dual-Band
Function: Firewall,QoS,VPN
High-concerned chemical: none
LAN Ports: 2
Max. LAN Data Rate: 100Mbps
Memory: DDR2 128MB
MicroSD Card Slot: Up to 512GB
Number of USB Interfaces: 1 x USB 2.0
Origin: Mainland China
Package: Yes
Power Consumption: <6W
Power Input: 12V/1.5A
Protocol: 802.11 b/g/n/ac
RX Sensitivity: -94dBm Max
Recommended Uses: Business
Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac
Storage: FLASH 16MB
Storage Temperature: -20~70°C (-4~158°F)
Support Mesh: Not Supported
Supports WDS: Yes
Supports WPS: No
TX power: 20dBm Max
Telecomcableconnected: Yes
Type: WireLess
WAN Ports: 1 x10/100Mbps
Wi-Fi Antennas: 2dBi 5G & 2.4G internal antennas
Wi-Fi Supported Frequency: 2.4G & 5G
Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 10/100Mbps
Wireless Communication Standard: 802.11.ac
Wireless transmission rate: 600m
With Modem Function: No
Working Temperature: -20~40°C (-4~104°F)
Note:
The EC25-AF is a CAT4 4G module mainly used in North America. It cannot be used in other regions.

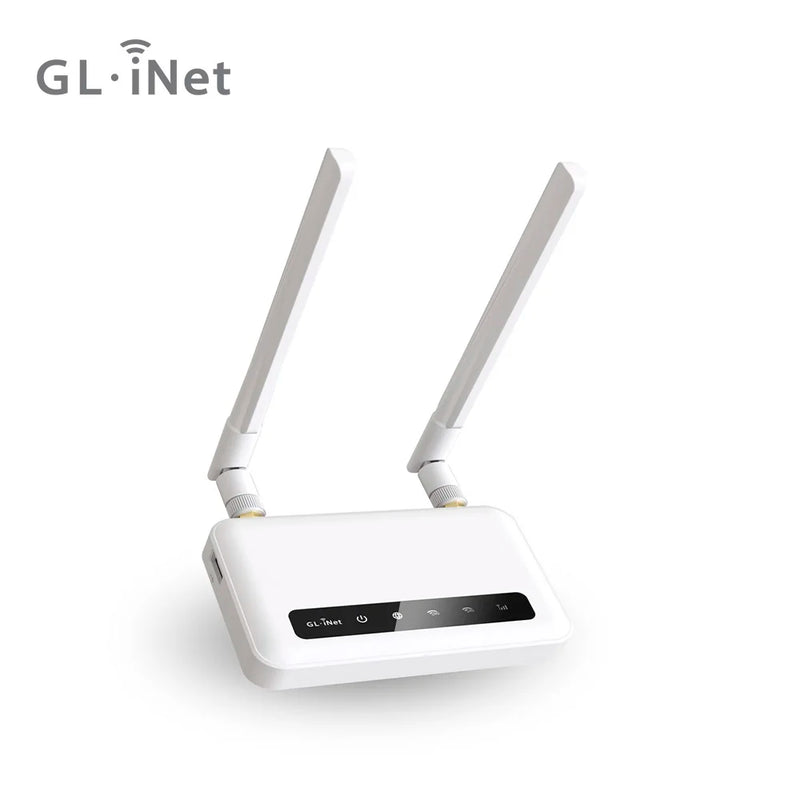

4G LTE Smart Router
Spitz is a 3G/4G dual-band wireless router, widely used for smart home and IoT area. Running OpenWRT OS, you can compile your own firmware to fit for different application scenarios. It has built-in mini PCIe 3G/4G module to support different operators and can be used all over the world.
Boost Your Holiday Experience
Providing a secure Internet connectivity and media sharing solution for fun-filled family getaways
Share Files Across Devices

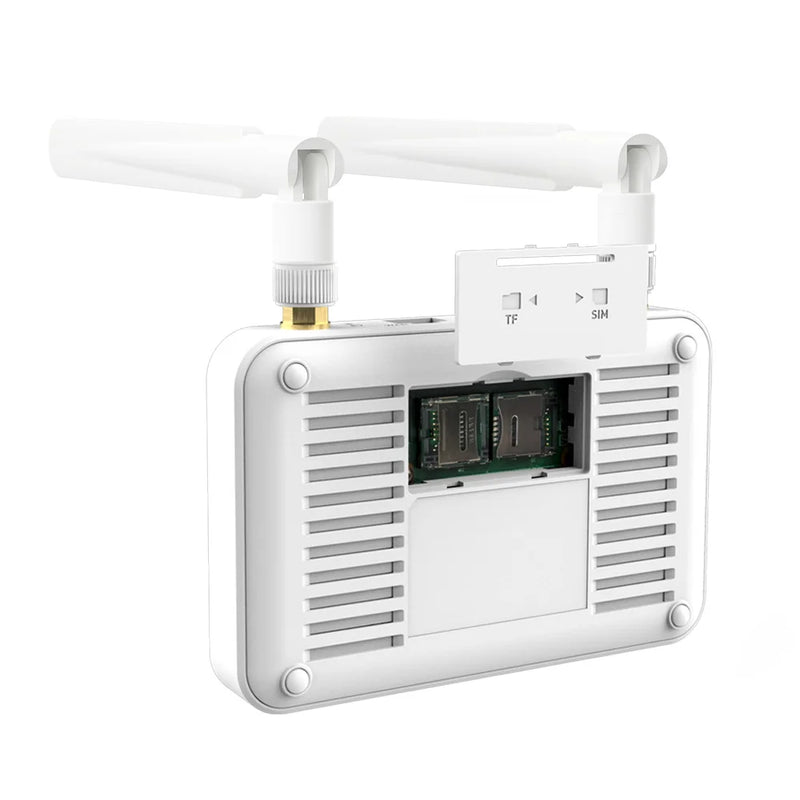

Spitz has a built-in MicroSD slot that supports maximum 512GB MicroSD card. With the extra storage, you can create a local network drive to store data and share them with your laptop and other compatible devices as long as it is connected to the Wi-Fi.

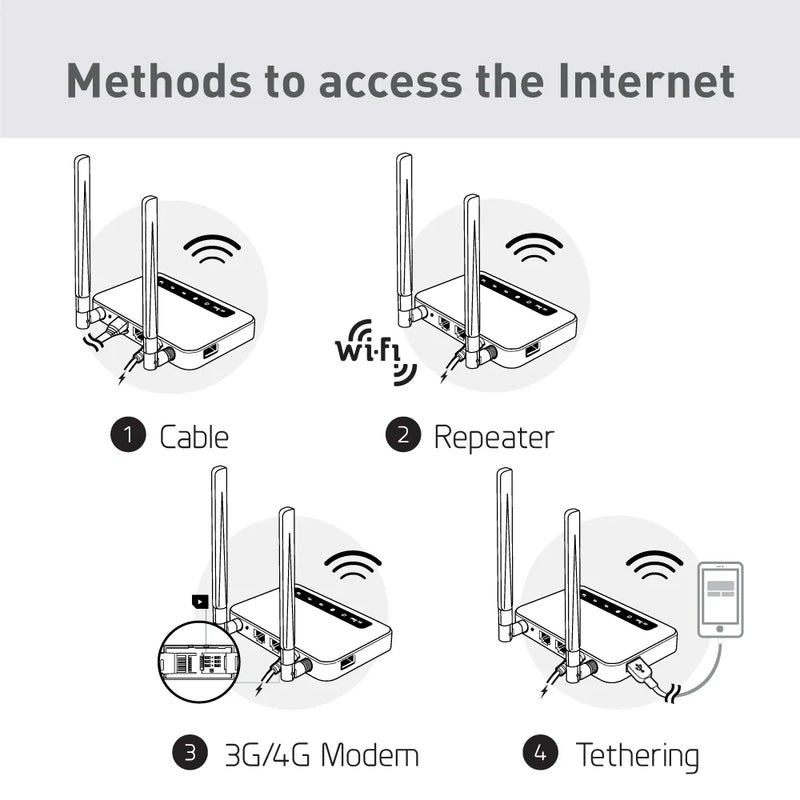

4 ways of Internet access methods
With 4 ways of Internet access methods, you can build your own personal or commercial Internet solutions.
NOTE: USB Tethering is not compatible with iOS14 yet.
Wi-Fi for Things
Bringing Robust Network Connections to IoT World

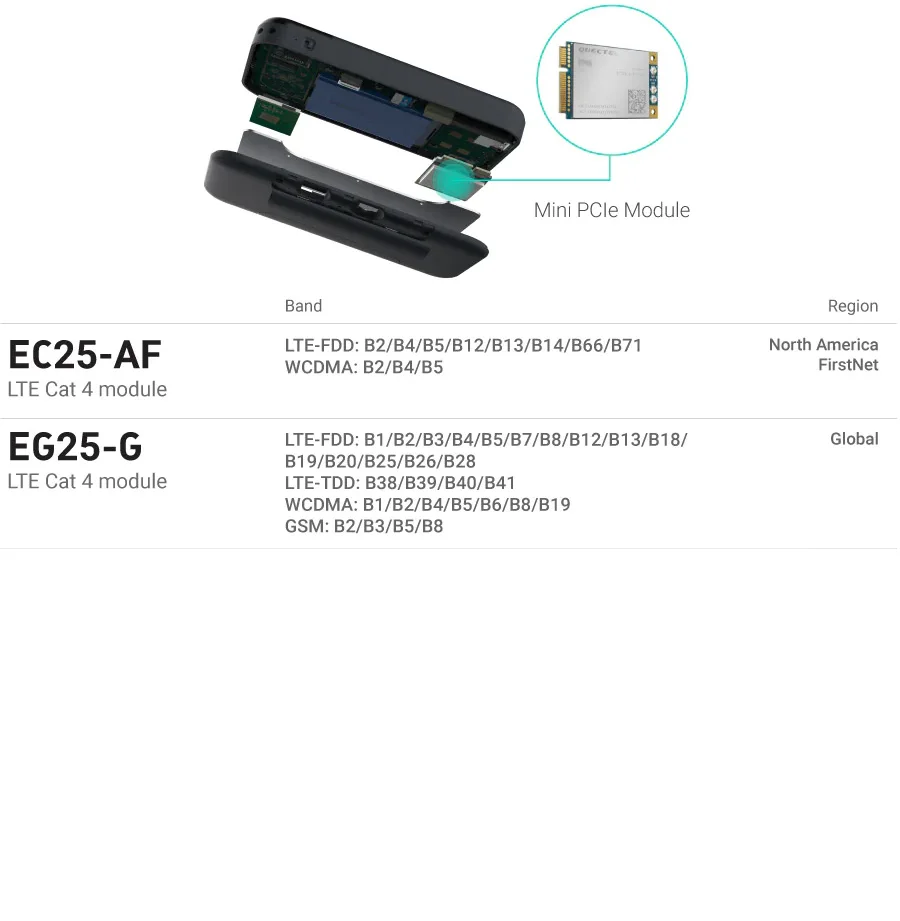

Interchangeable Module Tailored To Your Needs
Spitz router is easily configurable and has a built-in interchangeable module for full optimization. It is compatible with CAT4 and CAT6 modules from various brands.
Enterprise-class Wireless Network Capabilities
Spitz features built-in support for IoT wireless protocols. It works as a lightweight gateway connecting IoT devices through various methods including 4G LTE, Wi-Fi, and Bluetooth.
See Quectel LTE Model(EC25/EP06) Specification please refer to https://www.quectel.com/product/ec25.htm
https://www.quectel.com/product/EP06.htm
Check the frequency band info of your country here
https://www.frequencycheck.com/countries
Note:*EC25 4G LTE modules are NOT recommended for personal usages due to its speed limit with some operators.
Easy Installation
We also design a wall mount for installation on different surfaces, and it applies to batch order customization only.
Product Contents
-1 x Spitz (GL-X750/ GL-X750V2) router with 2-year limited warranty
-1 x Quectel 4G module pre-installed
-1 USB cable
-1 x Ethernet cable
-1 x User manual
-1 x 12V/1.5A power adapter
Certificates,Patents&Awards
