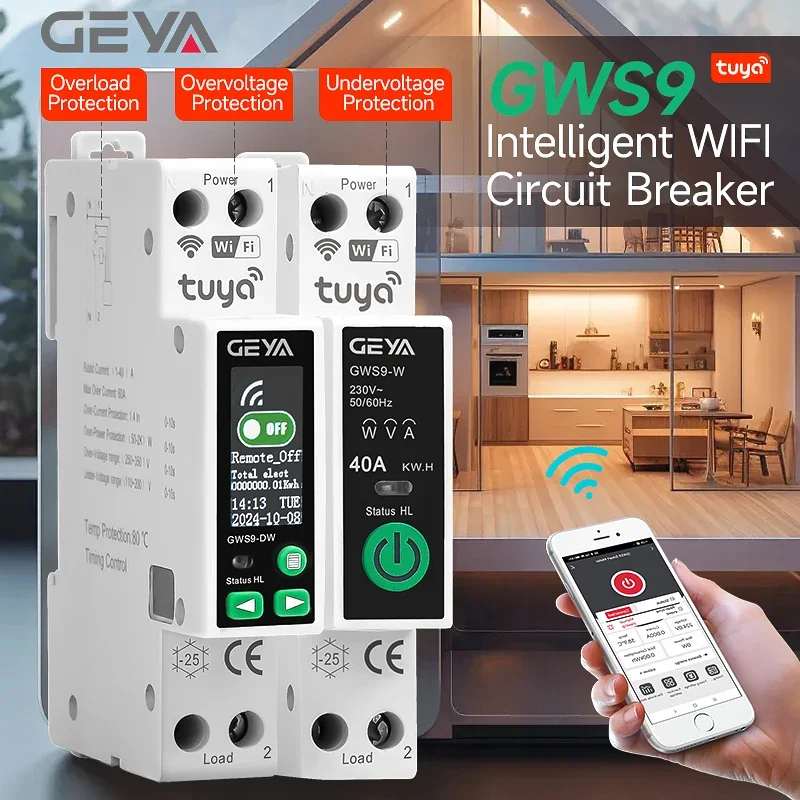

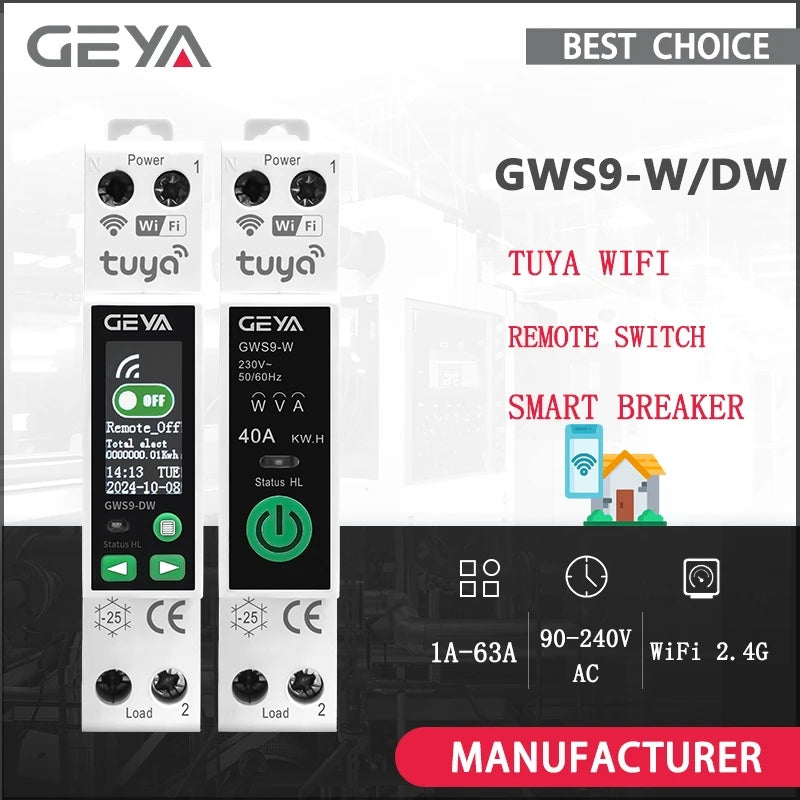

GEYA TUYA WIFI Smart Circuit Breaker With Metering Smart Home Wireless Remote Control Switch 1A~63A Adjustable 90V~240V

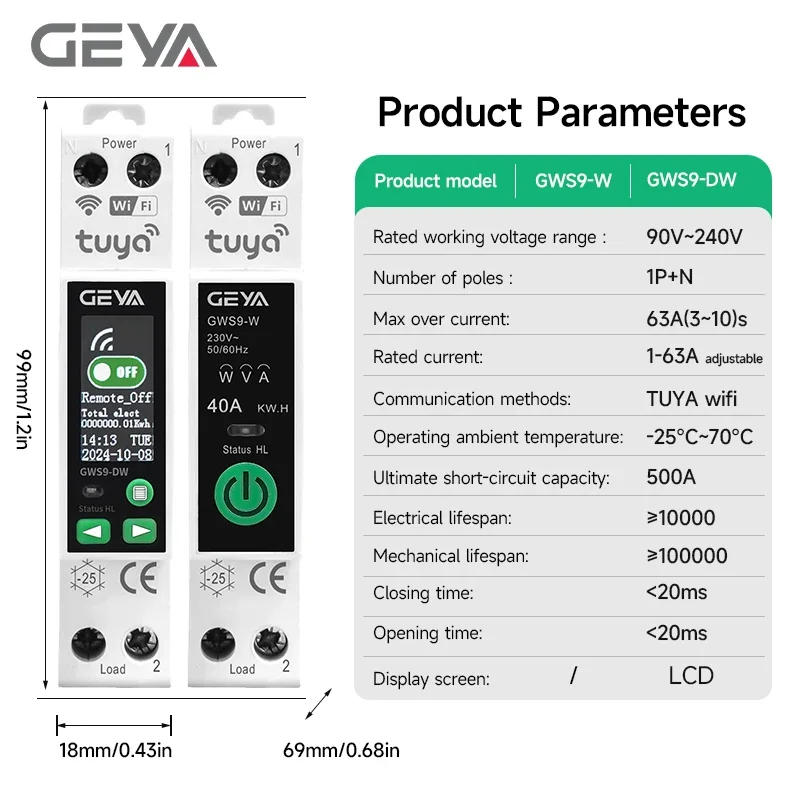

SPECIFICATIONS

Brand Name: GEYA

Certification: CE,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Electricity life: ≥10000

High-concerned chemical: none

Is Smart Device: Yes

Maximum Overload Current: 63A(3~10)s

Mechanical life: ≥100000

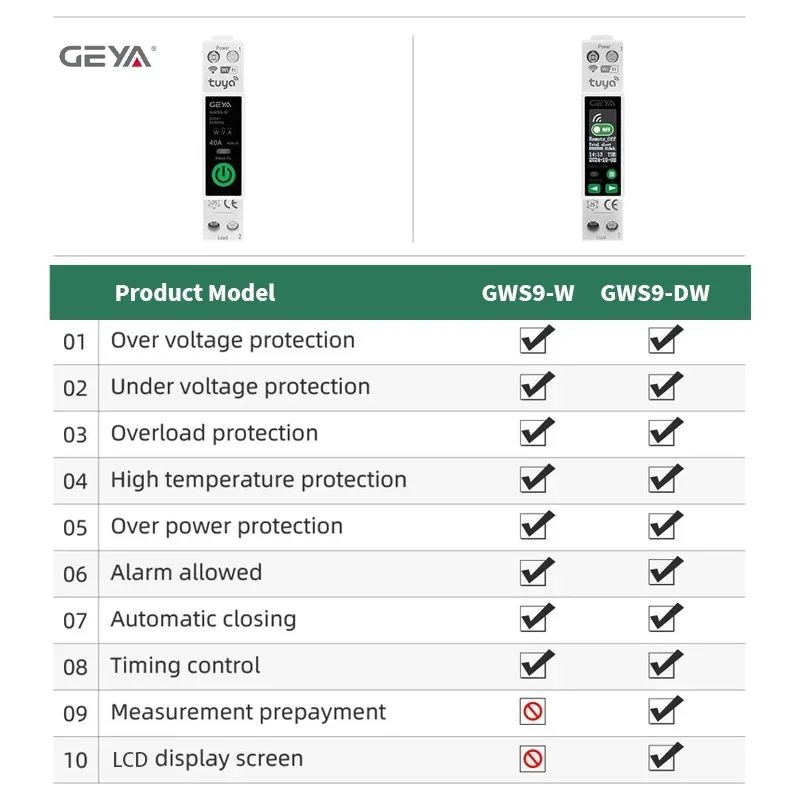

Model No.: GWS9-W or GWS9-DW

Model Number: GWS9 Wifi Smart Switch

Opening time: <20ms

Origin: Mainland China

Poles: 1P+N (Neutral Closed)

Product Name: WIFI Smart Circuit Breaker With Metering

Rated Current: 1~40A Adjustable

Rated Voltage: 220V

Rated Working voltage range: 90V~240V

Turn-off time: <20ms

Type: Mini,Circuit breaker

is_customized: Yes

GEYA GWS9 TUYA WIFI Smart Circuit Breaker With Metering Smart Home Wireless Remote Control Switch 1A~63A Adjustable 90V~240V

General

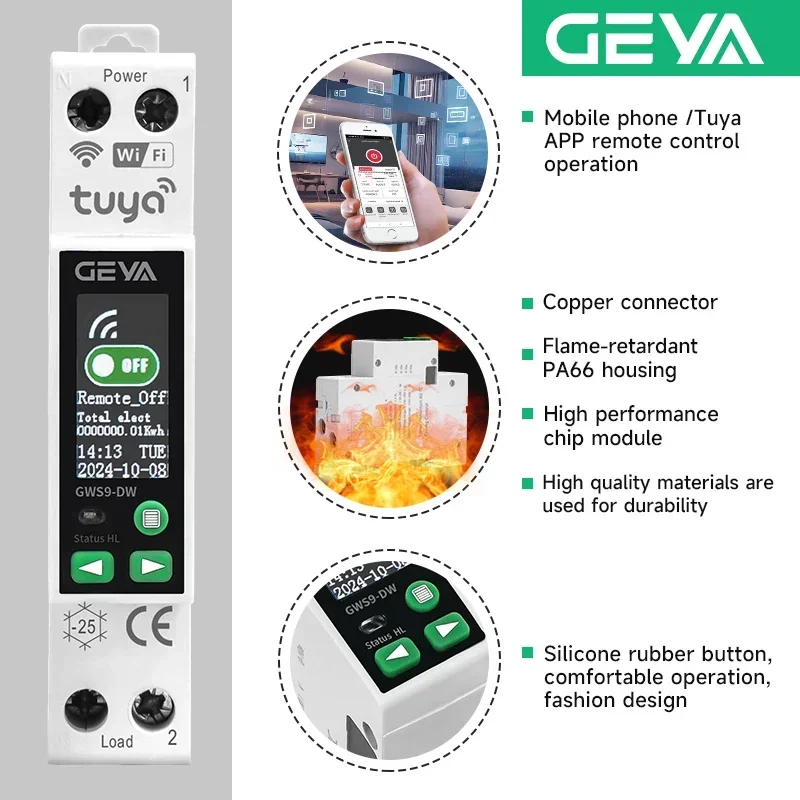

GWS9 is a wifi circuit breaker with metering  function, which can be controlled remotely through the mobile phone / Tuya APP, and has the functions   of over voltage protection, under voltage protection, over temperature protection, over current protection, high temperature protection, timed closing, prepaid and other functions.
The current, voltage and power of the load equipment can be monitored in real time, and can also be recorded. The power consumption of years, months, days, hours and different time periods helps users to view the power consumption of the load device more clearly. Set the switch shape of the device indifferent scenarios state, and remotely monitor the real-time situation of the load appliances.

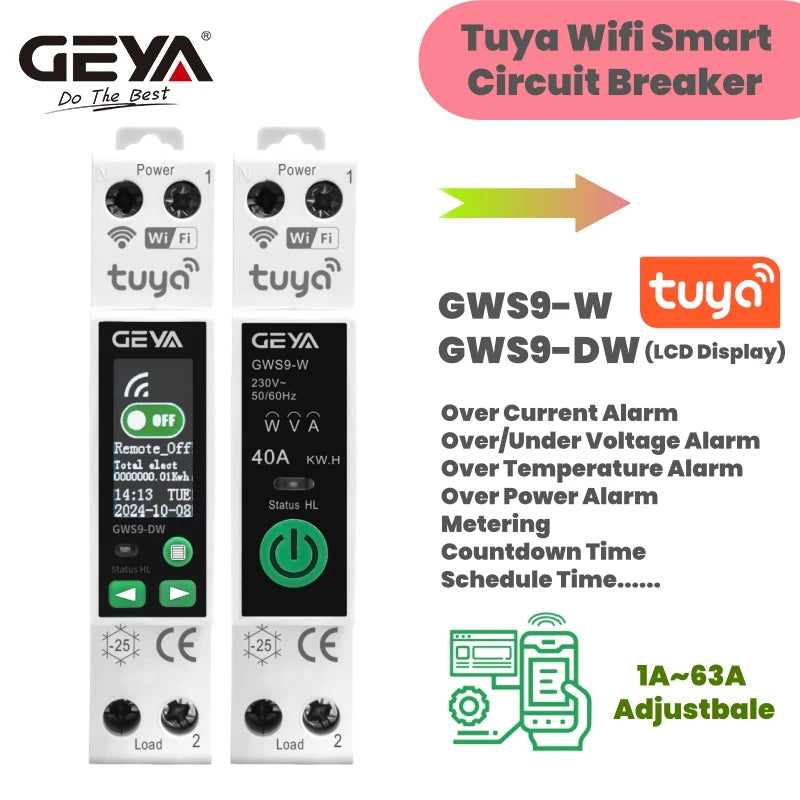

Function Features

1. Current Litmit (1A-63A Adjustable, Long term power on recommendation 1-40A, Maximum Overload  Current63A(3～10)s)

2. Over Power Adjustment(50W~11KW Adjustable)

3. Over Voltage Protection(250V~300V Adjustable)

4. Under Voltage Protection(80V~250V Adjustable)

5. Temperature Protection(0℃~120℃ Adjustable)

6. Energy Monitoring

7. Timer Switch

8. Remote Control ON/OFF

9. Power Failure Memory

10. Wireless Type: Wi-Fi 2.4G Only，5G Not Support
