GEYA GYDZT Tuya WiFi Smart Circuit Breaker MCB 1P+N 63A Timer Power Energy kWh Voltage Current Meter Protector Remote Control Switch

General

GYDZT Wifi Smart Remote Control Switch can be turned on/off by phone from anywhere at anytime.

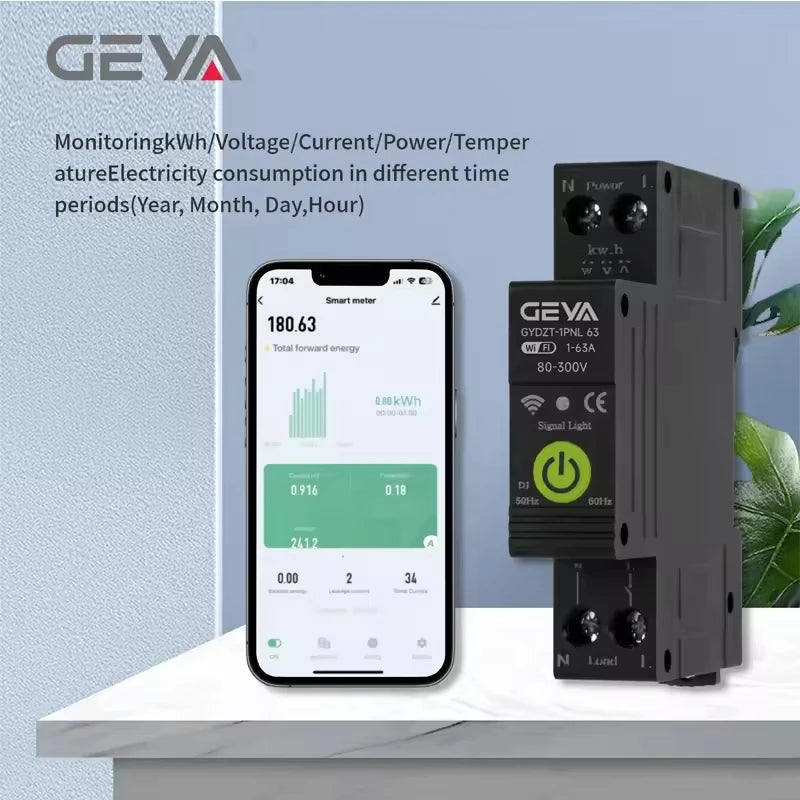

Review current, power, voltage, leakage current, temperature, number of faults, total battery capacity, and recharge capacity on your phone.
You can set overvoltage/undervoltage/overcurrent/leakage current in the application.

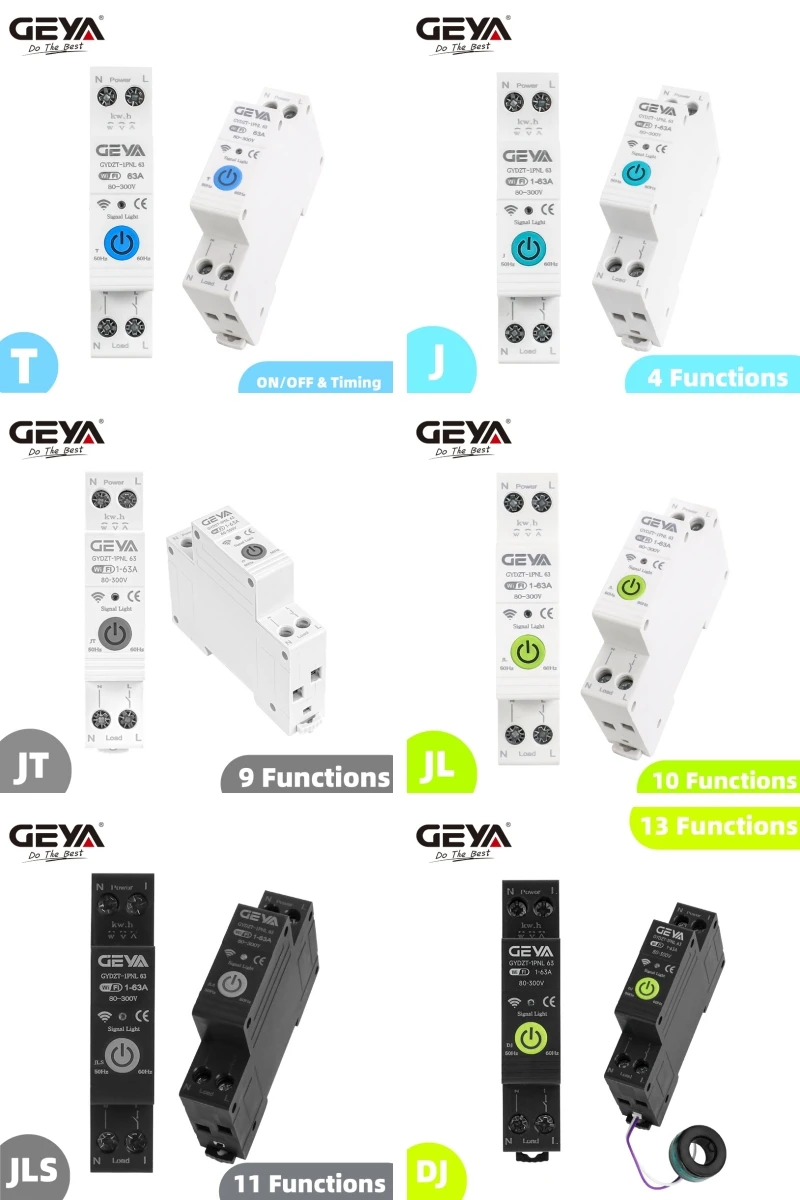

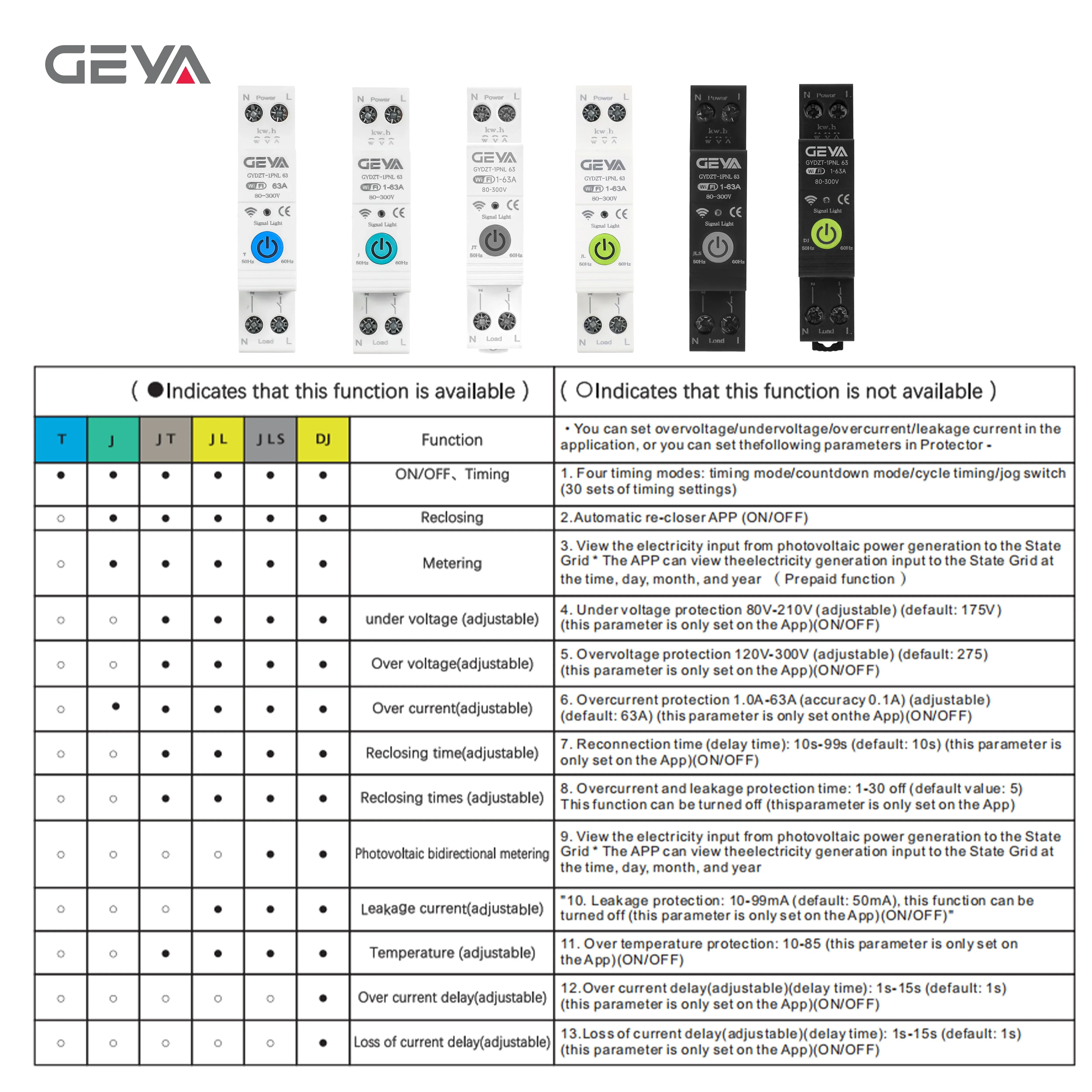

Six Models with Different Function
GYDZT-1PNL 63A (T)→ON/OFF &Timing
GYDZT-1PNL 63A (J)→ON/OFF &Timing, Reclosing, Metering, Over Current
GYDZT-1PNL 63A (JT)→ON/OFF &Timing, Reclosing, Metering, Over/Under Voltage, Over Current, Reclosing, Temperature(Adjustable)
GYDZT-1PNL 63A (JL)→ON/OFF &Timing, Reclosing, Metering, Over/Under Voltage, Over Current, Reclosing, Temperature, Leakage Current(Adjustable)
GYDZT-1PNL 63A (JLS)→ON/OFF &Timing, Reclosing, Metering, Over/Under Voltage, Over Current, Reclosing, Temperature, Leakage Current(Adjustable), Photovoltaic Bidirectional Metering
GYDZT-1PNL 63A (DJ)→Highly Recommended, Full Functions

HOW TO ADD DEVICE TO APP

1. Use Your smart phone to scan QR codes, or search"smart Life" "Tuya Smart" app in Google play or APP store to download and install

2. Create an account with your mobile number

3. Connect your mobile to your wifi router. Click +* inthe upper right conner of homepage or cick "Add device ", then select breaker"Switch module(Vi-Fi) from "Energy",
long press WlFl button for 5 seconds, after see quick flash, open app to pair

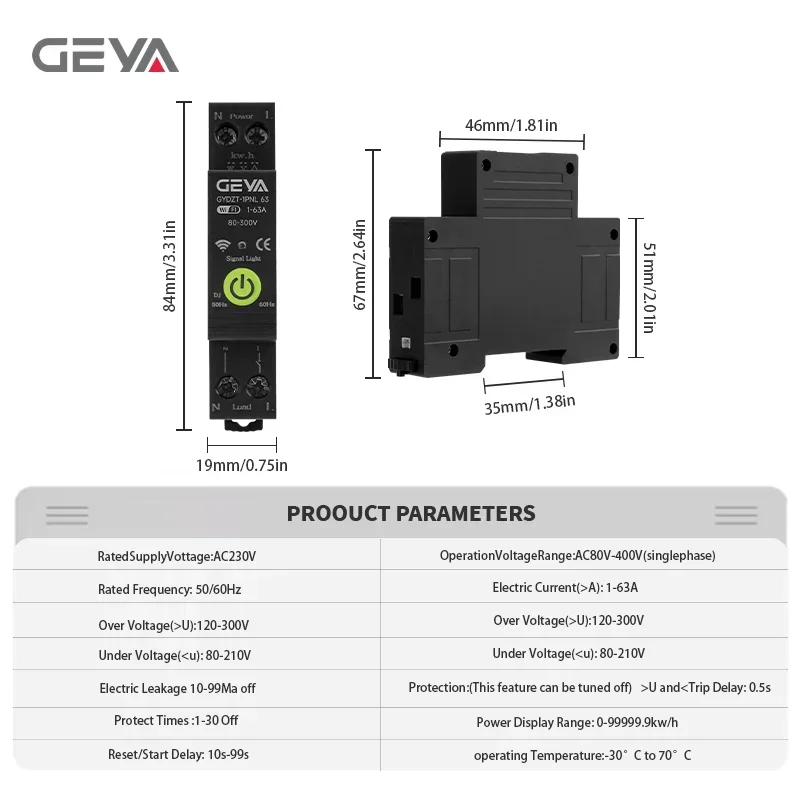

Technical Data

Rated supplyVottege:AC 230V
Operation votege Range:AC80-400V(single phase)
Rated Frequency: 50/60Hz
Electric Current:1-63A
Over Voltage(>U)120~300V, Under Voltage(<U)80~210V(Adjustable)
Electric Leakage 10-99Ma off
Protection:(This feature can be tuned off) >U and<Trip Delay:0.5s
Protect Times :1-30 off
Power Display Range:0-99999.9kw/h
Reset/Start Delay:10s-99s
OperatingTemperature: -30℃ to +70C℃
