ខ្សែ សូឡា GEYA 2000VDC ជាមួយ ឧបករណ៍ ភ្ជាប់ 3/6/9 ម៉ែត្រ ខ្សែ បន្ទះ សូឡា 6mm2 ខ្សែ សូឡា Photovoltaic 10AWG 1 គូ ក្រហម និង ខ្មៅ

$0.00 - $0.00

$0.00

$27.32

$16.66 - $32.21

$27.32

Availability:

93 in stock, ready to be shipped

Availability:

13 in stock, ready to be shipped

Availability:

94 in stock, ready to be shipped

Quantity

ខ្សែ សូឡា GEYA 2000VDC ជាមួយ ឧបករណ៍ ភ្ជាប់ 3/6/9 ម៉ែត្រ ខ្សែ បន្ទះ សូឡា 6mm2 ខ្សែ សូឡា Photovoltaic 10AWG 1 គូ ក្រហម និង ខ្មៅ

Name: ខ្សែ សូឡា GEYA 2000VDC ជាមួយ ឧបករណ៍ ភ្ជាប់ 3/6/9 ម៉ែត្រ ខ្សែ បន្ទះ សូឡា 6mm2 ខ្សែ សូឡា Photovoltaic 10AWG 1 គូ ក្រហម និង ខ្មៅ
Brand: GEYA
SKU: 1005010056722130-10 AWG-6mm2-6m Solar Cable
Price: 27.32 USD
Availability: InStock

by ដោយ GEYA

All prices exclude shipping Customs and taxes. តម្លៃទាំងអស់មិនរួមបញ្ចូលថ្លៃដឹកជញ្ជូន គយ និងពន្ធទេ។

Choose language

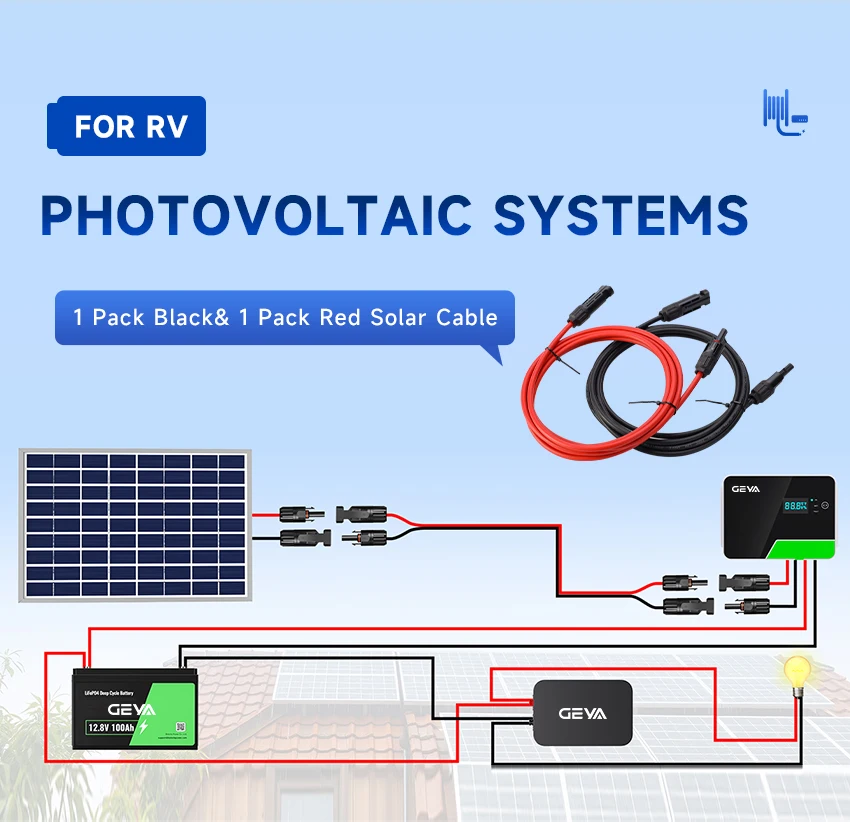

GEYA Solar PV Cable 2000VDC with Connector 3/6/9Meters 6mm2 Solar Panel Cable Photovoltaic Wire 10AWG 1 Pair Red&Black

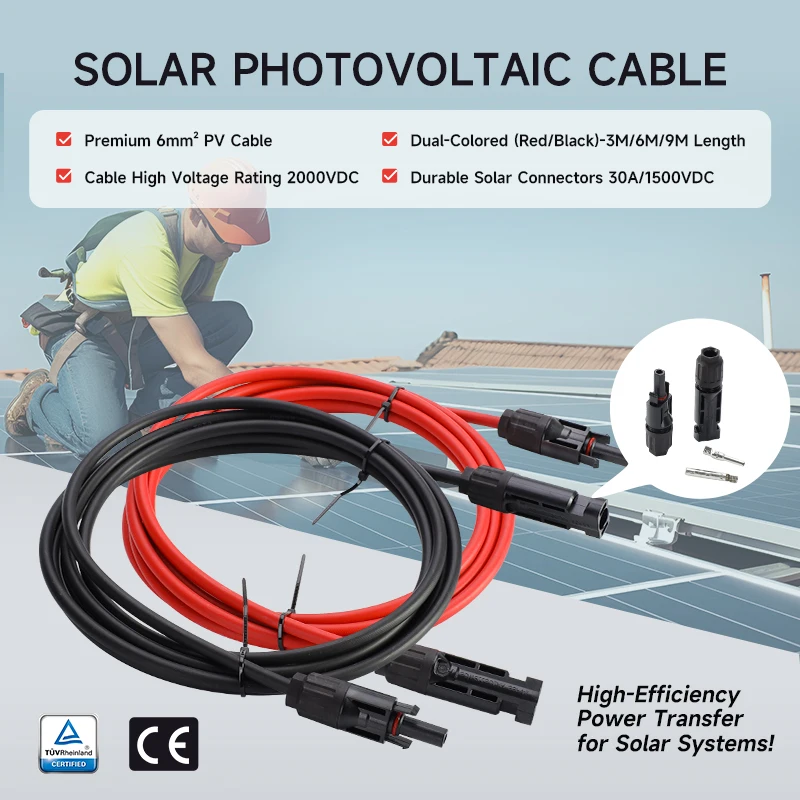

SPECIFICATIONS

Application: Overhead

Brand Name: NONE

Cable High Voltage Rating: 2000VDC

Certification: CE

Choice: yes

Conductor: TCA, Tin Plated

Conductor Cross Section: 6mm²/10AWG

Conductor Material: Copper

Conductor Type: Solid

Connector Gender: Male-to-Female

Does it include a Battery?: No

Does it include wireless functionality?: No

Dual-Colored (Red/Black): 3M/6M/9M Length

Durable Solar Connectors: 30A/1500VDC

High-concerned chemical: none

Insulation Material: PVC

Model Name: Solar DC Cable

Model Number: Solar Panel Cable Wire

Origin: Mainland China

Structure: Without modular telephone connectors

Type: Insulated,Insulated

Use: Not Telecommunication

Voltage: ＞600V

is_customized: Yes

GEYA 1 Pair Red&Black Solar Extension Cable with Connector 3/6/9Meters 6mm² Solar Panel Cable Photovoltaic Wire 10AWG DC2000V

General
Halogen free cross-linked polyolefin double layers solar cables for use at thephotovoltaic power systems, can match with all kinds of solar connectorswhich have a rated voltage of 1000V up to 2000V DC.

HALOGEN FREE & LOW SMOKE

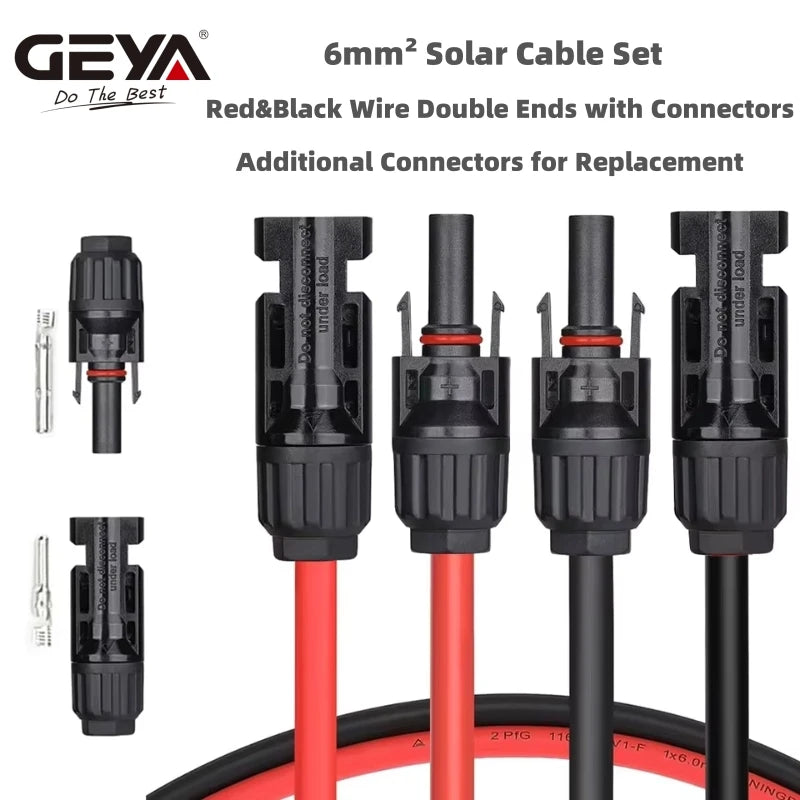

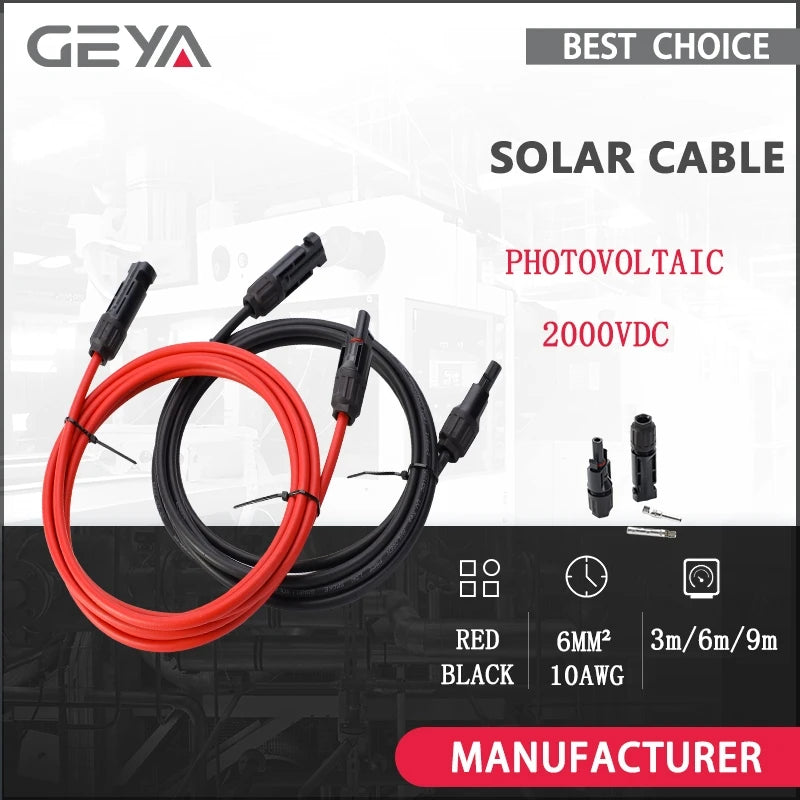

6mm² /10AWG Solar Cable Set DC2000V
Red&Black Wire Double Ends with Connectors （3m/6m/9m）
Additional Connectors for Replacement(1Pair 1500VDC）

Features

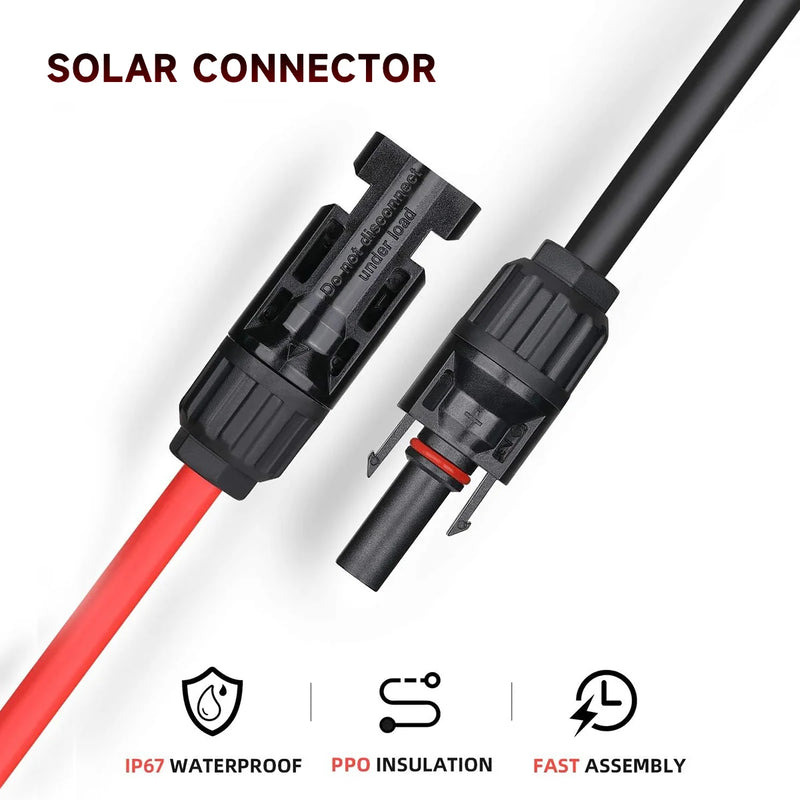

1.High-precision mold one-piece molding, IP67 protection grade;Suitable for Various Harsh Environments

2.Purple copper tinned inner core, good conductivity, long life, anti-oxidation, low resistance;

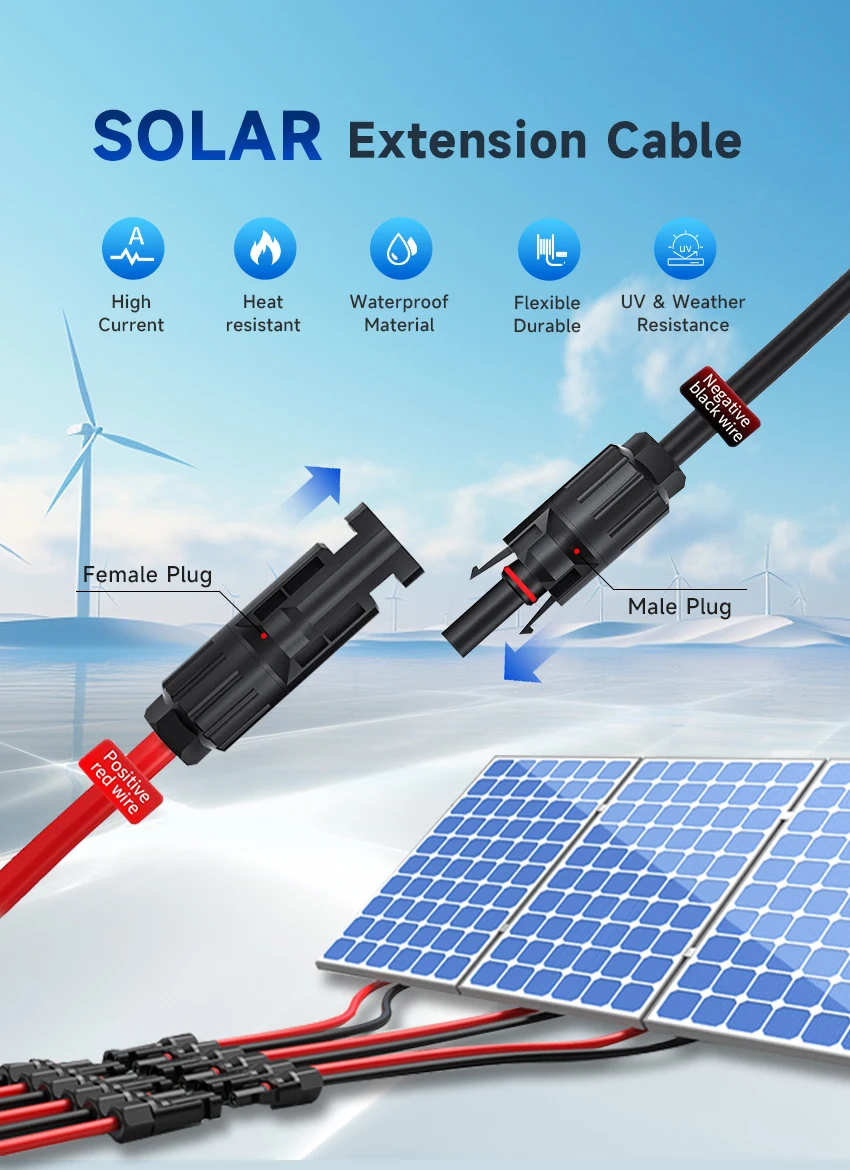

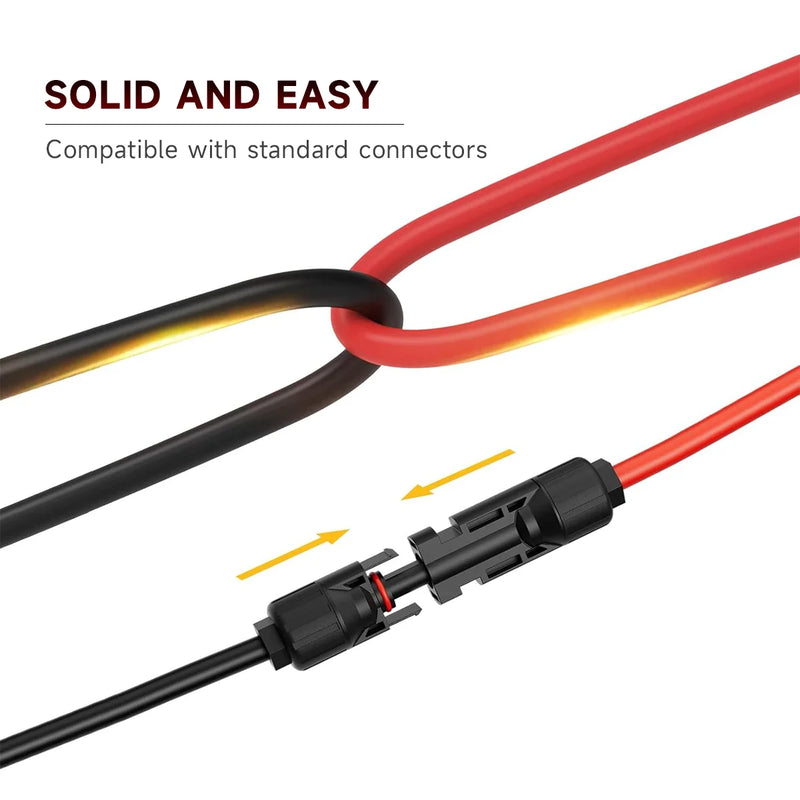

3.Flexible and Easy to Install: The Extender Cable Adopts a Professional MC4 Connector with a Plug-in Design, which is Easy to Operate, Firmly Connected, and has Good Electrical Connection Performance and Mechanical Stability.

4.Efficient Transmission, Compatible with Multiple Photovoltaic Systems

5.Compatible with all original connectors of PV panels

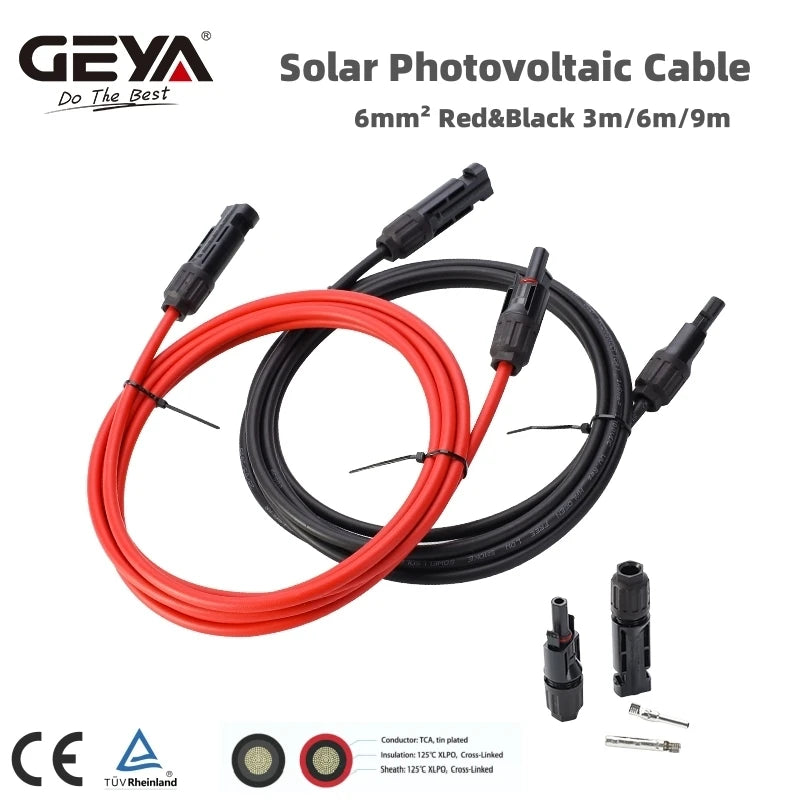

Conductor: Tinned copper alloy wires(TCA)
Insulation: 125℃ Low-Smoke Halogen-Free Flame Retardant Polyolefins
Sheath: 125℃ Low-Smoke Halogen-Free Flame Retardant Polyolefins
Special technology: Electron Beam Radiation Cross-linking
Electrical characteristics
Rated voltage: DC 2000V
Temperature range: -40℃ up to+90℃
Max.temperature at conductor: 120℃
Min.bending radius: 6x cable diameter
Industry Standards: PPP58209A
Tensile strength and elongation: EN 60811-1-2
Halogen free: 50525-1 Annex B
Ozone resistance: EN 50396
UV resistance: EN50289-4-17
Cold impact test: EN60068-2-78
