GEYA Non-polar DC MCB 12V 24V 48V 60V 110V~600V Solar PV Circuit Breaker Battery Protect Positive Negative Short Circuit

Name: GEYA ឧបករណ៍បំបែកសៀគ្វីអគ្គិសនីពន្លឺព្រះអាទិត្យប្រភេទ Non-polar DC MCB 12V 24V 48V 60V 110V~600V ការពារថ្ម សៀគ្វីខ្លីវិជ្ជមានអវិជ្ជមាន
Brand: GEYA
SKU: 1005010012128033-1P 25A-GYM9H-Z Non-polar DC
Price: 7.74 USD
Availability: InStock

SPECIFICATIONS

Brand Name: GEYA

Breaking Capacity: 6KA

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

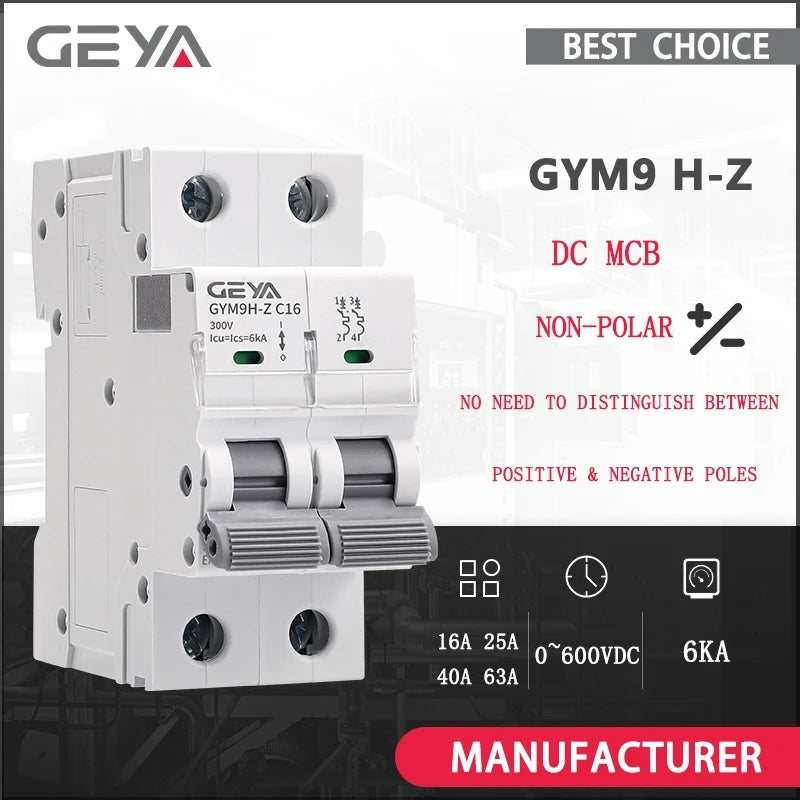

Feature: No need to distinguish between positive and negative poles

High-concerned chemical: none

Is Smart Device: no

Model Number: GYM9H-Z Non-polar DC MCB

Origin: Mainland China

Poles: 1P 2P 3P 4P

Product Name: GYM9H-Z Non-polar DC MCB

Rated Current: 16A 25A 40A 63A

Rated Voltage: 220/380V,0~600VDC

Type: Mini,Circuit breaker

is_customized: Yes

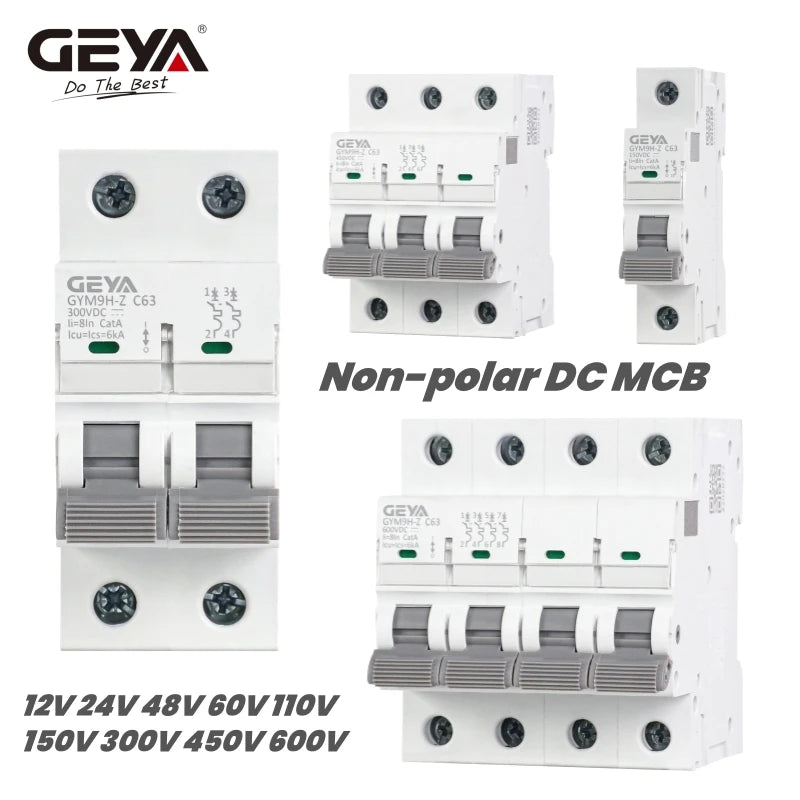

GEYA GYM9H-Z Non-polar DC MCB 12V 24V 48V 60V 110V~600V Solar Circuit Breaker Battery Protect Positive Negative Short Circuit
General

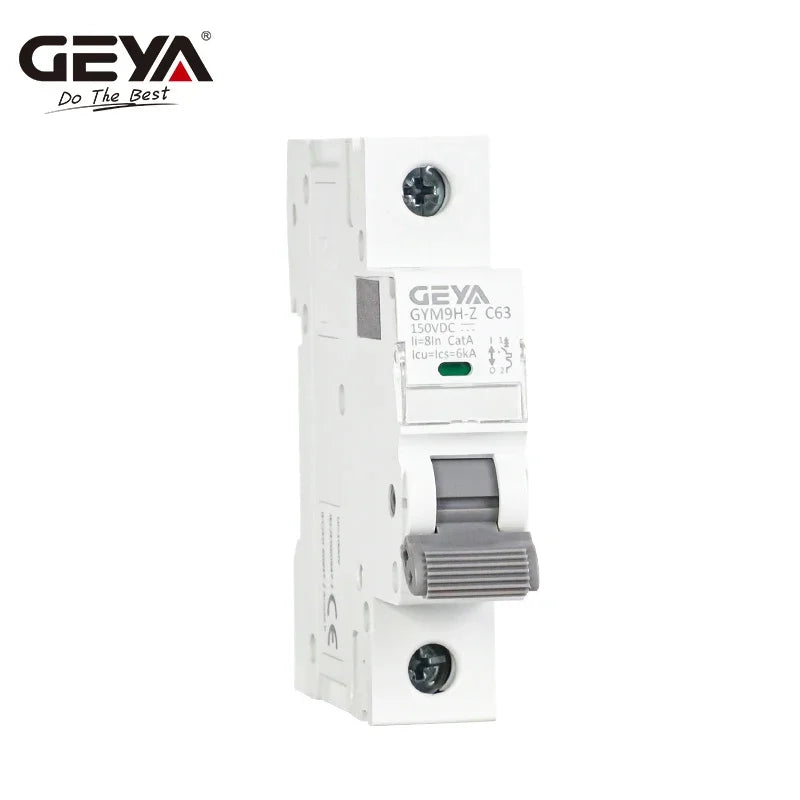

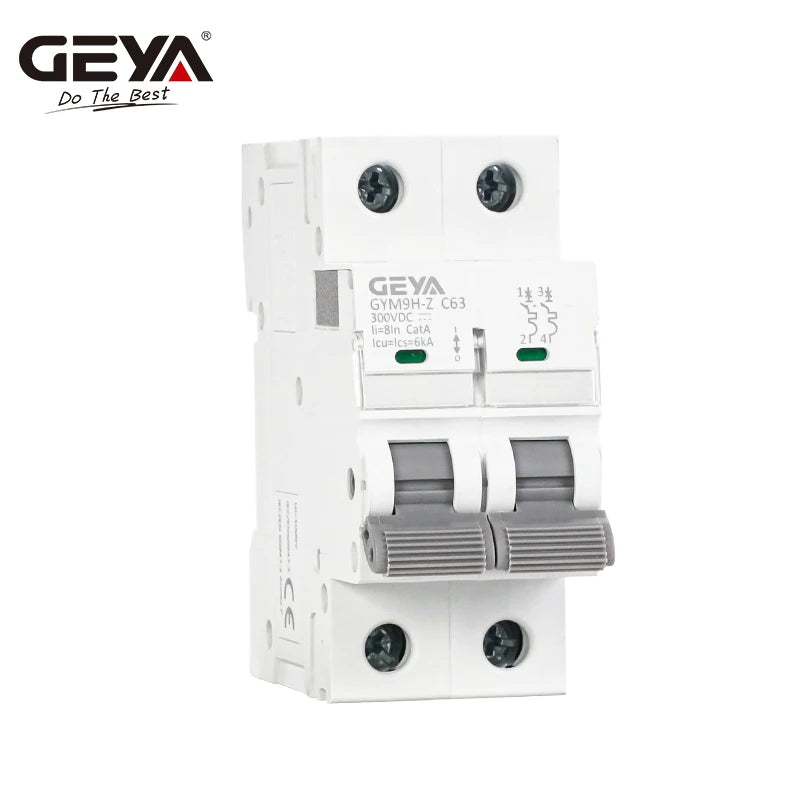

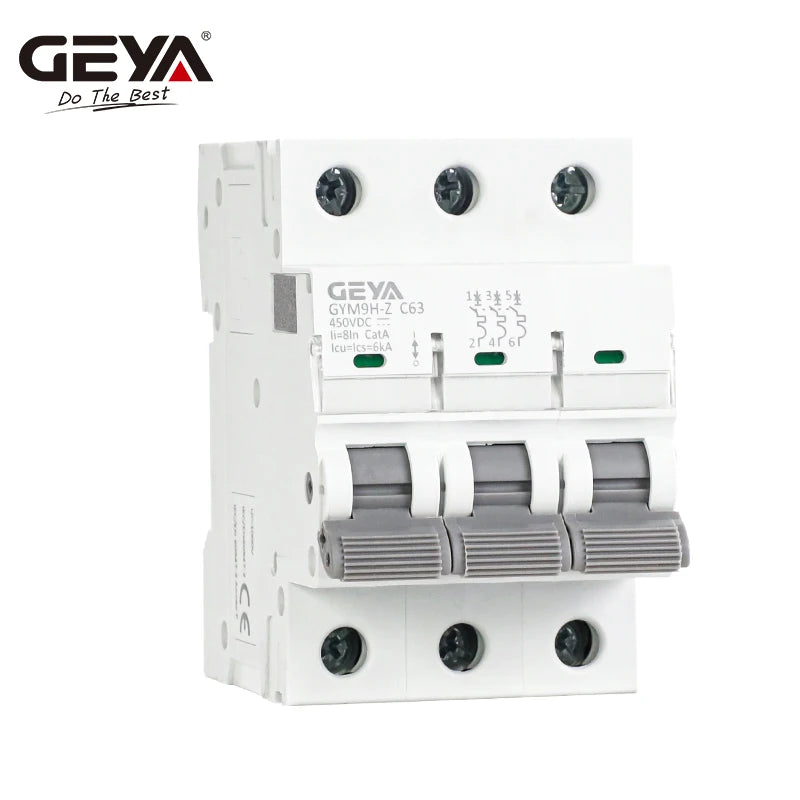

The GYM9H-Z series non-polar DC circuit breaker is mainly used for short-circuit and overload protection in circuits, with rated working voltages of DC150V (1P), DC300V (2P), DC450V (3P), DC600V (4P),and rated currents of 16A~63A.
It can also serve as an isolation and control device;

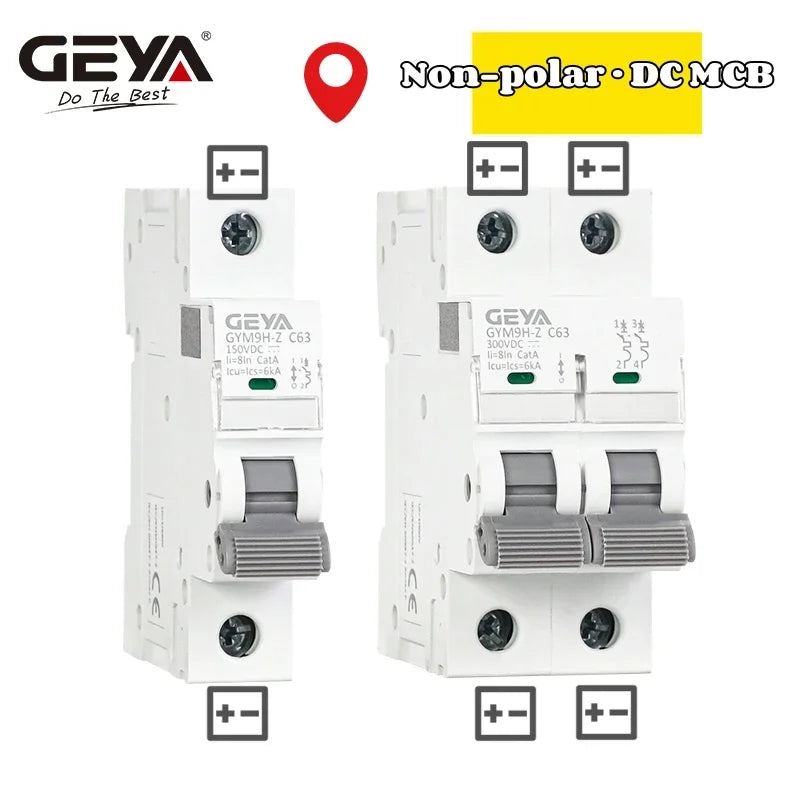

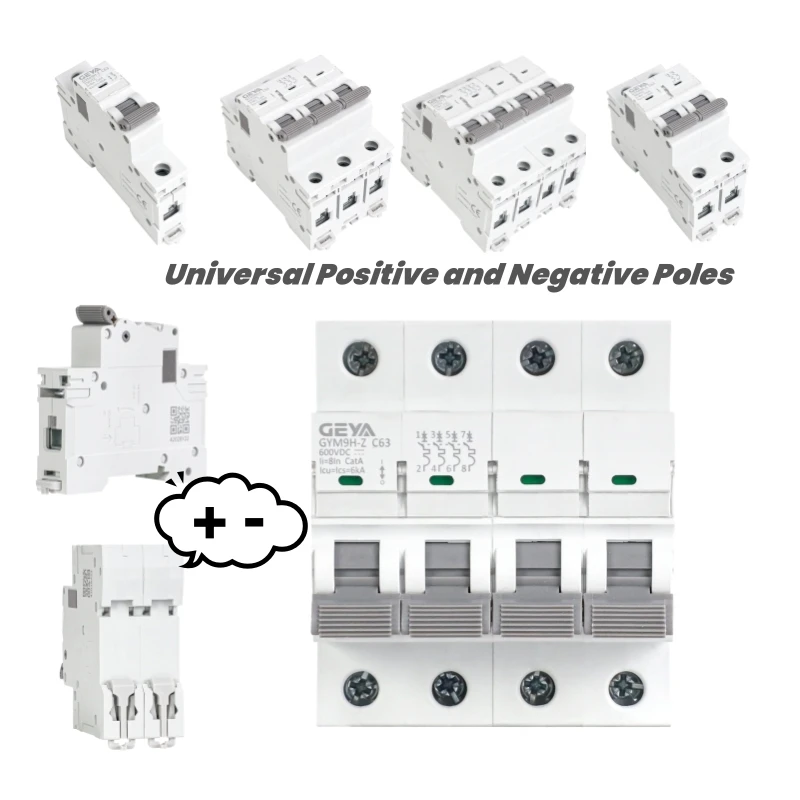

The power wiring does not need to distinguish between positive and negative poles, making it convenient for customers to connect and effectively reducing the risk of misconnection;
The product comes with a built-in short-circuit connection, saving customers installation time and space, mainly used in photovoltaic energy storage systems, such as energy storage inverters, batteries, and other DC non-polar applications.

In complicance with IEC/EN60947-2, IEC/EN60947-2 Annex P, GB14048.2, GB14048.2 Annex P

Transparent cover designed to carry label

Contact Position Indication Function

Bilateral busbar wiring capabilities to adapt to the wider use of premises

Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
