SPECIFICATIONS

10 Function: Delay on, Delay off, Interval, Cycle, Single Shot, Latching, Pulse

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB UKCA ROHS REACH

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: GRT8-M Multifunction Time Relay

Origin: Mainland China

Output Contact: 1SPDT OR 2SPDT

Power Source: DC,Ac

Product Name: GRT8-M Multifunction Time Relay

Protect Feature: Sealed

Rated Voltage: AC230V OR AC/DC12-240V

Rated Current: 16A/AC1

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-10days (10ranges)

Use: General Purpose

Voltage: 220V

is_customized: Yes

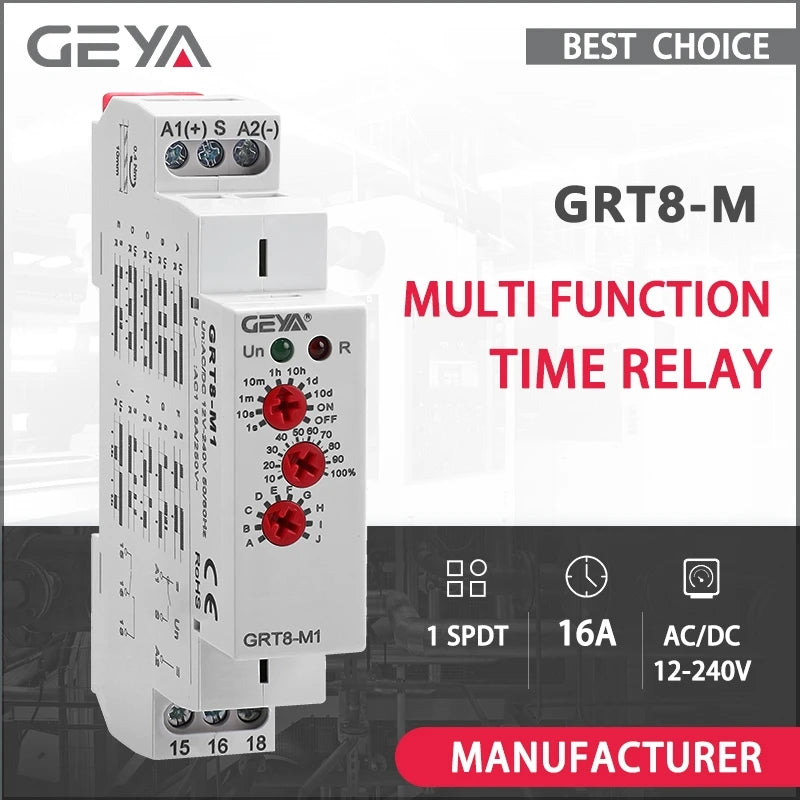

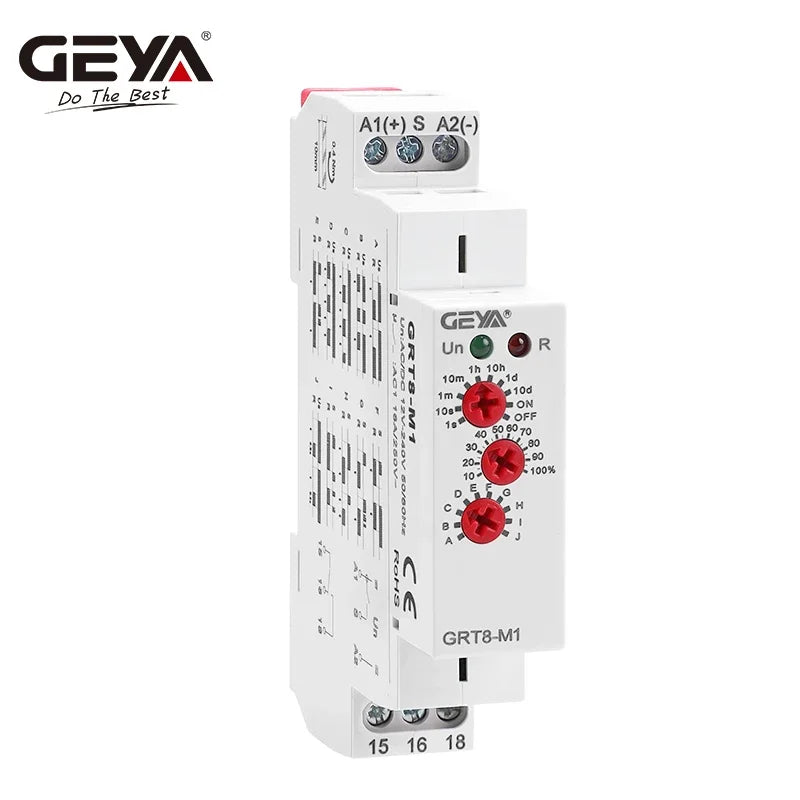

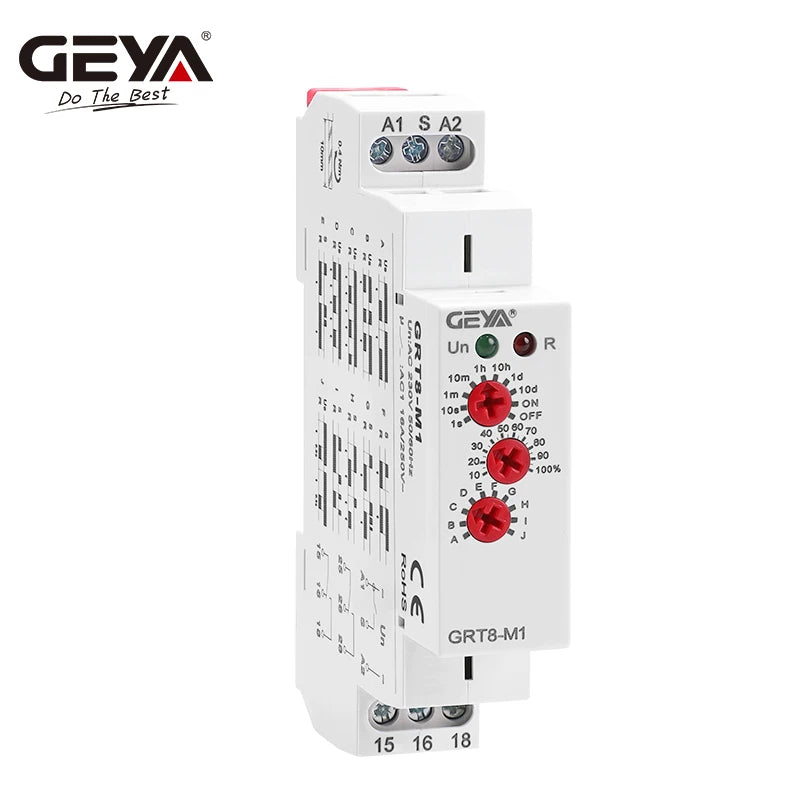

GEYA GRT8-M  Din Rail Type Multifunction Time Relay AC220V OR AC/DC12V~240V with 10 Functions Timer 16A SPDT



General

Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).

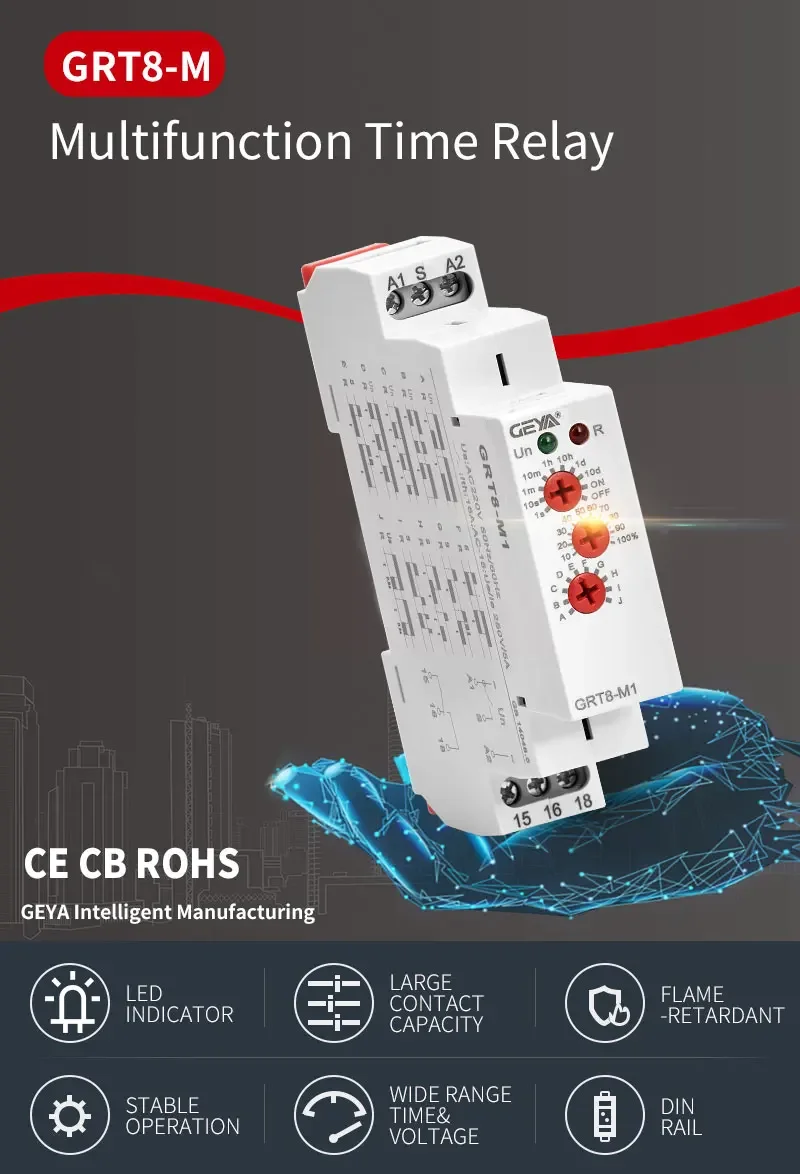

-  GRT8-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC12-240V


- Output: 16A 1SPDT (GRT8-M1) or 2SPDT (GRT8-M2)

-10 Functions:

  5 time functions controlled by supply voltage  ( A B C D J )

  4 time functions controlled by control input ( E F G H )

 1 function of latching relay  ( I )

-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.

0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off

- 1-MODULE 18mm, DIN rail mounting, convenient install.

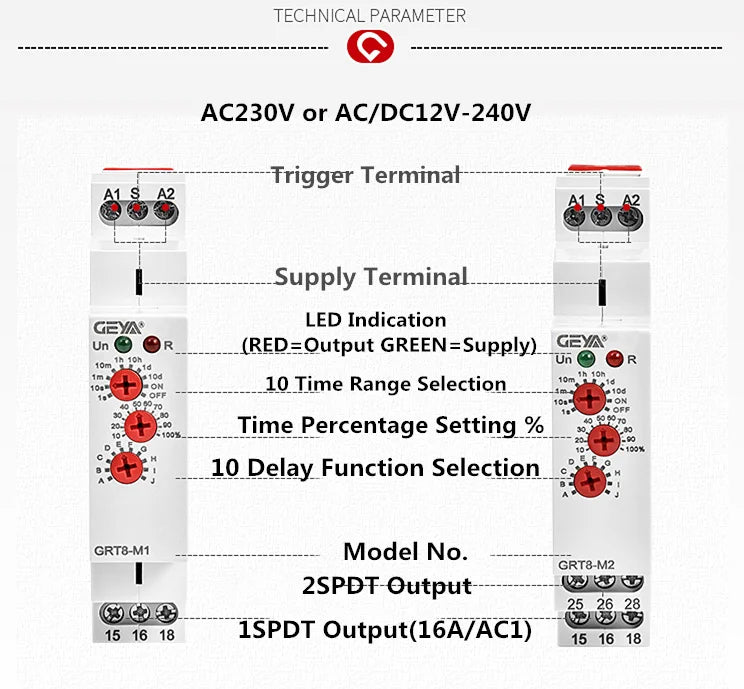

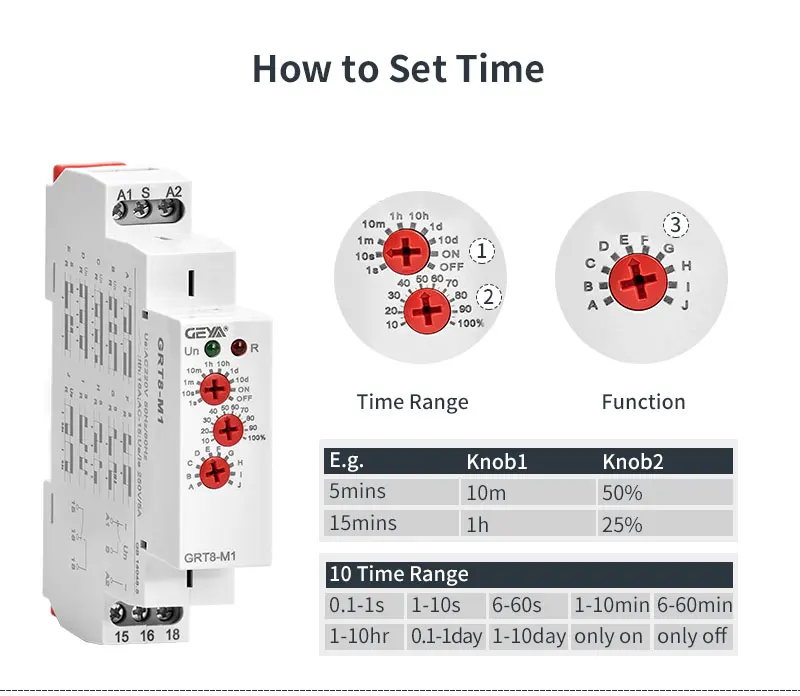

How to Set Time?

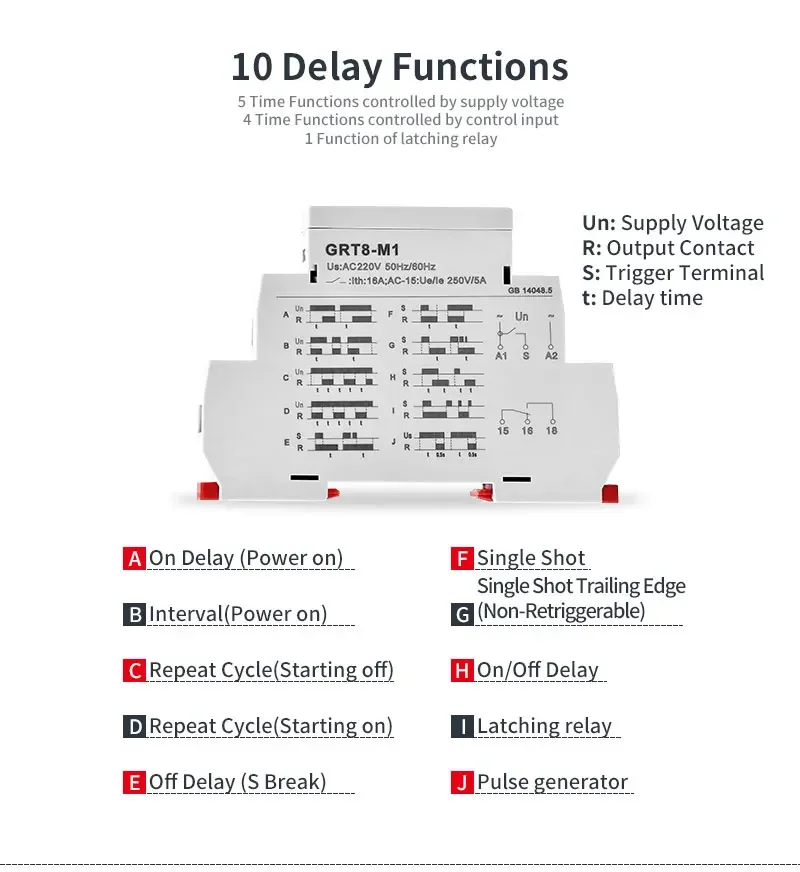

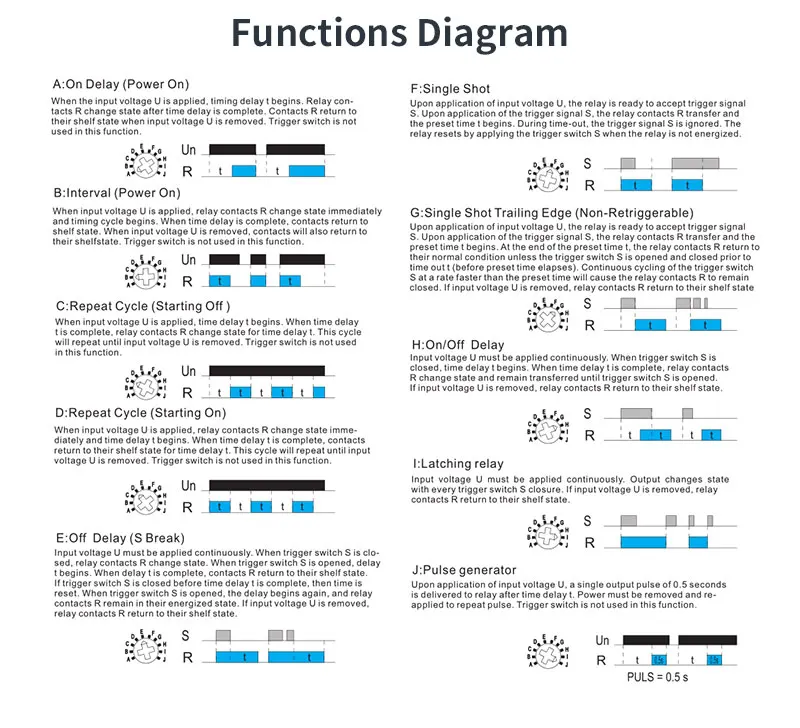

GRT8-M Time Relay 10 Functions

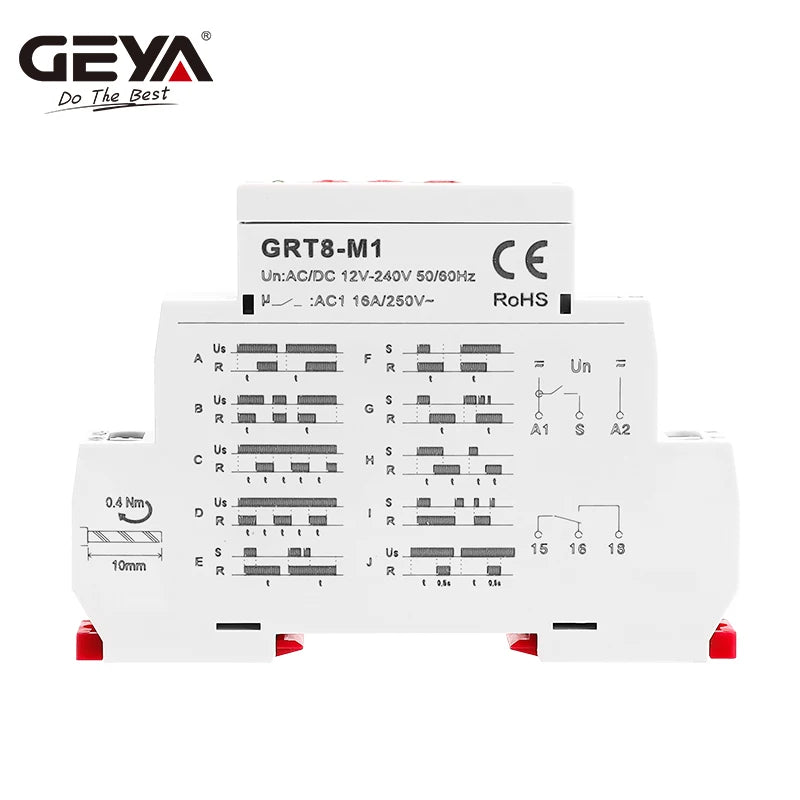

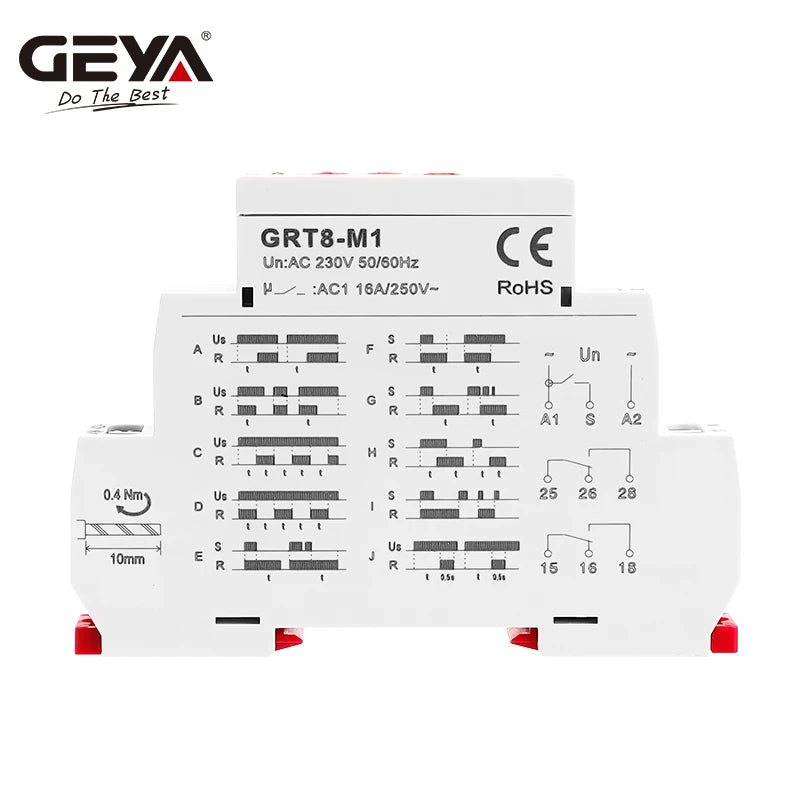

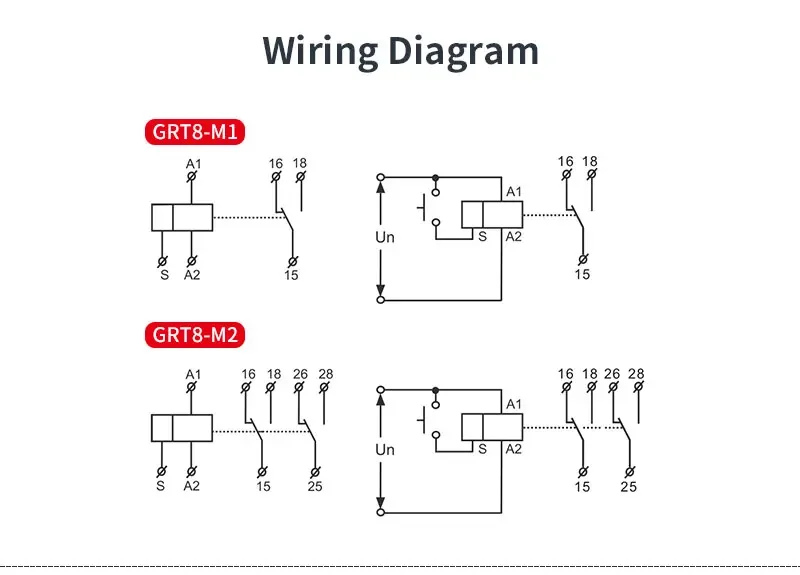

Wiring Diagram

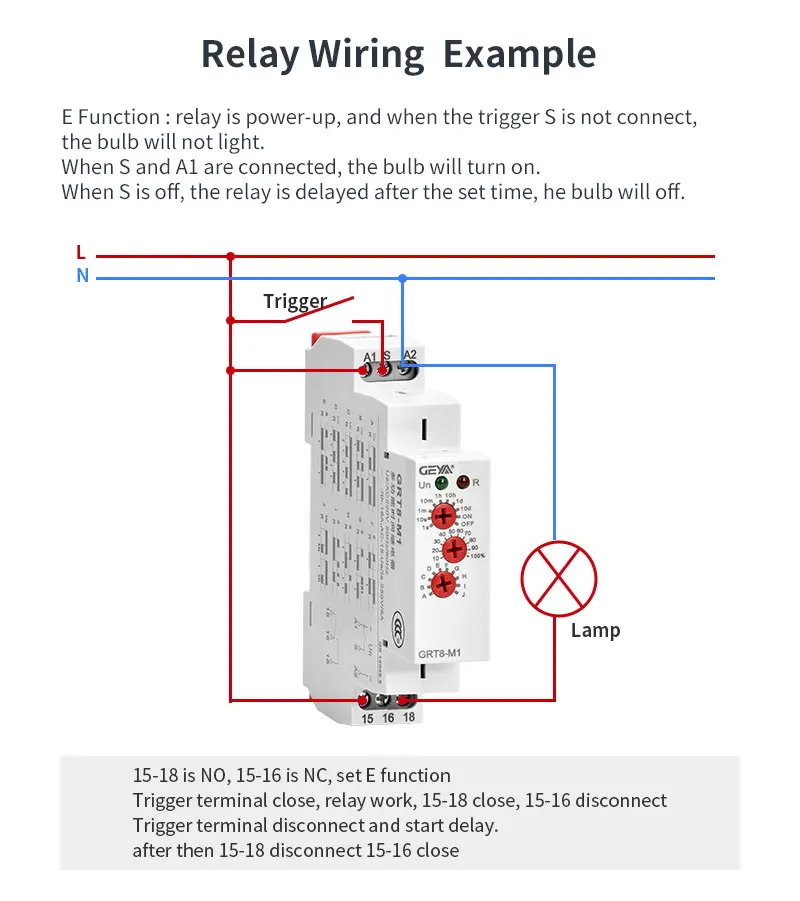

Wiring Example

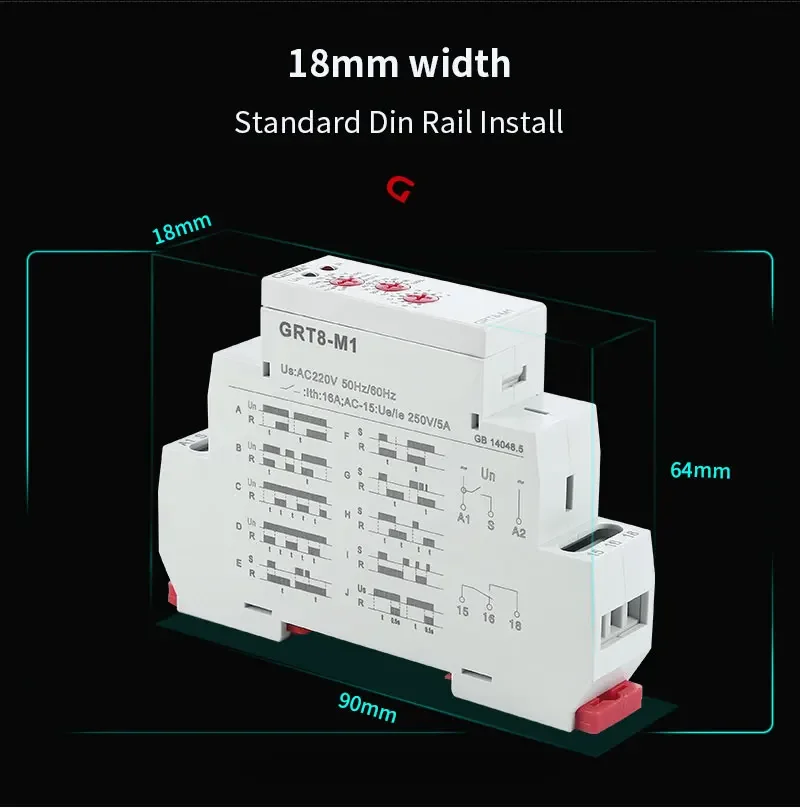

Standard Din Rail Size

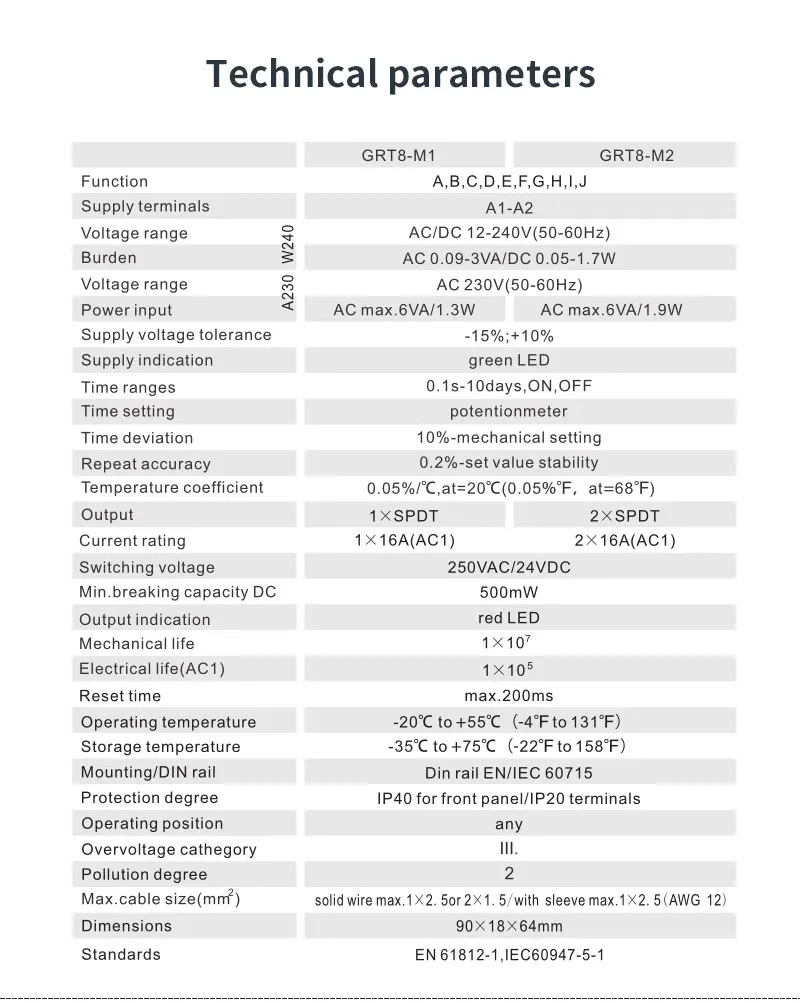

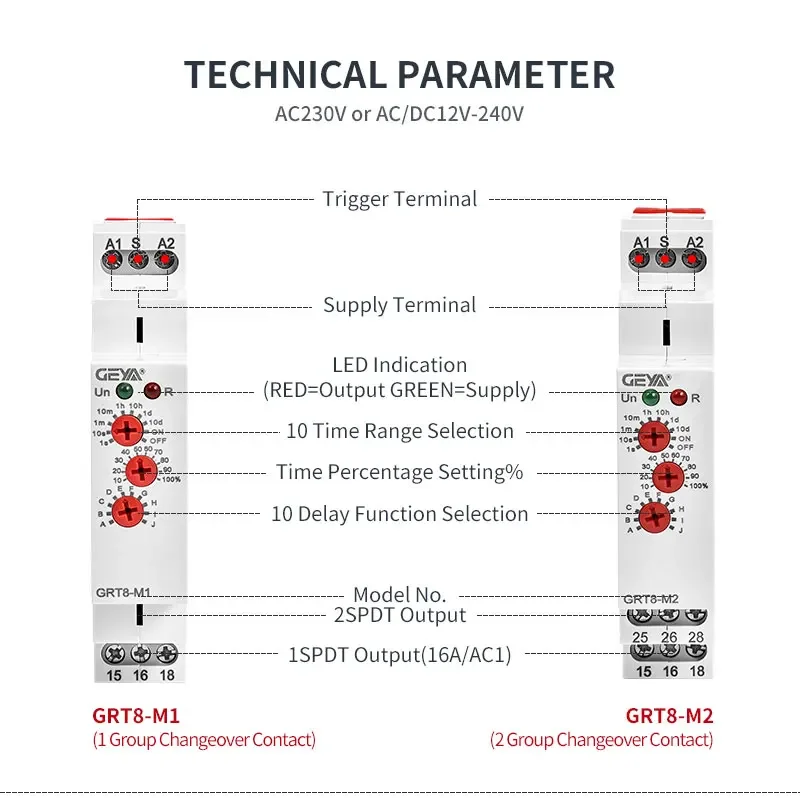

Technical Data
