SPECIFICATIONS
Brand Name: GEYA
Certification: CE
Choice: yes
Contact: 2NO, 2NC,
Current: 25A, 63A
Does it include a Battery?: No
Does it include wireless functionality?: No
Electricity Type: AC
High-concerned chemical: none
Install: Din Rail Mounted
Main Circuit Rating Current: Other
Main Circuit Rating Voltage: Other
Model Number: GYHC Modular Contactor Manual
Number of Pole: 2
Operation: Auto or Manual
Origin: Mainland China
POLE: 2P, 4P
Phase: 2
Product Name: Modular Household Contactor
is_customized: Yes

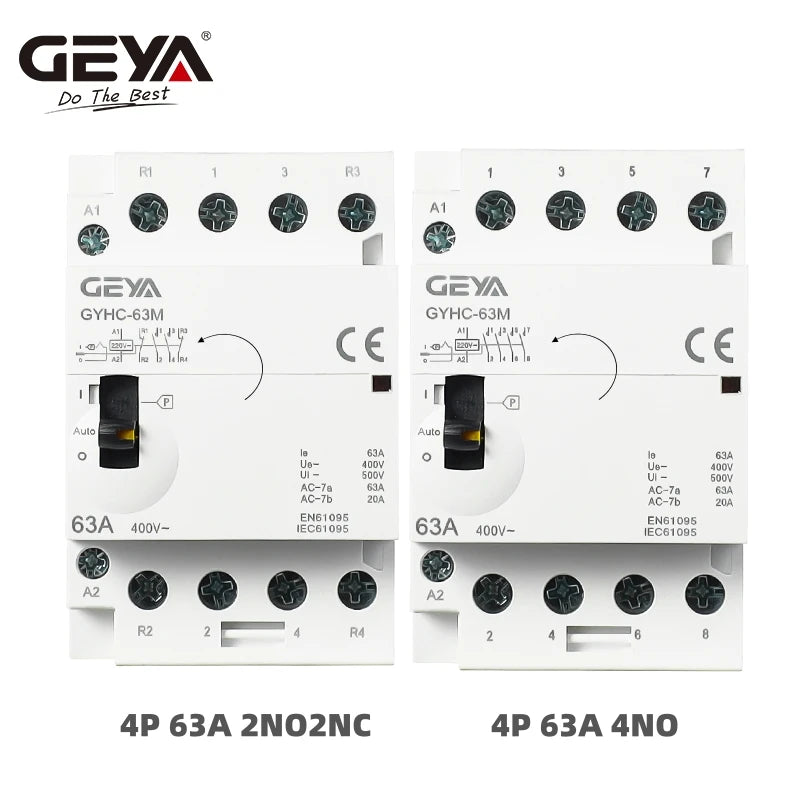

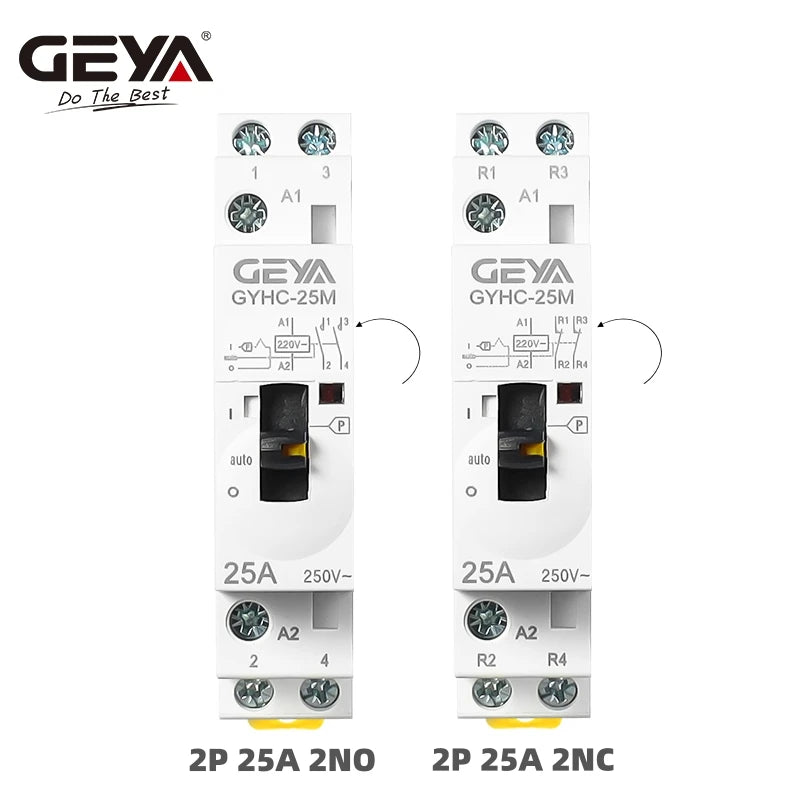

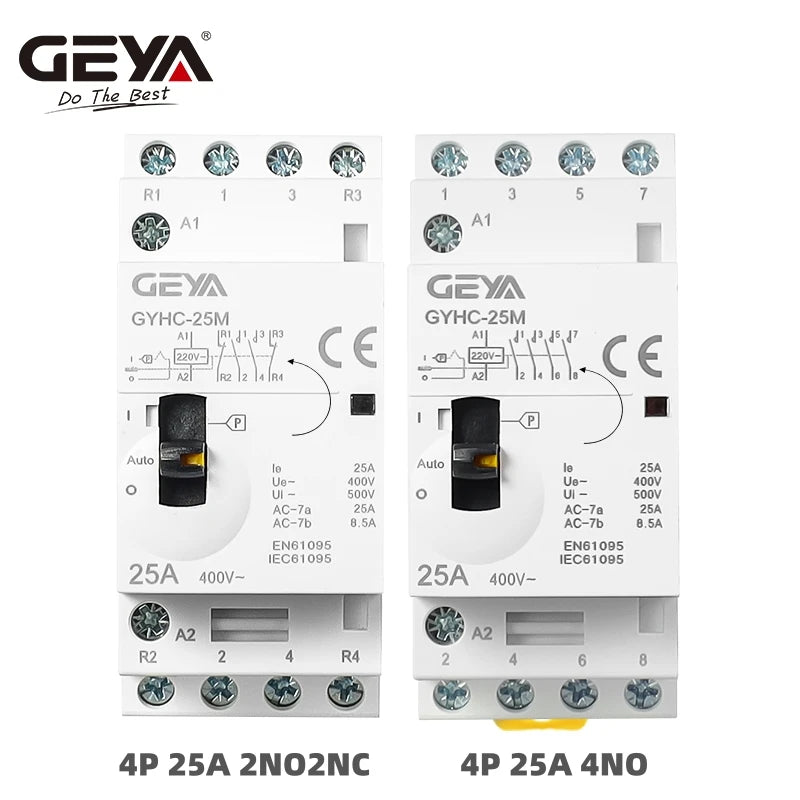

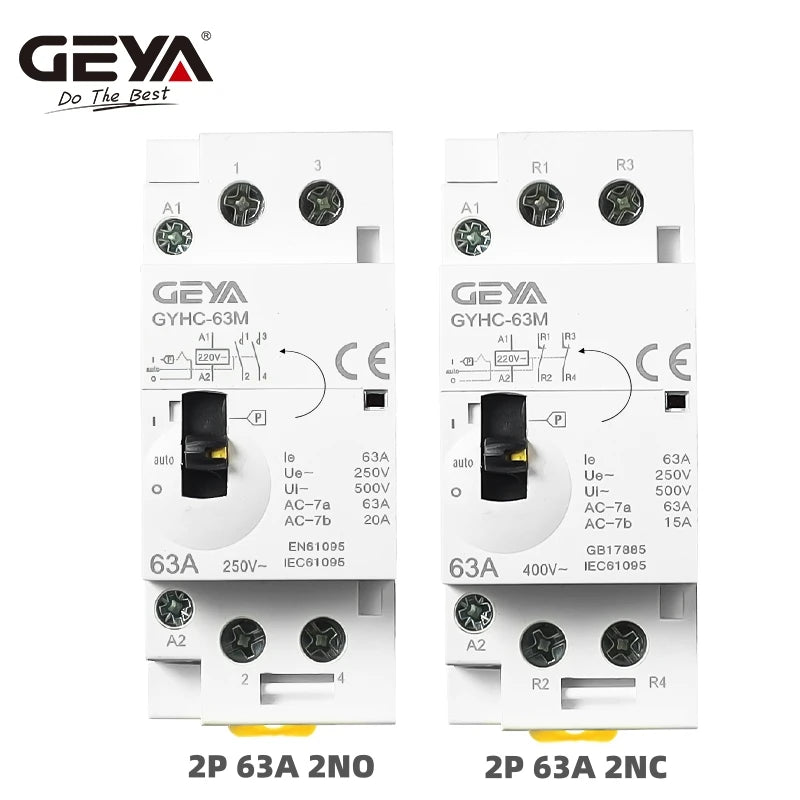

GEYA Manual Control AC Contactor 2P 4P 25A 63A 220V/230V 50/60Hz Din Rail Household AC Modular Contactor 2NO, 2NC, 4NO, 2NO2NC
General

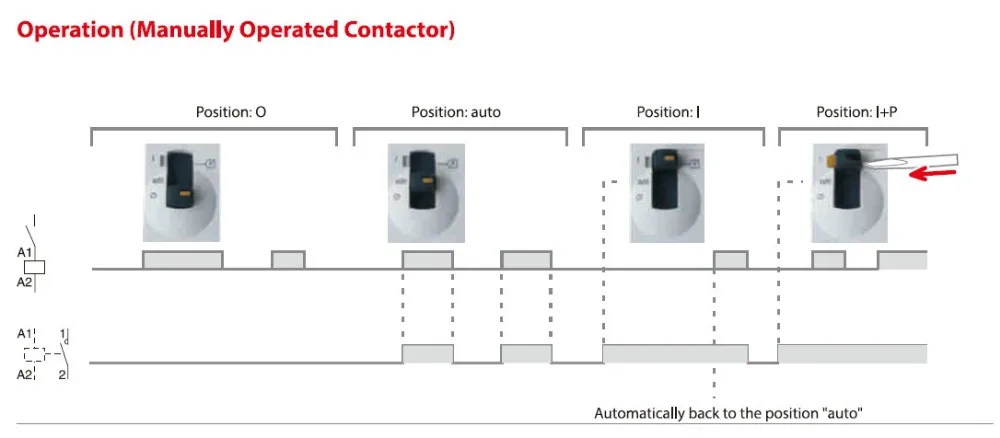

GYHC Contactors are available in two versions
Contactors without manually-operated.

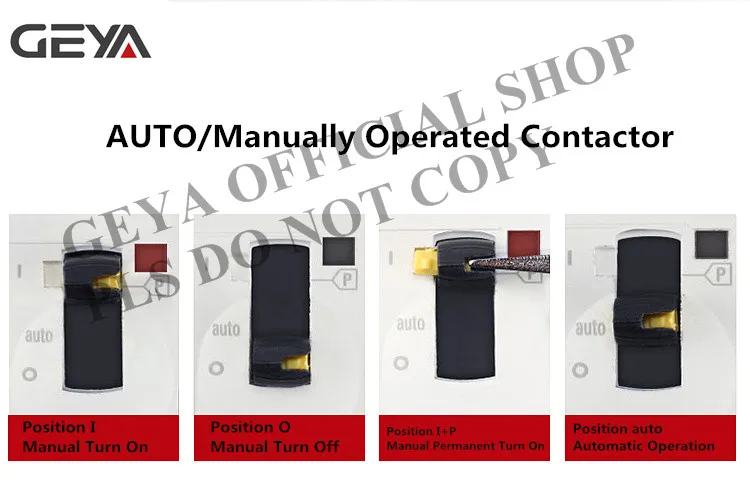

Contactors with manually-operated.
The scope of GYHC contactor is large enough to meet the vast majority of applications. can be extended to auxiliart control, protection and indication functions.
GYHC Modular Contactorcan be used to remote control applications in alternative networks:
Lighting, heating, ventilation, roller shutters, public hot water
Mechanical ventilation systems,etc
Load-shedding of non-priority circuits

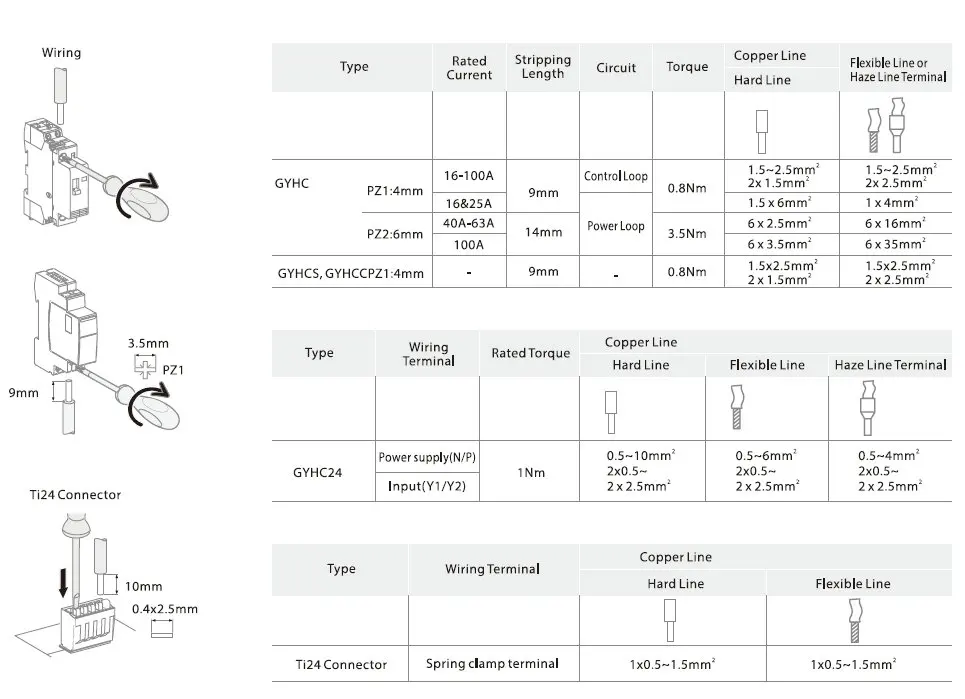

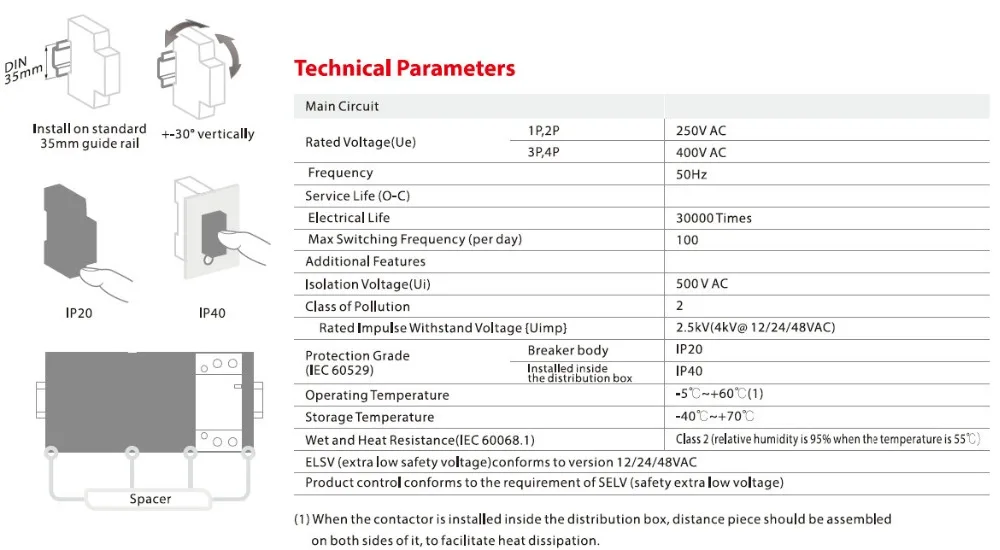

Technical Data
