GEYA GYR9NM Type A RCBO 2P 4P Magnetic Circuit Breaker with Over Current and Leakage Protection Din Rail 16A 40A Type AC

SPECIFICATIONS

Brand Name: GEYA

Breaking Capacity: 6000A

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model: Type A or Type AC

Model Number: GYR9NM-RCBO

Mounting: Din Rail

Origin: Mainland China

Poles: 2Pole, 4Pole

Product Name: RCBO Electro-mechanical

Rated Current: 16A 25A 32A 40A

Rated Frequency: 50/60Hz

Rated Sensitivity: 30mA(0.03A), 100mA(0.1A), 300mA(0.3A)

Rated Voltage: 220V

Standard: IEC61009-1

Type: Residual Current,RCD

Voltage: AC230V

is_customized: Yes

General

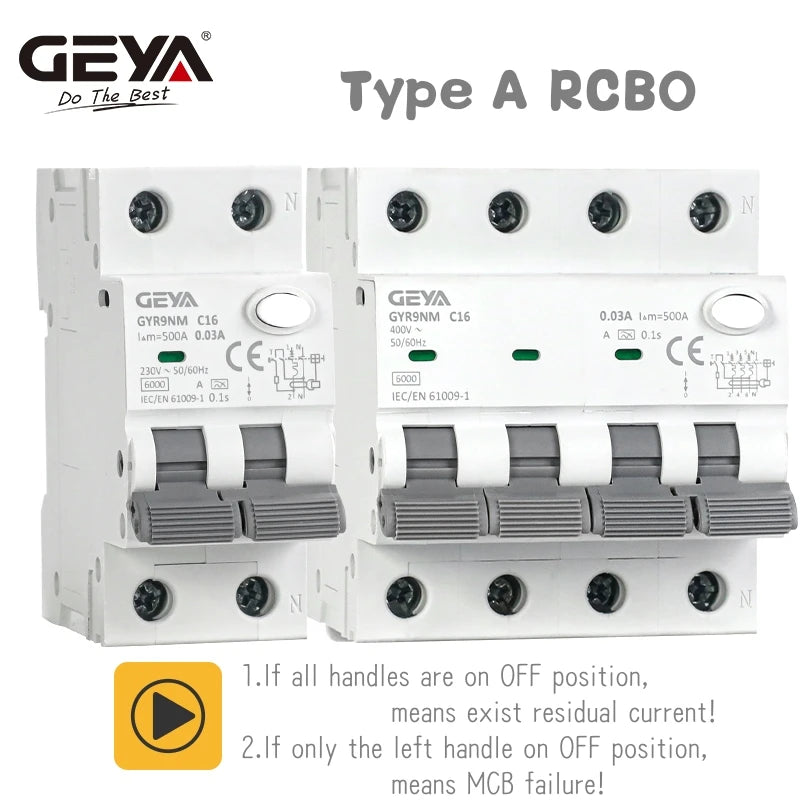

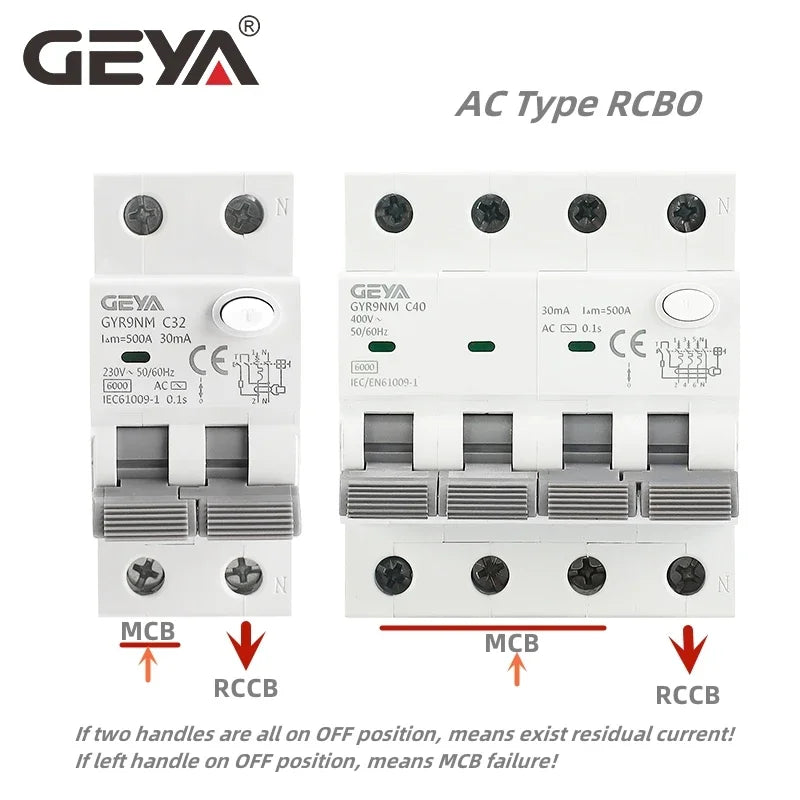

**If two handles are all on OFF position, means exist residual current!
**If left handle on OFF position, means MCB failure!

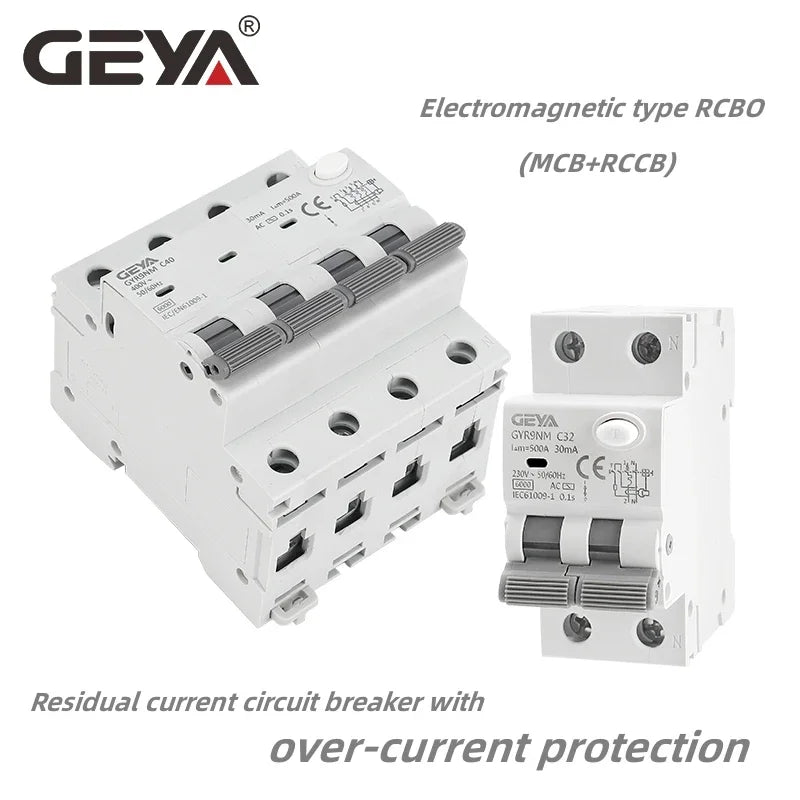

GYR9NM Series RCBO- Residual current circuit breaker with over-current protection has the functions of leakage, overload and short circuit protection.

When the personal contact or the leakage current of the power grid exceeds the specified value, the product can cut off the fault current within 0.1s,
protect the personal safety and prevent the equipment from failure caused by leakage current, and can be used to protect the fault The overload and short circuit of the protective line.

RCBO can also be used as the infrequent breaking and switching of the line under normal conditions, and it is mainly used for the protection of building lighting and distribution system,
it also be used as the lower road board for infrequent breaking and switching of lines, mainly used in the protection of building lighting and power distribution system.
