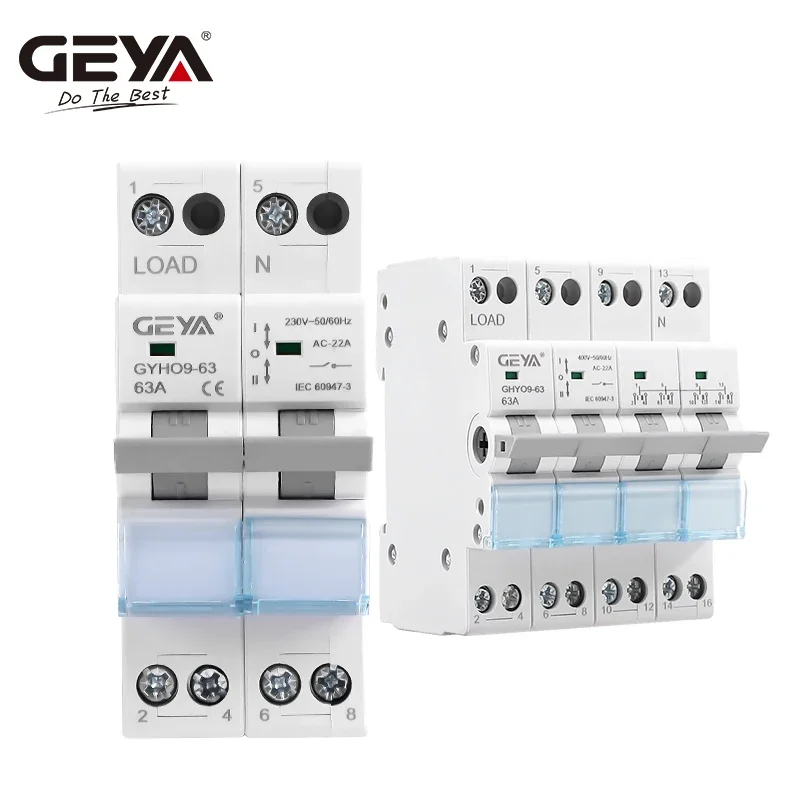

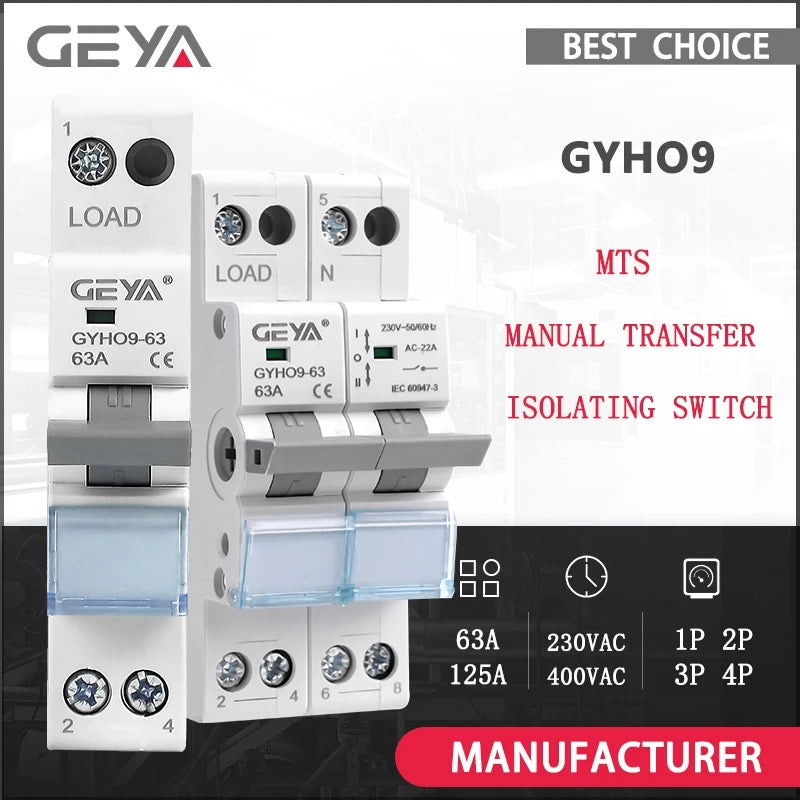

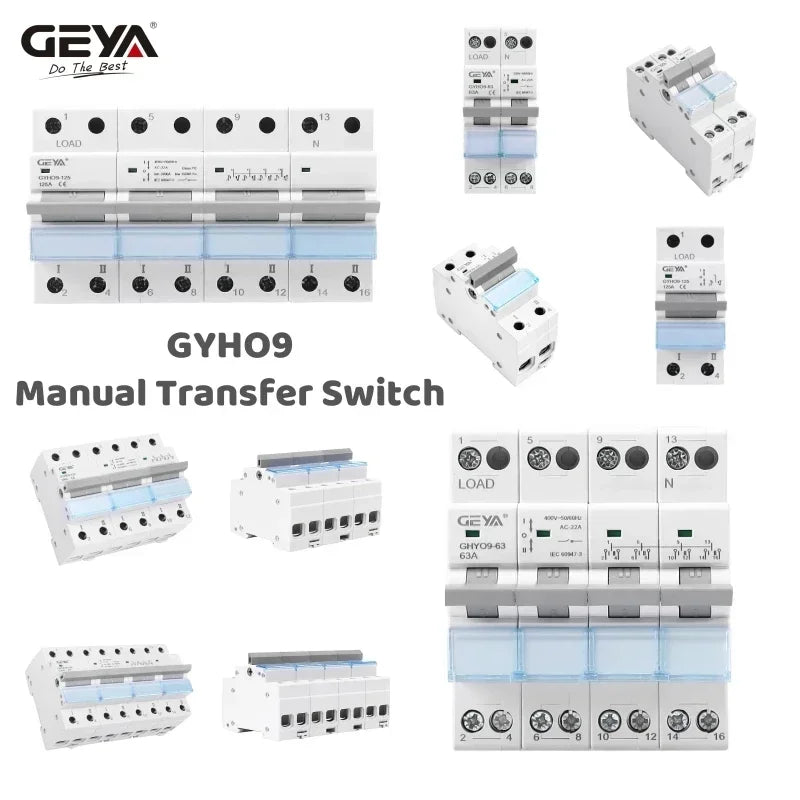

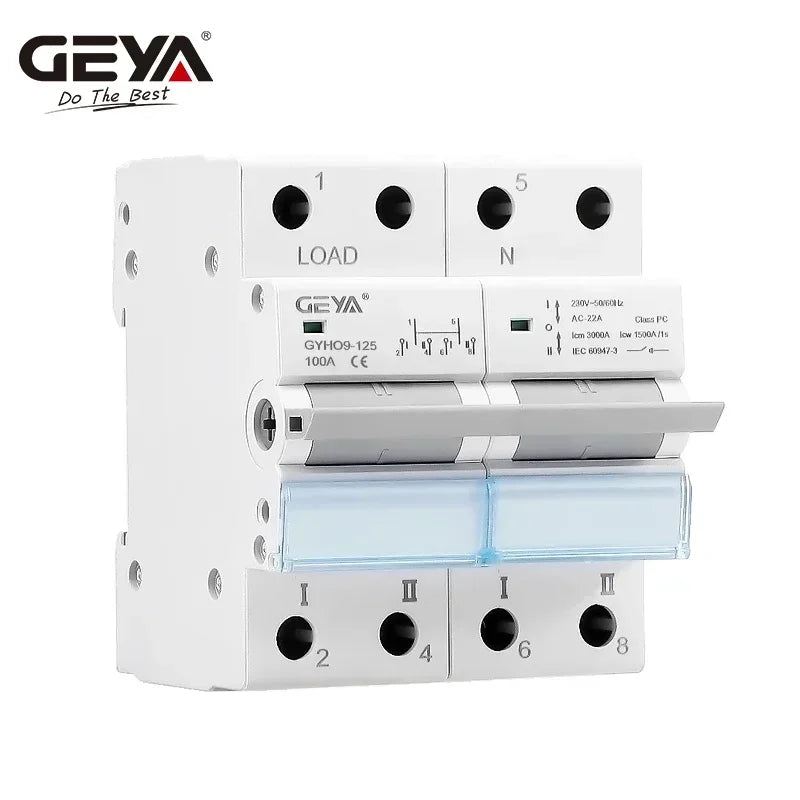

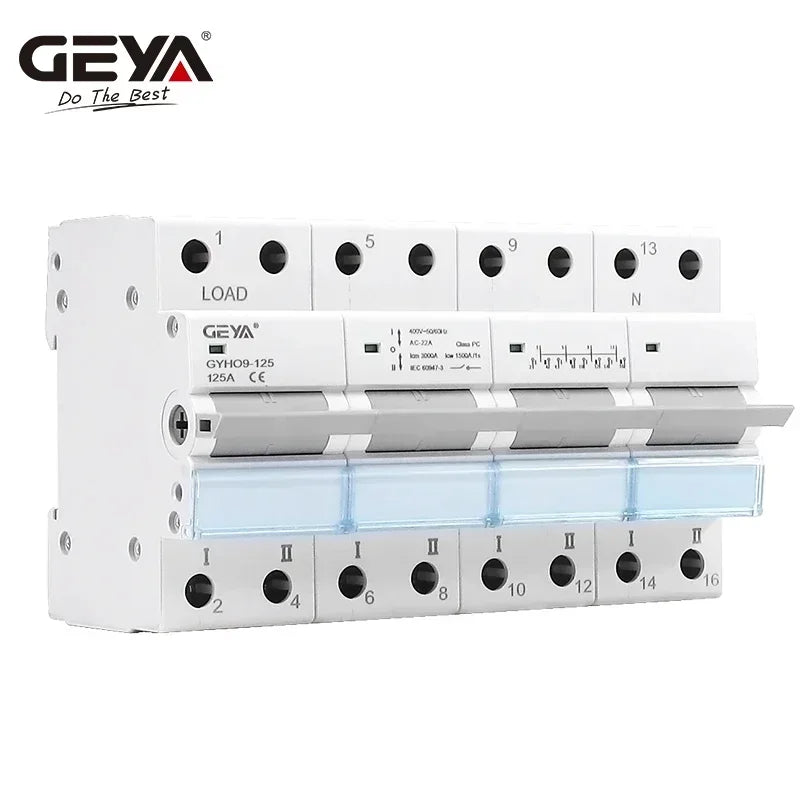

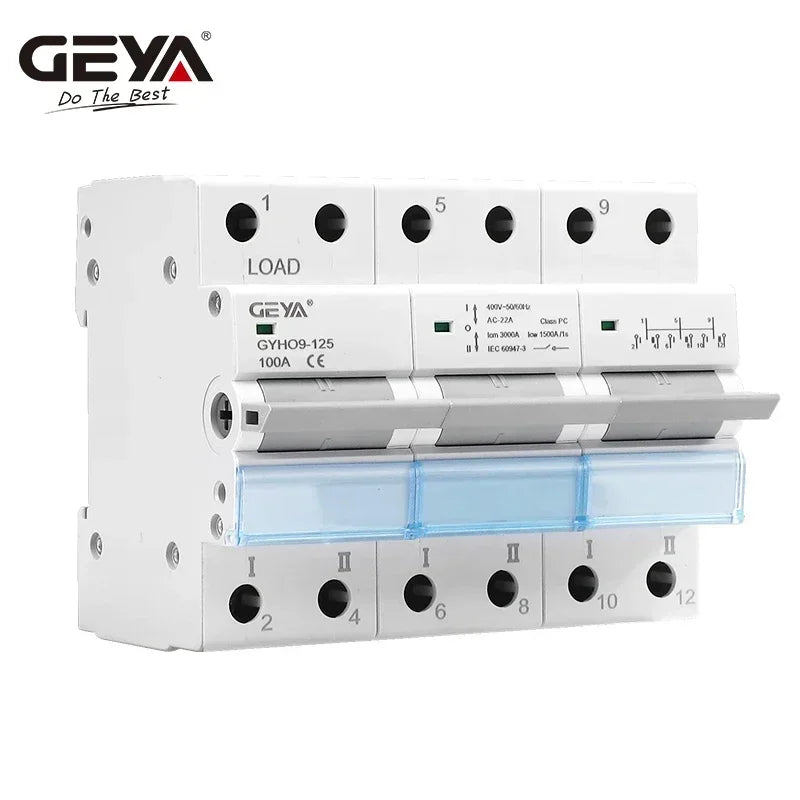

GEYA GYHO9 Manual Transfer Switch with Indicator 63A 125A MTS Dual Power Manual Conversion Isolating Switch

SPECIFICATIONS

Brand Name: GEYA

Cable Size 100A 125A: Max 50mm²

Cable Size 63A: Max 10mm²

Certification: CE

Choice: yes

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Mechanical Life: 10000 Cycles

Model Number: GYHO9 MTS

Mounting: Din Rail

New Design: with Indiactor Red Green Yellow Color

Origin: Mainland China

Poles: 1P 2P 3P 4P

Product Name: Manual Transfer Isolating Switch

Rated Current: 63A 125A

Rated Frequency: 50/60Hz

Rated Voltage: 220/380V

Rated Voltage Ue: AC220/400V

Standard: IEC/EN60947-3

Type: Mini,Circuit breaker

is_customized: Yes



GEYA GYHO9 Manual Transfer Switch NEW Design with Indicator 1P-4P 63A 125A MTS Dual Power Manual Conversion Isolating Switch

General

The purpose of the GYHO9 Manual Transfer Switch(MTS) is to manually transfer power to an alternate source. The most common application is transferring power from a backup power source to the load during utility failures.
When installed properly, the Manual Transfer Switch provides an easy means for transferring loads to an alternate source in the event of another power source failure.

Special Design

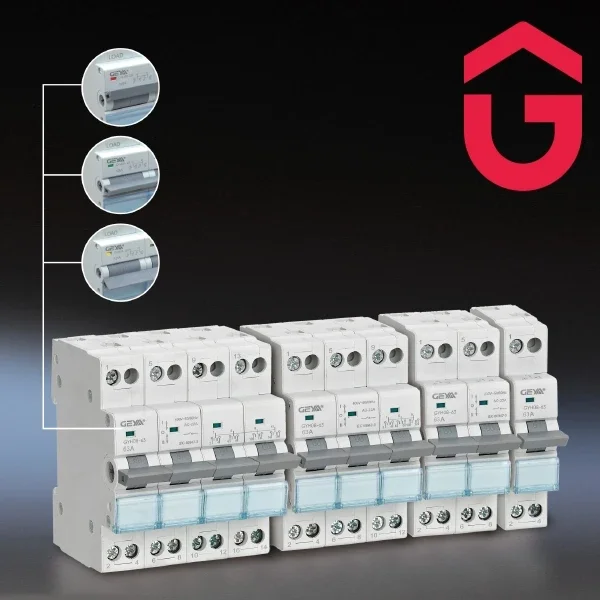

1. Clearly marked power postions with lndicator lights to easily understand which power source is being utilized.
2. Label window for easy and clear labeling of power sources.

Knob Position: 1 - O - 2 (1=Main Power ON, O=OFF, 2=Standby Power ON)

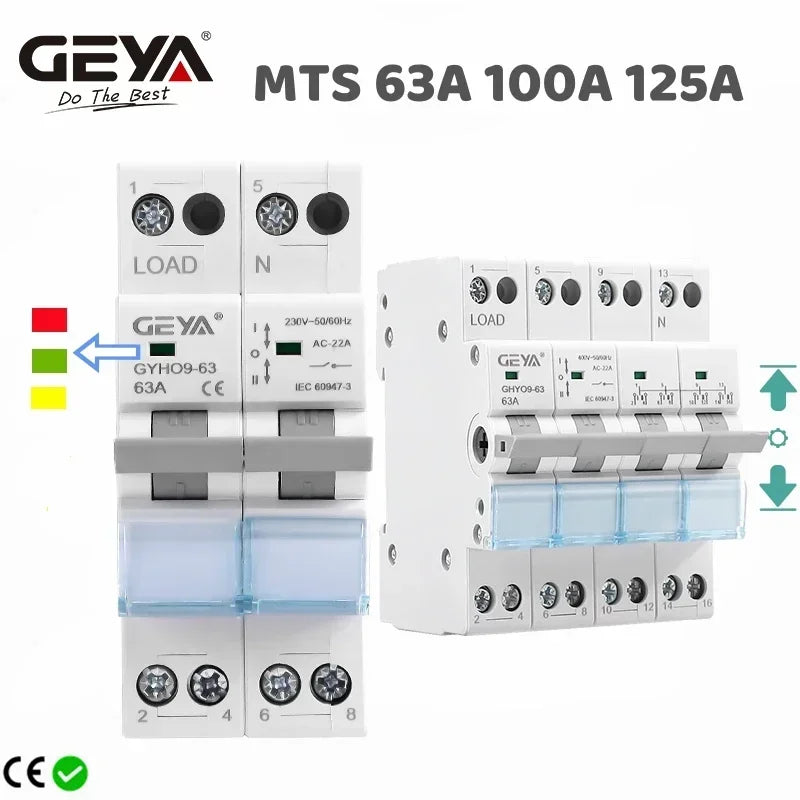

lndicator Window Color: 1=Red, O=Green, 2=Yellow
