General

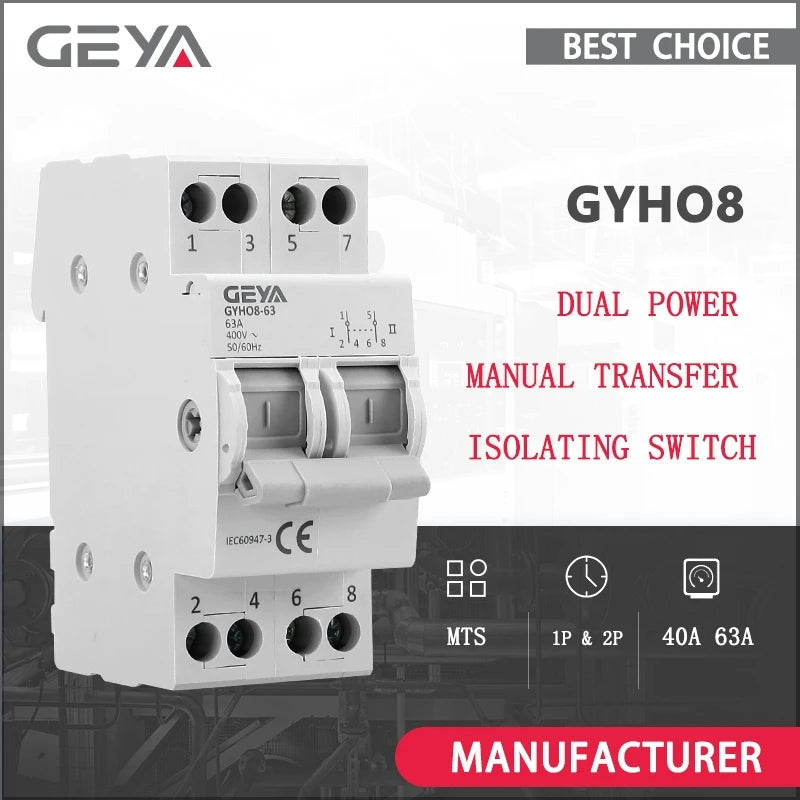

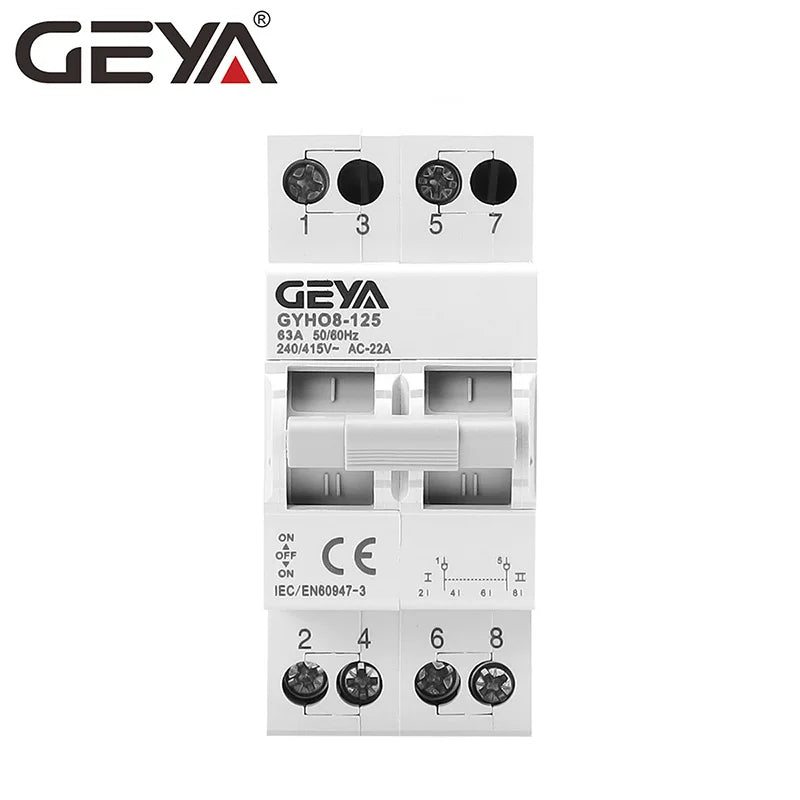

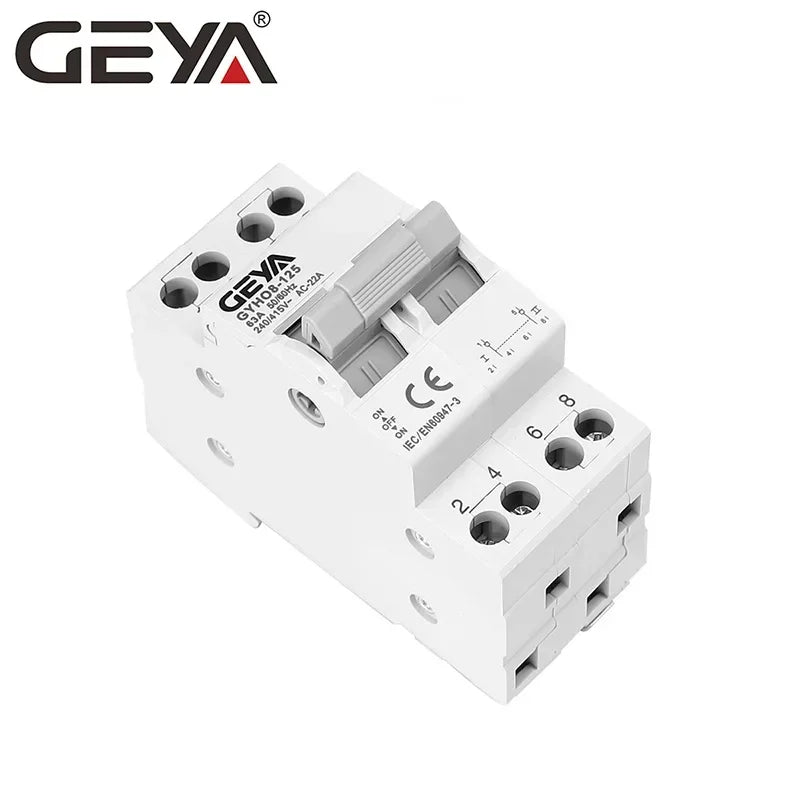

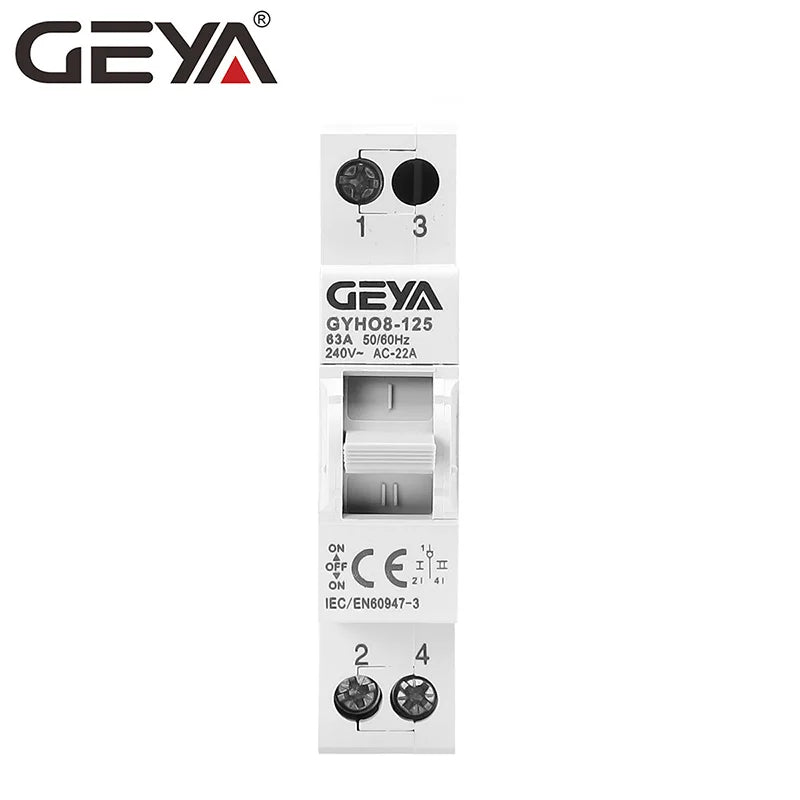

GYHO8 dual power manual isolation switch has four functions-on, off, conversion and isolation. It can be freely switched on and off between two loads carried by a group of lines, or on two power sources.

It is used for on-off and switching , using DIN standard rail (35×7.5) installation.

The shell is made of PA66 injection molding, with high flame retardant performance.

It is an ideal product that needs to be used for switching and opening and closing in industrial equipment and circuits.

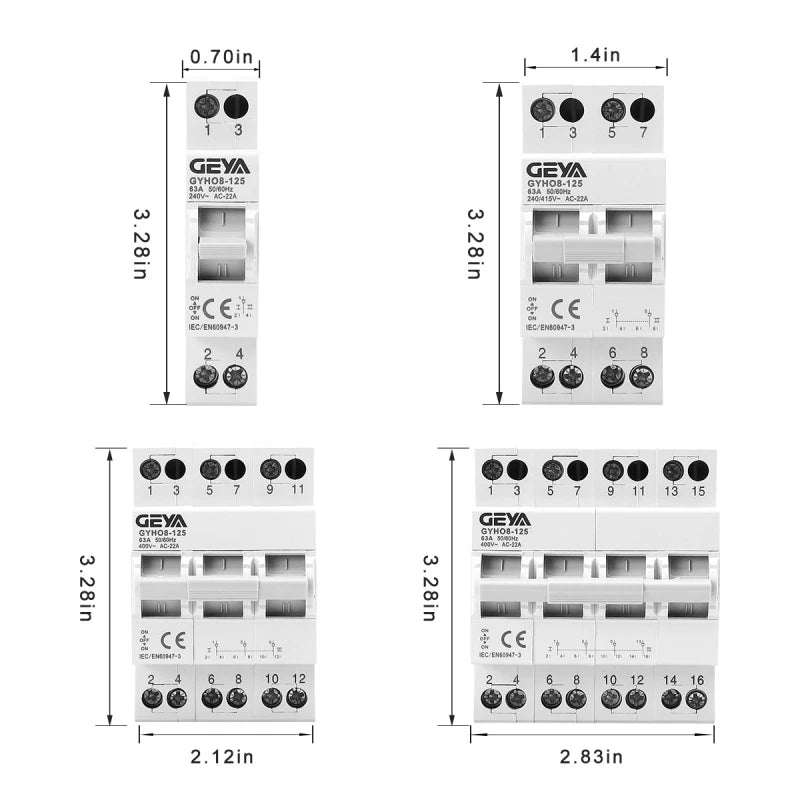

The rated current is 63A, and it is convenient and safe to install and wire on the guide rail.

Instructions for use

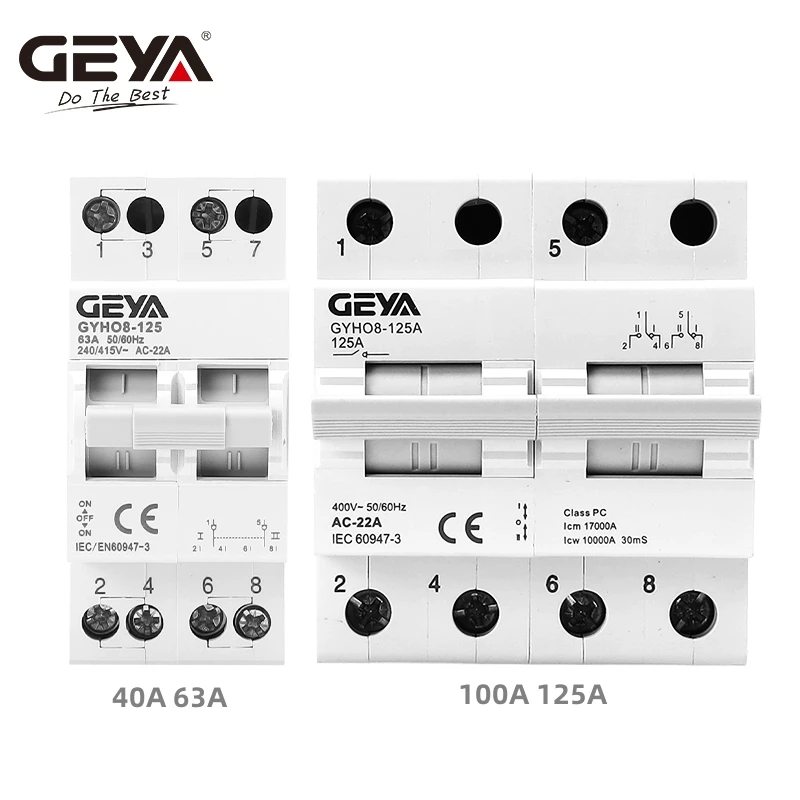

2P Manual Transfer Switch(MTS)

1.When the handle on the I position:

1 and 2 are connected

5 and 6 are connected.

2.When the handle on the II position:

1 and 4 are connected

5 and 8 are connected.

3.When the handle is in the middle position: both groups are disconnected.

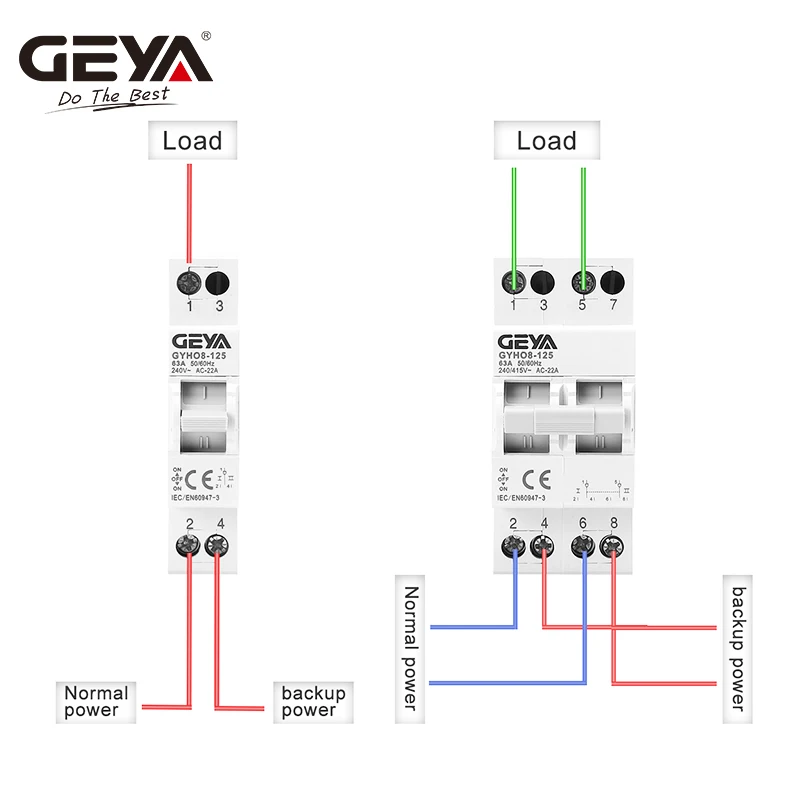

The position of the incoming and outgoing wires can be adjusted according to actual needs (the upper and lower out are not necessarily required, when used for dual power switching, the lower in and upper out must be used.)
