GEYA GRT8-EC 10A Dual Function Timer Relay on Delay or off Delay Relay AC220V AC380V ACDC24V-240V Time Relay CE CB ROHS

SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: on Delay or off Delay Timer

High-concerned chemical: none

Model Number: GRT8-EC Dual Function Time Relay

Origin: Mainland China

Output Contact: 1SPDT

Power Source: Ac,Ac

Product Name: GRT8-EC Dual-function Time Relay

Protect Feature: Sealed

Rated Current: 10A(AC1)

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-10days (8ranges)

Use: General Purpose

Voltage: 220V,AC220V/DC24V OR AC380V

is_customized: Yes



GEYA GRT8-EC 10A Dual function Timer Relay on Delay or off Delay Relay AC220V/DC24V OR AC380V Time Relay CE CB ROHS

General

Dual function time relay can be used for industrial equipment, lighting control,  heating element control, motor and fan control, with two delay modes, and the delay range covers 0.1 seconds to 10days.

Function Features
- GRT8-EC Dual-function Time Relay
- Function: on Delay or off Delay Timer Relay
- Voltage Range:  AC230V OR AC/DC24V-240V OR AC380V-440V
- Output: 1×10A(AC1) 1SPDT (1NO1NC)

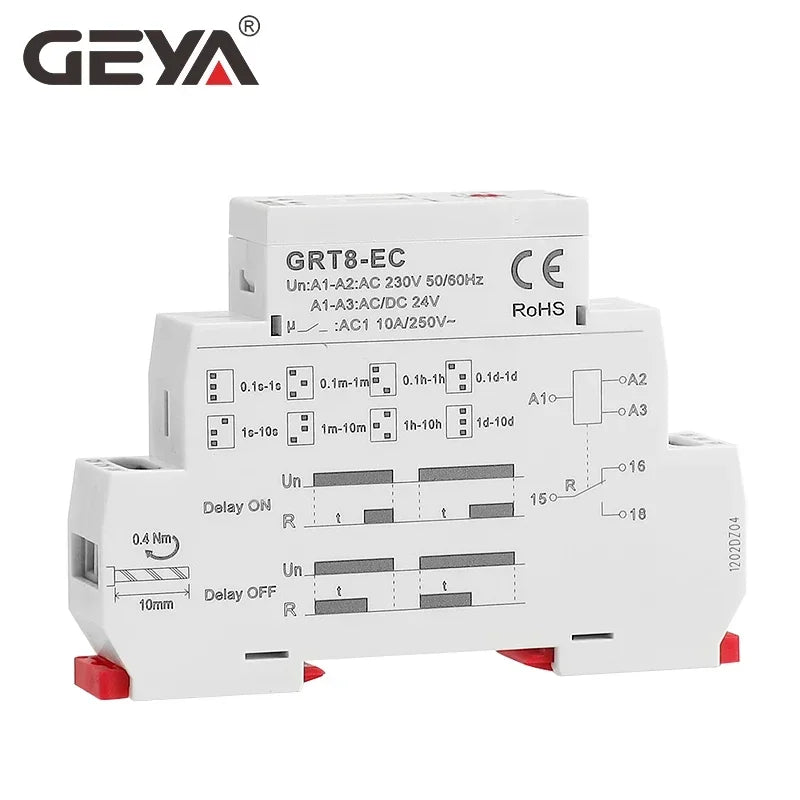

-Time scale 0.1 s - 10 days divided into 8 ranges, setting by Potentionmeter.

0.1-1s, 1-10s, 0.1-1min, 1min-10m, 0.1h-1h, 1h-10h, 0.1d-1d, 1d-10day

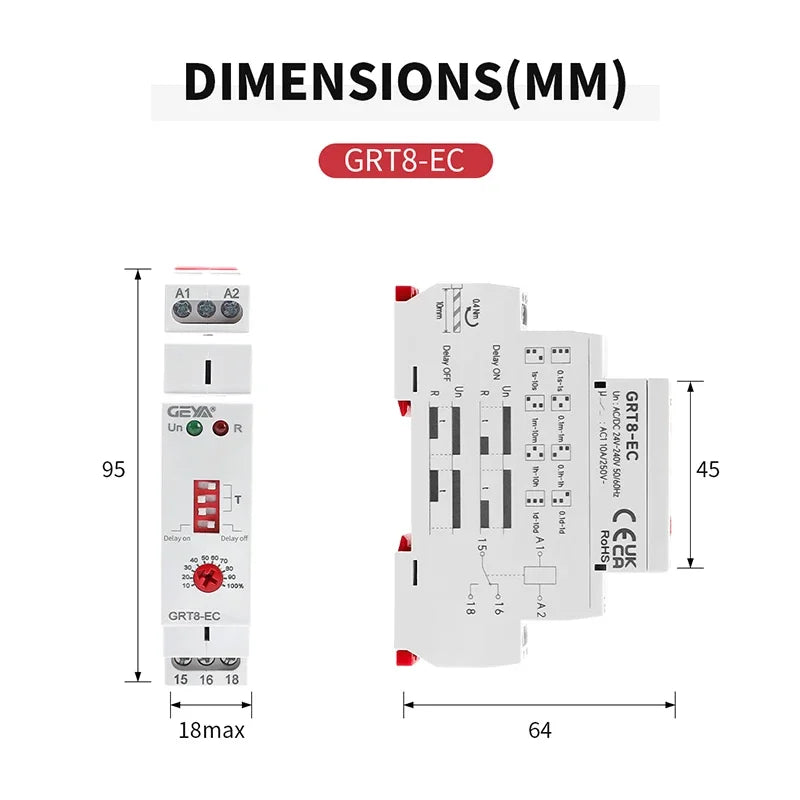

- 1-MODULE 18mm, DIN rail mounting, convenient install.

Technical Data
