SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Liquid Level Controller

High-concerned chemical: none

Model Number: GRL8 Level Control Relay

Origin: Mainland China

Output Contact: 1SPDT

Power Source: Ac,Ac

Product Name: GRL8 Level Control Relay

Protect Feature: Sealed

Rated Current: 10A

Rated Frequency: 50/60Hz

Theory: Voltage relay

Time Delay: adjustable 0.5s-10s

Use: General Purpose

Voltage: 240V,AC/DC24V-240V

is_customized: Yes

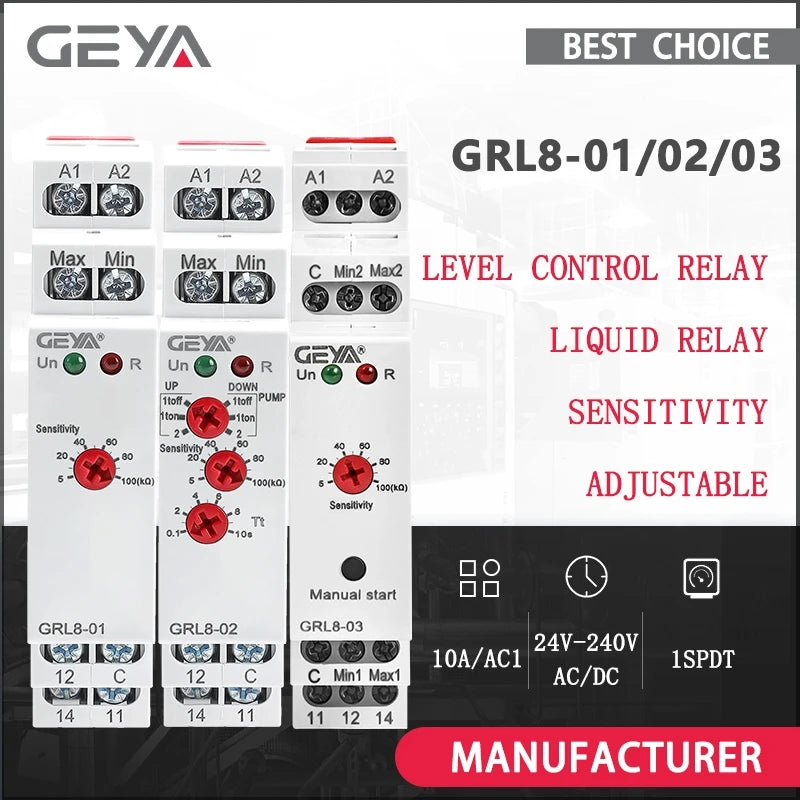

GEYA Water Level Controller Liquid Relay 10A  AC/DC24V~220V Wide Range Voltage Water Pump Relay

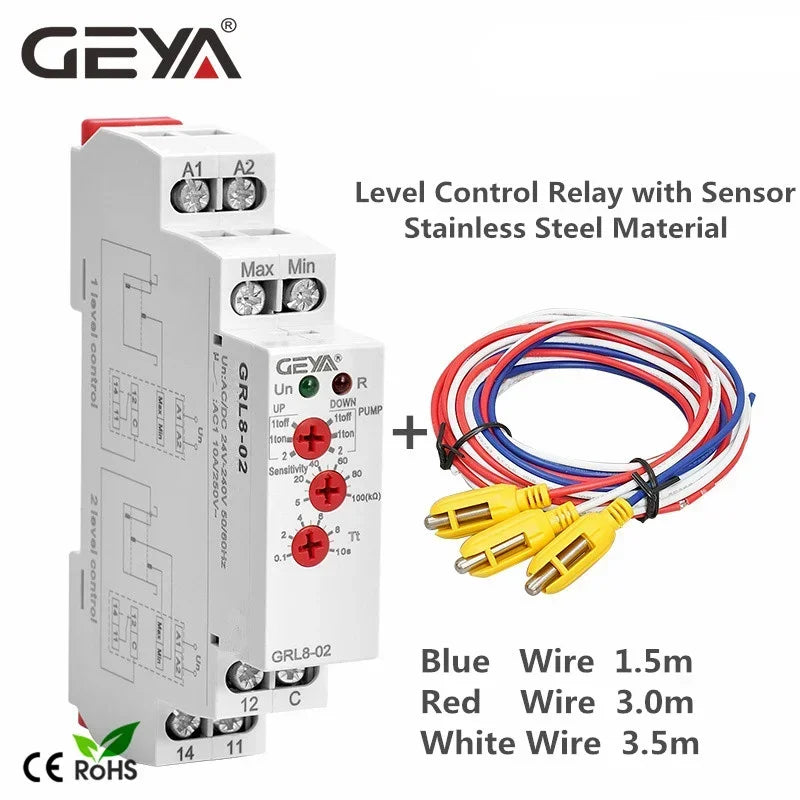

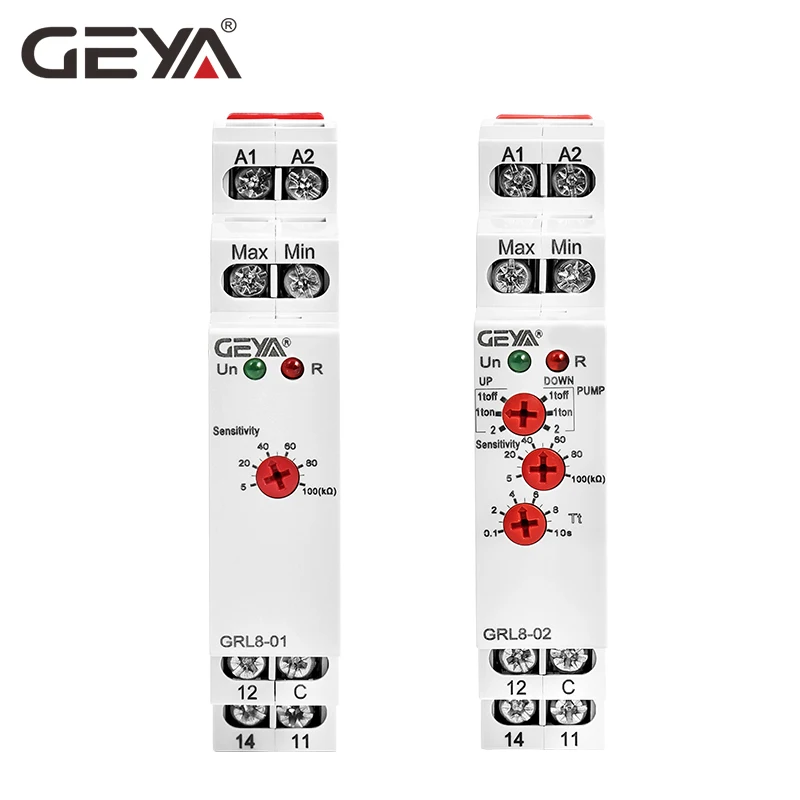

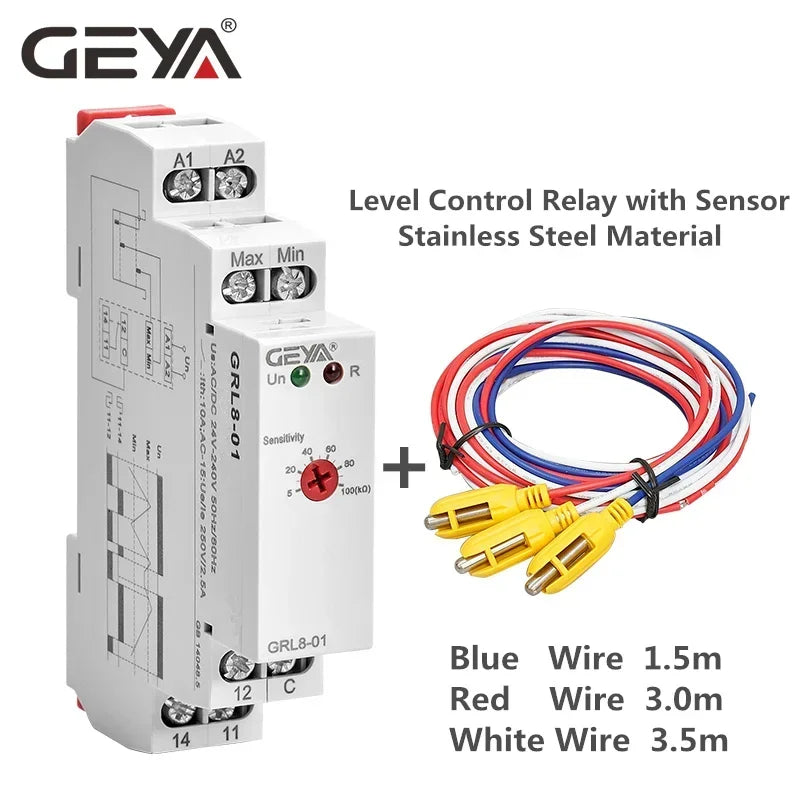

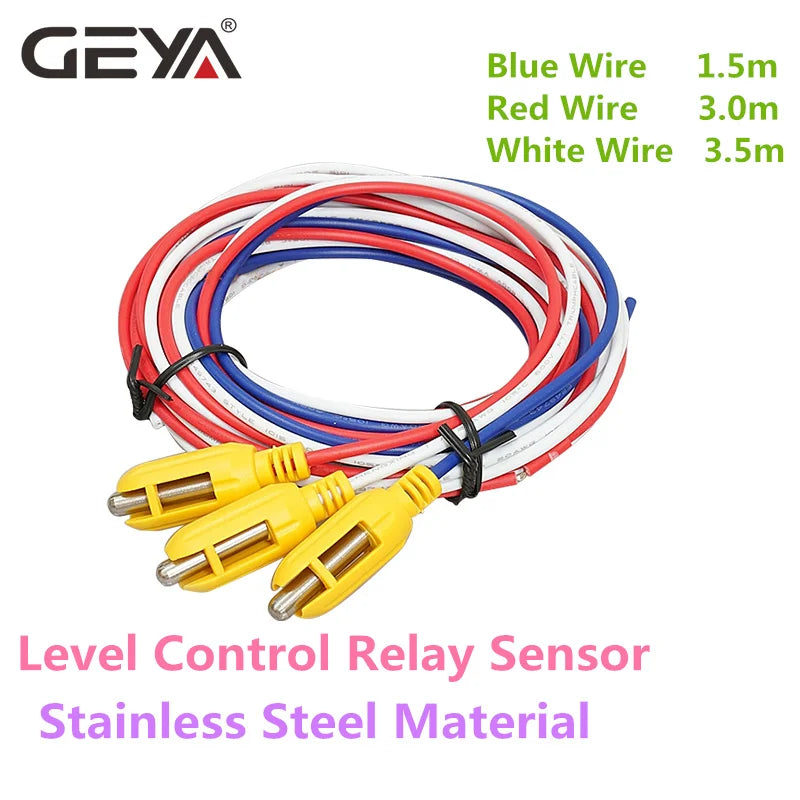

GRL8-01: Monitoring 1 Tanks/Wells (Connect 1 piece Level Senosr)

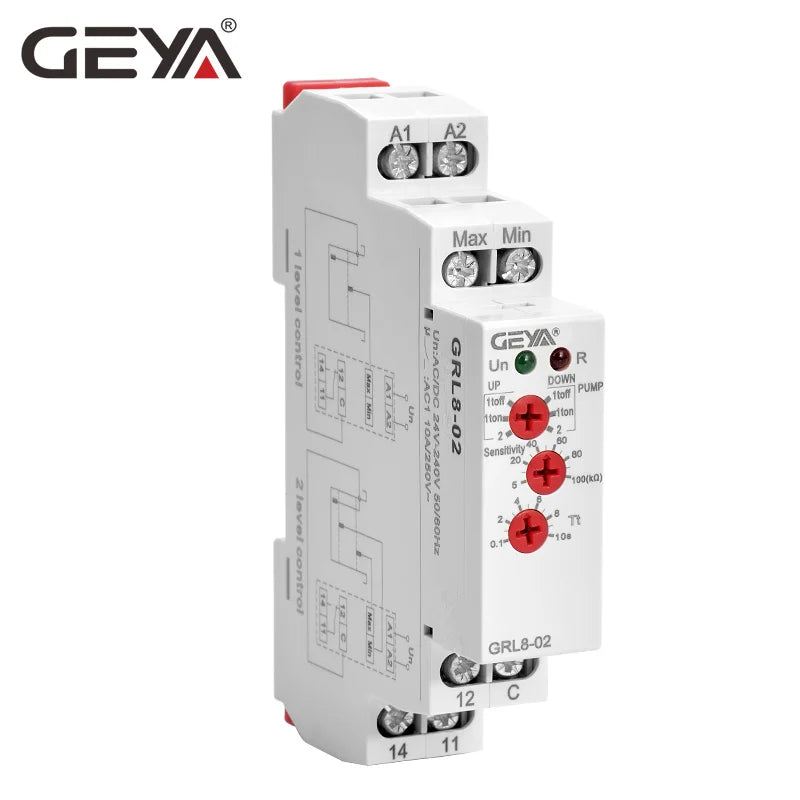

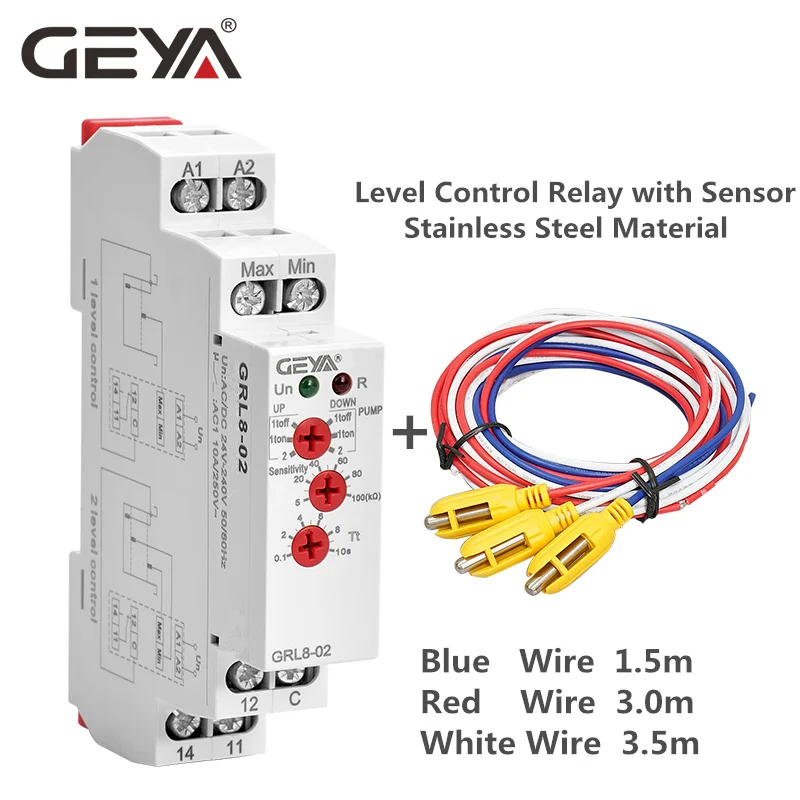

GRL8-02: Monitoring 1 Tanks/Wells (Connect 1 piece Level Senosr)

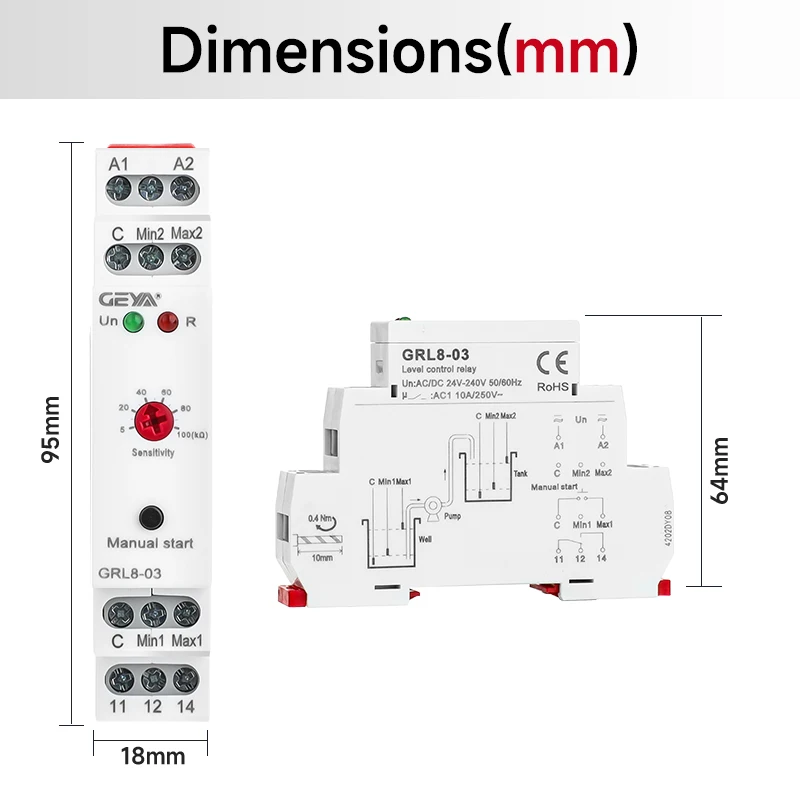

GRL8-03: Monitoring 2 Tanks/Wells (Connect 2 pieces Level Senosr)

If you need other products, please visit GEYA Official Store, we are manufacturer!

General

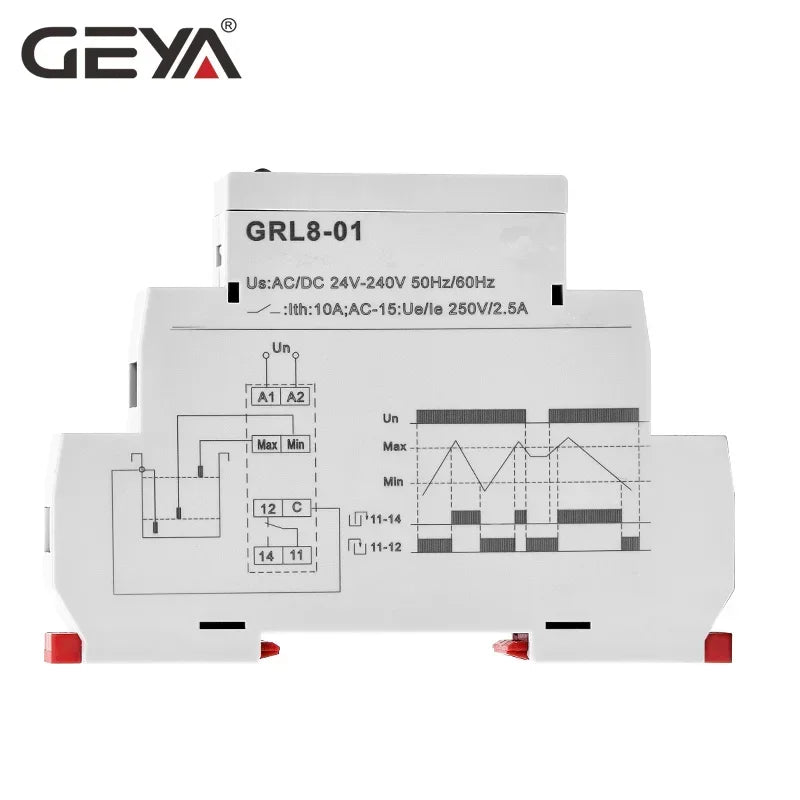

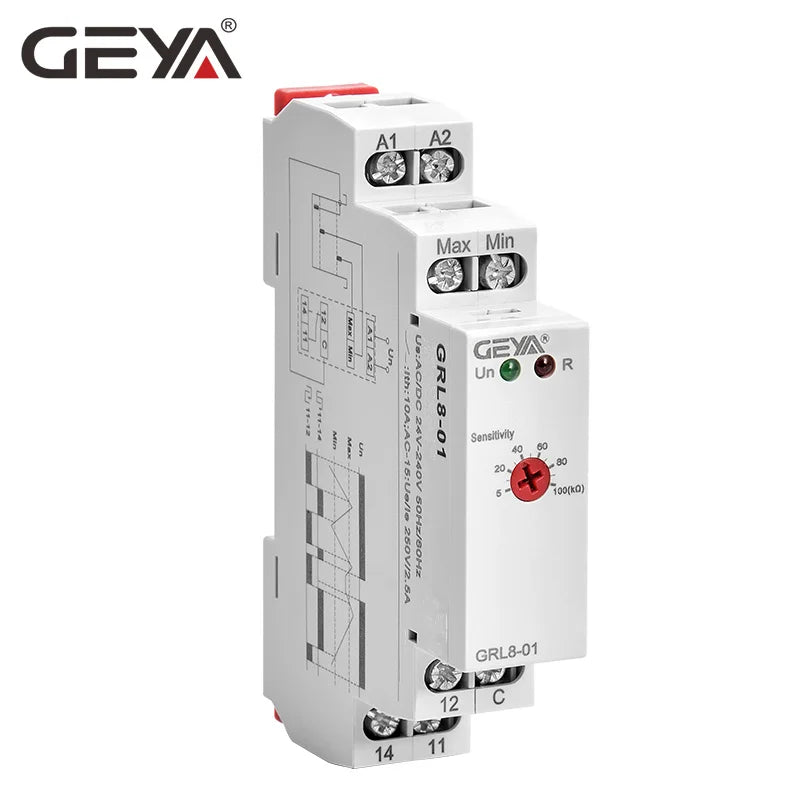

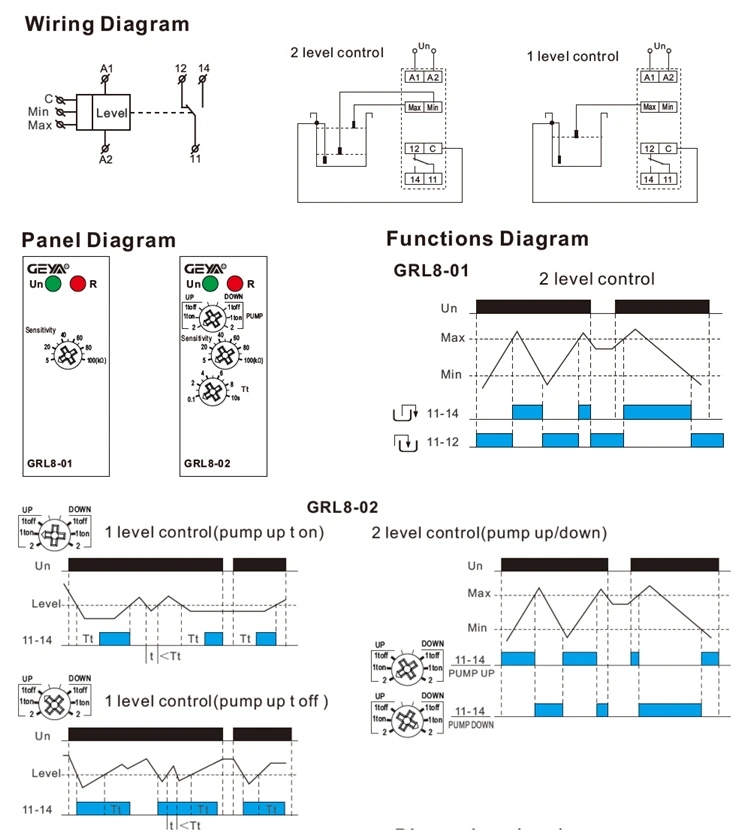

GRL8-01/02 Function Features
    -In one device you can choose the following configurations:

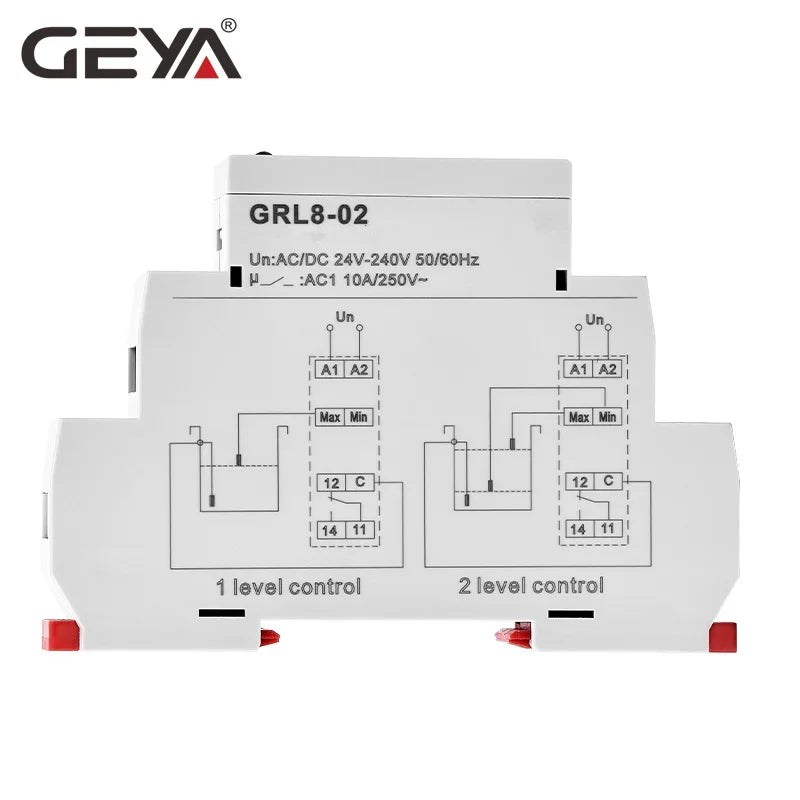

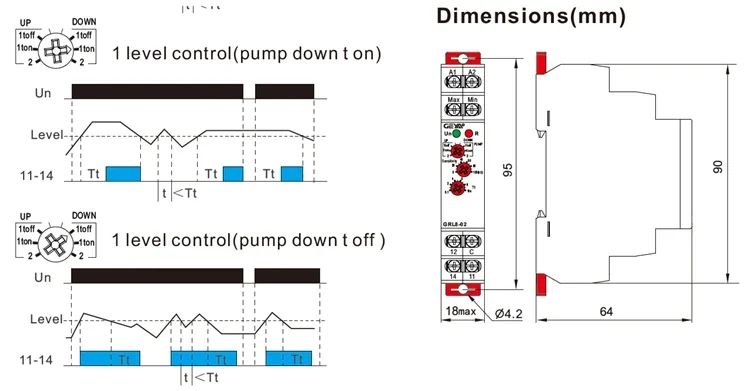

    - GRL8-01 = 2 level control mode
    - GRL8-02 = 2 or 1 level control mode
    -Choice of function PUMP UP, PUMP DOWN.
    -Adjustable time delay on the output (0.1 - 10s).
    -Sensitivity adjustable by a potentiometer (5-100K).
    -Galvanically separated supply voltage AC/DC 24-240V.
- Output 1SPDT 10A/AC1

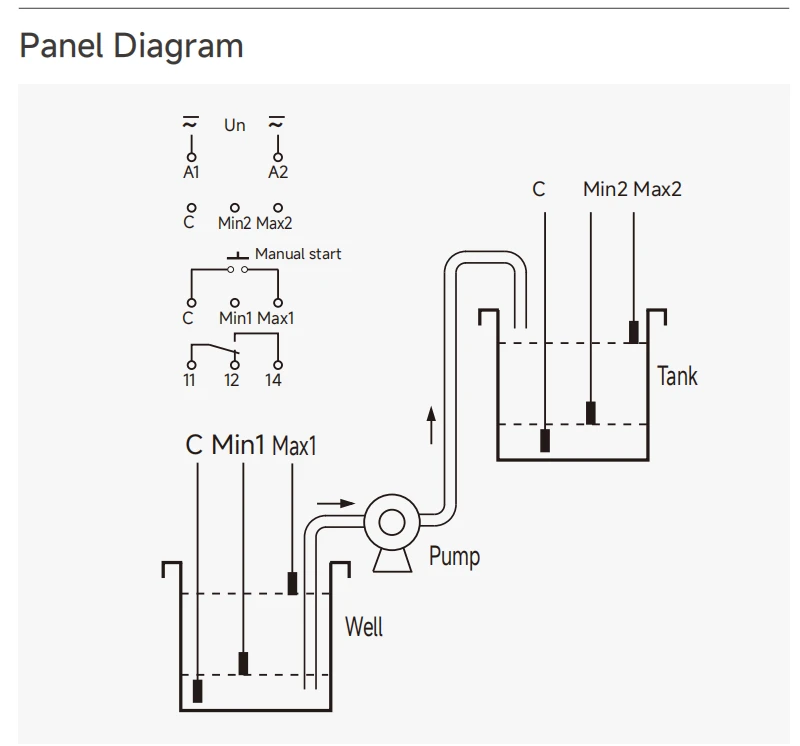

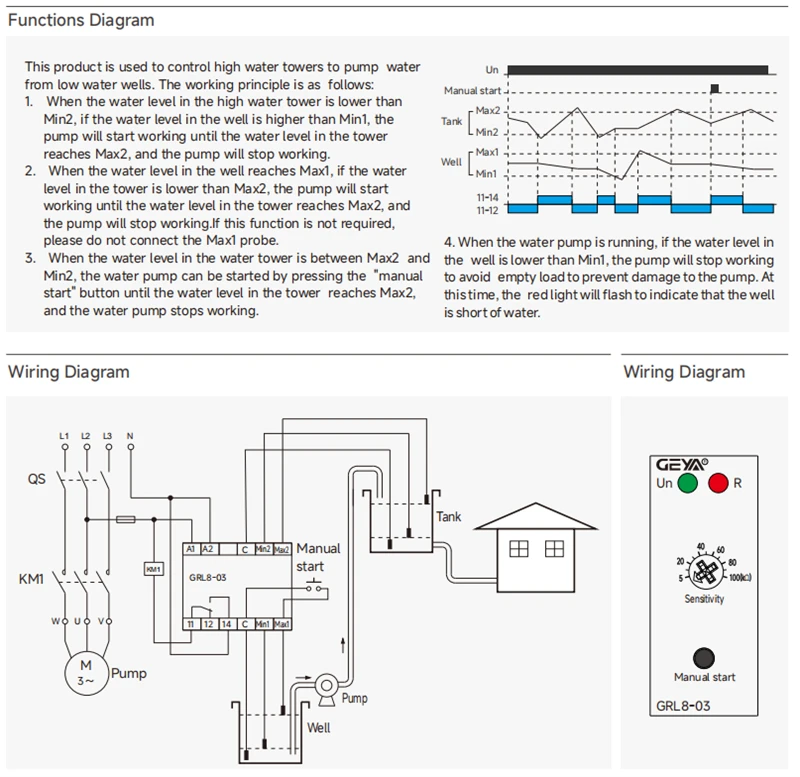

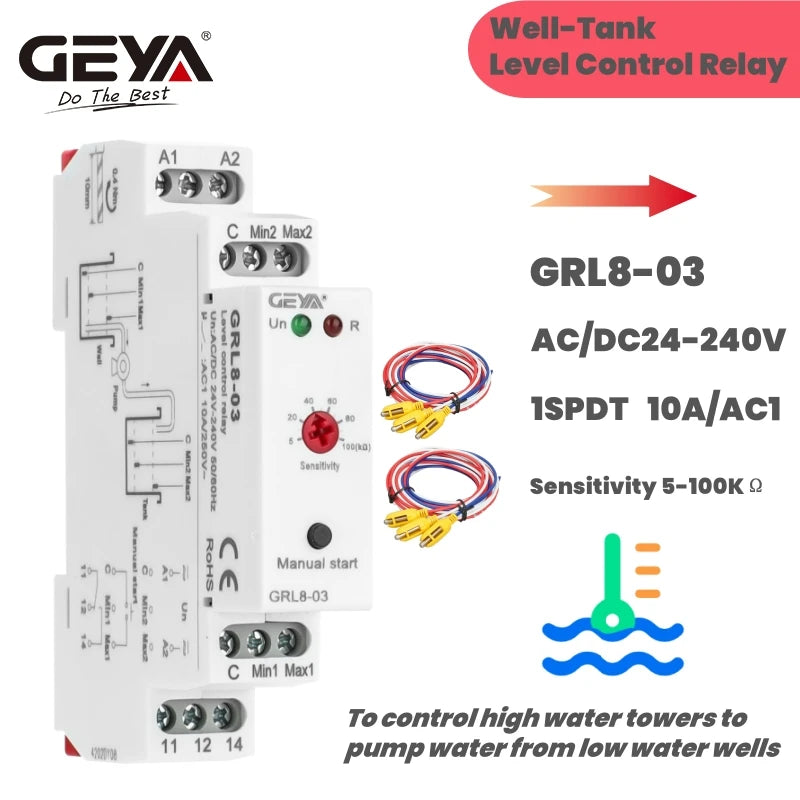

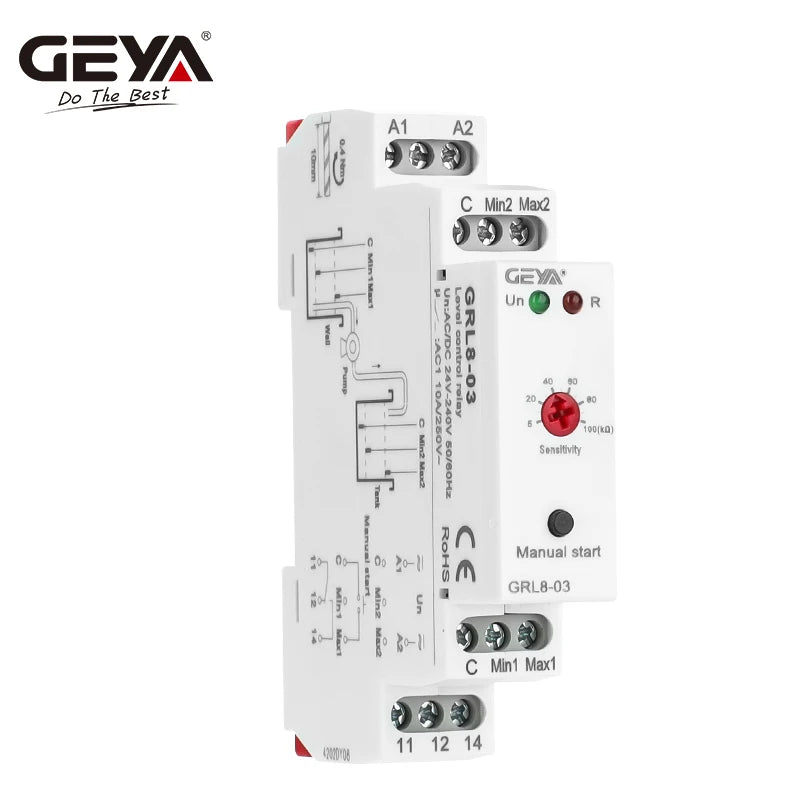

GRL8-03Function Features
-Used to control high water towers to pump water from low water wells. The function is used to ensure the water supply through water towers and wells..

- It has a button to manually start the water pump, and can also be connected to an external start button.

- When the well is short of water, it can prevent the water pump from running empty.

- Sensitivity adjustable by a potentiometer (5-100kΩ).

- Relay status is indicated by LED.

- 1-MODULE,DIN rail mounting

- Galvanically separated supply voltage AC/DC 24-240V.
- Output 1SPDT 10A/AC1

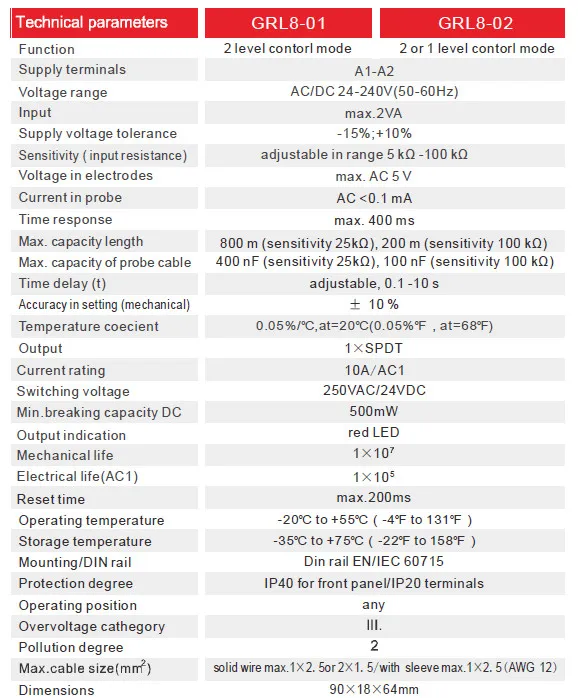

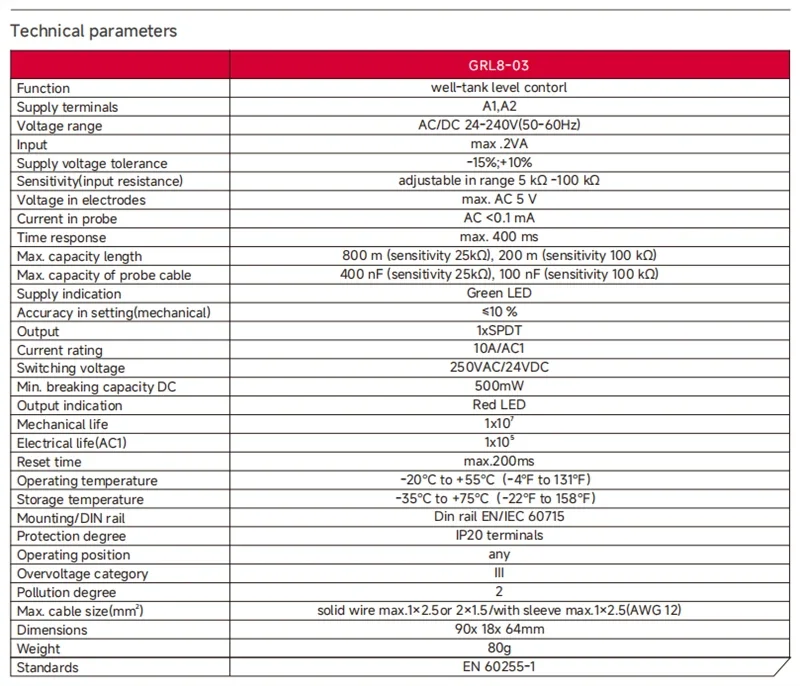

Technical Data






Technical Data
