GEYA GRI8-05 AC or DC Current Monitoring Relay Straight-Through 2A-20A AC24V-240V Over-Current Under-Current Protection

SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

Current Range: 2A-20A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Over current & under current

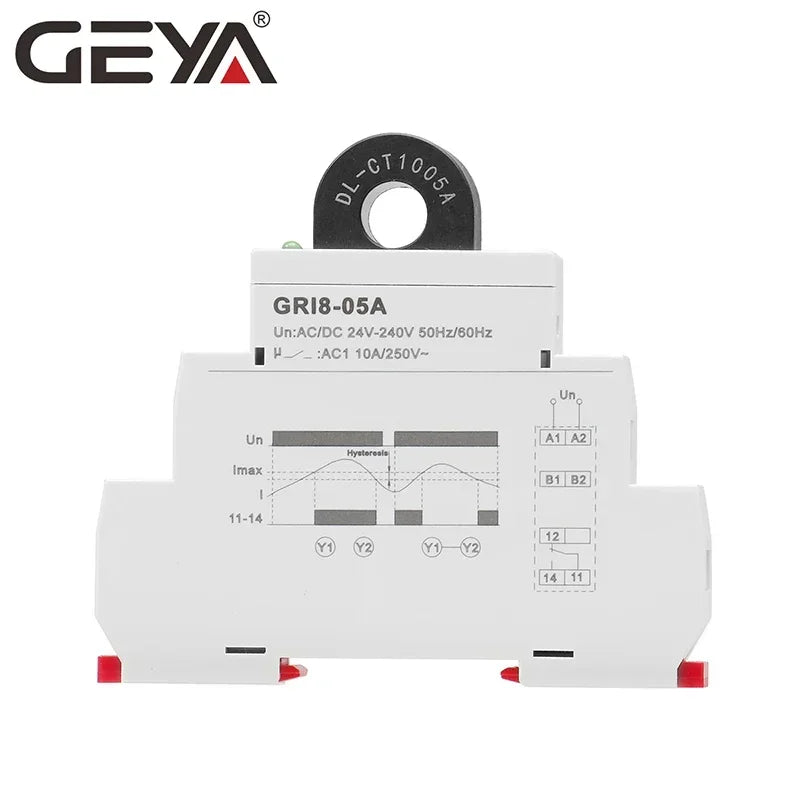

GRI8-05A: AC Current Measurement

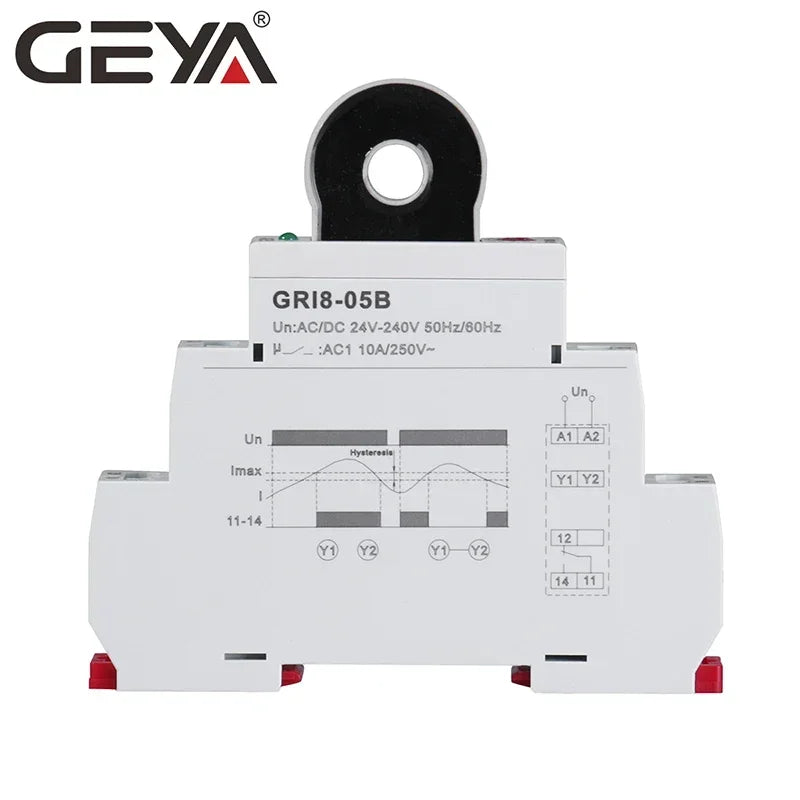

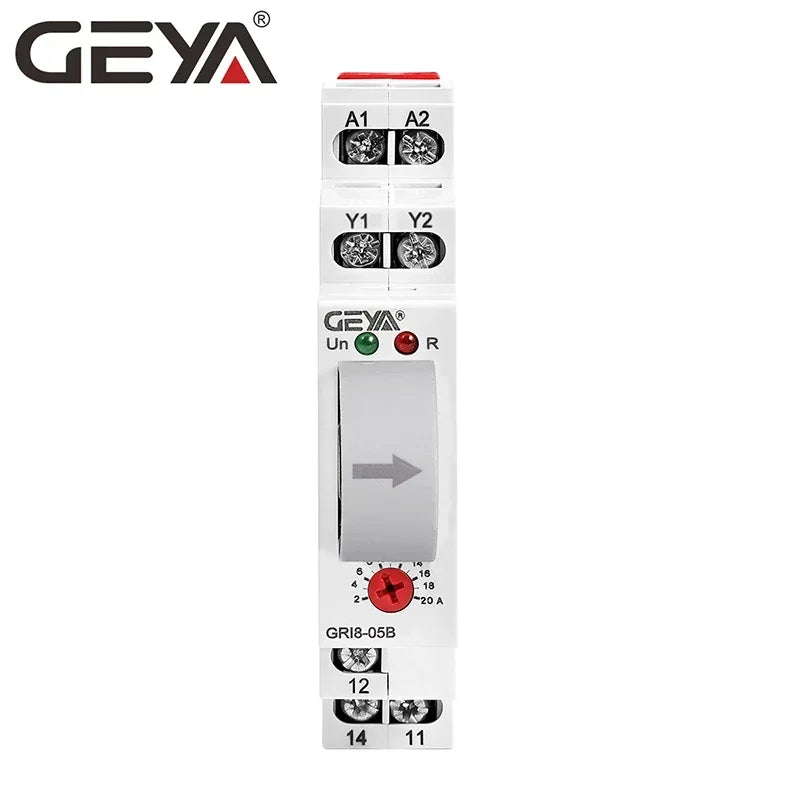

GRI8-05B: AC/DC Current Measurement

High-concerned chemical: none

Model Number: GRI8-05 Current Monitoring Relay

Origin: Mainland China

Output Contact: 1SPDT

Power Source: Ac,DC

Product Name: GRI8-05 Current Monitoring Relay

Protect Feature: Sealed

Rated Current: 10A/AC1

Rated Frequency: 50/60Hz

Theory: Time Relay

Use: General Purpose

Voltage: 24V,AC/DC24-240V

is_customized: Yes

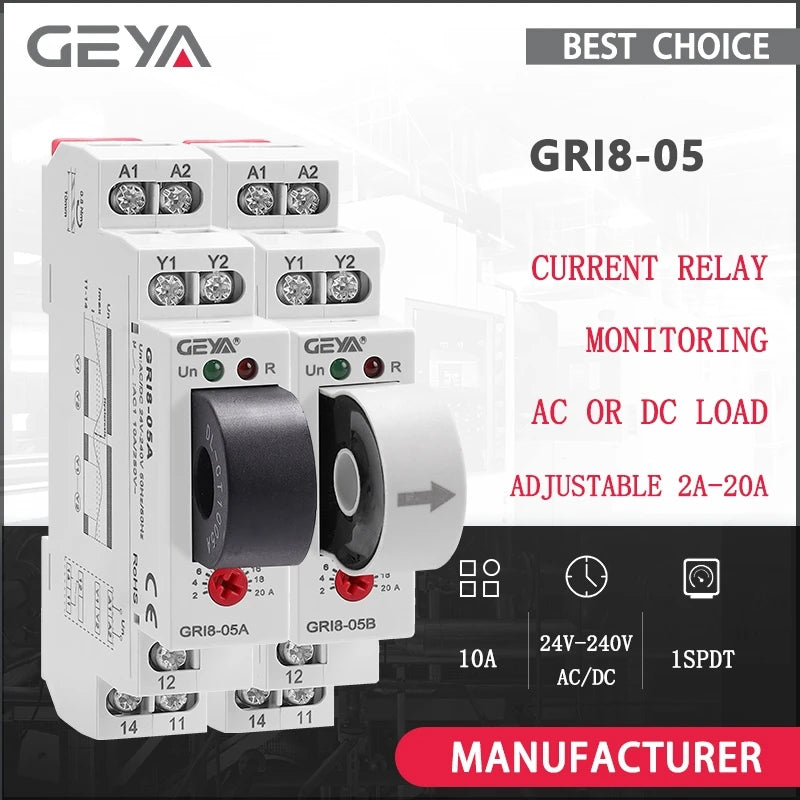

GEYA GRI8-05 AC OR DC Current Monitoring Relay Straight-Through 2A-20A AC24V-240V Over-Current Under-Current Protection

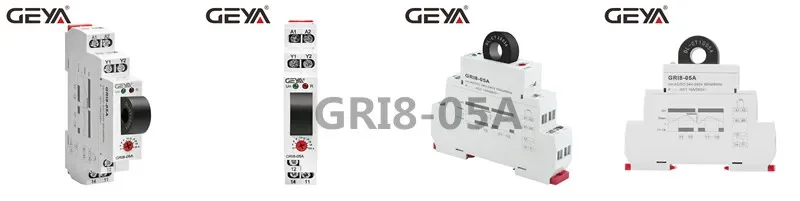

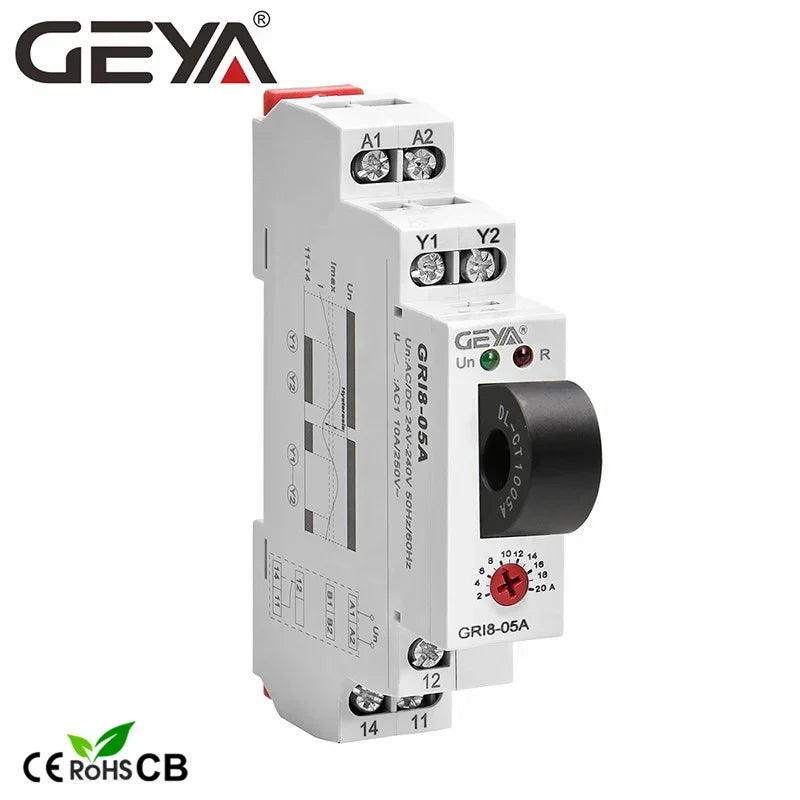

GRI8-05A AC Current Measurement 2-20A

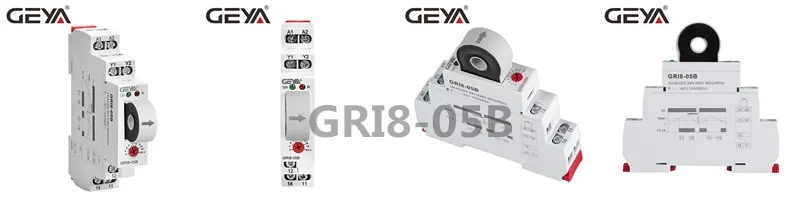

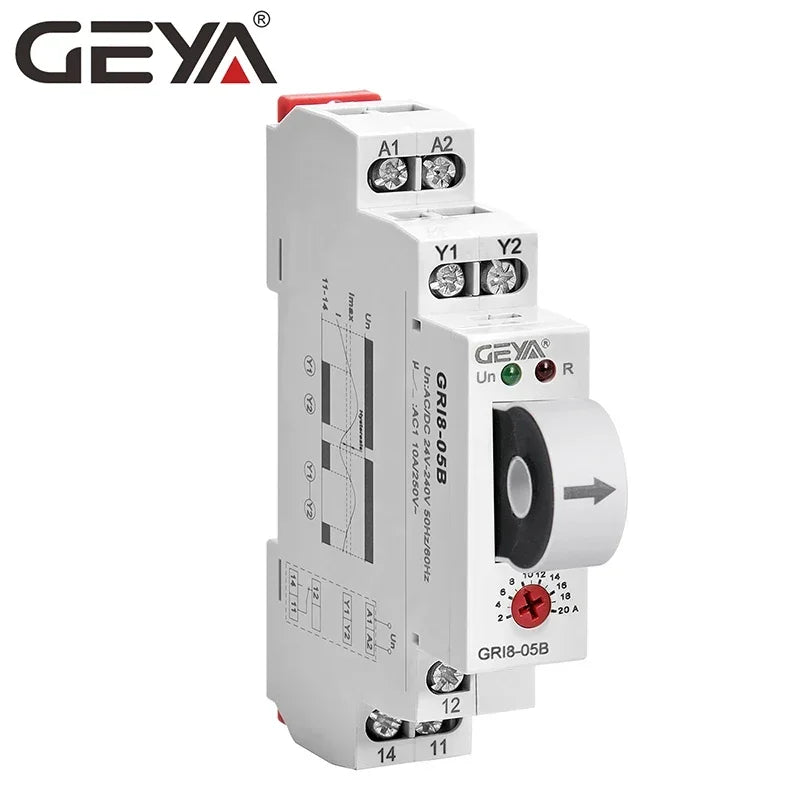

GRI8-05B AC/DC Current Measurement 2-20A

If you need other products, please visit GEYA Official Store, we are manufacturer!

General

Applications
    -Serves for monitoring of heating in rail-switches, heating cables, consumption of one-phase motors, indicates current flow.

Function Features

-Through center design, no need to disconnect the current circuit, through center installation is convenient to use.

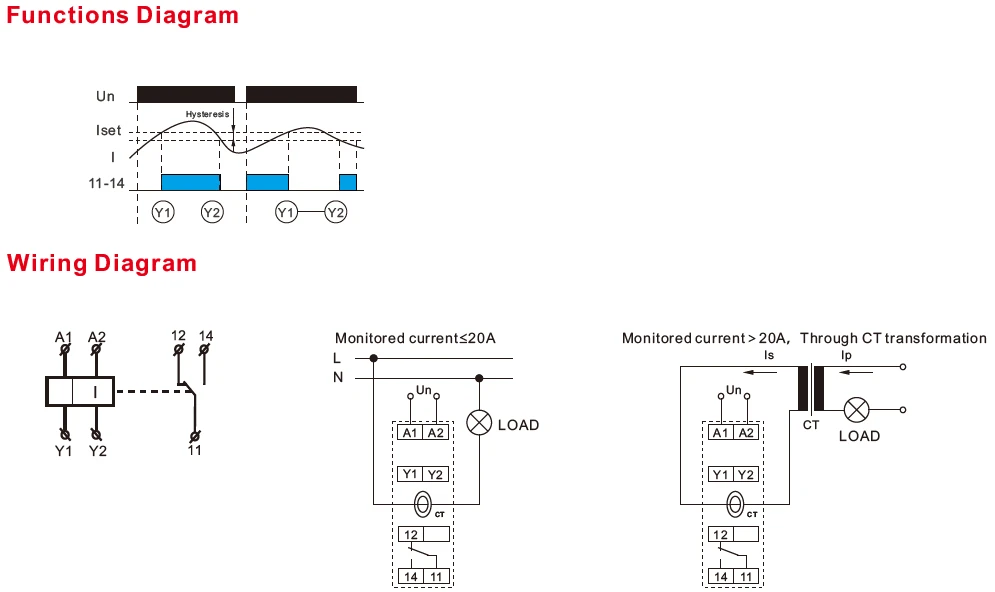

-Over / under current monitoring mode can be set by jumper.
-With AC and DC universal testing specifications optional.
-Isolation current transformer is adopted, and external current transformer, can be connected to expand the monitoring current range.
-Universal supply AC/DC 24 - 240 V.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

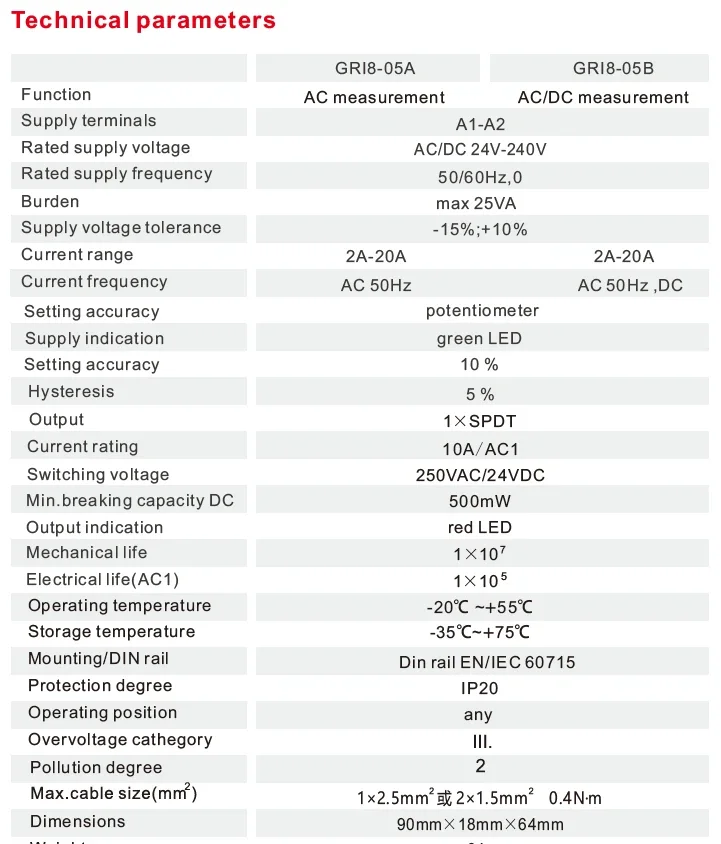

Technical Data
