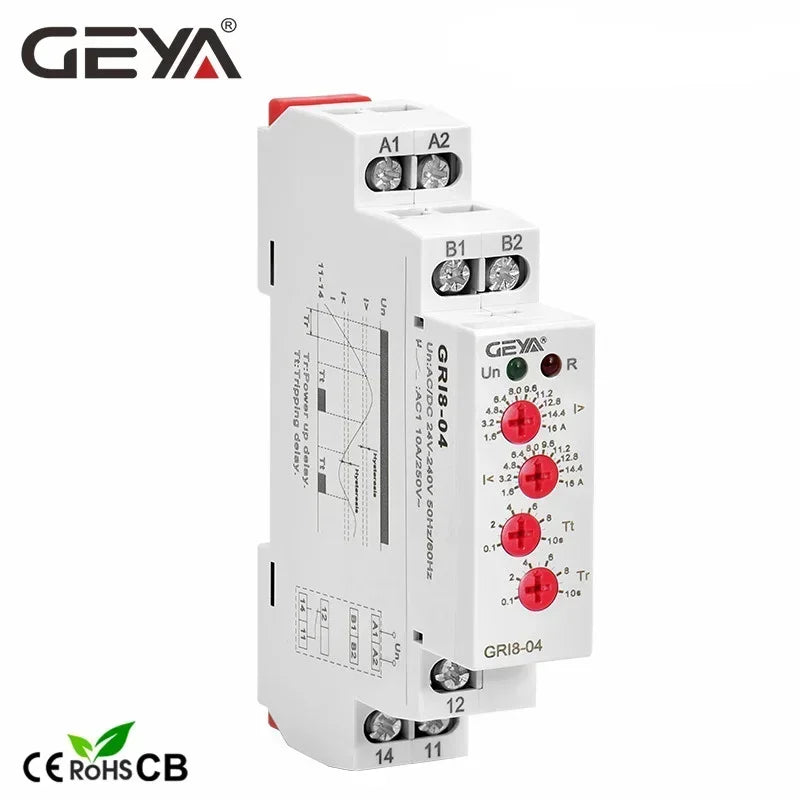

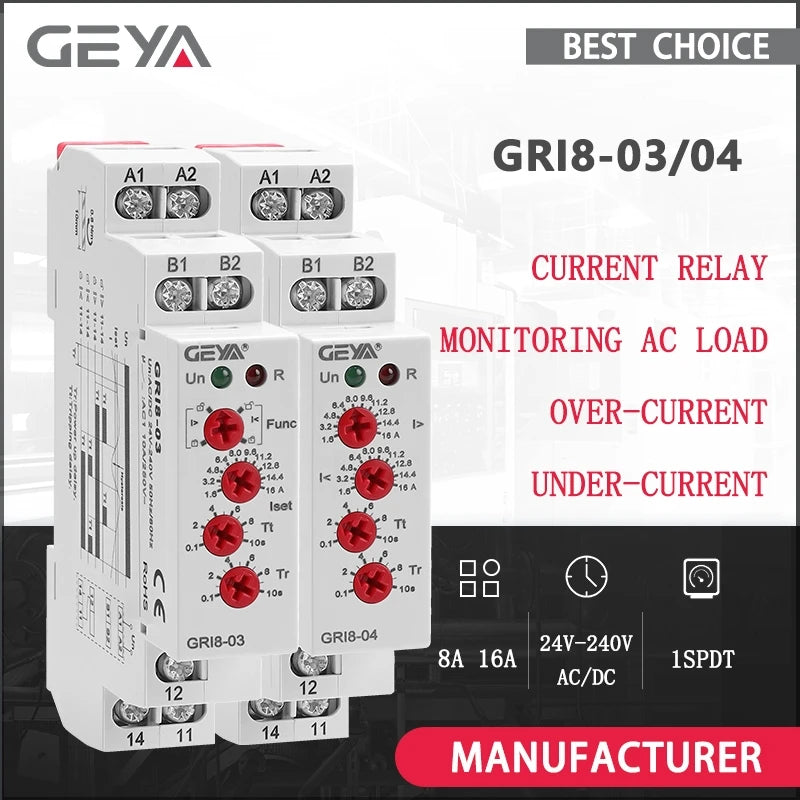

GEYA GRI8-03/04 Over Current and Under Current Monitor 0.5A 1A 2A 5A 8A 16A Current Monitoring Relay

SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

Current Range: 0.5A 1A 2A 5A 8A 16A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Current Monitoring Relay

High-concerned chemical: none

Model Number: GRI8-03/04 Current Monitoring Relay

Origin: Mainland China

Output Contact: 1SPDT

Power Source: Ac,DC

Product Name: GRI8-03/04 Current Monitoring Relay

Protect Feature: Sealed

Rated Current: 10A

Rated Frequency: 50/60Hz

Theory: Time Relay

Use: General Purpose

Voltage: 24V,AC24-240V OR DC24V

is_customized: Yes





GEYA GRI8-03/04 Over Current and Under Current Monitor 0.5A 1A 2A 5A 8A 16A Current Monitoring Relay

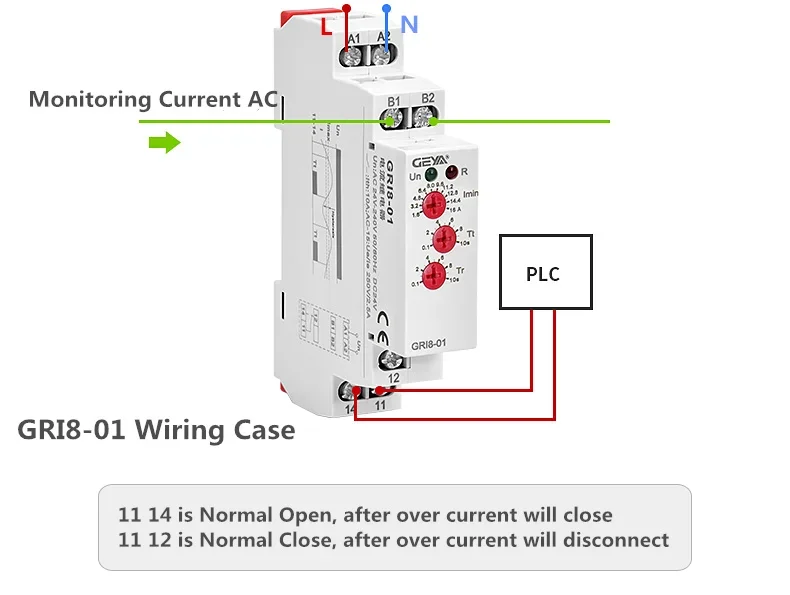

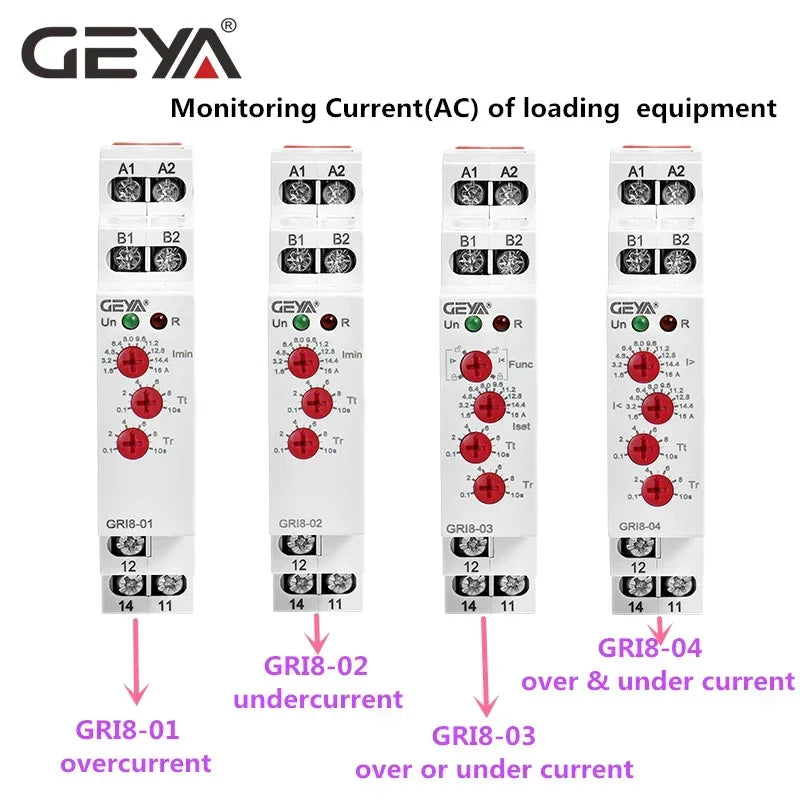

GRI8-01 Overcurrent Protection
GRI8-02 Undercurrent Protection

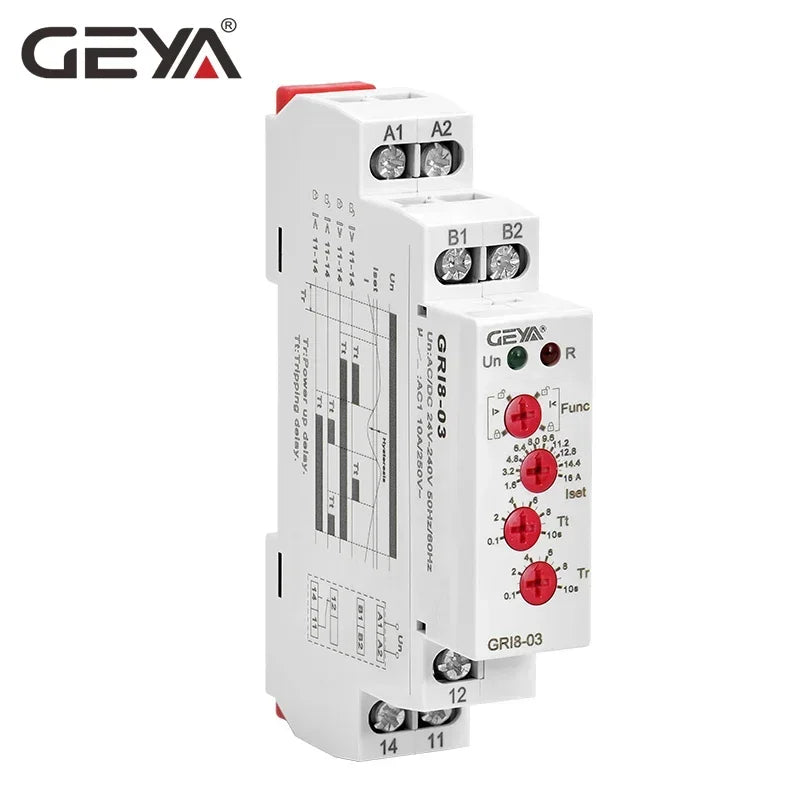

GRI8-03 Overcurrent or Undercurrent Protection

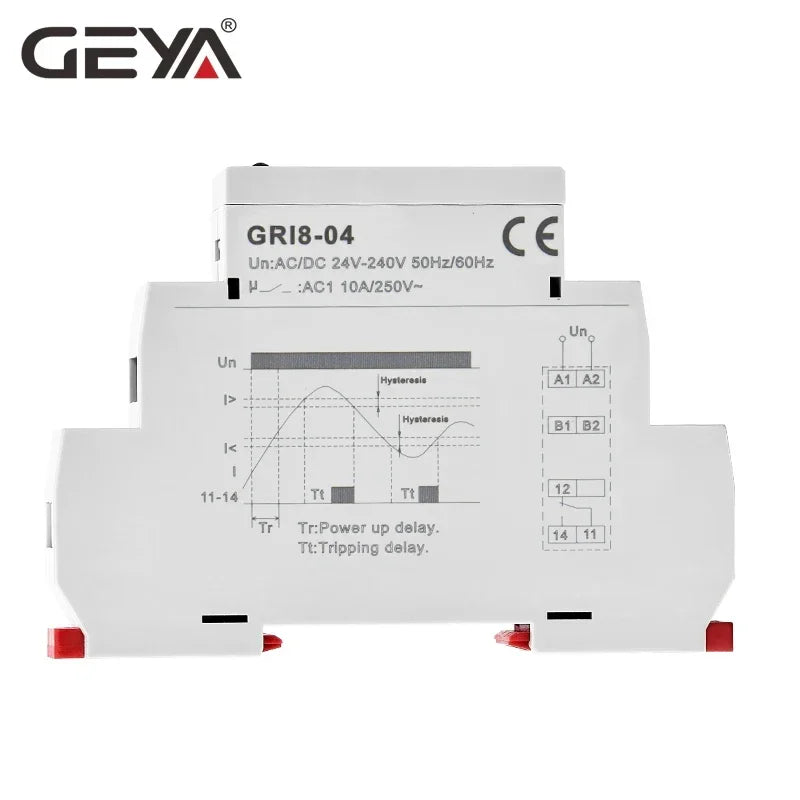

GRI8-04 Overcurrent and Undercurrent Protection

If you need other products, please visit GEYA Official Store, we are manufacturer!

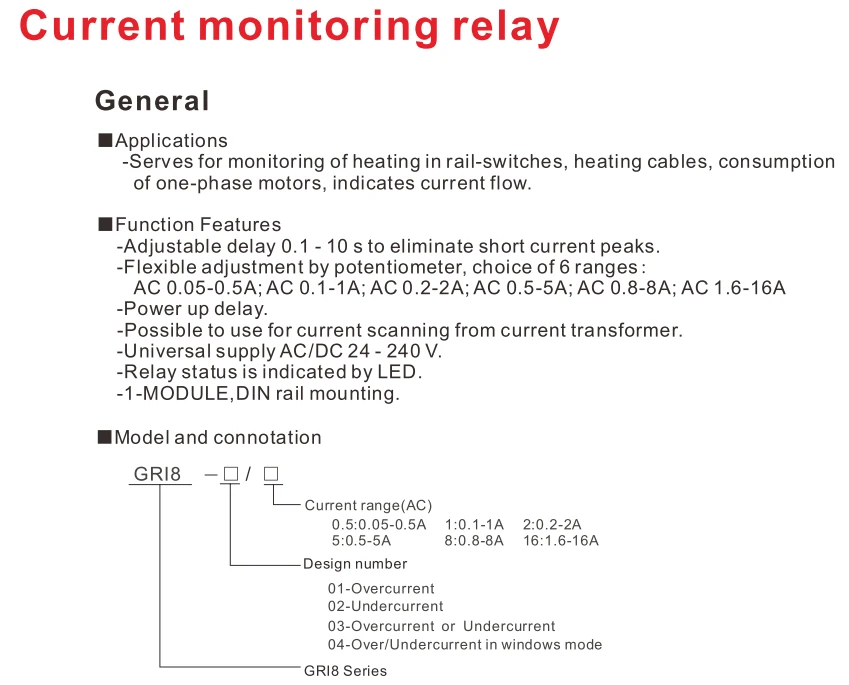

General

Applications

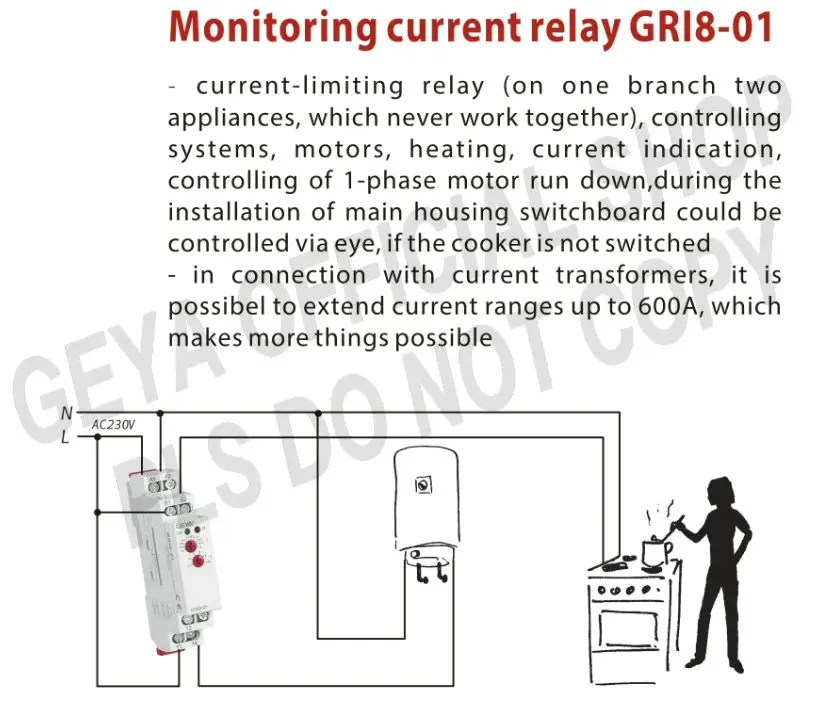

    -Serves for monitoring of heating in rail-switches, heating cables, consumption
    of one-phase motors, indicates current flow.

Function Features
    -Adjustable delay 0.5 - 10 s to eliminate short current peaks.

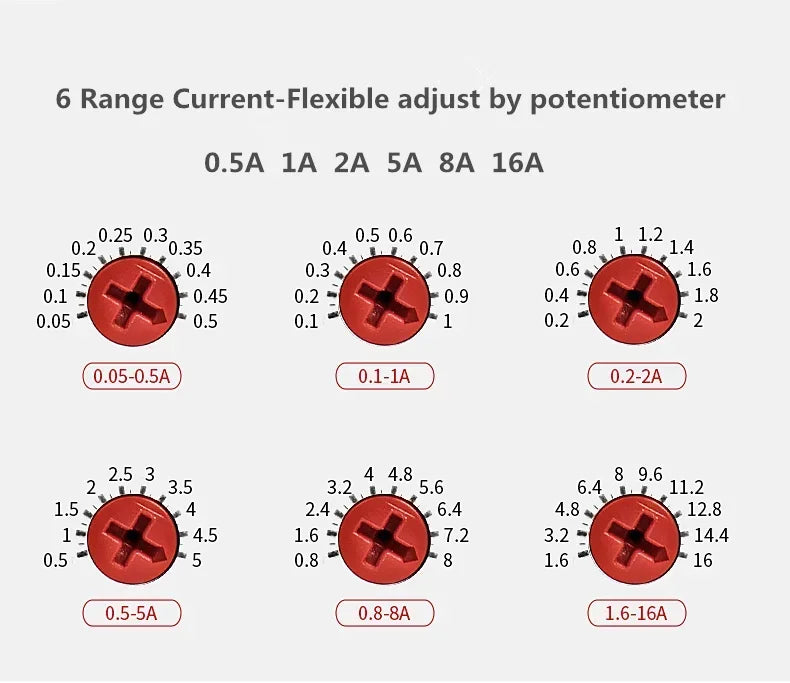

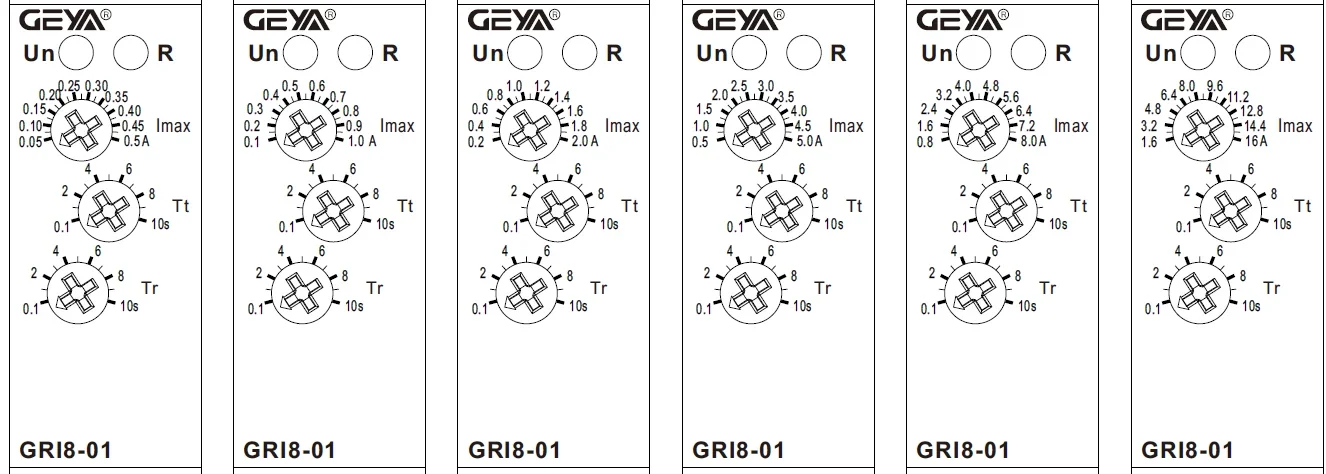

    -Flexible adjustment by potentiometer, choice of 6 ranges:
    AC 0.05-0.5A; AC 0.1-1A; AC 0.2-2A; AC 0.5-5A; AC 0.8-8A; AC 1.6-16A
    -Possible to use for current scanning from current transformer.
-Output 1SPDT 10A/AC1
    -Universal supply AC 24 - 240 V or DC 24 V.
    -Relay status is indicated by LED.
    -1-MODULE,DIN rail mounting.

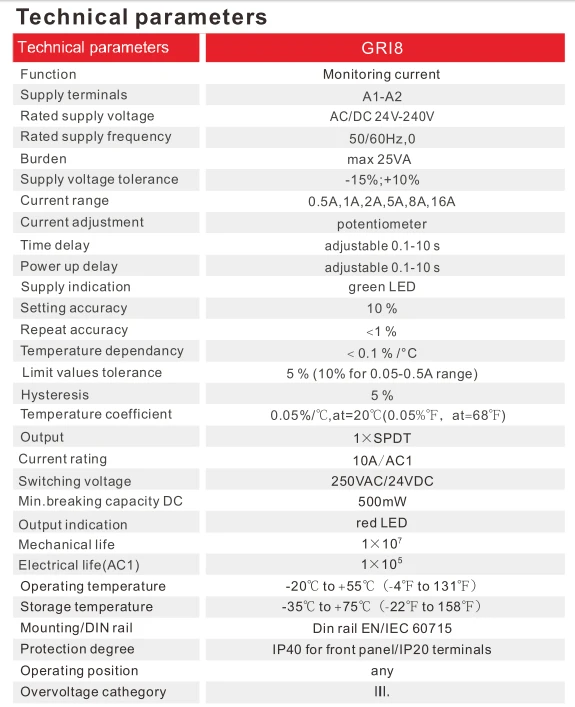

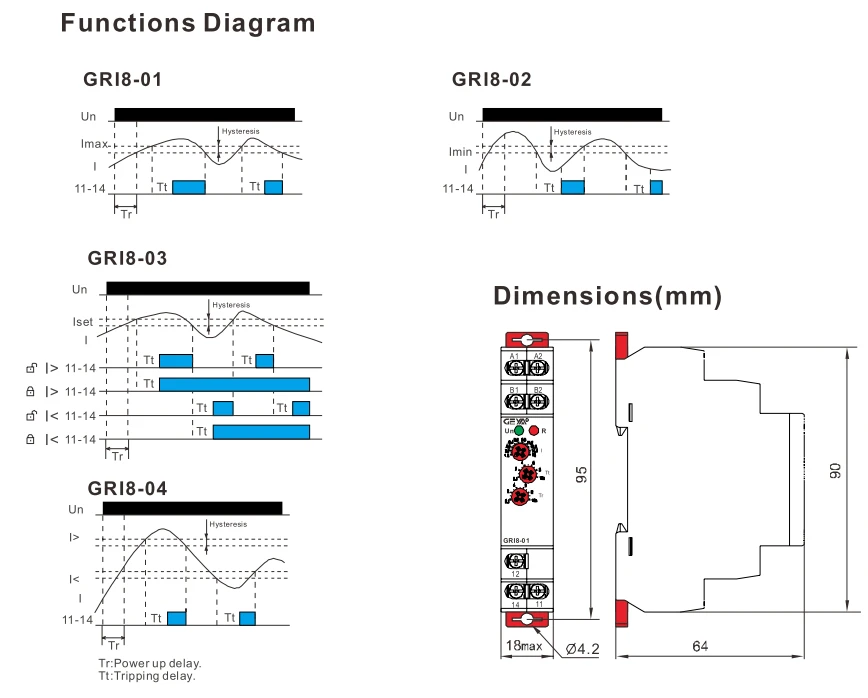

Technical Data
