SPECIFICATIONS

Brand Name: GEYA

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

GPS8-02 Function: Over Current, Over voltage, Under Voltage

High-concerned chemical: none

Is Smart Device: no

Measurement error: less than 1%

Model Number: GPS8 Voltage / Current Protector

Mounting: Din Rail

Origin: Mainland China

Over voltage operation value: 275V)

Power up delay: 2s

Product Name: GPS8 Voltage / Current Protector

Rated Frequency: 50/60Hz

Rated Voltage: 220V

Rated operational current: 63A

Rated supply voltage: AC220V(L-N)

Reset Time: 30s)

Type: Mini,Circuit breaker

Under voltage operation value: 175V)

is_customized: Yes

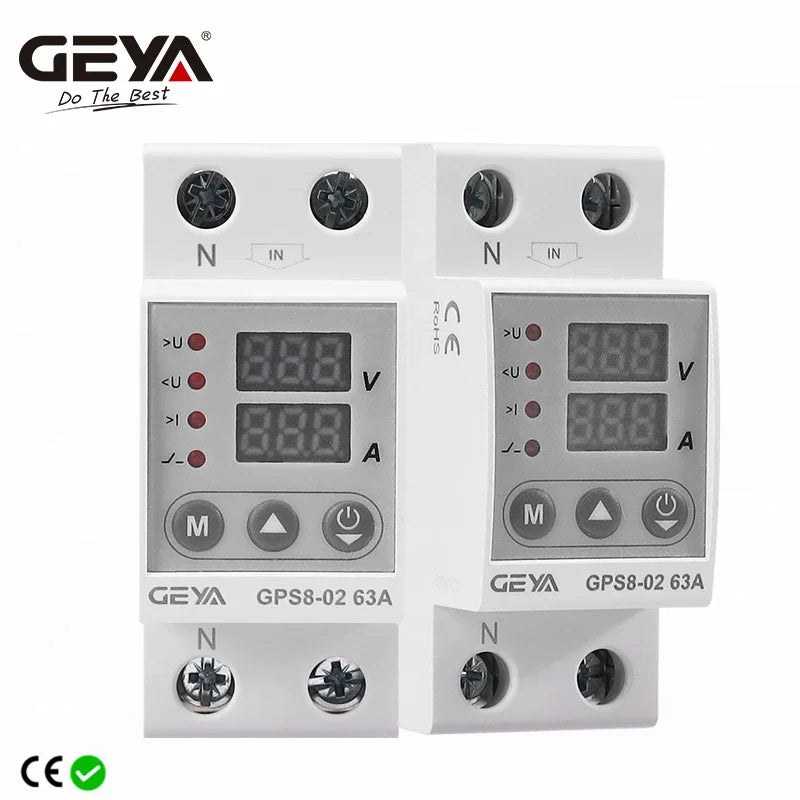

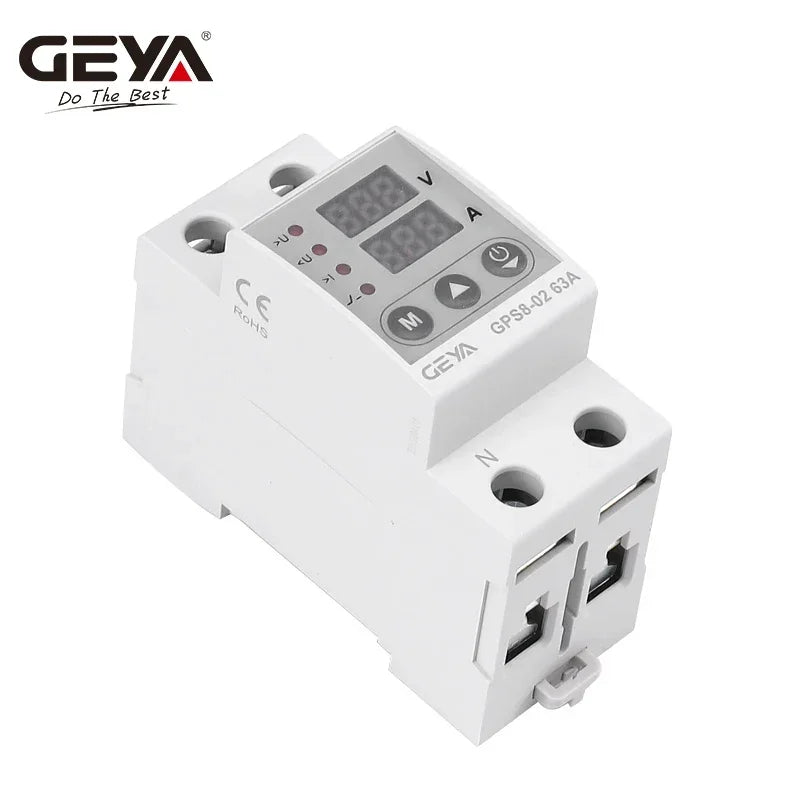

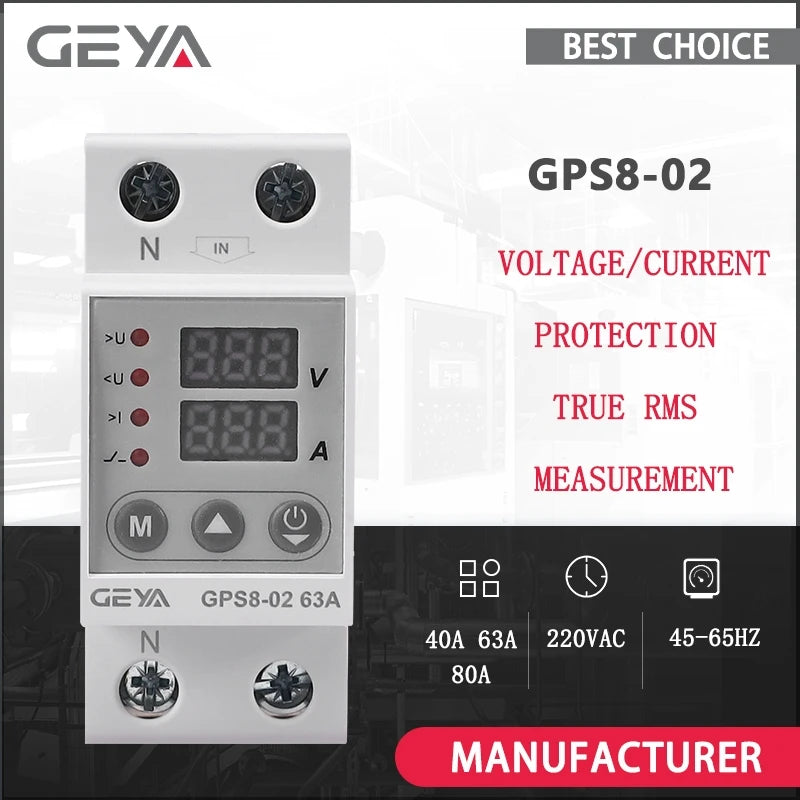

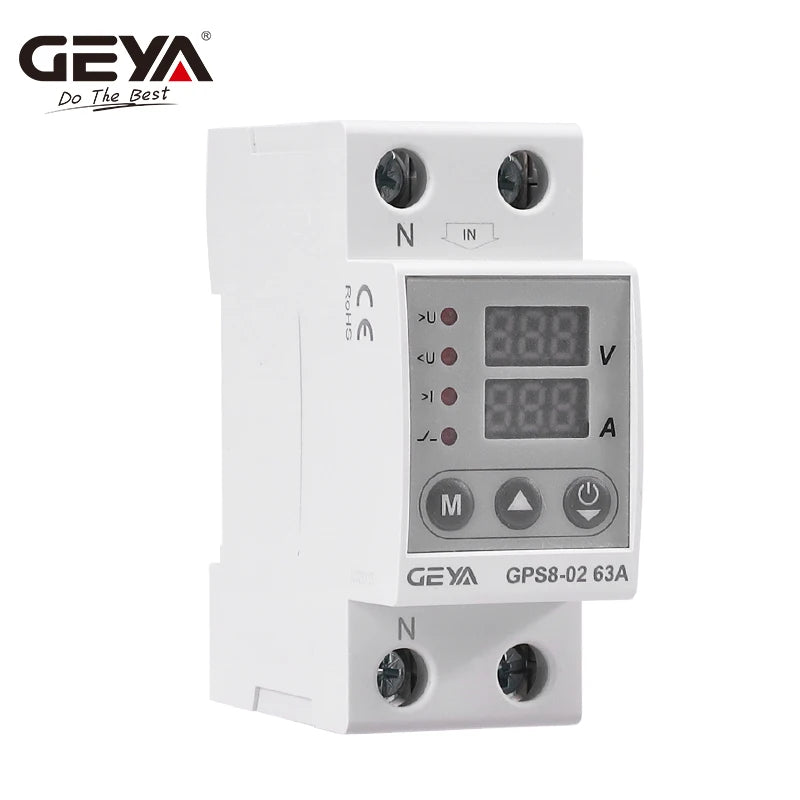

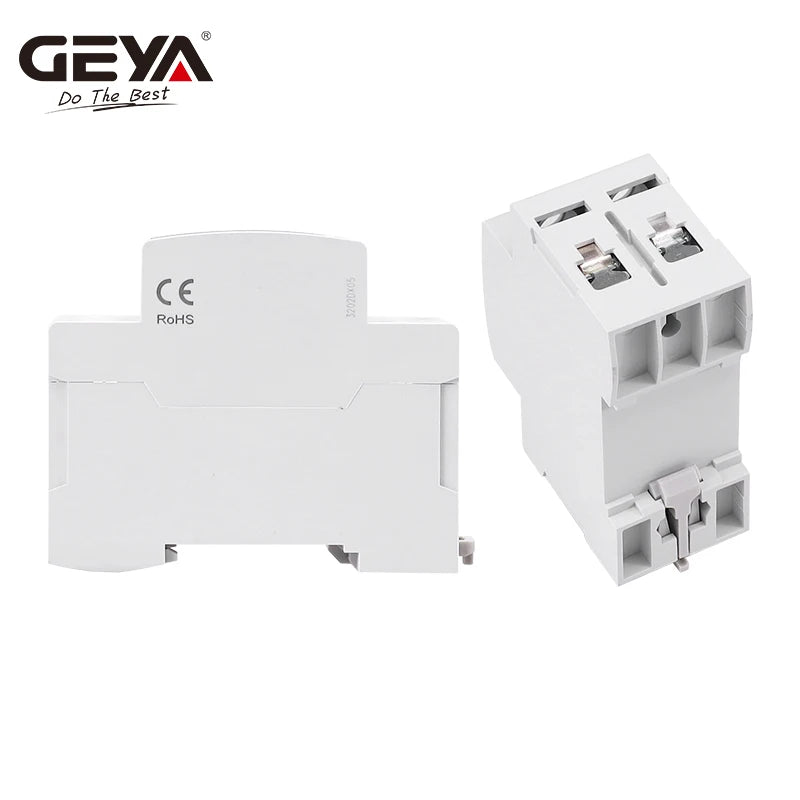

GEYA GPS8 Din Rail Over Current Protector Over Voltage Under voltage Protective Device 40 63A 80A 220VAC

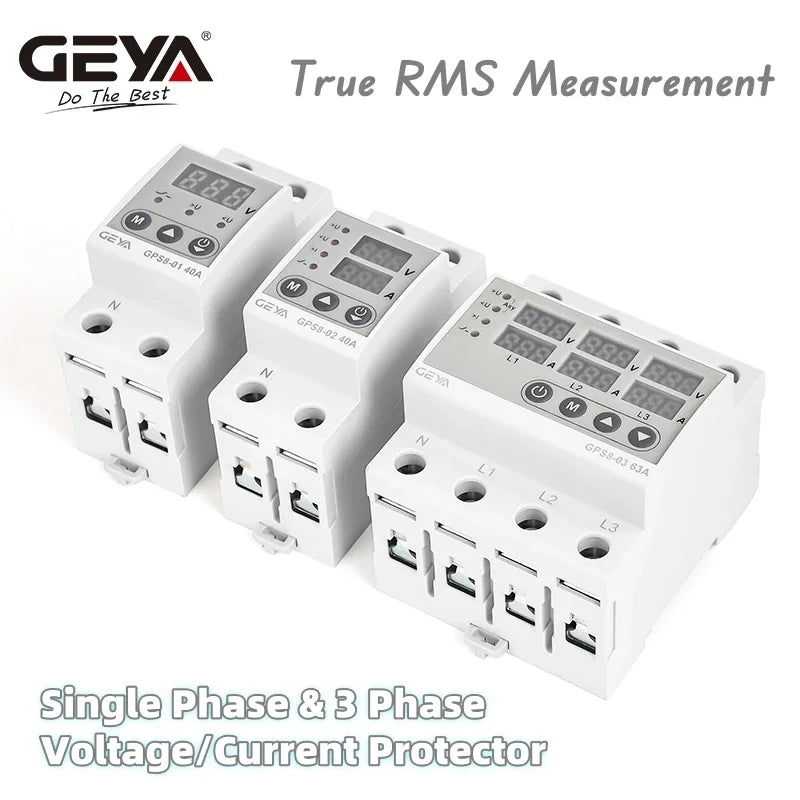

GPS8-02 Single Phase  Over Current, Over voltage, Under Voltage

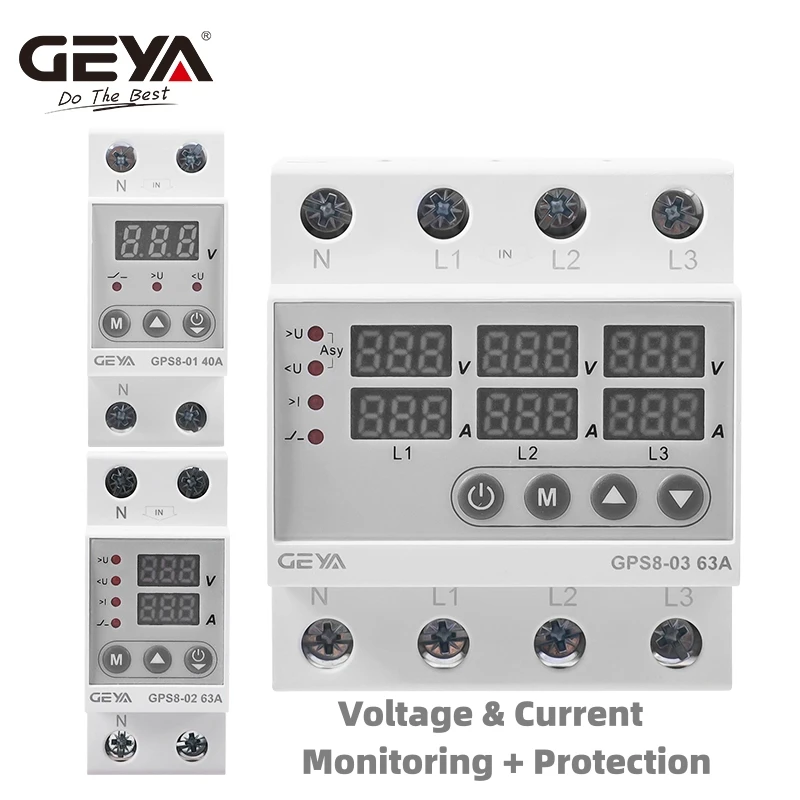

GPS8-03 Three Phase Over Current, Over voltage, Under Voltage

General

Applications

-Overvoltage ,undervoltage and overcurrent protection for household equipment.

Function Features

-Voltage / current (True RMS)monitoring and protection.

-Use true RMS measurement.

-Double bus wiring design stronger ability.
-Over / under voltage value and over-current value can be set.
-Self reset after fault.
-Digital display voltage, current value, fault status can be displayed by LED.

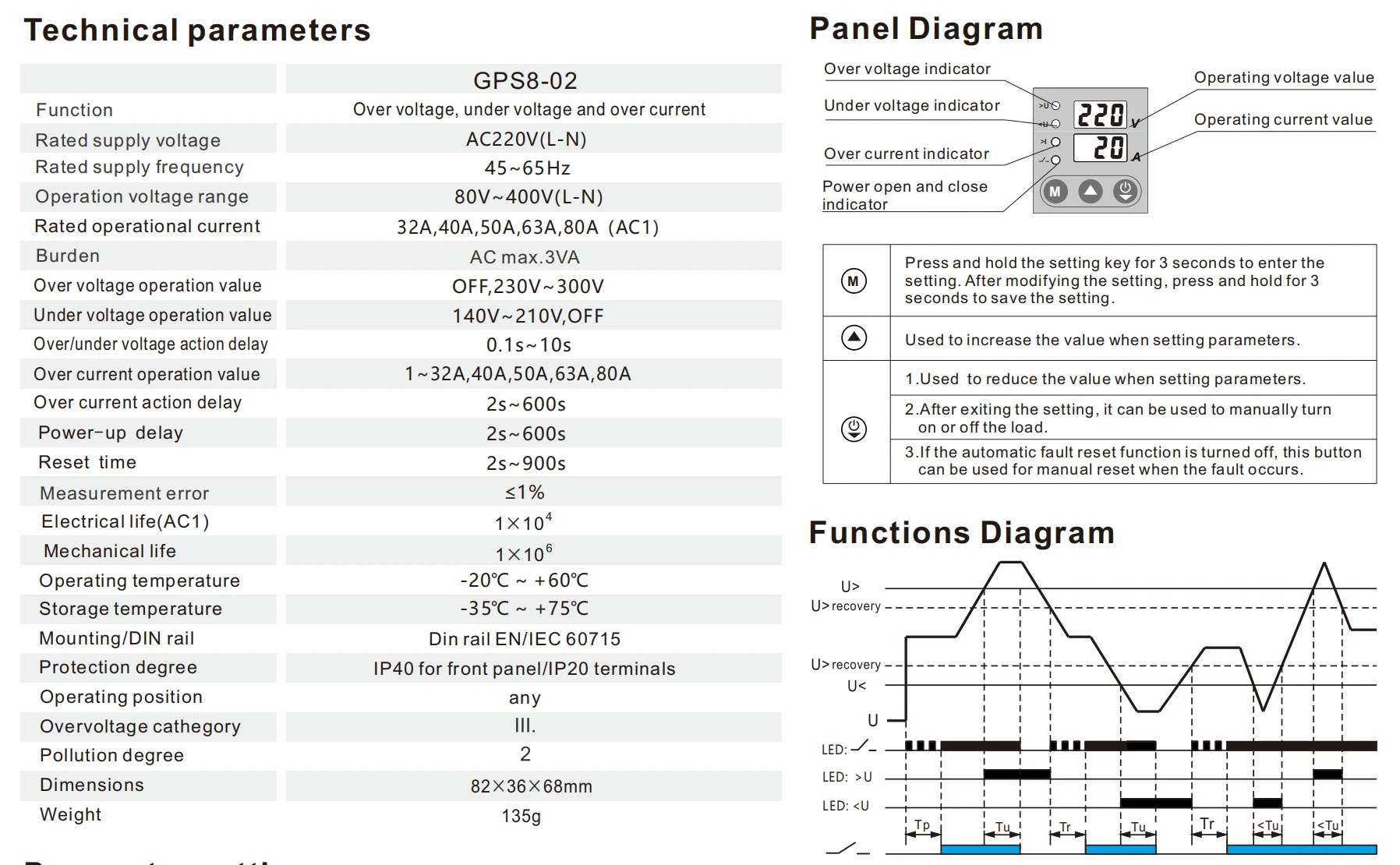

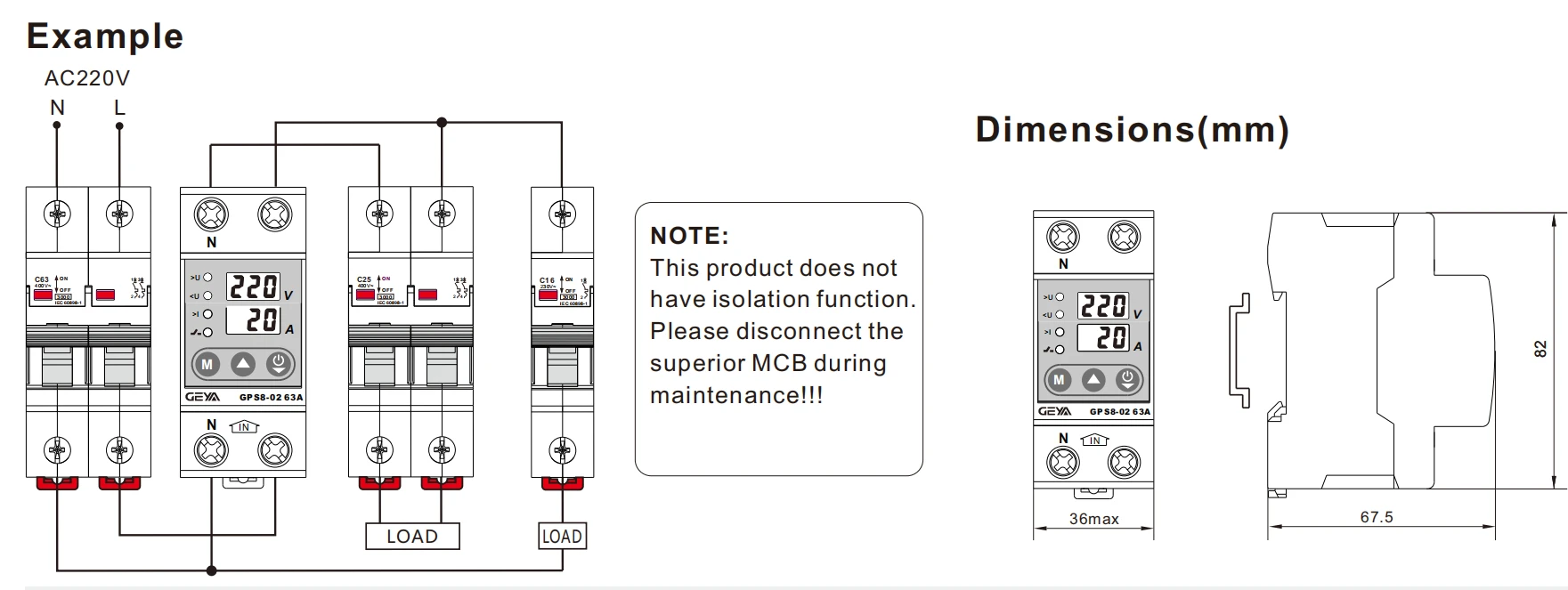

Technical Data

If you need 3 Phase Voltage/Current Protector, please choose GPS8-03 Series!
