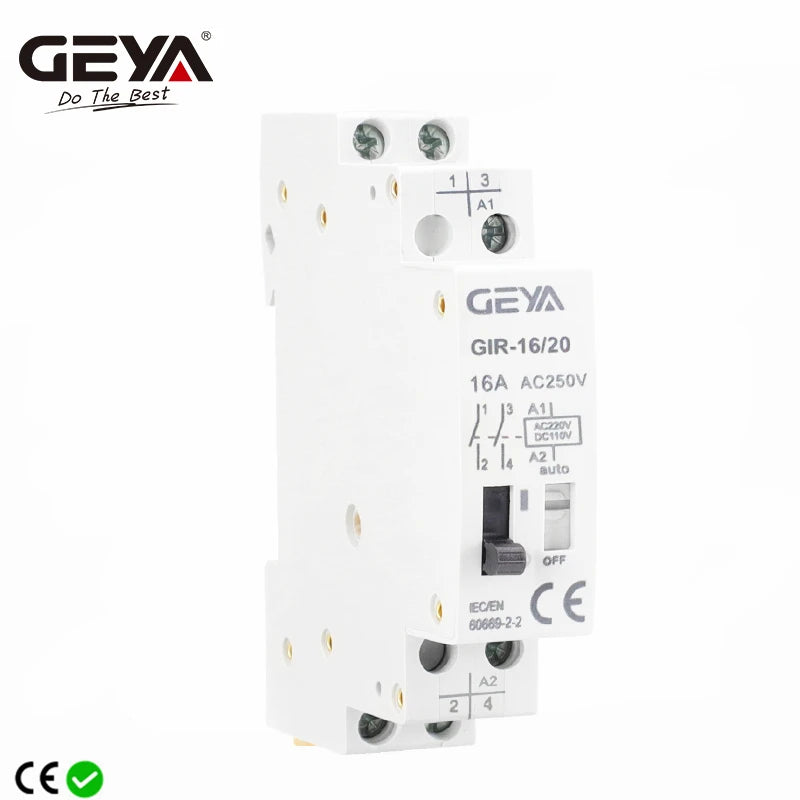

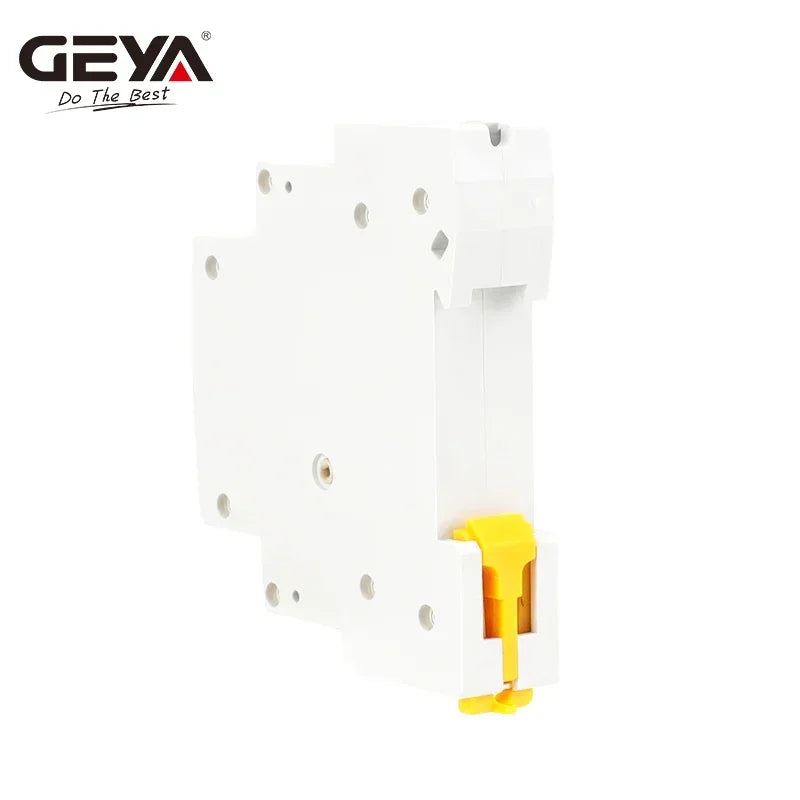

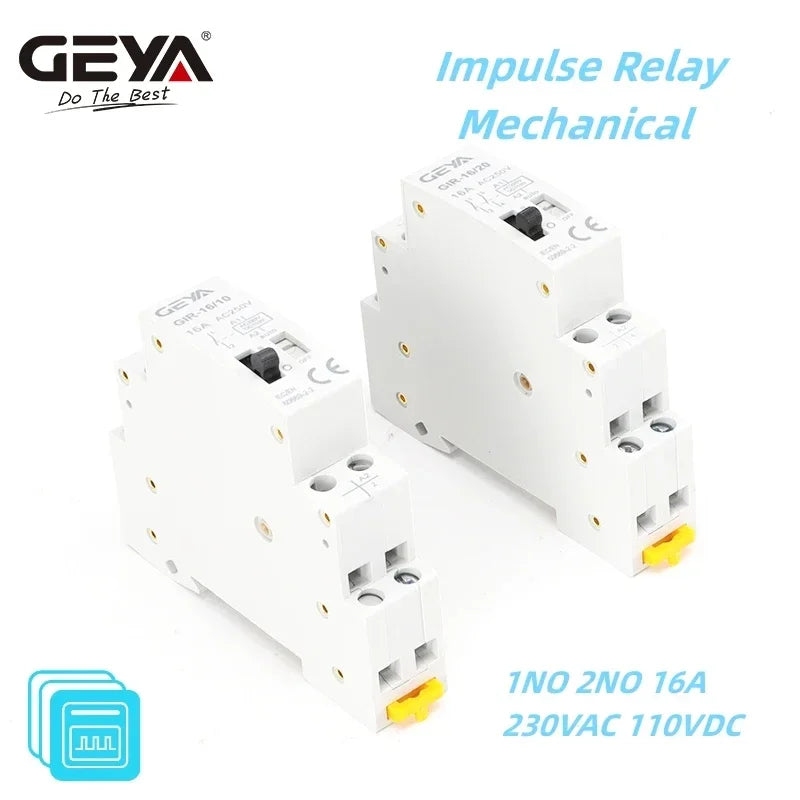

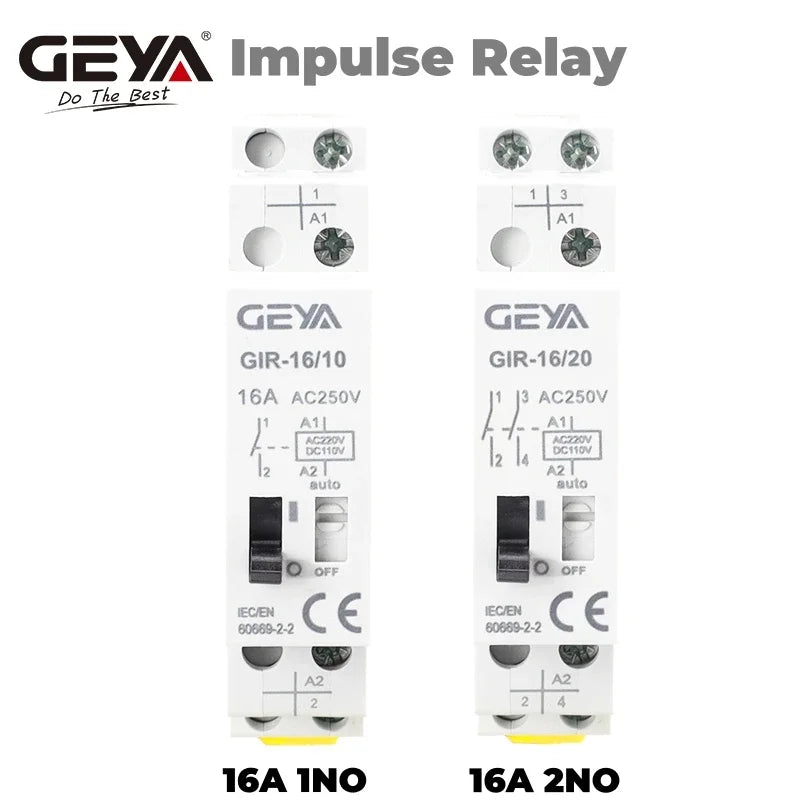

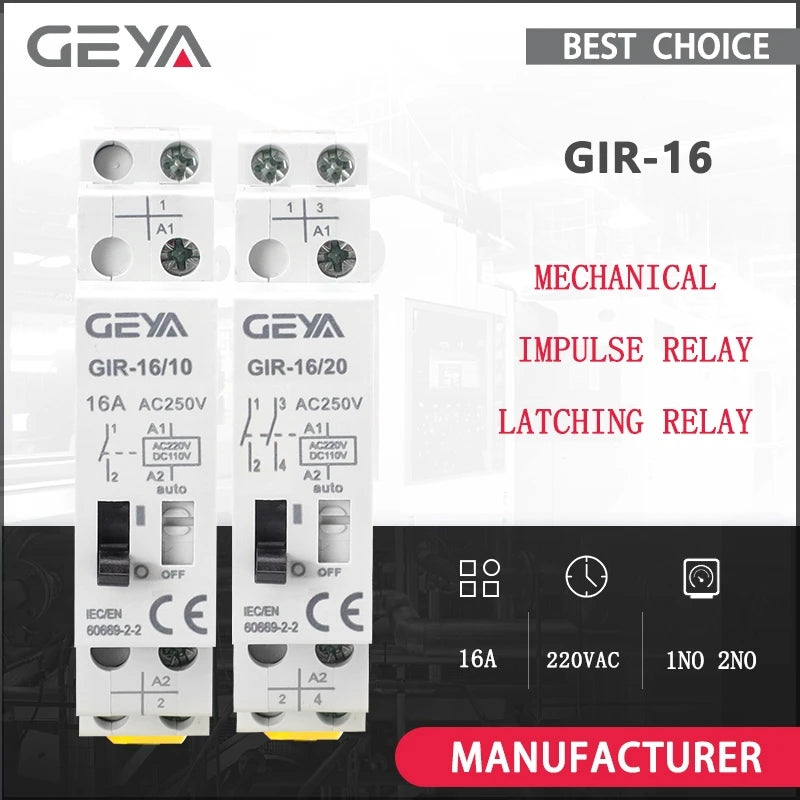

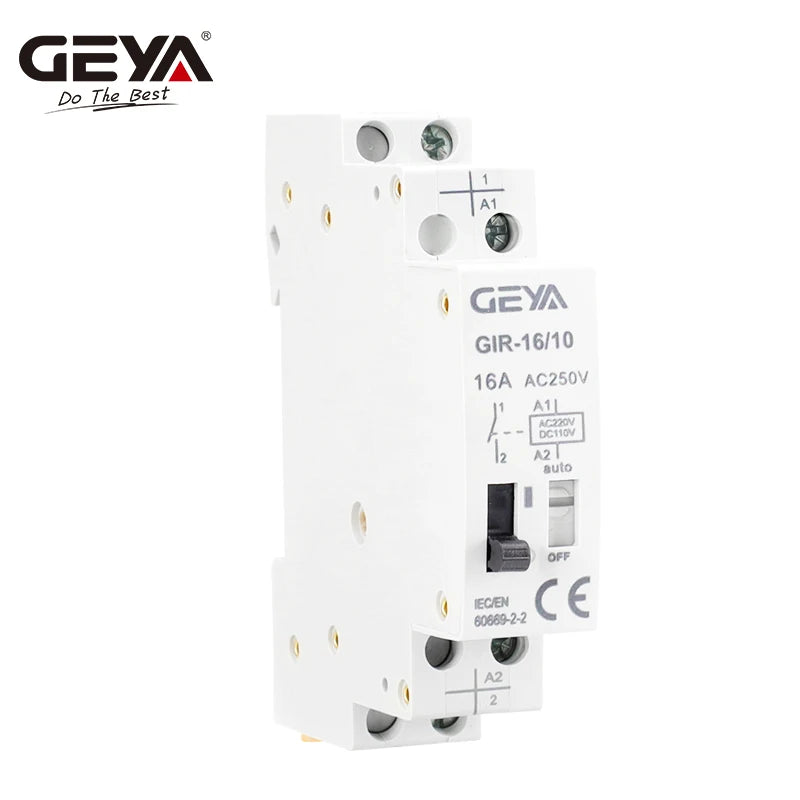

GEYA GIR Mechanical Impulse Relay Household Bistable Latching Auto Control Relay 16A 1NO 2NO Coil 230V AC 110V DC

SPECIFICATIONS

Applicable Object: Electromechanica

Brand Name: GEYA

Certificate: CE

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: GIR Mechanical Impulse Relay

Origin: Mainland China

Output Contact: 1NO OR 2NO

Power Source: Ac,Ac

Product Name: GIR Mechanical Impulse Relay

Protect Feature: Sealed

Rated Current: 16A

Rated Frequency: 50/60Hz

Theory: Electromagnetic Relay

Use: Protective

Voltage: 220V,AC220V-DC110V

is_customized: Yes



GEYA GIR Mechanical Impulse Relay Household Bistable Latching Auto Control Relay 1P 2P 16A 1NO 2NO Coil 230V AC 110V DC

General



GIR Mechanical  Impulse relay/Latching Relay

Control voltage:230VAC/110VDC
1. Closing of the impulse relay pole(s) is triggered by an impulse on the coil.
2. Having two stable mechanical positions, the pole(s) will be opened by the next impulse. Each impulse received by the coil reverses the position of the pole(s).
3. Can be controlled by an unlimited number of pushbuttons.
4. Zero energy consumption.
5. The impulse relays are used to control, by means of pushbuttons, lighting circuits
consisting of:
-incandescent lamps, low-voltage halogen lamps, etc. (resistive loads)
-fuorescent lamps, discharge lamps, etc. (inductive loads)

Technical Data
