SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Switching larger load output

High-concerned chemical: none

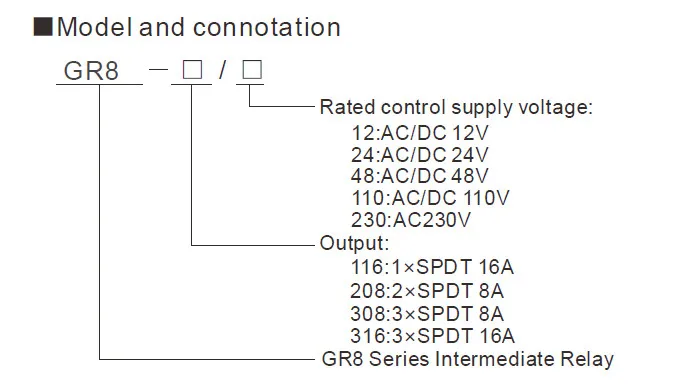

Model Number: GR8 Intermediate Relay

Origin: Mainland China

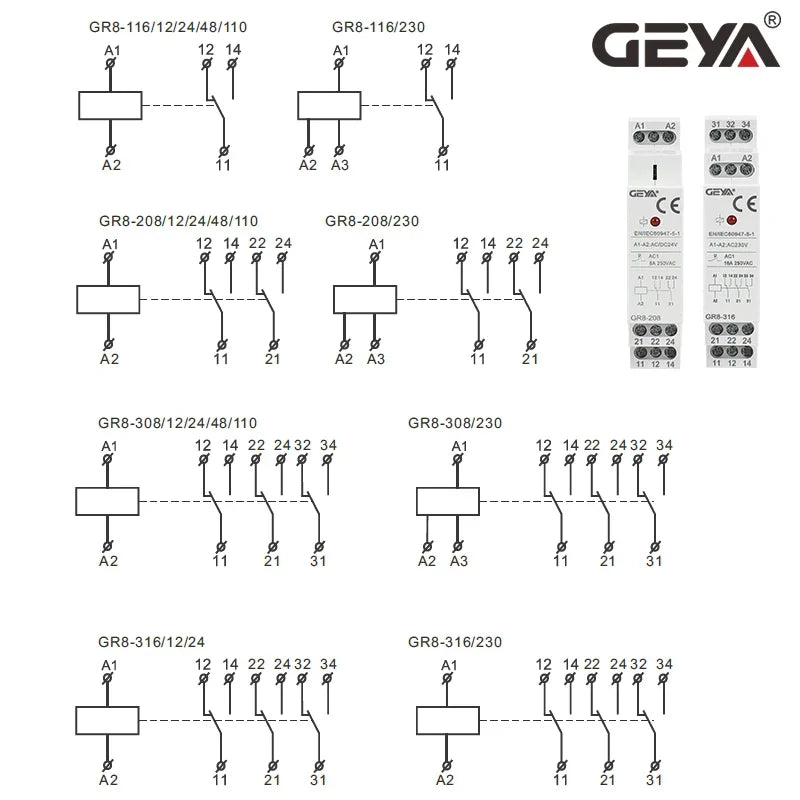

Output Contact: 1SPDT, 2SPDT

Power Source: Ac,DC

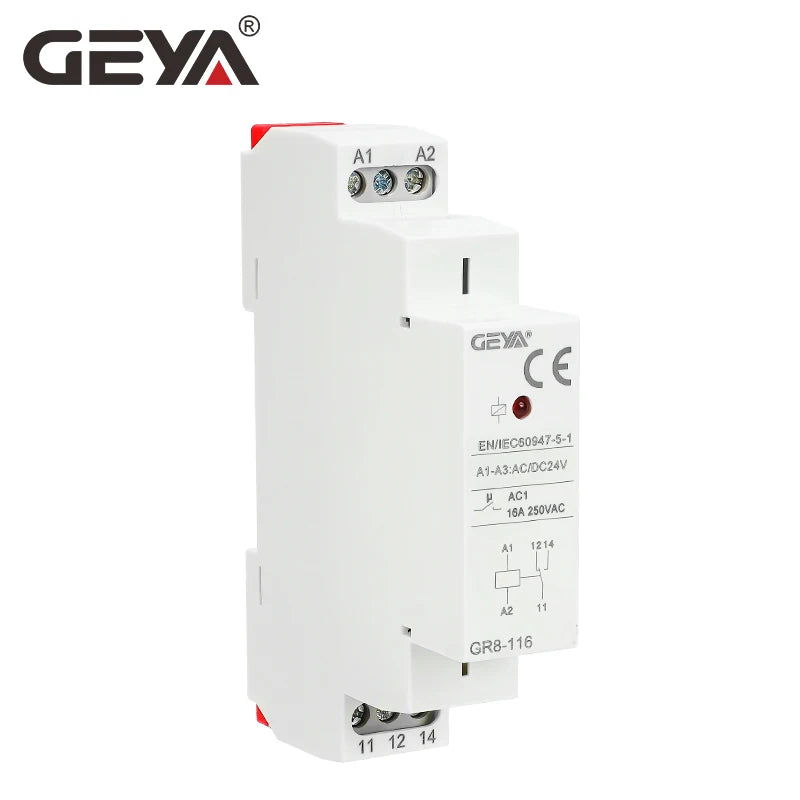

Product Name: GR8 Intermediate Relay

Protect Feature: Sealed

Rated Current: 8A 16A

Rated Frequency: 50/60Hz

Theory: Voltage relay

Use: Protective

Voltage: 12V,AC/DC12V 24V, AC230V

is_customized: Yes

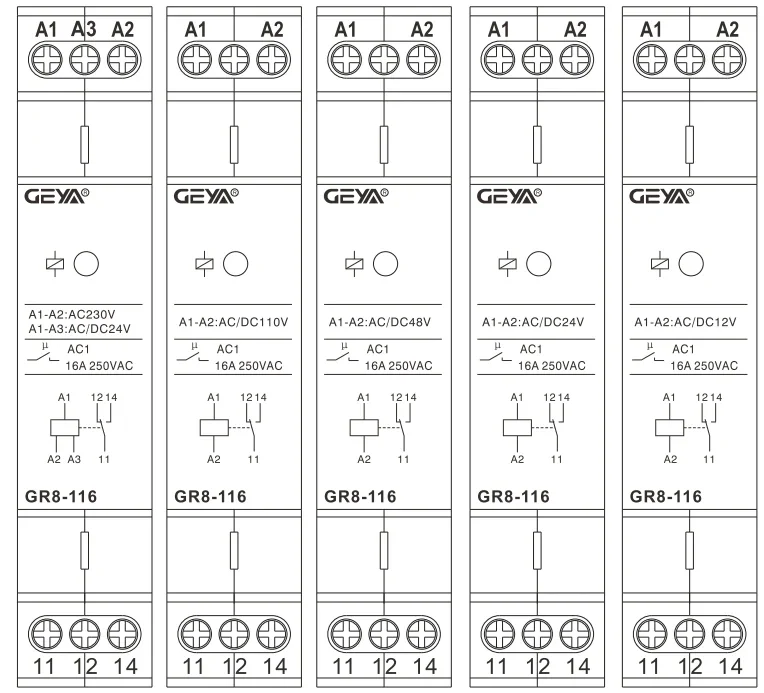

Tips: This link is for GR8-116/208 AC/DC 12V 24V 230V Intermediate Relay Auxiliary Relay, if you need GR8-308/316, please click here, thanks!

General

Applications
-intermediate relay used for switching larger load output, strengthen or multiplying contacts of the existing device.
Function Features

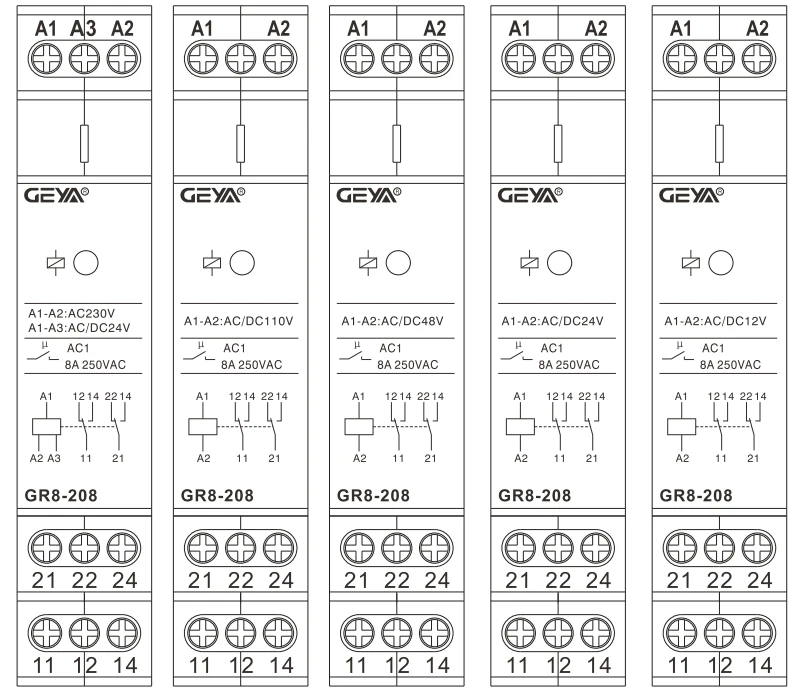

-Voltage range: AC/DC12V,24V,48V,110V,AC230V.

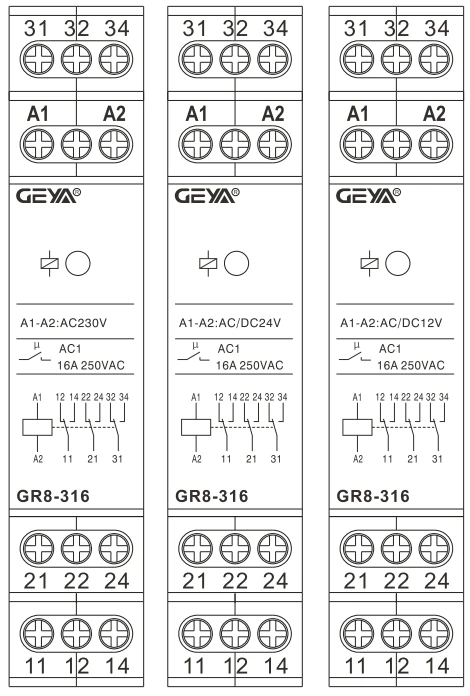

-relays GR8-316 enable connection to a 3-phase circuit.

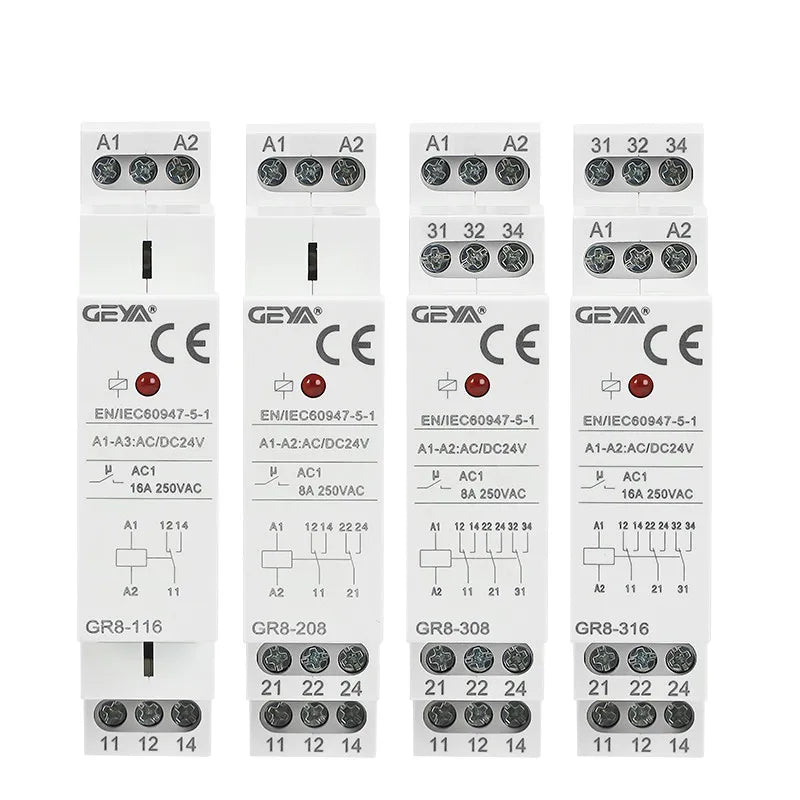

- Relay status is indicated by LED.

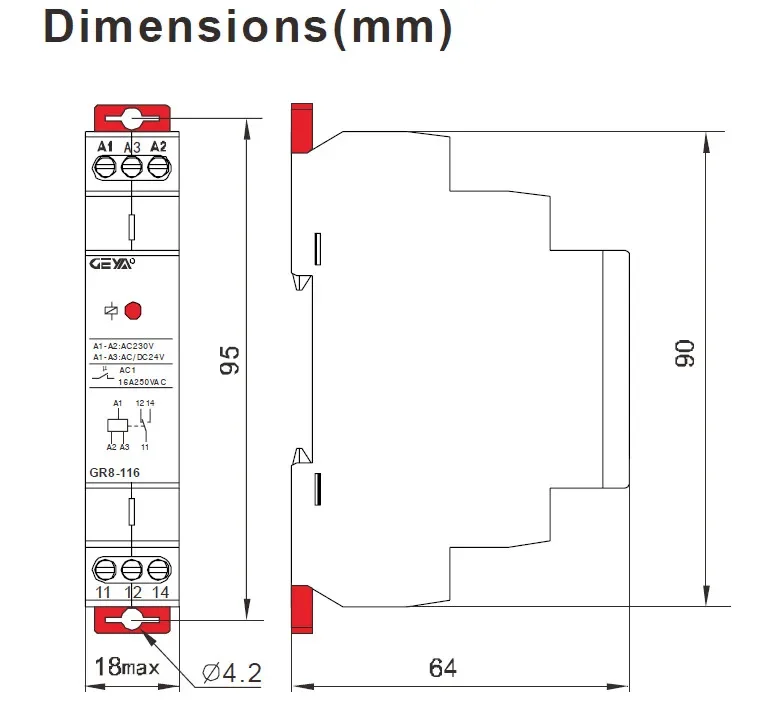

- 1-MODULE,DIN rail mounting.

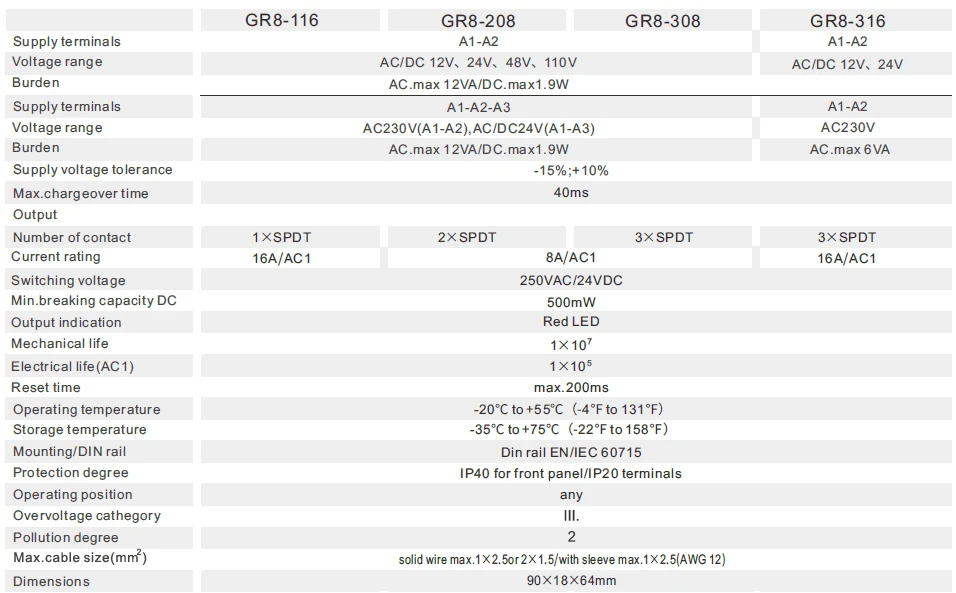

Technical Data
