GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A
GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A
GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A
GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A
GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A
GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A
$0.00 - $0.00
$0.00
$14.49
$11.31 - $15.75
$14.49
Availability:
14 in stock, ready to be shipped
Availability:
273 in stock, ready to be shipped
Availability:
Only 2 left!
Availability:
279 in stock, ready to be shipped
Size: GRV8-04-M460

GEYA Din Rail 3 Phase Failure Phase Sequence Voltage Monitoring Relay Voltage Protection Relay 220V~460V 10A

by αžŠαŸ„αž™ DARAHUB

All prices exclude shipping Customs and taxes. αžαž˜αŸ’αž›αŸƒαž‘αžΆαŸ†αž„αž’αžŸαŸ‹αž˜αž·αž“αžšαž½αž˜αž”αž‰αŸ’αž…αžΌαž›αžαŸ’αž›αŸƒαžŠαžΉαž€αž‡αž‰αŸ’αž‡αžΌαž“ αž‚αž™ αž“αž·αž„αž–αž“αŸ’αž’αž‘αŸαŸ”

Choose language

SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Voltage, Delay time, Asymmetry, Phase Sequence Phase Failure

High-concerned chemical: none

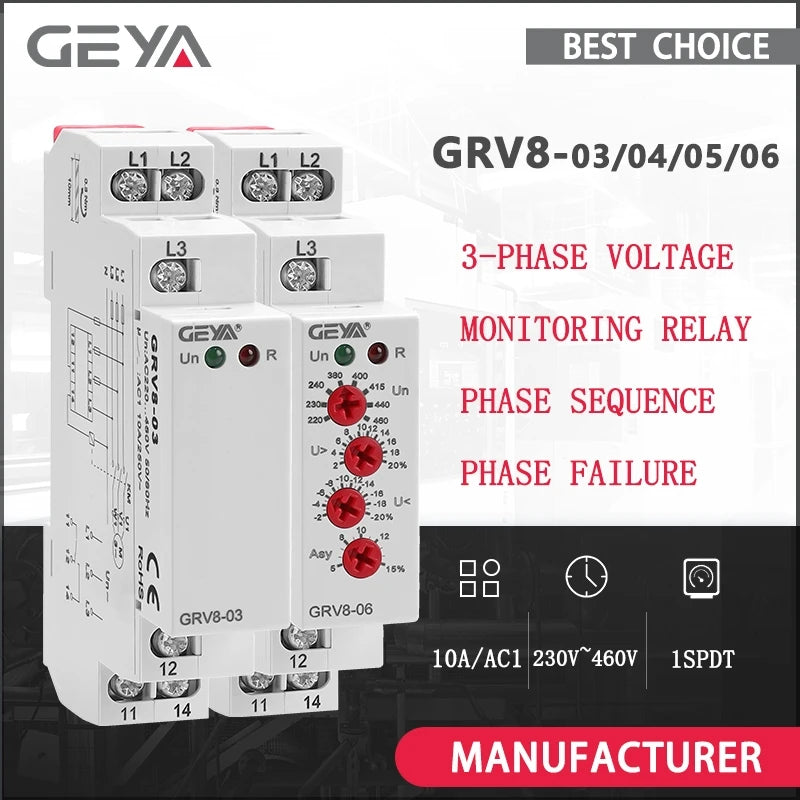

Model No.: GRV8-03, GRV8-04, GRV8-05, GRV8-06

Model Number: GRV8-06 Voltage Relay

Origin: Mainland China

Output Contact: 1SPDT

Power Source: Ac,Ac

Product Name: Three Phase Voltage Relay

Protect Feature: Sealed

Rated Current: 10A/AC1

Rated Frequency: 50/60Hz

Theory: Voltage relay

Use: Protective

Voltage: 220V,220-230-240-380-400 -415-440-460(P-P)

is_customized: Yes

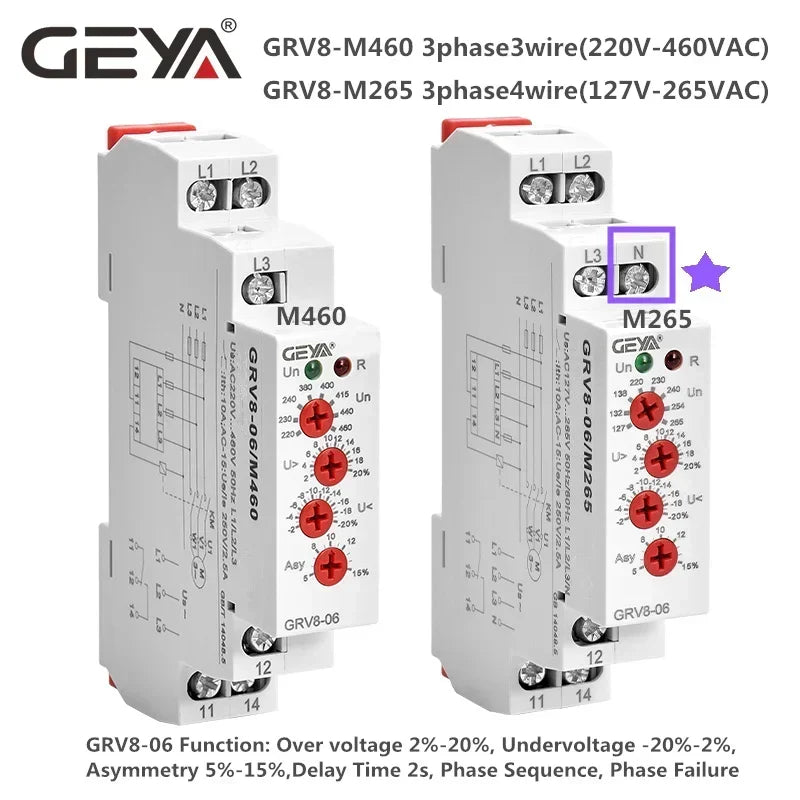

Tips: This link is for 3phase monitoring relayΒ M460, if you need M265 Voltage, please click here, thanks!


M460 : 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
M265:Β  3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)

General

Applications

-Control for connection of moving equipment(site equipment,agriculturalΒ equipent,refrigerated trucks).
-Control for protection of persons and equipment against the consequencesΒ of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure).
Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
- Measuring frequency range:45Hz-65Hz.
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

HOW TO CHOOSE THE MODEL

Product Code

Over Voltage

Under Voltage

Asymmetry

Delay Time

Phase Sequence

Phase Failure

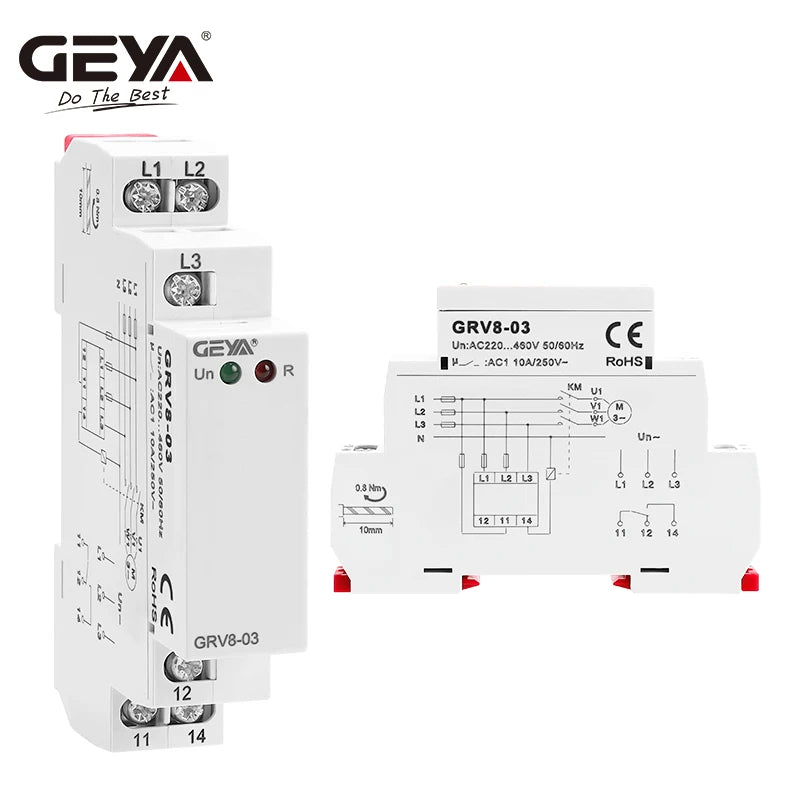

GRV8-03

/

/

/

/

YES

YES

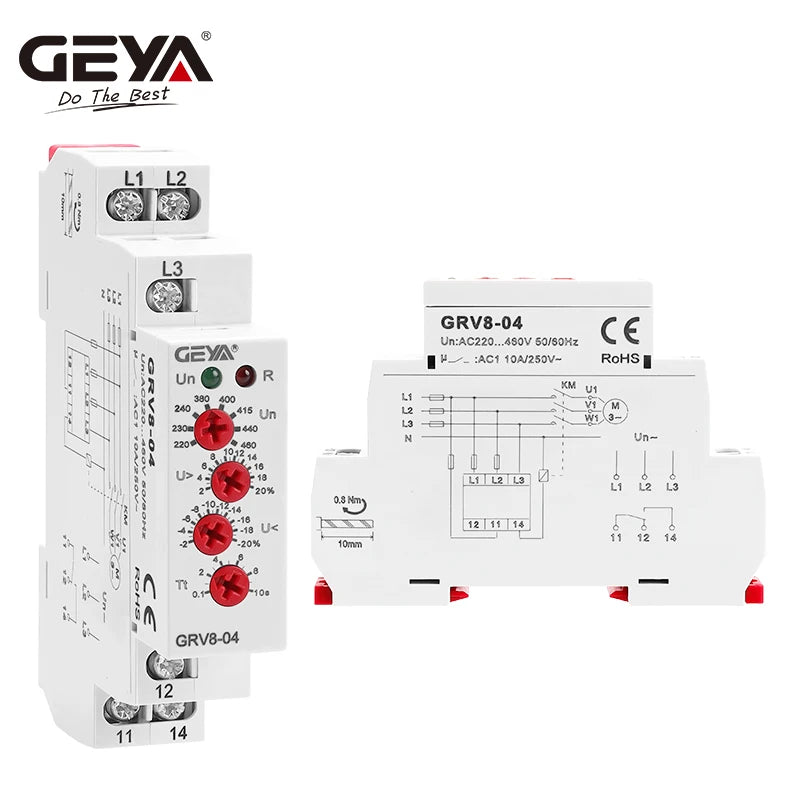

GRV8-04

2%~20%

-20%~2%

/

0.1s~10s

YES

YES

GRV8-05

2%~20%

-20%~2%

8%

0.1s~10s

YES

YES

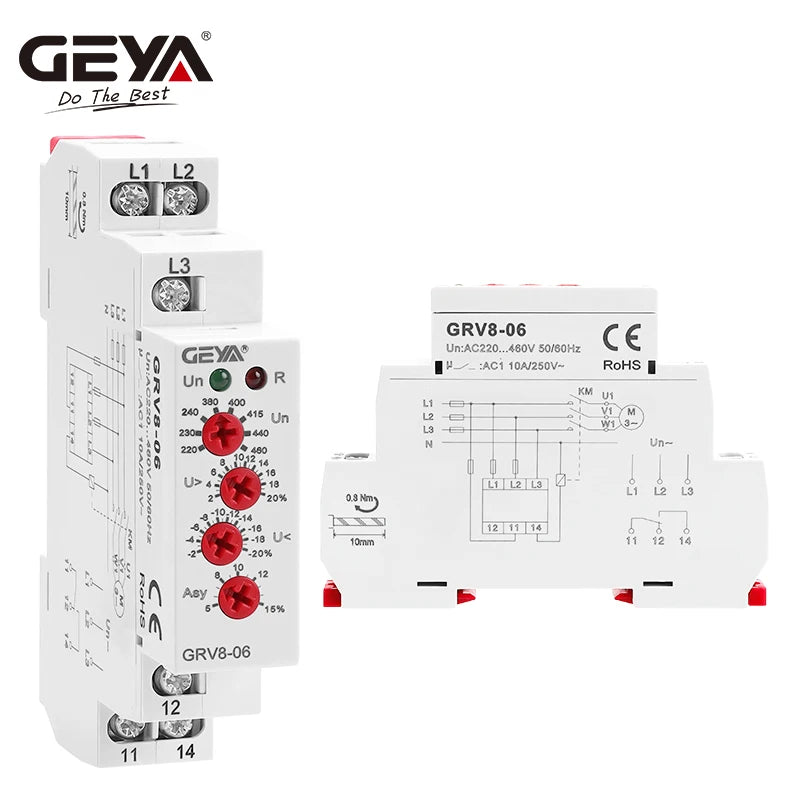

GRV8-06

2%~20%

-20%~2%

5%~15%

2s

YES

YES


YES Means The Function is Available

Technical Data

If you need other model function of voltage relay, pls click below!
