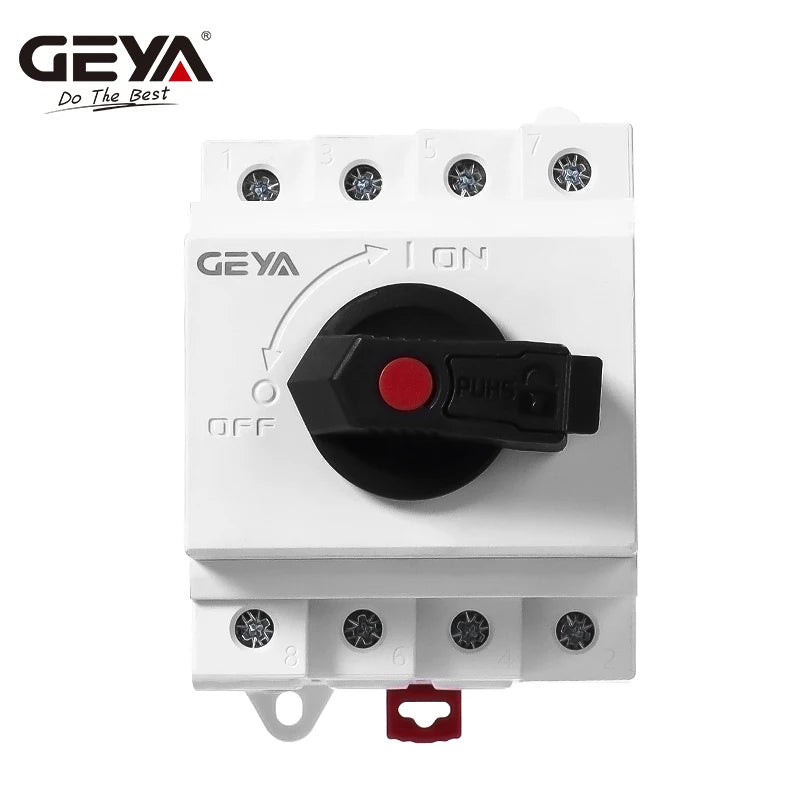

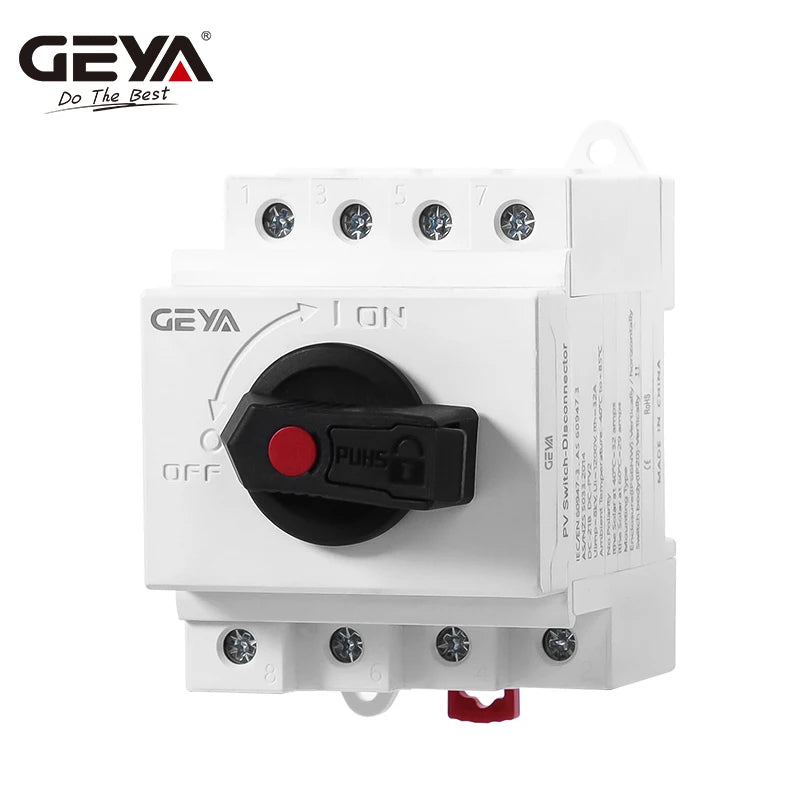

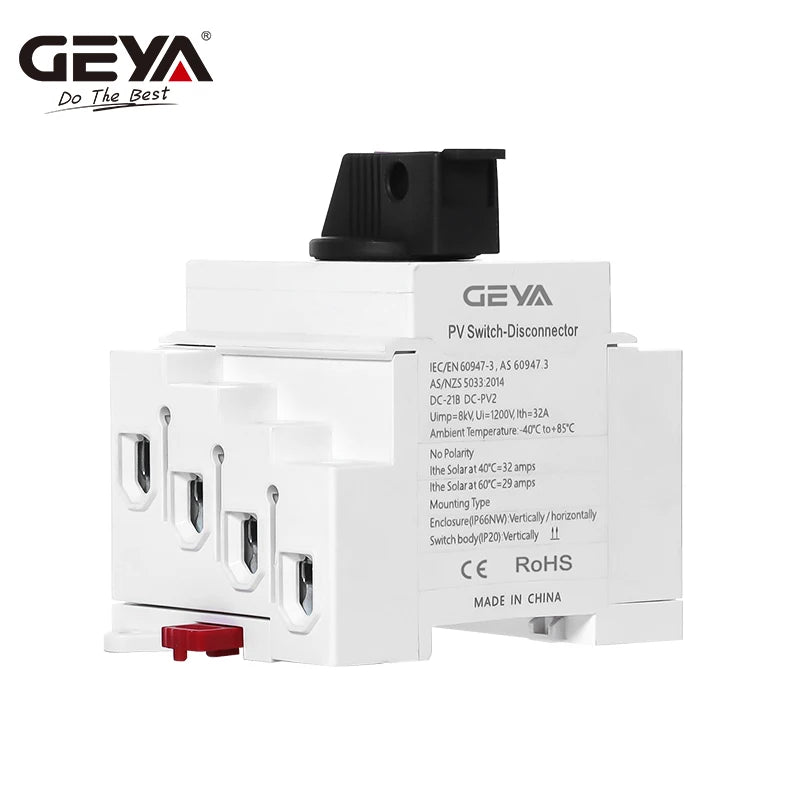

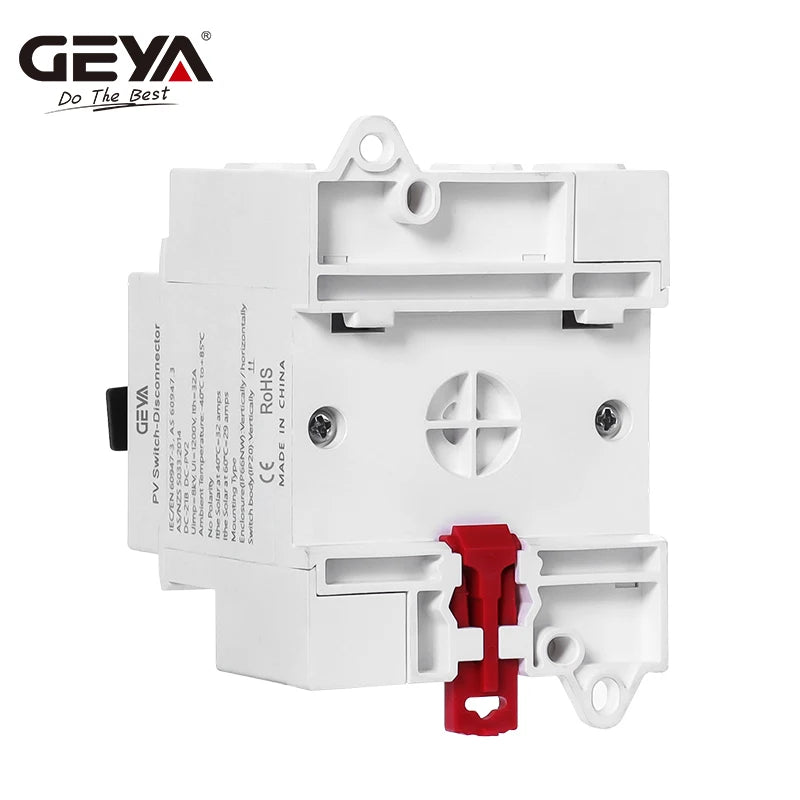

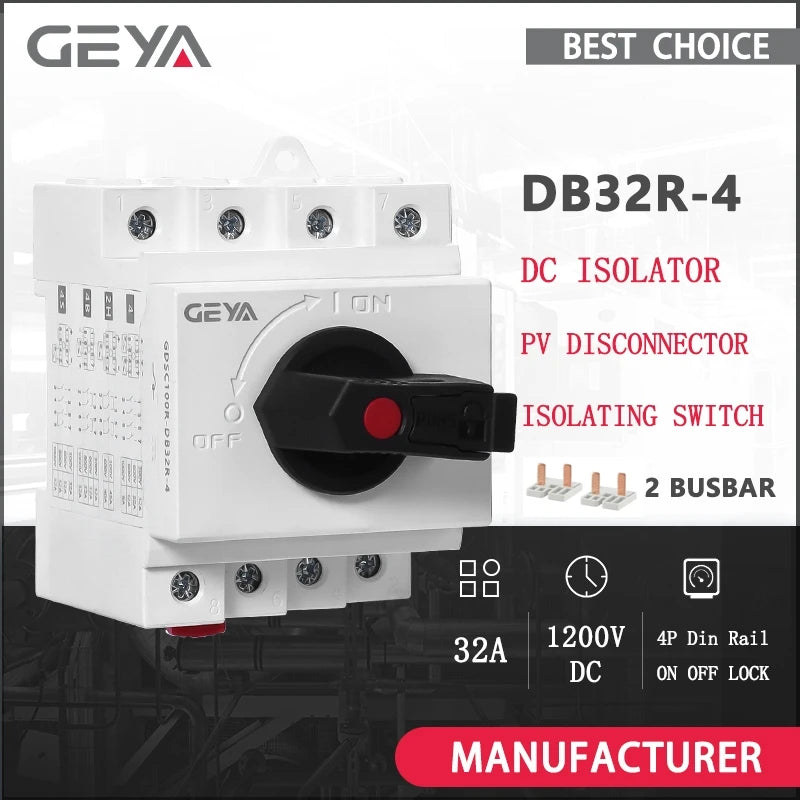

GEYA DB32R DC Solar Isolator Switch PV Disconnector 1200VDC 32A 4P Din Rail Rotating Handle Solar Isolating Switch

General
GDSC120R-DB32R-4 1200V DC/32A Isolator Switch provides a safe and reliable means to physically disconnect the photovoltaic (PV) array from the inverter for maintenance, emergency shutdown, or system servicing.
It ensures operator safety by creating a visible break in the high-voltage DC circuit.

The DB32R series photovoltaic DC isolating switch is suitable for use in power systems with a rated voltage of DC1200V and below, and a rated current of 32A and below.
The product can used for infrequent connection and disconnection, it serves to isolate and disconnect circuits and can be widely applied to 1-20kW inverters, controllers, and DC combiner box.
Used for residential or commercial photovoltaic solar power generation systems (grid-connected/off-grid). With an arc time of less than 2ms, it effectively disconnects the photovoltaic solar system.

The photovoltaic DC isolator is an indispensable safety protection device in the photovoltaic system. It serves as the first "gate" guarding the safety of the entire system, specifically designed to safely manage the on-off of high-voltage DC power. It is the cornerstone for the safe operation of the photovoltaic system.

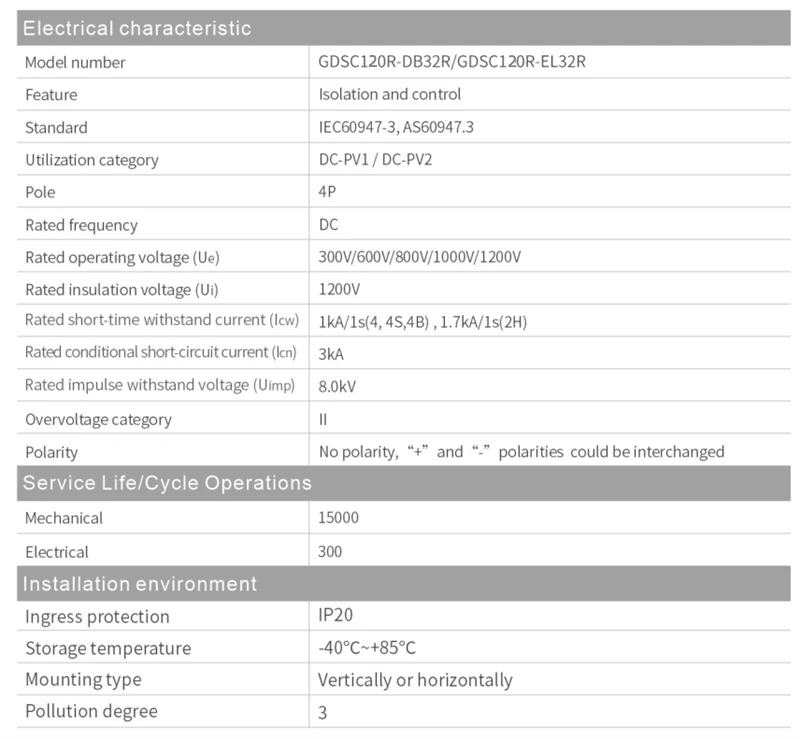

Technical Data
