SPECIFICATIONS

Applicable Object: Electromechanica

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Cycler beginning with Pulse & Pause

High-concerned chemical: none

Model Number: GRT8-S Asymmetric Cycler Relay

Origin: Mainland China

Output Contact: 1SPDT OR 2SPDT

Power Source: Ac,DC

Product Name: GRT8-S Asymmetric Cycler Relay

Protect Feature: Sealed

Rated Current: 16A

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-100days (in 10 alternate)

Use: General Purpose

Voltage: 48V,AC230V OR AC/DC12-240V

is_customized: Yes

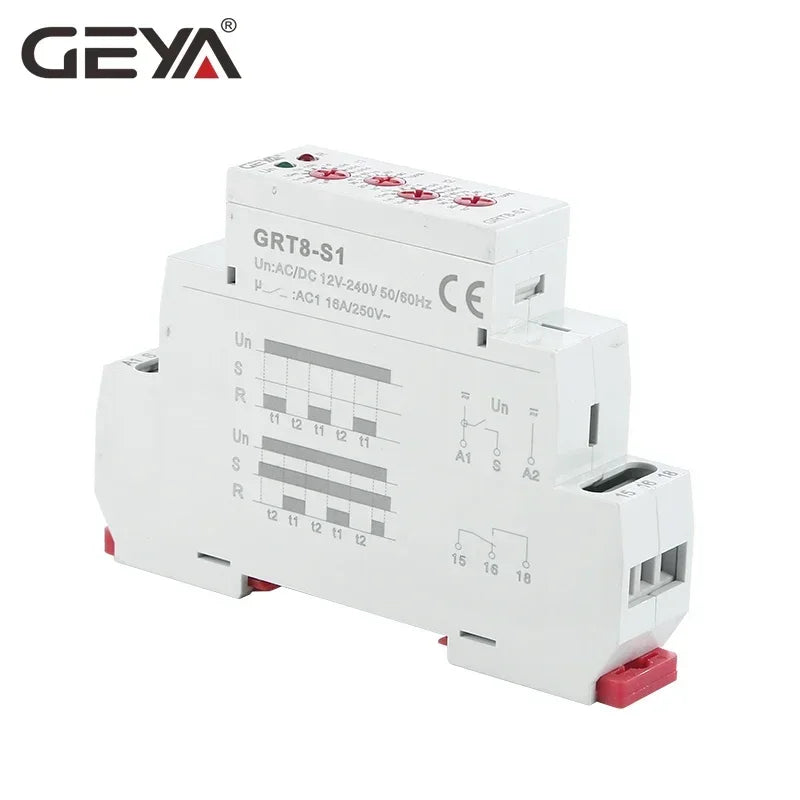

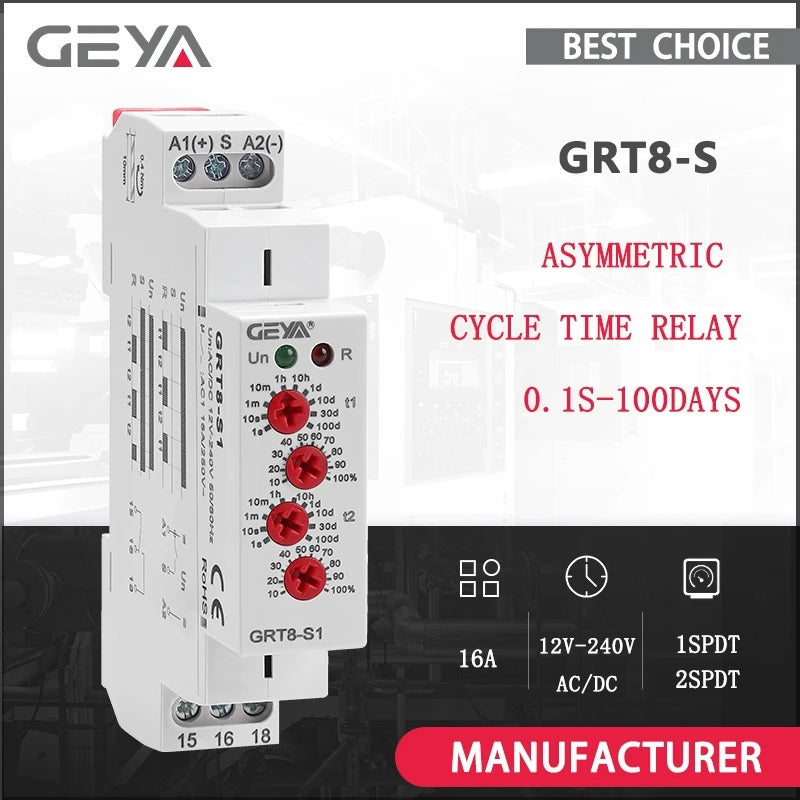

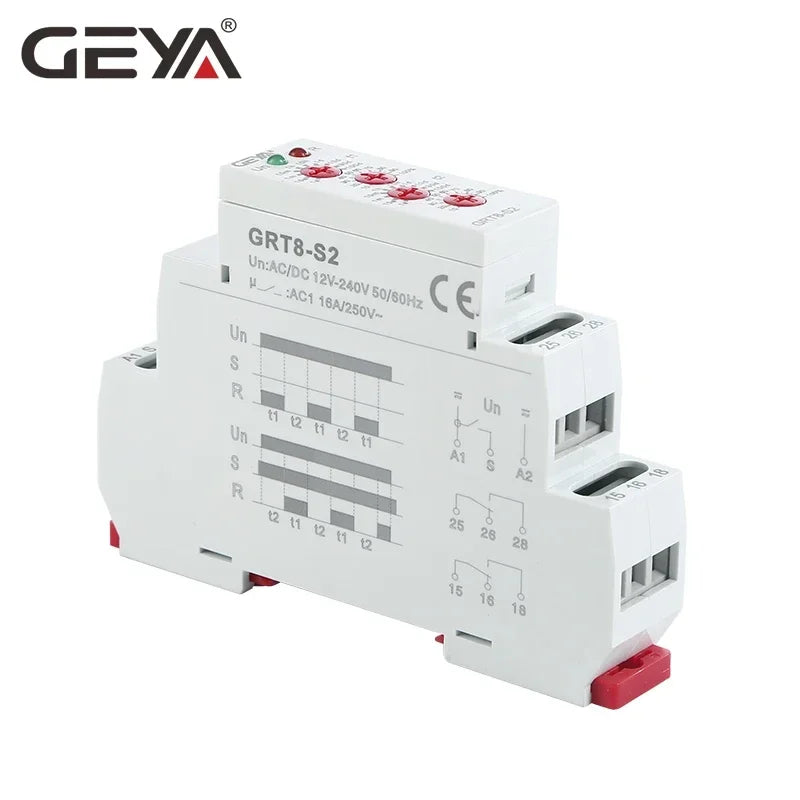

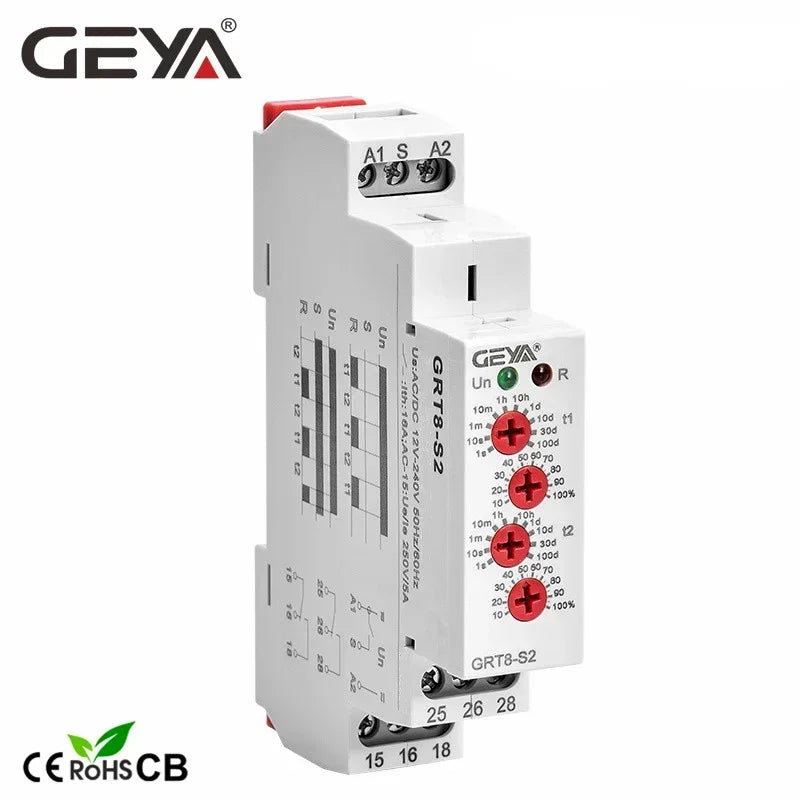

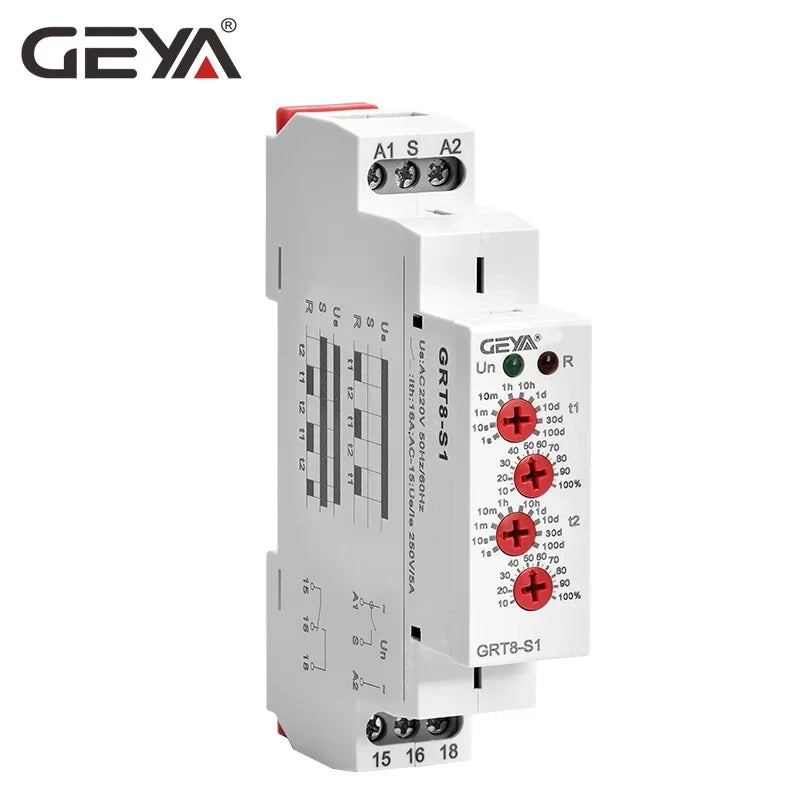

GEYA GRT8-S Asymmetric Cycle Timer Relay SPDT 220V 16A  AC/DC12V-240V Electronic Repeat Relay

"GEYA NEW ARRIVAL GRT8-RL, Right-Left Inverser Time Relay Alternate Cycle Relay, the two groups of contacts are alternately cycled, for example, the first action is the first group of contacts, the second action is the second group of contacts, the third time returns to the first group of contacts, and the fourth time returns to the second group of contacts, and so on. if you need, please click this link!

General

Applications

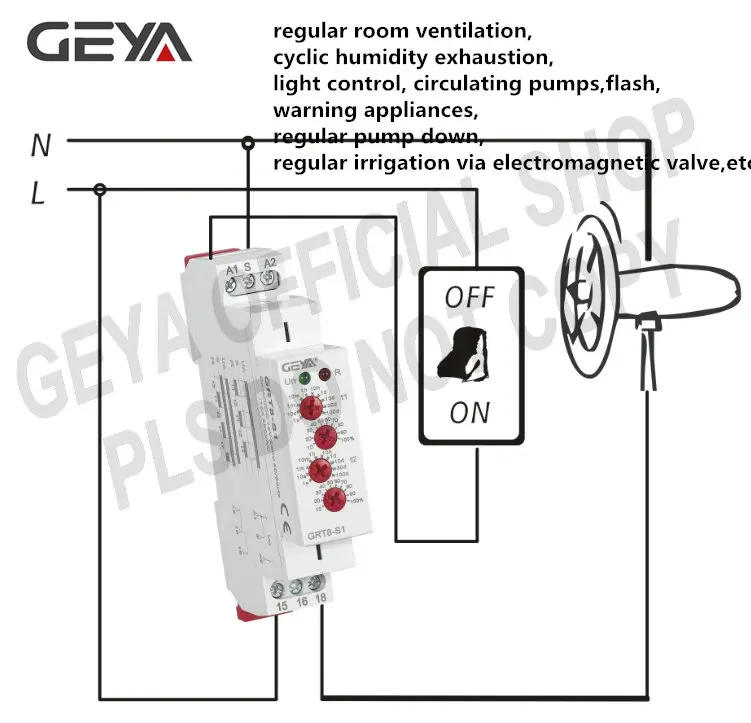

-It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.
GRT8-S: one group or two groups of contacts working in a cycle at the same time"

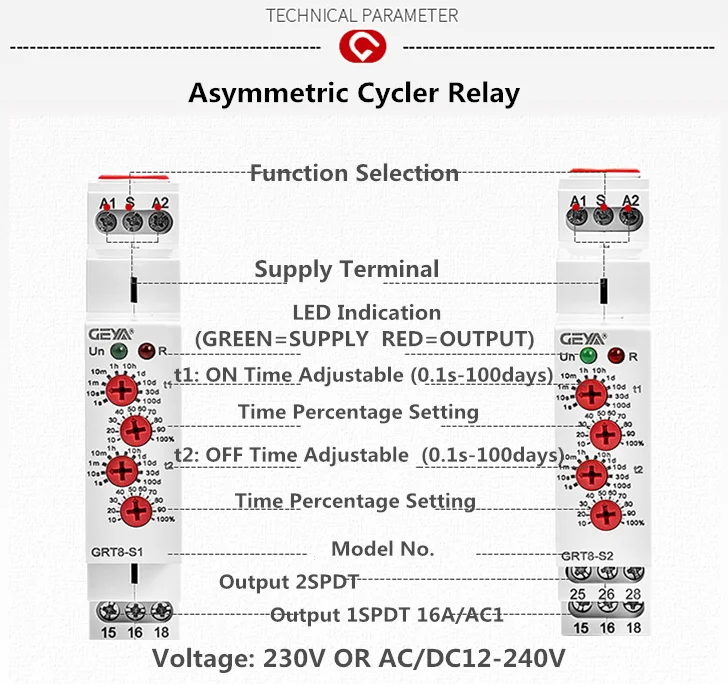

Function Features
-Voltage AC230V or AC/DC12V-240V
-Output 1SPDT or 2SPDT  (16A/AC1)

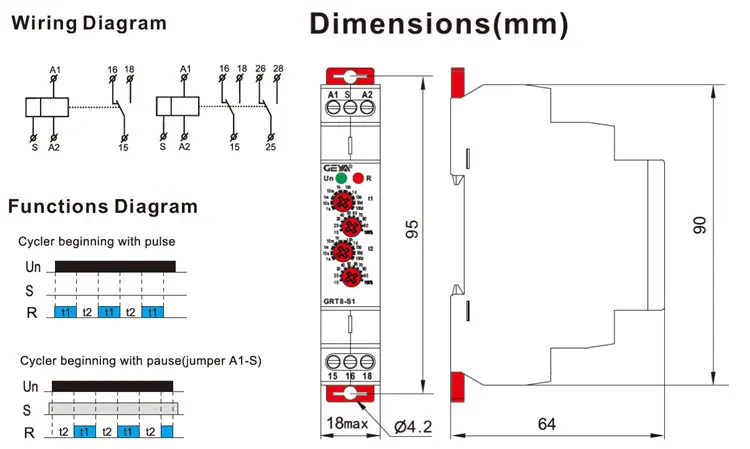

-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /10 days - 100 days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

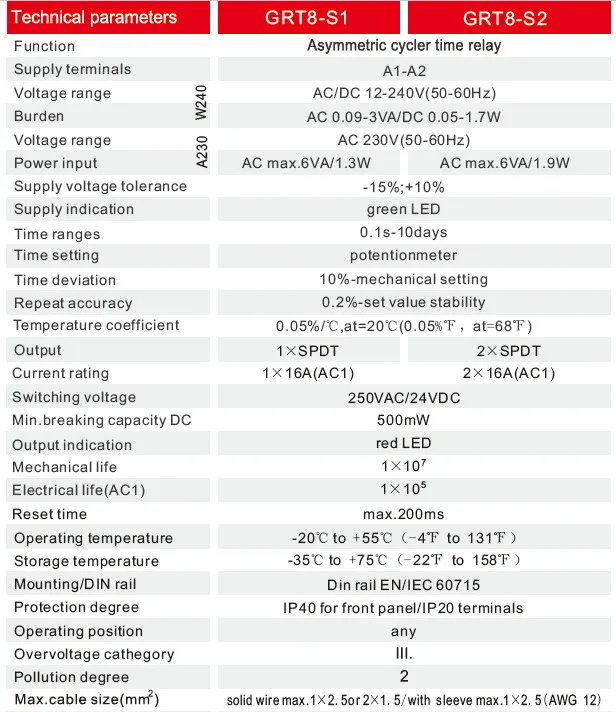

Technical Data
