SPECIFICATIONS

Applicable Object: Other

Brand Name: GEYA

Certificate: CE CB ROHS

Certification: CE,RoHS

Choice: yes

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Delay on, Delay off, Interval, Cycle, Single Shot, Latching, Pulse

High-concerned chemical: none

Model Number: GRT6-M Multifunction Time Relay

Origin: Mainland China

Output Contact: 1SPDT OR 2SPDT

Power Source: Ac,Ac

Product Name: GRT6-M Multifunction Time Relay

Protect Feature: Sealed

Rated Current: 10A

Rated Frequency: 50/60Hz

Theory: Time Relay

Time Range: 0.1s-10days (10ranges)

Use: General Purpose

Voltage: 220V,AC230V OR AC/DC24-240V

is_customized: Yes



GEYA GRT6-M 24~240V AC DC Din Rail Time Delay Relay 10A Multifunction Timer Relay with 10 Function Choices 220V

General

Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).

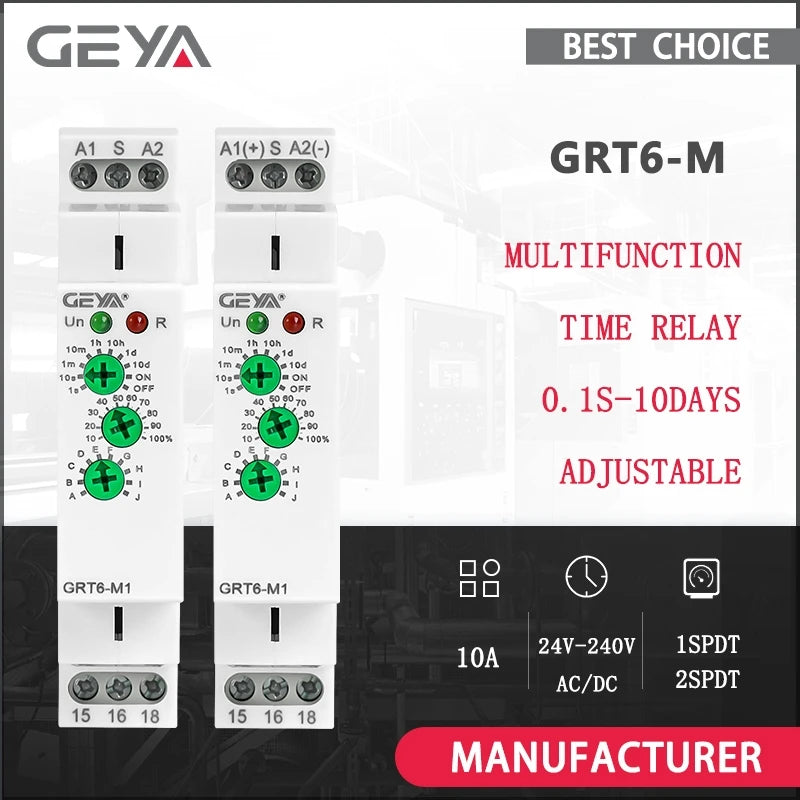

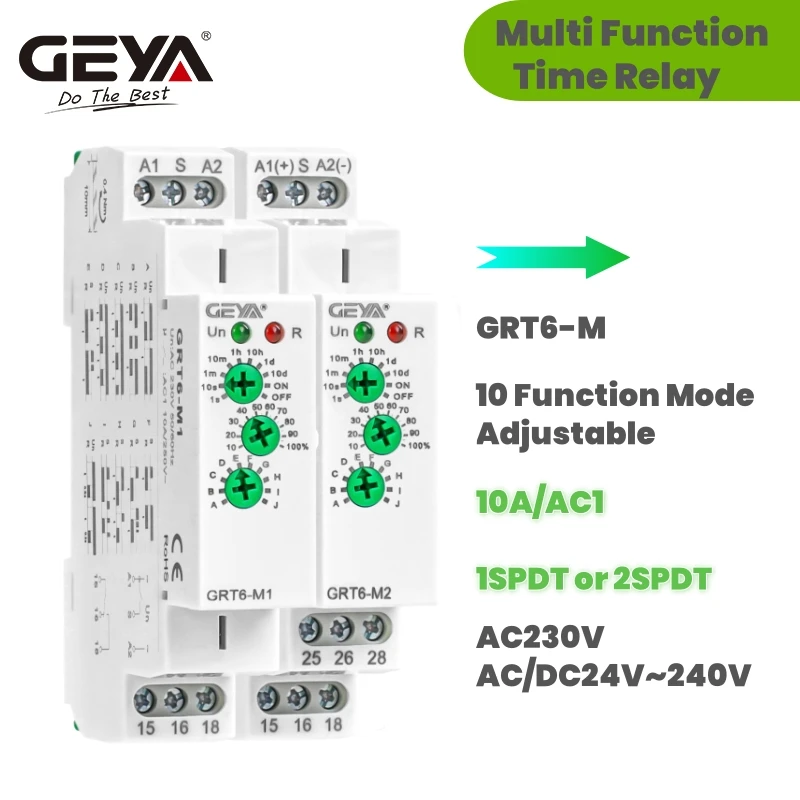

-  GRT6-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC24~240V

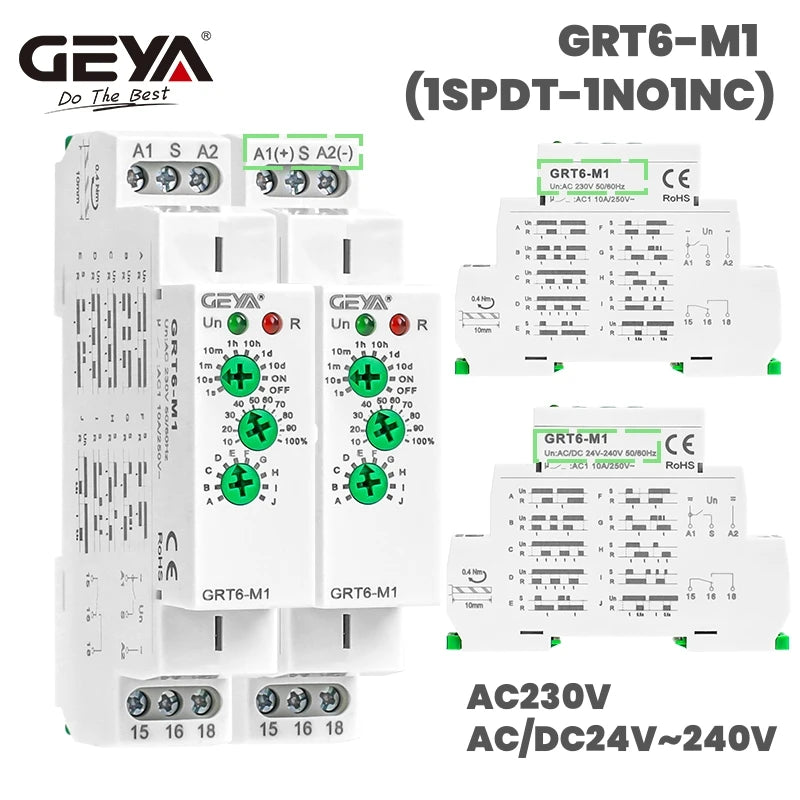

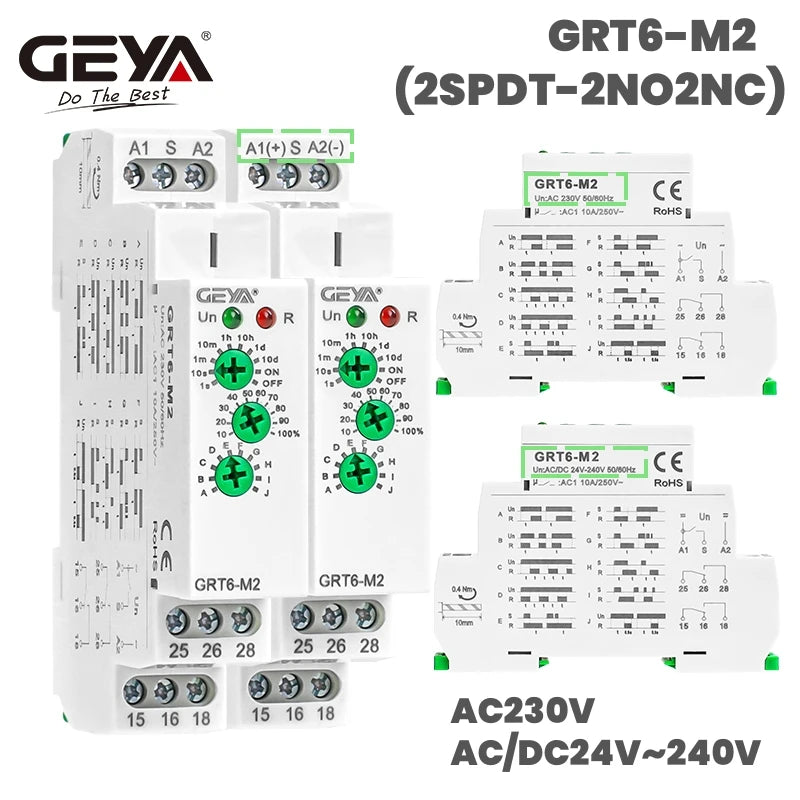

- Output: 10A 1SPDT (GRT6-M1) or 2SPDT (GRT6-M2)

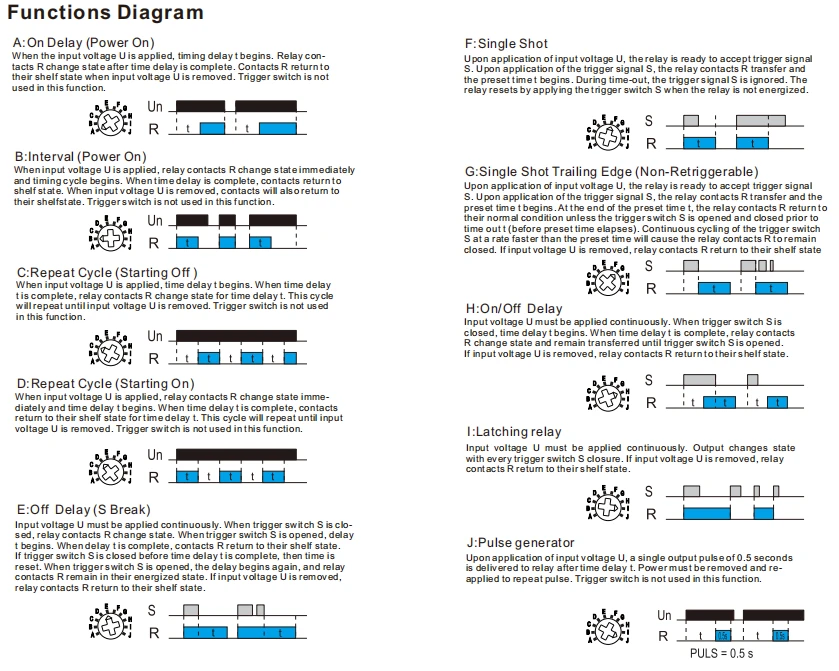

-10 Functions:

  5 time functions controlled by supply voltage  ( A B C D J )

  4 time functions controlled by control input ( E F G H )

 1 function of latching relay  ( I )

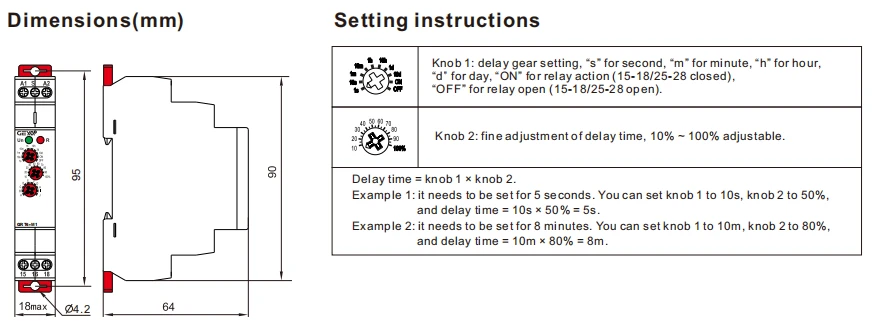

-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.

0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off

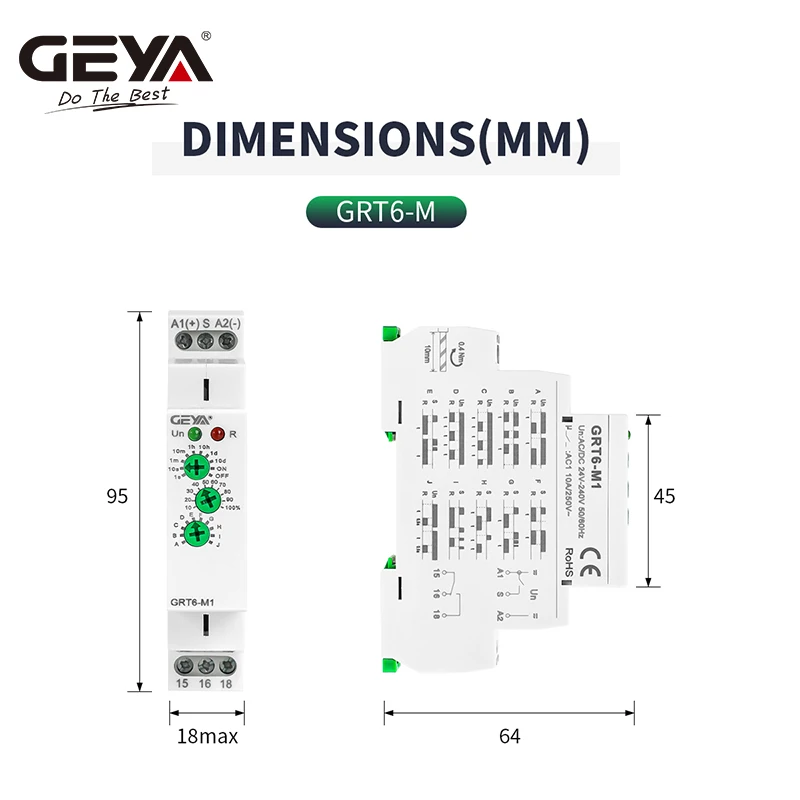

- 1-MODULE 18mm, DIN rail mounting, convenient install.

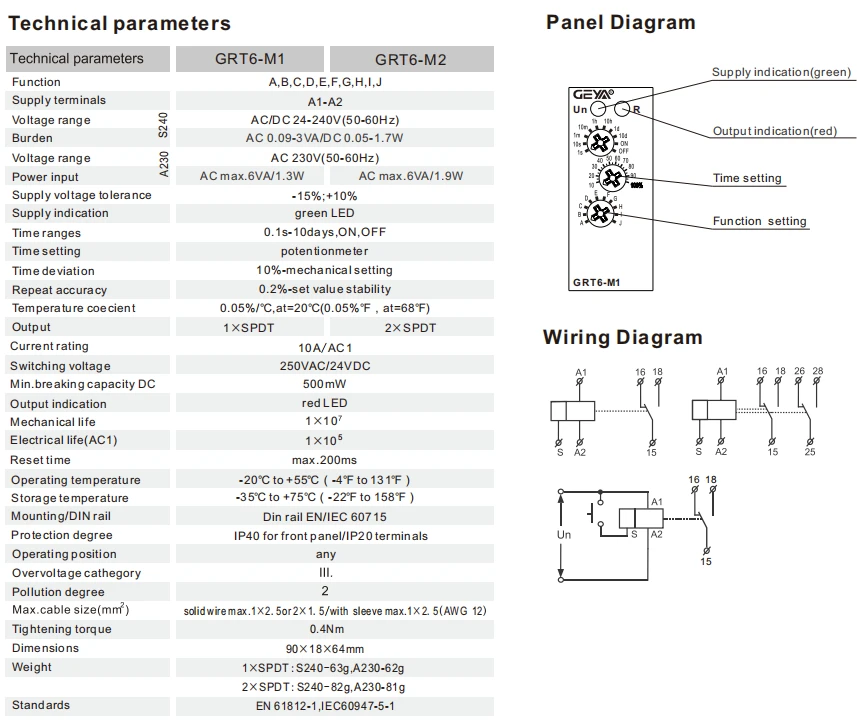

Technical Data
