TIPS ：

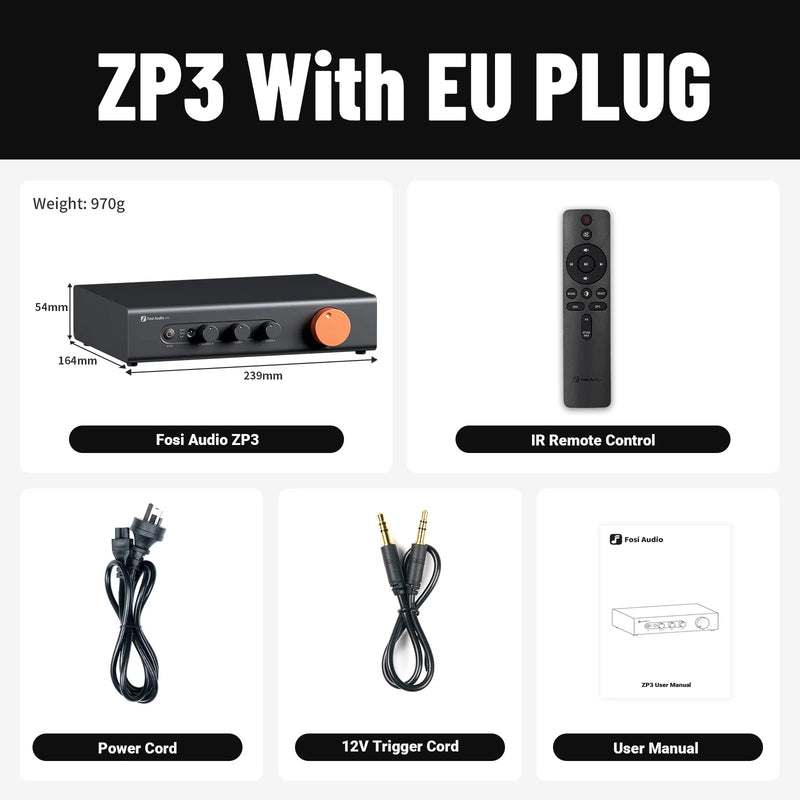

1.Please pay attention to whether the power plug you have selected is correct when placing an order

2.The 2026 edition of the ZP3 orange knob will no longer feature a dot.

Feature

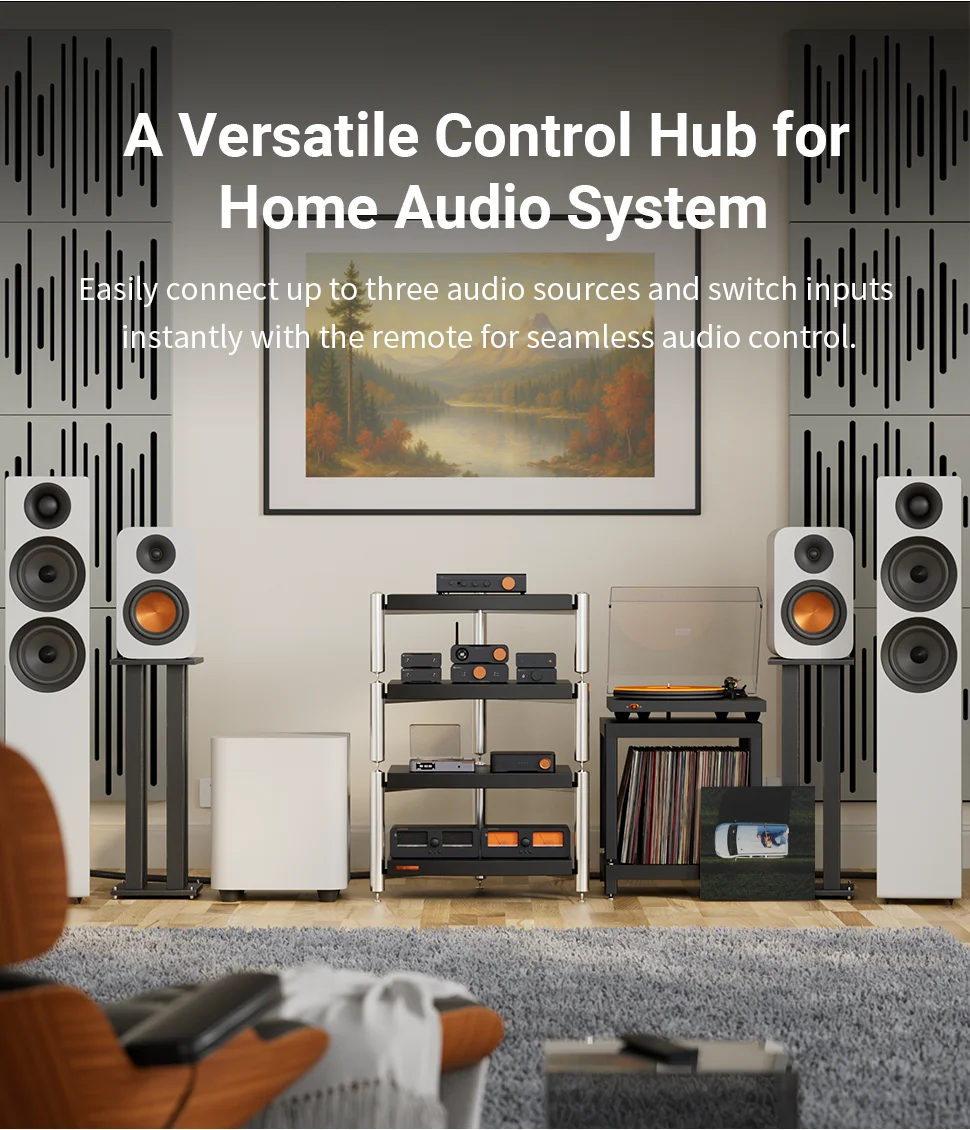

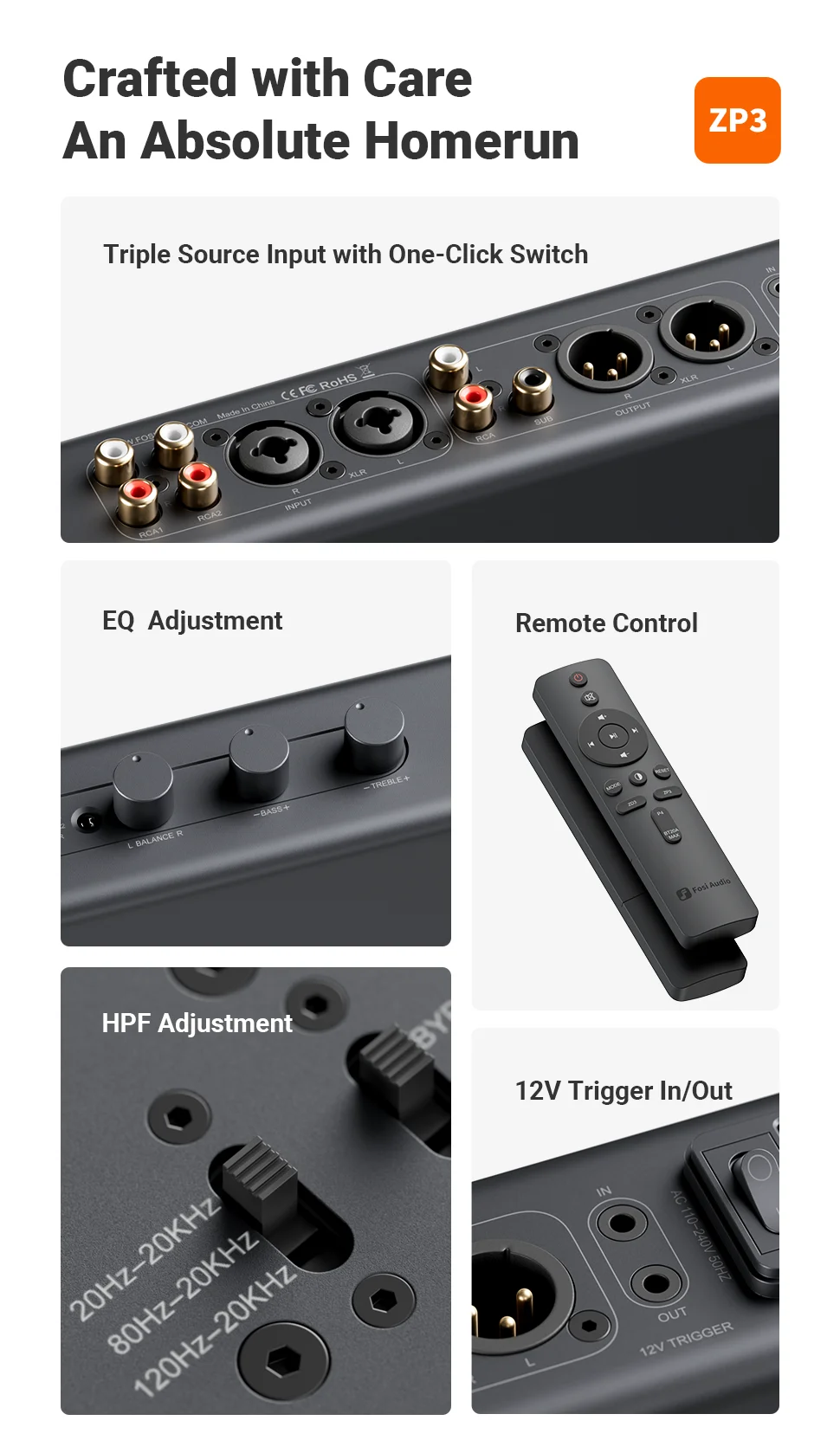

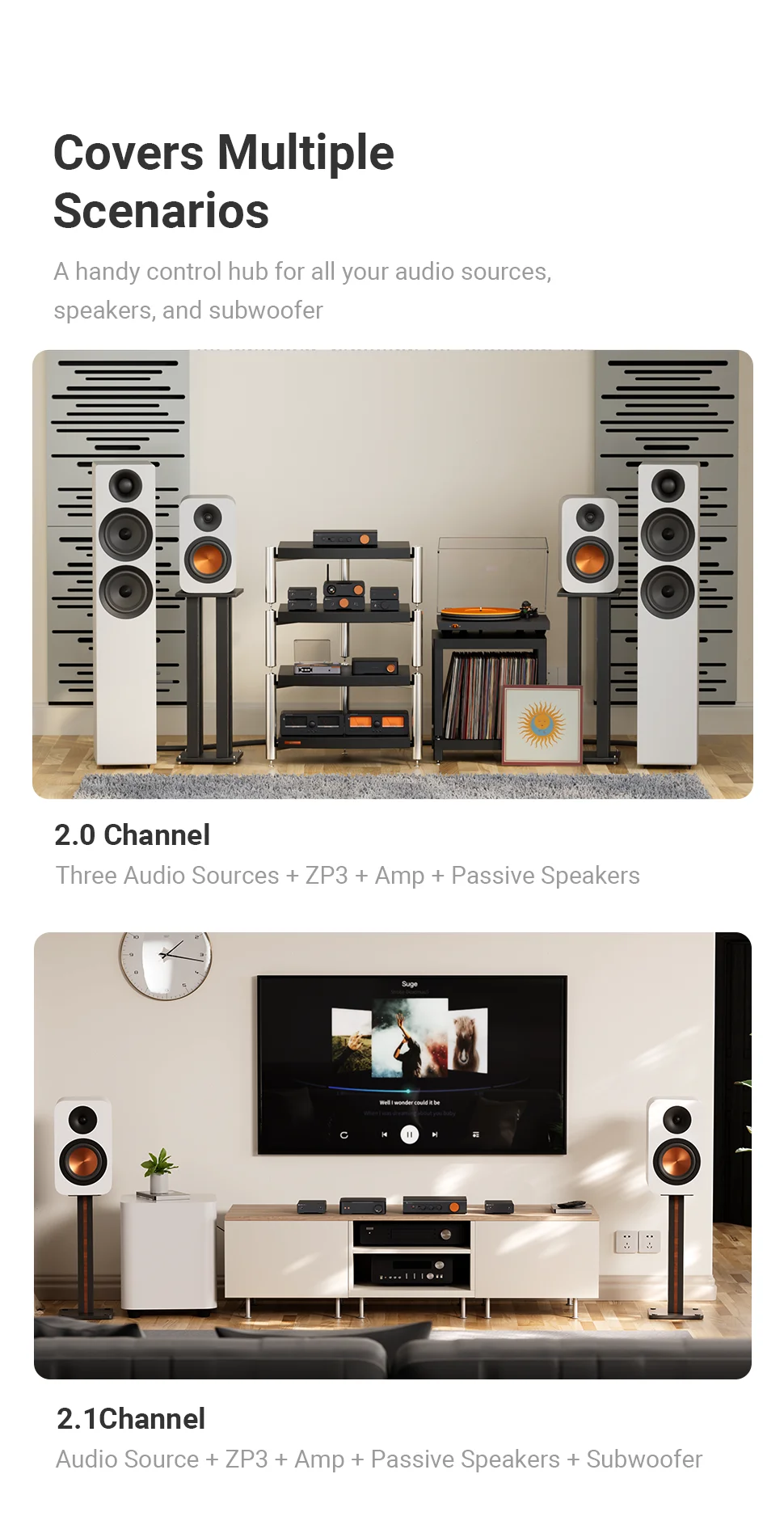

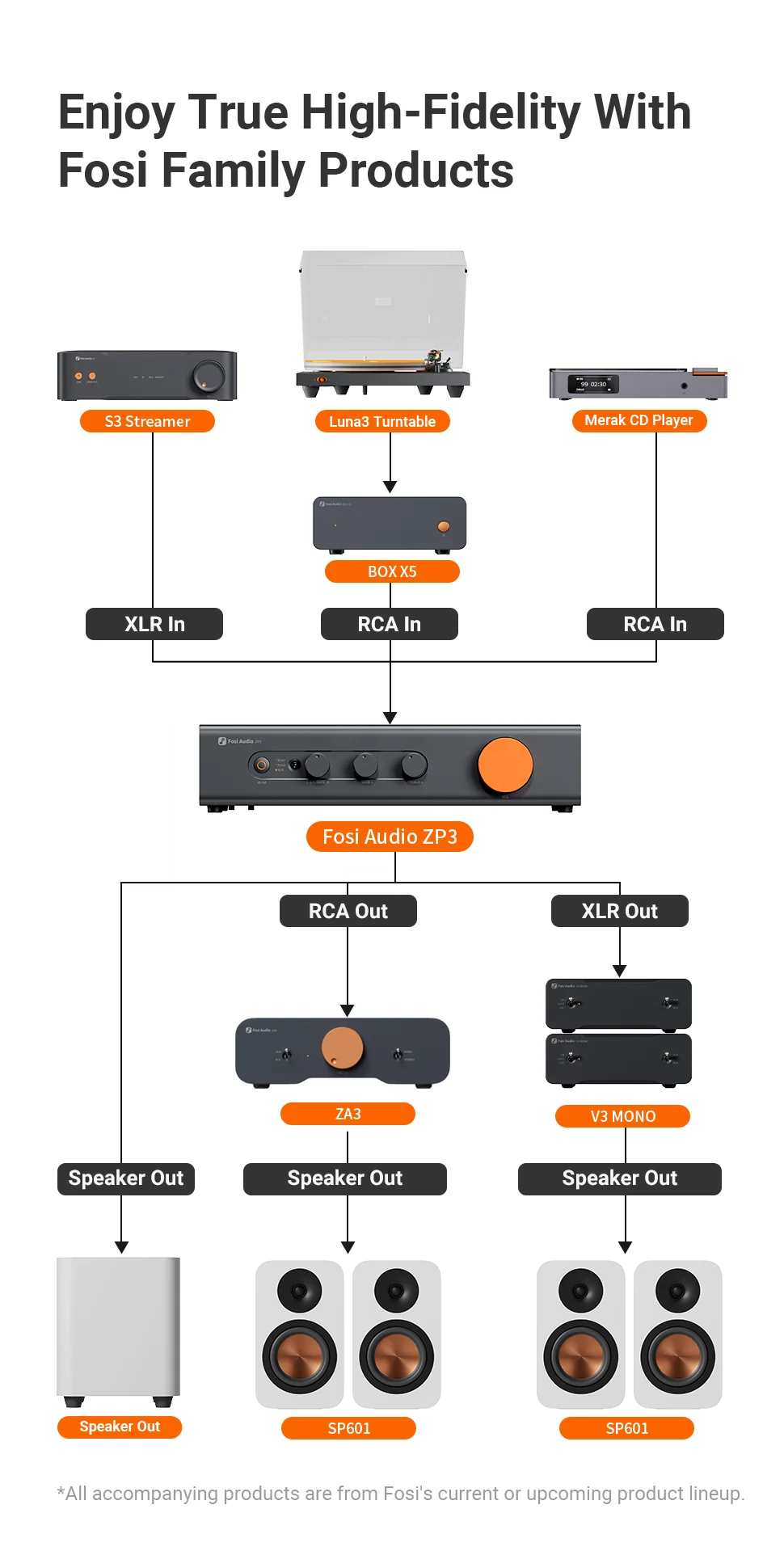

1.Home Audio Control Hub

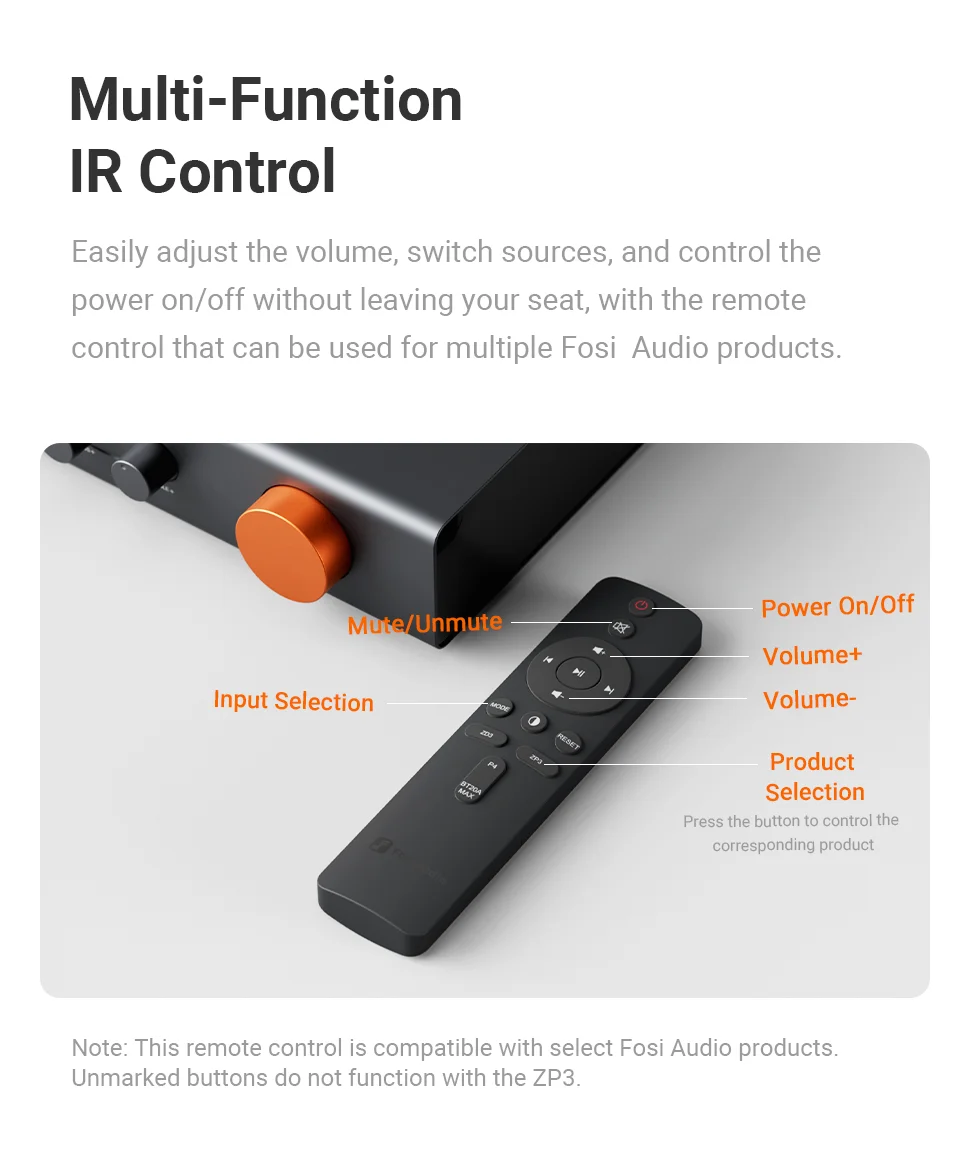

Features 3-in-3-out options for connecting up to three audio sources. Includes a remote control for one-touch input switching and volume adjustment—making it easy to manage your home audio system with freedom

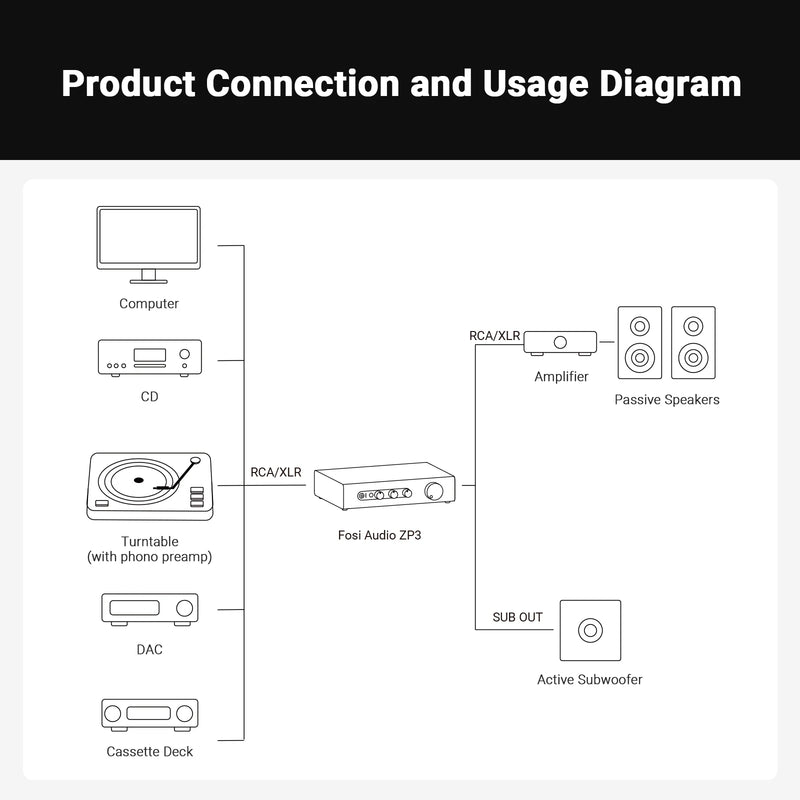

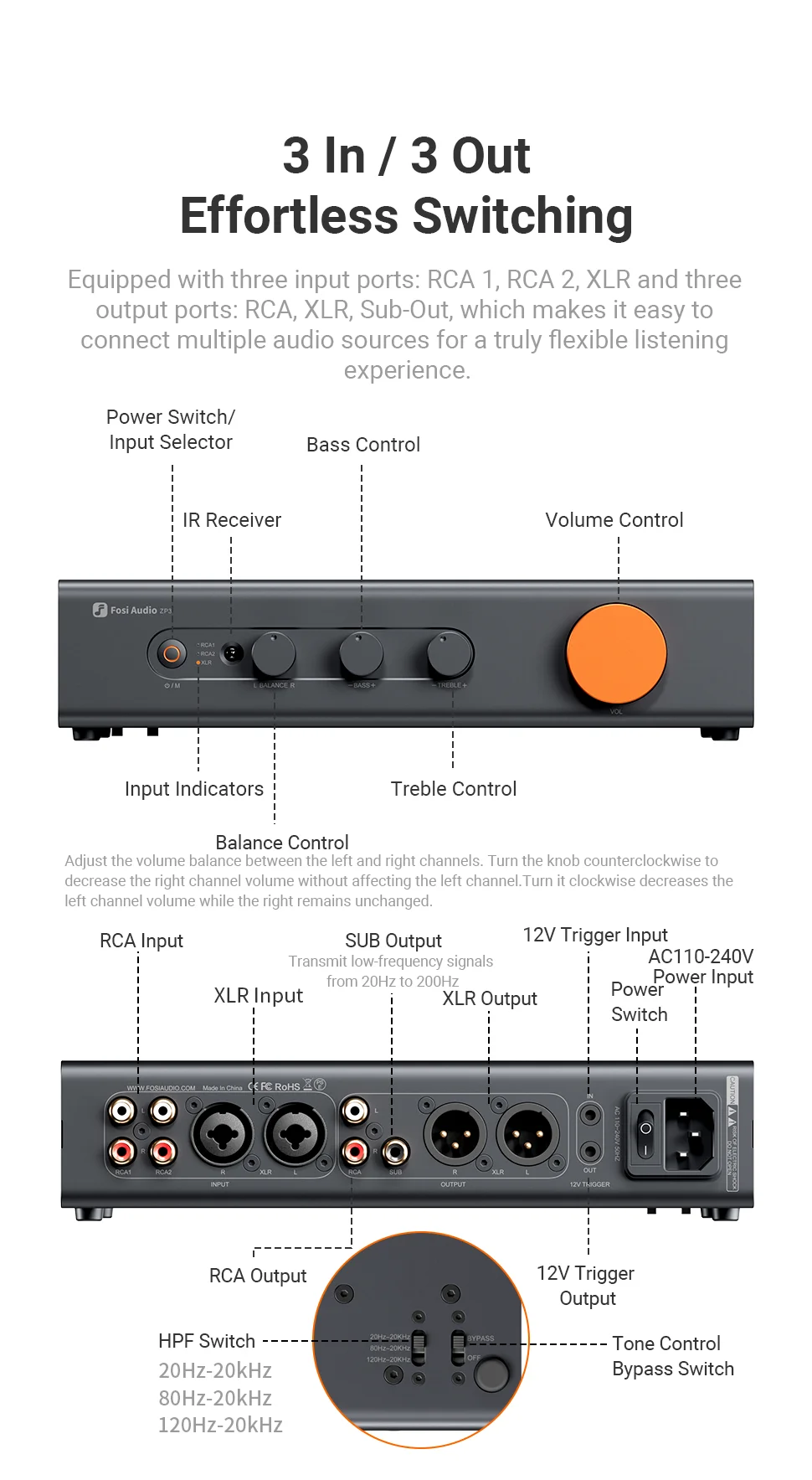

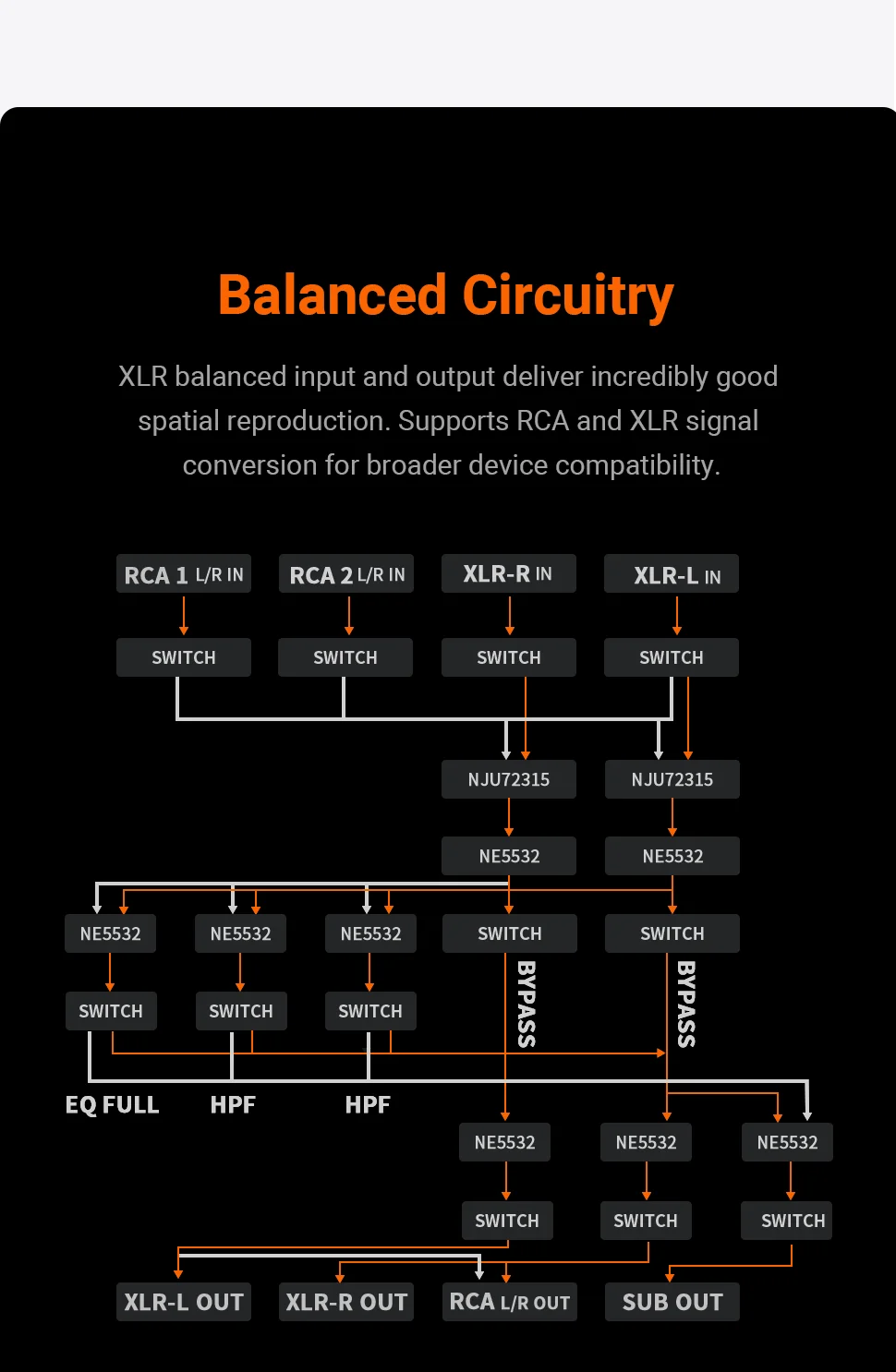

2.Versatile Connectivity

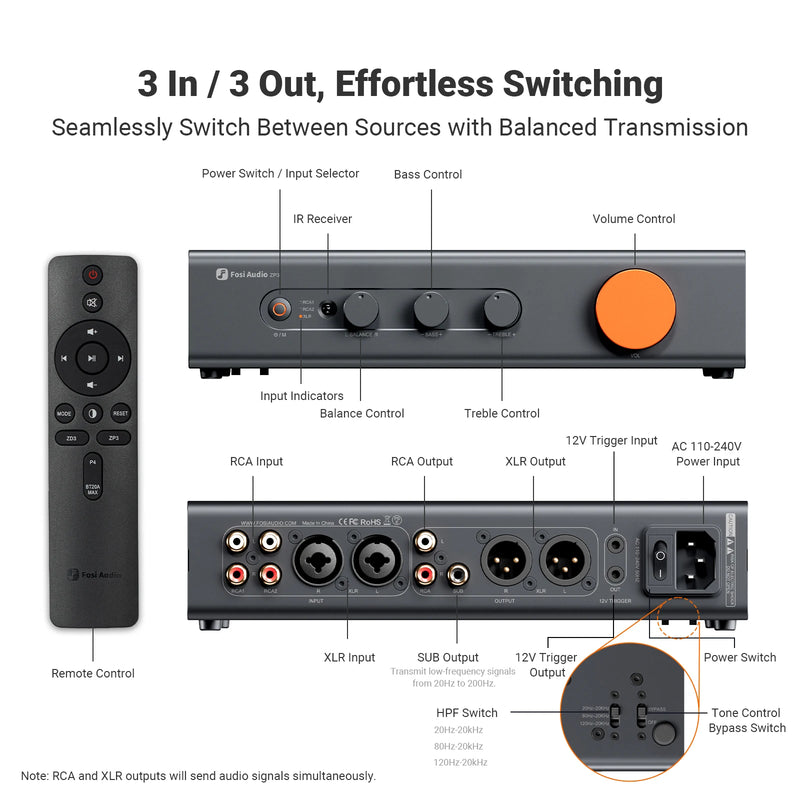

Equipped with RCA1/RCA2/XLR inputs and RCA/XLR/Sub-Out outputs, the ZP3 integrates multiple devices with ease. Supports balanced XLR in/out for cleaner sound, plus RCA/XLR signal conversion for maximum compatibility

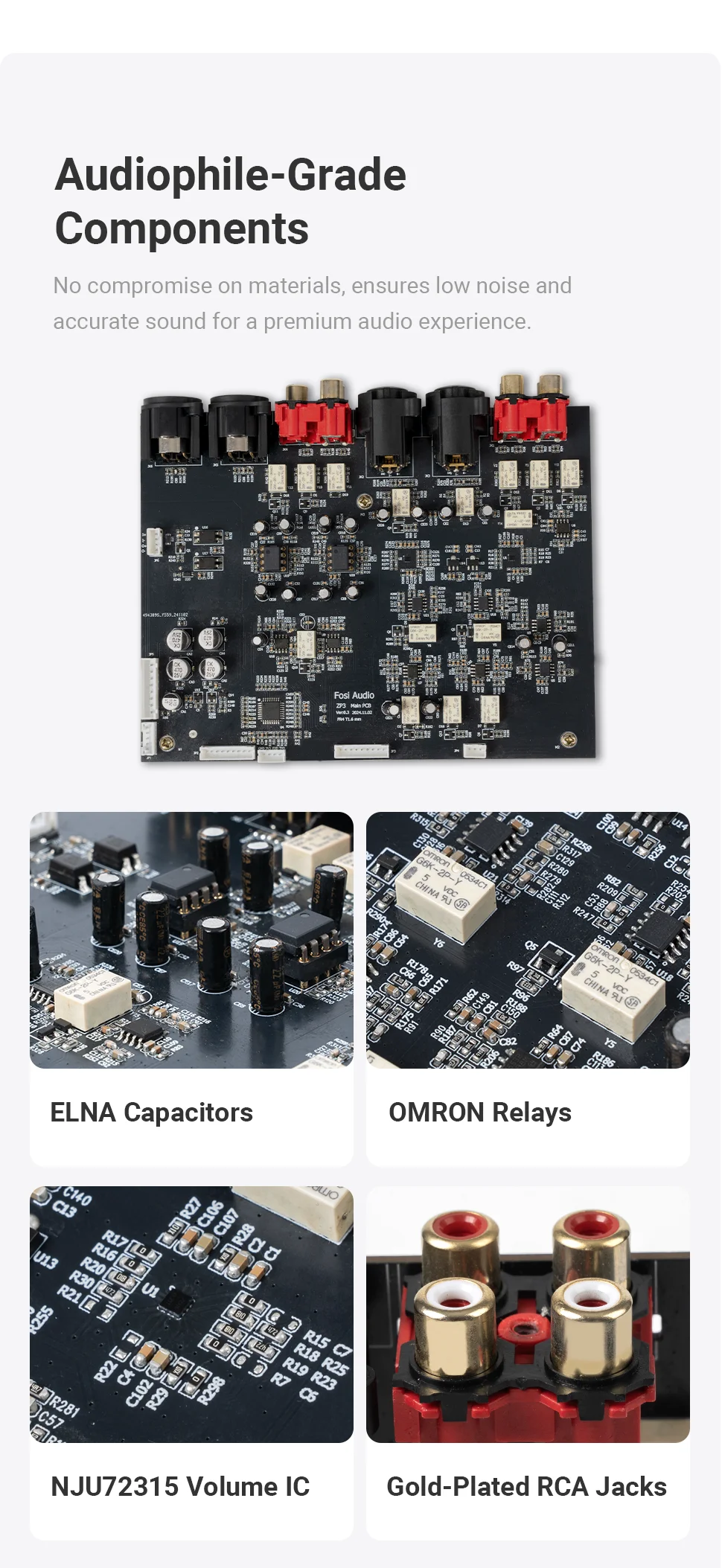

3.Audiophile-Grade Components

Built with premium parts including ELNA capacitors, NJR NJU72315 volume IC, and gold-plated RCA jacks. These components reduce noise and distortion, delivering exceptional clarity and high-fidelity performance

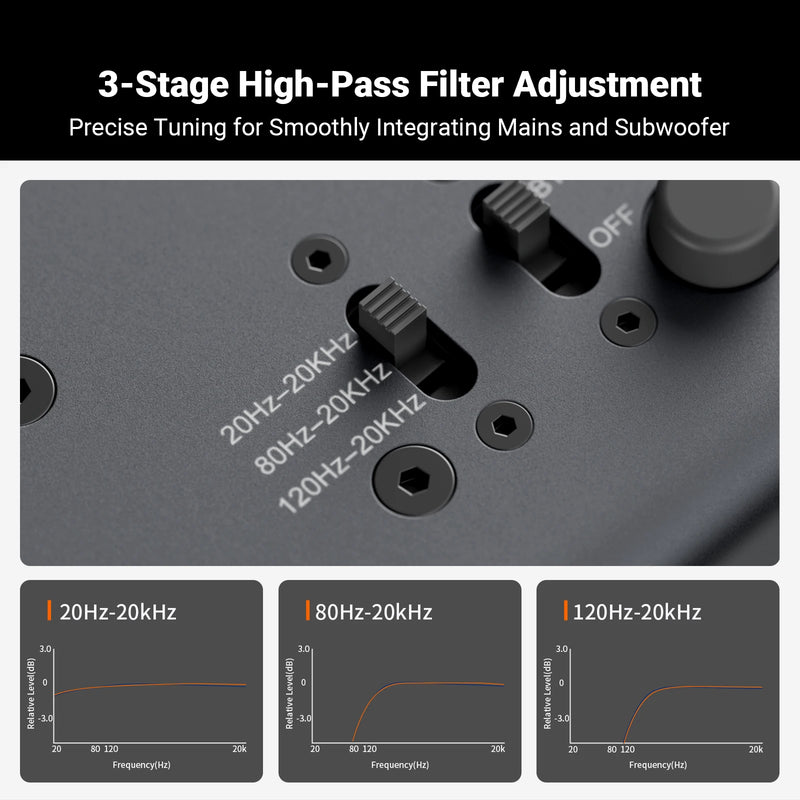

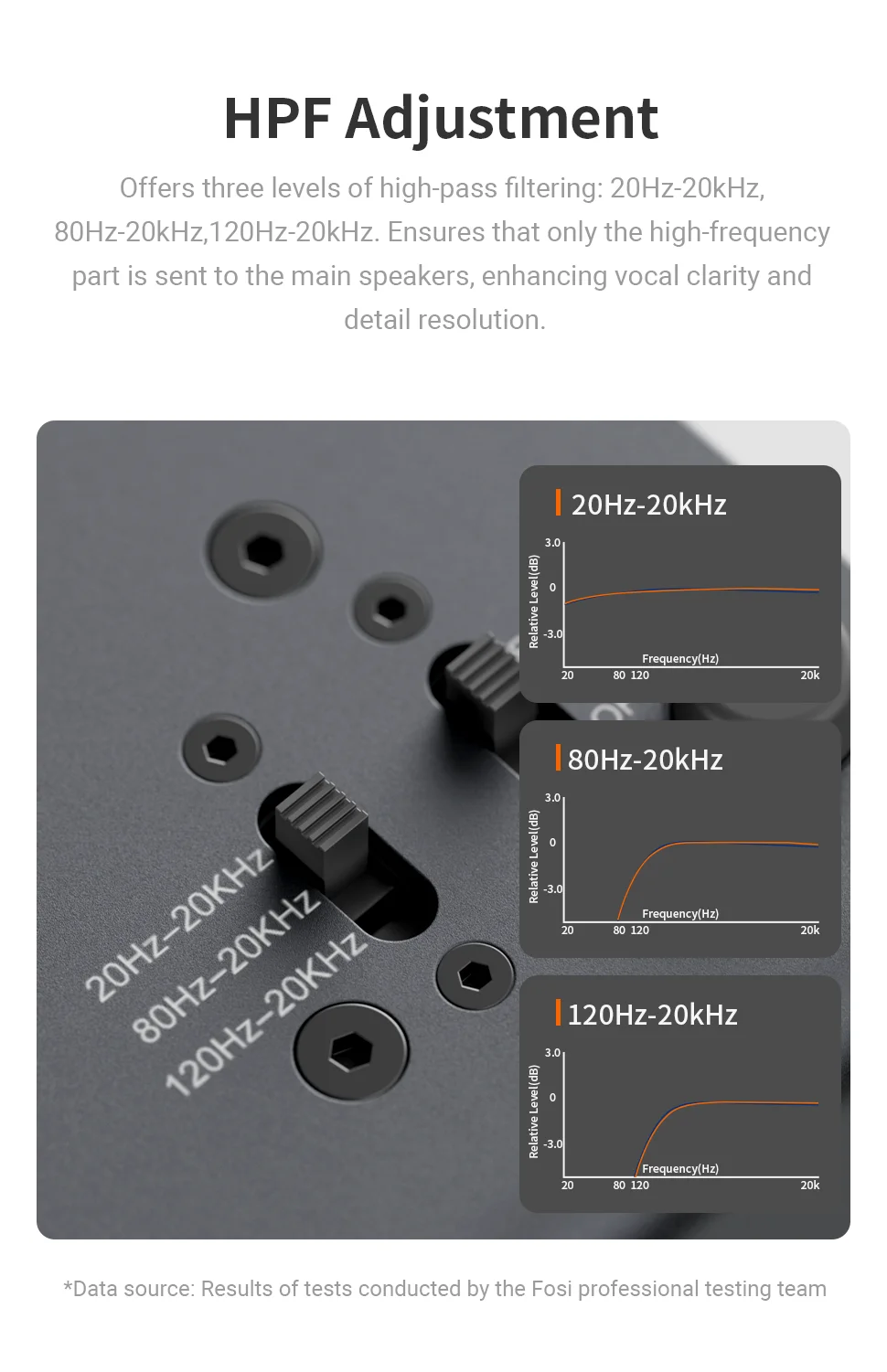

4.Adjustable High-Pass Filter

Three-level HPF settings filter low-frequency signals from the RCA/XLR outputs, sending only mids and highs to main speakers while routing bass through the SUB-OUT—enhancing clarity, detail, and overall sound balance

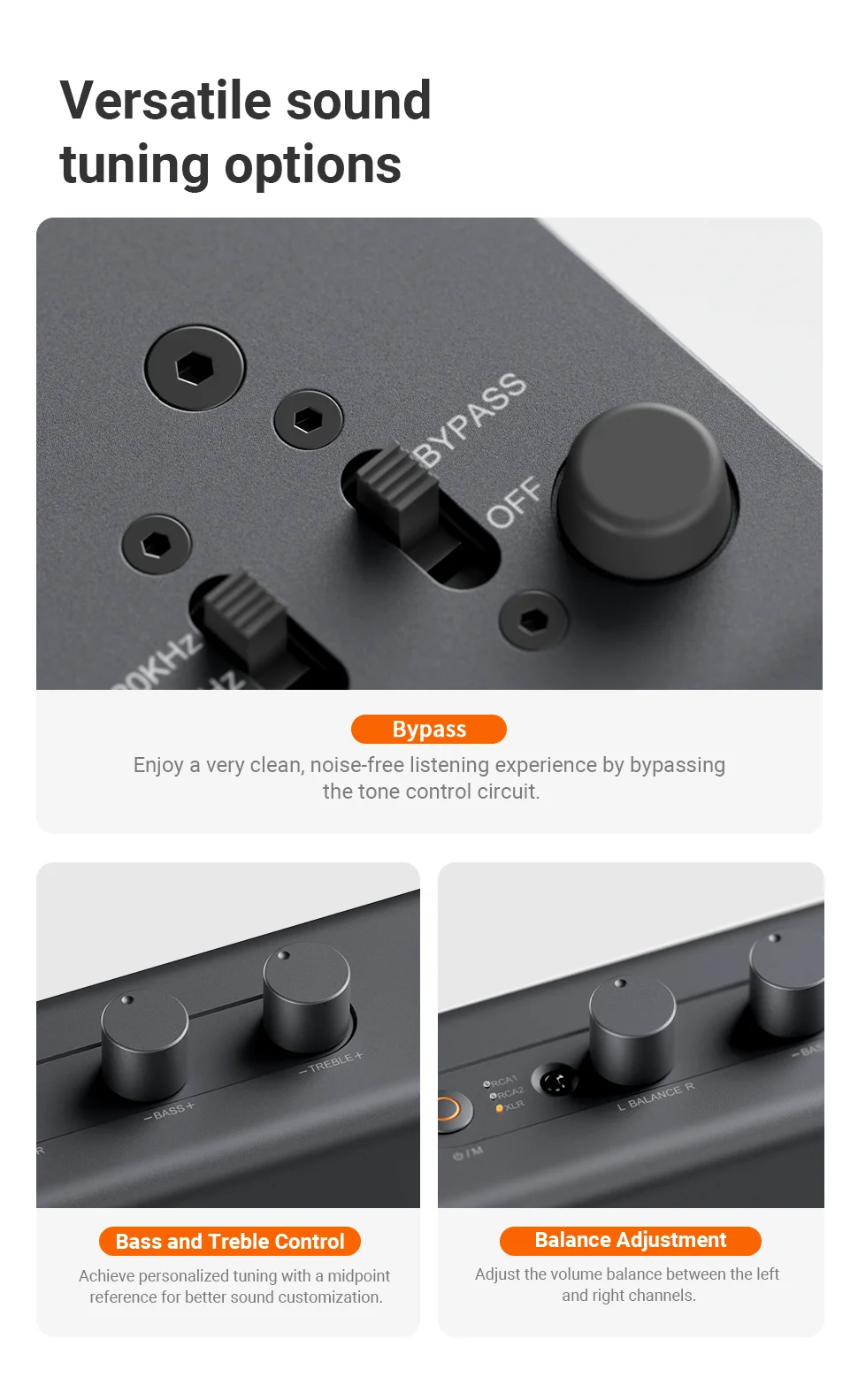

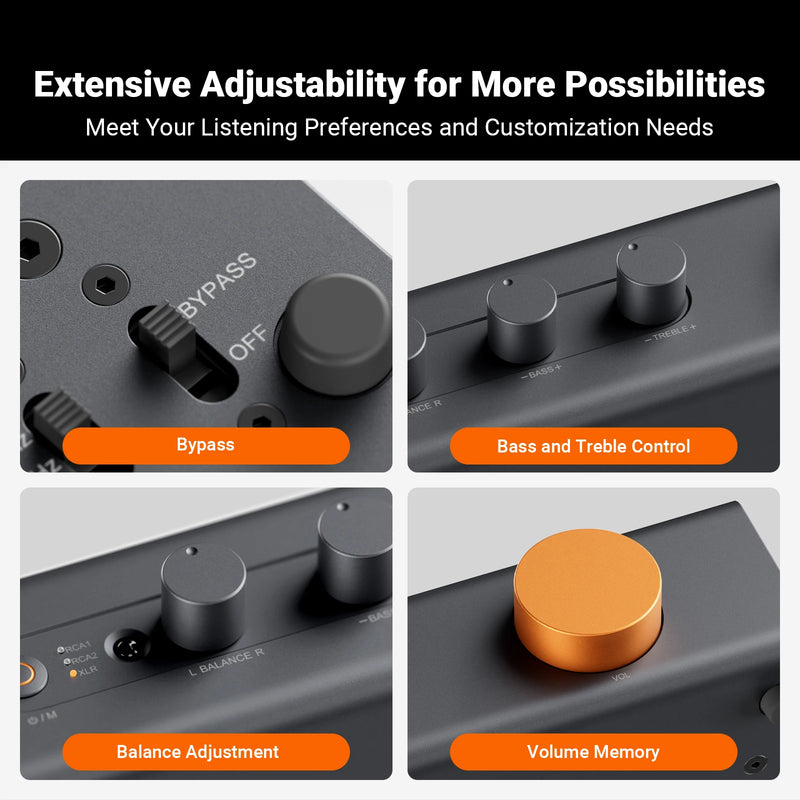

5.Flexible Sound Customization

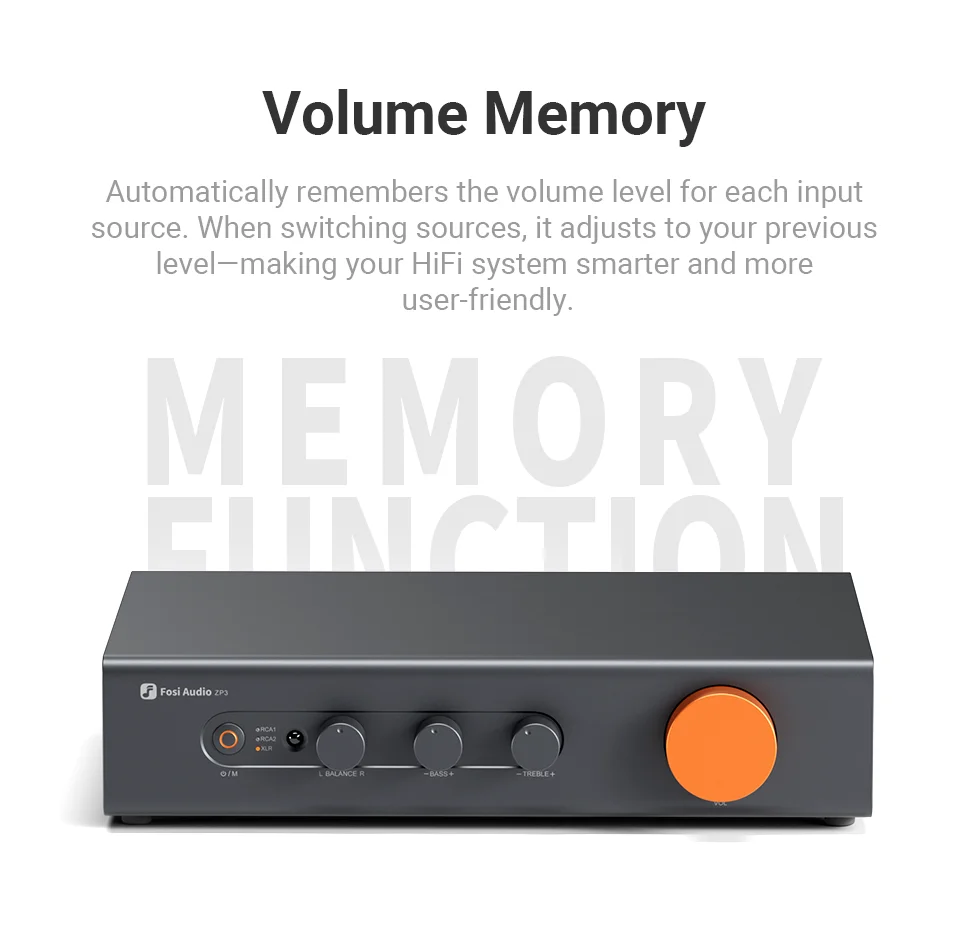

Includes bass/treble control with bypass function, and L/R balance knobs for personalized adjustment. Volume memory remembers settings for each input source—giving you a smarter, more convenient audio experience tailored to your taste

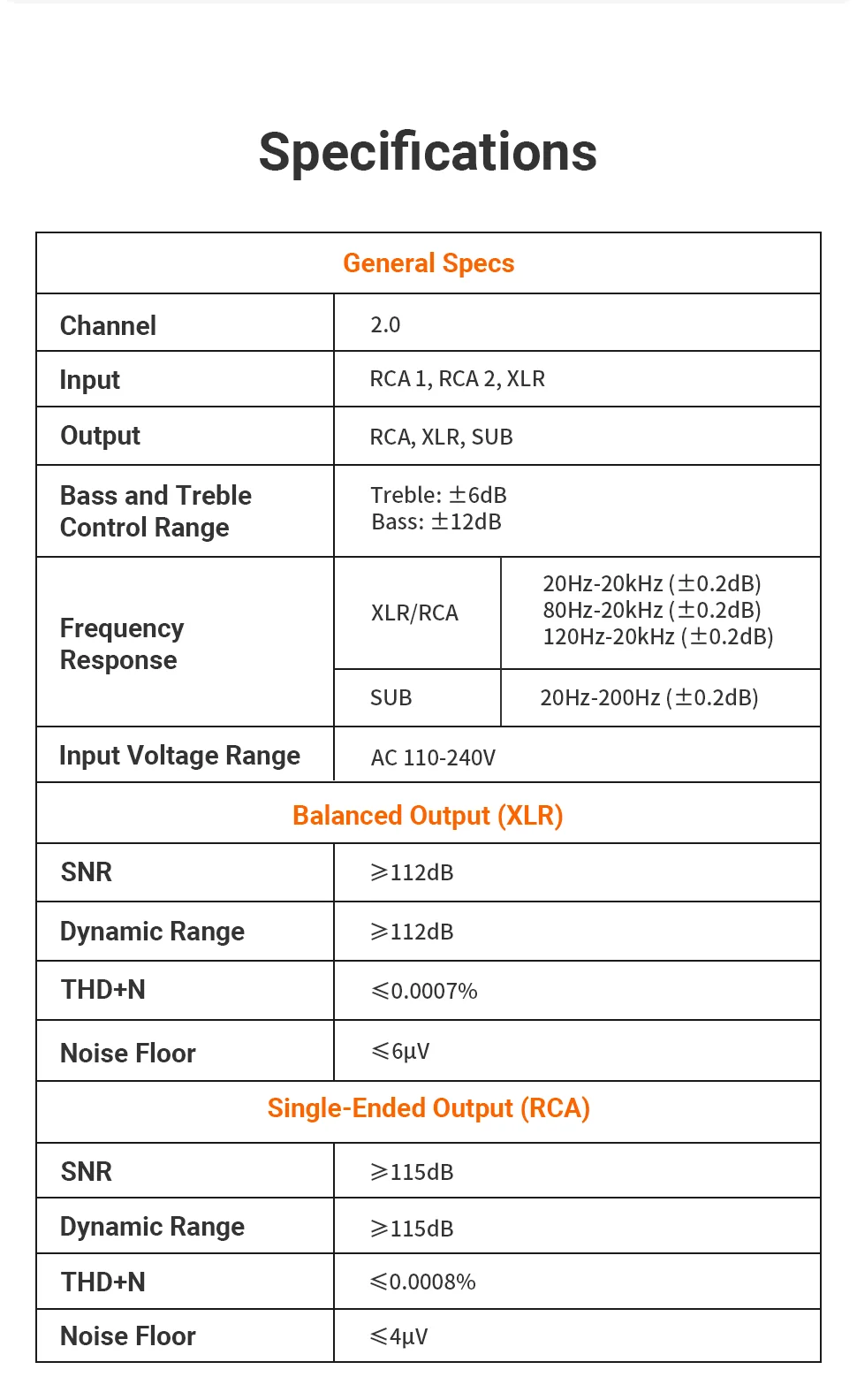

Specification

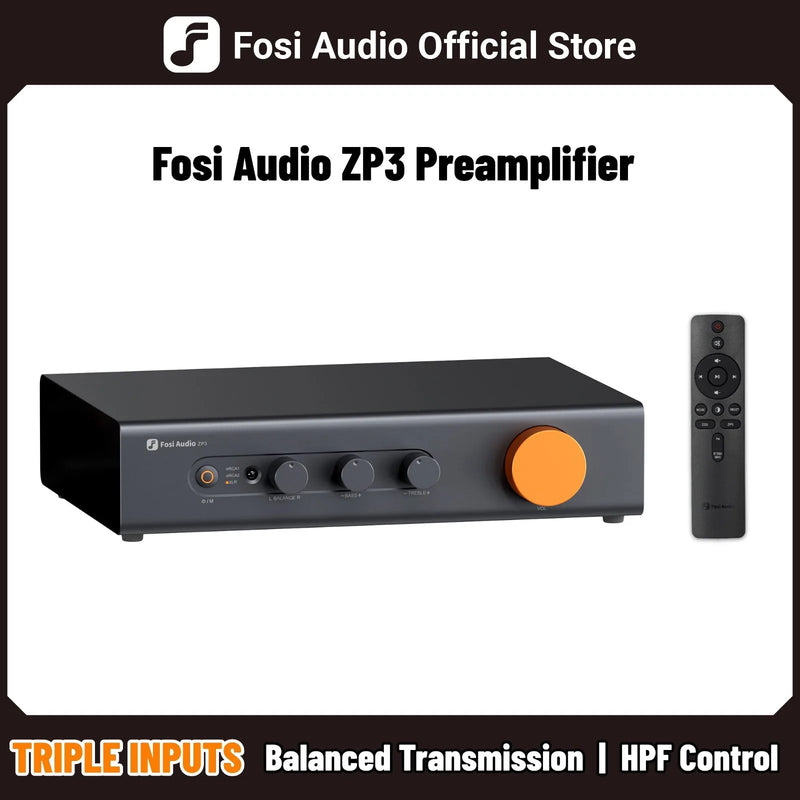

Product model: ZP3
Channel: 2.0
Input interface: RCA x2, XLR
Output interfaces: RCA, XLR, SUB
High and low frequency adjustment range: high frequency (± 6dB), low frequency (± 12dB)
Frequency response:
XLR/RCA
20Hz-20kHz (±0.2dB)
80Hz-20kHz (±0.2dB)
120Hz-20kHz (±0.2dB)
SUB
20Hz-200Hz (±0.2dB)
Input current and voltage: AC 110-240V

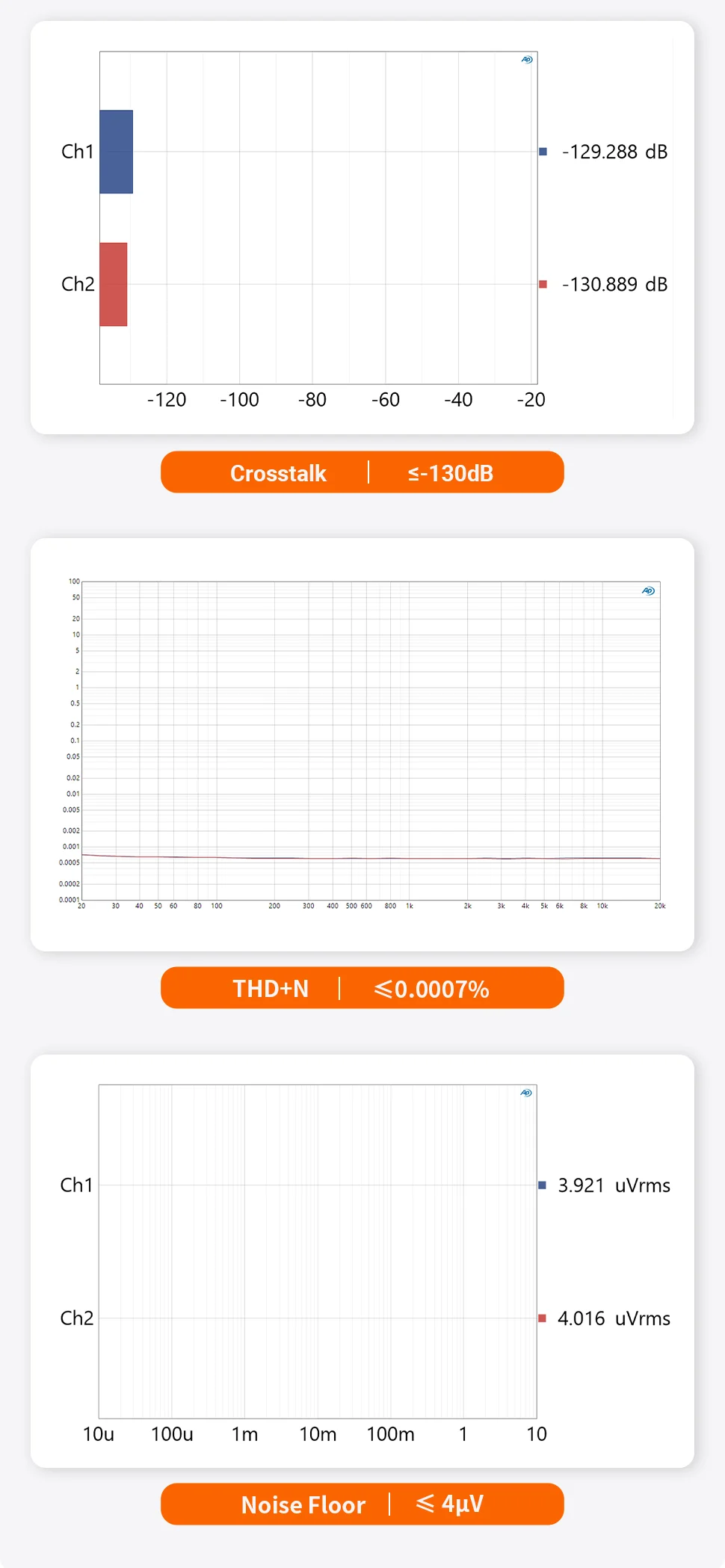

Balance line output performance parameters (XLR):

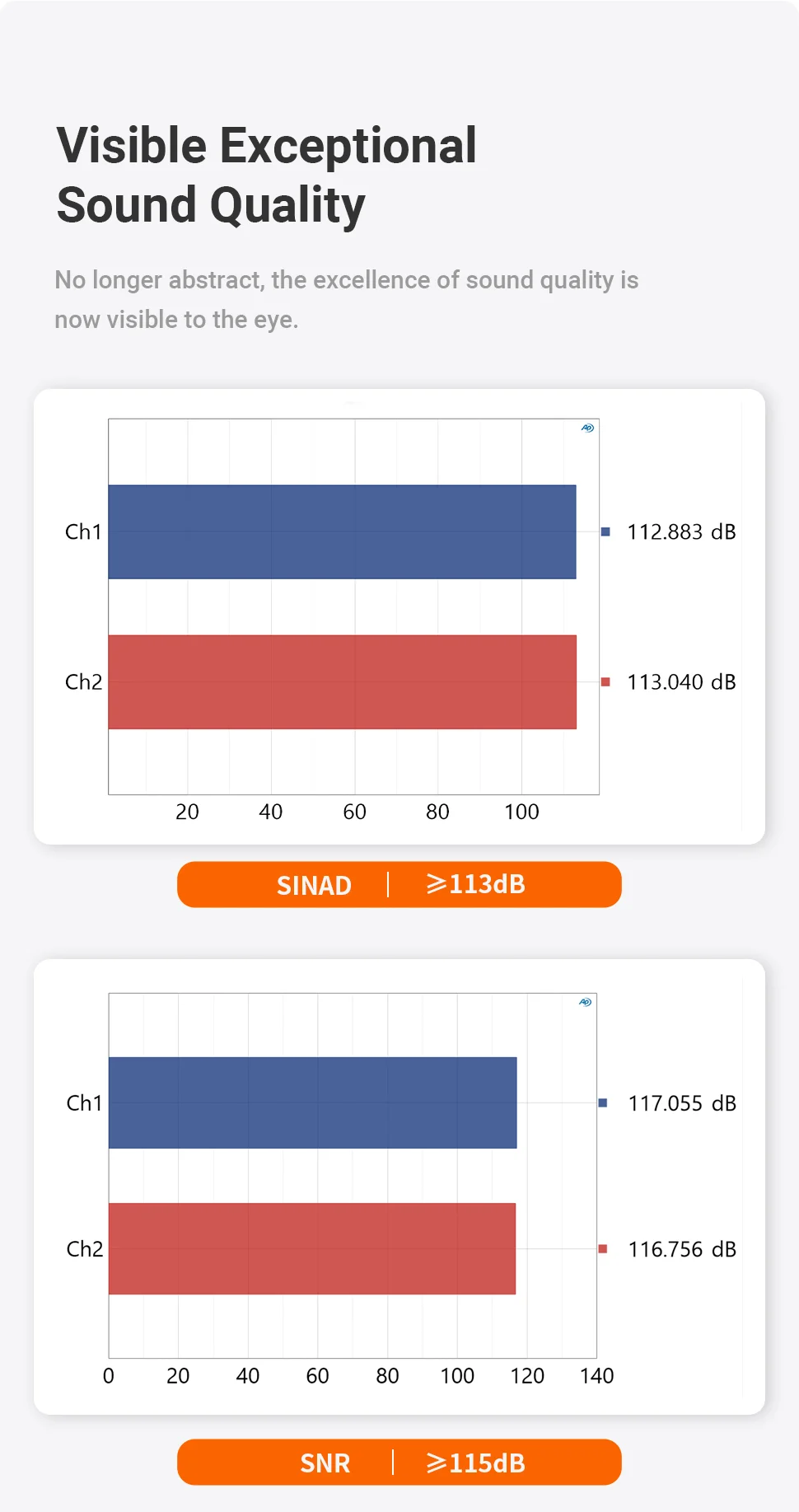

Signal to noise ratio ≥ 112 dB
Dynamic range ≥ 112 dB
Distortion ≤ 0.0007%
Noise ≤ 6 μ V

Single ended line output performance parameters (RCA):
Signal to noise ratio ≥ 115 dB
Dynamic range ≥ 115 dB
Distortion ≤ 0.0008%
Noise ≤ 4 μ V
