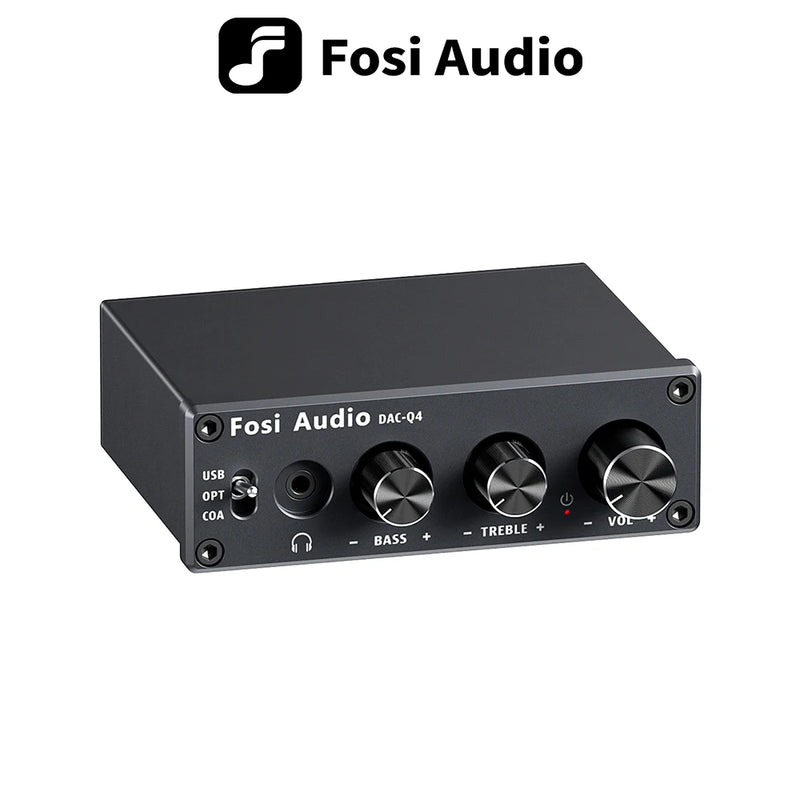

Fosi Audio Q4 Mini Stereo Gaming USB DAC & Headphone Amplifier Audio Converter Adapter for Home/Desktop Powered/Active Speakers
SPECIFICATIONS
Bluetooth: No
Brand Name: Fosi Audio
Certification: CE
D/A Converter: MS8412
DSD Sampling Frequencies: NONE
Electrified: No
High-concerned chemical: none
Inputs: USB Type-A
Material: Metal
Model Number: Q4
Origin: Mainland China
Outputs: RCA
PCM Sampling Frequencies: 192 kHz
PCM Word Length: 24-bit
Type: Desktop
USB Compatibility: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows XP,Windows Vista,iOS,Android,osx
WIFI: No
Fosi Audio Q4 - Mini Stereo USB Gaming DAC & Headphone Amplifier Audio Converter Adapter for Home/Desktop Powered/Active Speakers
Notice: If you choose to ship from the Brazil warehouse, Aliexpress currently does not offer the option of collecting and paying ICMS fees on behalf of the buyer. If it is found later by the tax authorities that ICMS fees need to be paid, the buyer is responsible for paying them, and the seller will not bear the responsibility. if you mind to pay 18% of the ICMS fee, please choose to ship from China, thank you for your understanding!
Features:
Easy to set up, no special software, app, or driver to install, a true plug-and-play digital audio adapter.
You will get neutral sound when you adjust the EQ to 12 o'clock position.

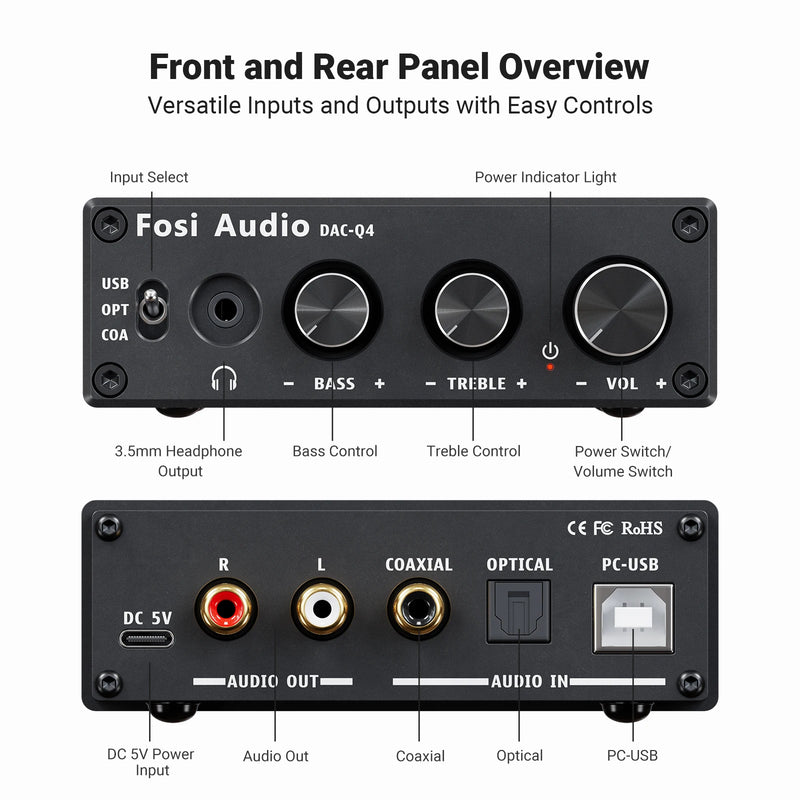

With USB, optical and coaxial S/PDIF inputs can fit with most home audio system, and RCA output can be connected to amplifier or powered speakers on your desktop; Built-in Hi-Fi headphone amp chip can drive most 16ohm to 200ohm headphones
160mW RMS(32 ohms, 20 Hz - 20 KHz, 0.01% THD), with bass and treble control can be used as preamp or volume controller for your PC/MAC/Computer
Mini Compact D/A converter, stream bit-perfect 24bit/192KHz HD with low jitter, with output protect circuit, safe for your expensive audio system
We offer 24-month warranty, and friendly customer service!
Highlight:
Model: Q4
Color: Black
DAC Chippest : MS8412
USB Chippest: CM6542
Headphone Chippest : 97220
OPM Chippest: NE5532
PC-USB supports input sampling rate: 96K/24Bit
High and low sound adjustment range: ±6dB
Fiber/coaxial support input sampling rate: 192K/24Bit
Frequency response: 20Hz-20kHz (±3dB)
PC-USB support operating system: XP/W7/W8/W10/MAC/linux
Distortion: 0.01%; SNR: ≥105dB
Amp output maximum power: 125mW 32Ω load
Headphone matching impedance: 16-200Ω
Working voltage: DC5V; RCA output level: 2.3V
Size (L*W*H): 73.5*98*33MM (without knobs and terminals)
Package Include:
NOTE: The new version of Q4 has replaced the USB chip with CM6542. You can directly plug in the PC-USB cable to power the Q4 and have it recognized by the computer.
