Product Introduction

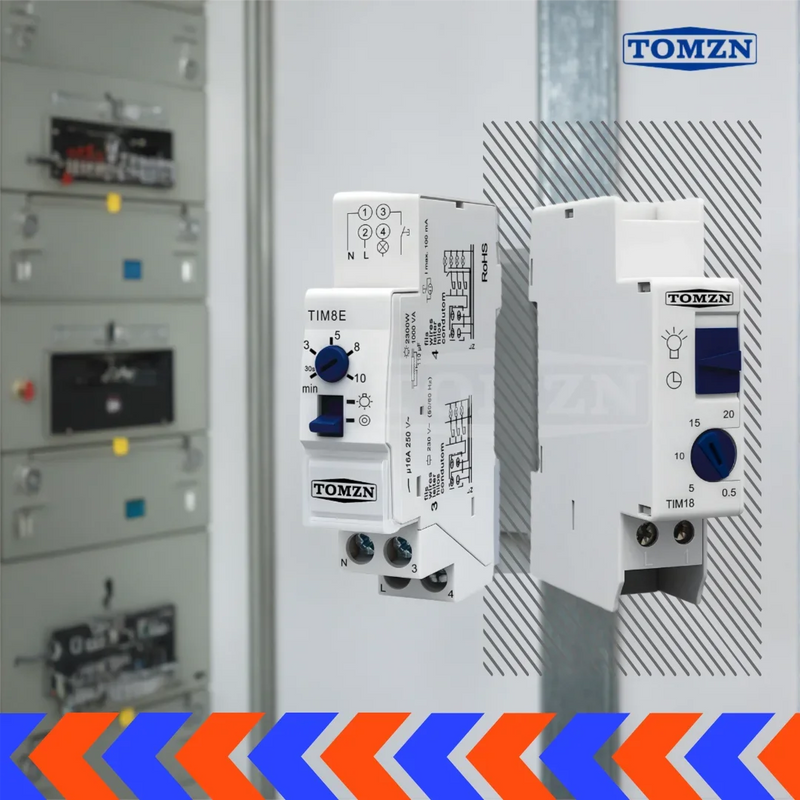

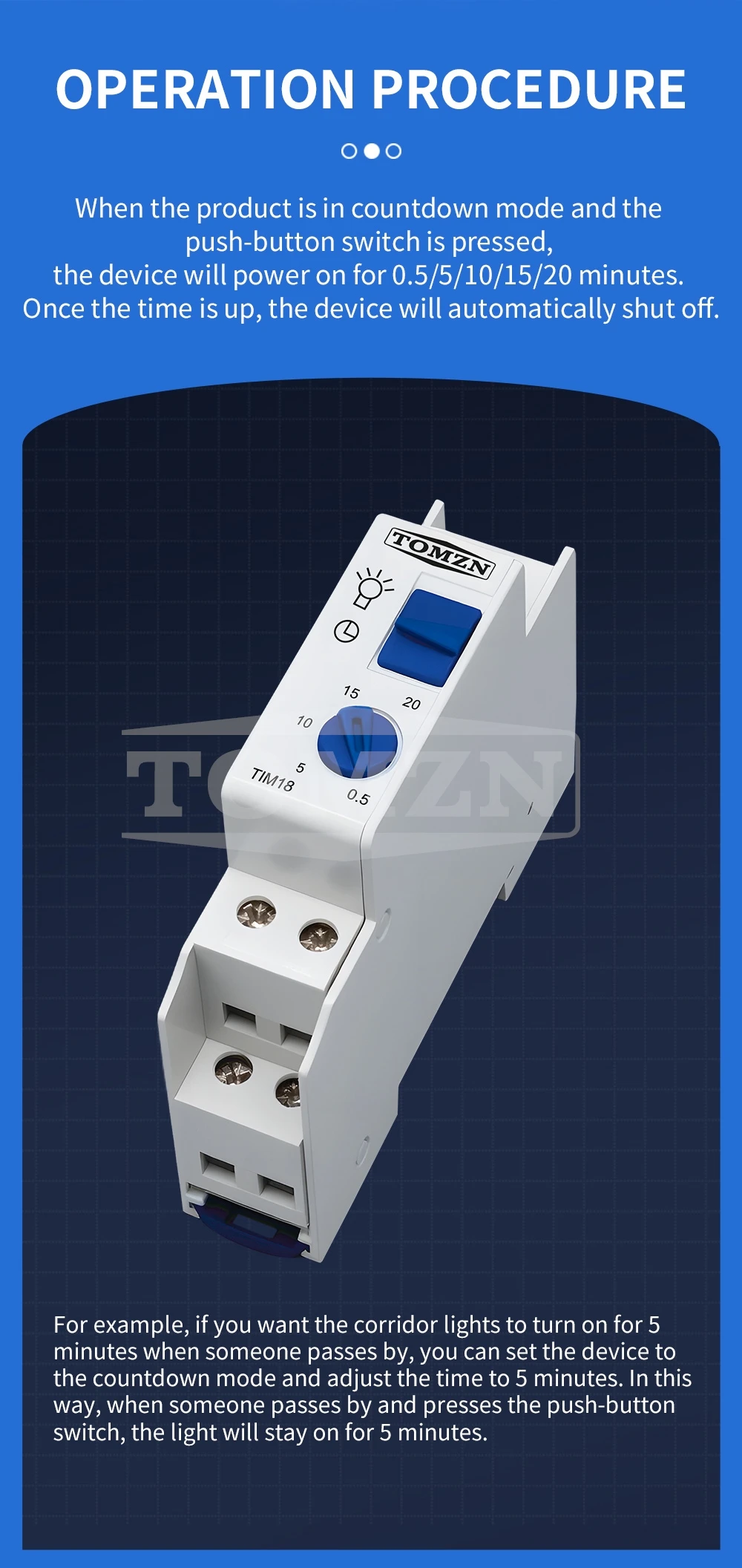

The Staircase Light Time Switch is a compact and versatile delay timer designed specifically for automatic lighting control in stairwells, corridors, and similar applications. Activated by a momentary push button, the output is engaged for a preset delay period before automatically switching off, ensuring energy efficiency and convenience. Engineered for professional installation, both models feature DIN rail mounting and support a rated voltage of 250V AC with a 16A current capacity. The TIM8E offers adjustable delay times ranging from 0.5 to 10 minutes, while the TIM18 provides extended delay options from 0.5 to 20 minutes. Each model includes Timer and Constant-ON operating modes, offering flexibility for various installation requirements.

Product Data Sheet

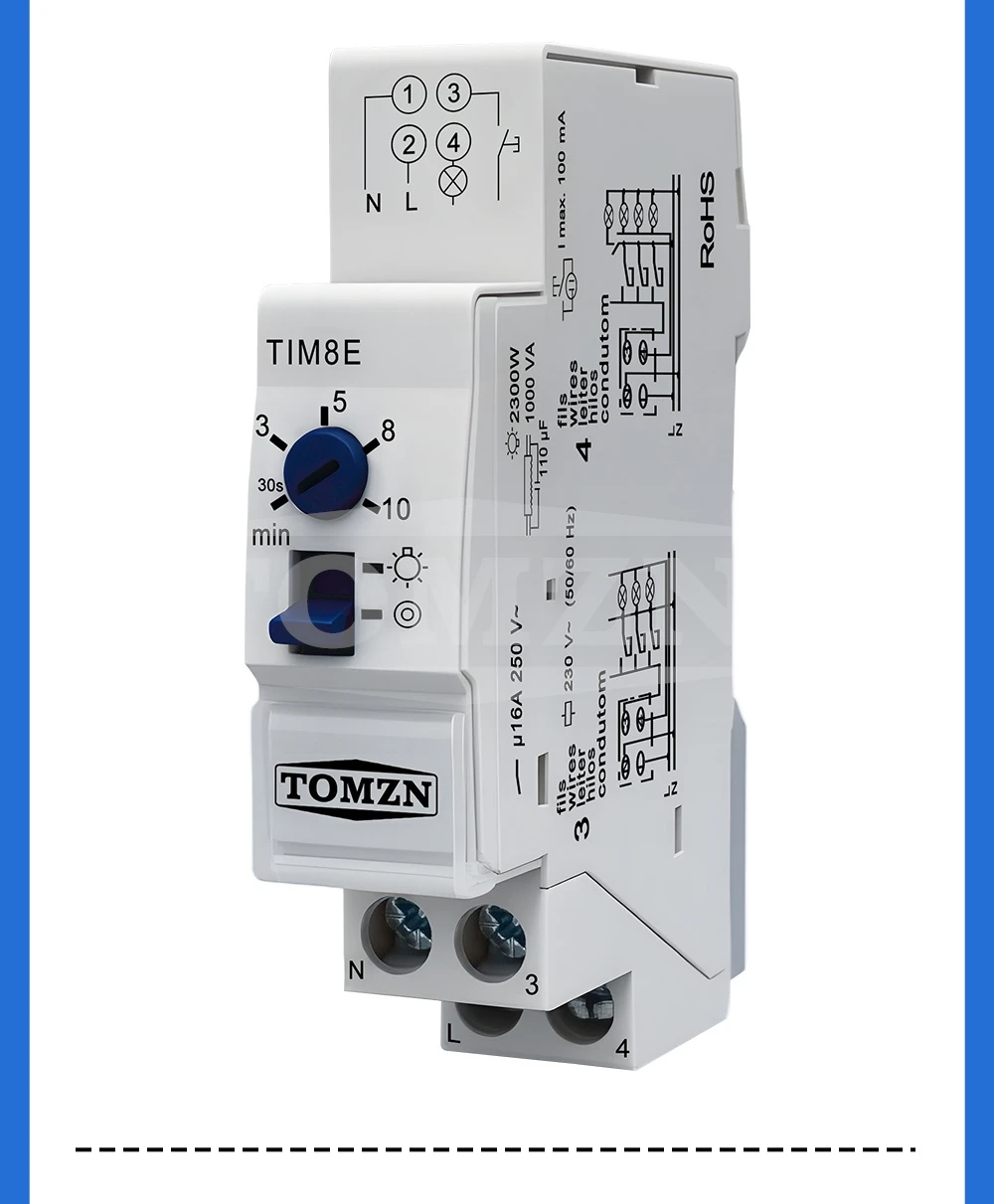

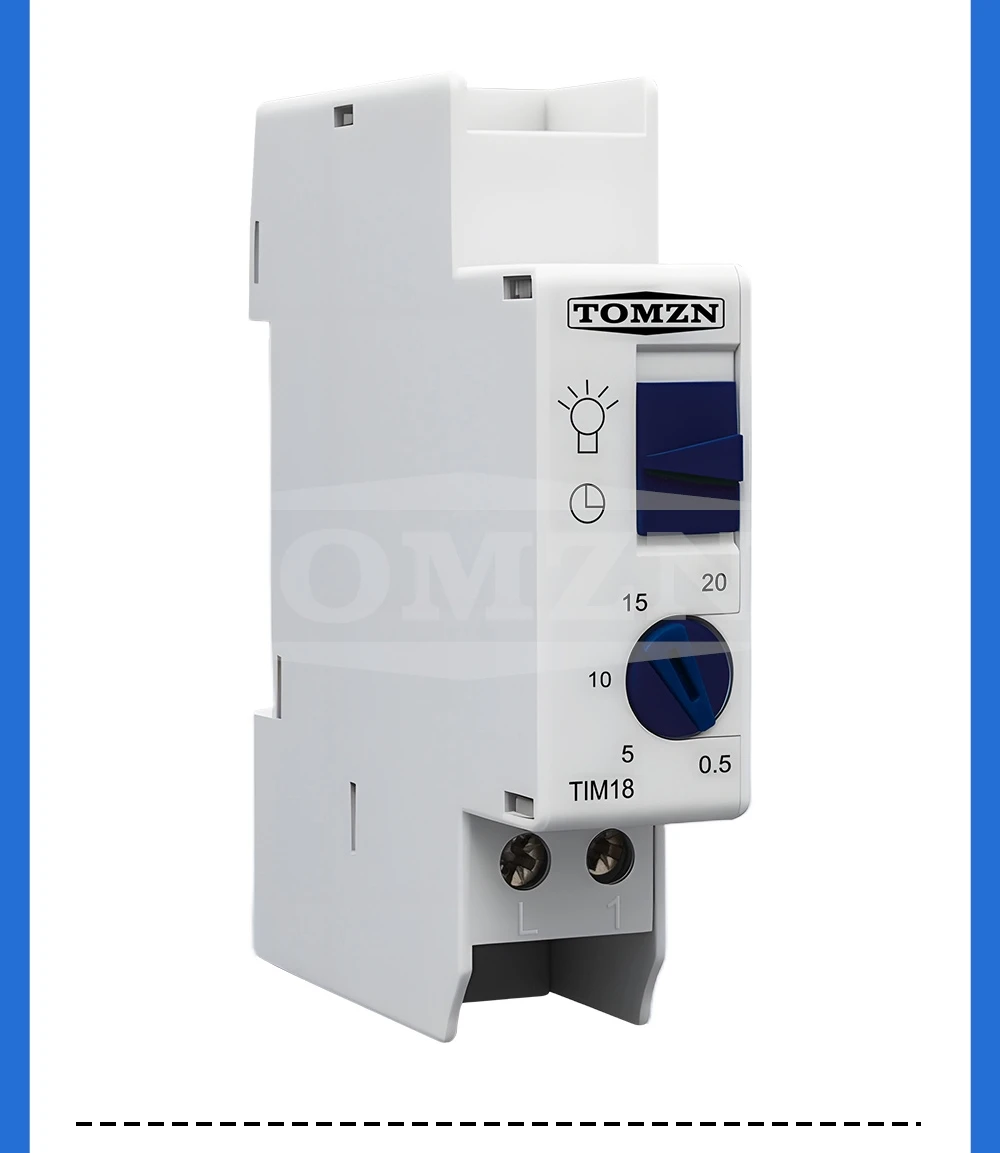

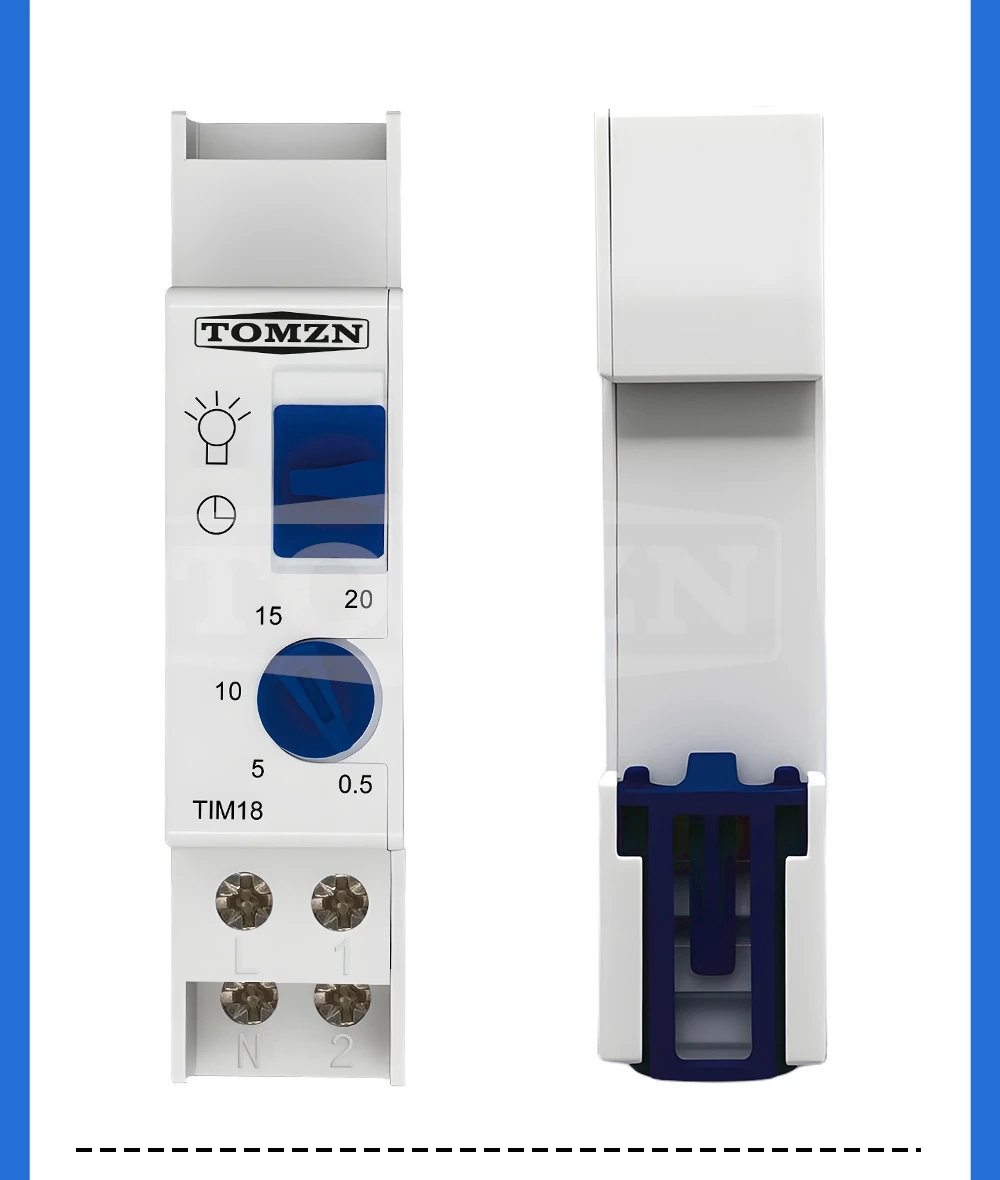

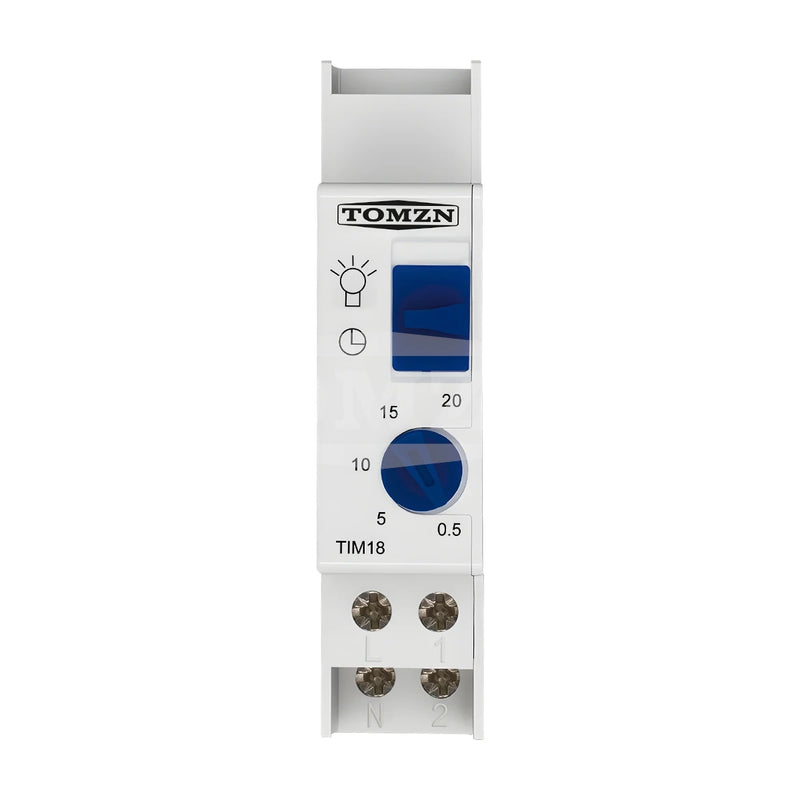

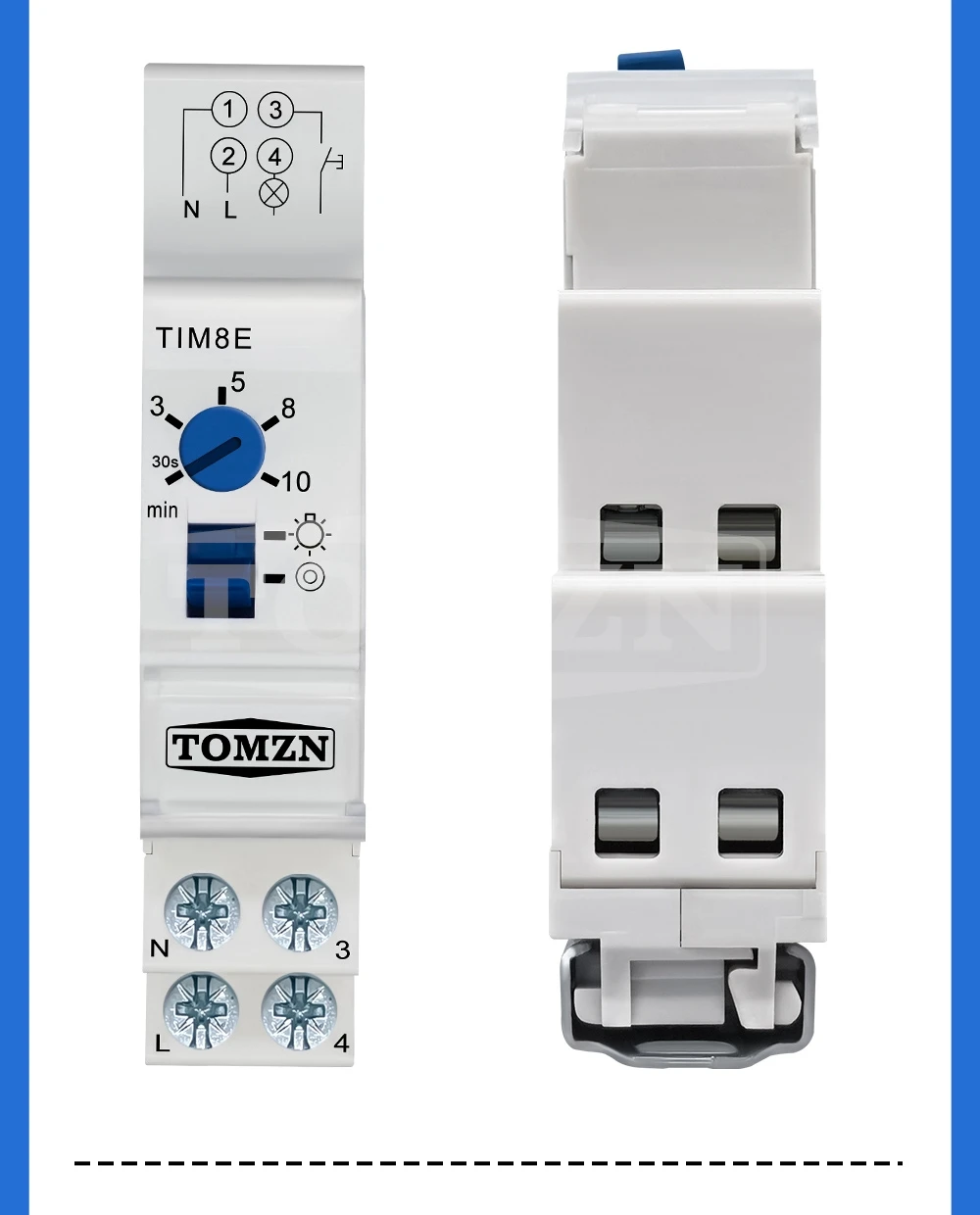

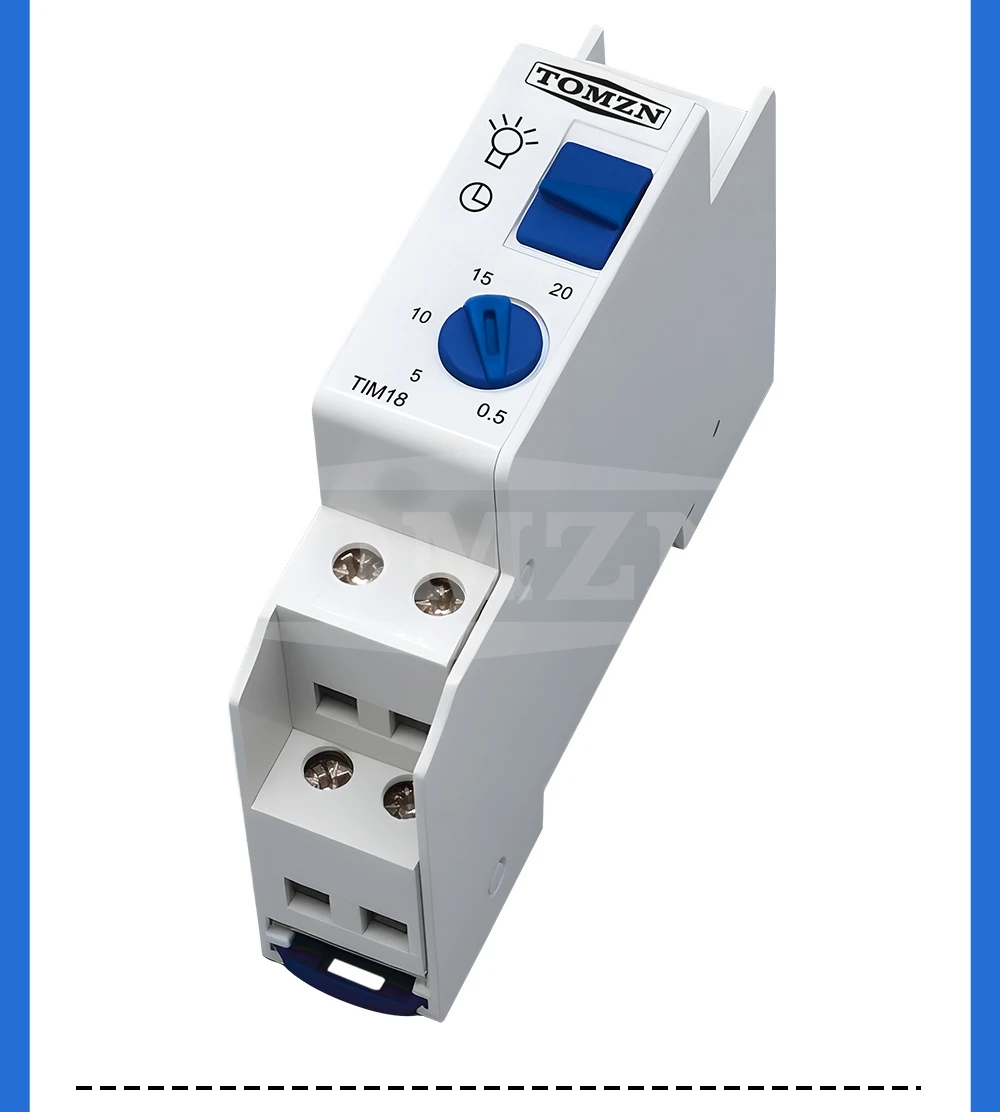

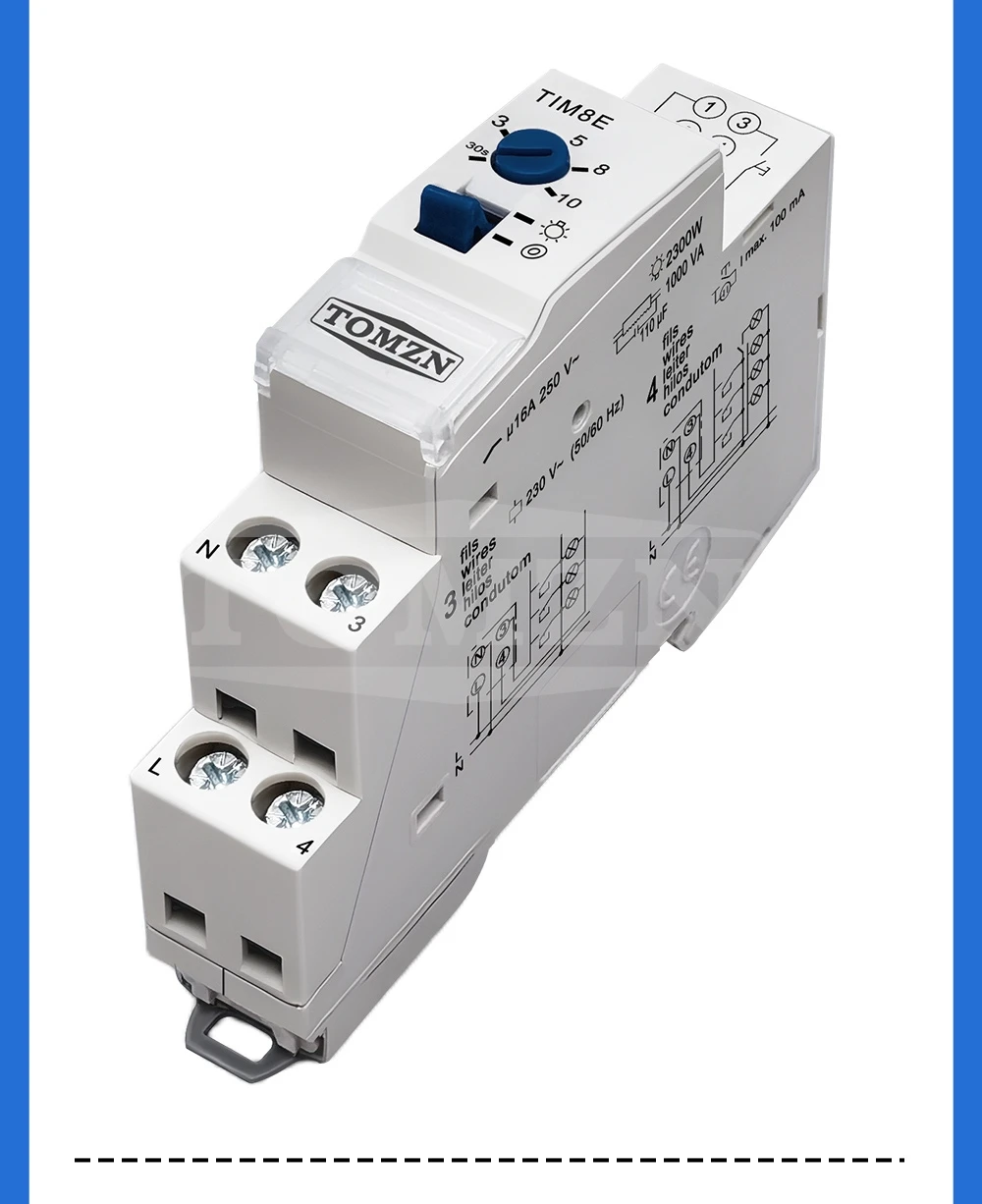

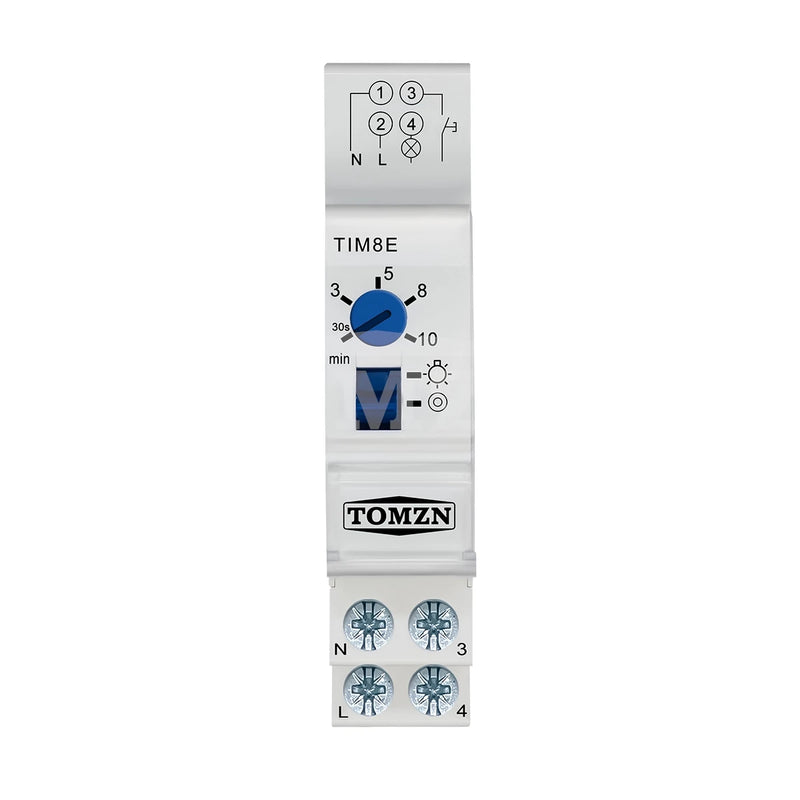

Model: TIM8E / TIM18

Temperature Range: -10°C to 55°C (both models)

Installation: DIN Rail (both models)

Rated Voltage: 250V AC (both models)

Rated Current: 16A (both models)

Delay Time: 0.5 / 3 / 5 / 8 / 10 minutes (TIM8E) / 0.5 / 5 / 10 / 15 / 20 minutes (TIM18)

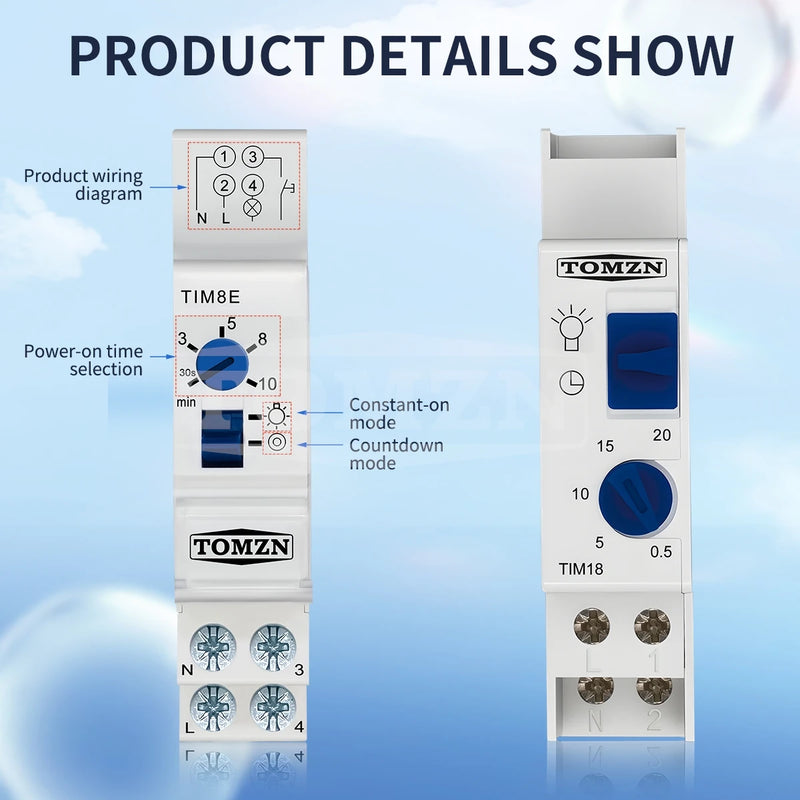

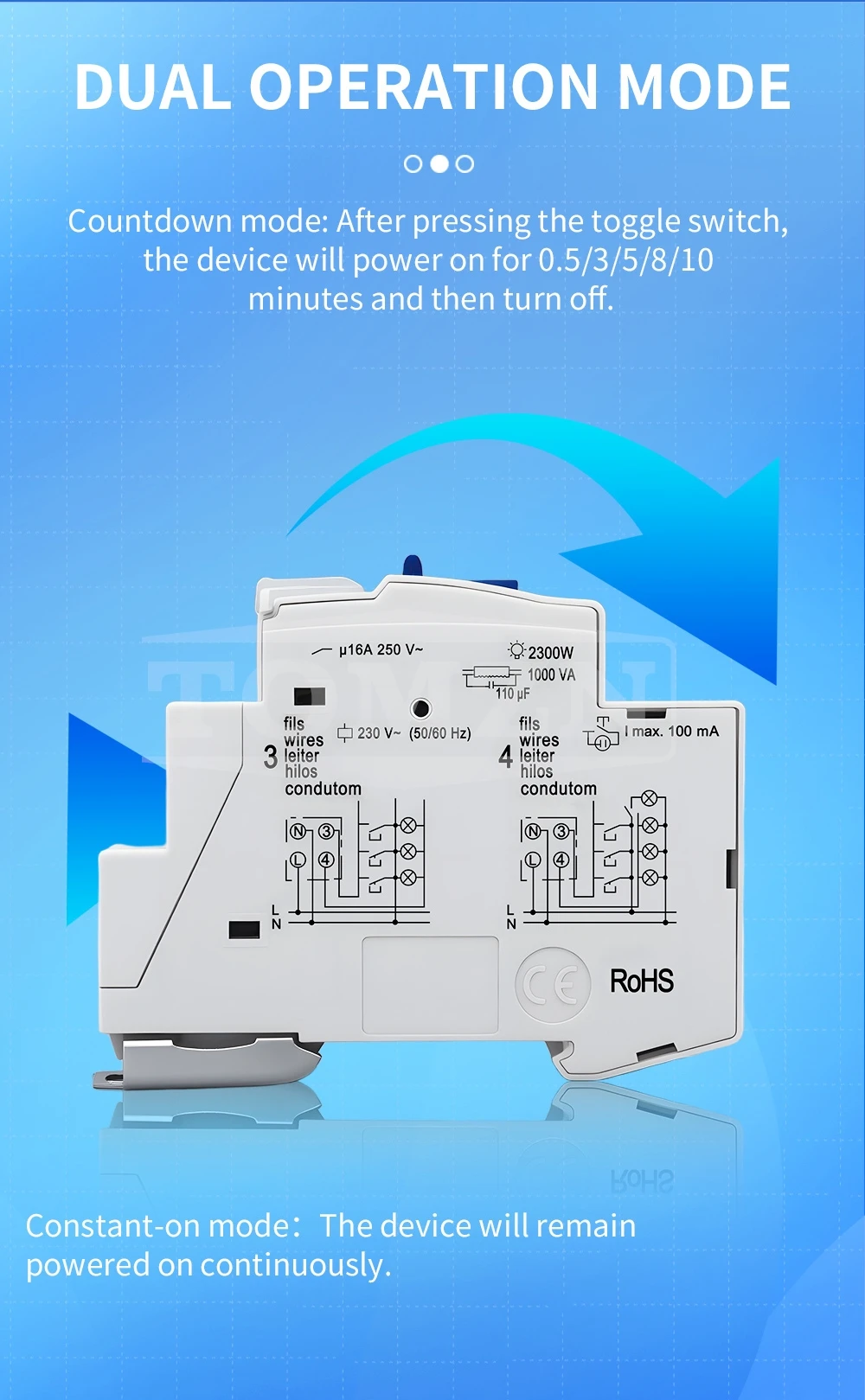

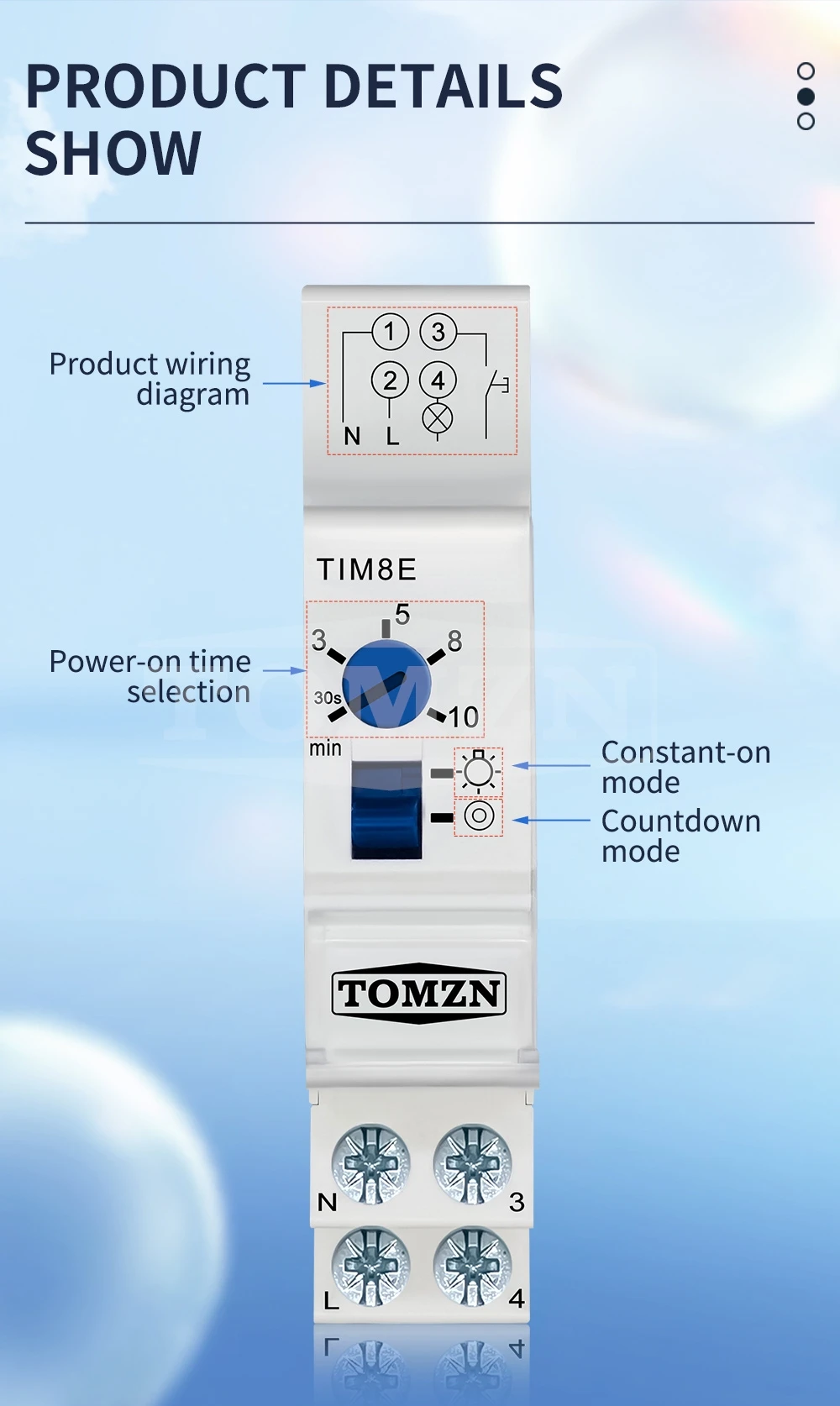

Mode: Timer / Constant-ON (both models)

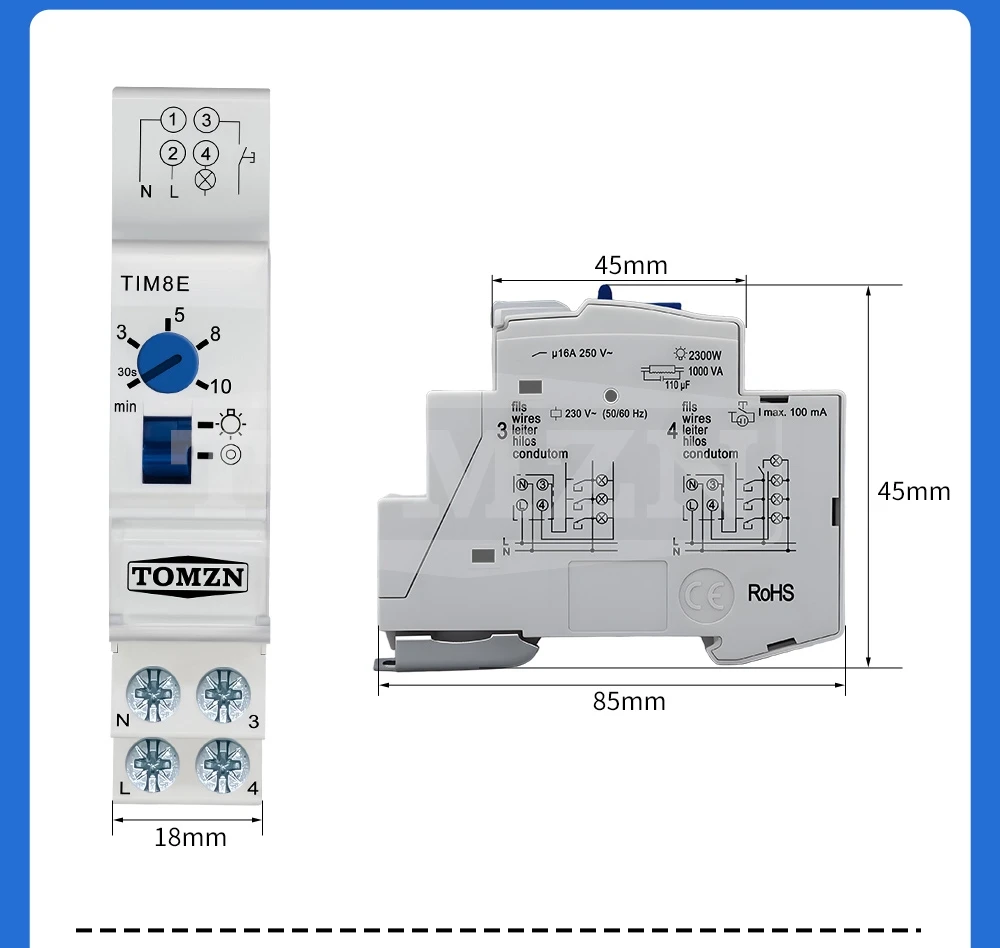

Dimension: 85.5 × 18.5 × 64.5 mm (TIM8E) / 85 × 18 × 64 mm (TIM18)
