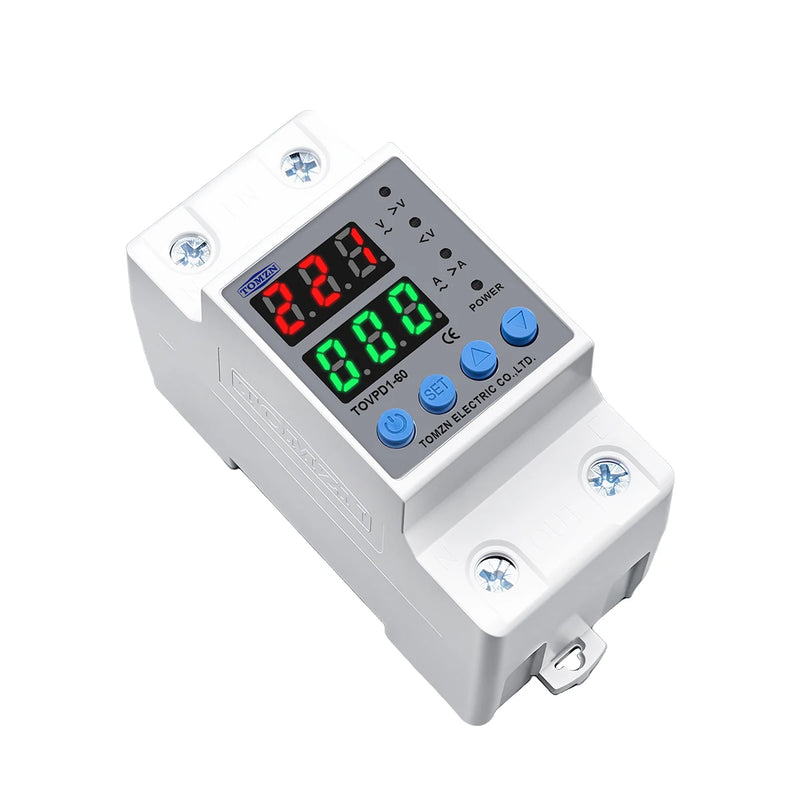

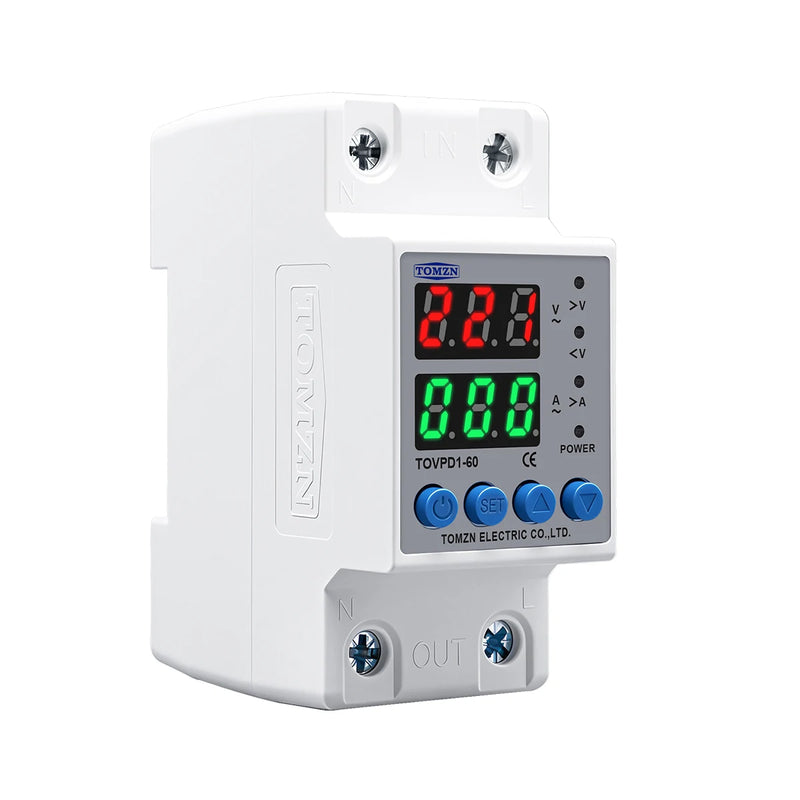

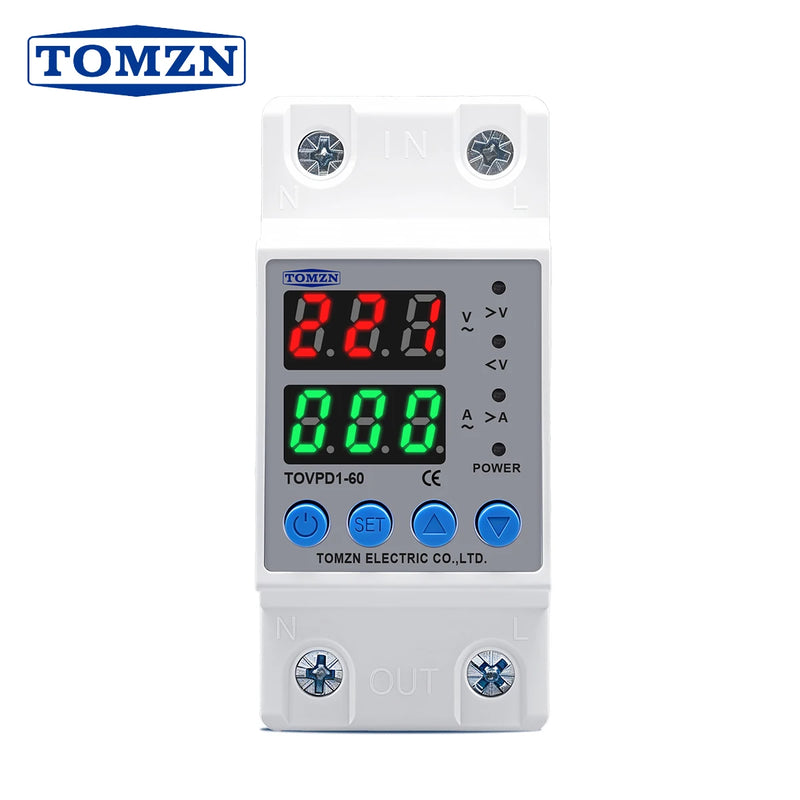

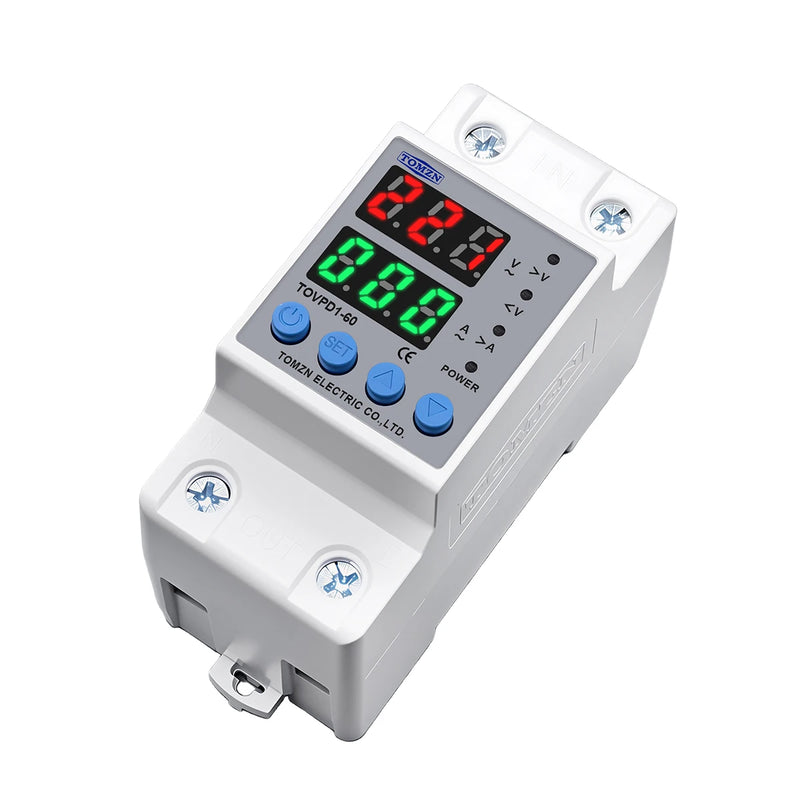

Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 40A 63A 220V 230V

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TOVPD1-60-EC

Origin: Mainland China

Over current protection: 1A-63A (adjustable) (default: 20A)

Over voltage proteciton: 230V-300V (adjustable) (default: 280V)

Reconnect time: 3s-300s (default: 5A)

Type: Voltage protector,Voltage relay

Under voltage protection: 140V-210V(adjustable) (default: 160V)

is_customized: Yes

semi_Choice: yes

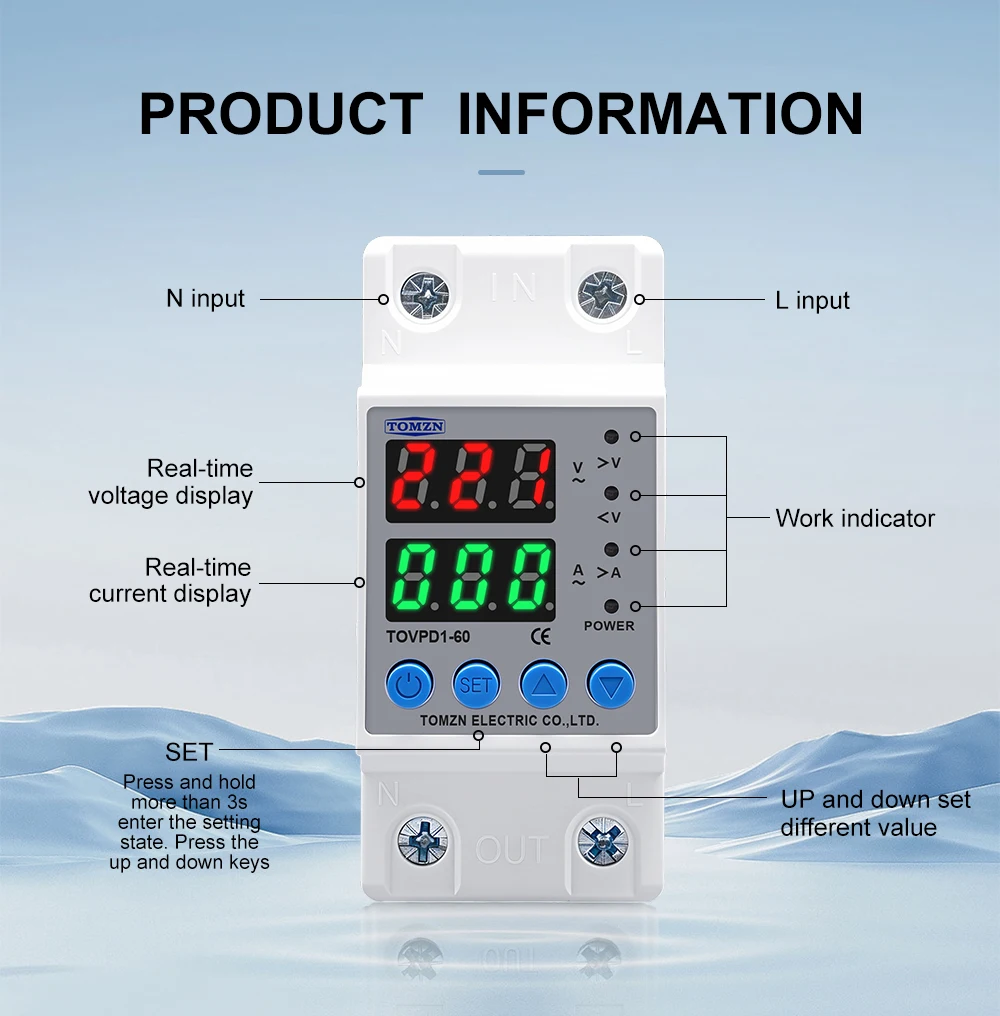

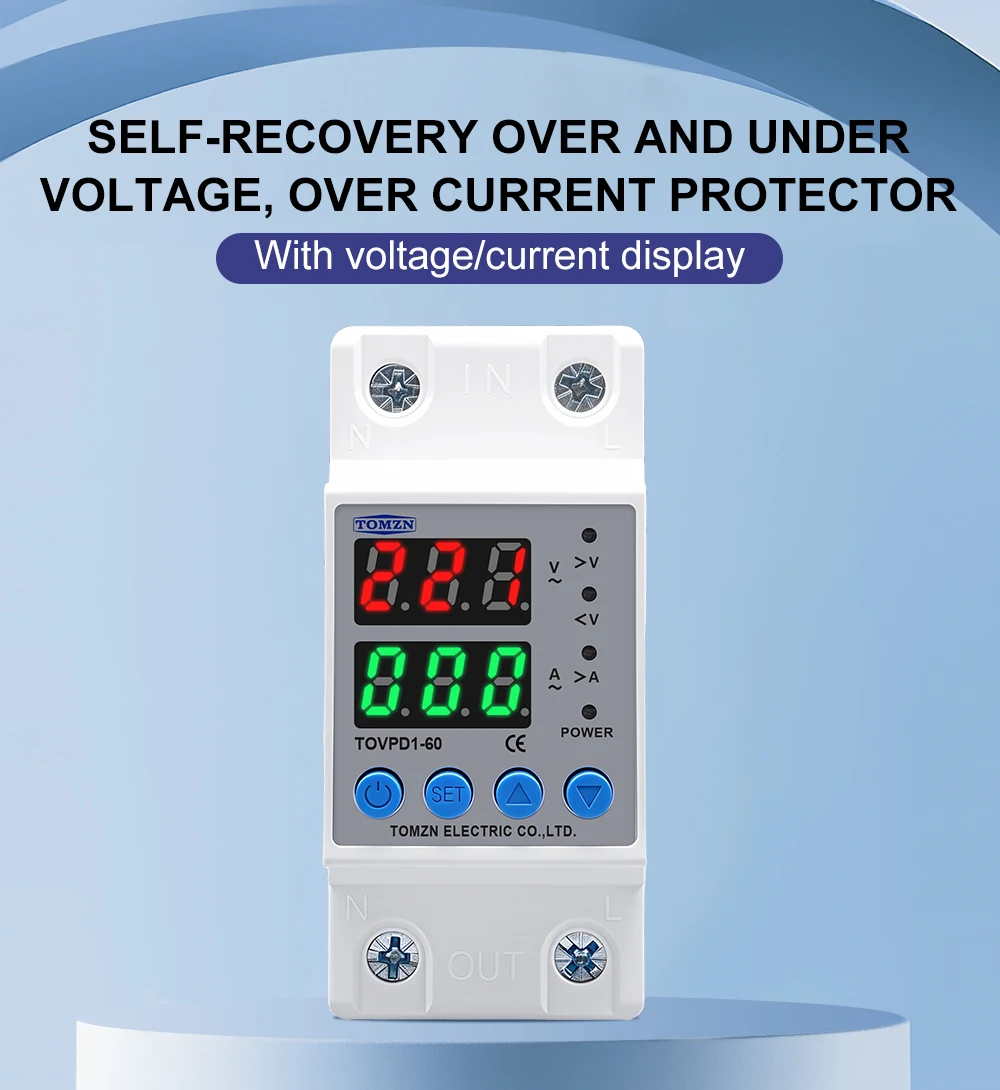

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

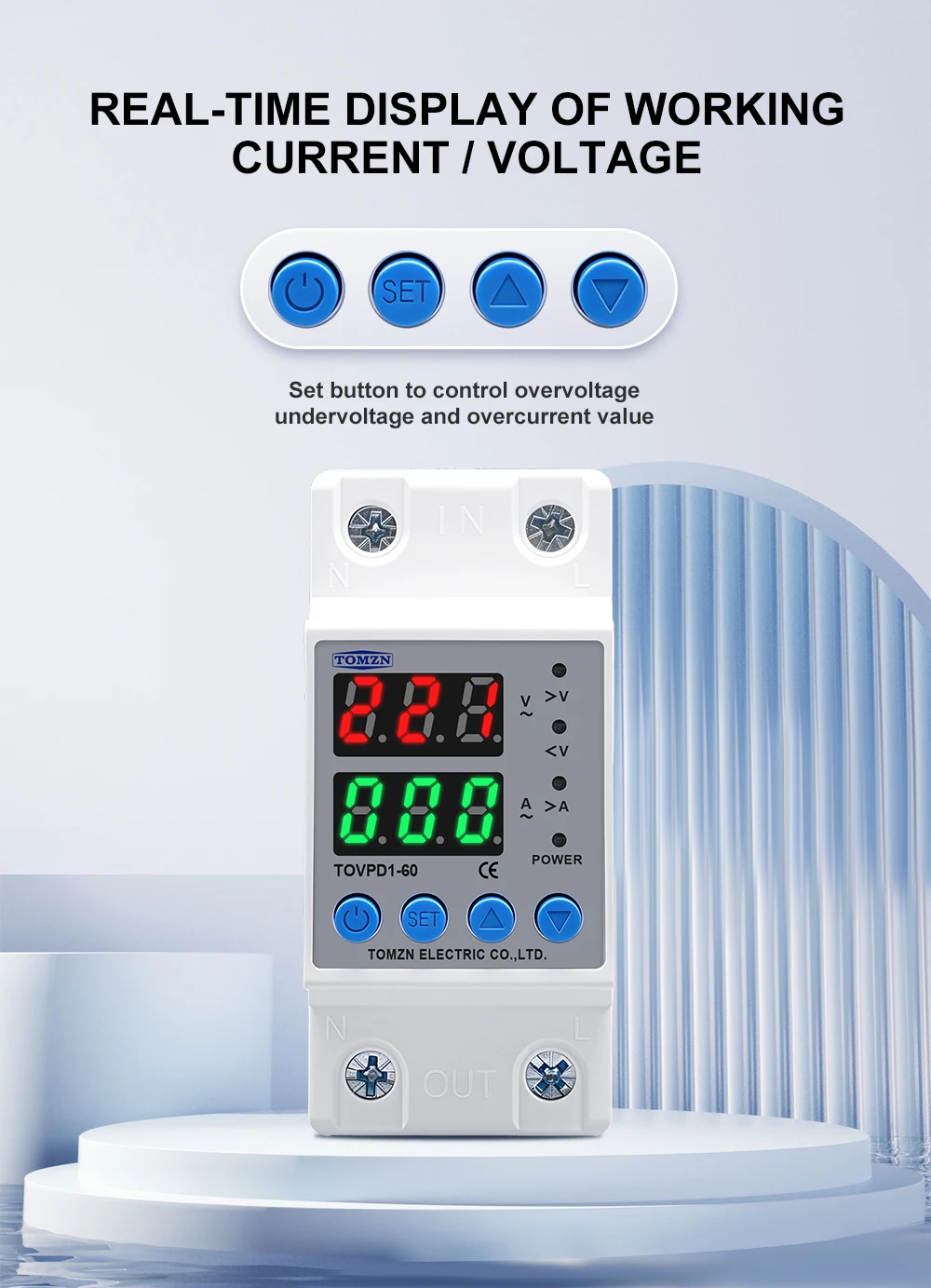

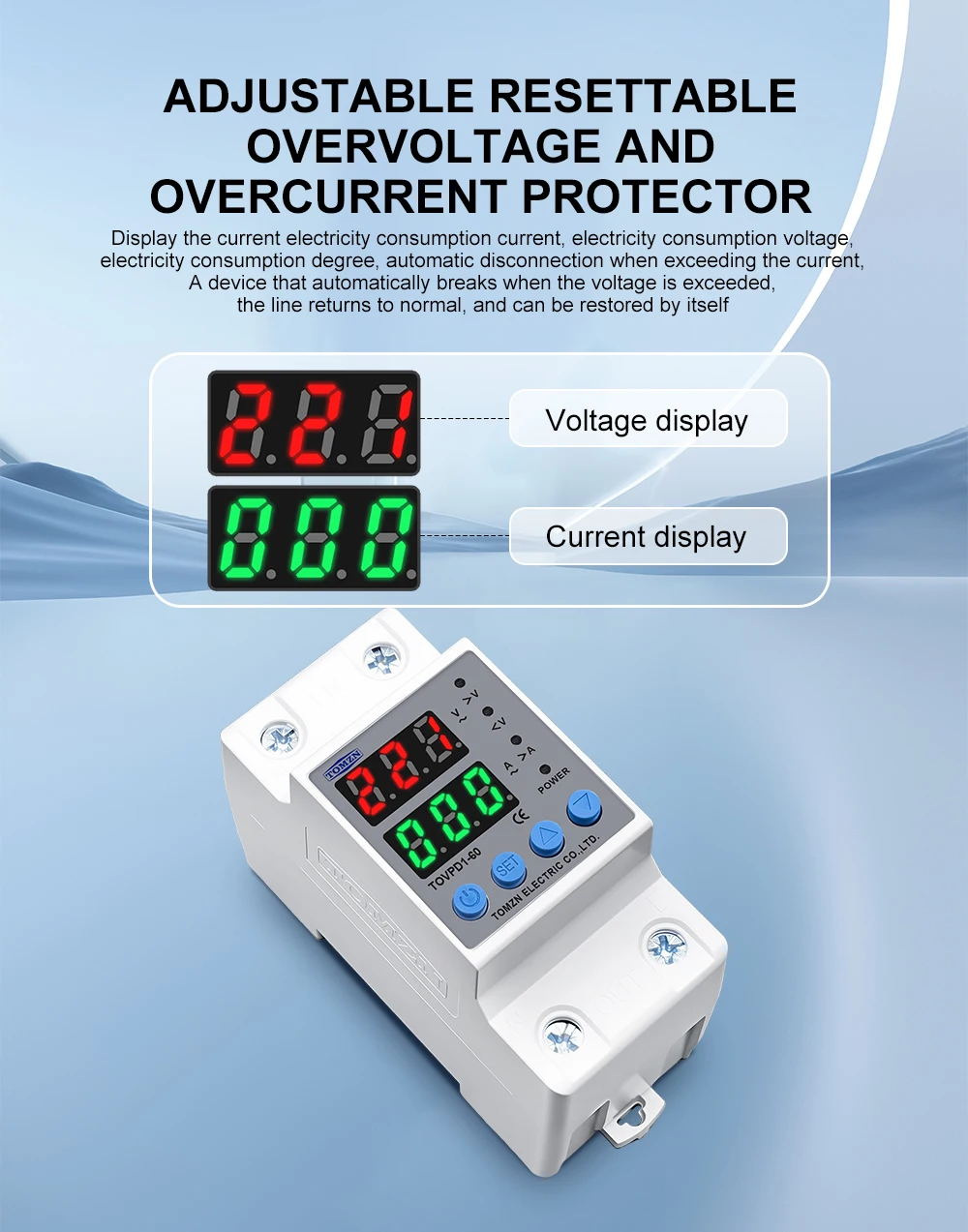

5.Voltage display(voltage measurement)

6.Current display (current measurement)

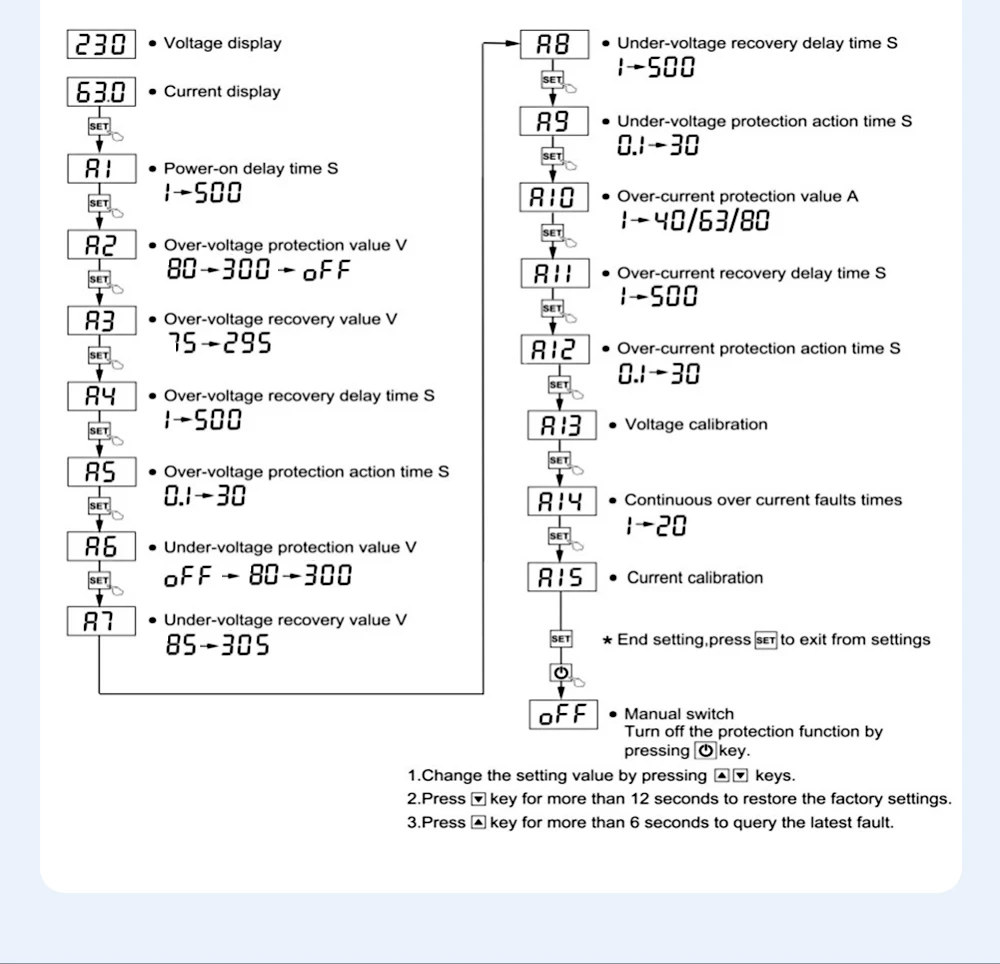

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9.Fault inquiry: Press the UP button from more than 12S

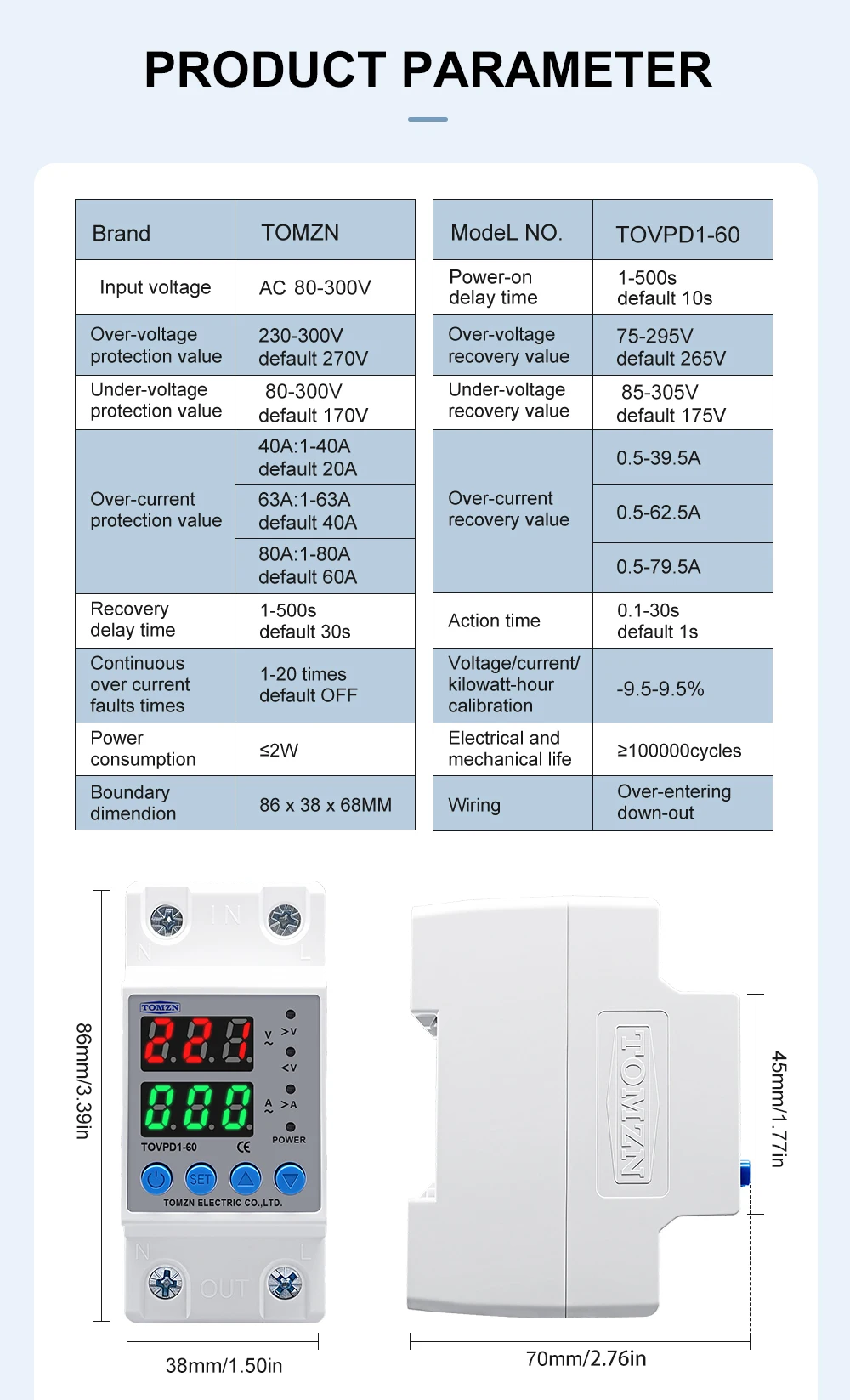

Product Parameters:

1.Model number:TOVPD1-60-EC

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A  Adjustable(default:40A)

                                    1~63A  Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V)

Over-voltage recovery voltage range:225V--295V(default:250V)

   Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage recovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V)

Under-voltage recovery voltage range:145V--215V (default:190V)

   Under-voltage protection action time:0.1s~30s(default:0.5s)

   Under-voltage recovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)

   Over-current action range:0.1~30 second (default:0.5s)

Over-currentrecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

8.Power consumption : <2W

9.Electric machinery life : 100,000 times

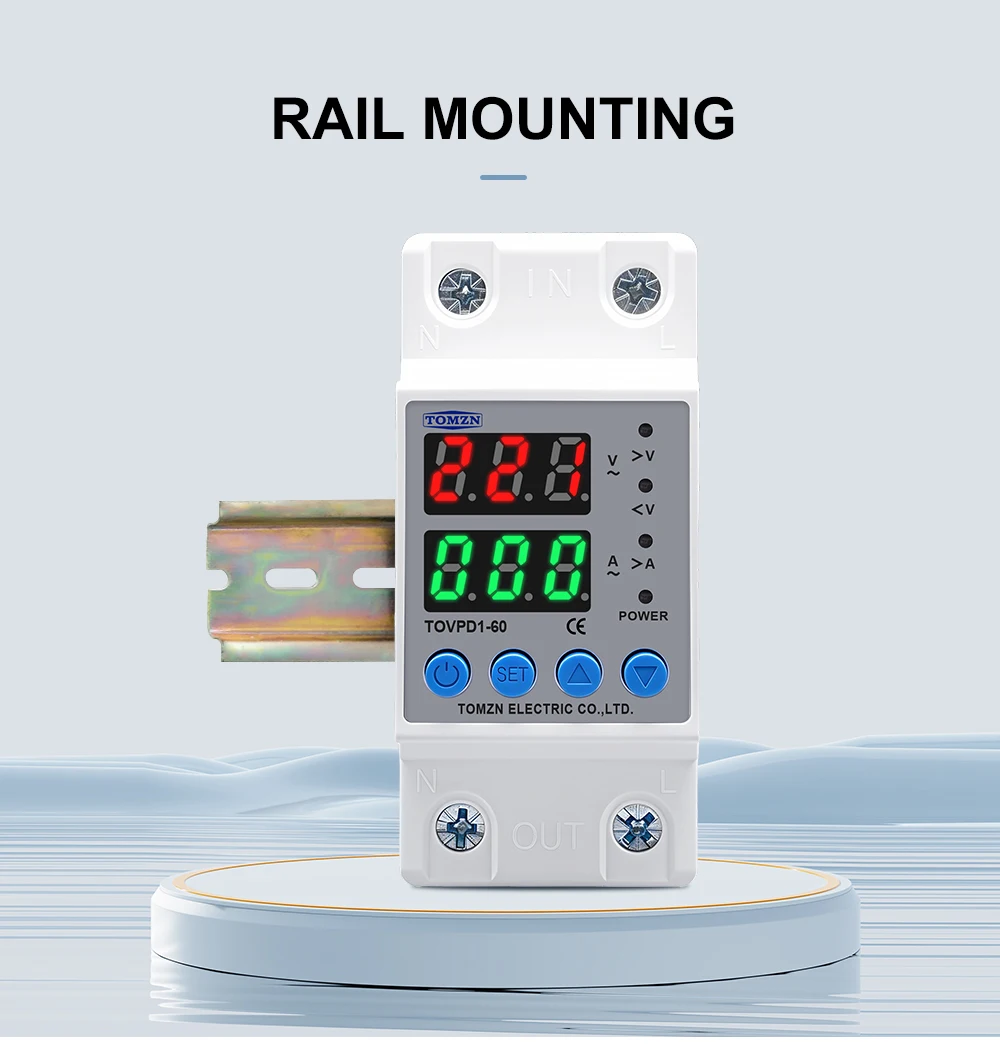

10.Installation:35mm DIN rail
