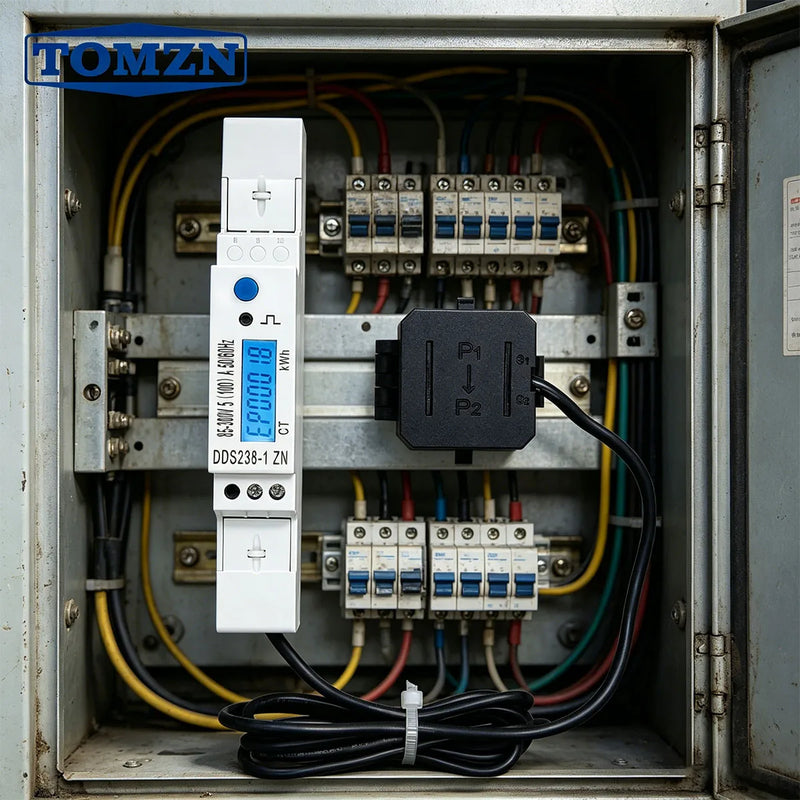

Product Introduction

The DDS238-1 ZN is a single-phase two-wire AC active energy meter designed for residential, utility, and industrial applications. It operates with an external current transformer (CT), available in solid core or split core versions, and supports a wide voltage range of 85-300V with a rated current of 5(100)A at 50/60Hz. The meter features bi-directional measurement of total active energy, including reverse active energy accumulated into the total. It displays real-time voltage, current, active power, power factor, frequency, import/export active energy, reactive power, and impulse constant on an LCD with keypad control. An RS485 communication port with MODBUS-RTU protocol enables remote reading. Additional features include a pulse LED with optical coupling isolated pulse output for metering verification, and a long press (10 seconds) of the button to reset the electricity consumption for a specific period. With high stability, high overload capability, low power loss, and compact size, this meter mounts easily on a 35mm DIN rail.

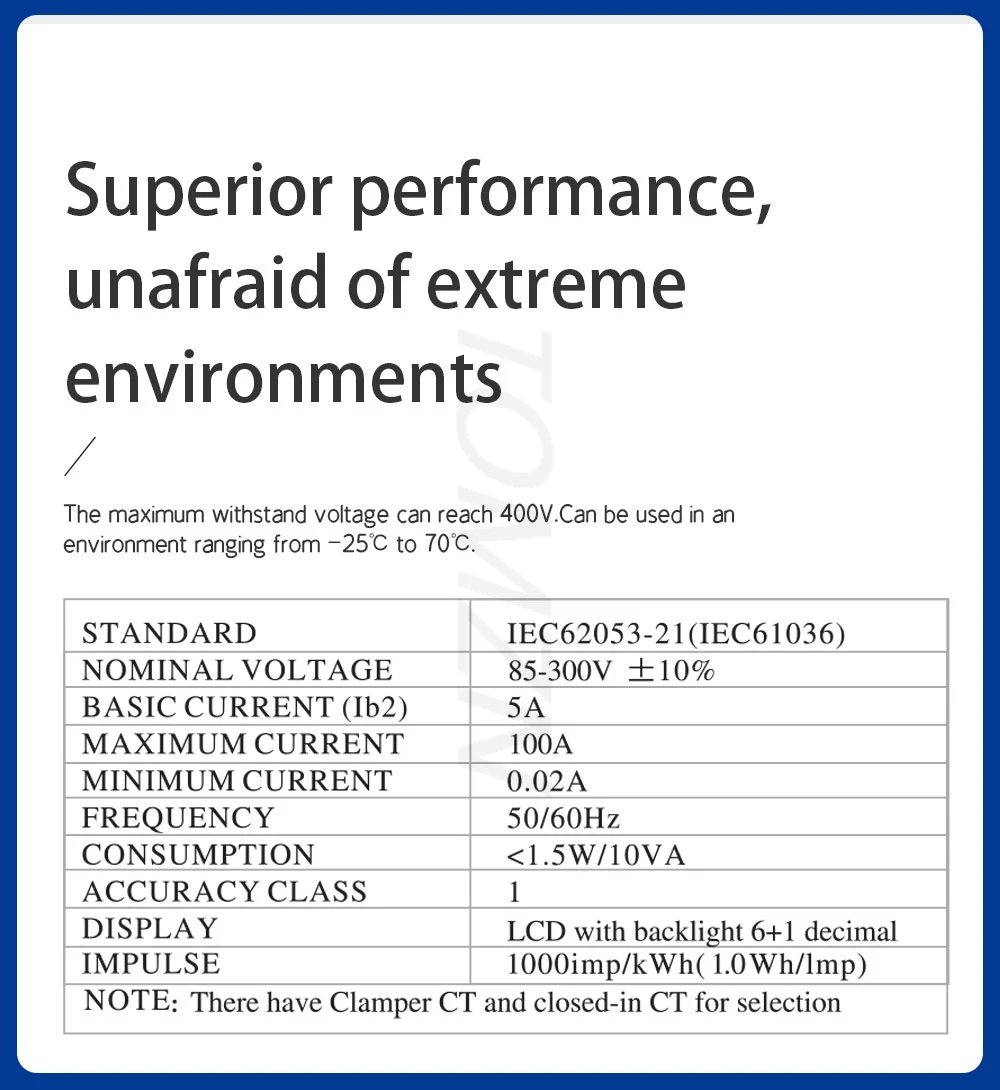

Product Data Sheet

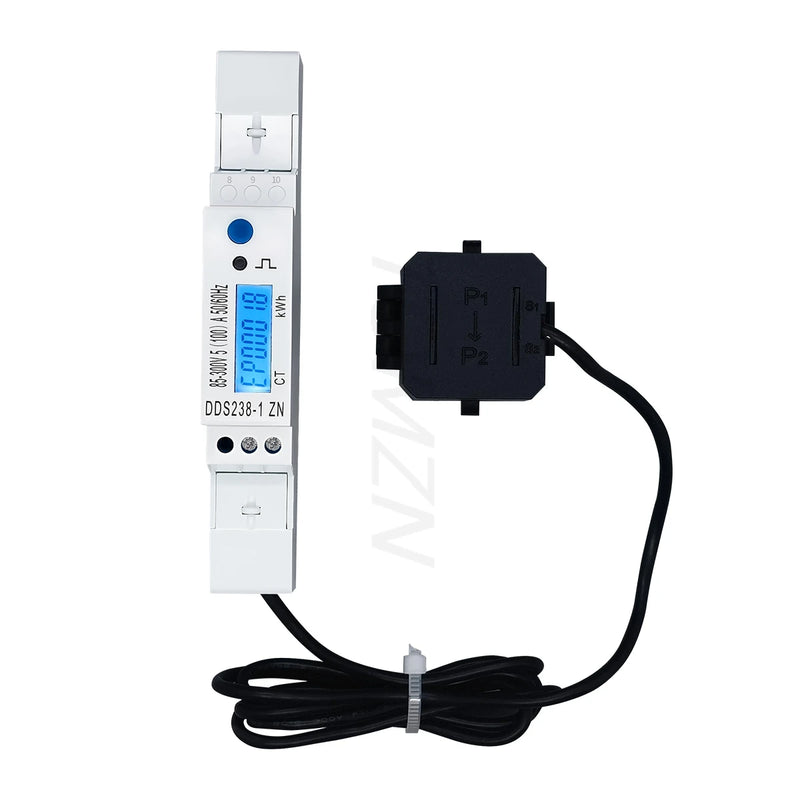

Product model: DDS238-1 ZN

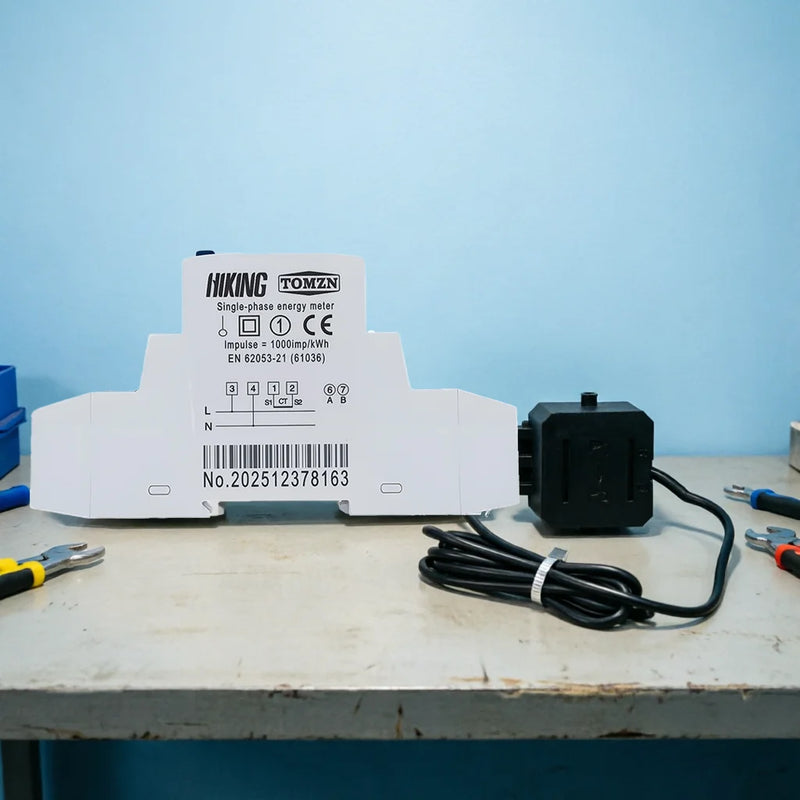

Meter type: Single-phase two-wire AC active energy meter

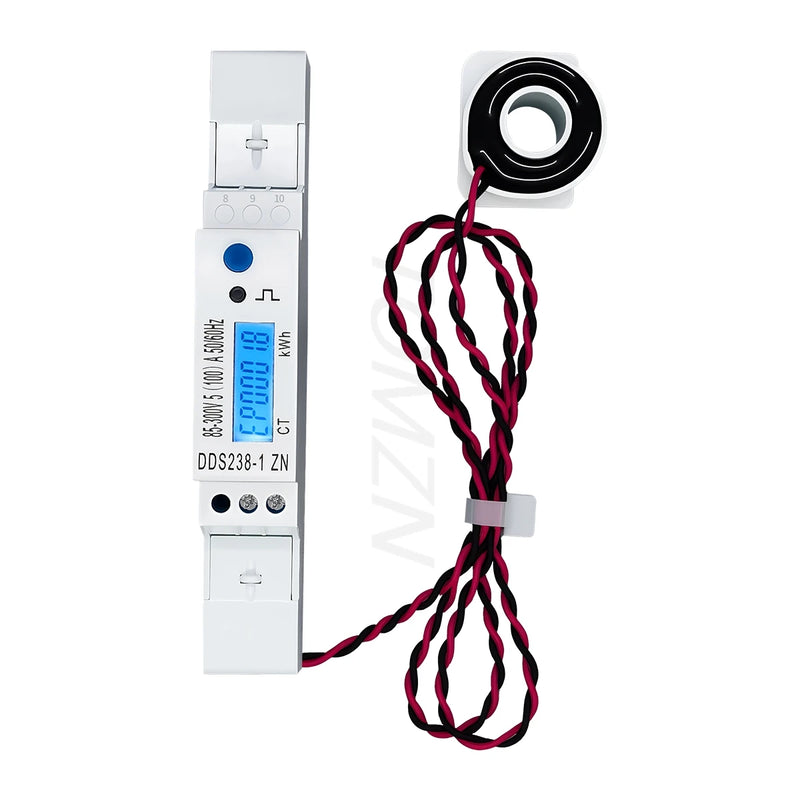

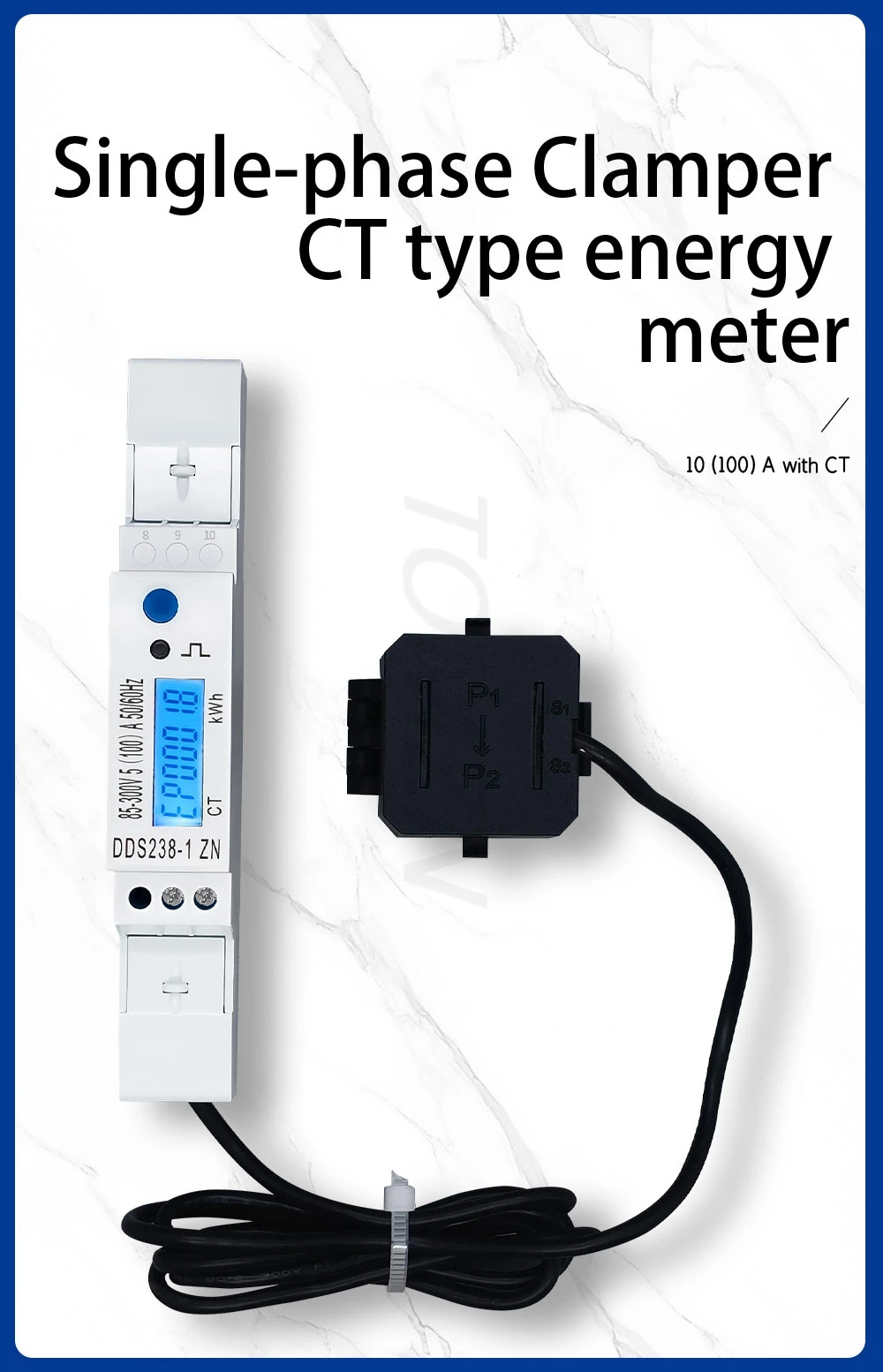

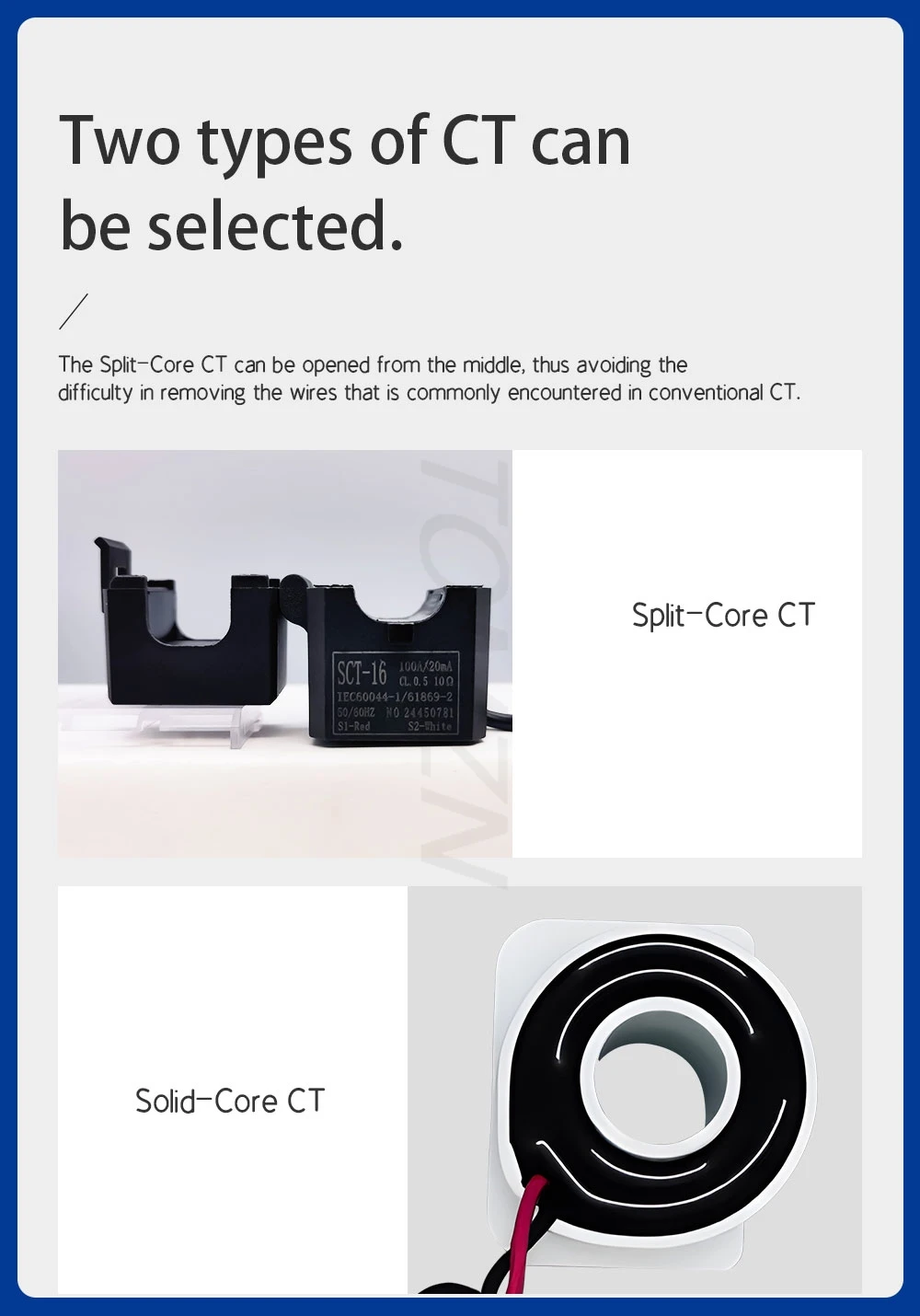

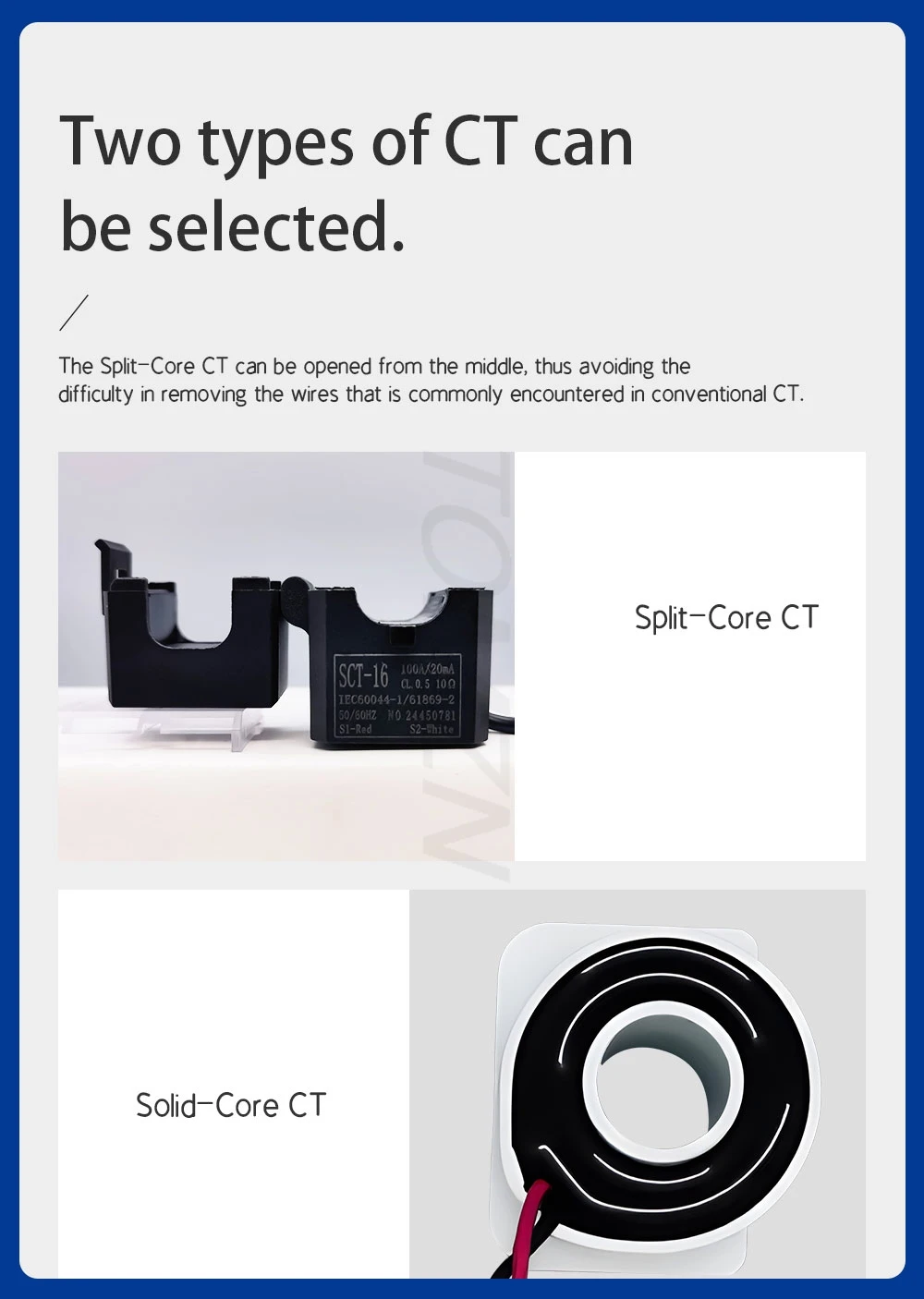

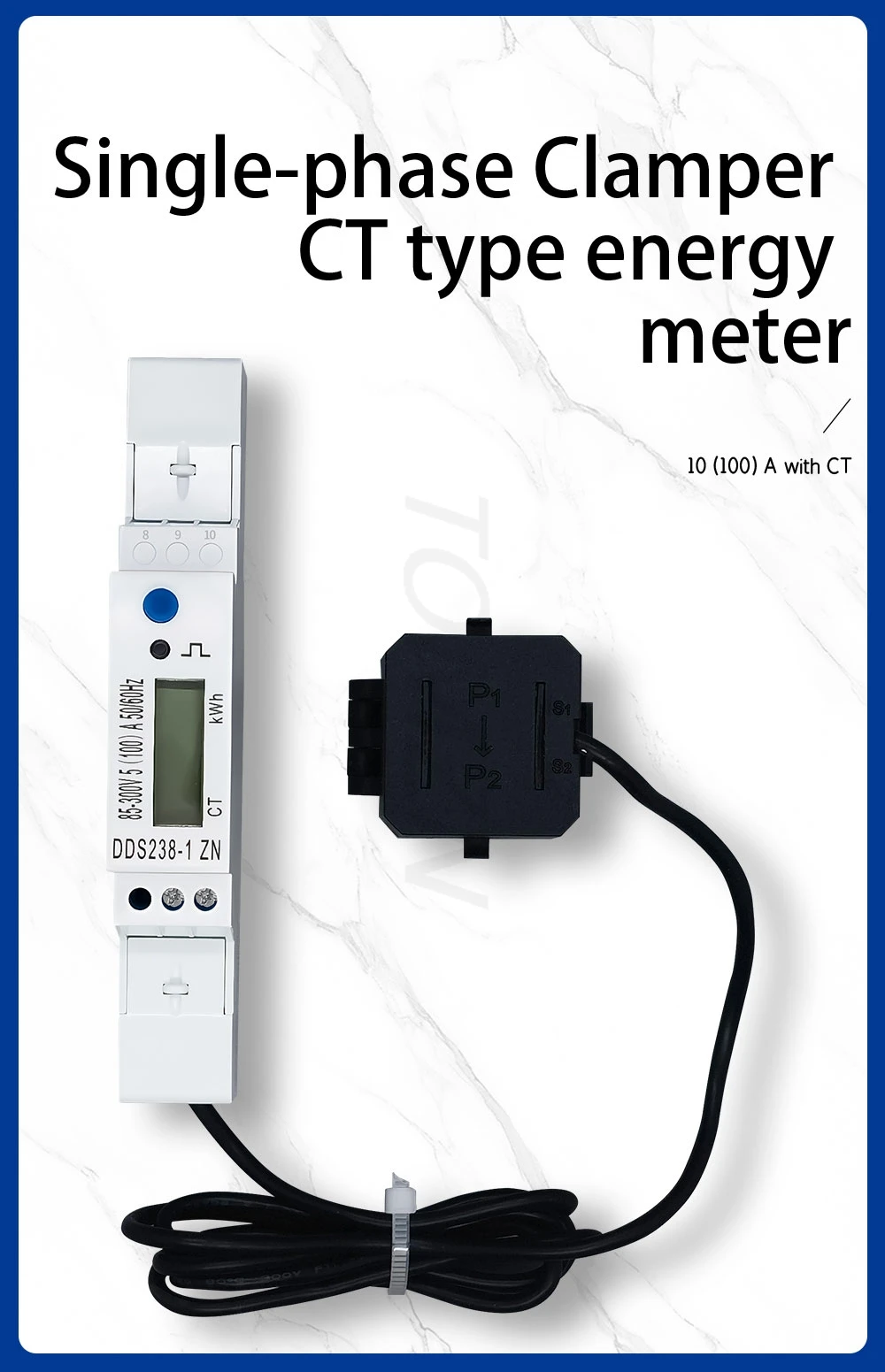

CT type: Solid core CT or split core CT

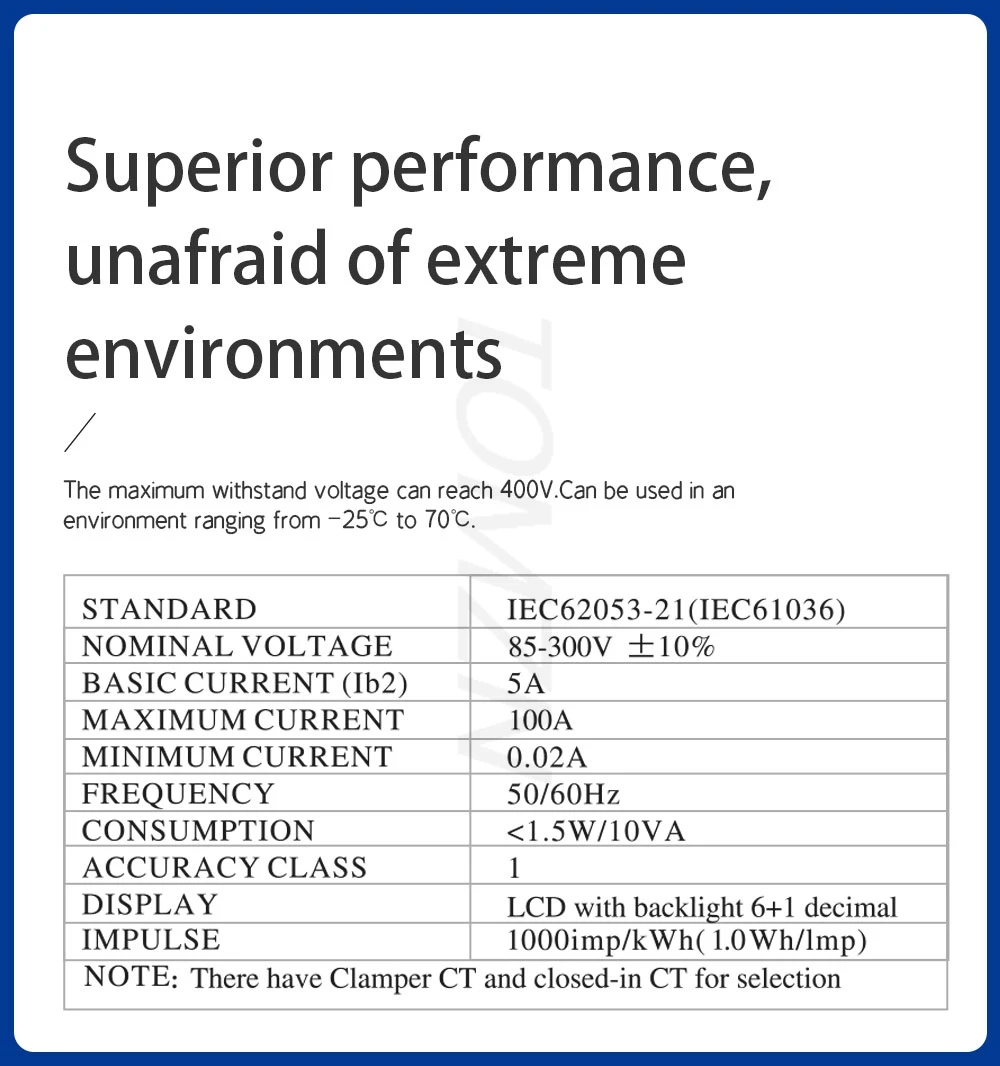

Supply voltage range: 85-300V AC

Rated current: 5(100)A

Frequency: 50/60Hz

Measurement: Bi-directional total active energy (includes reverse active energy)

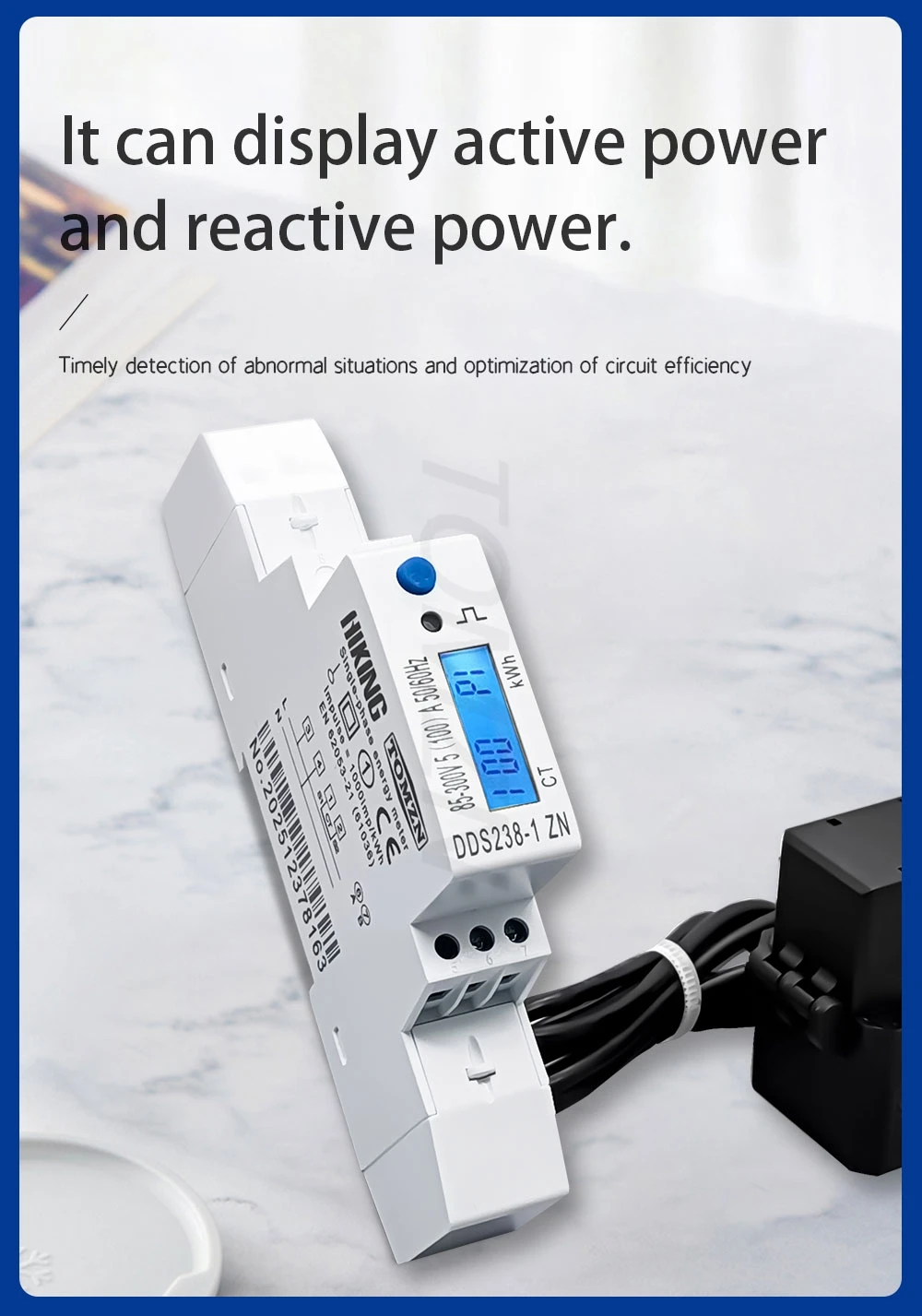

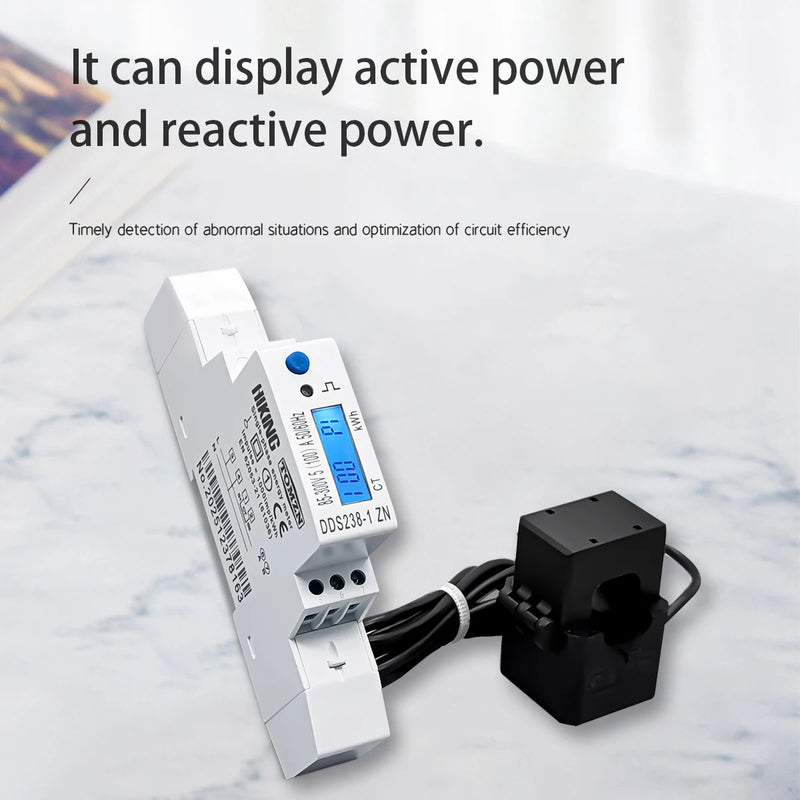

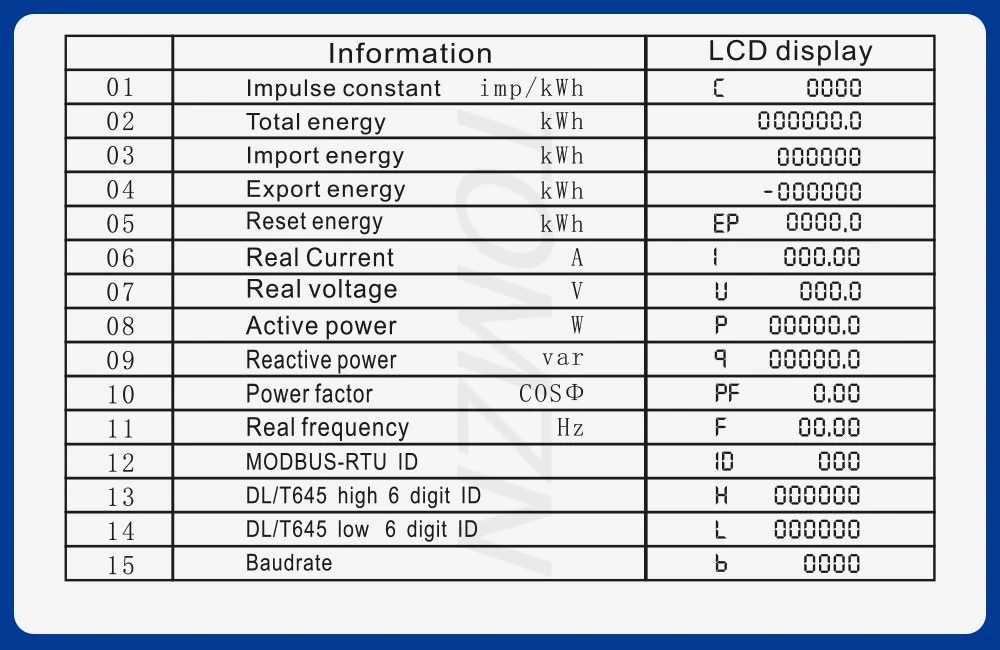

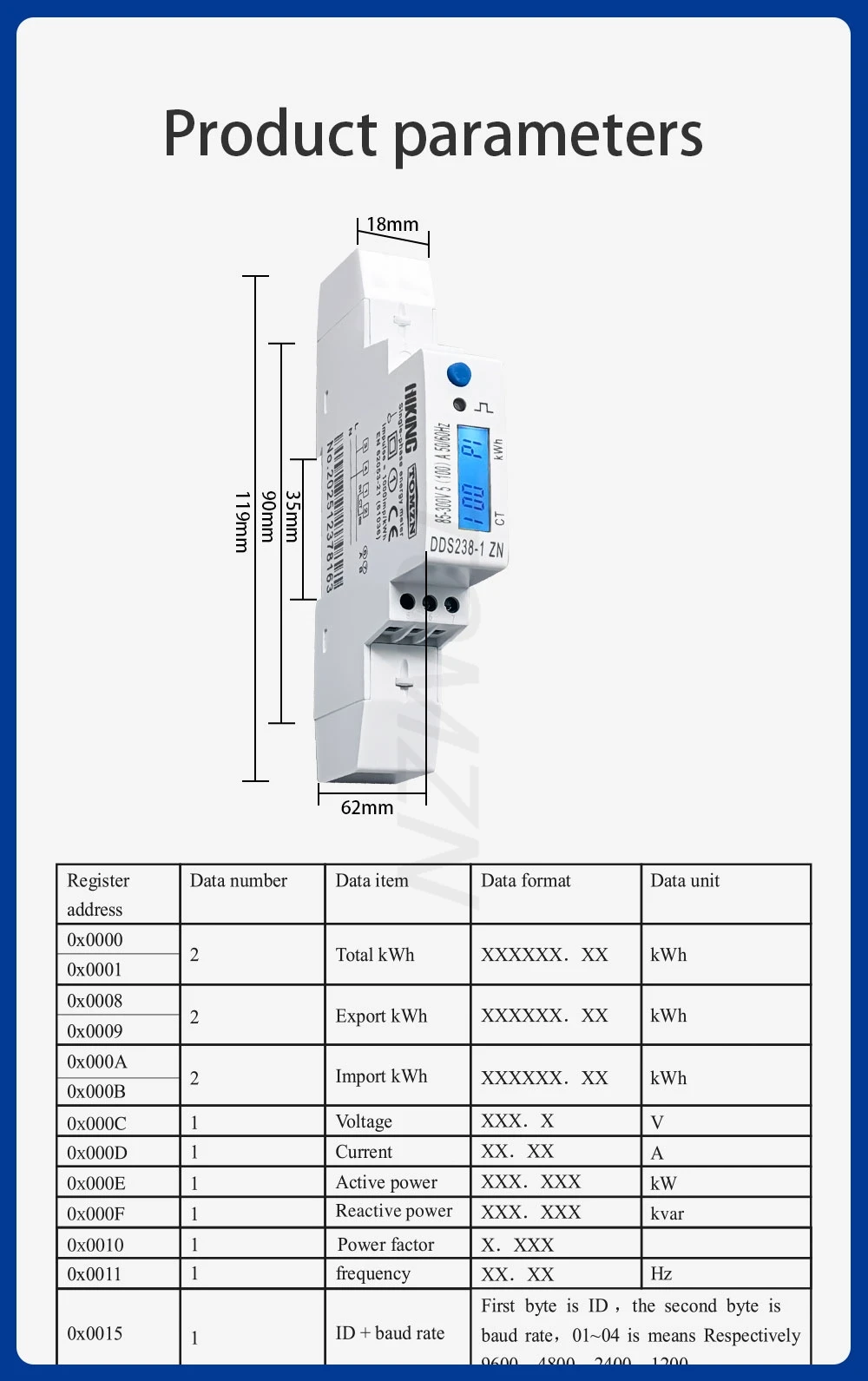

Displayed parameters: Real voltage, real current, real power, power factor, real frequency, import active energy, export active energy, reactive power, impulse constant

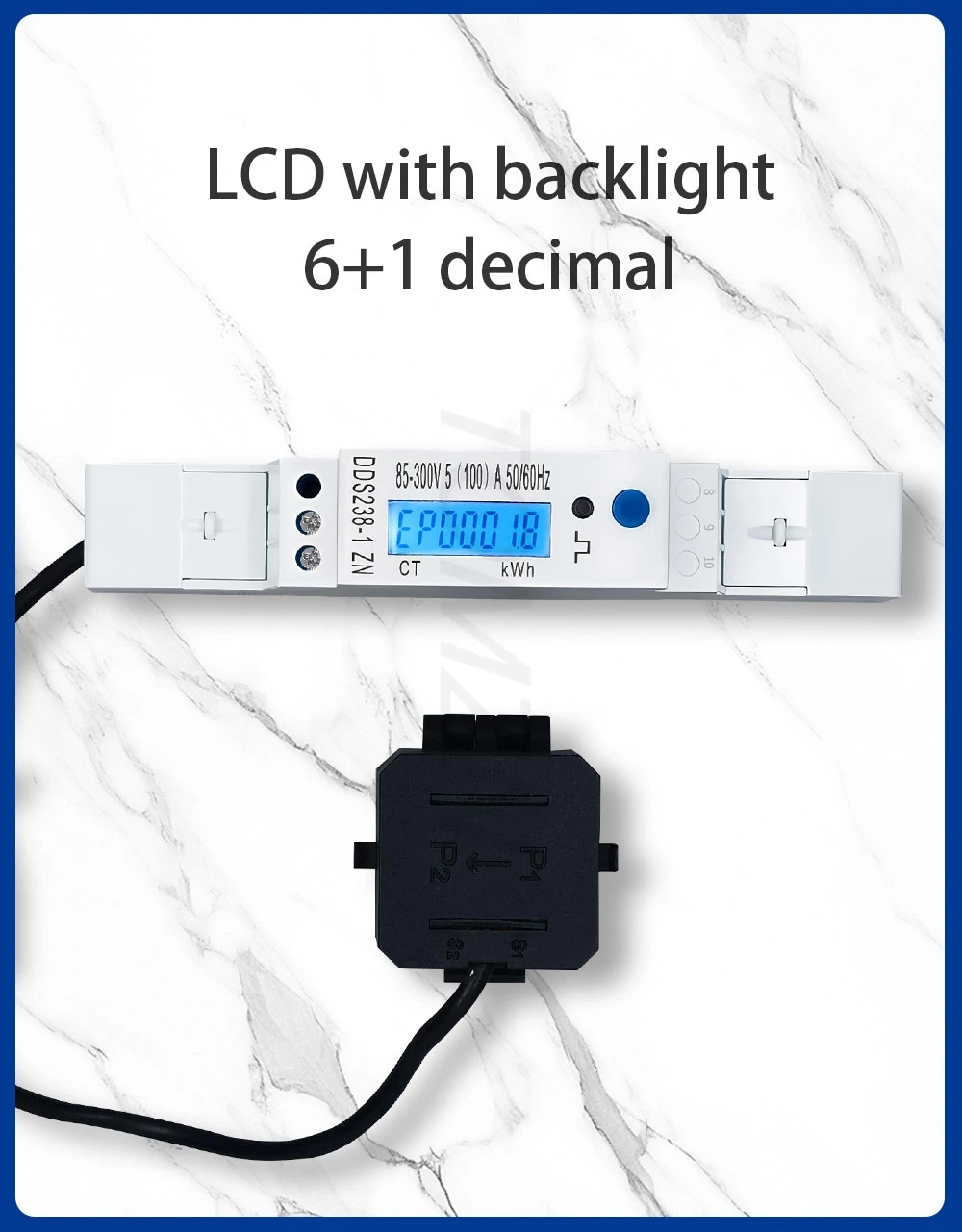

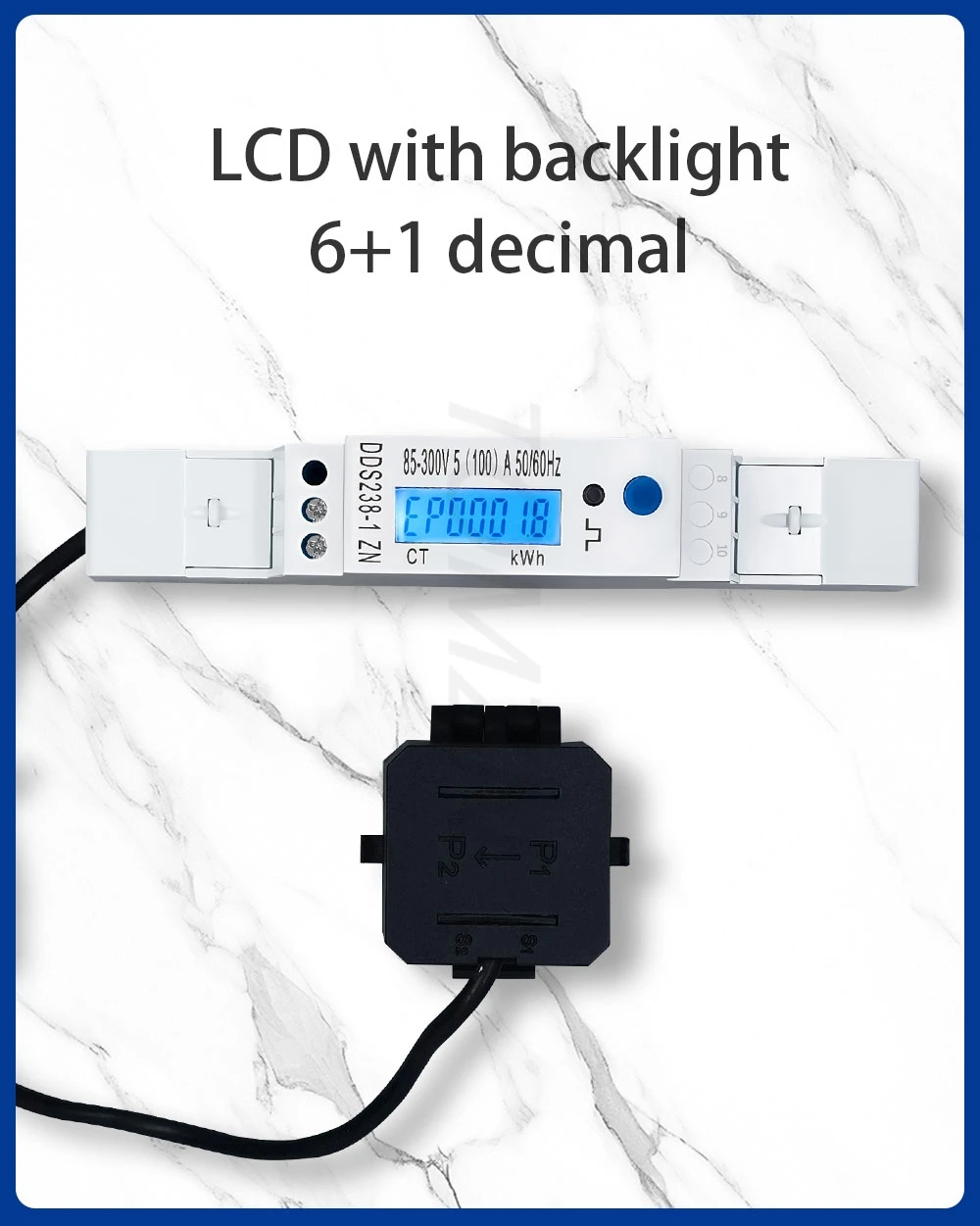

Display: LCD with keypad step-by-step control

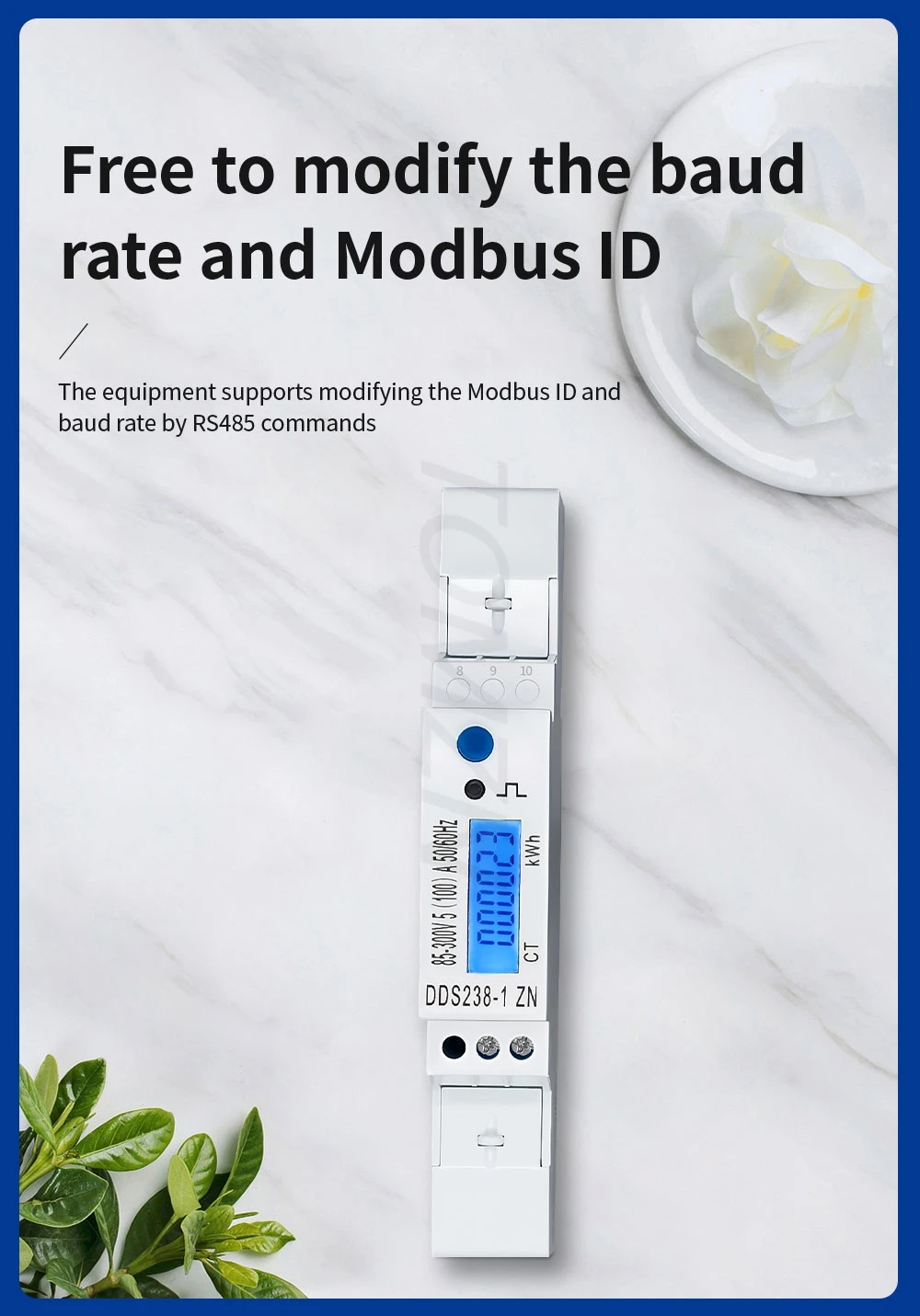

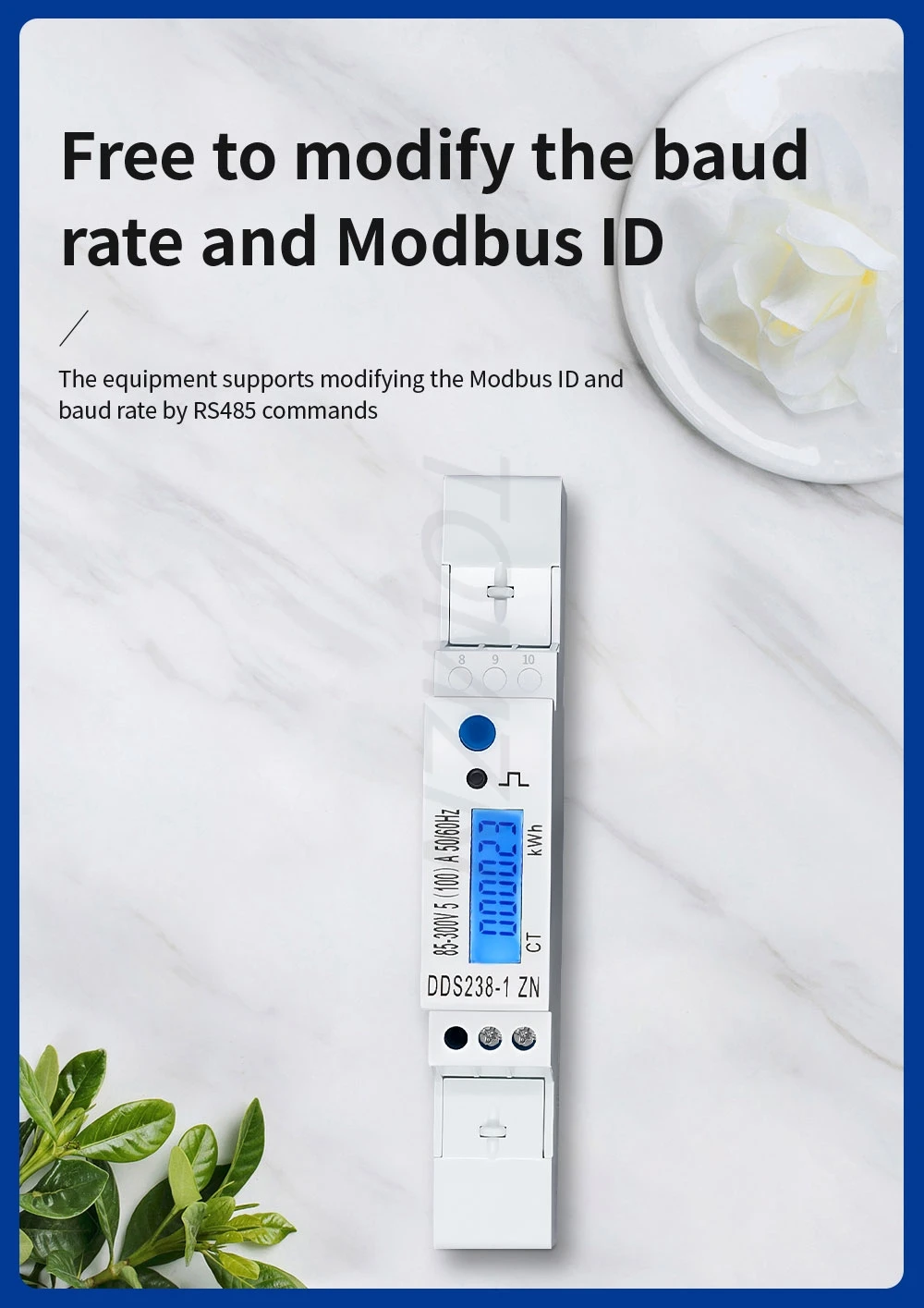

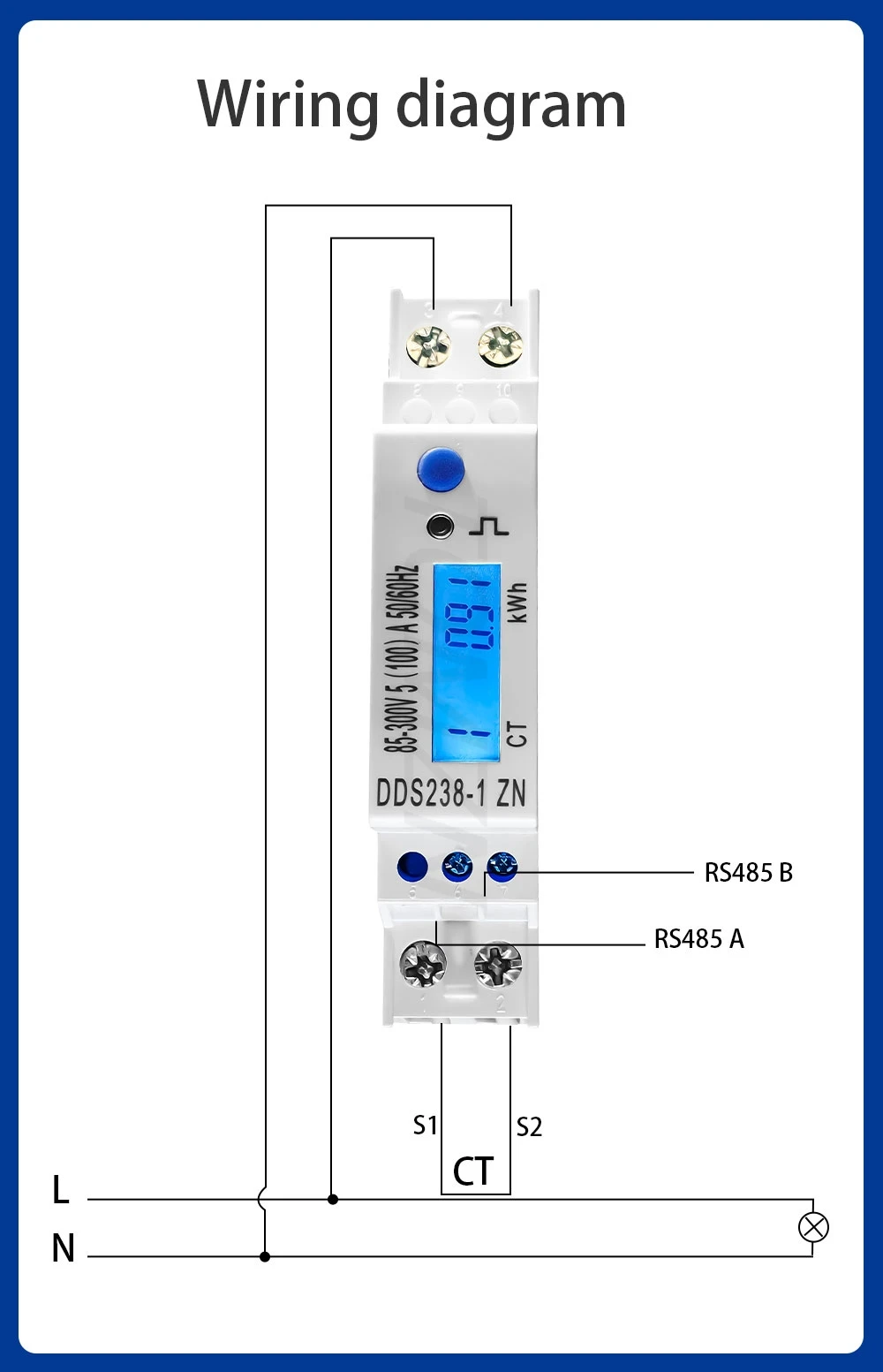

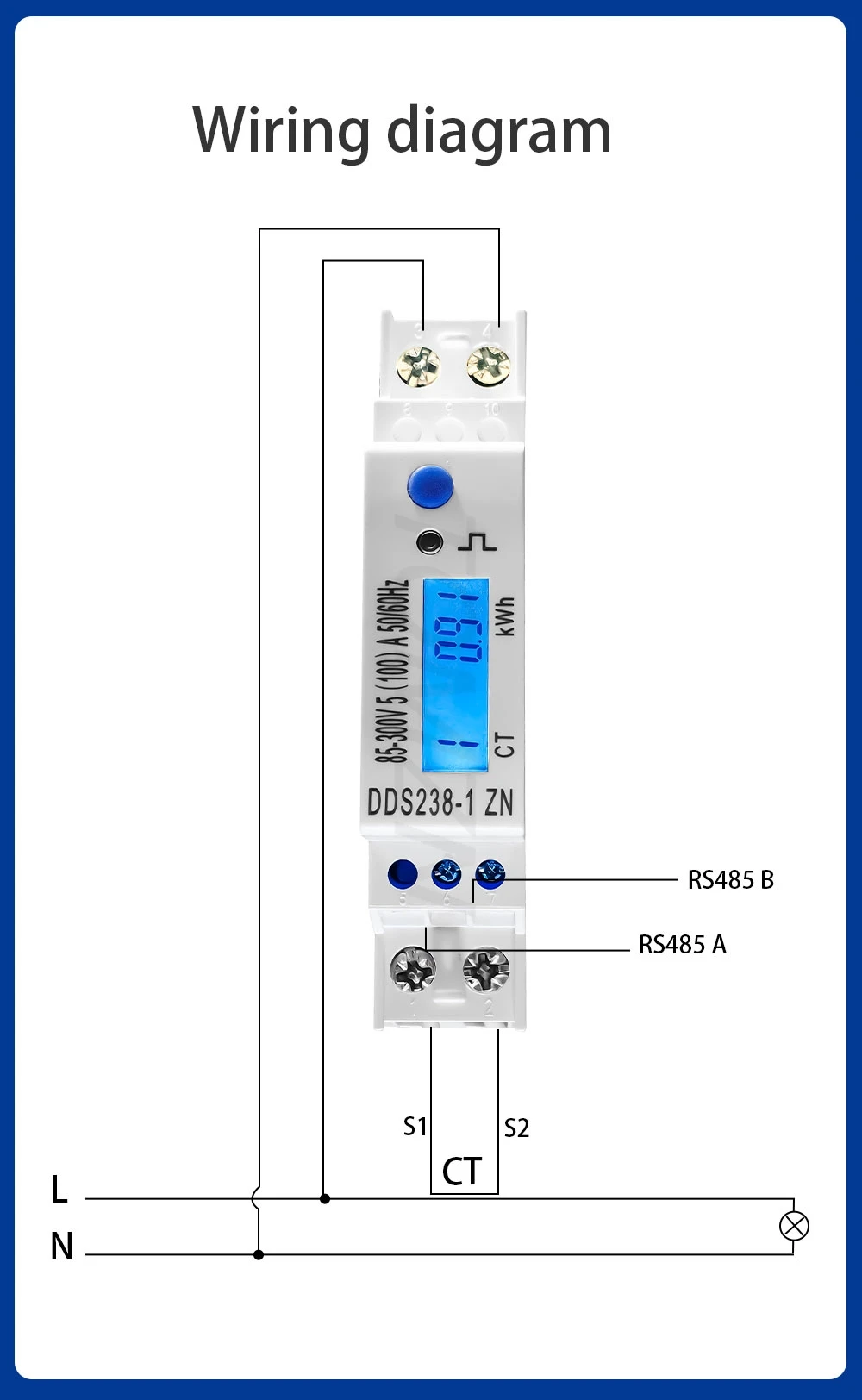

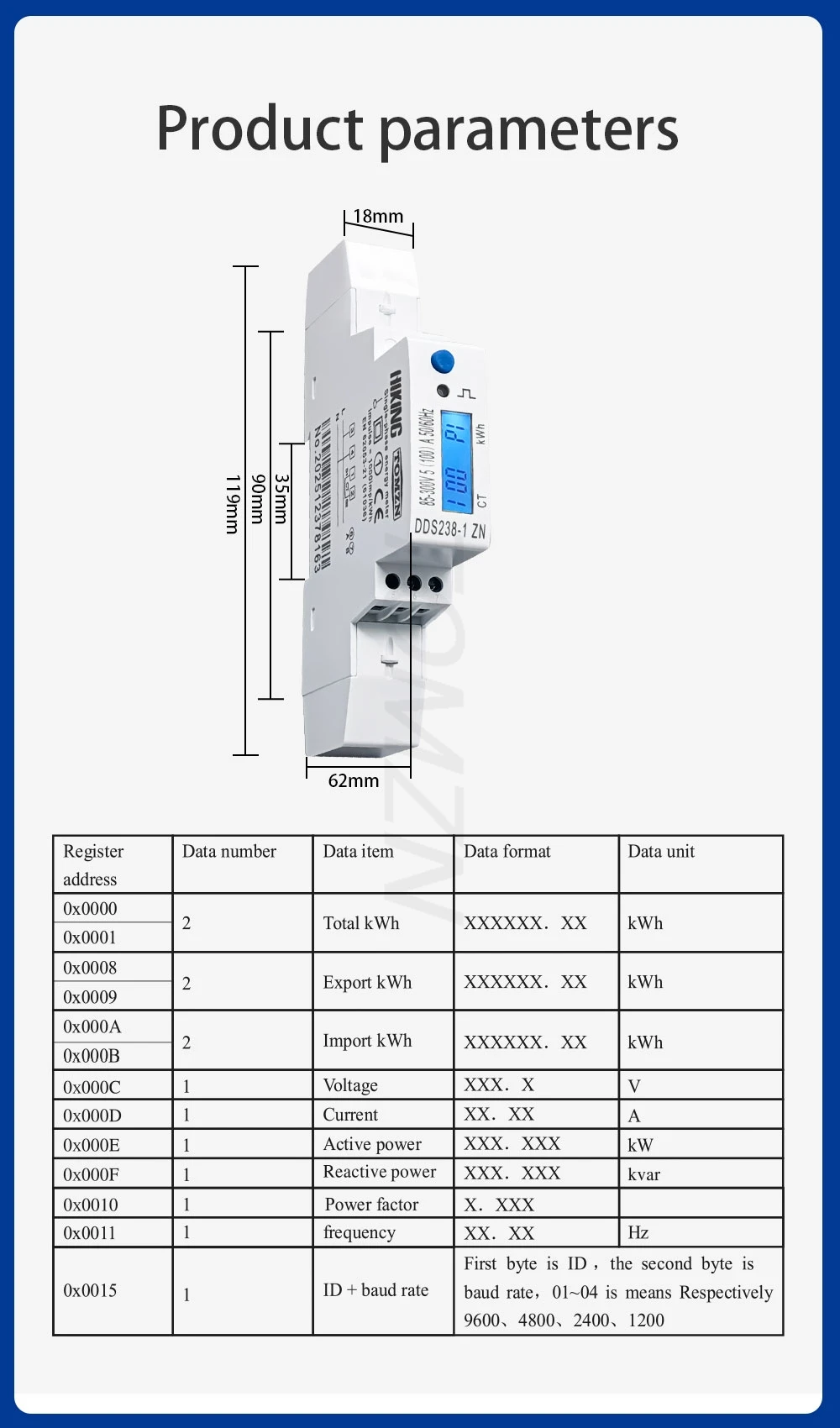

Communication: RS485 port, MODBUS-RTU protocol

Pulse output: LED indicator, optical coupling isolated pulse output

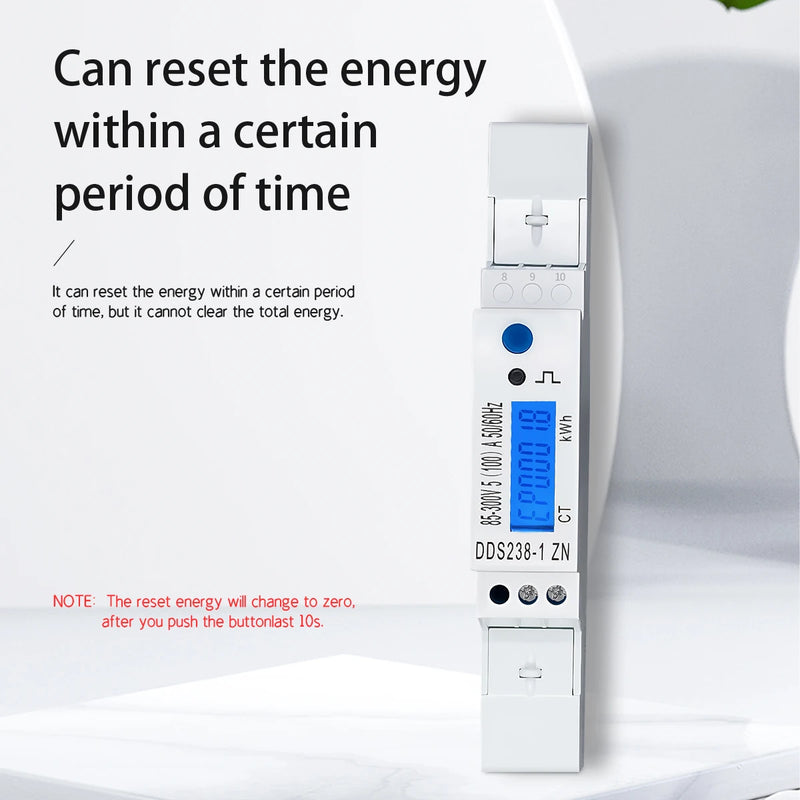

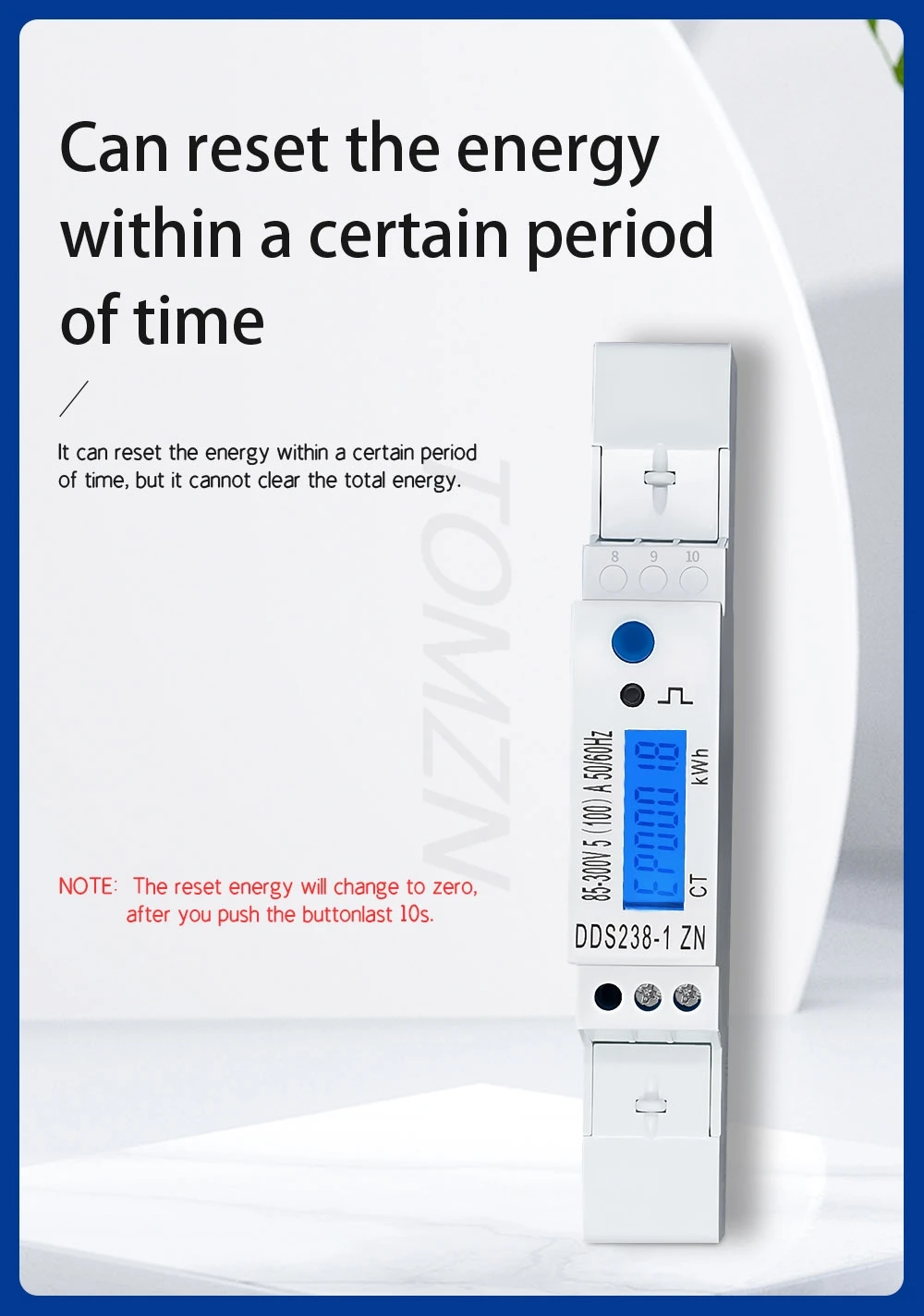

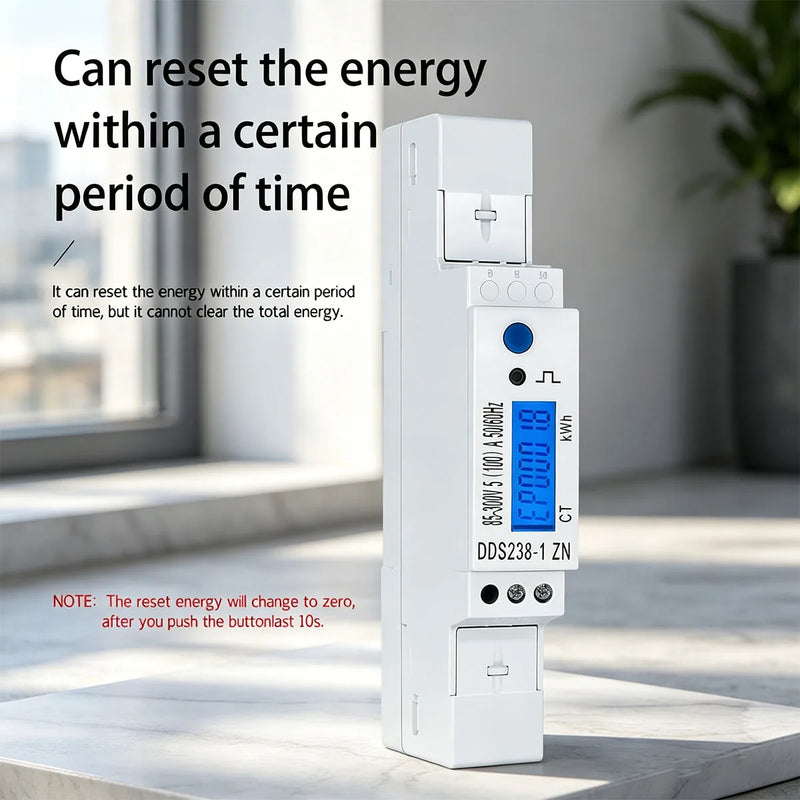

Reset function: Press and hold button for 10s to reset electricity consumption for a certain period

Mounting: 35mm DIN rail

Key features: High stability, high overload capability, low power loss, small volume

Application: Residential, utility, industrial
