Product Introduction

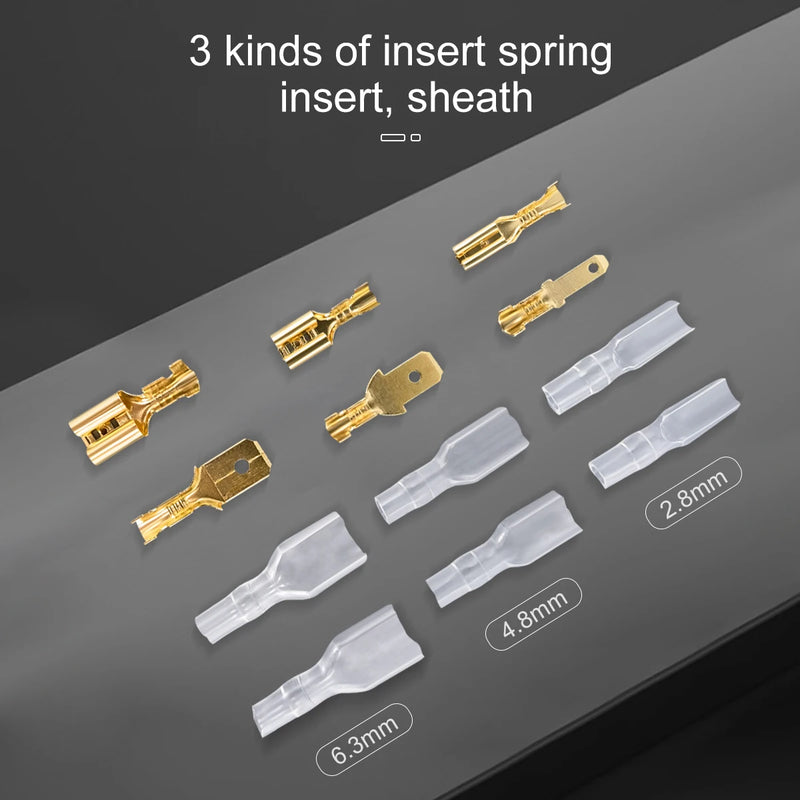

This brass terminal kit provides a comprehensive selection of female and male terminals with matching insulation sheaths in three sizes: 2.8mm, 4.8mm, and 6.3mm. Available in three different package options (270pcs, 120pcs, and 135pcs) to suit various project needs. The terminals are made of high-quality brass with a gold tone finish, featuring a rolled and butted seam design that remains secure under normal stress or wire pull. The full-port barrel construction makes them ideal for crimping both solid and stranded wires (22–16 AWG). Durable and easy to install, these terminals are widely used in machinery, electric power, railway, shipbuilding, aviation, home appliances, car/boat speakers, and other electrical equipment connections.

Note: The 120pcs kit does not include male terminals. For applications requiring both male and female terminals, please choose the 270pcs or 135pcs kit.

Product Data Sheet

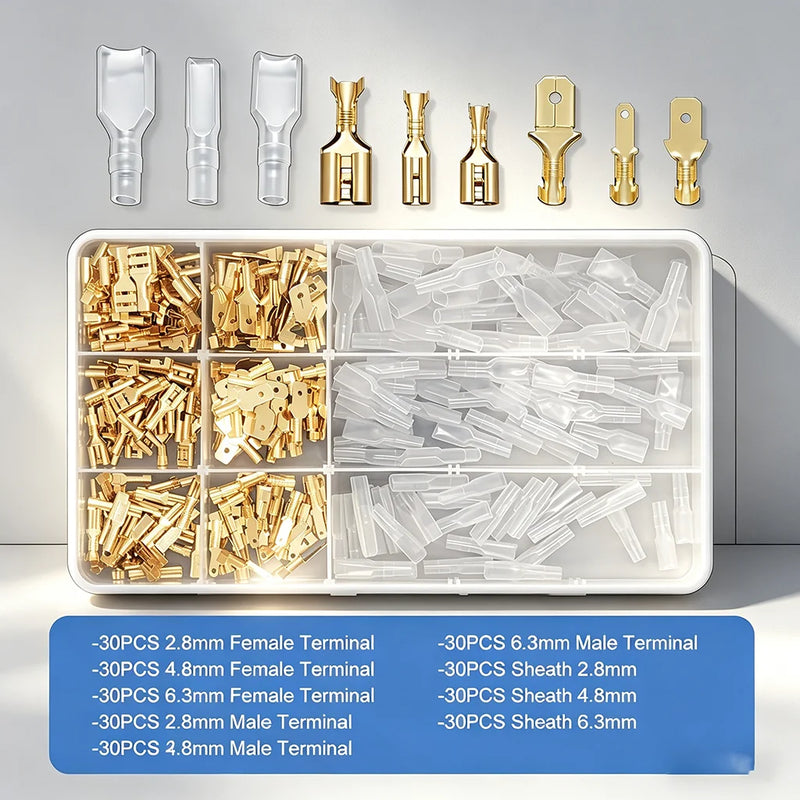

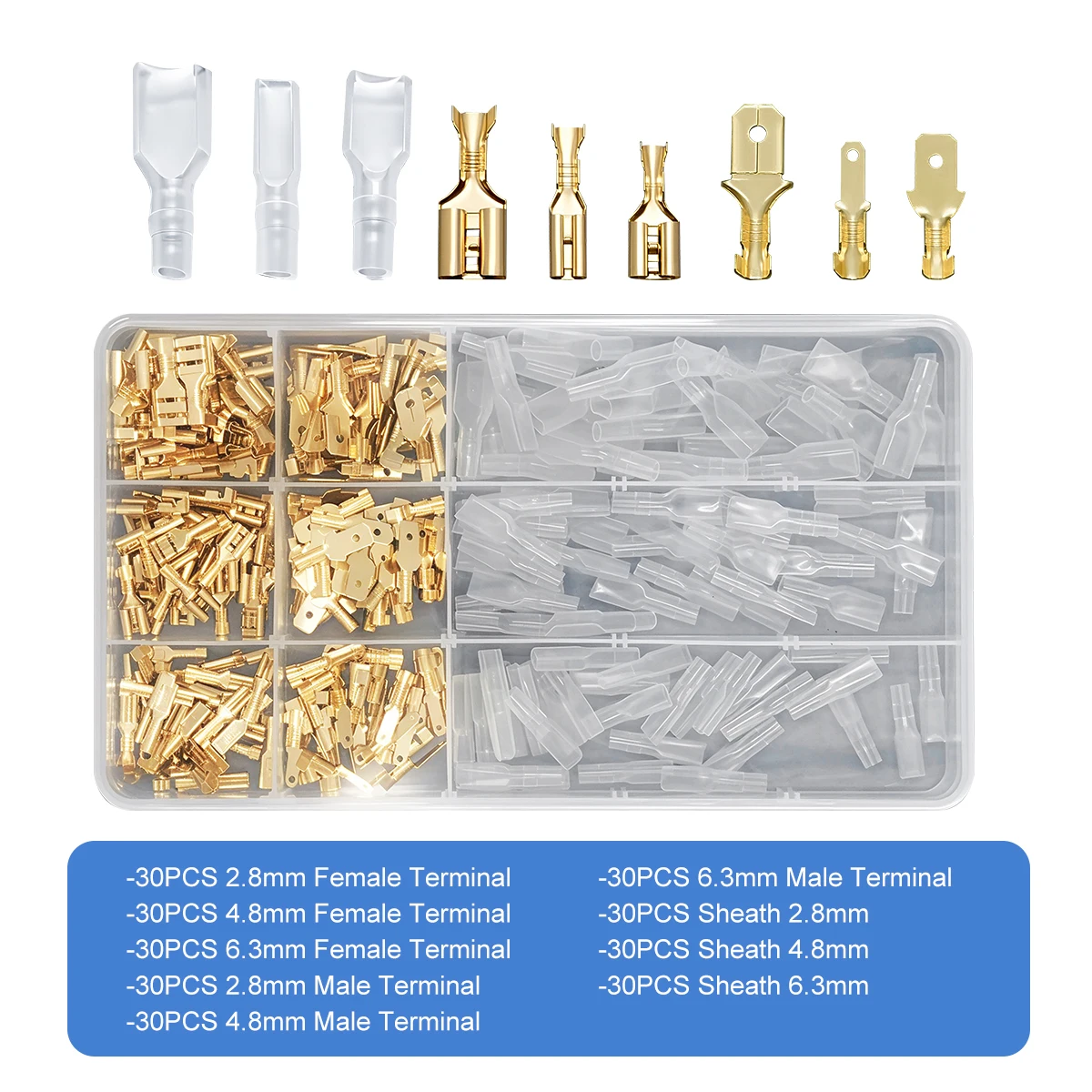

270pcs Kit (with male terminals)

2.8mm female terminal: 30PCS

4.8mm female terminal: 30PCS

6.3mm female terminal: 30PCS

2.8mm male terminal: 30PCS

4.8mm male terminal: 30PCS

6.3mm male terminal: 30PCS

2.8mm sheath: 30PCS

4.8mm sheath: 30PCS

6.3mm sheath: 30PCS

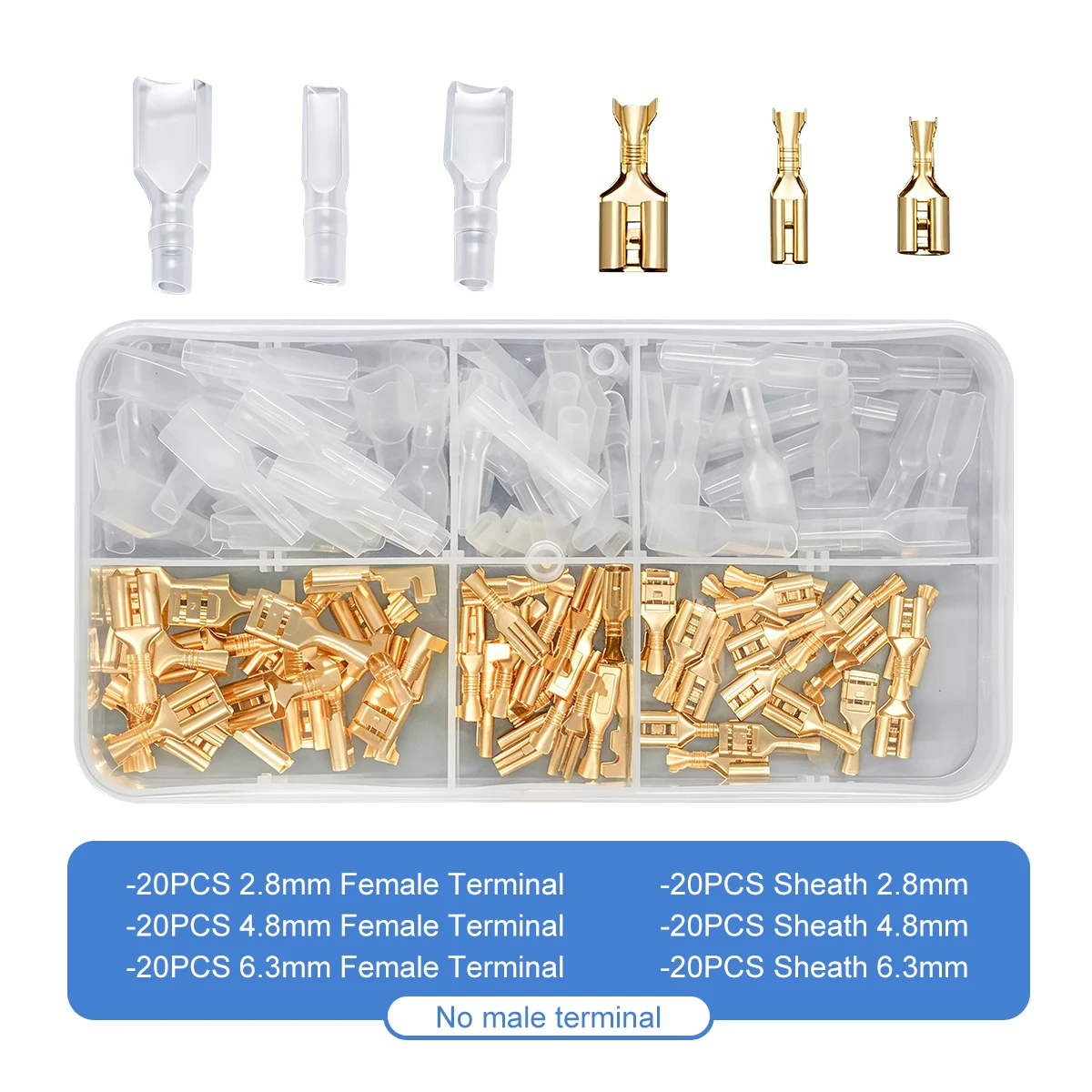

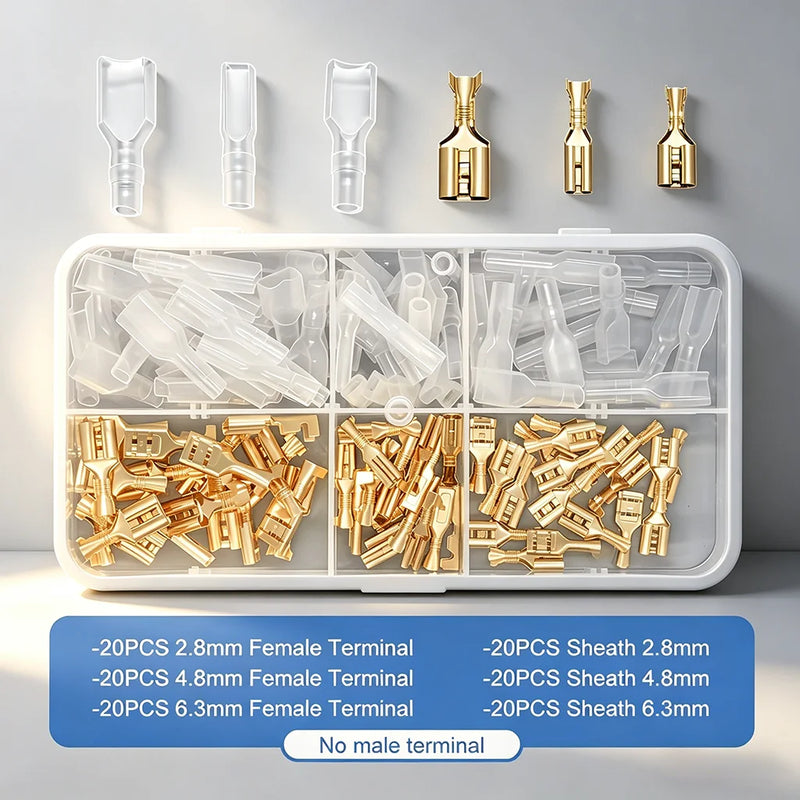

120pcs Kit (without male terminals)

2.8mm female terminal + sheath: 20PCS each

4.8mm female terminal + sheath: 20PCS each

6.3mm female terminal + sheath: 20PCS each

135pcs Kit (with male terminals)

2.8mm female terminal: 15PCS

4.8mm female terminal: 15PCS

6.3mm female terminal: 15PCS

2.8mm male terminal: 15PCS

4.8mm male terminal: 15PCS

6.3mm male terminal: 15PCS

2.8mm sheath: 15PCS

4.8mm sheath: 15PCS

6.3mm sheath: 15PCS

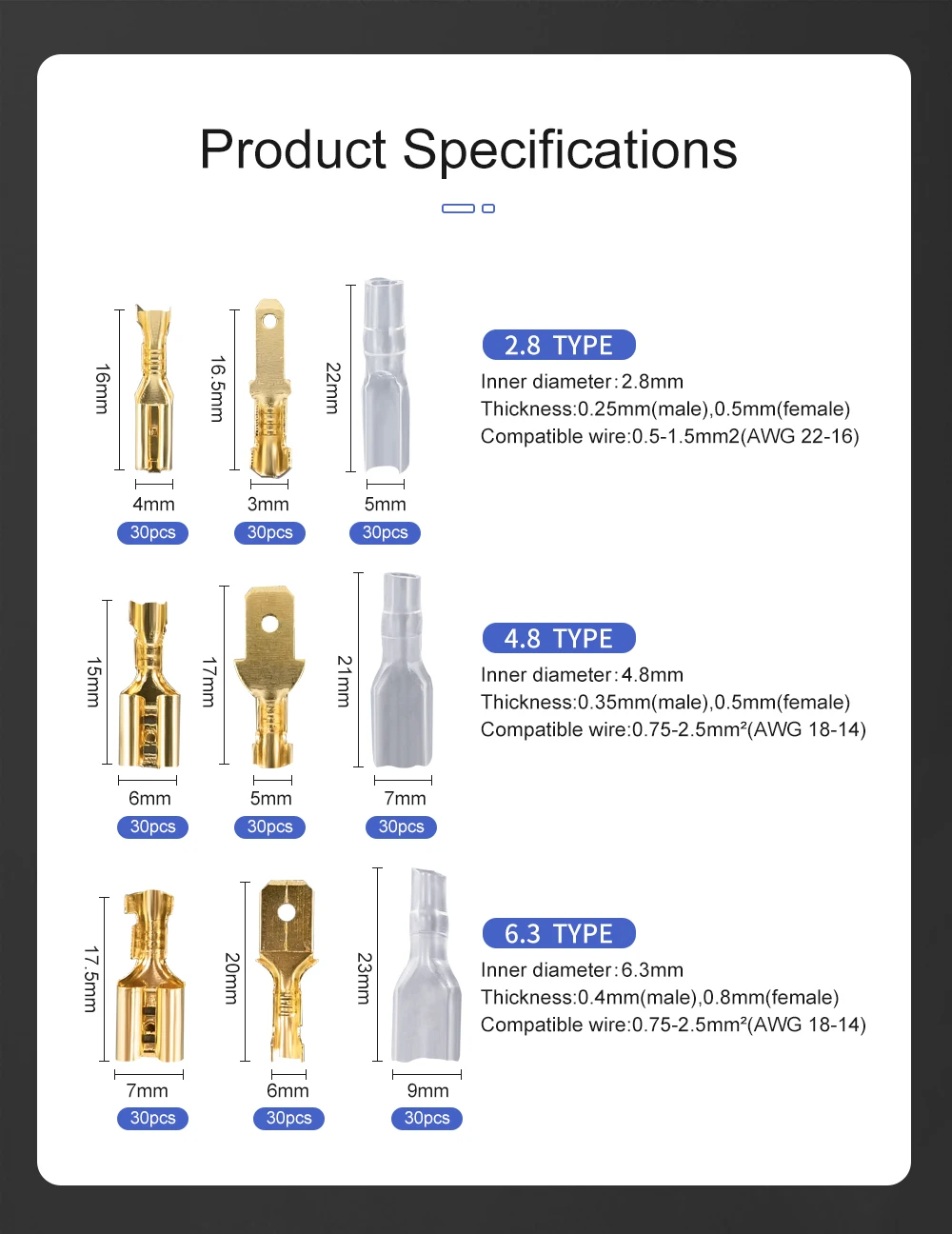

Common Specifications

Condition: Brand new

Material: Brass

Main color: Gold tone

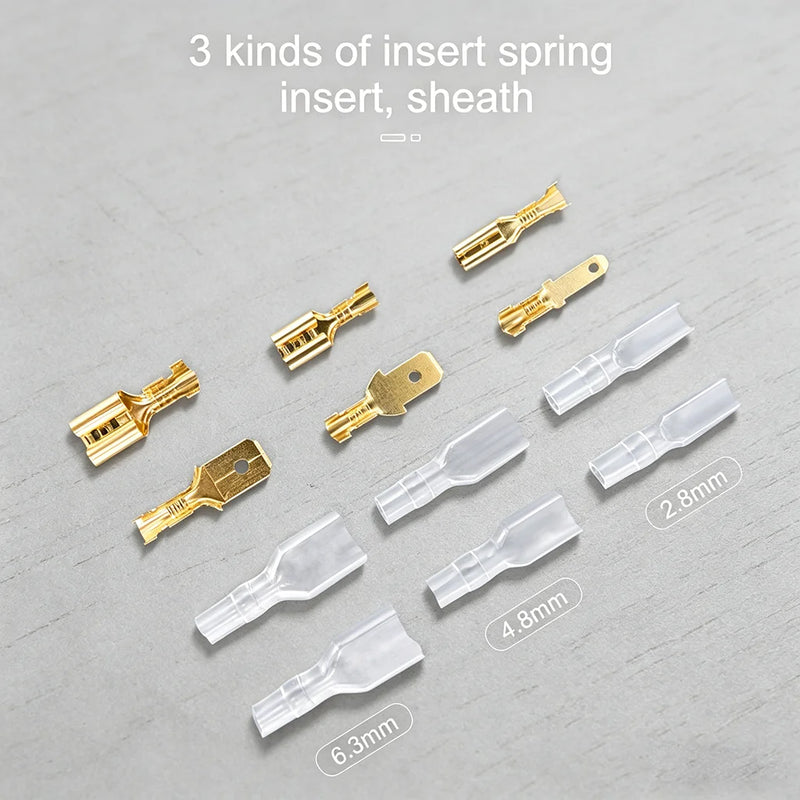

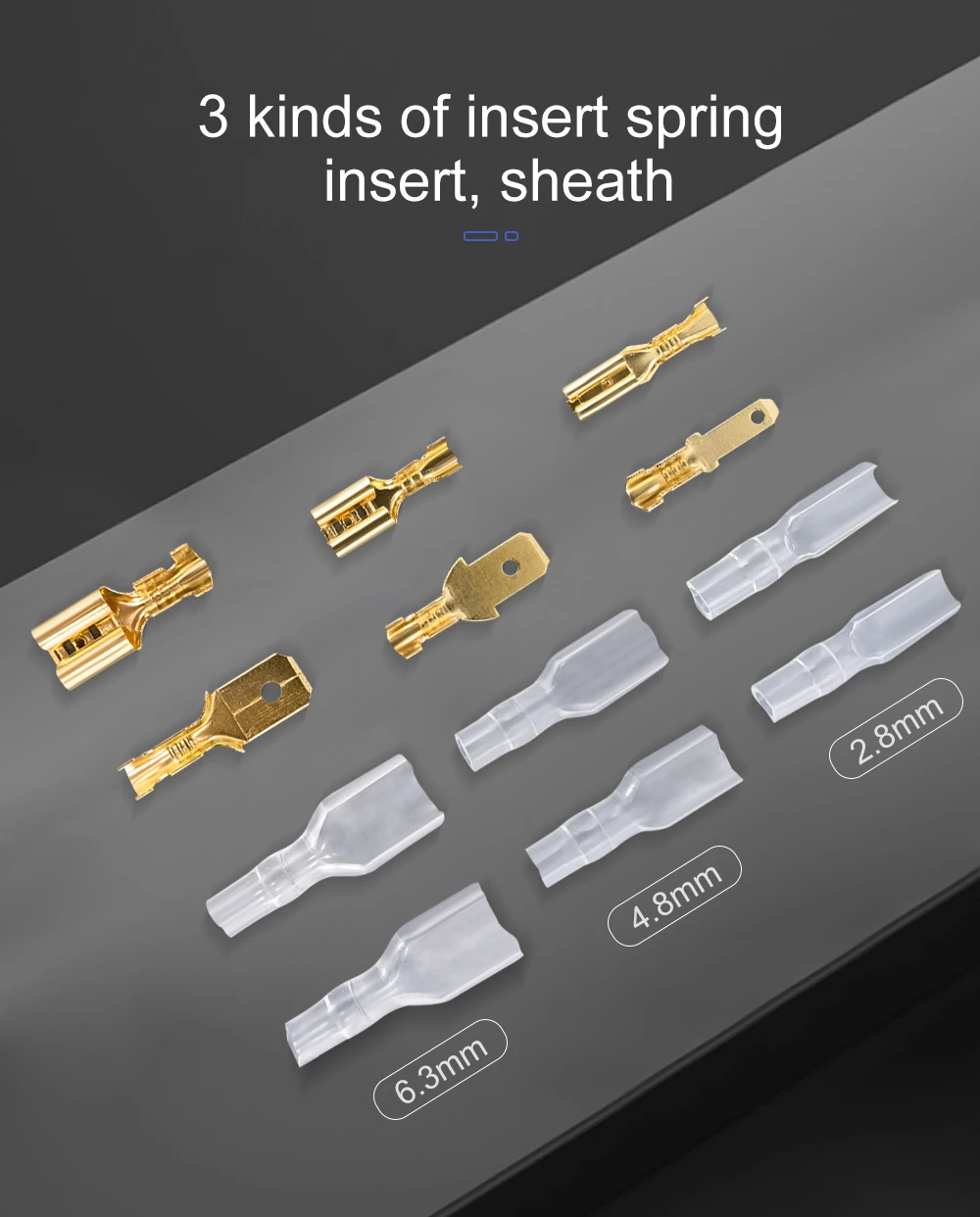

Terminal sizes: 2.8mm, 4.8mm, 6.3mm

Thickness: approx. 0.5mm

Wire size: 22–16 AWG (0.5mm²–1.5mm²)

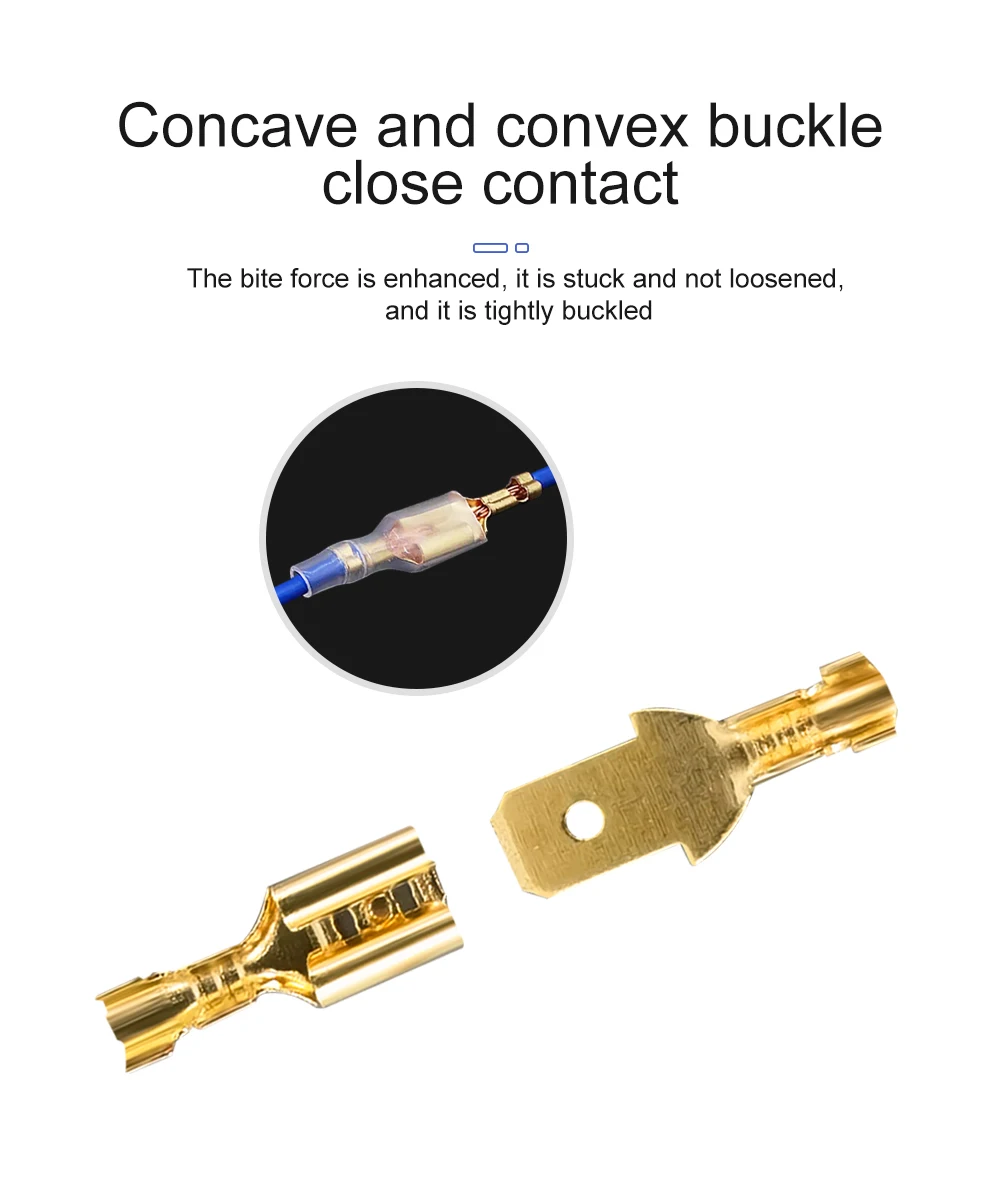

Terminal seam: Rolled and butted (does not open under normal stress or wire pull)

Barrel type: Full-port barrel (ideal for solid or stranded wires)

Features: Durable, easy to install

Applications: Machinery, electric power, railway, shipbuilding, aviation, home appliance, car/boat speaker, power cable connections

Note: Please allow 1-2mm error due to manual measurement. 120pcs kit does not include male terminals – purchase 270pcs kit for male+ female set.
