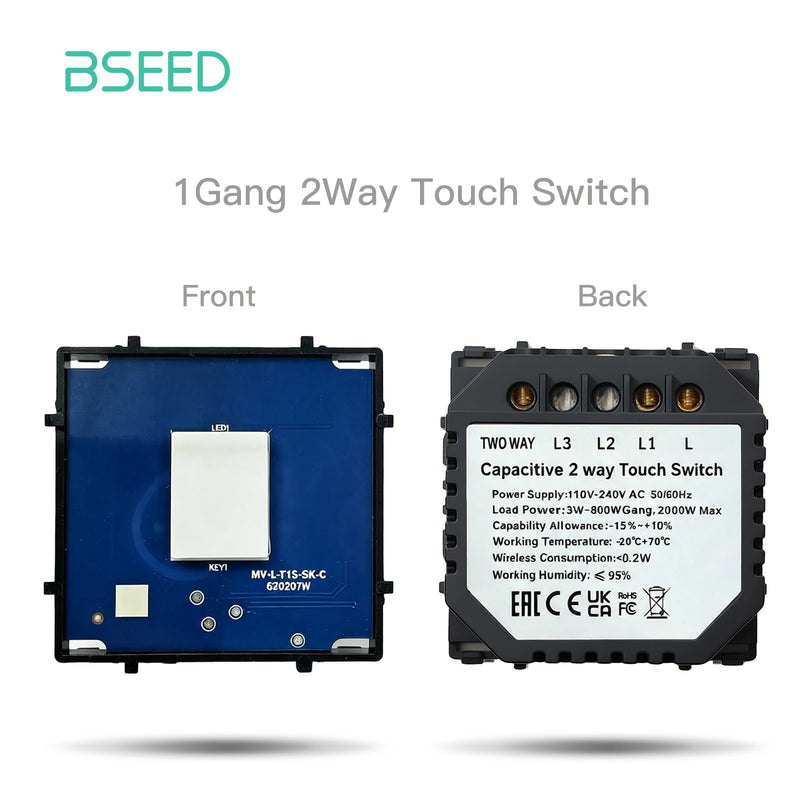

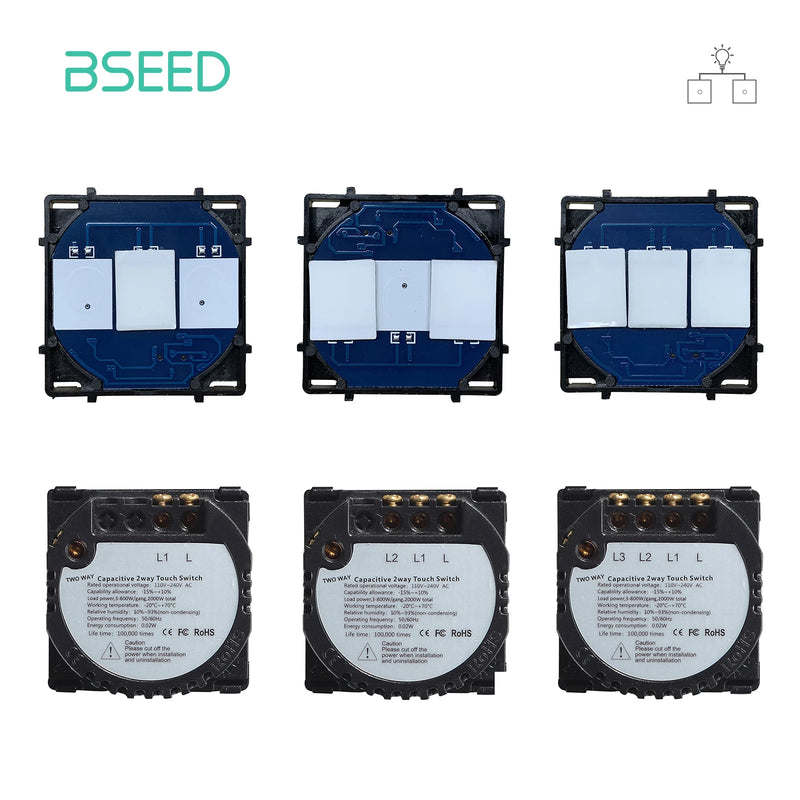

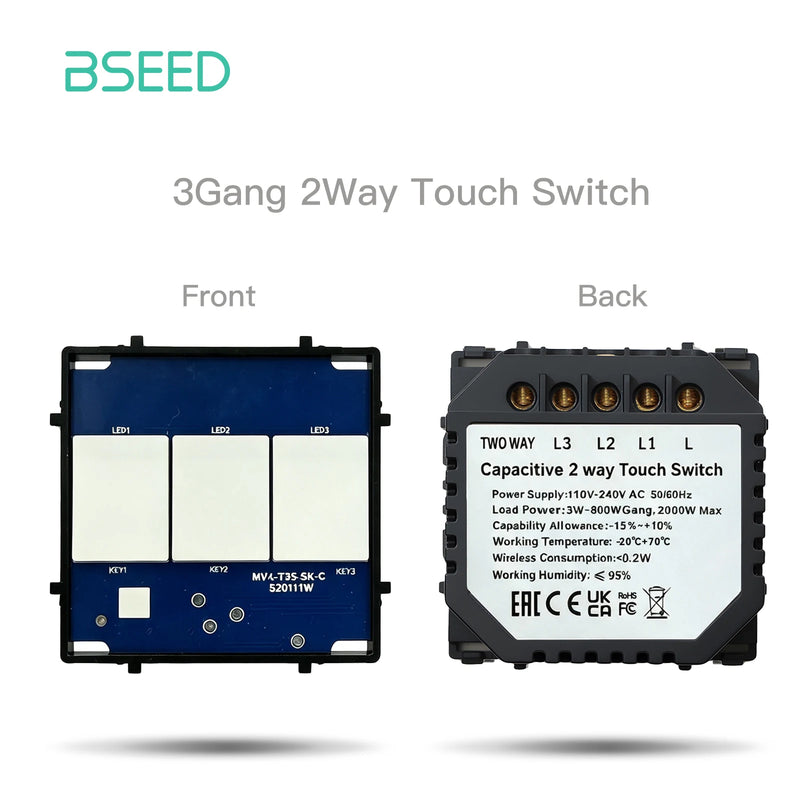

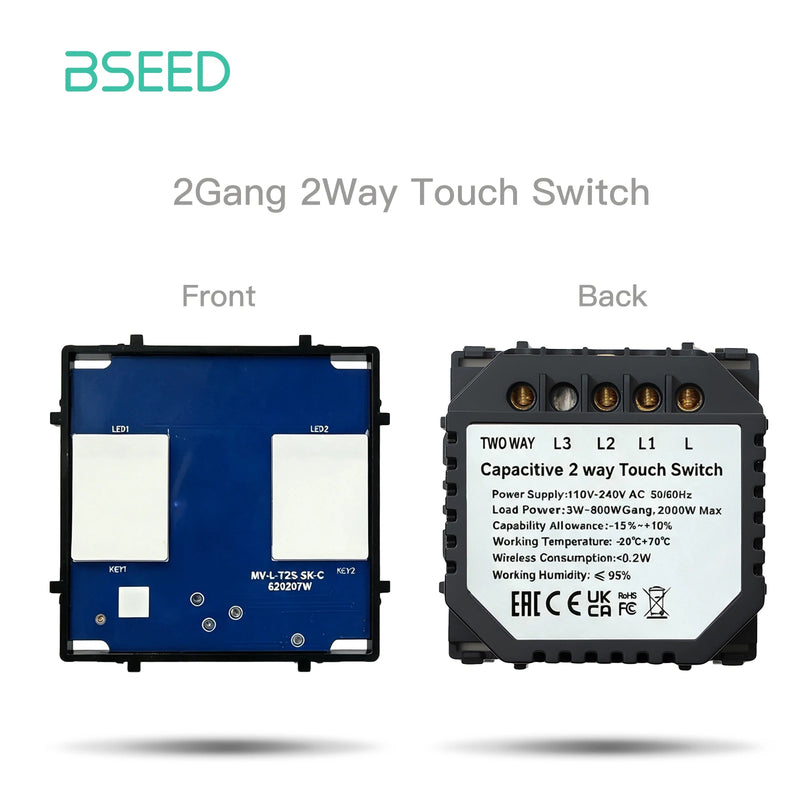

BSEED The Base Of 1/2/3Gang 2Way Wall Light Switch Touch Sensor Switch Parts 110-240V Without Panel Bule Backlight On OFF

SPECIFICATIONS

BackLight: ON-light Blue OFF-Weak Blue

Brand Name: BSEED

Certification: CCC,ce,FCC,ROHS

Current: 10A

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Energy Consumption: ≤0.02W

Features: Max.Load 2000W/Gang

High-concerned chemical: none

Item Type: SWITCHES

Material: Plastic,Plastic

Origin: Mainland China

Power Load: 3-800W/gang

Switch Function: On & OFF

Switch Type: Touch On/Off Switch

Wall Box Type: Round & Square

Wire: No Need Neutral Wire

Working Temperature: -20℃~+70℃

Working. Voltage: 110V-240V AC

BSEED The Base Of 1/2/3Gang 2Way Wall Light Switch Touch Sensor Switch Parts 110-240V Without Panel Bule Backlight On OFF

Product Introduction:

Rated Current: 10A

Rated Voltage: 110V-240V AC

Capability allowance: -15%~+ 10%

Working temperature: -20°C~ +70"C

Relative humidity: 10% -93%(non-condensing)

Operating frequency: 50/60Hz

Wireless consumption: ≤0.02W

Certifications: CE, BS, RoHS, GCC, FC

Life time: 100,000 times

Wire:NO need Neutral Wire

WIFI:No wifi function

Back Light: ON-light Blue OFF-Weak Blue (can not be canceled)

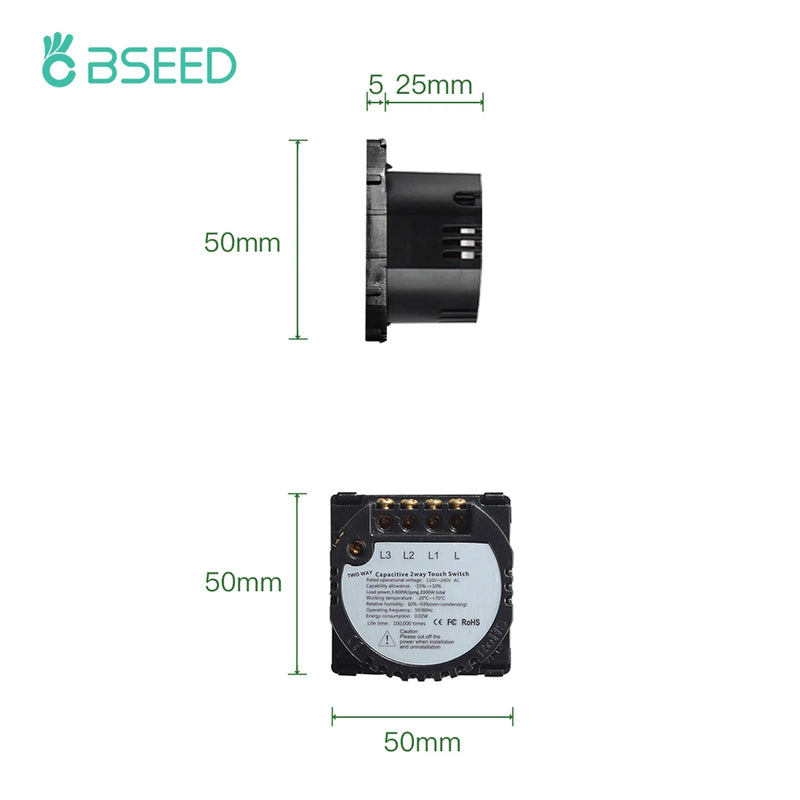

Moduel shape:Round

NOTE（1）:

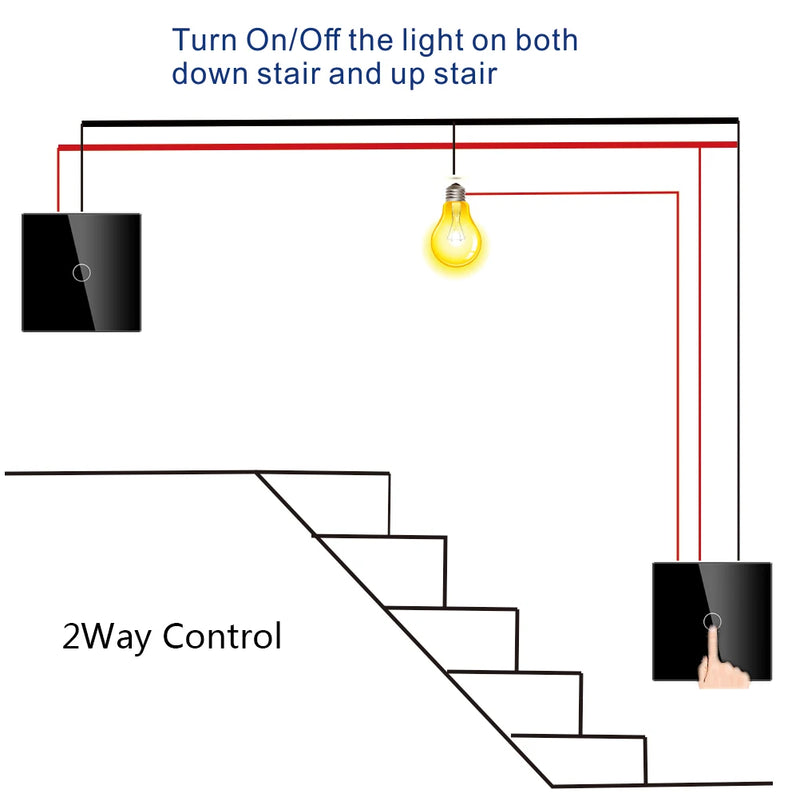

2 way means there's another switch controlling the same light. You can turn your lights on or off from two places, these are often used on a stair case, large room with switches by each door. for example both at the top and bottom of your stairs.

NOTE（2）:

2 way you need long press until the one switch's led backlight has to flash and press another switch to match. (That means you need to buy two switch at least.)
