BETAFPV C02 FPV Micro Camera for RC FPV Drone Meteor65, Beta65S, Beta85 pro2, HX100SE

BETAFPV Official Store, and please buy it with confidence!

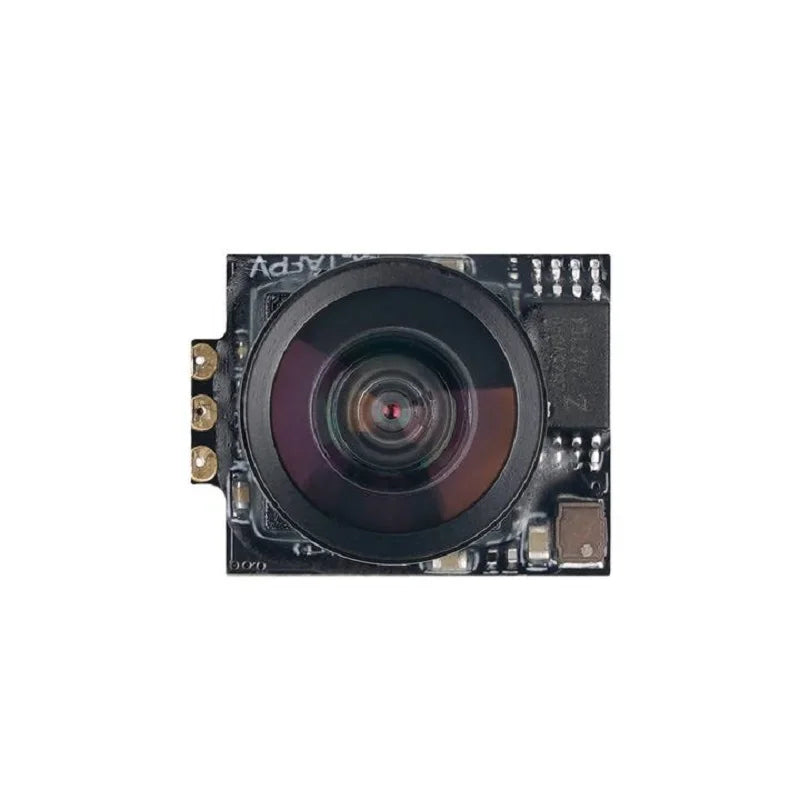

C02 Micro Camera is the lightweight camera customized for

those weight sensitive micro whoop drones, like Meteor65, Beta65S, Beta85 pro2, HX100SE. Adapted a 1/4'' CMOS sensor, 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

Plug-N-Play

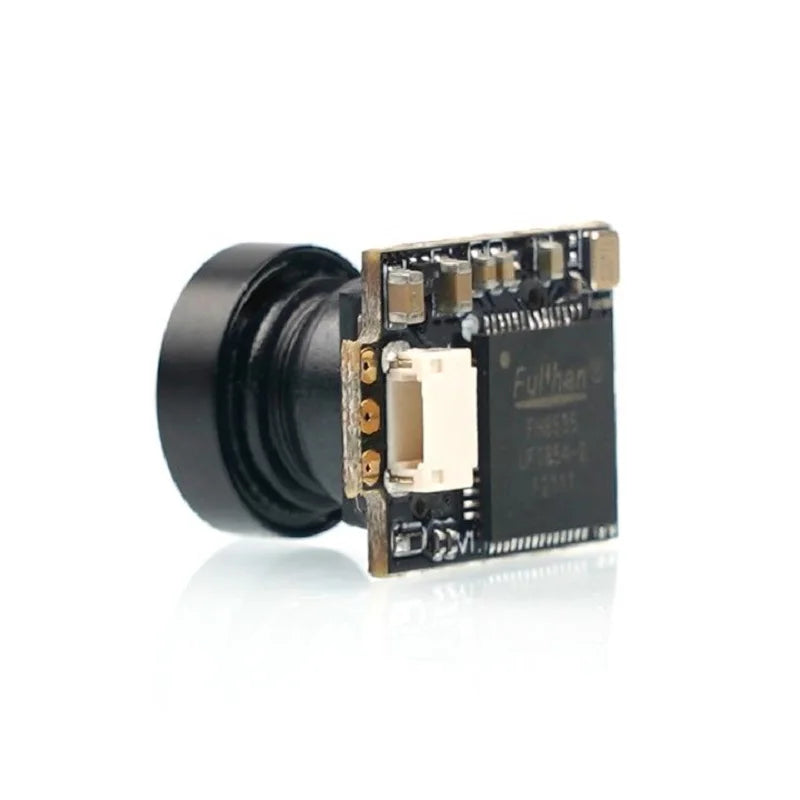

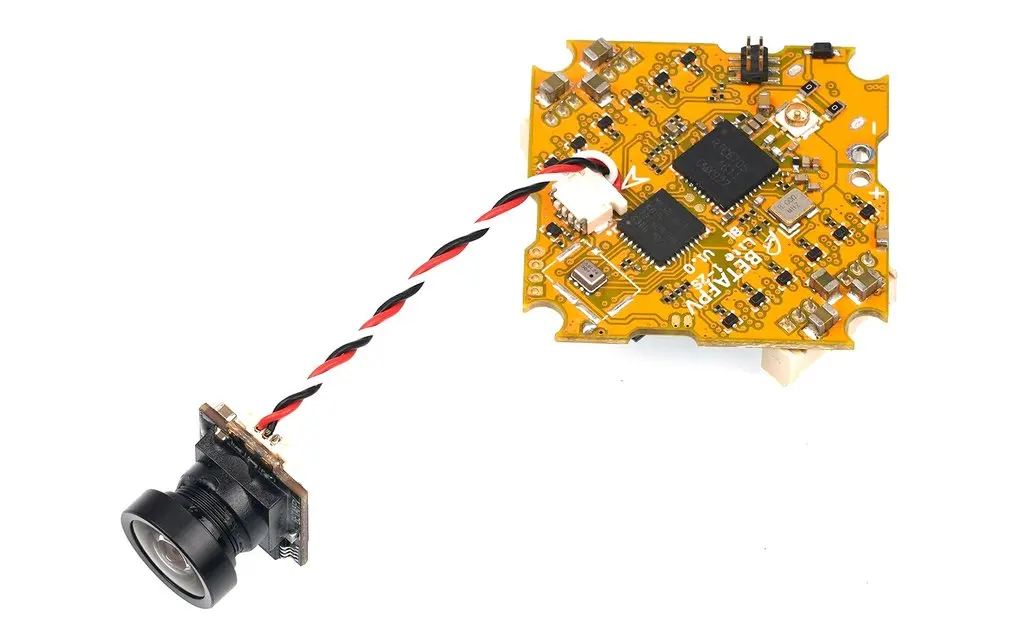

C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for BeeBrain flight controllers.

Bullet Points

• Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.

• 1200TVL resolution and 1/4'' CMOS sensor ensure a high-quality and clear image

• Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition

• 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes

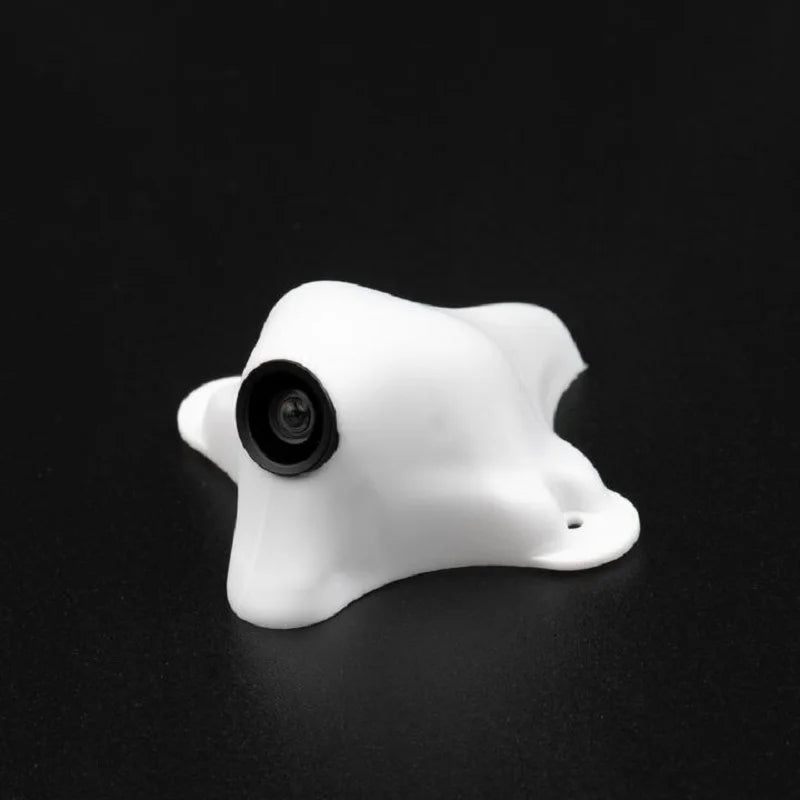

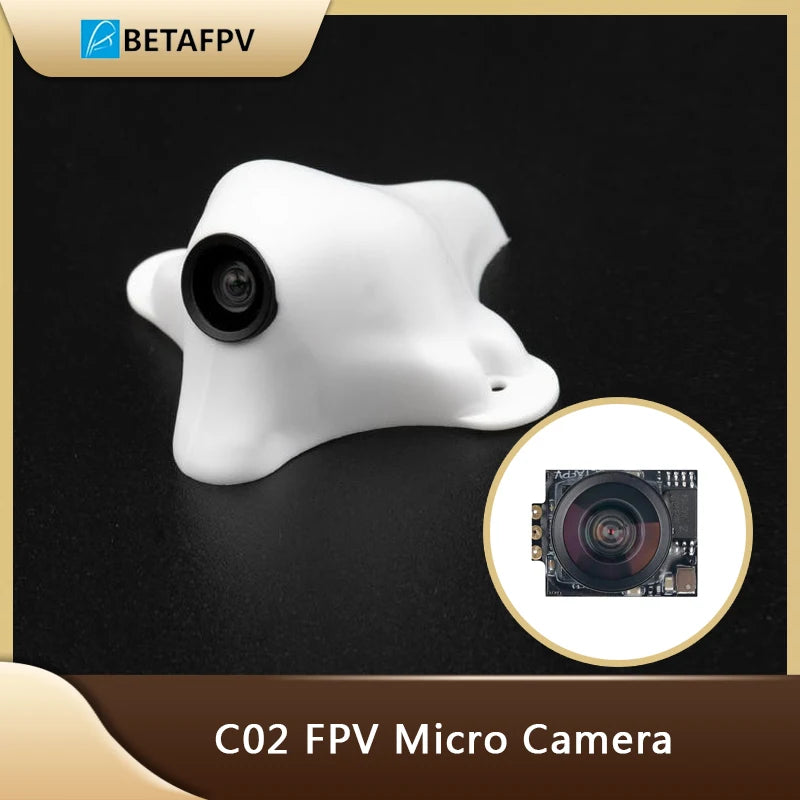

• The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

Specification

• Item: C02 Camera

• Image Sensor: 1/4'' CMOS Sensor

• Horizontal: 1200TVL with Global WDR

• Signal System: NTSC

• Lens : 2.1mm(M8) FOV 160°

• S/N Ratio: >50db

• Electronic Shutter Speed: Auto

• Auto Gain Control (AGC): Auto

• Min. Illumination: 0.01Lux@1.2F

• D-WDR: Auto

• Day/Night: Color

• Power: DC 3-5.5V

• Current: 110mA@5V / 120mA@3.3V

• Housing Material: ABS

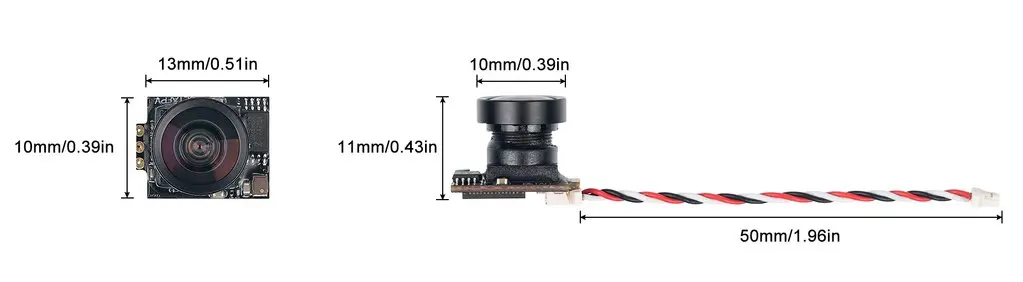

• Dimension: 13*11mm

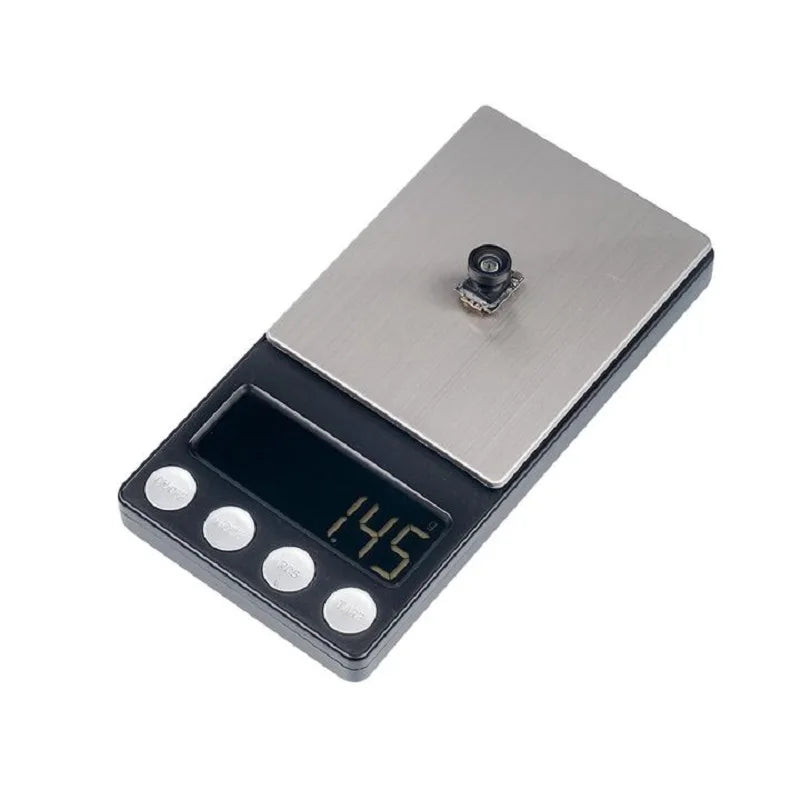

• Net weight: 1.4g

Package

• 1 * C02 FPV Micro Camera

• 1 * Injection Molded Canopy

• 1 * 1/4'' Camera Mounting hardware
