For nearly two years, the Air65 Frame defined lightweight agility. Now, forged alongside our global pilot community, the 2.65g Air65 II Frame reimagines the form. Our R&D team deconstructed every arm brace, duct geometry, and crash point. The result? A radical yet refined frame: 4 arm braces replace 6, paired with optimized ducts and connecting structure. This shaves frame amplitude while adding 5% thrust and delivering near-perfect PID response. Beneath the form lies resilience. An optimized PP matrix absorbs brutal impacts from crashes. Refined details – screw protection structure, enlarged FC holes, and a lowered duct profile – ensure dominance. All engineered for relentless, worry-free flying.

Bullet Points

• Arm braces reduced from 6 to 4 + optimized duct geometry increase 5% thrust—while maintaining uncompromising durability.

• Optimized connecting braces reduce frame amplitude and achieve ideal PID step response.

• Optimized PP blend makes it crash ready.

• Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile.

Specifications

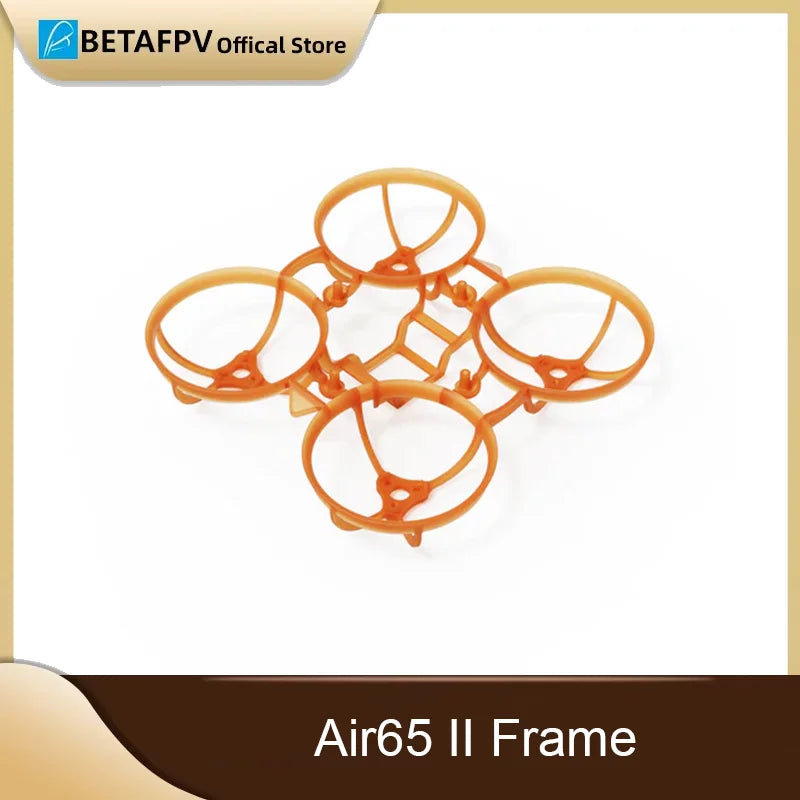

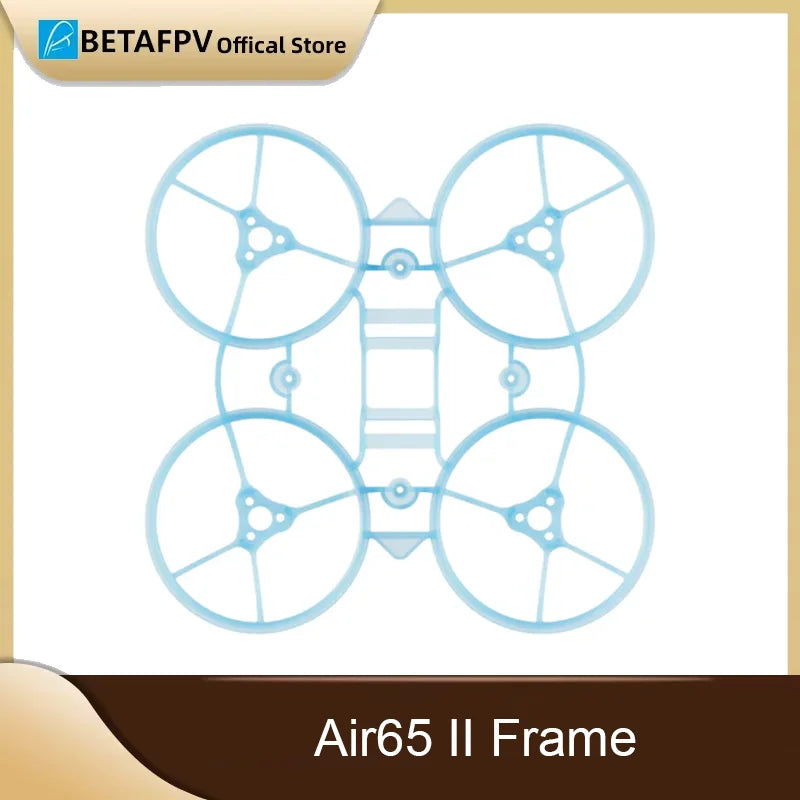

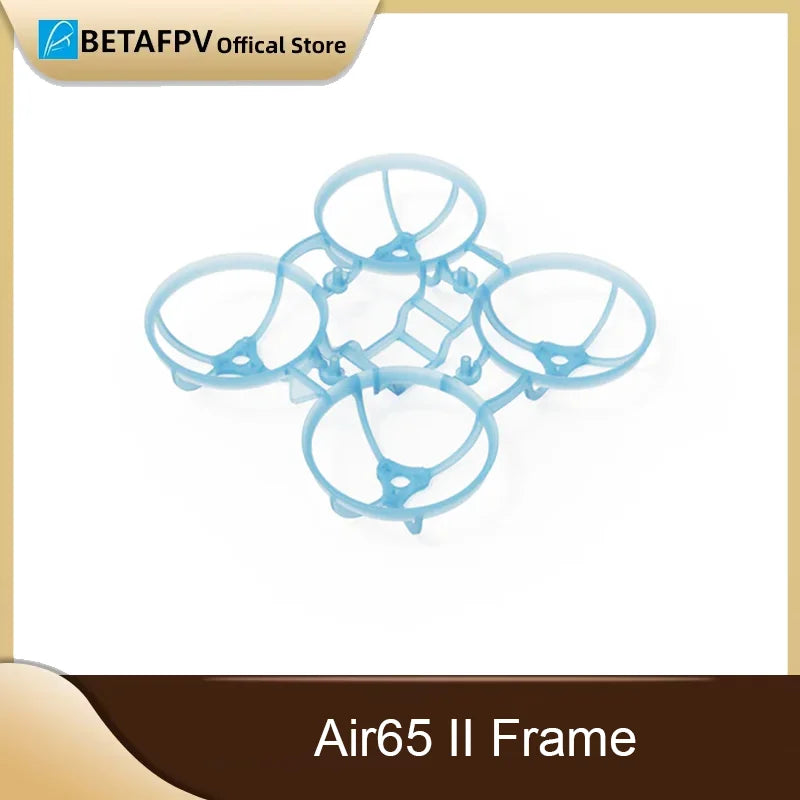

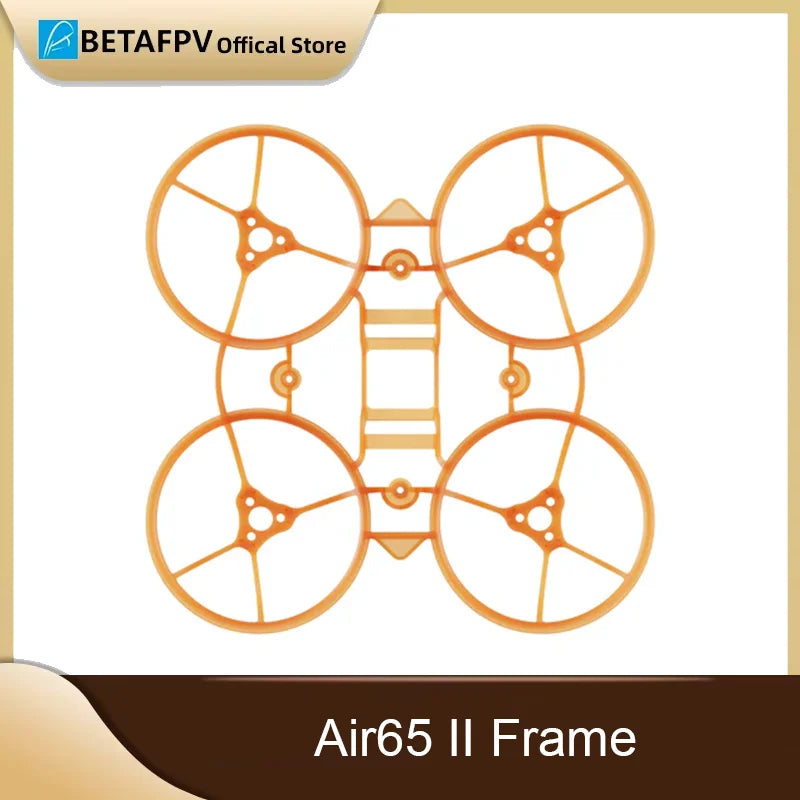

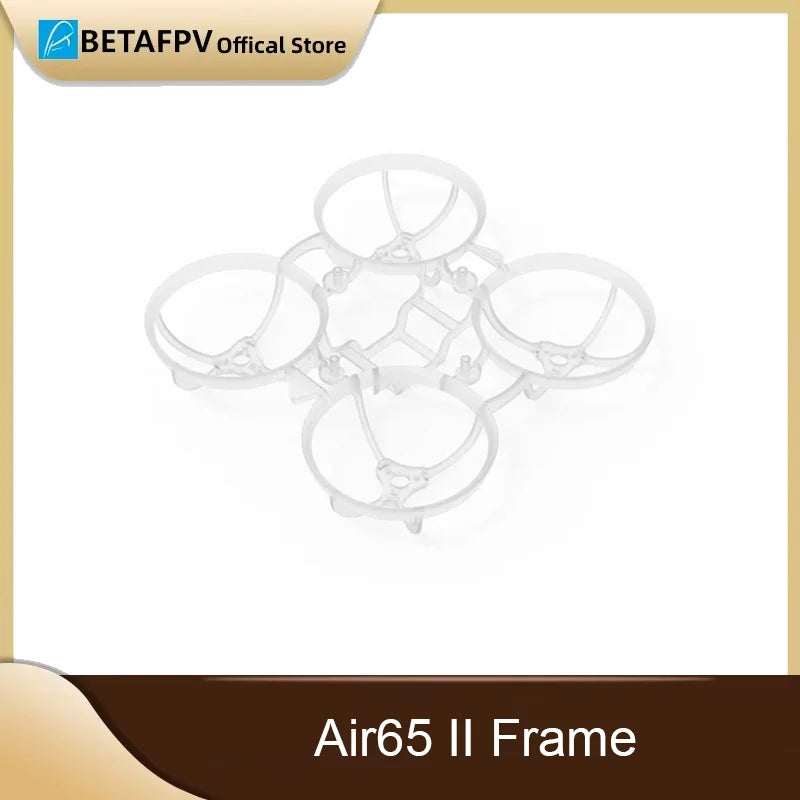

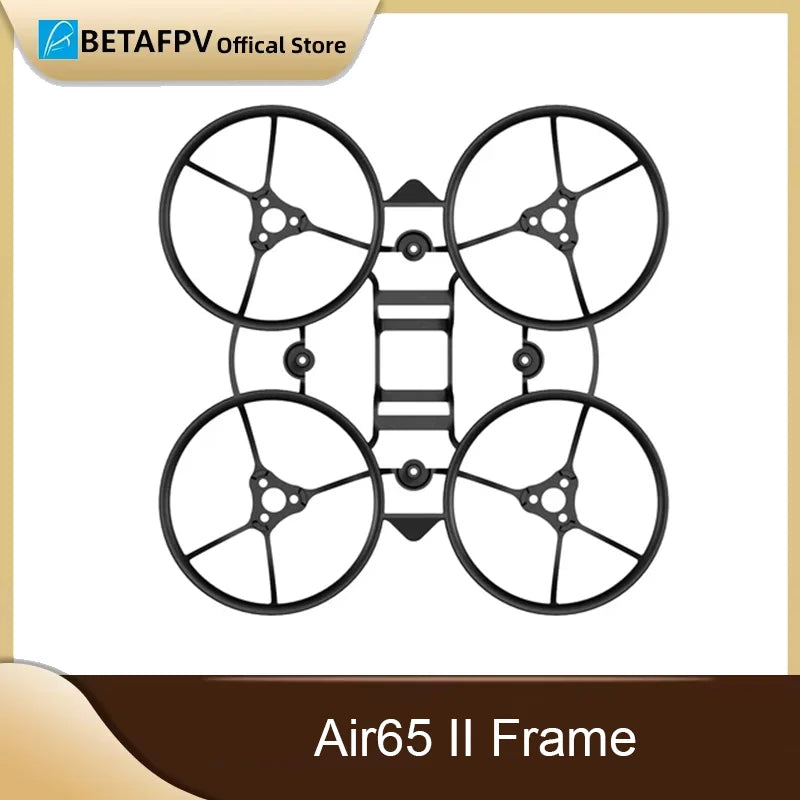

• Item: Air65 II Brushless Whoop Frame

• Material: PP

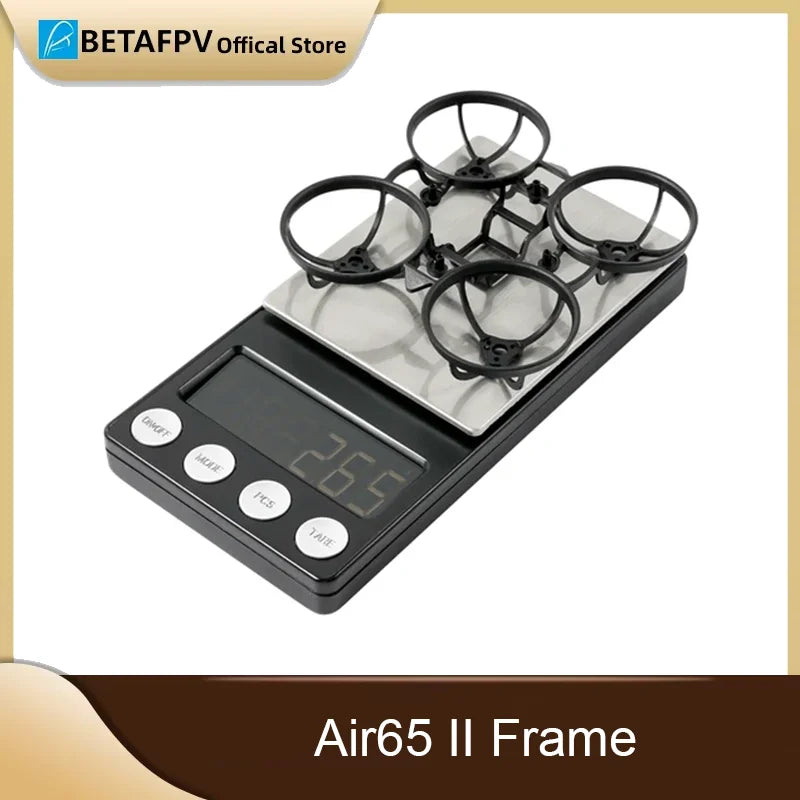

• Weight: 2.65g

• Wheelbase: 65mm

• Motor Mounting: 3-M1.4-6.6mm

• Flight Controller Mounting Hole: 25.5×25.5mm

• Battery Slot Size: 11.4×6.2mm

• Maximum Size: 82.6*82.6*15.1mm

• Color: Black, Transparent Blue, Transparent Orange, Transparent Purple, Transparent White

•


Diagram

Frame Reshaped: +5% Thrust

By strategically reducing arm braces from 6 to 4 and refining duct aerodynamics, the Air65 II achieves 5% higher thrust versus Gen 1 –  delivering instant throttle response and sustained power for the quadcopter.

• Reliable Flight

After dozens of structural refinements, our final connecting arms design effectively reduce frame vibration. Paired with Feedforward tuning, this achieves a near-perfect PID step response with <12ms lag – translating to crisp maneuvers and buttery-smooth freestyle flow.

Optimized Resilient Material

Our battle-tested PP blend laughs off concrete kisses and tree bites. Survive your most violent freestyle crashes – and fly home.

Details Matter

Every gram perfected: Retained motor fixed slots ensure precise alignment, new motor screw protection structures deflect crash impacts, enlarged 1.2mm FC holes fit 1.4mm screws effortlessly, and our 12.4mm lowered ducts (-0.6mm) plus 3.8mm slim profile clear short-can motors. Where pilot priorities meet engineering obsession.

Recommended Parts

• Battery: LAVA 1S 260mAh 80C Battery, LAVA 1S 300mAh 75C Battery

• FC: Air Brushless Flight Controller, Matrix 1S Brushless Flight Controller (3IN1/4IN1), Matrix 1S Brushless Flight Controller (5IN1)

• Motors: 0702 II Brushless Motors, 0802SE Brushless Motors

• Canopy: Air Canopy, Canopy for Micro Camera 2022, Micro Canopy Lite

• Propellers: GF 1219S 3-Blade Propellers, HQ 31mm Ultralight 3-Blade Propellers

• Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

Package

• 1 * Air65 II Brushless Whoop Frame
