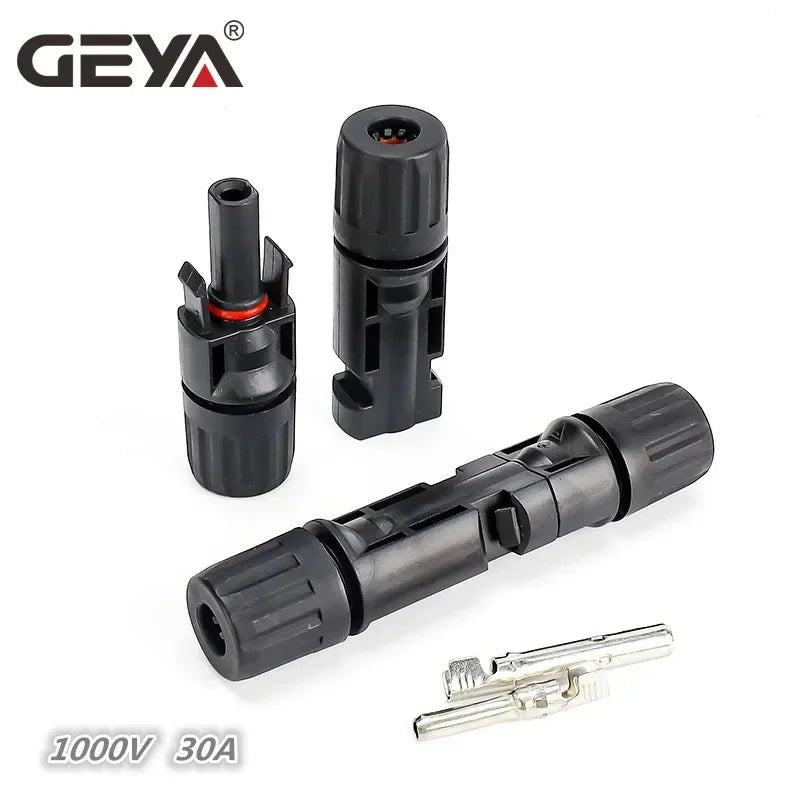

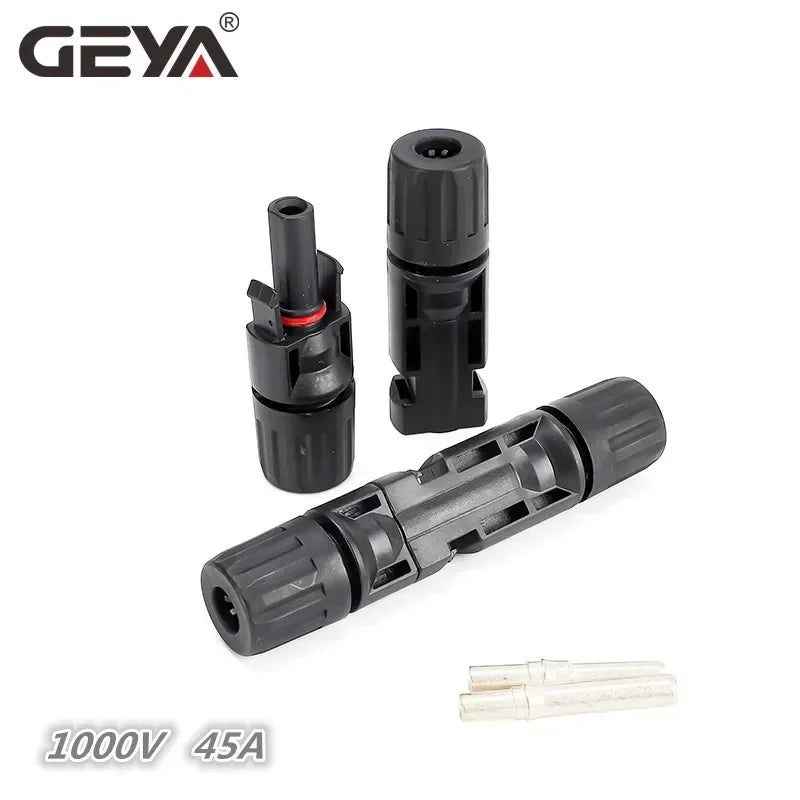

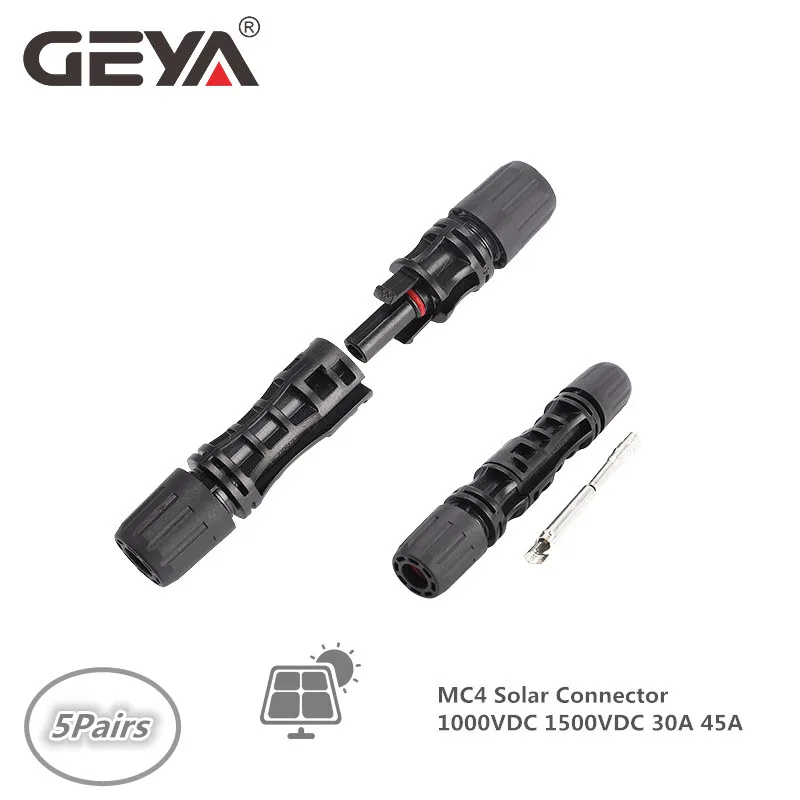

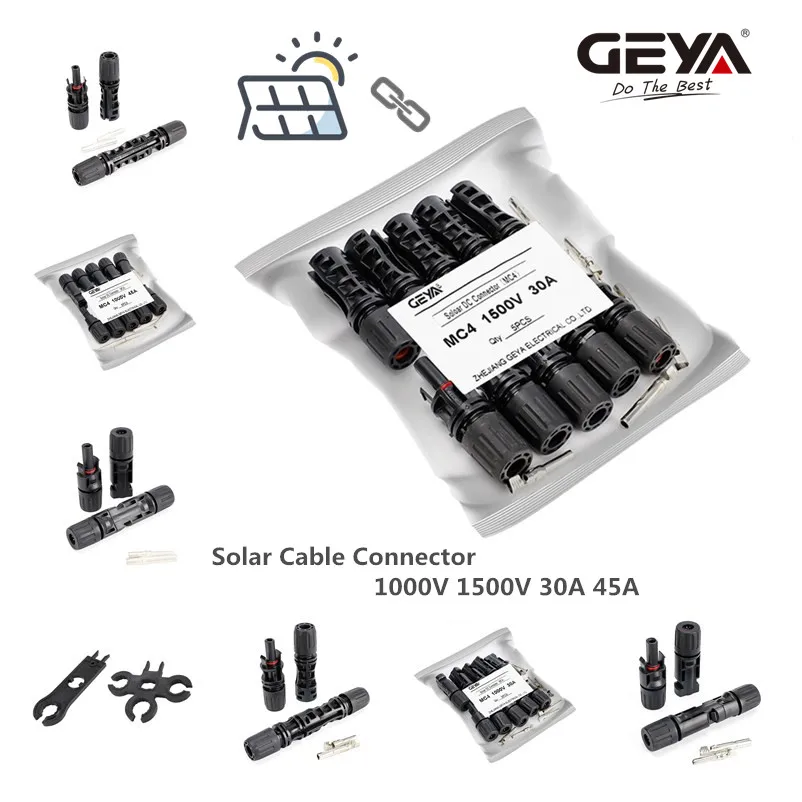

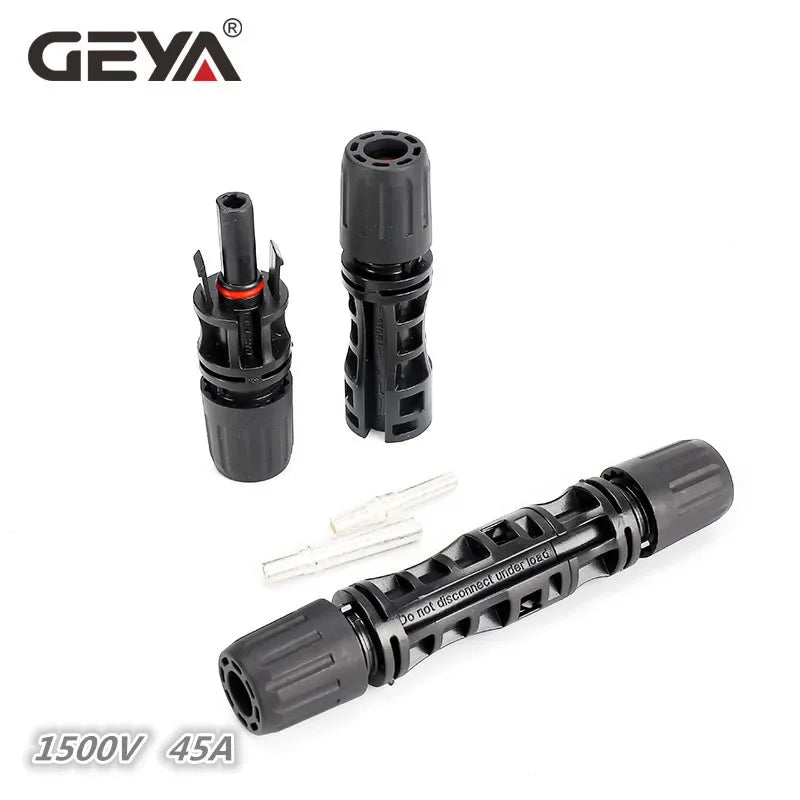

-5 Pairs Solar Panel Cable Connectors (Compatible with MC4) (5pcs MC4 Male and 5pcs MC4 Female).
-WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow.
-Compatible with PV cables with different insulation diameters (2.5m㎡--6m㎡).
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
-Good waterproof performance for outdoors usage.

Specifications

* Rated current: 30A (2.5m㎡--6m㎡)

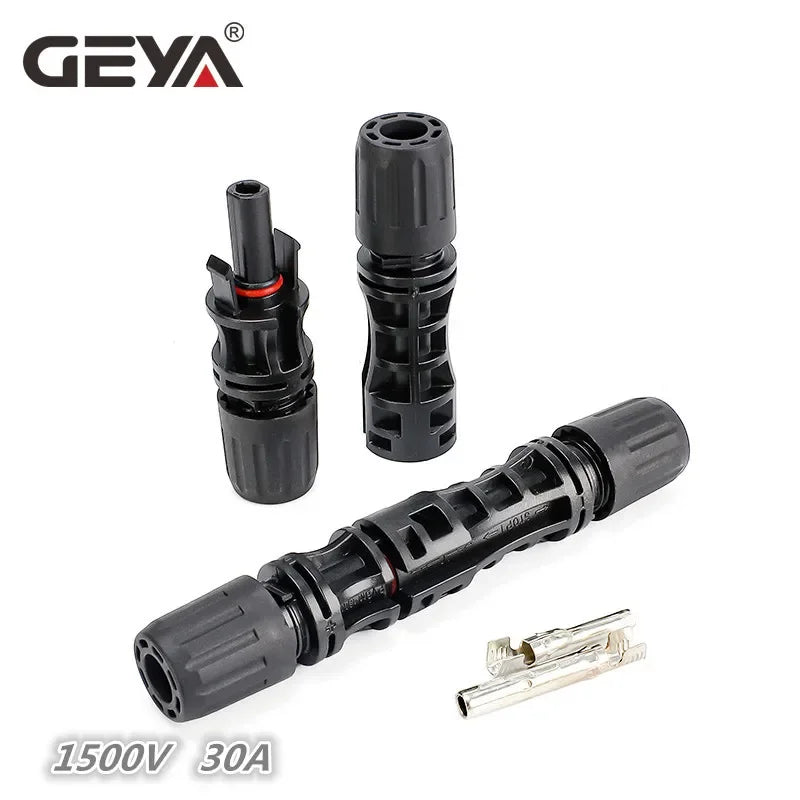

* Rated voltage: 1000V DC, 1500V DC
* Connector contact resistance:≤0.5mΩ
* Degree of waterproof: IP67
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
* Adapter Wire: OD 5mm-7mm
* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃～ +85℃
* Connection: Clamp

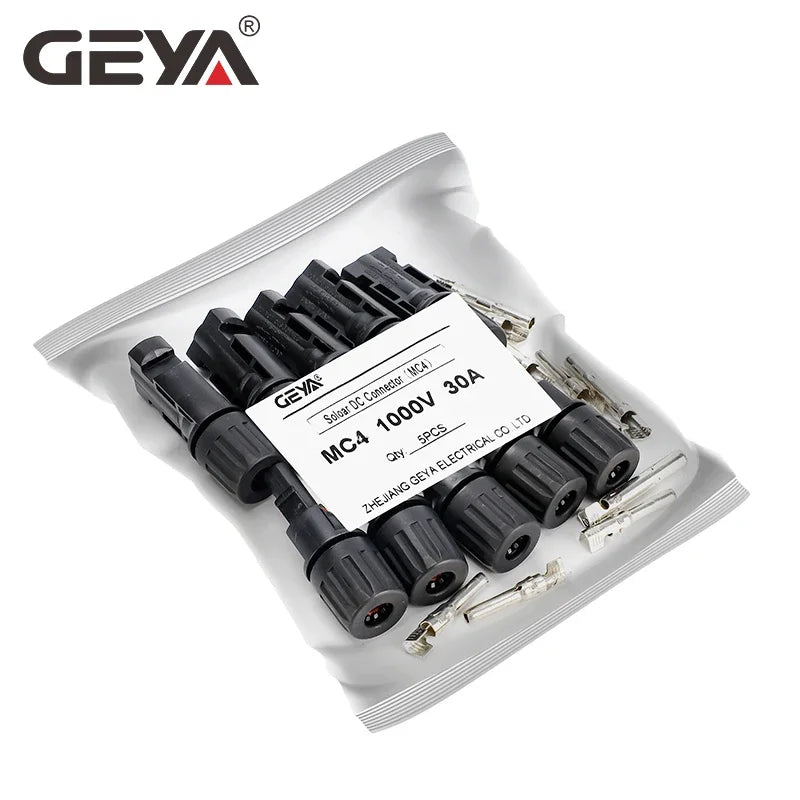

Package include

* 5x male connectors
* 5x female connectors
* 5 pairs Solar Connector Pins (male &female)
