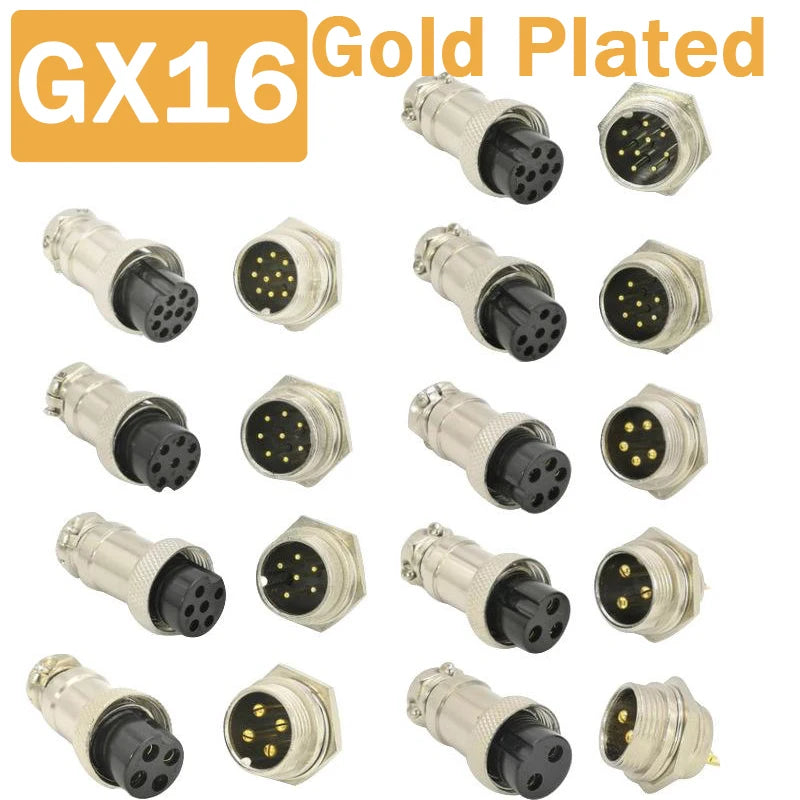

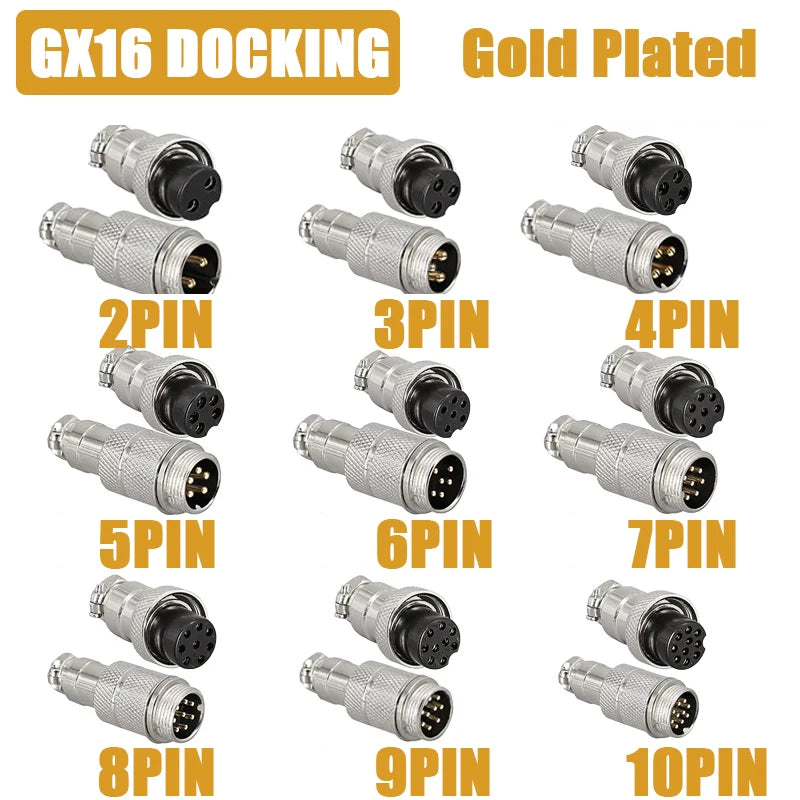

20Sets GX16 Gold Plated Aviation Connector 2/3/4/5/6/7/8/9/10 Pin Male & Female Circular Plug Socket Set for Signal & Power

Name: សំណុំឧបករណ៍ភ្ជាប់អាកាសចរណ៍ GX16 ស្រោបមាស 2/3/4/5/6/7/8/9/10 ម្ជុលប្រុស និងស្រី ឈុតរន្ធដោតរាងជារង្វង់ សម្រាប់សញ្ញា និងថាមពល
Brand: DARAHUB Store
SKU: 1005011919263016-GX16 Male Head-20 Sets-5P
Price: 20.74 USD
Availability: OutOfStock

SPECIFICATIONS

Brand Name: NONE

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model: 2PIN,3PIN,4PIN,5PIN,6PIN,7PIN,8PIN,9PIN,10PIN

Model Number: GX16

Origin: Mainland China

Voltage: 24V

semi_Choice: yes

technology1: Gilding

technology2: Gold-Plated

Product name: GX12 GX16 GX20 aviation plug
Contact resistance: every contact resistance is not greater than 0.005 Ω
Ambient temperature: -50℃--7℃
The materials of the needle: the copper plating Gold
Plug: threaded connection

Parameter:
1. GX12 Aviation Connector
Mounting Hole Diameter: 12mm
Pins Number: 2/3/4/5/6/7 pins
Material: Zinc Alloy/ Copper Ally

The materials of the needle: the copper plating Gold
Termination Diameter: ≤5.0mm
2. GX16 Aviation Connector
Mounting Hole Diameter: 16mm
Pins Number: 2/3/4/5/6/7/8/9/10 cores
Material: Zinc Alloy/ Copper Ally

The materials of the needle: the copper plating Gold
Termination Diameter: ≤7.5mm
3. GX20 Air Connector
Mounting Hole Diameter: 20mm
Pins Number: 2/3/4/5/6/7/8/9/10/12/14/15 Pin cores
Material: Zinc Alloy/ Copper Ally

The materials of the needle: the copper plating Gold
Termination Diameter: ≤9.5mm

Packing list:
5sets= 5pcs Male Connector +5pcs Female Connector
20sets= 20pcs Male Connector +20pcs Female Connector

100sets = 100pcs Male Connector +100pcs Female Connector
